Owner’s Manual

TWO-WAY RADIO MODEL

LI 7000 WX

Nothing Comes Close to a Cobra

Printed in Thailand

Part No. 480-322-P

Version A

English

Introduction

Staying in touch with your family and friends is convenient and easy when using your microTALK radio. Some of the many uses you will discover include:

Making Life Easier and Safer

Communicating with others while hiking, biking and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall.

Belt Clip

Secure your microTALK radio while on the go.

Carrying your microTALK

radio with

you is easy when using the belt clip. The belt clip easily attaches to your belt,

purse or backpack. Simply squeeze the clip and place it where you prefer.

Customer Assistance

For Assistance in the U.S.A.

In this user’s manual, you should find all the information you need to operate your microTALK assistance after reading this manual, Cobra Electronics offers the following customer assistance services:

Automated Help Desk

English only. 24 hours a day, 7 days a week 773-889-3087 (phone).

radio. If you require further

Customer Assistance Operators

English and Spanish. 8:00 a.m. to 6:00 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone).

Questions

English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance

English only. www.cobra.com (on-line: Frequently Asked Questions). English and Spanish. productinfo

For Assistance Outside the U.S.A.

Contact Your Local Dealer

@cobra.com (e-mail).

6500 West Cortland Street

Chicago, Illinois 60707 USA

www.cobra.com

Introduction

Product Features

1. Antenna

2. External Speaker/ Microphone/Charge Jack

3. Backlit LCD Display

4. On/Off Power Button

5. Hi-Low Power Button

6. Channel Up/Down Buttons

7. Mode Button

8. Lock/Enter Button

9. Speaker/Microphone

10. Volume Up/Down Buttons

11. Light/Max Range Button

12. Tal k Button

13. Call Button

14. Wrist Strap Connector

15. Belt Clip

16. Battery Compartment

17. Battery Door Latch

Introduction

Features

• 22 Channels

Seven shared with FRS/GMRS, seven FRS only, eight GMRS only

• 10 Channel NOAA

ALL Hazards Radio

• 121 Privacy Codes

(38 CTCSS codes/ 83 DCS codes)

• Hands-Free

Operation (VOX)

• VibrAlert Silent Paging

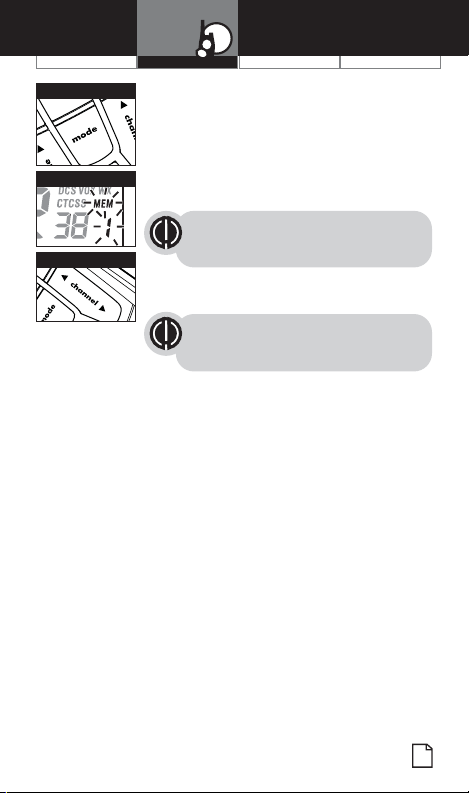

• 10 Channel Memory

• Signal Strength Meter

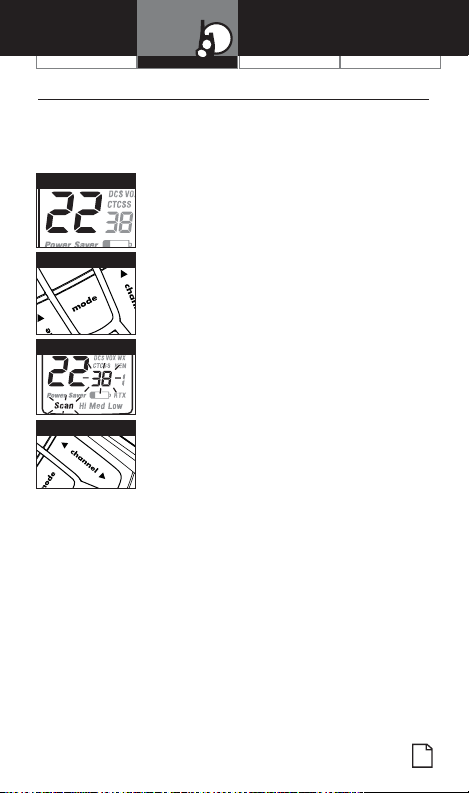

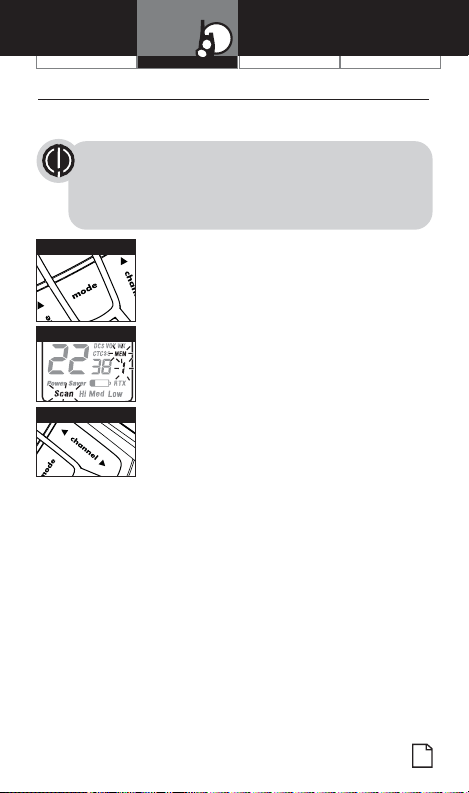

• Scan Channel, privacy codes, memory

• Selectable

Hi•Med•Low Power

In GMRS

• Backlit

LCD Display

• Button Lock

• Call Alert 10 selectable tones

• Speaker/

Microphone/ Charge Jack

• Roger Beep Selectable on/off

• Battery/

Power Saver

• Keystroke Tones Selectable on/off

• Auto Squelch

• Maximum Range

Extender

• Belt Clip

Product Features

Backlit LCD Display

1516

11. Memory Location

12. Privacy Code

13. Receive/Transmit

14. Hi-Med-Low Power

15. Battery Low

16. Scan Icon

17. Power Saver Icon

18. Channel Numbers

1. Signal Strength Meter Icon

2. Call Alert and VibrAlert®Icon

3. Lock Icon

4. Keystroke Tones Icon

5. DCS Icon

6. Roger Beep Icon

7. VOX Icon

8. NOAA All Hazards Radio Icon

9. Memory Icon

10. CTCSS Icon

Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions.

Important FCC Licensing Information

This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 27 for licensing and other related information.

Number

Numbers

Icon

Icons

Indicator

Introduction

Caring for Your microTALK®Radio

Your microTALK if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures.

Remove Belt Clip

Operation

radio will give you years of trouble-free service

Customer Assistance

Warranty

Rechargeable Battery Pack and Desktop Charger

To install or replace battery pack:

1. Remove belt clip by releasing belt clip

Pull Down Latch

latch and sliding clip up.

2. Pull down on the battery door latch to remove

the battery compartment cover.

3. Insert lithium ion battery pack. Position

Insert Battery Pack

battery pack as shown in radio.

4. Replace battery compartment cover

and belt clip.

Estimated operation time on full charge: 12 hours.

Rechargeable battery packs must be recycled or disposed of properly in compliance with all applicable laws. They may not be thrown in the trash.

Certain states or municipalities require recycling and have established collection programs. Please contact your local waste removal authority for instructions, or return to Cobra for recycling.

Wrap battery packs carefully and mail postage prepaid to: Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, IL 60707 USA, Attn: Battery Recycling.

Do not put battery packs into fire or expose to high heat. They may explode.

•

Introduction

Insert Radio(s)

Using Your Radio

For charging microTALK®radio(s) in desktop charger:

1. Insert radio(s) into desktop charger as shown.

2. Insert round connector of 120-volt adapter

into jack on back of charger.

3. Plug 120-volt adapter into electrical outlet.

If charging light is not on, check position of radio. Radio should be upright. The charge indicator light will stay on as long as the radio is in the charging well and the battery pack is charging. After the battery pack is fully charged, the charge indicator light will turn off.

It normally takes about 15 hours to fully recharge battery pack. Battery pack will not be damaged if they stay in the charging well longer than that.

NOTE

To charge a single radio, you can bypass the desktop charger and simply insert the wall adapter’s round connector directly into the speaker/microphone/charge jack located on the top of the radio.

Use only the supplied rechargeable batteries and charger for recharging your Cobra microTALK

radio.

Cobra recommends your radio is turned off while being charged.

Quick Start

1. Press and hold the Power button to turn on your radio.

2. Press the Channel Up or Channel Down button to select a channel.

Both radios must be tuned to the same channel/privacy code to communicate.

3. Press and hold the Ta lk button while speaking into the microphone.

4. When finished talking, release the Ta lk button and listen for a response.

On/Off Power

Battery Low

Battery Save Mode

Talk Button

Two Inches (5 cm) from Mouth

Customer Assistance WarrantyIntroduction Operation

Turning on Your microTALK®Radio

Press and hold the Power button until you hear a series of audible tones indicating the radio is on.

Your microTALK mode, ready to receive transmissions. The radio is always in Standby mode, except when the Tal k, Call, Mode or Power buttons are pressed.

radio is now in Standby

Battery Low

When battery power is low, the Battery Low icon will blink. Your batteries should be recharged.

Auto Battery Save

Your microTALK designed to extend battery life. If there are no transmissions for 10 seconds, the radio will automatically switch to Battery Save mode and the Power Saver icon will flash in the display.

radio has a unique circuit

This will not affect the radio’s ability to receive incoming transmissions.

Communicating with Another Person

1. Press and hold the Ta lk button.

2. With the microphone about 2 inches

(5 cm) from your mouth, speak in a normal voice.

3. Release the Ta lk button when you are finished talking and listen for a response.

You cannot receive incoming calls while pressing the Tal k button.

Both radios must be tuned to the same channel/privacy code to communicate.

•

Operation

Channel Buttons

Channel Number

Using Your Radio

Channels

With the radio on, select any of the 22 channels by pressing the Channel Up or Channel Down button.

Both radios must be tuned to the same channel to communicate.

Channels 1 through 7 are shared by FRS and GMRS. Channels 8 through 14 are FRS only. Channels 15 through 22 are GMRS only.

See page 26 for FRS/GMRS frequency allocations and compatibility charts.

•

Listening

Call Button

Light/Max Range

Listening for a Response

Release the Tal k button to receive incoming transmissions. Your microTALK in Standby mode while the Ta lk or Call buttons are not pressed.

radio is always

Call Button

To alert another person that you are calling: – Press and release the Call button.

The other person will hear a two (2) second call tone. This tone is used only to establish voice communications.

See page 24 on how to select from 10 available call tone settings.

To Illuminate Display

Press and release the Light/Max Range button to illuminate the display for 10 seconds.

•

Talk Button

Hi-Low Button

Hi Power Icon

Medium Power Icon

Low Power Icon

Operation

Customer Assistance WarrantyIntroduction

Time-out Timer

The Time-out Timer feature limits transmit time to three (3) continuous minutes to extend battery life and prevent accidental operation. After three (3) continuous minutes of transmission, the radio will stop transmitting and will require a rest period of 30 seconds. During this time the display will flash on and off, and an error tone will sound if the Push-to-Talk button is pressed.

Selectable High•Medium•Low Power Output

When in close proximity to another party or during favorable conditions, you can switch from High to Medium to Low Power to extend battery life.

This feature applies to GMRS Channels 1 through 7 and 15 through 22 only. Channels 8 through 14 operate exclusively on low power.

To switch from high to medium to low power: – Press and release the Hi•Low button.

When in High Power and using Channels 1 through 7 and 15 through 22, the Hi icon will be visible in the LCD display.

When in Medium Power and using Channels 1 through 7 and 15 through 22, the Med icon will be visible in the LCD.

When in Low Power or while using channels 8 through 14, the Low icon will be visible in the display.

When using an external speaker/ microphone accessory on channels 1-7 or 15-22, your microTALK only operate on medium or low power.

radio will

•

Operation

Auto Squelch/Maximum Range

Your microTALK automatically shuts off weak transmissions and unwanted noise due to terrain and conditions. This slightly reduces the Maximum Range at which signals can be heard.

You can turn off auto squelch to allow all signals to be received and extend the maximum range of your radio.

Light/Max Range

Using Your Radio

radio is equipped with Auto Squelch, which

To briefly turn off auto squelch: – Press the Light/Max Range button

for less than five (5) seconds.

If you hear two (2) beeps, you have turned the maximum range extender on (see below).

To turn maximum range extender on: – Press and hold the Light/Max Range button

for at least five (5) seconds until you hear two (2) beeps which indicates the maximum range extender is on.

To turn maximum range extender off: – Press and release the Light/Max Range

button or change channels.

Lock Feature

The Lock feature locks the Channel, Mode, Hi•Low and Power buttons to prevent accidental operation.

Lock/Enter Button

To turn the lock feature on or off: – Press and hold the Lock/Enter button for

two (2) seconds.

A double beep sound is used to confirm your

Lock Mode

lock on or off request. When in Lock mode, the Lock icon will be displayed.

•

Operation

Speaker/Microphone/Charge Jack

Your microTALK freeing your hands for other tasks. This same jack also serves as the connecting point for the wall charger/adapter.

Speaker/Microphone/ Charge Jack

radio can be fitted with an external Speaker/Microphone,

To attach a speaker/microphone:

1. Open the speaker/microphone/charge

tab on top of your microTALK

2. Insert the plug into the speaker/ microphone/charge jack. (See page 5 for power output settings while using speaker/ microphones.)

Customer Assistance WarrantyIntroduction

radio.

To connect a wall charger/adapter:

Signal Strength

1. Open the speaker/microphone/charge tab on top of your microTALK

2. Insert the wall charger/adapter plug into the speaker/microphone/charge jack.

Signal Strength Meter

Your microTALK Meter that shows the strength of your incoming and outgoing transmissions. The ascending bars next to the signal strength indicate the strength of the signal. The greater the number of bars visible, the stronger the signal. The fewer number of bars visible, the weaker the signal.

radio has a Signal Strength

radio.

microTALK®Range

Your range will vary depending on terrain and conditions.

Maximum Range

Reduced Range

In flat, open country your radio will operate at maximum range.

Buildings and foliage in the path of the signal can reduce the range of the radio.

Dense foliage and hilly terrain will further reduce the range of the radio.

On FRS channels 8 through 14, your radio automatically switches to low power, which will limit the range the radio can communicate.

Remember, you can achieve maximum range by using maximum range extender. See page 6 for details.

•
