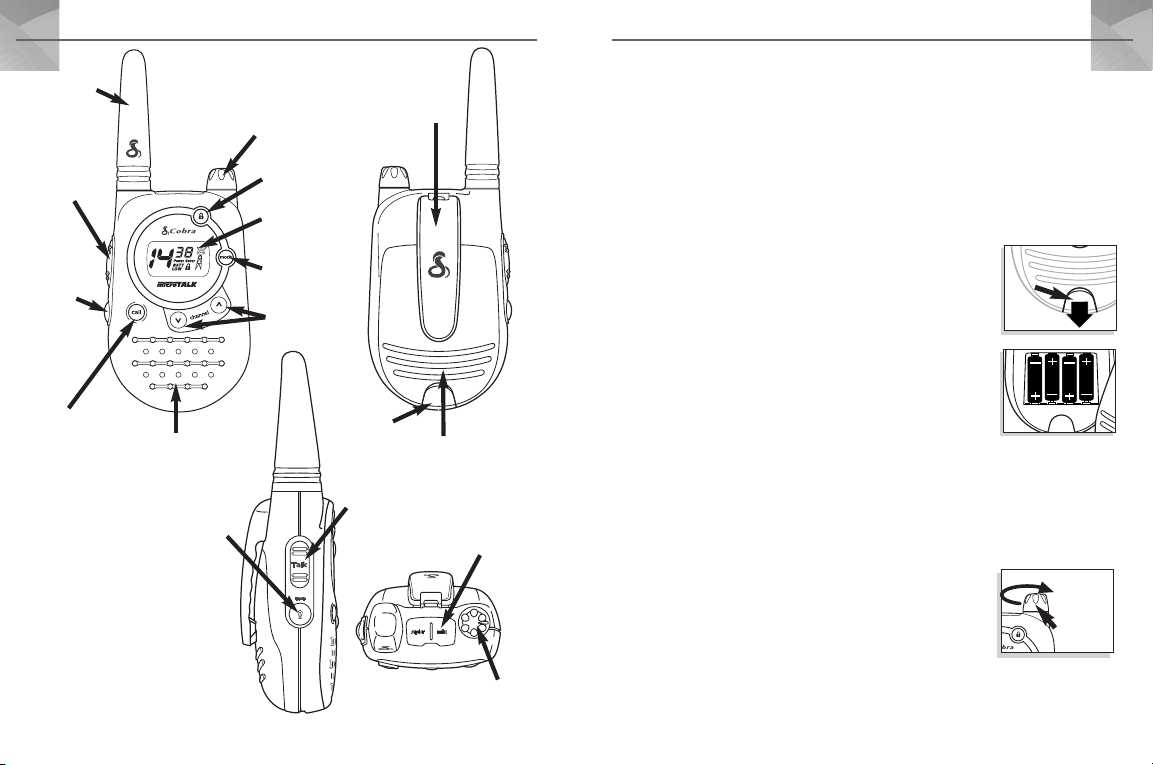

PRODUCT FEATURES

Antenna

TALK button

LIGHT/MAX RANGE button

CALL button

speaker/ microphone

This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.

FCC Warnings: Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by

, may cause a violation of the technical regulations

Cobra of part 95 of the FCC Rules, or violation of Type Acceptance requirements of Part 2 of the Rules.

INDUSTRY CANADA NOTICE:

Operation is subject to the following two conditions:

1) this device may not cause interference, and

2) this device must accept any interference, including interference that may cause undesired operation of the device.

«IC» before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to the user’s satisfaction.

ON-OFF/VOLUME switch

LOCK button

backlit LCD display

MODE button

CHANNEL SELECT buttons

LOCK tab

TALK button

LIGHT/MAX RANGE button

ENGLISH ENGLISH

belt clip

battery compartment

external speaker/ microphone jack

ON-OFF/VOLUME switch

Product Features

• TWO-WAY RADIO with up to a 2 mile (3 km) range

• 14 CHANNELS

• 38 CTCSS PRIVACY CODES

• BATTERY SAVER circuitry

• WATER RESISTANT

• CALL ALERT

• “ROGER BEEP” confirmation tone

• AUTO SQUELCH

• MAXIMUM RANGE extender

• LOCK button

• BACKLIT LCD display

• EXTERNAL SPEAKER/MICROPHONE jack

• BELT CLIP

• WRIST STRAP

Making Life Easier and Safer

People have found lots of convenient and helpful ways to use their microTALK

radios. Over time, you’re bound to discover uses of your own. For example, you can...

• stay in touch with others while hiking,

bicycling, etc.

• keep track of family and friends in

a shopping mall

• communicate between different floors

of a building

• talk with neighbors

• check with traveling companions in

another car

• arrange a meeting spot at crowded

public events

INTRODUCTION

Caring for Your

microTALK

Radio

Your microTALK®radio will give you years of trouble-free service if cared for properly. Here are a few suggestions: 1) Handle the radio gently, 2) Keep it away from dust, 3) Never put the radio in water or in a damp place and

4) Avoid exposure to extreme temperatures.

Installing or Replacing Batteries

Pull down the LOCK

tab to remove the

LOCK tab

battery compartment cover.

2. Insert four AAA

batteries. (Always use high quality alkaline batteries.) Position batteries according to polarity markings.

(NOTE: See page 8 for information about optional battery pack and desktop charger accessories.)

Turning On Your microTALK®Radio

1. Rotate the ON-

OFF/VOLUME switch clockwise to turn on the unit (and to adjust the volume). An audible tone will indicate the radio is on.

ON-OFF/ VOLUME switch

OPERATION

ENGLISH

OPERATION

Battery Low

When battery power is low, the BATT LOW indicator will blink.

Auto Battery Save

Your microTALK®radio has a unique circuit designed to extend battery life. If there are no transmissions within 10 seconds, the unit will automatically switch to Battery Save mode and POWER SAVER will appear in the display. This will not affect the unit’s ability to receive incoming transmissions.

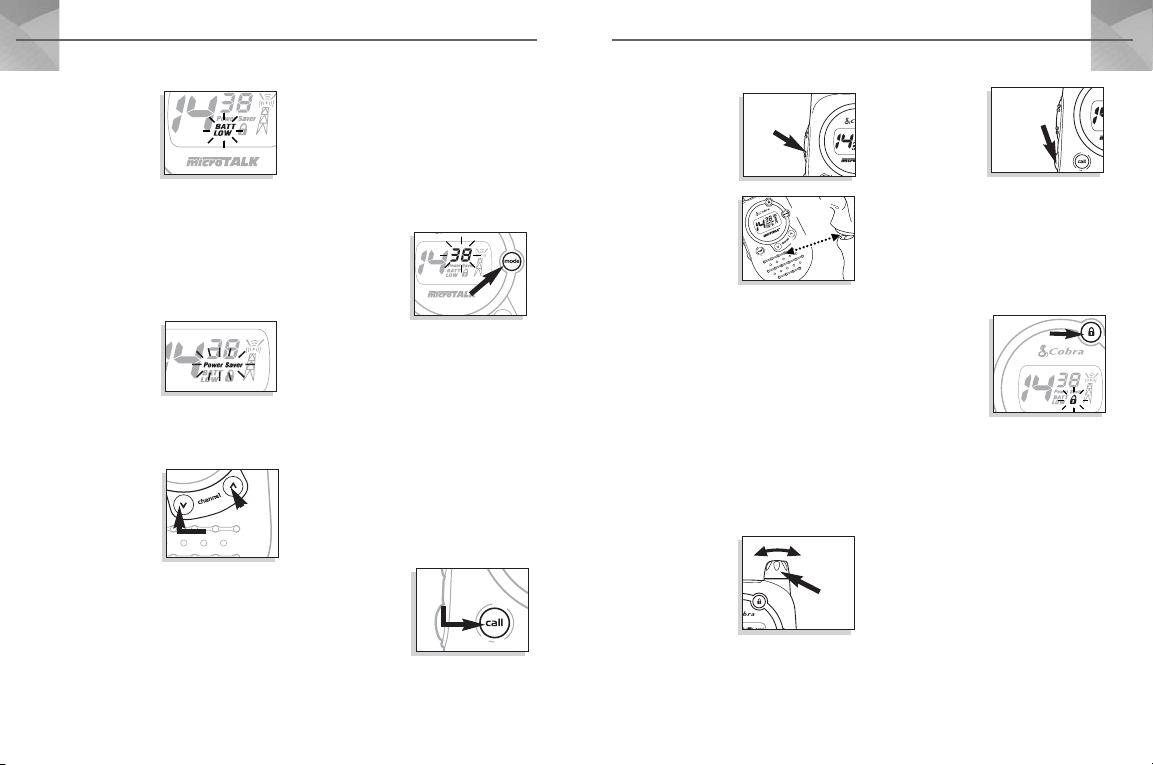

Selecting a Channel

1. With the radio on, select any of the

14 channels by pushing the CHANNEL UP or CHANNEL DOWN button. (NOTE: Both radios must be tuned to the same channel to communicate.)

CHANNEL UP & DOWN buttons

Selecting a CTCSS Privacy Code

CTCSS (Continous Tone Coded Squelch System) is an advanced tone coding system allowing you to select one of 38 privacy codes to reduce interference from other users on the channel.

(NOTE: If you are using a privacy code, both radios must be tuned to the same channel and privacy code to communicate. Each channel will remember the last privacy code you selected.)

To select a privacy code:

1. After selecting a channel, press and

release the MODE button. Small numbers will flash next to the channel in the LCD.

2. Push the

CHANNEL SELECT button up or down to select a privacy code. You can hold the button up or down for fast advance.

MODE button

3. When your desired privacy code is

displayed, press and release the MODE button, or do not push any buttons for 15 seconds.

Calling Another Person

To alert another person that you are calling:

1. Press and release the CALL button. The other person will hear a 2-second ringing tone. You cannot send or receive transmissions during the 2-second call tone.

CALL button

Talking to Another Person

1. Press and hold the

TALK button.

2. With the microphone about 2 inches (5 cm) from your mouth, speak in a normal voice.

3. Release the button when you’re finished talking and listen for a response. You cannot receive incoming calls while pressing the TALK button.

TALK button

2 inches away

“Roger Beep” Confirmation Tone

Your listener will hear an audible tone when you release the TALK button. This alerts the other party that you are finished talking and it is OK for them to speak.

Listening for a Response

When you are finished talking:

1. Release the TALK button to receive

incoming transmissions. Your microTALK is always in listening mode while the TALK button is not pressed.

2. Adjust the volume

by rotating the ONOFF/VOLUME switch.

VOLUME switch

Illuminating the Display

1. Press and release

the LIGHT/MAX RANGE button to illuminate the display for 10 seconds.

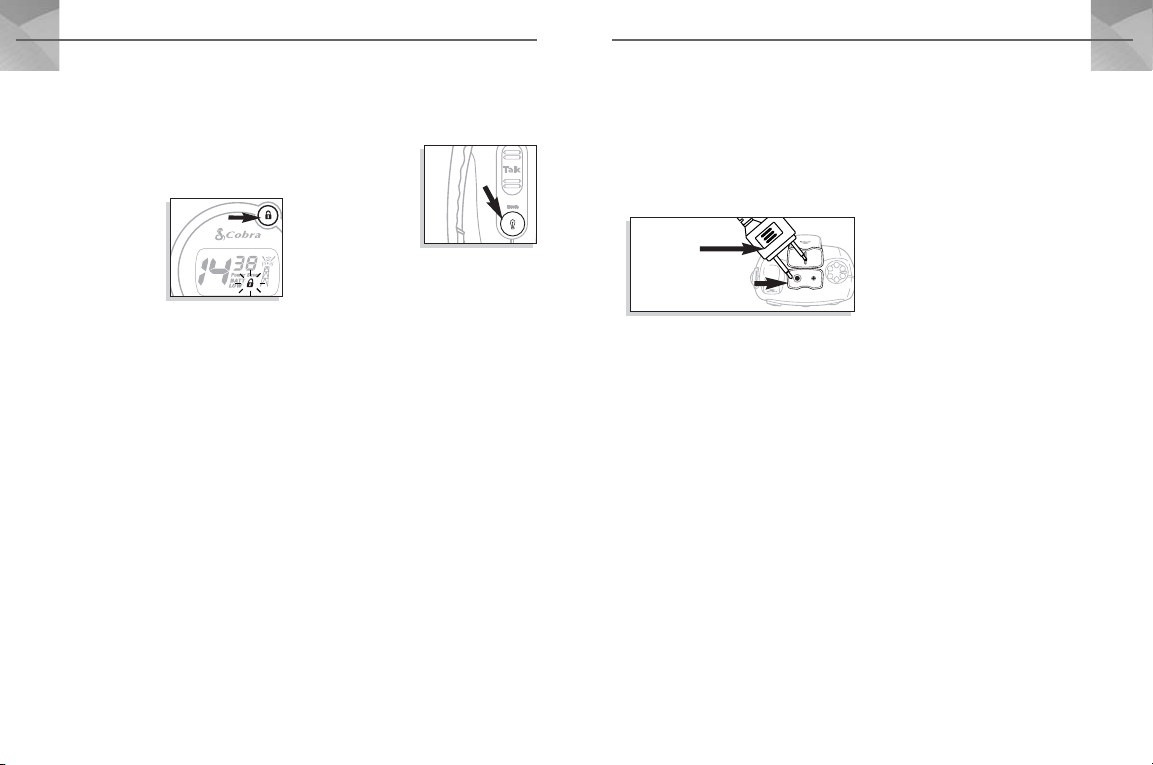

Using the Lock Function

The Lock function locks the CHANNEL and MODE buttons to prevent accidental operation. To use the Lock function:

1. While in Standby mode, press and hold

the LOCK button for one second. The Lock icon will blink when the unit is locked. Buttons and switches that are NOT locked are the CALL, LIGHT/ MAX RANGE, TALK and ON-OFF/VOLUME, which are all fully functional while the unit is locked.

2. To "unlock" buttons, press and release the

LOCK button again. The Lock icon disappears and all buttons will be unlocked.

Auto Squelch

Your microTALK®radio is equipped with Auto Squelch, which automatically shuts off weak transmissions and unwanted noise due to terrain, or conditions, or if you’ve reached your maximum range limit.

LIGHT/MAX RANGE button

LOCK button

OPERATION

ENGLISH

LIMITED 2-YEAR WARRANTY•CUSTOMER ASSISTANCE

Maximum Range Extender

You can temporarily turn off Auto Squelch, allowing all signals to be received and extending the maximum range of your radio:

1. Press and hold the

LIGHT/MAX RANGE button for 5 seconds.

LIGHT/MAX RANGE button

You will hear 2 beeps indicating that Maximum Range Extender is on.

2. To turn Maximum Range Extender off, press

and hold the LIGHT/MAX RANGE button for 1 second, or change channels.

External Speaker/ Microphone Jack

Your microTALK®radio can be fitted with an external speaker/microphone, freeing your hands for other tasks. See page 8 for optional accessories. To attach an external speaker/microphone:

1. Open the SPKR/MIC tab on top of the unit.

2. Insert the plug into the SPKR/MIC jack.

external speaker/ microphone

SPEAKER/ MICROPHONE jack

microTALK®Range

Your microTALK®radio has a range of up to 2 miles (3 km). Your range will vary depending on terrain and conditions.

In flat, open country your radio will operate at maximum range. Buildings and foliage in the path of the signal can reduce the range. Dense foliage and hilly terrain will further reduce the signal.

Remember, you can achieve maximum range by using Maximum Range Extender. See above for details.

FOR PRODUCTS PURCHASED IN U.S.A.

Cobra Electronics Corporation warrants that its Cobra Radios, and the component parts thereof, will be free of defects in workmanship and materials for period of two (2) years from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.

Cobra

will, without charge, repair or replace, at its option,

defective FRS radios, products or component parts upon delivery

to the Cobra

Factory Service Department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra's expense, if the product is repaired or replaced under warranty.

Customer Assistance

After reading this owner’s manual, if you have any questions about installing or operating your microTALK are missing any parts, please contact Cobra return this product to the store. following customer support services.

• Automated Help Desk is available 24 hours

a day, 7 days a week at 773-889-3087.

• Customer Service Operators are available at

the same number 8:00 a.m. to 6:00 p.m. CST Monday through Friday (except holidays).

• Questions can be faxed to 773-622-2269.

•Technical assistance is available on-line in the

Frequently Asked Questions (FAQ) section at www.cobra.com or by e-mail to productinfo@cobra.com.

If your product should require factory service please

first before sending your unit in. This will ensure

call Cobra the fastest turn-around time on your repair.

You may be asked to send your unit to the Cobra It will be necessary to furnish the following in order to have the product serviced and returned.

Cobra®Electronics offers the

FRS

radio, or if you

first. Do not

factory.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Exclusions: This limited warranty does not apply 1) to any product damaged by accident; 2) in the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs;

3) if the serial number has been altered, defaced or removed;

4) if the owner of the product resides outside the U.S.A. All implied warranties, including warranties of merchantability

and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

1. For Warranty Repair include some form of proof-ofpurchase, such as a mechanical reproduction or carbon

of a sales receipt. If you send the original receipt it

cannot be returned.

2. Send the entire product.

3. Enclose a description of what is happening with the unit. Include a typed or clearly printed name and address of where the unit is to be returned.

4. Pack unit securely to prevent damage in transit. If possible, use the original packing material.

5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit to: Cobra Factory Service,

, 6500 W. Cortland St., Chicago, IL 60707.

Corporation

6. If the unit is in warranty, upon receipt of your unit it will either be repaired or exchanged depending on the model. Please allow approximately 3-4 weeks before contacting us for status. If the unit is out of warranty a letter will automatically be sent informing you of the repair charge or replacement charge. If you have any questions, please call 773-889-3087 for assistance.

shall not be liable for any

Cobra Electronics
