Operating Instructions for your

Nothing comes close to a Cobra™

FRS 220

The Family Radio Service Story

Ever wish you could talk to someone who wasn’t within earshot? Like contacting ski partners back at the lodge? Or letting a friend know how to find you in a busy mall? Cobra®’s microTALK® FRS 220 is a great way for friends or family to increase their fun–and safety–by staying in touch while on the go.

The FCC (Federal Communications Commission) has created 14 license free frequency bands, or channels, called Family Radio Service (FRS) frequencies. These channels are in the UHF (Ultra High Frequency) band which means great penetration through buildings, thick forests, hills, and other dense structures.They are also FM (Frequency Modulation) signals which means crystal clear reception even in crowded noisy environments.

FCC Warnings

Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Cobra®, may cause a violation of the technical regulations of part 95 of the FCC Rules, or violation of Type Acceptance requirements of Part 2 of the Rules.

Included with your microTALK®

1. Holster/Belt Clip/Desk Stand

How to Use Your Cobra

2-Way Radio

Features of This Product

•Two-way static-free radio with up to a 2 mile range

• 14 channels

•SuperFlex™ antenna

•Holster belt clip

•Roger beep confirmation tone

•Backlit LCD

•Speaker/Microphone jacks

Contents

Features ..........................................................................1

The FRS Story ...............................................................A1

FCC Warnings Included Accessories

Controls & Indicators................................................A2

Our Thanks to You......................................................A3

Customer Support ...................................................A3

Operating your microTALK®

Battery Installation...................................................2

Turning On..................................................................3

Illuminating the Display ........................................3

Auto Squelch .............................................................4

Maximum Range Extender/Auto Monitor ......4

Select Channel ..........................................................5

Auto Battery Save.....................................................6

Calling Another Party .............................................7

Talking To Another Party .......................................8

Roger Beep Confirmation Tone...........................9

Listening For Another Party.................................9

Lock Function ............................................................10

microTALK® Range...................................................11

Making Life Easier And Safer ...............................12

Holster/Belt Clip/Desk Stand ...............................13

External Microphone/Speaker Jack...................14

Caring for Your microTALK®..................................15

microTALK® Specifications ....................................16

Limited Two Year Warranty....................................18

Optional Accessories................................................19

Order Form....................................................................20

If You Think You Need Service.............Back Cover

Our Thanks to You

Thank you for purchasing the Cobra® FRS 220 2-way Radio. Properly used, this Cobra® product will give you many years of reliable service.

Customer Support

Should you encounter any problems with the product or not understand its many features, please refer to this owner’s manual. If, after referring to the manual, you still need help, call Cobra® Customer Service at 773.889.3087.

Cobra® Customer Service

Live operators are available M-F 8:00 am - 6:00 pm CST at: 773.889.3087

Automated Technical Assistance available 24 hours a day,seven days a week. E-mail questions to: productinfo@cobra.com

Cobra® on the World Wide Web: Frequently Asked Questions (FAQ) can be found on-line at: www.cobra.com

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and

(2) this device must accept any interference

received,including interference that may cause undesired operation.

Controls and Indicators

12 14

1. Antenna

2. Microphone/Speaker

Jack

3. On/Off Power Button

4.LLCD Display Panel

5.? Light/Max Range Button

6. Key Lock

7. Down/Up Volume

Control

8. Speaker

9. Microphone

10. Battery Compartment

11 . Charge Pads

12 . Talk Button

13 . Call Button

14 . Channel Button

15 . Mode Button

Operation

Pull lock tab down to remove battery cover.

Insert four “AAA” batteries. Position batteries according to polarity markings.

Note

Always use high quality alkaline or NiMH batteries.

Incorrect positioning can damage both the batteries and the unit.

Only the Cobra® NiMH battery (Part #FA-BP) pack can be recharged.

See Accessories on page 19. Charge ports for recharging NiMH (Nickel Metal Hydride) battery pack are located on back of unit.

Note

When batteries are low or need charging the indicator will blink. Replace alkaline batteries or recharge NiMH battery pack.

Install Batteries

Battery Installation

1 2

--++

Turning On Your microTALK®

HOLD

Note

Whenever the unit is on you can receive communications.

Turning On Your microTALK

Illuminating the Display

Push and hold the POWER button for 2 seconds. An audible “tone”will indicate the unit is on, and display will illuminate for 10 seconds.

Push and release LIGHT/MAX RANGE button to illuminate display for ten seconds.

Operation

Select any of the 14 channels by moving the channel button up or down.

Select Main Channel (1-14)

Turn on the microTALK® 2-Way Radio.

Note

Selecting a CTCSS privacy code will allow you to only hear conversations on that selection. For example, you may be with a group of friends. If all of you select channel 7 and privacy code 1, you will hear your friends but will not hear anybody else on channel 7, privacy code 2 through 38.

Select Main Channel

Note

To learn more about the range of your microTALK®, see page 10.

Range is dependent on battery condition and geographic territory.

Auto Squelch

Maximum Range Extender

Auto squelch can be temporarily removed to allow all signals to enter (Maximum Range Extender).

Select CTCSS Privacy Code (00-38)

Press the mode button. After a short delay,small numbers will flash next to the channel display LCD indicating the privacy code.

Select CTCSS Privacy Code

Auto Squelch

Your microTALK® is equipped with Auto Squelch, which automatically shuts off weak transmissions and unwanted noise due to terrain conditions or if you have reached your range limit.

Push and hold LIGHT/MAX RANGE button to allow all signals to enter.

HOLD

Auto Monitor

When the signal you want to hear is consistently weak, you may place the radio in Maximum Range mode without having to constantly hold the button: Press and hold the Maximum Range Extender button for five seconds.To return to normal operation, momentarily press the Maximum Range Extender button again or change channels.

Select privacy code number by moving the channel button up or down. When the desired code is displayed push the mode button and release. An audible tone will confirm your selection.

Note

Units must be on same channel and privacy code to communicate.

Note

Channels 8-12 generally are less used and give better results for communications in most areas.

Note

Push and hold the channel button for fast channel advance.

Operation

Calling Another Party

To alert another party that you wish to communicate:

Turn on your microTALK® 2-way radio. An audible “tone”will indicate the unit is on.

Select a channel by pushing the CHANNEL button up or down.

Calling Another Party

Battery Low

Note

When battery capacity is at the 1/4 level it is recommended that you replace alkaline batteries or recharge your NiMH (Nickel Metal Hydride) battery pack.

Only the Cobra® NiMH battery (Part #FA-BP) pack can be recharged.

Note

If the NiMH rechargeable battery pack (Item #FA-BP) and desktop charger (Item #FA-CR) are not included with this unit, see Accessories Section on page 19.

Battery Low

When in normal use the icon may begin flashing. This is a warning to you that the batteries are getting low.

Replace alkaline batteries as soon as possible and/or recharge NiMH battery pack.

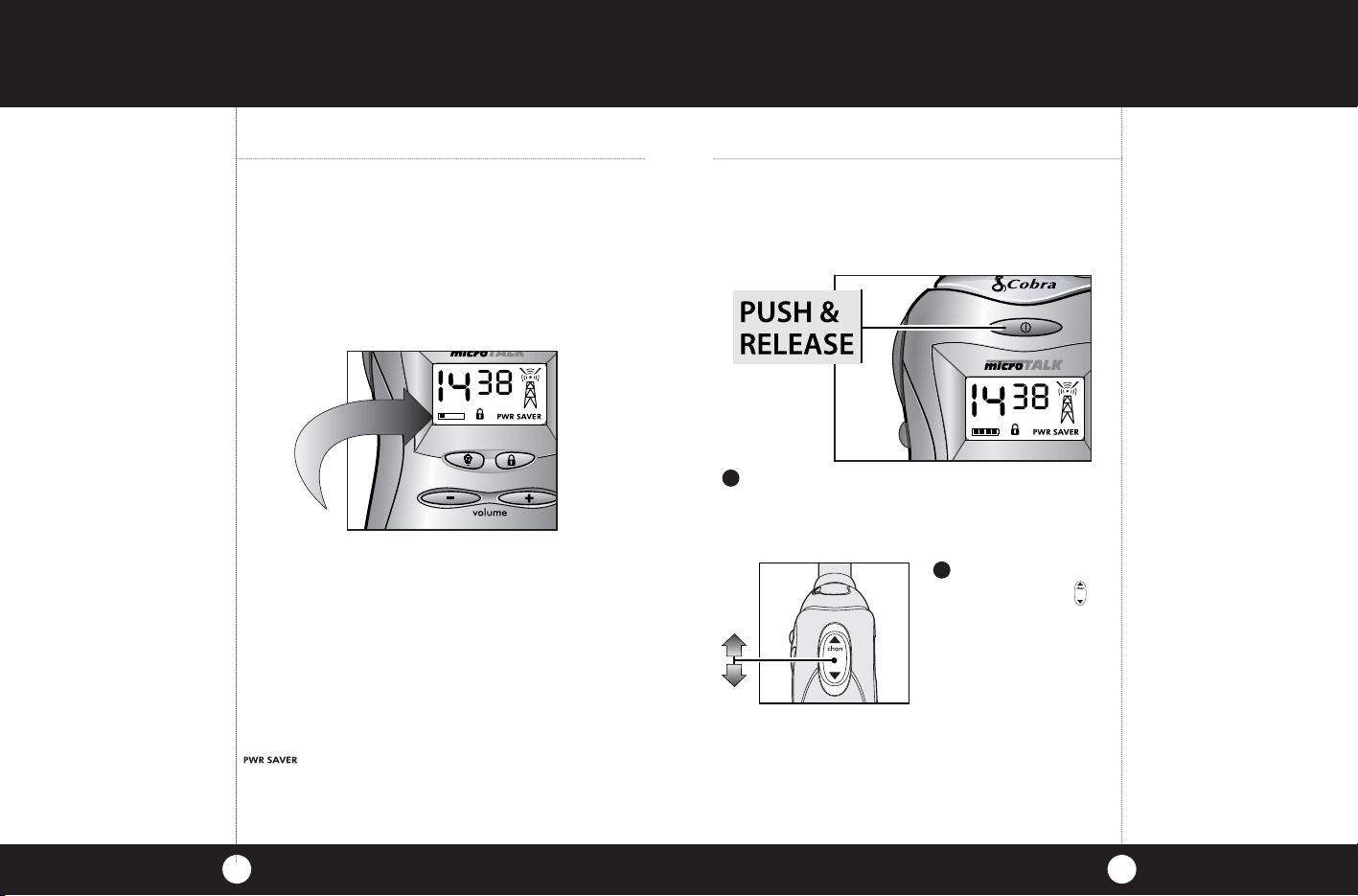

Auto Battery Save

Your FRS 220 has a unique circuit designed to extend battery life. If there are no transmissions or receptions within 10 seconds, the unit will automatically switch to battery save mode and

will be shown in the display.

Auto Battery Save

Note

The Auto Battery Save Circuit does not affect the unit’s ability to receive incoming transmissions.

Operation

Note

Your incoming “Call”signal level is dependent on your unit volume setting.

Talking To Another Party

Push and release CALL button.The unit you are calling will hear a two second ringing tone.

Talking To Another Party

Push and hold

TALK button.

The TX indicator will be displayed.

Hold mic about 2 inches from mouth. Speak in a normal voice.

Release TALK button and listen for response.

Note

While the TALK button is depressed you cannot receive incoming calls.

Roger Beep Confirmation Tone

Listening For Another Party

When finished talking:

Listening For Another Party

Release TALK button to receive incoming transmissions.

Your microTALK® is always in listening mode when the TALK button is not pressed.

Adjust volume by pushing DOWN/UP buttons.

Note

While the TALK button is depressed you cannot receive incoming calls.

Your listener will hear an audible tone when you release the TALK button.

This alerts the other party that you are finished talking and it’s OK for them to begin talking.

Roger Beep Confirmation Tone

Operation

Note

Call button, Range Extender button and Talk button do not lock and are fully operational while the unit is locked.

The unit cannot lock while in function mode.

Lock Function

The purpose of the LOCK function is to lock most buttons to avoid accidental operation. To engage the LOCK function:

Lock Function

microTALK® Range

Your microTALK® Radio has a range of up to 2 miles.This effective range can be shortened under some conditions.

Note

To achieve maximum range the auto squelch can be overridden.Refer to Maximum Range Extender section on page 4.

microTALK

Range

1. Under flat, open conditions you will experience the microTALK®’s maximum range.

2. Range can be reduced by buildings and foliage in the path of the signal.

3. Range will be further reduced by dense foliage and hilly terrain.

Push and hold Lock button until flashes. Channel up/down, Mode and Power buttons are now locked.

To “ unlock”push and hold Lock button until disappears.

Making Life Easier and Safer

5. Checking on traveling companions in another car.

6. Agree on a meeting spot after an event.

Holster/Belt Clip/Desk Stand

Your microTALK® Radio comes with a custom molded plastic holster.Its unique dual-function design enables it to act as a handy desktop storage unit, as well as easily attaching to your belt for maximum convenience and portability.

HolsterBelt Clip and Desk Stand

1. Desk Stand 2. Belt Clip

microTALK® 2-Way Radio Can Make Life Easier and Safer

As you become familiar with your microTALK® Radio you will find many of your own uses for the unit.

Some suggestions include:

microTALK

2-Way Radio Can Make Life Easier and Safer

1. Talking with fellow hikers.

2. Keeping track of the kids in a shopping mall.

3. Communicating between basement and first, second or third floor.

4. Talking to a neighbor or a friend.

Caring for Your Radio

External Microphone/ Speaker Jack

Caring for Your microTALK® Radio

The microTALK® 2 Way Radio will give you years of service if cared for properly.

Here are some suggestions:

Caring for Your microTALK

Radio

Note

Modifying or tampering with the radio’s internal components can cause malfunction and will invalidate the warranty. If your radio is not performing as it should, please call Cobra® at

773.889.3087. Do not return the unit to the retailer.

1. Handle unit gently. 2. Keep away from dust.

3. Never place the

unit in water or in a moist place.

4. Avoid exposure to extreme temperatures.

Note

If an External microphone/ speaker is not included with the unit, see Accessories on page 19 for available units.

External Microphone/Speaker Jack

Your microTALK® 2-Way Radio can be fitted with an external microphone/speaker,freeing your hands for other tasks.

To attach the external microphone/speaker:

External Microphone/ Speaker Jack

Open Spkr/Mic tab on top of unit.

Insert plug into the Mic/Spkr jack.

Specifications

C. RECEIVER

UNIT NOMINAL

1. SENSITIVIT Y FOR 12dB SINAD dBm -119 FOR CALL SIGNAL DETECTION dBm -121

2. MAX.AUDIO OUTPUT @ 10% THD mW 150

3. MAX S/N RATIO @ 1mV RF INPUT dB 45

4. SQUELCH a) SENSITIVITY dBm -121 b) ATTACK TIME mS 120 c) CLOSING TIME mS 200

5. AUDIO FREQUENCY RESP. @ 300 HZ dB -15 @ 2500 HZ dB -10

6. SIGNAL DISPLACEMENT BW +/- KHZ 5

7. ADJACENT CH. REJECTION dB 60

8. INTERMODULATION REJECTION dB 65

9. SPURIOUS RESPONSE REJECTION dB 65

D. TRANSMITTER

UNIT NOMINAL

1. EFFECTIVE RADIATED POWER mW 500

2. CARRIER FREQ. STABILITY Hz +/-500

3. MODULATION LIMITING kHz 2.5

4. CARRIER ATTACK TIME mS 30

5. AUDIO FREQUENCY RESPONSE @ 300 HZ dB -10 @ 2500 HZ dB 4

6. AUDIO DISTORTION % 3

7. HUM NOISE dB 38

8. TRANSIENT FREQ. BEHAVIOR a) TX ON mS 30 b) TX OFF mS 5

E. POWER SUPPLY

1. BATTERY LIFE (1:1:18 RATIO) HR 24

2. BATTERY V 4.2-6.0

I. GENERAL SPECIFICATIONS

A. FREQUENCIES

CHANNEL ASSIGNMENT

Channel Channel

FRS Frequency FRS Frequency

Channel in MHz Channel in MHz

1 462.5625 8 467.5625 2 462.5875 9 467.5875 3 462.6125 10 467.6125 4 462.6375 11 467.6375 5 462.6625 12 467.6625 6 462.6875 13 467.6875 7 462.7125 14 467.7125

B. SUBCHANNEL ASSIGNMENTS

CTCSS CTCSS

Channel Frequency Channel Frequency

01 67.0 Hz 21 136.5 Hz 02 71.9 Hz 22 141.3 Hz 03 74.4 Hz 23 146.2 Hz 04 77.0 Hz 24 151.4 Hz 05 79.7 Hz 25 156.7 Hz 06 82.5 Hz 26 162.2 Hz 07 85.4 Hz 27 167.9 Hz 08 88.5 Hz 28 173.8 Hz 09 91.5 Hz 29 179.9 Hz 10 94.8 Hz 30 186.2 Hz 11 97.4 Hz 31 192.8 Hz 12 100.0 Hz 32 203.5 Hz 13 103.5 Hz 33 210.7 Hz 14 107.2 Hz 34 218.1 Hz 15 110.9 Hz 35 225.7 Hz 16 114.8 Hz 36 233.6 Hz 17 118.8 Hz 37 241.8 Hz 18 123.0 Hz 38 250.3 Hz 19 127.3 Hz 20 131.8 Hz

Frequency Ranges

Optional Accessories

You Can Find These Fine Accessories At Your Local Cobra® Dealer

If you wish, you can order directly from Cobra®.

Order by phone

Call 773.889.3087 (Press 1 from the main menu) 8 a.m.-8 p.m. M-F CST.)

Order by mail or fax

Call 773.889.3087 for pricing. Fill out order form on next page, and mail/fax directly to Cobra®.

Order over the Web

www.cobra.com

Ear Bud Mic with PTT

Compact earbud and microphone with Push-to-Talk switch. MA-EBM

Lapel Speaker/Microphone

Remote microphone/speaker with Push-to-Talk switch. MA-SM

Replacement Holster

FA-HR1



NICd BATTERY PACK

INSTALL

WITH CONTACTS

FACING OUT

2 Port Desktop Charger

Charges two microTALK® radios or two NiMH battery packs. FA- CR

NiMH Rechargeable Battery Pack

High performance Nickel Metal Hydride battery pack for multiple charging. FA-BP

Vox/Headset Mic

VOX (Voice Operated Transmitter) headset and microphone allows hands-free operation. MA-VOX

Limited Two Year Warranty

COBRA® ELECTRONICS CORPORATION warrants that

its COBRA® FRS Radios, and the component parts thereof, will be free of defects in workmanship and materials for period of two (2) years from the date of first consumer purchase.This warranty may be enforced by the first consumer purchaser,provided that the product is utilized within the U.S.

COBRA® will, without charge, repair or replace,at its option, defective FRS radios, products or component parts upon delivery to the COBRA® factory Service Department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra®'s expense, if the product is repaired or replaced under warranty.

Exclusions: This limited warranty does not apply;

1) to any product damaged by accident; 2) in the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) if the serial number has been altered, defaced or removed;

4) if the owner of the product resides outside the U.S.

All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. COBRA® shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

Cobra® Electronics Corporation

6500 West Cortland Street Chicago,Illinois 60707 USA

QUALITY SEAL

Accessory Order Form

Subtotal (Tax if applicable) Shipping/handling

Total

Tax Table

Illinois residents add 8.75% Indiana residents add 5% Michigan residents add 6 % Ohio residents add 5% Wisconsin residents add 5%

Prices subject to change without notice.

MA-EBM Ear Bud Mic with PTT MA-VOX Vox Headset Mic MA-SM Lapel Speaker/ Microphone FA-HR1 Replacement Holster FA-CR Charger FA-BP Battery

Item # Description Cost Ea. Qty. Amount

Please print clearly Name Address (No P.O.Box) City State Zip Telephone ( ) Credit Card No. Exp. Date Customer Signature Circle One: Visa MasterCard Discover

Allow 2 to 3 weeks for delivery.Offer valid in Continental U.S. only.

For credit card orders fill out order form and fax to: 773.622.2269 or call 773.889.3087 (Press 1 from the main menu) 8:00 am - 8:00 pm, M-F,CST.

Make check or money order (no stamps) payable to: Cobra® Electronics Attn: Accessories Dept. 6500 West Cortland Street Chicago, IL 60707 USA

$25.00 and under $4.75 $25.01 - $40.00 $6.95 $40.01 - $80.00 $9.25 $80.01 - $120.00 $10.25 $120.01 - $160.00 $11.75 $160.01 and up $14.50

Amount Shipping/ of Order Handling

Shipping & Handling

For AK,HI and PR please add an additional $15.00 for UPS shipments.

Cobra® Electronics Corporation 6500 West Cortland Street Chicago, IL 60707 USA www.cobra.com

Part No. 480-306-P-001

For technical assistance,please call our Automated Help Desk which can assist

you by answering the most frequently asked questions about Cobra® products.

(773) 889-3087

24 hours a day, 7 days a week.

A Consumer Service Representative can be reached through this same number

8:00 am - 6:00 pm, Monday through Friday, CST.

Technical assistance is also available on-line in the Frequently Asked Questions (FAQ) section at

www.cobra.com or by e-mail to productinfo@cobra.com

If you think you need service call 773.889.3087

“If your product should require factory service please call Cobra® first before sending your

unit in. This will ensure the fastest turn-around time on your repair.”

You may be asked to send your unit to the Cobra® factory. It will be necessary to furnish the following in order to have the product serviced and returned.

1. For Warranty Repair include some form of proof-of-purchase, such as a mechanical reproduction or carbon or a sales receipt. If you send the original receipt it cannot be returned.

2. Send the entire product.

3. Enclose a description of what is happening with the unit. Include a typed or clearly print name and address of where the unit is to be returned.

4. Pack unit securely to prevent damage in transit.If possible, use the original packing material.

5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit to: Cobra® Factory Service, Cobra® Electronics Corporation, 6500 West Cortland Street,Chicago, IL 60707 USA.

6. If the unit is in warranty, upon receipt of your unit it will either be repaired or exchanged depending on the model. Please allow approximately 3 to 4 weeks before contacting us for status. If the unit is out of warranty a letter will automatically be sent informing you of the repair charge or replacement charge.If you have any questions, please call 773.889.3087 for assistance.

If You Think You Need Service

The Cobra® line of quality products also includes:

•Citizens Band Radios

•microTALK® Radios

•Radar/Laser Detectors

• GPS

•SafetyAlert® Traffic Warning Systems

•Accessories

• HighGear™ Accessories

othing comes close to a Cobra

™

Cobra Electronics FRS 220 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
