Operating Instructions for Your

Cty

Cobra

6 Band™Extra Sensory Detection

RADAR/LASER

DETECTOR

MODEL ESD –

Nothing comes close to a Cobra™

6060

RADAR/LASER

DETECTOR

MODEL ESD –6060

Congratulations

You’ve made a smart choice by purchasing the ESD-6060 radar/laser detector from Cobra. Just look at some of the sophisticated features and capabilities your new unit includes:

• Detects and provides separate alerts for:

radar signals (X, K, and Ka bands, with signal strength indicated)

laser signals emergency vehicle safety signals VG-2 signals

• LASEREYE

for 360° detection of laser

signals

• “INSTANT-ON” speed monitoring detection

• TONE ALERTS with adjustable volume

• ULTRABRIGHT™ DATA DISPLAY is easy-to-read

• CITY or HIGHWAY modes to reduce false alerts

• SAFETY ALERT

Traffic Warning System

• MANUAL MUTE or AUTO MUTE of audio alerts

• Distinguishes important safety alerts‚ from other K band signals

• Mounts easily on windshield or dashboard

This booklet describes the simple steps for mounting and setting up your ESD-6060. It also provides helpful information about how radar and laser guns are used and how you can interpret the alerts you receive.

12V DC POWER JACK

ON-OFF/VOLUME

control allows you to adjust the volume of the TONE alerts.

MUTE button for MANUAL MUTE or AUTO MUTE of audio alerts.

LASEREYE

detection of laser signals.

SPEAKER

CITY button for CITY or HIGHWAY

modes to reduce false alerts.

for 360°

power indicator

radar indicator

12V DC POWER JACK

/Ka

laser indicator

Cty

VG-2 and safety indicators

ON-OFF/VOLUME control

CITY/HIGHWAY mode indicators

windshield bracket mount

Important Information

Table of Contents

Important information about...

Federal Laws Governing the Use of Radar Detectors

It is not against federal law to receive radar transmissions with your Cobra detector. The Communications Act of 1924 guarantees your right to receive radio transmissions on any frequency. Local laws that contravene this Act, while illegal, may be enforced by your local law enforcement officials until and unless they are prohibited from doing so by federal court action.

Safety Alert

Use of this product is not intended to, and does not, ensure that motorists or passengers will not be involved in traffic accidents. It is only intended to alert the motorist that an emergency vehicle equipped with a Cobra

Safety Alert®transmitter is within range as defined by that product. Please call local fire and police departments to learn if coverage exists in your area.

Safe Driving

Motorists, as well as operators of emergency or service vehicles, are expected to exercise all due caution while using this product, and to obey all applicable traffic laws.

radar

Security of Your Vehicle

Before leaving your vehicle, always remember to conceal your radar detector in order to reduce the possibility of break-in and theft.

Customer Support

In this user's manual, you should find all the information you need to install and operate your ESD-6060. If you require further assistance after reading through this manual, Cobra

Electronics offers the

following customer support services:

Automated Help Desk is available 24 hours a day, 7 days a week at 773-889-3087. Customer Service Operators are available at 773-889-3087 Monday through Friday, 8:00 a.m. to 6:00 p.m. CST.

Questions can be faxed to 773-622-2269. Automated Technical Assistance is

available 24 hours, 7 days a week via e-mail at: productinfo@cobra.com On-line answers to frequently asked questions can be found at: www.cobra.com.

WARNING

Modifications or parts substitutions not approved by Cobra Electronics Corporation may violate FCC Rules and void your authority to operate this equipment.

Important information about...

Federal Laws, Safety Alert,

Security of Your Vehicle, Customer Support.................................................................................. A1

Installation .................................................................................................................................. 2-4

Operation–Getting Started ............................................................................................................ 5

Operation–Settings ...................................................................................................................... 6-7

Highway/City Mode ................................................................................................................ 6

Muting an Alert ...................................................................................................................... 7

Auto Mute Mode .................................................................................................................... 7

Detection .................................................................................................................................... 8-11

Signals Detected .................................................................................................................... 8

Audio Alerts ............................................................................................................................ 9

Visual Display ........................................................................................................................ 9-10

Instant-On Detection ................................................................................................................ 11

Responding to Alerts ................................................................................................................ 11

Understanding Radar and Laser ...................................................................................................... 12-13

Maintenance and Service .............................................................................................................. 14-15

Limited 1-Year Warranty ................................................................................................................ 16

Specifications .............................................................................................................................. 17

Optional Accessories .................................................................................................................... 18

Order Form .................................................................................................................................. 19

Safe Driving,

INSTALLATION

Where to Mount Your Unit

You will get optimum performance from your ESD-6060 if you mount it at a point approximately in the center of the vehicle, as low as possible on the front windshield without obstructing the unit's view of the road either to the front or rear. You can also mount it directly on the dashboard.

Cty

Windshield mounting

K a

Cty

Dashboard mounting

The unit's lenses must not be blocked and the LaserEye the back window to allow 360° detection.

should have a clear view out

Radar and laser signals pass through glass but not through other materials and objects. Objects that can block or weaken incoming signals include:

windshield wiper blades mirrored sun screens dark tinting at the top of the

windshield heated windshields currently available

on some vehicles (Instaclear for Ford,

Electriclear for GM,® consult your dealer to see if you have this option)

Windshield Mounting

1. Attach the rubber cups to the bracket.

2. Make sure the rubber cups and

your windshield are clean.

3. Push the bracket firmly onto the windshield.

4. Attach the detector to the bracket. Check the angle of the unit.

5. To adjust the angle if necessary, gently push or pull on the bracket to bend it. DO NOT use the detector to bend the bracket.

6. Plug the power cord into the detector.

7. Plug the cigarette lighter adapter on

the power cord into your vehicle's cigarette lighter.

8. You can temporarily remove the detector whenever you wish by

Instaclear for Ford®is a registered trademark of Ford Motor Company, Inc. Electriclear for GM

is a registered trademark of General Motors Corporation.

sliding it off of the bracket.

INSTALLATION

OPERATION•GETTING STARTED

Dashboard Mounting

1. Place the detector on the dashboard

to find a location where the unit has a clear, level view of the road. The angle can NOT be adjusted after mounting.

2. Remove the paper backing from one side of the hook-and-loop fastener.

3. Attach the pad to the dashboard at your chosen location and remove the other paper backing.

4. Attach the detector to the hook-and-loop fastener. You can remove and reattach the unit as often as you like.

5. Plug the power cord into the detector.

6. Plug the cigarette lighter adapter on

the power cord into your vehicle's cigarette lighter.

1. Turn on the unit and adjust audio volume by rotating the

ON-OFF/VOLUME CONTROL DIAL

clockwise (away from you).

2. You will hear 3 beeps and the Power Indicator will light up in the display indicating that the power is on.

/Ka

NOTE: In some vehicles, power is

supplied to the cigarette lighter even while the ignition is off. If this is the case with your vehicle, you should turn off or unplug your ESD-6060 when parking for lengthy periods.

Cty

OPERATION•SETTINGS

/Ka

Cty

/Ka

OPERATION•SETTINGS

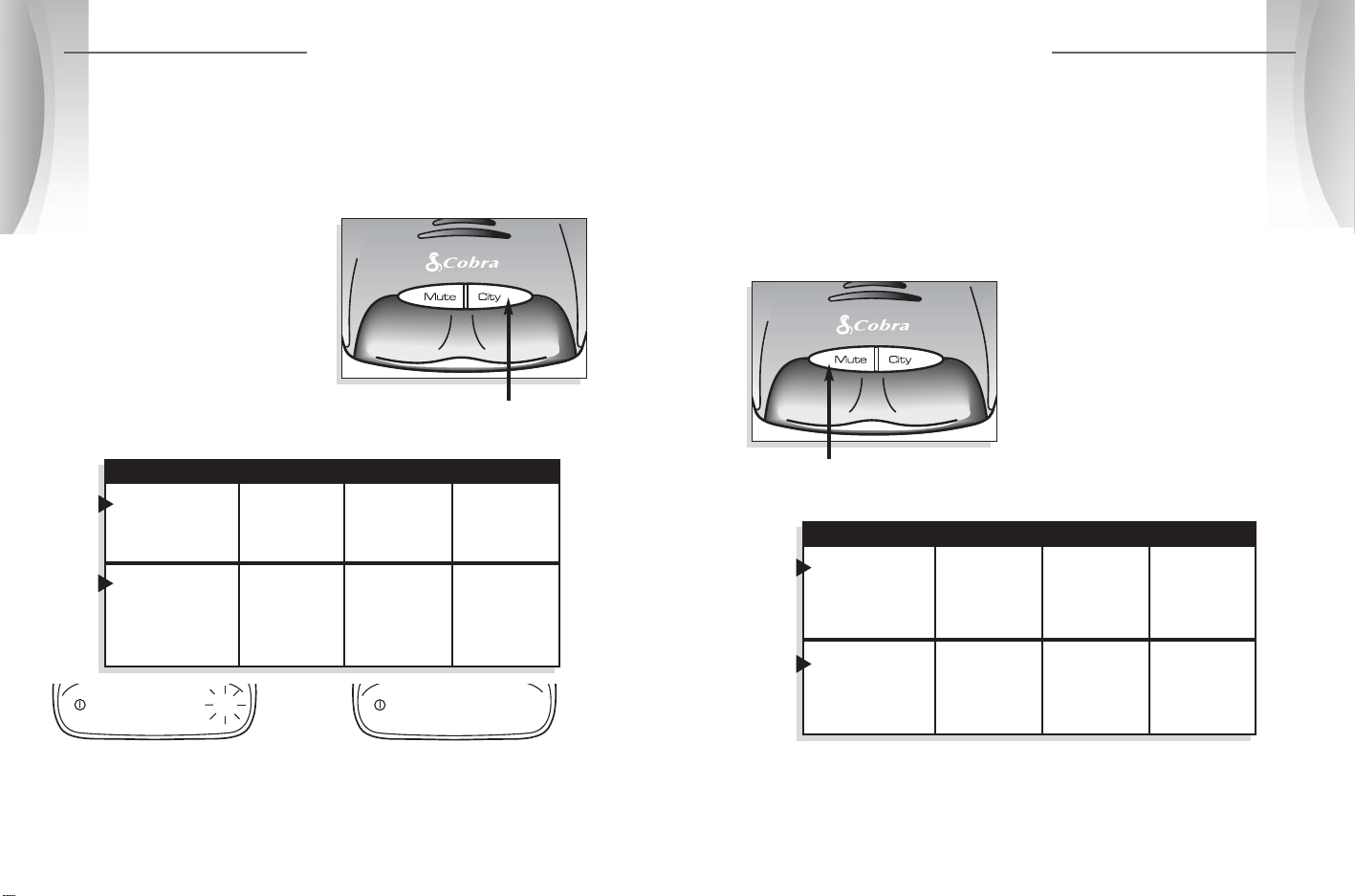

Highway/City Mode

Setting your ESD-6060 to City mode delays all X band audio alerts at lower signal strength levels. (A single beep will sound when the signal is first detected.) This will reduce false alerts while you are driving in or near urban areas where there are many sources for conflicting X band signals such as microwave towers and automatic door openers.

Procedure

To change from Highway mode to City mode

To change from City mode back to Highway mode

Press and

release the

CITY button.

Press and

release the

CITY button

again.

City mode Highway

To change settings, follow the procedure in the table below, which indicates what you will see and hear as you complete each step.

The factory setting is Highway mode.

CITY button

Press and release

Tone

1 beep

2 beeps

Visual Display

Cty

appears in the display

Cty

off

mode

Muting an Alert

Your ESD-6060 allows you to quickly turn off an audio alert by momentarily pressing the MUTE button. If you press the MUTE button a second time during the alert, the audio alert will be turned back on.

MUTE button

Press and release

Procedure

To turn Auto Mute off

To turn Auto Mute on

Press and release

the MUTE button

while no alert

is occurring.

Press and release

the MUTE button

again while no

alert is occurring.

Auto Mute Mode

Auto Mute will automatically reduce the audio volume of all alerts after 4 seconds for as long as the signal is detected.

The factory setting for Auto Mute is ON.

Tone

1 beep

2 beeps

Visual Display

none

DETECTION

Cty

Ka L

Cty

DETECTION

Signals Detected

The tables on the following pages show you the types of signals your ESD-6060 will detect, as well as the voice and visual alerts it provides for each one.

Audio Alerts

A distinctly different alert tone is used for each type of signal detected. For X, K and Ka band radar signals, the tones will repeat faster as you approach the signal source. The repeat rate of the tones gives you useful information about the signal detected. (See Responding to Alerts, page 11.)

Cty

/Ka

Visual Display

An indication of the type of signal detected will appear in the UltraBright™ Data Display.

/Ka

During laser alerts the letter ”L“ will appear.

/Ka

During VG-2 Alert appear.

/Ka

During Safety Alert will appear.

Cty

the letters ”V/S“will

Cty

the letter ”V/S“

Radar

Laser*

Type of Signal

X band radar K band radar

Ka band radar

Type of Signal

LTI 20-20™*

LTI Ultra-Lyte™*

Kustom Signals ProLaser™*

Kustom Signals ProLaser III™*

Visual Display

X K/Ka K/Ka

Visual Display

Cty

* your ESD-6060 provides LaserEye

360° detection of these signals

DETECTION

Cty

DETECTION

Safety Alert

VG-2 Alert

Type of Signal

emergency vehicles

road hazards

trains

Visual Display

V/S V/S V/S

Your ESD-6060 is designed to detect instant-on speed monitoring signals, which can suddenly appear at full strength.

You should take appropriate action immediately whenever an alert is given.

Responding To Alerts

Description Interpretation Recommended Response

Instant-On Detection

Type of Signal

Interceptor VG-2™

Visual Display

V/S

tone repeats slowly at first, then

speeds up rapidly

tone sounds one time only

tone instantly begins

repeating rapidly

tone repeats slowly as you

approach a hill or bridge, then

speeds up sharply as you reach it

tone repeats slowly for a short period

any type of laser alert

any Safety Alert

probably police radar

probably a false alarm, but

possibly pulsed radar

radar or VG-2 nearby has

been activated suddenly

probably police radar beyond

the hill or bridge

probably a false alarm

laser alerts are never

false alarms

you are nearing an emergency

vehicle, railroad crossing, or road

hazard (construction, accident, etc.)

FULL ALERT

exercise caution

FULL ALERT

exercise caution

FULL ALERT

exercise caution

20-20™ and Ultra-Lyte™ are trademarks of Laser Technology, Inc.

ProLaser™ and ProLaser III™ are trademarks of Kustom Signals, Inc.

Safety Alert

Traffic Warning System, VG-2 Alert and LaserEye®are registered trademarks of Cobra Electronics Corporation.

Interceptor VG-2™ is a trademark of TechniSonic Industries LTD.

UNDERSTANDING RADAR & LASER

Radar Speed Monitoring Systems

Three band frequencies have been approved by the Federal Communications Commission (FCC) for use by speed monitoring radar equipment:

X band 10.525 GHz K band 24.150 GHz Ka band 33.400-36.00 GHz

Your ESD-6060 detects signals in all three radar bands.

VG-2

VG-2 is a "detector detector" that works by detecting low-level signals emitted by most radar detectors. Your ESD-6060 does not emit signals that can be detected by VG-2, but does detect VG-2 signals and will alert you when a device is in use near your vehicle.

Safety Alert®Traffic Warning System

FCC-approved Safety

Alert

transmitters emit microwave radar signals that indicate the presence of a safety-related concern. Depending on the frequency of the signal emitted, it can indicate a speeding

emergency vehicle or train, or a stationary road hazard.

Because these microwave signals are within the K band frequency, most conventional radar detectors will detect Safety Alert signals as standard K band radar. Your ESD-6060, however, is designed to differentiate between standard K band and Safety Alert alerts for each.

Safety Alert Safety Alert limited numbers in all 50 states, but the number is growing. Depending on your location, you may not receive these alerts regularly and may often encounter emergency vehicles, trains, and road hazards without being alerted. As the number of transmitters increases, these alerts will become more common.

When you receive such an alert, please watch for emergency vehicles ahead of you, on cross streets, and behind you. If you see an emergency vehicle approaching, please pull over to the right side of the road and allow it to pass.

signals, and give separate

technology is relatively new.

transmitters can be found in

LIDAR (laser)

The correct name for the technology that most people refer to as laser is actually LIDAR, which stands for Light Detection and Ranging.

LIDAR operates much like radar. Its signal spreads out like a radar signal, though not as quickly. Unlike radar, LIDAR must have a clear

Some common questions about LIDAR include:

Does weather have any affect on LIDAR?

Yes. Rain, snow, smoke, fog, or airborne dust particles will reduce the effective range of LIDAR and can, if dense enough, prevent its operation.

Can LIDAR operate through glass?

Yes. Newer LIDAR guns can obtain readings through most types of glass. However, the laser pulse also can be

line of sight to its target vehicle throughout the entire measurement interval. Obstructions such as sign posts, utility poles, tree branches, etc., will prevent valid speed measurement.

received through glass to trigger an alarm by your ESD-6060.

Can LIDAR operate while in motion?

No. Because LIDAR operates by line of sight, the person using it cannot drive the vehicle, aim, and operate thegun all at thesame time

Is LIDAR legal to use?

Yes. It is legal in all 50 states.

MAINTENANCE & SERVICE

Maintenance of Your Radar Detector

Your ESD-6060 is designed and built to give you years of trouble-free performance without the need for service. No routine maintenance is required.

If your unit does not appear to be operating properly, please follow these troubleshooting steps:

Make sure the power cord is properly connected.

Make sure the socket of your vehicle's cigarette lighter is clean and free of corrosion.

Make sure the power cord's cigarette lighter adapter is firmly seated in your cigarette lighter.

Check the power cord fuse. (Unscrew the ribbed end cap of the cigarette lighter adapter and examine the fuse. If required, replace it with a 1-amp fuse only.)

Service

You can receive technical assistance with your unit through one of our customer support services:

Automated Help Desk is available 24 hours a day, 7 days a week at 773-889-3087.

Customer Service Operators are available at 773-889-3087 Monday through Friday, 8:00 a.m. to 6:00 p.m. CST.

Questions can be faxed to 773-622-2269.

Automated Technical Assistance

is available 24 hours, 7 days a week via e-mail at: productinfo@cobra.com

On-line answers to frequently asked questions can be found at: www.cobra.com.

If you suspect that your unit requires service, please call 773-889-3087 BEFORE shipping it to Cobra. you receive service as quickly as possible.

If you are asked to send your unit to the Cobra

1. Send the complete unit, including

2. For warranty repair, enclose some

3. Enclose a typed or clearly written

4. Pack the unit securely to prevent

This will ensure that

factory, please follow these steps:

power cord. (It is not necessary to include the mounting bracket.)

form of proof-of-purchase, such as a photocopy or carbon copy of a sales receipt. If you send the original receipt, it cannot be returned.

description of the problem you are having with your unit, plus the name and address where you want the unit returned.

damage during transit. If possible, use the original packing materials.

5. Ship prepaid and insured using a traceable carrier such as United Parcel Service (UPS), Federal Express, or first class mail with delivery confirmation. Ship to:

Cobra Factory Service Cobra Electronics Corporation 6500 West Cortland Street Chicago, IL 60707 USA

6. Please allow 3 to 4 weeks before

contacting us about the status of your service. Call 773-889-3087 for assistance.

If your unit is under warranty, it will either be repaired or replaced upon receipt, depending on the model. If your unit is out of warranty, you will receive a letter informing you of the repair or replacement charge.

WARRANTY

QUALITY SEALQUALITY SEAL

SPECIFICATIONS

Band Frequencies

Cobra Electronics Corporation

6500 West Cortland Street, Chicago, Illinois 60707

COBRA ELECTRONICS CORPORATION

warrants that its Cobra®6 Band™ Radar/Laser Detectors, and the component parts thereof, will be free of defects in workmanship and materials for period of one (1) year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.

Cobra®will, without charge, repair or replace, at its

Band™

option, defective 6

Radar/Laser Detectors,

products or component parts upon delivery to the

Factory Service Department, accompanied

Cobra by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra's expense, if the product is repaired or replaced under warranty.

This warranty gives you specific rights, and you may also have other rights which vary from state to state.

www.cobra.com

Exclusions: This limited warranty does not apply;

1) to any product damaged by accident; 2) in the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs;

3) if the serial number has been altered, defaced or removed; 4) if the owner of the product resides outside the U.S.A.

All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty.

shall not be liable for any incidental,

Cobra consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

X band 10.525 ± 0.050 GHz

K band 24.125 ± 0.125 GHz

Safety Alert Traffic Warning System

Ka band 34.700 ± 1.300 GHz

Laser 910 ± 50 nm

Dimensions 2

Weight 110 grams

This radar detector is covered by one or more of the following U.S. patents: 5,497,148; 5,594,432; 5,612,685; 6,078,279; 6,094,148. Additional patents may be listed inside the product or pending.

Unit Dimensions & Weight

24.070 ± 0.010 GHz

24.110 ± 0.010 GHz

24.190 ± 0.010 GHz

24.230 ± 0.010 GHz

⁄8"W x 11⁄8"H x 35⁄8"D

OPTIONAL ACCESSORIES

ORDER FORM

You can find these fine accessories at your local Cobra you can order directly from Cobra.

dealer. If you wish,

To order by phone

Call 773.889.3087 (Press 1 from the main menu 8 a.m.-6 p.m. M-F CST. )

To order by mail or fax

Please fill out order form on next page, and mail/fax directly to Cobra.

To order online

Go to www.cobra.com and click on “shop Cobra.

”

Straight 12V DC Power Cord

Includes plug and fuse 420-030-N-001

Windshield Mounting Bracket

Includes suction cups 545-139-N-001

Item # Description Cost Ea. Qty. Amount 420-030-N-001 Straight 12V Power Cord 420-026-N-001 Curled 12V Power Cord 545-139-N-001 Windshield Mounting Bracket CLP-2B Dual Port Power Adapter

Prices subject to change without notice.

Tax Table

Illinois residents add 8.75% Indiana residents add 5% Michigan residents add 6% Ohio residents add 5% Wisconsin residents add 5%

For credit card orders fill out order form and fax to: 773.622.2269 or call 773.889.3087 (Press 1 from the main menu) 8:00 am - 6:00 pm, M-F, CST.

Please print clearly

Name

Address (No P.O. Box)

City State

Make check or money order payable to:

Cobra Electronics 6500 West Cortland Street Chicago, IL 60707 USA Attn: Accessories Dept.

Subtotal (Tax if applicable) Shipping/handling $4.00 Total

To order online, please visit our website at:

www.cobra.com

and click “shop Cobra

”

Dual Port Power Adapter

Includes adjustable plug (upto 90˚) and fuse CLP-2B

Curled 12V DC Power Cord

Includes plug and fuse 420-026-N-001

Zip

Telephone ( )

Credit Card No. Exp. Date

Circle One: Visa MasterCard Discover

Customer Signature

Allow 2-3 weeks for delivery. Offer valid in Continental U.S. only.

The Cobra®line of quality products includes:

CB radios

microTALK

radios

Radar/Laser Detectors

Safety Alert

Traffic Warning Systems

Accessories

™

HighGear

Accessories

For more information or

to order any of our products,

please visit our website:

www.cobra.com

Click “shop Cobra®”

Printed in Korea Part No. 480-014-P

Nothing

comes close to a Cobra™

6500 West Cortland Street

Chicago, IL 60707 USA

Cobra Electronics ESD6060 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
