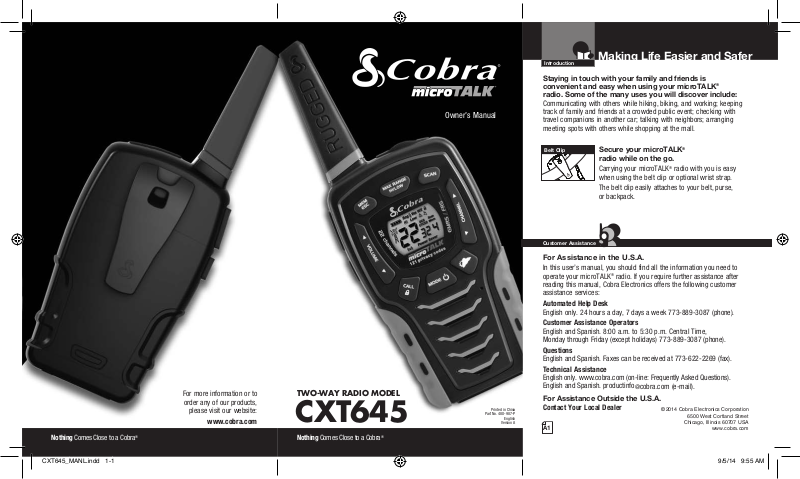

Owner’s Manual

Introduction

Staying in touch with your family and friends is convenient and easy when using your microTALK radio. Some of the many uses you will discover include:

Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall.

Making Life Easier and Safer

Nothing Comes Close to a Cobra

Belt Clip

Customer Assistance

Secure your microTALK radio while on the go.

Carrying your microTALK when using the belt clip or optional wrist strap.

The belt clip easily attaches to your belt, purse, or backpack.

radio with you is easy

For Assistance in the U.S.A.

In this user’s manual, you should find all the information you need to operate your microTALK reading this manual, Cobra Electronics offers the following customer assistance services:

Automated Help Desk

English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators

English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone).

Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).

Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions).

For more information or to

order any of our products,

please visit our website:

www.cobra.com

TWO-WAY RADIO MODEL

CXT645

Nothing Comes Close to a Cobra

Printed in China

Part No. 480-987-P

English

Version A

English and Spanish. productinfo

For Assistance Outside the U.S.A.

Contact Your Local Dealer

radio. If you require further assistance after

@cobra.com (e-mail).

6500 West Cortland Street

Chicago, Illinois 60707 USA

www.cobra.com

Product Features

Introduction

Product Features

1. Antenna

2. External Speaker/ Microphone/ USB Charge Jack

3. Mode/Power Button

4. Call/Lock Button

5. Channel Up/Down Buttons

6. Backlit LCD Display

7. Speaker/Microphone

8. Volume Up/Down Buttons

9. LED Light Button

HI / LO

SCAN

10. Push-to-Talk Button

11. Memory/Escape Button

12. Max Range Hi/Lo Button

13. Scan Button

14. Wrist Strap Connection

15. Belt Clip

16. Battery Compartment

17. Battery Door Screw

18. Rubberized Grips

19. LED Flashlight

20. Weather Button

Introduction

Features

• 22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only.

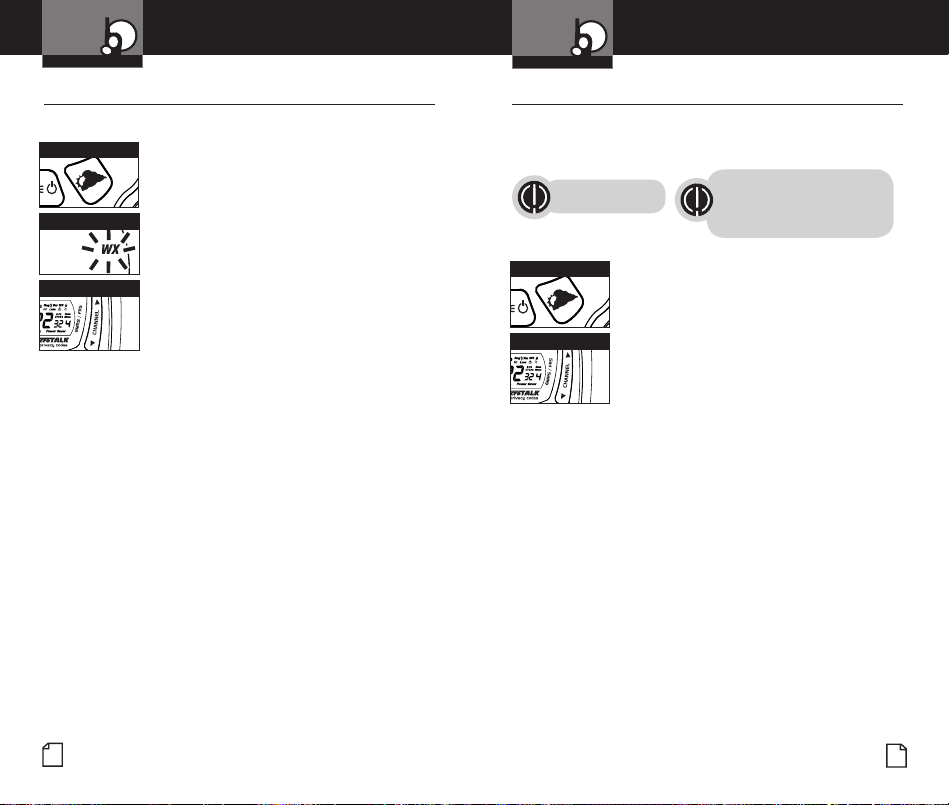

• 10 Channel Weather Radio

• Weather Alert

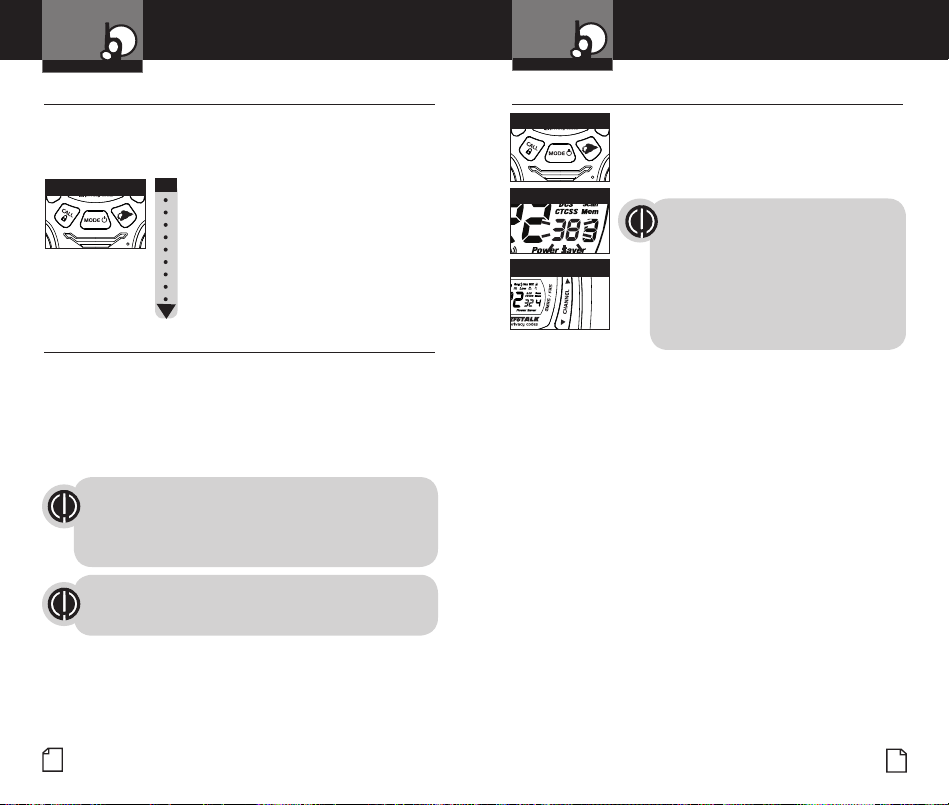

• 121 Privacy Codes

(38 CTCSS codes/ 83 DCS codes)

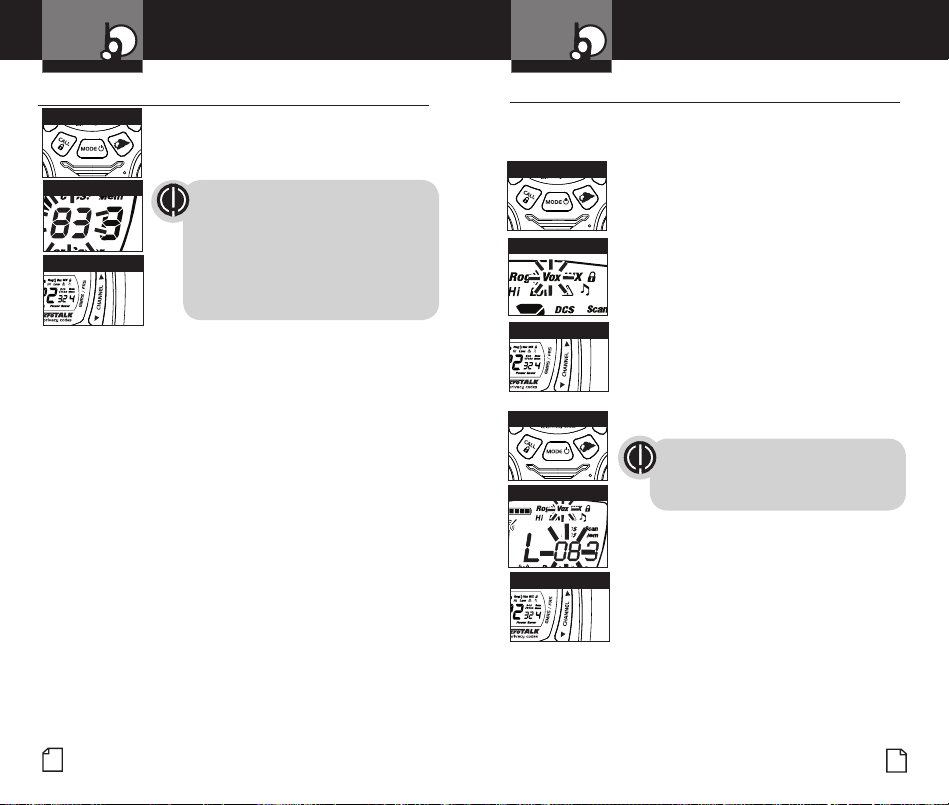

• Hands-Free Operation (VOX)

• VibrAlert Silent Paging

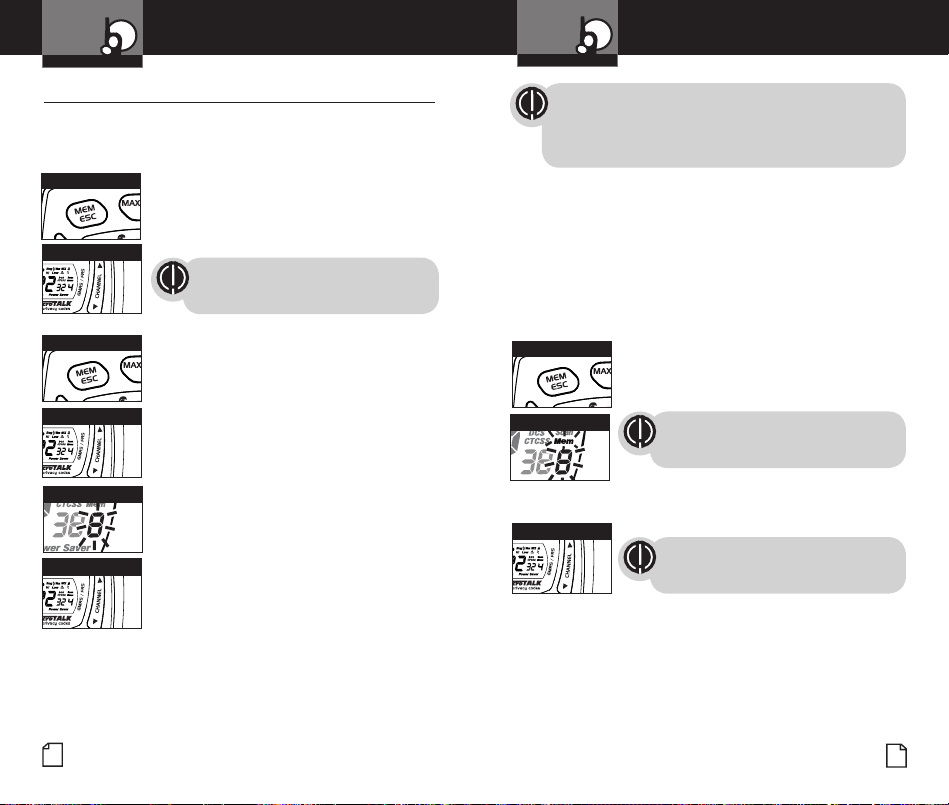

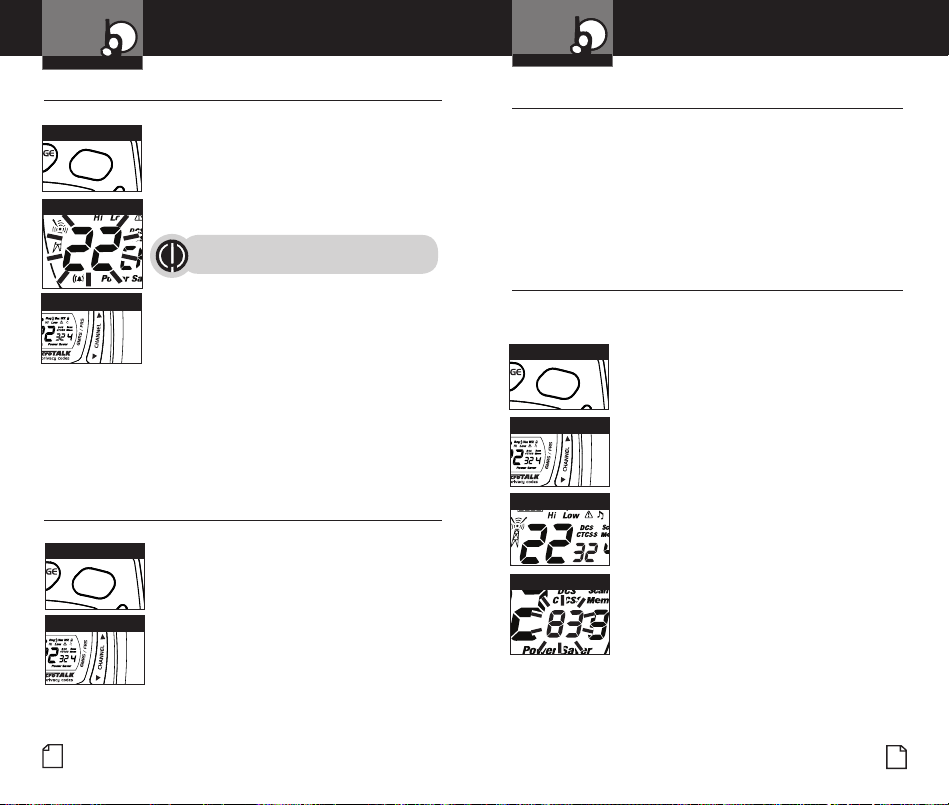

• Scan Channels, privacy codes

• Backlit LCD Display

• LED Flashlight

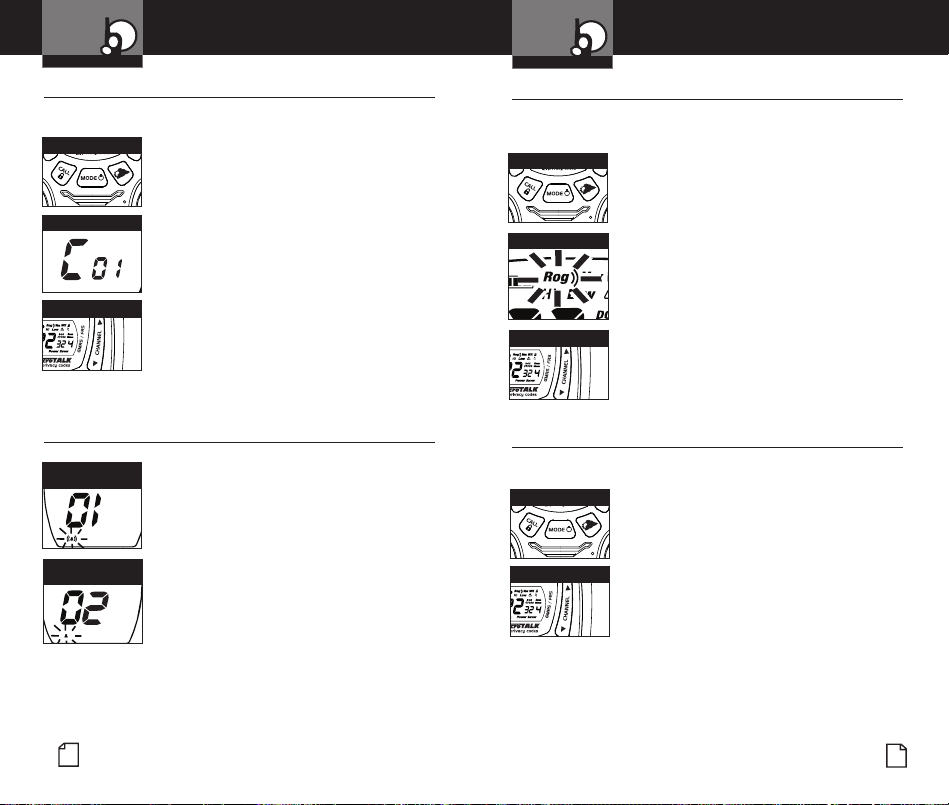

• Call Alert

Five selectable tones

• Button Lock

• Speaker/

Microphone/ Charge Jack

• Roger Beep Selectable On/Off

• Battery/Power Saver

• Keystroke Tones

• Battery Level

Indicator

• Low Battery Audible Alert

• Auto Squelch

• Maximum

Range Extender

• Belt Clip

Product Features

Backlit LCD Display

1. Battery Level Indicator

2. Roger Beep Icon

3. VOX Icon

4. Weather Icon

5. Lock Icon

6. Hi/Low Power Icon

7. DCS/CTCSS Icons

8. Scan/Memory Icon

9. Weather Alert Icon

10. DCS/CTCSS Privacy Code Numbers

11. Power Saver Icon

12. Channel Numbers

13. Receive/Transmit Icon

14. Memory Channel Number

15. VibrAlert

16. Key Tone Icon

Important FCC Licensing Information

This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 19 for licensing and other related information.

Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions.

/ Call Alert Icon

NOTES

9 16

Introduction

Caring for Your microTALK® Radio

Your microTALK if cared for properly. Handle the radio gently. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures.

radio will give you years of trouble-free service

Installing Batteries

To install or replace batteries:

Remove Belt Clip

Remove Screw

Insert Batteries

1. Remove belt clip by releasing belt clip latch and sliding clip up.

2. Using a flat head screw driver or edge of a coin (a quarter may be used), remove the screw securing the back battery panel.

3. Insert the supplied three AA rechargeable batteries or non-rechargeable alkaline batteries. Position batteries according to polarity markings.

4. Replace battery compartment cover, screw and belt clip.

• Do not attempt to charge alkaline batteries.

• Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-zinc), or

rechargeable (Ni-Cd, Ni-MH, etc.) batteries.

Radio Charger Jack

To charge batteries in radio:

1. Check to see that the batteries have been

inserted properly.

2. Insert the cable into the charge jack located at the top of the radio.

3. Plug the cable into USB power source.

•

Use only the supplied rechargeable batteries and charger for recharging your Cobra microTALK radio.

Cobra recommends your radio is turned off while being charged. Non-rechargeable alkaline batteries can also be used in your radio.

Nothing Comes Close to a Cobra

Operation

HI / LO

SCAN

HI / LO

SCAN

Using Your Radio

For charging microTALK radio(s) in desktop charger:

SCAN

If charging light is not on, check position of radio. Radio should be upright. The charge indicator light will stay on as long as the radio is in the charging well, and the light will go off when the charging is complete.

Note: To charge a single radio, you can bypass the desktop charger and simply insert the micro-USB’s connector directly into the charge jack located on the top of the radio.

2. Insert the micro-USB cable into jack on back of charger.

3. Plug the cable into USB-compatible power port. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible.

1. Insert radio(s) into desktop charger as shown.

HI / LO

SCAN

HI / LO

The radio will display flashing battery icon while charging. Cobra recommends your radio be turned off while being charged. Non-rechargeable alkaline batteries can also be used in your radio.

Quick Start

1. Press and hold the Mode/Power button to turn on your radio.

2. Press the Channel Up or Channel Down button to select a channel.

Both radios must be tuned to the same channel/privacy code to communicate.

3. Press and hold the Talk button while speaking into the microphone.

4. When finished talking, release the Talk button and listen for a response.

Turning on Your microTALK® Radio

Mode/Power

Press and hold the Mode/Power button until you hear a series of audible tones indicating the radio is on.

Your microTALK ready to receive transmissions. The radio is always in Standby mode except when the Talk, Call or Mode/Power buttons are pressed.

radio is now in Standby mode,

Operation

Battery Low

When battery power is low, the final bar in the Battery Low icon will blink and an audible tone will sound twice

before the radio shuts off. Your batteries should be replaced or recharged, if using rechargeable batteries.

The radio will display flashing battery icon while charging.

Auto Battery Save

Battery Save Mode

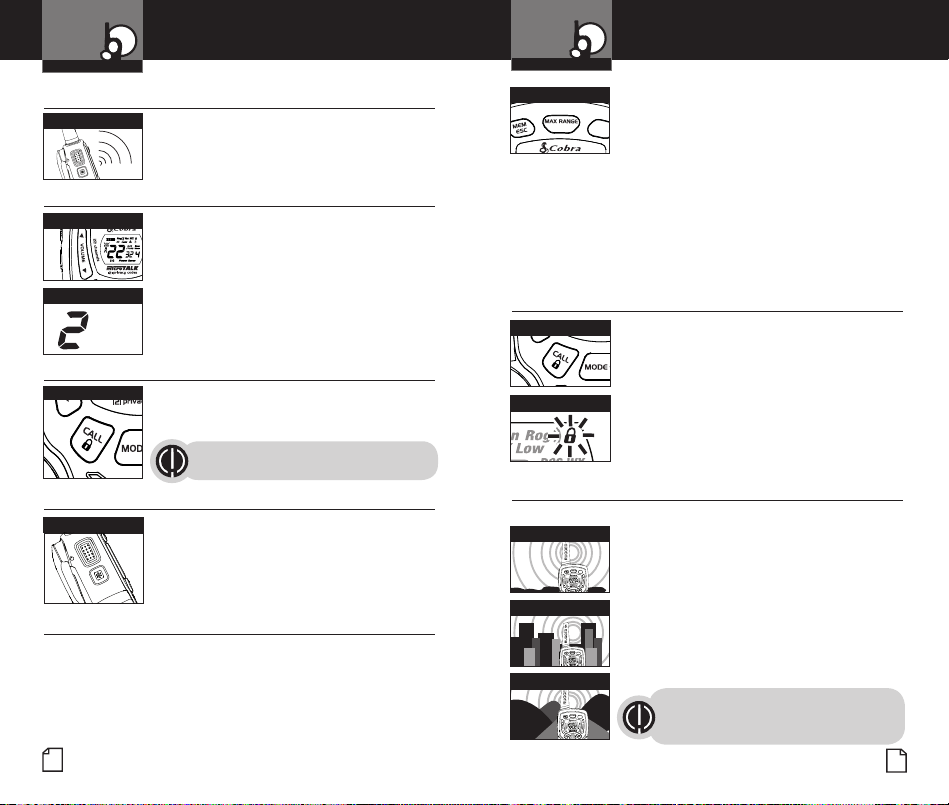

Communicating with Another Person

Talk Button

Two Inches (5 cm) from Mouth

If there are no transmissions within 10 seconds, the radio will automatically switch to Battery Save mode and the Power Saver icon will flash in the display. This will not affect the radio’s ability to receive incoming transmissions.

1. Press and hold the Talk button.

2. With the microphone about two inches (5 cm) from

your mouth, speak in a normal voice.

3. Release the Talk button when you are finished talking and listen for a response.

You cannot receive incoming calls while pressing the Talk button.

Both radios must be tuned to the same channel/privacy code to communicate.

To Select a Channel

Channel Button

•

Channel Number

With the radio on, select any of the 22 channels by pressing the Channel Up or Channel Down button.

Both radios must be tuned to the same channel to communicate.

Channels 1 through 7 are shared with FRS/ GMRS. Channels 8 through 14 are FRS only. Channels 15 through 22 are GMRS only.

See page 18 for FRS/GMRS frequency allocations and compatibility charts.

Nothing Comes Close to a Cobra

•
