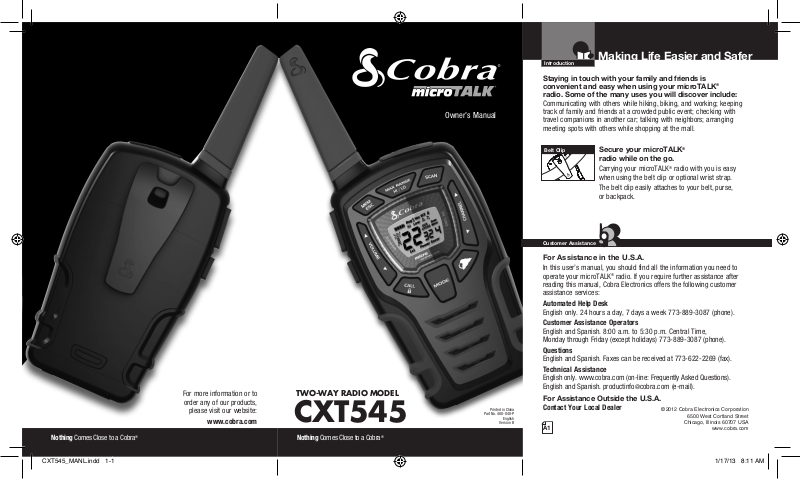

Owner’s Manual
Introduction
Making Life Easier and Safer
Staying in touch with your family and friends is convenient and easy when using your microTALK® radio. Some of the many uses you will discover include:
Communicating with others while hiking, biking, and working; keeping track of family and friends at a crowded public event; checking with travel companions in another car; talking with neighbors; arranging meeting spots with others while shopping at the mall.
Nothing Comes Close to a Cobra
Belt Clip
Secure your microTALK® radio while on the go.
Carrying your microTALK® radio with you is easy when using the belt clip or optional wrist strap.
The belt clip easily attaches to your belt, purse, or backpack.
Customer Assistance
For Assistance in the U.S.A.
In this user’s manual, you should find all the information you need to operate your microTALK® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services:
Automated Help Desk
English only. 24 hours a day, 7 days a week 773-889-3087 (phone). Customer Assistance Operators
English and Spanish. 8:00 a.m. to 5:30 p.m. Central Time, Monday through Friday (except holidays) 773-889-3087 (phone).
Questions English and Spanish. Faxes can be received at 773-622-2269 (fax).
Technical Assistance English only. www.cobra.com (on-line: Frequently Asked Questions).
For more information or to
order any of our products,
please visit our website:
www.cobra.com
®
TWO-WAY RADIO MODEL
CXT545
Nothing Comes Close to a Cobra
®
Printed in China
Part No. 480-840-P
English
Version B
English and Spanish. productinfo@cobra.com (e-mail).
For Assistance Outside the U.S.A.
Contact Your Local Dealer
A1
©2012 Cobra Electronics Corporation
Chicago, Illinois 60707 USA
6500 West Cortland Street
www.cobra.com
CXT545_MANL.indd 1-1 1/17/13 8:11 AM
Product Features
Introduction
Product Features
1
11
10
9
8
4
1. Antenna
2. External Speaker/ Microphone/ USB Charge Jack
3. Mode/Power Button
4. Call/Lock Button
5. Channel Up/Down Buttons
6. Backlit LCD Display
7. Speaker/Microphone
8. Volume Up/Down Buttons
9. LED Light Button
A2
2
12
HI / LO
SCAN
10. Talk Button
11. Memory/Escape Button
12. Max Range Hi/Lo Button
13. Scan Button
14. Wrist Strap Connection
15. Belt Clip
16. Battery Compartment
17. Battery Door Latch
18. Rubberized Grips
19. LED Flashlight
15
14
16
13
Warranty and Trademark
Introduction
Features
22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only.
10 Channel NOAA All Hazards Radio
• Weather Alert
121 Privacy Codes
(38 CTCSS codes/ 83 DCS codes)
17
6
5
3
7
18
19
Hands-Free Operation (VOX)
VibrAlert® Silent Paging
Scan Channels, privacy codes
Backlit LCD Display
LED Flashlight
Call Alert
Five selectable tones
Button Lock
Speaker/
Microphone/ Charge Jack
Roger Beep Selectable On/Off
Battery/Power Saver
Keystroke Tones
Battery Level
Indicator
Low Battery Audible Alert
Auto Squelch
Maximum
Range Extender
Belt Clip
A3
Product Features
Backlit LCD Display
3
2
1
6
13
12
15
11
1. Battery Level Indicator
2. Roger Beep Icon
3. VOX Icon
4. Weather Icon
5. Lock Icon
6. Hi/Low Power Icon
7. DCS/CTCSS Icons
8. Scan/Memory Icon
9. Weather Alert Icon
10. DCS/CTCSS Privacy Code Numbers
11. Power Saver Icon
12. Channel Numbers
13. Receive/Transmit Icon
14. Memory Channel Number
15. VibrAlert® / Call Alert Icon
16. Key Tone Icon
Important FCC Licensing Information
This radio operates on General Mobile Radio Service (GMRS) frequencies which require a Federal Communications Commission (FCC) license. See page 15 for licensing and other related information.
Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions.
4
5
9
16
7
8
14
10
Warranty
Limited One-Year Warranty on Radio(s)
For Products Purchased in the U.S.A.
Cobra Electronics Corporation warrants that its Cobra microTALK® radios and the component parts thereof, will be free of defects in workmanship and materials for a period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.
Cobra will, without charge, repair or replace, at its option, defective microTALK® radios, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.
You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.
Exclusions: This limited warranty does not apply: 1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the product resides outside the U.S.A.
All implied warranties, including warranties of merchantability and fitness for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.
Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.
For Products Purchased Outside the U.S.A.
Please contact your local dealer for warranty information.
90-Day Warranty on Rechargeable Batteries
For products purchased in the U.S.A. and Canada.
Trademark Acknowledgement
Cobra®, microTALK®, Nothing Comes Close to a Cobra®, VibrAlert® and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation™ is a trademark
of Cobra Electronics Corporation, USA.
Acknowledgement
Nothing Comes Close to a Cobra
®
17
CXT545_MANL.indd 2-17 1/17/13 8:12 AM
