Cobra Electronics 19DXIII Users manual

19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 1

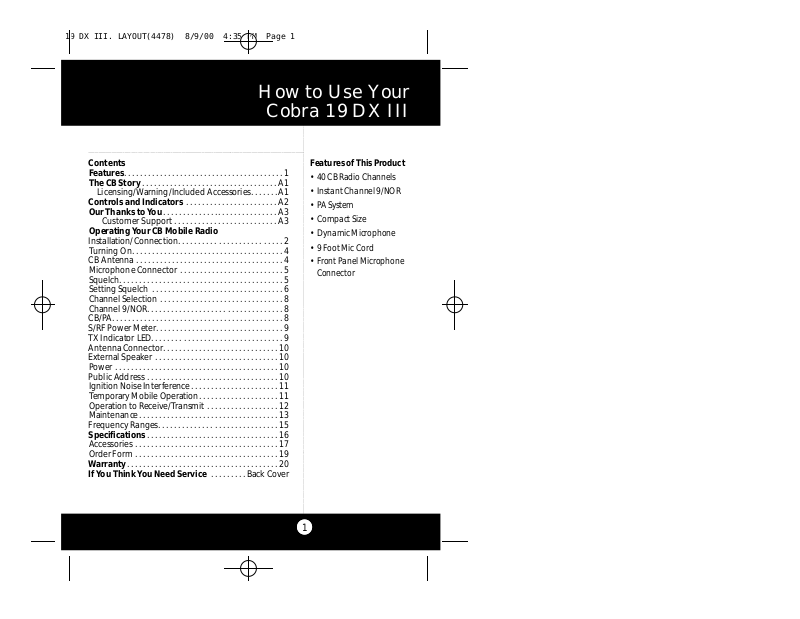

How to Use Your
Cobra 19D XI I I
Contents
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
The CB Story . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A1
Licensing/Warning/Included Accessories. . . . . . . A1
Controls and Indicators . . . . . . . . . . . . . . . . . . . . . . . A2
Our Thanks toYou. . . . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . A3
Installation/Connection. . . . . . . . . . . . . . . . . . . . . . . . . . 2
Turning On. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
CB Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Microphone Connector . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Squelch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setting Squelch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Channel 9/NOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CB/PA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
S/RF Power Meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
TX Indicator LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Antenna Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Public Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Ignition Noise Interference. . . . . . . . . . . . . . . . . . . . . . 11
Temporary Mobile Operation. . . . . . . . . . . . . . . . . . . . 11
Operation to Receive/Transmit . . . . . . . . . . . . . . . . . . 12
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Frequency Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Order Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
If You Think You Need Service . . . . . . . . . Back Cover
Features of This Product
• 40 CB Radio Channels
• Instant Channel 9/NOR
• PA System
• Compact Size
• Dynamic Microphone
• 9 Foot Mic Cord
• Front Panel Microphone Connector
1
19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 2
O p e r a t i o nInstallation Installation
Mounting and Connections
Note
The transceiver is held in the universal mounting bracket by two thumb screws,permitting adjustment at the most conve­nient angle.
A universal mounting bracket is supplied along with self tap­ping screws and star washers. To mount the transceiver:
Mo u nting and Co n n e ct i o n s
Se l e ct a location for the tra n s ce i ver and micro­phone bra c ket that is co nve n i e nt for ope rat i o n . In auto m o b i l e s,the tra n s ce i ver is usually mounte d to the undern e ath of the dash panel,with the m i c rophone bra c ket beside it.
1Hold the radio with mounting bra c ket in the
ex a ct location desire d.Re m ove the mount i n g b ra c ket and use it as a te m p l ate to mark the l ocation for the mounting scre ws.
CB Transceiver
4Co n n e ct the red lead of DC power co rd to an
a c ce s s o ry 12 volt fuse.
5Co n n e ct the black lead to the negat i ve side of
the auto m o b i l e.This is usually the chassis.Any co nve n i e nt location with good elect ri cal co nt a ct ( re m ove paint) may be used.
O p e r a t i o n
Mounting and Connections
Note
Before installing the CB radio, visually check the vehicle bat­tery connections to determine which battery terminal, posi­tive or negative (positive is the larger of the two) is grounded to the engine block (or chassis).
6Mo u nt the microphone bra c ket on ri g ht side of
the tra n s ce i ver or near it using two scre ws sup­p l i e d.When mounting in an auto m o b i l e,p l a ce
2Drill nece s s a ry holes and secure mount i n g
b ra c ket in locat i o n .
3Co n n e ct the antenna cable plug to the re ce p t a-
cle marked “A N T”on the back of the unit.
the bra c ket under the dash so the micro p h o n e is readily acce s s i b l e.
7Attach the 4-pin microphone cable to recepta-
cle on front of unit and install unit in bracket securely.
2
3
19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 4
Operation
Turning on Your Radio
CB Antenna
No te
Co b ra loaded-ty pe ante n n a m odels HGA 1000,HGA 1500, and HGA 2000 are highly re c­ommended for most installa­t i o n s. Consult your Co b ra deal­er for further details (or see o rder form at the back of this boo k ) .
3 - Way Combination An te n n a s a re available which allow ope r­ation of all three bands (AM-FM & CB),using a single ante n n a . Howeve r,use of this ty pe of a n tenna usually results in less than normal transmit and re ce i ve range when co m p a re d to a standard - ty pe "Si n g l e Band" antenna designed for CB only.
Tu rning on
Tu rn volume co nt rol cloc kwise to turn power on and set the desired listening vo l u m e.
CB Ante n n a
Only a pro pe rly matched antenna sys tem will a l l ow maximum power output.
In mobile installations (ca r s,t ru c k s,bo at s,e tc. ) , an antenna sys tem that is non-dire ctional should be used.
When installed in a bo at,the tra n s ce i ver will not o pe rate at maximum efficiency without a gro u n d p l ate unless the vessel has a steel hull.Be fo re installing the tra n s ce i ver in a bo at,consult yo u r dealer for info rm ation re g a rding an adequate g rounding sys te m .
Mi c rophone Co n n e ctor
Al l ows for co nve n i e nt re m oval of the micro p h o n e plug when sto rage is re q u i re d.The micro p h o n e MUST be co n n e cted to the unit at all times when in u s e,for pro per ope rat i o n .
Sq u e l c h
This co nt rol is used to cut off or eliminate re ce i ve r b a c kg round noise in the absence of an inco m i n g s i g n a l . Adjust until the re ce i ver noise disappe a r s. This will re q u i re the incoming signal to be slight l y s t ronger than ave rage re ce i ver noise.Fu rther cloc k­wise ro t ation will increase the threshold leve l which a signal must ove rcome in order to be heard. Only strong signals will be heard at a maximum c l oc kwise setting.
O p e r a t i o n
Microphone Connector
Squelch
4
5
19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 6
O p e r a t i o n
Setting Squelch
Gate closed
Gate open
Setting Squelch
Squelch is the “control gate”for incoming signals. 1 . Fullclockwise rotation closes the gate
allowing only very strong signals to enter.
2 . Fullcounterclockwise rotation opens the “gate”
allowing all signals in.
3 . To achieve the De s i red Squelch Setting (DSS),
t u rn the Squelch co nt rol co u n te rc l oc kw i s e u nt i l you hear noise. Now turn the co nt rol c l oc kw i s e just until the noise sto p s. This is the DSS setting.
O p e r a t i o n
Gate set to Desired Squelch Setting (DSS)
6
7
19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 8
O p e r a t i o n
Channel Selection
Channel 9/ NOR
CB/PA
Se l e cting a Ch a n n e l
Ro t ate channel knob cloc kwise until desired chan­nel is displaye d.
Channel 9/NOR
Set CH 9 to obtain instant access emerg e n cy c h a n­n e l .In NOR po s i t i o n ,all 40 CB channels are selecte d by the channel butto n .
C B / PA
In the CB po s i t i o n ,the PA function is disabled and the unit will transmit and re ce i ve on the selected channel. The PAf u n ction should not be used unless a PA spe a ke r is co n n e cte d.
O p e r a t i o n
S/RF Power Me te r
Sh ows re l at i ve tra n s m i t ter RF output power and input signal strength when re ce i v i n g.The LED (Light Emitting Di ode) segments glow green to amber to re d...this indicates re ce i ve or transmit act i v i ty.
TX Indicator LED
The indicator will light red when in the transmit mod e.
S/RF PowerMeter
TX Indicator LED
8
9
g
a t i ve side co n t a ct s.
Note
Radio resets to CH 9 when co n n e cted to cigare t te lighter plug
19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 10
O p e r a t i o n
Antenna Connector
External Speaker
Note
Co b ra external spe a kers are ra ted 15 wa t t s
Power
Rear Pa n e l Antenna Co n n e cto r.This female connector per-
mits connection of the transmission line cable male connector to the transceiver.
Exte rnal Spe a ke r.The External Speaker Jack is used for an external speaker.The external speak­er should have 8-ohm impedance and be rated to handle at least 4.0 watts.When the external speaker is plugged in,the internal speaker is automatically disconnected.
Powe r : These wires supply power to the CB ra d i o. This cable is pe rm a n e ntly attached to the ra d i o.If you wish to re m ove the radio after installat i o n ,d i s­co n n e ct at fuse holder and ground co n n e cto r.
Public Ad d re s s : An external PA speaker may be connected to the PA speaker jack when used as a public address system.The speaker should be directed away from the microphone to prevent acoustic feed-back.Physical separation or isola­tion of the microphone and speaker must be employed when operating the PA at high output levels.
10
Ignition Noise Inte rfe re n ce
Use of a mobile re ce i ver at low signal levels is nor­mally limited by the pre s e n ce of elect ri cal noise. Under most ope rating co n d i t i o n s,when signal l evel is adequate,the backg round noise does not p re s e nt a serious pro b l e m .Al s o,when ext re m e l y l ow level signals are being re ce i ve d,the tra n s ce i ve r m ay be ope rated with vehicle engine turned off. The unit re q u i res ve ry little curre nt and there fo re will not significa ntly discharge the vehicle bat te ry.
Even though this radio has an auto m atic noise lim­i te r,in some installations ignition inte rfe re n ce may be high enough to make good co m m u n i cat i o n s i m po s s i b l e.Consult your CO B RA dealer or a 2-way radio technician for help in locating and co rre ct i n g the source of seve re noise.
Te m po ra ry Mobile Ope rat i o n
For te m po ra ry mobile ope rat i o n ,you may wa nt to p u rchase an additional cigare t te lighter adapte r f rom your CO B RA dealer.This adapter and a mag­netic mount antenna allow you to quickly "install" your tra n s ce i ver for te m po ra ry use.
O p e r a t i o n
Ignition Noise Interference
Note
When using the unit with cig­a re t te adapte r,turn off when not in use to avoid draining the batte ry.
Temporary Mobile Operation
Note
Red wire is co n n e cted to po s i­t i ve side of soc ket ce n ter tip. Black wire is co n n e cted to ne
11
M a i n t e n a n c e
Maintenance and Adjustment
Your COBRA CB transceiver is specifically designed for the environment encountered in mobile installations.The use of all solid state cir­cuitry and its light weight result in high reliabili­ty.Should a failure occur,however,review the fol­lowing,then if necessary,replace parts only with identical parts.Do not substitute.
1 . Check connections to the source of power and
make sure it is the 13.8 VDC required to oper­ate your radio.
2 . Check the fuses in the DC power cord.The
main power lead (red ) has a 2 amp 3AG type fuse in its holder.Use only the above specified type and size fuse for maximum protection. Failure to do so will void the warranty.
3 . Ma ke ce rtain the microphone is pro pe rl y
plugged in.
4 . Make certain the antenna is properly assem-
bled and connected.
If you are unable to correct the problem,refer to the SERVICE INSTRUCTIONS at the end of this manual for the correct procedure for warranty and post-warranty service from COBRA.
12
Operating Procedure to Receive 1 . Be sure that power cord,antenna and microphone are connected to the
proper connectors before proceeding further.The CB/PA switch should be in the "CB" position.
2 . Turn the radio ON by rotating the VOLUME CONTROL clockwise. 3 . Rotate SQUELCH CONTROL counterclockwise until incoming signal is
heard.
4 . Select the desired channel. 5 . Set VOLUME CONTROL to a comfortable listening level.
Operating Procedure toTransmit 1 . Select the desired channel. 2 . The receiver and transmitter are controlled by the press-to-talk switch on
the microphone.Press the switch and the transmitter is activated;release switch to receive.When transmitting (on a clear channel),hold the micro­phone two inches from the mouth and speak clearly in a normal voice.
Be sure the antenna is properly connected to the radio before transmit­ting.Prolonged transmitting without an antenna,or a poorly matched antenna,could cause damage to the transmitter.
O p e r a t i o n
19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 12
Maintenance/ Adjustment
13
s
The Co b ra 19 DX III tra n s ce i ver re p re s e nts one of the most adva n ced AM two - way radios used as a Class D s t ation in the Ci t i zens Radio Se rv i ce.This unit fe at u re s a dva n ced Phase Lock Loop (PLL) circ u i t ry prov i d i n g co m p l e te cove rage of all 40 CB channels.
1 26.965 21 27.215 2 26.975 22 27.225 3 26.985 23 27.255 4 27.005 24 27.235 5 27.015 25 27.245
6 27.025 26 27.265 7 27.035 27 27.275 8 27.055 28 27.285 9 27.065 29 27.295 10 27.075 30 27.305
11 27.085 31 27.315 12 27.105 32 27.325 13 27.115 33 27.335 14 27.125 34 27.345 15 27.135 35 27.355
16 27.155 36 27.365 17 27.165 37 27.375 18 27.175 38 27.385 19 27.185 39 27.395 20 27.205 40 27.405
Channel Channel CB Freq. CB Freq. Channel In MHz Channel In MHz
Permitted:"A tornado sighted six miles of town." Not Permitted :"This is observation post number 10.
No tornado sighted."
Wa rn i n g
14
Channel 9 Emergency Messages
ReplacementWarning
Replacement or substitution of certain parts with replacements other than those recommended by Cobra may be a violation of the technical regula­tions of Part 95 of the FCC rules,or of Type Acceptance requirements of Part 2 of said rules.
When making adjustment s,be sure to re - re a d a p p l i cable po rtions of this instru ction manual to m a ke ce rtain you are fo l l owing co rre ct proce d u re and that the radio was pro pe rly installed,e tc.
A Few Rules That Should Be Obeyed
1. You are not allowed to carry on a conversation with
another station for more than five minutes at a time with­out taking a one-minute break to give others a chance to use the channel.
2. You are not allowed to blast others off the air by overpow­ering them with illegally amplified transmitter power or illegally high antennas.
3. You can't use CB to promote illegal activities.
4. You are not allowed to use profanity.
5. You may not play music in your CB.
6. You may not use your CB to sell merchandise or profes-
sional service.
Use Channel 9 For Emergency Messages Only
The FCC gives the following examples of permit­ted and prohibited types of communications for use on Channel 9.These are guidelines and are not intended to be all-inclusive.
A Few Rules You Should Know
19 DX III. LAYOUT(4478) 8/9/00 4:35 PM Page 14
F requency Range
15
$0.60
Replacement Microphone Bracket
741-080-9-001 $0.45
4 Pin Power Microphone
HG M75 $25.95
4 Pin Noise Canceling Microphone
HG M77 $30.95
4 Pin Replacement Dynamic Microphone
HG M73 $19.95
4 Pin Premium Noise­Cancelling Microphone
HG M84 $74.95
4 Pin Premium Noise­Cancelling Microphone
Wood Grain HG M84W $74.95
5 Pin Premium Noise­Cancelling Microphone
HG M85 $74.95
19 DX III. LAYOUT(4478) 8/9/00 4:36 PM Page 16
S p e c i f i c a t i o n s
Specifications
GENERAL
CHANNELS. . . . . . . . . . . . . . . . . . . . . . . CB - 40 CH
FREQUENCY RANGE. . . . . . . . . . . . . . . CB - 26.965 TO 27.405 MHZ
FREQUENCY TOLERANCE. . . . . . . . . . 0.005 %
FREQUENCY CONTROL . . . . . . . . . . . . PLL (PHASE LOCK LOOP) SYNTHESIZER
OPERATING TEMPERATURE
RANGE. . . . . . . . . . . . . . . . . . . . . . . . . . . -30° C TO + 65° C
MICROPHONE . . . . . . . . . . . . . . . . . . . . PLUG-IN DYNAMIC
INPUT VOLTAGE . . . . . . . . . . . . . . . . . . 13.8VDC nom.(negative ground)
CURRENT DRAIN TRANSMIT:AM FULL MOD.,1.4A (MAXIMUM)
SIZE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7/8”D X 6-3/4”W X 1-7/8”H
WEIGHT . . . . . . . . . . . . . . . . . . . . . . . . . .3.25 LBS.
ANTENNA CONNECTOR . . . . . . . . . . . .UHF;SO-239
METER . . . . . . . . . . . . . . . . . . . . . . . . . . .LED;INDICATES RELATIVE POWER
TRANSMITTER
POWER OUTPUT . . . . . . . . . . . . . . . . . .4WATTS
MODULATION . . . . . . . . . . . . . . . . . . . .AM (AMPLITUDE MODULATION)
FREQUENCY RESPONSE . . . . . . . . . . . .300 TO 3000 HZ
OUTPUT IMPEDANCE . . . . . . . . . . . . . .50 OHMS,UNBALANCED
RECEIVER
SENSITIVITY . . . . . . . . . . . . . . . . . . . . . . .LESS THAN 1 µV FOR 10dB (S+N)
SELECTIVITY . . . . . . . . . . . . . . . . . . . . . .6 dB @ 7 KHZ,60 DB @ 10KHZ
IMAGE REJECTION . . . . . . . . . . . . . . . . .60 dB,TYPICAL
ADJACENT-CHANNEL REJECTION . . .50 dB,TYPICAL
ATOMATIC NOISE LIMITER . . . . . . . . . .BUILT-IN
RECEIVE:SQUELCHED, 0.9 A; FULL AUDIO OUTPUT,1.2A (NOMINAL)
OUTPUT AND RECEIVED SIGNAL STRENGTH
Replacement Mounting Bracket
251-199-9-001 $4.50
A c c e s s o r i e s
Replacement Thumb Screws
634-081-9-001
16
17
2 5 1 - 1 9 9 - 9 - 0 0 1 Re p l a ce m e nt Mo u nting Bra c ke t $ 4 . 5 0 634-081-9-001 ReplacementThumb Screws $0.60 741-080-9-001 Replacement Microphone Bracket $0.45 HG A1000 2 1 ”Base Loaded Magnetic Mo u nt Ante n n a $28.95 HG A1500 3 8 ”Base Loaded Magnetic Mo u nt Ante n n a $46.95 HG A2000 5 4 ”Base Loaded Magnetic Mo u nt Ante n n a $99.95 HG M84 4 Pin Premium No i s e - Ca n celling Mi c ro p h o n e $74.95 HG M84W 4 Pin Premium No i s e - Ca n celling Mic Wood gr $74.95 HG M85 5 Pin Premium No i s e - Ca n celling Mi c ro p h o n e $74.95 HG M73
Replacement Dynamic Microphone
$19.95 HG M75 4 Pin Power Microphone $25.95 HG M77 Noise Canceling Microphone $30.95 HG S100 Dynamic External Speaker $21.95 HG S300 Noise Canceling External Speaker $28.95
HG S500 Noise Canceling
With Talk Back External Speaker $32.95
HG A300 Fi be rglass Whip Re p l a ce m e nt Ante n n a $28.95
Black,Red,White,Gold
HG A400 Fi be rglass Whip Re p l a ce m e nt Ante n n a $29.95
Black,Red,White,Gold
HG A450 Fi be rglass Whip Re p l a ce m e nt Ante n n a $30.95
Black,Red,White,Gold
HG A6000 6 2 ”Ce nte r - Load Re p l a ce m e nt Antenna
Black/Clear, Black,Red,White,Gold $89.95
Tax Table
Illinois residents add 7% Cook Co.residents add .75% (7.75% total) Chicago residents add 1% (8.75% total) Indiana residents add 5%
For credit card orders fill out order form and fax to: 1.773.622.2269 or call 1.773.889.3087 (Press 1 from the main menu)
8:00 am - 6:00 pm,M-F,CST. Ma ke check or money order (no stamps) payable to: Cobra Accessories Dept. 6500 West Co rtland St .Ch i ca g o,IL 60707
Prices subject to change without notice.
Please print clearly
Name_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ _ Address (No P.O.Box)_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ City_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _State_ _ _ _ _ _ _ _ _ _ _ _ Zip_ _ _ _ _ _ _ _ _ _ _ _ _Telephone (_ _ _ _)_ _ _ _ _ _ _ _ _ _ _ _ __ _ _ _ _ _ _ _ _ _ _ _ _ Credit Card No._ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _Exp.Date_ _ _ _ _ _ _ _ _ Customer Signature_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Circle One: Visa MasterCard Discover
Subtotal (Tax if applicable) Shipping/handling
Total
Item # Description Cost Ea. Qty. Amou
Michigan residents add 4 % Ohio residents add 6% Wisconsin residents add 5%
Shipping & Handling
Amount of Shipping/ Order Handling
$25.00 and under $4.75 minimum $25.01-$40.00 $6.95 $40.01-$80.00 $9.00 $80.01-$120.00 $10.00 $120.01-$160.00 $11.50 $160.01 and up $14.25
For AK,HI and PR please add an additional $15.00 for UPS shipments.
A c c e s s o ry Order Form
19
38”Base Loaded Magnet Mount Antenna
HG A1500 $46.95
54”Base Loaded Magnet Mount Antenna
HG A2000 $99.95
21”Base Loaded Magnet Mount Antenna
HG A1000 $28.95
Dynamic External Speaker
HG S100 $21.95
Noise Canceling External Speaker
HG S300 $28.95
Noise Canceling With Talk Back External Speaker
HG S500 $32.95
Fiberglass Whip Replacement Antenna
3 Foot HG A300 $28.95
Black,Red,White,Gold 4 Foot HG A400 $29.95 Black,Red,White, Gold 4 1/2 Foot HG A450 $30.95 Black,Red,White,Gold
62”Center-Load Replacement Antenna
HG A6000 $89.95 Black/Clear,Black,Red,White,Gold
A c c e s s o r i e s
18
19 DX III. LAYOUT(4478) 8/9/00 4:36 PM Page 18
19 DX III. LAYOUT(4478) 8/9/00 4:36 PM Page 20
Limited Two Year Wa rr a n t y
Limited Warranty
COBRA ELECTRONICS CORPORATION warrants that its COBRA CBTransceiver,and the component parts thereof,will be free of defects in material and workmanship for a period of two (2) years from the date of consumer purchase.This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A.
COBRA will,without charge,repair or replace,at its option, a defective CBTransceiver upon delivery to the COBRA factory Service Department,accompanied by proof of the date of first consumer purchase,such a duplicated sales receipt.
You must pay initial shipping charges required to ship the product for warranty service, but the return charges will be at COBRA’S expense,if the product is repaired or replaced
Cobra Electronics Corporation
6500 West Cortland Street Chicago,Illinois 60707
under warranty. Exclusions:This limited warranty does not apply;1) to any
product damaged by accident;2) in the event of misuse or abuse of the product or as a result of unauthorized alter­ations or repairs;3) if the serial number has been altered, defaced or removed;4) if the owner of the product resides outside the U.S.A.
All implied wa rra nt i e s,including wa rra nties of mer­c h a nt a b i l i ty and fitness for a particular purpose are limite d in duration to the length of this wa rra nty.
CO B RA shall not be liable for any incident a l ,co n s e q u e nt i a l or other damages;i n c l u d i n g,without limitat i o n ,d a m a g e s resulting from loss of use or cost of installat i o n .
Some states do not allow limitations on how long an implied wa rra nty lasts and/or do not allow the exclusion or l i m i t ation of incidental or co n s e q u e ntial damages,so the a bove limitations may not apply to yo u.
The Co b ra line of quality prod u cts also includes:
• High Ge a r™Ac ce s s o ri e s
• Radar De te cto r s
• Sa fe ty Al e rt
Traffic Wa rning Sys te m s
• Family Radio Se rv i ce (FRS) 2-Way Ra d i o s
Nothing comes close to a Co b ra
20
19 DX III. LAYOUT(4478) 8/9/00 4:36 PM Page 26
Cobra Electronics Corporation 6500 West Cortland Street Chicago, IL 60707
19 DX III
O pe rating Instru ctions for your
IfYou Think You Need Service
For te c h n i cal assistance,please call our Au to m a ted Help Desk which can assist you by answering the most fre q u e n t ly asked questions about Co b ra prod u ct s .
(773) 889-3087
24 hours a day,7 days a week.
A Consumer Service Representative can be reached through this same number
8:00 am - 6:00 pm,Monday through Friday,Central Standard Time.
Technical assistance is also available on-line in the Frequently Asked Questions (FAQ)
section at www.cobraelectronics.com or by e-mail to productinfo@cobraelectronics.com
If you think you need service call 1.773.889.3087
If your product should require factory service please call Cobra first before sending in your unit. This will ensure the fastest turn-around time on your repair.
You may be asked to send your unit to the Cobra factory.It will be necessary to furnish the follow­ing in order to have the product serviced and returned.
1. For Warranty Repair include some form of proof-of-purchase,such as a mechanical reproduction or carbon of a sales receipt. If you send the original receipt it cannot be returned.
2. Send the entire product.
3. Enclose a description of what is happening with the unit.Include a typed or clearly print name and address of where the unit is to be returned.
4. Pack unit securely to prevent damage in transit. If possible, use the original packing material.
5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit to: Cobra Factory Service,Cobra Electronics Corporation,6500 W.Cortland St.,Chicago,IL 60707.
6. If the unit is in warranty,upon receipt of your unit it will either be repaired or exchanged depending on the model. Please allow approximately 3 to 4 weeks before contacting us for status.If the unit is out of warranty a letter will automatically be sent informing you of the repair charge or replacement charge.If you have any questions, please call 1.773.889.3087 for assistance.
Cobra Electronics Corp.© 2000 Printed in China
Part No. 480-316-P-001
19 DX III
Mobile Radio
“Ingenious Prod u cts for Easier Co m m u n i ca t i o n .”
19 DX III. LAYOUT(4478) 8/9/00 4:36 PM Page 28
The Citizens Band Story
The Ci t i zens Band lies be tween the shortwave bro a d ca s t and 10-meter Am ateur radio bands,and was established by law in 1949. The Class D two - way co m m u n i cat i o n s
2
1
3
4
s e rv i ce was opened in 1959.(CB also includes a Class A c i t i zens band and Class C re m o te co nt rol fre q u e n c i e s. )
F CCR e g u l at i o n s
F CC re g u l ations pe rmit only "transmissions" (one-party to another) rather than" bro a d cast" (to a wide audience ) . Th u s,a dve rtising is not allowed on CB channels be ca u s e t h at is "bro a d ca s t i n g " .
F CC Wa rn i n g s
All tra n s m i t ter adjustments other than those supplied by the manufact u rer as fro nt panel ope rating co nt ro l s, must be made by,or under the supe rvision of,the holder of an FCC-issued general Ra d i o - Telephone Ope rato r’s L i ce n s e.
Re p l a ce m e nt or substitution of tra n s i s to r s,regular di­odes or other parts of a unique nat u re,with parts other than those re commended by Co b ra ,m ay cause violat i o n of the te c h n i cal re g u l ations of Pa rt 95 of the FCC Ru l e s, or violation of Ty pe Ac ce p t a n ce re q u i re m e nts of Pa rt 2 of the Ru l e s.
You should read and understand Pa rt 95 (included with this unit) of the FCC Rules and Re g u l at i o n s,be fo re ope r­ating your Co b ra ra d i o,even though the FCC no longer re q u i res you to obtain an ope rato r’s lice n s e.
Wh at’s included with your CB Ra d i o :
1 . CB tra n s ce i ve r 6 . F CC ru l e s
5
2 . Mi c ro p h o n e . (not pict u re d ) 3 . Tra n s ce i ver bra c ke t 1 . 4 . Mi c rophone bra c ke t
5 . O pe rating Ma n u a l
A1
19 DX III. LAYOUT(4478) 8/9/00 4:36 PM Page 30
Controls and Indicators
1. Microphone Connector.
2. Off/On/Volume.
3. Squelch.
4. Channel 9/NOR
5. CB/PA
6. Channel Selector Button.
7. LED Channel Display.
8. S/RF Power Meter. 9 . TX Indicator LED. 1 0 . Microphone
Back Side
1 1 . Antenna Connector 1 2 . Public Address 1 3 . Power Cord
14.External Spe a ker Co n n e cto r
1 0
Our Thanks to You
Thank you for purchasing the Cobra 19 DX III CB Radio Transceiver. Properly used,this Cobra p rod­u ct will give you many years of reliable serv i ce.
5
4
8
9
7 6
Customer Support
Should you encounter any problems with this product,or not understand its many features, please refer to this owner’s manual.If,after refer­ring to the manual, you still need help,call Cobra
1
2 3
Customer Service at 773.889.3087.
1412
Cobra Customer Service Live operators are available M-F 8:00 am – 6:00 pm Central StandardTime at
773.889.3087 Automated Technical Assistance available 24 hours a day,seven days a week.E-mail questions to: productinfo@ cobraelectronics.com
Cobra on the World Wide Web:Frequently Asked Questions (FAQ) can be found at: w w w. co b ra e l e ct ro n i c s. co m
A2
11
13
A3
Loading...
