Page 1

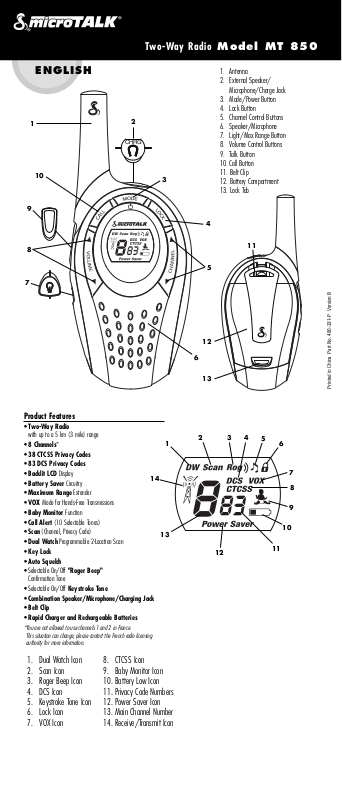

Two-Way Radio Model MT 8 5 0

CHRG

EN G L I S H

Product Features

• Two-Way Radio

with up to a5 km (3 mile)range

• 8 Channels*

• 38 CTCSS Privacy Codes

• 83 DCS Privacy Codes

• Backlit LCD Display

• Battery Saver Circuitry

• Maximum Range Extender

• VOX Mode for Hands-Free Transmissions

• Baby Monitor Function

• Call Alert (10 Selectable Tones)

• Scan (Channel, Privacy Code)

• Dual Watch Programmable 2-Location Scan

• Key Lock

• Auto Squelch

• Selectable On/Off "Roger Beep"

Confirmation Tone

• Selectable On/Off Keystroke Tone

• Combination Speaker/Microphone/Charging Jack

• Belt Clip

• Rapid Charger and Rechargeable Batteries

*You are not allowed to use channels 1 and2 in France.

This situation can change; please contact the French radio licensing authority for more information.

1. Dual Watch Icon

2. Scan Icon

3. Roger Beep Icon

4. DCS Icon

5. Keystroke Tone Icon

6. Lock Icon

7. VOX Icon

8. CTCSS Icon

9. Baby Monitor Icon

10. Battery Low Icon

11. Privacy Code Numbers

12. Power Saver Icon

13. Main Channel Number

14. Receive/Transmit Icon

1. Antenna . External Speaker/

Microphone/Charge Jack

3. Mode/Power Button . Lock Button

5. Channel Control Buttons

6. Speaker/Microphone . Light/Max Range Button

8. Volume Control Buttons

9. Talk Button

0. CallButton

11. Belt Clip

12. Battery Compartment

3. Lock Tab

Printed in China Part No.480-331-P Version B

Page 2

OP E R AT I O N

Product Information

This microTALK®radio has been manufactured to

eet all required standards for radio equipment

sing PMR 446 frequencies as authorized. The

u use of this two-way radio product involves the public airways and its use may be subject to local

aws or regulations. Contact your radio licensing

uthority for more information.

Caring for Your Radio

Your microTALK®radio will give you years of trouble-free service if cared for properly. Here are a few suggestions:

• Handle the radio gently.

• Keep it away from dust.

• Never put the radio in water or in a damp place.

• Avoid exposure to extreme temperatures.

Rapid Charger and Rechargeable Batteries

To Insert Batteries in Radio:

1. Remove belt clip by releasing belt clip latch and sliding clip up.

2. Pull up on lock tab to remove battery cover (on back of radio).

3. Insert batteriesaccording to polaritymarkings.

emove Belt Clip

Lock Tab

English

Each port can charge one radio. Uses 230-volt

daptor.

obra recommends your radio is turned Off while

C being charged.

Radio Power

To Turn Your Radio On:

Press and hold the

ODE/POWER button until

ou hear a series of audible

y tones indicating that the radio is On.

Your microTALK

radio is now in LISTENING MODE, ready to receive transmissions. The radio is always in LISTENING MODE, except when the TALK, CALL or MODE buttons are pressed.

To Turn Your Radio Off:

– Press and hold the POWER button.

ode/Power Button

Battery Low Indicator

When battery power is low, the BATTERY LOW indicator will blink, indicating that batteries should be recharged or replaced.

WARNING: Only the supplied

NiMH batteries can be recharged.

Battery Low

NOTE: Estimated operation time

Insert Batteries

on full charge:12 hours.

These rechargeable batteries must be recycled or disposed of properly in compliance with all applicable laws. They must not be thrown in the rubbish bin. Some countries and local authorities require recycling and have established collection programs. Please contact your local wastedisposal authority for instructions.

WARNING: Do not put batteries into fire or expose

to high heat. They may explode.

For Charging microTALK

Radio(s):

1. Check to see that the batteries have been inserted properly. See above for battery installation instructions.

Rapid Wall Charger

2. Insert round connector of wall charger into the charge jack located at the top of the radio. The wall

Insert Connector

charger has two (2) round connectors which enables you to charge either one or two (2) radios at a time.

3. Plug the wall charger into electrical outlet. It normally takes about 3 hours to fully recharge batteries.

It is not recommendedto recharge batteries more than24 hours.Estimated operation time on a full charge is 12 hours. Use only the supplied rechargeable batteries and wall charger for recharging your microTALK Non-rechargeablealkaline batteries can also be used.

radio.

Battery/Power Saver

If there are no transmissions within 10 seconds, the unit will automatically switch to Battery Save Mode and POWER SAVER will appear in the display. This will not affect the unit’s ability to receive incoming transmissions.

Power Saver

Communicating with Another Person

1. Press and hold the TALK button.

2. With the microphone about 5 cm (2 inches) from your mouth, speak in a normal voice.

3. Release the button when you have finished talking and listen for a response.

You cannot receive incoming calls while pressing the TALK button.

NOTE: Both radios must be tuned to the same

channel and privacy code to communicate.

Talk Button

5 cm (2 Inches) From Mouth

Page 3

OP E R AT I O N

English

Listening for a Response

Release the TALK button to

eceive incoming transmissions.

our microTALK

s always in

i LISTENING MODE except when the TALK, CALL or MODE

uttons are pressed.

Listening

To Adjust Volume

ress the VOLUME UP or the

P VOLUME DOWN buttons.

Volume Buttons

A double beep sound is used to indicate that you have reached the minimum (1) or maximum (8) volume level.

olume Level

Call Button

Press and release the CALL button.

The other person will hear a two (2) second ringing tone. You cannot receive transmissions while sending a call.

NOTE: Both radios must be tuned to the same

channel and privacy code to communicate.

Call Button

Channels

With the radio ON, select any of the 8 channels by pushing the CHANNEL UP or CHANNEL DOWN button.

You can press and hold the CHANNEL UP or CHANNEL DOWN button for fast advance.

NOTE: Both radios must be

tuned to the same channel and privacy code (see “CTCSS Privacy Codes” or “DCS Privacy Codes”) to communicate.

Channel Buttons

Channels

Lock Function

The LOCK button locks the CHANNEL UP, CHANNEL DOWN, and MODE/POWER buttons to prevent accidental operation.

To Use the Lock Function:

– Press and hold the LOCK

button for two (2) seconds to turn the Lock On or Off.

A double beep sound is used to confirm your Lock On or Off request. When the radio is in Lock Mode, the Lock icon will be displayed.

Lock Button

Lock Icon

To Illuminate Display

Press and release the

IGHT/MAX RANGE button to

lluminate the display for 10

i seconds.

Light/Max Range Button

Auto Squelch/ Maximum Range Extender

Y Squelch, which automatically shuts off weak transmissions and unwanted noise resulting from terrain, conditions, or from reaching your maximum range limit.

You can temporarily turn Off Auto Squelch or turn On Maximum Range Extender, allowing all signals to be received and extending the maximum range of your radio.

To Temporarily Turn Off Auto Squelch:

– Press the LIGHT/MAX RANGE button for less

If you hear two (2) beeps, you have turned the Maximum Range Extender On (see below).

To Turn Maximum Range Extender On:

– Press and hold the LIGHT/MAX RANGE button

To Turn Maximum Range Extender Off:

– Press and release the LIGHT/MAX RANGE

our microTALK

than five (5) seconds.

adio is equipped with Auto

Light/Max Range Button

for at least five (5) seconds until you hear two (2) beeps, indicating that the Maximum Range Extender is On.

button or change channels.

microTALK®Range

Your microTALK®radio has a range of up to 5 kilometres (3 miles). Your range will vary depending on terrain and conditions.

In flat, open country, your radio will operate at maximum range.

Buildings and foliage in the path of the signal can reduce the range.

Dense foliage and hilly terrain will further reduce the signal.

Remember, you can achieve maximum range by using Maximum Range Extender. See above for details.

Maximum Range

Reduced Range

Page 4

OP E R AT I O N a n d

CHRG

MO D E F U N C T I ONS

External Speaker/Microphone/ Charge Jack

our microTALK

Y fitted with an external speaker/microphone, freeing

our hands for other tasks.

o Attach the External

T Speaker/Microphone or Charger:

2. Insert the plug into the jack.

adio can be

External Speaker/ Microphone/ Charge Jack

. Open thecharge tab on top of the radio.

Earbud Microphone

1. Plug earbud microphone into

radio.

2. Place earbud in ear.

3. Clipmicrophone onto

clothing 76 mm to 152 mm (3" to 6") from your mouth.

4. Push to talk.

Radio Charger Jack

Placed in Ear

Clipped to Clothing

English

To Select a CTCSS Privacy

ode:

. After selecting a channel,

press and release the MODE button until the

TCSS icon flashes on the

isplay. In addition to the

d CTCSS icon, either OFF or the small numbers next to

he channel number will

lso flash on the display.

2. If CTCSS and OFF are flashing, press the CHANNEL UP or CHANNEL DOWN button to exit OFF and proceed to select a privacy code. Or, if CTCSS and the small numbers next to the channel number are flashing, press the CHANNEL UP or CHANNEL DOWN button to select a privacy code.

3. When your desired privacy code is displayed,

choose one of the following: a. Press the MODE button to enter the new

setting and proceed to other functions.

b. Press the LOCK button to enter the new

setting and return to LISTENING MODE.

c. Do not press any buttons for 15 seconds to

enter the new setting and return to LISTENING MODE.

Mode Button

CTCSS OFF

Select Privacy Code

Channel Buttons

Scrolling Through the Mode Functions

By scrolling through the Mode Functions, you will be able to select or change preferred features of your microTALK

radio. While you are scrolling through the Mode Functions, your radio features will be displayed in the same predetermined order:

Set CTCSS Privacy Codes Set DCS Privacy Codes Set VOX On/Off Set VOX Sensitivity Level Set Channel Scan Set CTCSS Privacy Code Scan Set DCS Privacy Code Scan Program Dual Watch Location or

Set Dual Watch On/Off Set Baby Monitor Set Call Tones Set “Roger Beep” On/Off Set Keystroke Tones On/Off

CTCSS Privacy Codes

CTCSS (Continuous Tone Coded Squelch System) is an advanced tone coding system allowing you to select one of 38 privacy codes to reduce incoming transmissions from other users on the channel.

NOTE: If you are usinga CTCSS privacy code, both

radios must be tuned to the same channel and CTCSS privacy code to communicate. Each channel will remember the last privacy code you selected.

DCS Privacy Codes

DCS (Digital Coded Squelch) is an advanced digital coding system allowing you to select one of 83 privacy codes to reduce incoming transmissions from other users on the channel.

NOTE: If you are usinga DCS

code, both radios must be tuned to the same channel and DCS privacy code to communicate. Each channel will rememberthe last privacycode you selected.

To Select a DCS Privacy Code:

1. After selecting a channel, press and release the MODE button until the DCS icon flashes on the display. In addition to the DCS icon, either OFF or the small numbers next to the channel number will also flash on the display.

2. If the DCS and OFF are flashing, press the CHANNEL UP or CHANNEL DOWN button to exit OFF and proceed to select a privacy code. Or, if DCS and the small numbers next to the channel number are flashing, press the CHANNEL UP or CHANNEL DOWN button to select a privacy code.

Mode Button

DCS OFF

Select Privacy Code

Channel Buttons

Page 5

MO D E F U N C T I ONS OP E R AT I O N

3. When your desired privacy code is displayed, hoose one of the following:

. Press the MODE button to enter the new

etting and proceed to other functions.

. Press the LOCK button to enter the new

setting and return to LISTENING MODE.

. Do not press any buttons for 15 seconds to

nter the new setting and return to

ISTENING MODE.

Voice Activated Transmit (VOX)

In VOX Mode, your microTALK®radio can be used “hands-free,” automatically transmitting when you speak. You can set the VOX sensitivity level to fit the volume of your voice and avoid transmissions triggered by background noise.

To Turn VOX Mode On or Off:

1. Press the MODE button until

the VOX icon flashes on the display. The current On or Off setting is displayed.

2. Press the CHANNEL UP or

CHANNEL DOWN button to turn VOX On or Off.

3. When your desired VOX

Mode setting is displayed, choose one of the following:

Mode Button

Select VOX

hannel Buttons

English

Channel Scan

Your microTALK®radio can automatically scan

hannels (1 to 8).

OTE: The radio ignores specific CTCSS or DCS

rivacy codes while scanning channels.

To Scan Channels:

1. Press the MODE button until the Scan icon and the

hannel number flash on

c the display.

2. Press the CHANNEL UP or CHANNEL DOWN button to begin scanning channels.

The Scan icon will continue to be displayed when channel scan is On. Your radio will continue to scan all channels and stop if an incoming transmission is detected. Your radio will remain on that channel for 10 seconds.

While setting channel scan, if you do not press any buttons for 15 seconds your radio will automatically return to LISTENING MODE on the channel or channel/privacy code displayed before you entered Mode Functions.

Mode Button

Select Scan Channels

Channel Buttons

a. Press the MODE button to enter the new

setting and proceed to other functions.

b. Press the LOCK button to enter the new

setting and return to LISTENING MODE.

c. Do not press any buttons for 15 seconds to

enter the new setting and return to LISTENING MODE.

To Set the VOX Sensitivity Level:

1. Press the MODE button until the VOX icon flashes and

Mode Button

the current sensitivity level is displayed.

The current sensitivity level is displayed with the letter “L” and a number 1 to 5, 5 being

Select VOX Sensitivity Level

the most sensitive level and 1 being the least sensitive level.

2. Press the CHANNEL UP or CHANNEL DOWN button to

Channel Buttons

change the setting.

3. When your desired VOX sensitivity level is displayed, choose one of the following:

a. Press the MODE button to enter the new

setting and proceed to other functions.

b. Press the LOCK button to enter the new

setting and return to LISTENING MODE.

c. Do not press any buttons for 15 seconds to

enter the new setting and return to LISTENING MODE.

During An Incoming Transmission, You Can Choose From The Following:

a. Press and hold the TALK button to

communicate on that channel. Your radio will remain on that channel and return to LISTENING MODE.

b. Press the CHANNEL UP or CHANNEL DOWN

button to resume scanning channels.

If you press the TALK button while scanning and not within 10 seconds of receiving a transmission, you will transmit on the channel on which you last received a transmission. This will return the radio to LISTENING MODE.

If you do not press any button within 10 seconds, your radio will automatically resume scanning channels.

During Scanning (while not receiving a transmission), You Can Choose From The Following:

a. Press and hold the TALK button to

communicate on either the channel or channel/privacy code that was displayed before you entered Mode Functions or the channel on which, during scanning, you last received a transmission. This will return the radio to LISTENING MODE.

b. Press the MODE button to proceed to set

privacy code on the channel that was either displayed before you entered Mode Functions on which, during scanning, you last received a transmission (see “CTCSSPrivacy Code Scan” or “DCS PrivacyCode Scan” for furtherdetails).

Page 6

MO D E F U N C T I ONS OP E R AT I O N

c. Press the LOCK button to return to

ISTENING MODE on either the channel or

hannel/privacy code that was displayed

efore you entered Mode Functions or the

b channel on which, during scanning, you last transmitted or received.

CTCSS Privacy Code Scan

Your microTALK®radio can automatically scan the CTCSS privacy codes (01 to 38) within one

1) channel.

(

o Scan Privacy Codes:

1. While in LISTENING MODE, press the CHANNEL UP or CHANNEL DOWN button to choose the channel on which you wish to scan the CTCSS privacy codes.

2. Press the MODE button until the Scan icon and the small numbers next to the channel number flash on the display.

3. Press the CHANNEL UP or CHANNEL DOWN button to begin scanning CTCSS privacy codes within the channel you selected.

Select Channel

Mode Button

Select Scan Privacy Codes

Channel Buttons

English

If you do not press any button within 10 seconds,

our radio will automatically resume scanning

TCSS privacy codes.

During Scanning (while not receiving a transmission), You Can Choose From

he Following:

. Press and hold the TALK button to

ommunicate on either the channel or

c channel/privacy code that was displayed before you entered Mode Functions or

hannel/privacy code on which, during

c scanning, you last received a transmission. This will return the radio to LISTENING MODE.

b. Press the MODE button to proceed to next

available Mode Function.

c. Press the LOCK button to return to

LISTENING MODE on either the channel or channel/privacy code that was displayed before you entered Mode Functions or the channel/privacy code on which, during scanning, you last received a transmission.

DCS Privacy Code Scan

You can automatically scan the DCS privacy codes (01 to 83) within one channel.

The Scan icon will continue to be displayed when CTCSS privacy code scan is On. Your radio will continue to scan CTCSS privacy codes and stop as an incoming transmission is detected. Your radio will remain on that channel/privacy code for 10 seconds.

While setting CTCSS privacy code scan, if you do not press any buttons for 15 seconds your radio will automatically return to LISTENING MODE on the channel/privacy code that was displayed before you entered Mode Functions.

During An Incoming Transmission, You Can Choose From The Following:

a. Press and hold the TALK button to

communicateon that channel/privacy code. Your radio will remain on that channel/privacy code and return to LISTENING MODE.

b. Press the CHANNEL UP or CHANNEL DOWN

button to resume scanning CTCSS privacy codes.

If you press the TALK button while scanning and not within 10 seconds of receiving a transmission, you will transmit on the channel/privacy code on which you last received a transmission. This will return the radio to LISTENING MODE.

To Scan DCS Privacy Codes:

1. While in the LISTENING

Select Channel

MODE, press the CHANNEL UP or CHANNELDOWN button to choose the channel on which you wish to scan the DCS privacy

Mode Button

codes.

2. Press the MODE button until the SCAN icon, DCS icon and the small numbers next to the channel number flash

Select Scan Privacy Codes

on the display.

3. Press the CHANNEL UP or CHANNEL DOWN button to begin scanning DCS privacy codes within the channel

Channel Buttons

you selected.

The scan icon will continue to be displayed when DCS privacy code scan is ON. Your radio will continue to scan DCS privacy codes and stop when an incoming transmission is detected. The radio will remain on that channel/privacy code for 10 seconds.

While setting DCS privacy code scan, if you do not press any buttons for 15 seconds your radio will automatically return to LISTENING MODE on the channel/privacy code that was displayed before you entered more functions.

Page 7

MO D E F U N C T I ONS OP E R AT I O N

During Scanning (While Receiving an

ncoming Transmission), You Can Choose

rom the Following:

. Press and hold the TALK button to

communicate on that channel/privacy code. Your radio will remain on that

hannel/privacy code and return to

ISTENING MODE.

. Press the CHANNEL UP or CHANNEL DOWN

button to resume scanning DCS privacy codes.

During Scanning (While Not Receiving an Incoming Transmission), You Can Choose from the Following:

a. Press channel/privacy code that was

displayed before you entered Mode Functions or channel/privacy code on which, during scanning, you last received a transmission. This will return the radio to the LISTENING MODE. Press and hold the TALK button to communicate on either the channel or channel MODE.

b. Press the MODE button to proceed to next

available Mode Function.

English

Dual Watch

Dual Watch allows you to simultaneously monitor

ny two (2) Dual Watch Locations:

ual Watch Location 1 – is always the

hannel/privacy code displayed before

c you entered Mode Functions. See “Channels,” “CTCSS Privacy Codes” and

DCS Privacy Codes” sections for further

“ details.

Dual Watch Location 2 – will be stored in the

radio. It can be edited and/or recalled for future engagements of Dual Watch Mode.

To Program Or Edit Dual Watch Location 2 And Engage Dual Watch Mode:

1. Press the MODE button until the Dual Watch icon and the channel number flash on the display.

2. Choose one of the following:

a. Select or edit a channel:

1) Press the CHANNEL UP or CHANNEL DOWN button to select a channel (1 to 8).

Mode Button

Select Dual Watch

Channel Buttons

c. Press the LOCK button to return to

LISTENING MODE on either the channel or channel/privacy code that was displayed before you entererd Mode Functions or the channel/privacy code on which, during scanning, you last received a transmission.

b. Select or edit a channel/privacy code:

1) Press the CHANNEL UP or CHANNEL DOWN button to select a channel (1 to 8).

2) Press the MODE button to set the channel. The small numbers next to the channel number will flash on the display.

3) Press the CHANNEL UP or CHANNEL DOWN button to select a CTCSS privacy code (01 to 38) or DCS privacy code (01 to 83).

3. Press the LOCK button to

Lock Button

set Dual Watch Location 2 and engage DUAL WATCH MODE (see below for further details).

NOTES: To terminate Dual Watch and proceed

to the next available Mode Function, press the MODE button. While setting Dual Watch Location 2, if you do not press any buttons for 15 seconds your radio will automatically return to LISTENING MODE on Dual Watch Location 1.

Page 8

MO D E F U N C T I ONS OP E R AT I O N

To Turn Dual Watch On:

NOTE: Dual Watch Location 2 must be

rogrammed to turn Dual Watch on.

. Set the first Dual Watch

Location (channel/privacy

Select Channel

code) you wish to monitor

see “Channels,” “CTCSS

(

rivacy Codes” and “DCS

P Privacy Codes” sections for further details).

2. Press the MODE button until he Dual Watch icon and the

ode Button

channel number flash on the display.

NOTE: While setting Dual

Watch, if you do not press any buttons for 15 seconds your radio will automatically return to LISTENING MODE on the last channel or channel/privacy code displayed before you entered Mode Functions.

3. Press the LOCK button to engage DUAL WATCH MODE.

Lock Button

English

During Dual Watch (while not receiving

transmission), You Can Choose From

he Following:

a. Press and hold the TALK button to

communicate on either Dual Watch Location

or the last Dual Watch Location on which,

uring Dual Watch, you last received a

d transmission. This will return the radio to LISTENING MODE.

b. Press the MODE button to proceed to

ther functions.

c. Press the LOCK button to return to

LISTENING MODE on either Dual Watch Location 1 or the last Dual Watch Location on which, during Dual Watch, you last received a transmission.

To Terminate Dual Watch:

Choose one of the following:

a. Press the LOCK button to return to

LISTENING MODE on either Dual Watch Location 1 or the last Dual Watch Location on which, during Dual Watch, you last received a transmission.

b. Press the TALK button to return to

LISTENING MODE on either Dual Watch Location 1 or the last Dual Watch Location on which, during Dual Watch, you last received a transmission.

c. Press the MODE button and proceed to the

next available Mode Function.

During An Incoming Transmission, You Can Choose From The Following:

a. Press and hold the TALK button to

communicate on that Dual Watch Location. Your radio will remain on that Dual Watch Location and return to LISTENING MODE.

b. Press the CHANNEL UP or CHANNEL DOWN

button to resume Dual Watch.

If you press the TALK button while in Dual Watch and not within 10 seconds of receiving a transmission, you will transmit on the last Dual Watch Location on which you received a transmission. This will return the radio to LISTENING MODE.

If you do not press any button within 10 seconds, your radio will automatically resume Dual Watch.

Baby Monitor

With the Baby Monitor Function on, a radio left near a baby will transmit to another unit on the same channel and privacy code whenever a sound is detected. Baby Monitor uses the same sensitivity level you set for the VOX Function. If you have not set a VOX sensitivity level (see the “Voice Activated Transmit [VOX]” section of this manual), the maximum sensitivity, level 5, will automatically be used.

To Turn Baby Monitor On:

1. Press MODE button until the Baby Monitor icon flashes on the display. The current Off setting is displayed.

2. Press the CHANNEL UP or CHANNEL DOWN button to change the setting to On.

3. Press the LOCK button to enter the On setting and enter BABY MONITOR MODE.

NOTES: Pressing the MODE

button will enter the Baby Monitor Mode setting as Off and proceed to other Mode Functions.

Mode Button

Select Baby Monitor

Channel Buttons

Lock Button

Page 9

MO D E F U N C T I ONS OP E R AT I O N

Not pressing any buttons for 15 seconds

ill enter the Baby Monitor Mode setting

s Off and return the radio to LISTENING

ODE.

NOTE: Both radios must be tuned to the same

channel and privacy code to communicate.

To Terminate Baby Monitor Mode:

Choose one of the following:

. Press the TALK button and return to

ISTENING MODE.

b. Press the LOCK button and return to

LISTENING MODE.

c. Press the MODE button and proceed to

the next available Mode Function.

10 Call Tone Settings

You can choose between 10 different call tone settings to transmit a unique call alert.

To Change a Call Tone Setting:

1. Press the MODE button until the letter “C” and the current call tone number (1 to 10) is displayed. The current call tone will sound for two (2) seconds.

2. Press the CHANNEL UP or CHANNEL DOWN button to hear the other call tone settings.

Mode Button

all Tone Setting

Channel Buttons

nglish

"Roger Beep" Confirmation Tone

Your listener will hear an audible tone when

ou release the TALK button. This alerts the other

arty that you have finished talking and that it is

p OK for them to speak. This feature can be turned On or Off.

To Turn “Roger Beep” On or Off:

hen you turn On your microTALK

irst time, “Roger Beep” will be On.

1. Press and release the MODE button until the “Roger Beep” icon flashes on the display. The current On or Off setting is displayed.

2. Press the CHANNEL UP or CHANNEL DOWN button to select “Roger Beep” On or Off.

3. When your desired Roger

Beep Mode setting is displayed, choose one of the following:

a. Press the MODE button

to enter the new setting and proceed to other functions.

b. Press the LOCK button to enter the new

setting and return to LISTENING MODE.

c. Do not press any buttons for 15 seconds to

enter the new setting and return to LISTENING MODE.

adio for the

Mode Button

Select Roger Beep

hannel Buttons

3. When your desired call tone setting is displayed, choose one of the following:

a. Press the MODE button to enter the new

setting and proceed to other functions.

b. Press the LOCK button to enter the new

setting and return to LISTENING MODE.

c. Do not press any buttons for 15 seconds to

enter the new setting and return to LISTENING MODE.

The setting you select will be saved when you turn your radio off and on again. When the “Roger Beep” is On, the “Roger Beep” icon will be displayed.

Page 10

MO D E F U N C T I ONS

AT BA BE BG CH CY CZ

This equipment is intended for use in:

Countries of use

EE ES FI FR

GB GR HR HU IE IS

NL NO PL PT

RO RS

SI SK TR

LV LI LU

MK MT

OP E R AT I O N

Keystroke Tones

With Keystroke Tones turned On, your radio will

ound beeps each time you press a button or

hange a setting.

o Turn Keystroke Tones On or Off:

When you turn On your microTALK first time, Keystroke Tones will be On.

1. Press the MODE button until he Keystroke Tones icon

t flashes on the display. The current ON or OFF setting is displayed.

2. Press the CHANNEL UP or

CHANNEL DOWN button to turn Keystroke Tones On or Off.

radio for the

ode Button

Select Keystroke

Channel Buttons

English

3. When your desired Keystroke Tone Mode etting is displayed, choose one of the

ollowing:

a. Press the MODE button to enter the new

setting and return to LISTENING MODE.

b. Press the LOCK button to enter the new

etting and return to LISTENING MODE.

. Do not press any buttons for 15 seconds to

enter the new setting and return to LISTENING MODE.

The setting you select will be saved when you turn your radio off and on again. When Keystroke Tones are On, the keystroke tone icon will be displayed.

D. O . C . , WARRANTY & CU S T O M E R SERVIC E

Declaration of Conformity

This declaration is theresponsibility of the manufacturer/importer

Cobra Electronics Europe Limited Dungar House Northumberland Avenue Dun Laoghaire

County Dublin, Ireland Date: 15 January 2007 This certifies that the following designated product

PRIVATE MOBILE RADIO: MT 800

(Product Identification) complies with the essentialprotection requirements of R& TTE Directive 1999/5/EC on theapproximation of the lawsof the Member States relating toRadio Spectrum Matters, EMC and Electrical Safety. This declaration applies toall specimens manufactured inaccordance with the attached technicaldocumentation described in AnnexII of the Directive which forms part of this declaration. Assessment of compliance ofthe product (class 2.6)with the requirements relating to theessential requirements according to Article 3 R & TTE was based on Annex IV of Directive 1999/5/EC and the following standards:

Radio Spectrum: EN 300 296-1 V1.1.1 (2001-03)

EMC: EN 301 489-1 V1.5.1 (2004-11)

Electrical Safety: EN 60950-1:2001 + A11:2004 RF Exposure: EN 50392 (2004-02)

DUBLIN, IRELAND MIKE KAVANAGH

EN 300 296-2 V1.1.1 (2001-03)

EN 301 489-5 V1.3.1 (2002-08)

Warranty & Customer Service

For warranty andcustomer service information, please contact yourlocal dealer.

For use in EUcountries, subject to local laws and regulations.

CEEL®is a registered trademarkof Cobra Electronics Europe,Ltd.

Snake designand microTALK®are registered trademarks of Cobra Electronics Corporation, USA.

www.cobra.com

İthalatçı Firma ve Türkiye Genel Distribütörü

ASELSAN ELEKTRONİK SAN. ve TİC. A.Ş.

Mehmet Akif Ersoy Mah. 16. Cadde No: 16

Yenimahalle 06370 ANKARA, Türkiye

English

Cobra MICROTALK MT 850T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
