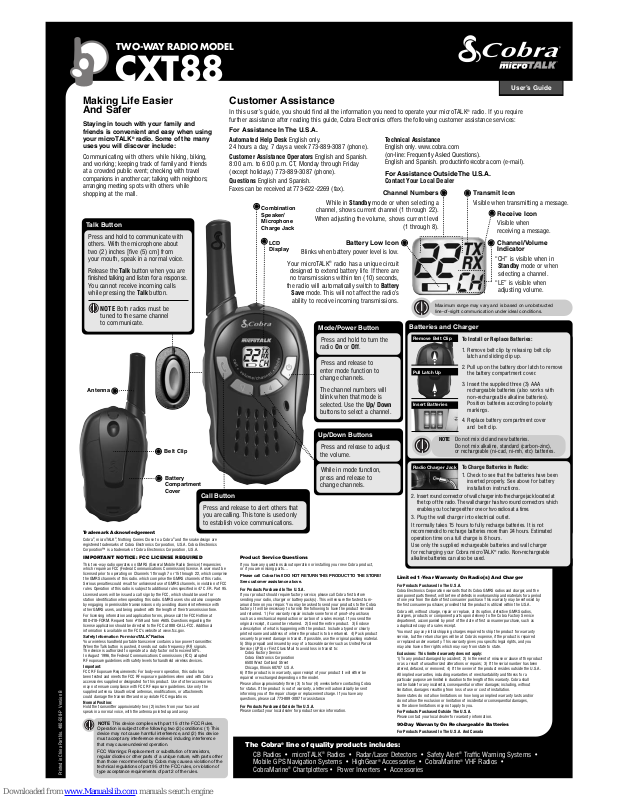

Cobra microTALK CXT88 User Manual

ode/Power Button

Press and release to e

nter mode function to

change channels.

The channel numbers will blink when that mode is selected. Use the Up/ Down buttons to select a channel.

ser’s Guide

TWO-WAY RADIO MODEL

CXT88

NOTE This device complies with part 15 of the FCC Rules. Operation is subject to the following two (2) conditions: (1) This device may not cause harmful interference, and (2) thisdevice must accept any interference received, includinginterference that may causeundesired operation.

FCC Warnings:Replacementor substitutionof transistors, regular diodes or other parts of a uniquenature, with parts other than thoserecommended by Cobramay cause a violation of the technical regulations of part 95 of the FCC rules, or violationof type acceptance requirements of part 2 of the rules.

Making Life Easier And Safer

Staying in touch with your family and f

riends is convenient and easy when using

your microTALK

radio. Some of the many

ses you will discover include:

Communicating with others while hiking, biking, a

nd working; keeping track of family and friends

t a crowded public event; checking with travel companions in another car; talking with neighbors; a

rranging meeting spots with others while shopping at the mall.

Customer Assistance

n this user’s guide, you should find all the information you need to operate your microTALK

adio. If you require

further assistance after reading this guide, Cobra Electronics offers the following customer assistance services:

or Assistance In The U.S.A.

utomated Help Desk English only.

24 hours a day, 7 days a week 773-889-3087 (phone).

ustomer Assistance Operators English and Spanish.

8:00 a.m. to 6:00 p.m. CT, Monday through Friday (

except holidays) 773-889-3087 (phone).

uestions English and Spanish.

axes can be received at 773-622-2269 (fax).

echnical Assistance

English only. www.cobra.com (

on-line: Frequently Asked Questions).

nglish and Spanish. productinfo

obra.com (e-mail).

For Assistance OutsideThe U.S.A.

ontact Your Local Dealer

LCD Display

Press and hold to turn the r

adio On or Off.

atteries

o Replace Battery Pack(s)

emove battery compartment cover. Insert battery pack as indicated on b

attery pack. Replace cover.

NOTE Radio can also be used with three (3) AAA alkaline batteries. Position batteries according to polarity markings in radio. Alkaline batteries cannot be recharged.

To Charge Battery Packs In Radio(s)

Insert battery pack into radio according to directions above, then insert radio into charger. Insert round connector into the back of the charger and plug into

an electrical outlet. If the charging light is not On, check position of the radio. The radio should be upright.

It normally takes about eight (8) hours to fully recharge a NiCD battery pack. Battery packs will not be damaged if they stay in the charging well longer than that.

Up/Down Buttons

While in mode function, press and release to change channels.

Press and release to adjust the volume.

Call Button

Press and release to alert others that you are calling. This tone is used only to establish voice communications.

hannel Numbers

hile in Standby mode or when selecting a

hannel, shows current channel (1 through 22).

hen adjusting the volume, shows current level

(1 through 8).

hannel/Volume

ndicator

“

CH” is visible when in Standby mode or when s

electing a channel.

“LE” is visible when

djusting volume.

eceive Icon

Visible when r

eceiving a message.

Transmit Icon

isible when transmitting a message.

Battery Low Icon

Blinks when battery power level is low.

Your microTALK

radio has a unique circuit

esigned to extend battery life. If there are

no transmissions within ten (10) seconds,

he radio will automatically switch to Battery

Save mode. This will not affect the radio’s ability to receive incoming transmissions.

Printed in China Part No. 480-508-P Version B

Battery Compartment Cover

Belt Clip

lideCover Down

nsert Radio(s)

ntenna

Talk Button

Press and hold to communicate with others. With the microphone about t

wo (2) inches [five (5) cm] from

your mouth, speak in a normal voice.

elease the Talk button when you are

finished talking and listen for a response. You cannot receive incoming calls w

hile pressing the Talk button.

OTE Both radios must be

tuned to the same channel t

o communicate.

IMPORTANT NOTICE: FCC LICENSE REQUIRED

This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. A user must be licensed prior to operating on Channels 1 through 7 or 15 through 22, which comprise the GMRS channels of this radio. which comprise the GMRS channels of this radio. Serious penalties couldresult for unlicensed use of GMRS channels, in violationof FCC rules. Operation of thisradio is subject to additional rules specifiedin 47 C.F.R. Part 95.

Licensed users will be issued a call sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only, avoiding channel interference with other GMRS users, and being prudent with the length of their transmission time.

For licensing information and application forms, please call the FCC Hotline at 800-418-FORM. Request form #159 and form #605. Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC’s website at www.fcc.gov.

SafetyInformationFor microTALK

Radios

Your wireless handheld portable transceiver contains a low power transmitter. When the Talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices.

Important:

FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations.

Normal Position:

Hold the transmitter approximately two (2) inches from your face and speak in a normal voice, with the antenna pointed up and away.

Product Service Questions

If you have any questions about operation or installing your new Cobra product, or if you are missing parts…

Pleasecall Cobra first! DO NOT RETURN THISPRODUCT TO THE STORE! See customerassistance above.

For Products Purchased In The U.S.A.

If your product should require factory service, please call Cobra first before sending your radio, charger or battery pack(s). This will ensure the fastest turnaround time on your repair. Youmay be asked to send your products to the Cobra factory. It will be necessary to furnish the following to have the product serviced and returned. 1) For warranty repair include some form of proof-of-purchase, such as a mechanical reproduction or carbon of a sales receipt. If you send the original receipt, it cannot be returned. 2) Send the entire product. 3) Enclose a description of what is happening with the product. Include a typed or clearly printed name and address of where the product is to be returned. 4) Pack product securely to prevent damage in transit. If possible, use the original packing material.

5) Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail to avoid loss in transit to:

Cobra Factory Service Cobra Electronics Corporation 6500 West Cortland Street Chicago, Illinois 60707 U.S.A.

6) If the product is in warranty, upon receipt of your product it will either be repaired or exchanged depending on the model.

Please allow approximately three (3) to four (4) weeks before contacting Cobra for status. If the product is out of warranty, a letter will automatically be sent informing you of the repair charge or replacement charge. If you have any questions, please call 773-889-3087 for assistance.

For Products Purchased Outside The U.S.A.

Please contact your local dealer for product service information.

Limited 1-Year Warranty On Radio(s) And Char ger

For Products Purchased In The U.S.A.

Cobra Electronics Corporation warrantsthat its CobraGMRS radios and charger, andthe componentparts thereof, willbe free of defects in workmanship and materials for a period of one yearfrom the date of first consumer purchase. Thiswarranty may be enforcedby the first consumer purchaser, provided thatthe product is utilized withinthe U.S.A.

Cobra will, without charge, repair or replace, at its option, defective GMRS radios, chargers, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty service, but the return charges will be at Cobra’s expense, if the product is repaired or replaced under warranty. This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state.

Exclusions: This limited warranty does not apply:

1) Toany product damaged by accident; 2) In the eventof misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) If the serial number has been altered, defaced, or removed; 4) If the owner of the product resides outside the U.S.A.

All implied warranties, including warranties of merchantability and fitness for a particularpurpose are limited in durationto the lengthof this warranty.Cobra shall not be liablefor any incidental, consequential or other damages; including, without limitation, damages resulting from loss of use or cost of installation.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.

For Products Purchased Outside The U.S.A.

Please contact your local dealer for warranty information.

90-Day Warranty On Rechargeable Batteries

For Products Purchased In The U.S.A. And Canada

Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions.

Batteries and Charger

To Install or Replace Batteries:

1. Remove belt clip by releasing belt clip l

atch and sliding clip up.

2. Pull up on the battery door latch to remove t

he battery compartment cover.

3. Insert the supplied three (3) AAA rechargeable batteries (also works with n

on-rechargeable alkaline batteries). Position batteries according to polarity markings.

. Replace battery compartment cover

and belt clip.

Insert Batteries

ull Latch Up

emove Belt Clip

To Charge Batteries in Radio:

1. Check to see that the batteries have been inserted properly. See above for battery installation instructions.

2. Insert round connectorof wall charger into the charge jack located at thetop ofthe radio.The wall charger has two roundconnectors which

enablesyou tochargeeitherone ortwo radiosat a time.

3. Plug the wall charger into electrical outlet.

It normally takes 15 hours to fully recharge batteries. It is not recommended to rechargebatteries more than 24 hours.Estimated operation time on a full charge is 8 hours.

Use only the supplied rechargeable batteries and wall charger for recharging your Cobra microTALK

radio. Non-rechargeable

alkaline batteries can also be used.

Radio Charger Jack

Trademark Acknowledgement

Cobra®, microTALK®, Nothing Comes Close to a Cobra®and the snake design are registered trademarks of Cobra Electronics Corporation, U.S.A. Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, U.S.A.

The Cobra®line of quality products includes:

CB Radios • microTALK

Radios • Radar/Laser Detectors • Safety Alert®Traffic Warning Systems • Mobile GPS Navigation Systems • HighGear®Accessories • CobraMarine®VHF Radios • CobraMarine®Chartplotters • Power Inverters • Accessories

Combination Speaker/ M

icrophone

Charge Jack

OTE Do not mix old and new batteries.

Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
