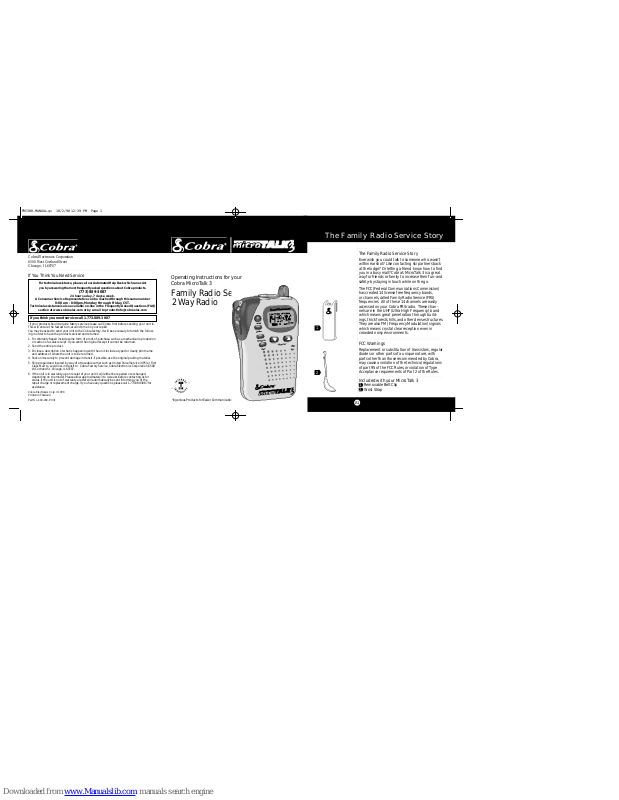

Cobra Micro Talk 3 Operating Instructions Manual

The Family Radio Service Story

Ever wish you could talk to someone who wasn’t within earshot? Like contacting ski partners back at the lodge? Or letting a friend know how to find you in a busy mall? Cobra’s MicroTalk 3 is a great way for friends or family to increase their f u n – a n d s a fe ty – by staying in touch while on the go.

The FCC (Federal Communications Commission) has created 14 license free frequency bands, or channels,called Family Radio Service (FRS) frequencies. All of these 14 channels are easily accessed on your Cobra FRS radio. These channels are in the UHF (Ultra High Frequency) band which means great penetration through buildings,thick forests, hills, and other dense structures. They are also FM (Frequency Modulation) signals which means crystal clear reception even in crowded noisy environments.

FCCWarnings

Replacement or substitution of transistors,regular diodes or other parts of a unique nature,with parts other than those recommended by Cobra, may cause a violation of the technical regulations of part 95 of the FCC Rules,or violation of Type Acceptance requirements of Part 2 of the Rules.

Included with your MicroTalk 3

1. Removable Belt Clip

2. Wrist Strap

Family Radio Service 2Way Radio

O pe rating Instru ctions for yo u r Co b ra Mi c ro Talk 3

“Ingenious Prod u cts for Easier Co m m u n i cat i o n .”

Cobra Electronics Corporation 6500 West Cortland Street Chicago, IL60707

Part No. 480-280-P-001

For te c h n i cal assistance,please call our Au to m a ted Help Desk which can assist you by answe ring the most fre q u e n t ly asked questions about Co b ra prod u ct s.

(773) 889-3087

24 hours a day,7 days a week.

A Consumer Service Representative can be reached through this same number

8:00 am - 8:00 pm,Monday through Friday,CST.

Technical assistance is also available on-line in the Frequently Asked Questions (FAQ)

section at www.cobraelec.com or by e-mail to productinfo@cobraelec.com

If you think you need service call 1.773.889.3087

“If your product should require factory service please call Cobra first before sending your unit in. This will ensure the fastest turn-around time on your repair.”

You may be asked to send your unit to the Cobra factory.It will be necessary to furnish the following in order to have the product serviced and returned.

1. For Warranty Repair include some form of proof-of-purchase,such as a mechanical repro duction or carbon or a sales receipt. If you send the original receipt it cannot be returned.

2. Send the entire product.

3. Enclose a description of what is happening with the unit.Include a typed or clearly print name and address of where the unit is to be returned.

4. Pack unit securely to prevent damage in transit.I f possible,use the original packing ma terial.

5. Ship prepaid and insured by way of a traceable carrier such as United Parcel Service (UPS) or First Class Mail: to avoid loss in transit to: Cobra Factory Servic e,Cobra Electronics Corporation,6500 W.Cortland St., Chicago,IL 60707.

6. If the unit is in warranty,upon receipt of your unit it will either be repaired or exchanged depending on the model. Please allow approximately 3 to 4 weeks before contacting us for status.If the unit is out of war ranty a letter will automatically be sent informing you of the repair charge or replacement charge.If you ha ve any questions,please call 1.773.889.3087 for assistance.

IfYou Think You Need Service

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 1

Thank you for purchasing the Cobra MicroTalk 3 2-way Radio. Properly used,this Cobra product will give you many years of reliable service.

Customer Support

Should you encounter any problems with the product or not understand its many features, please refer to this owner’s manual. If,after referring to the manual, you still need help, call Cobra Customer Service at 773.889.3087.

Our Thanks to You

Cobra Customer Service

Live operators are available M-F 8:00 am - 8:00 pm CST at: 773.889.3087

Automated Technical Assistance available 24 hours a day,seven days a week. E-mail questions to: productinfo@cobraelec.com

Co b ra on the Wo rld Wide We b : Frequently Asked Questions (FAQ) can be found on-line at: www.cobraelec.com

Controls and Indicators

1 3

1 2

1 5

7 9 10

1 1

1. Retractable Antenna

2. Belt Clip

3. On/Off Volume Control

4. Microphone Jack

5. Speaker Jack

6. Battery Charge Pads

7. Lock Button

8. LCD Display

9. Enter Button

1 0 . Function Button 1 1 . Call Button

12. Channel Select Buttons

13. Microphone

14 . Maximum Range

Extender Button

15 . PTT (Push ToTalk ) Key 16 . Battery Chamber

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 4

How to Use Your Cobra

M i c ro Ta l k 2 - Way Radio

Features of This Product

• UHF FM Frequencies

• No License Required

• No Air Time Fees

• Up to 2 mile range

• 14 Main Channels

• 38 CTCSS Subchannels

• LCD Function Display

• Pri va te Call Vo i ce Scra m b l e

• Talk Confirmation To n e

• Ca l l / Ring Bu t to n

• Recharging Pads

• Retractable Antenna

• Auto Battery Saver Circuity

• Auto Squelch

• 10 Memory Locations

• Full Channel/CTCSS Scan

• Lock Key

• Ring/Vibrate Notification

• Wrist Strap/Belt Clip

• Water Resistant

Contents

Features.....................................................................................1

The FRS Story...........................................................................A1

FCCWarnings Included Accessories

Controls & Indicators............................................................A2

Our Thanks toYou .................................................................A3

Customer Support.............................................................A3

Operating your MicroTalk 3

Battery Installation............................................................2

LCD Display...........................................................................4

Turning On............................................................................5

Auto Battery Power Saver...............................................5

Select Main Channel (1-14)............................................6

Select CTCSS Subchannel (00-38)................................7

Battery Low ..........................................................................9

Calling Another Party .......................................................10

Talking To Another Party.................................................12

Talk Confirmation Tone....................................................14

Listening For Another Party...........................................14

Auto Squelch........................................................................15

Maximum Range Extender..............................................15

MicroTalk 3 Range..............................................................16

Making Life Easier And Safer............................................17

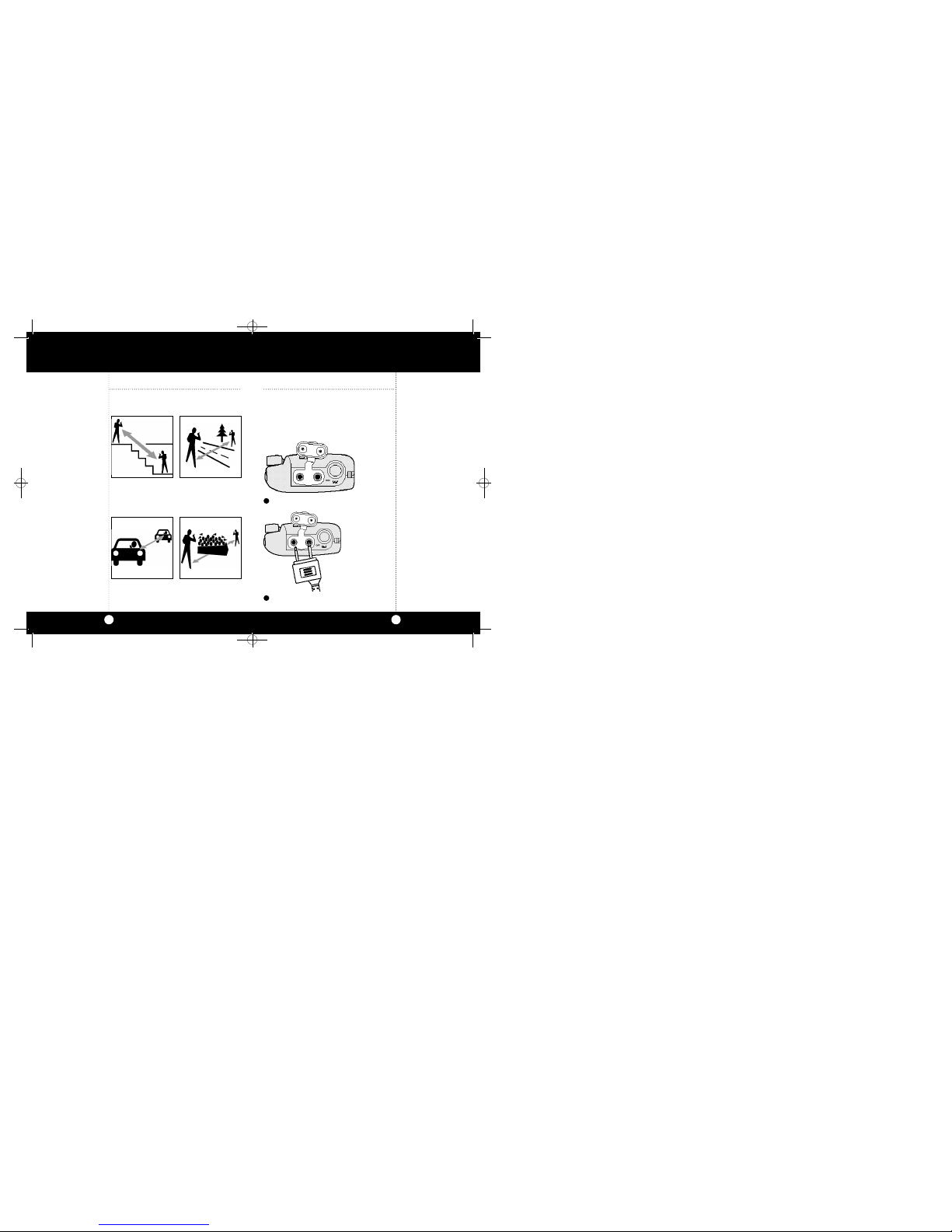

External Microphone/Speaker Jack...............................19

Advanced Features...............................................................20

Programming Memory Locations................................22

Using Memory Locations................................................26

Scan Function......................................................................28

Private Call (Voice Scramble).........................................32

Ringer/Vibrate Modes......................................................34

Tone Settings.......................................................................38

Lock Function......................................................................40

Frequency Ranges.................................................................41

Caring for Your MicroTalk 3...............................................42

MicroTalk 3 Specifications.................................................44

Limited TwoYear Warranty................................................46

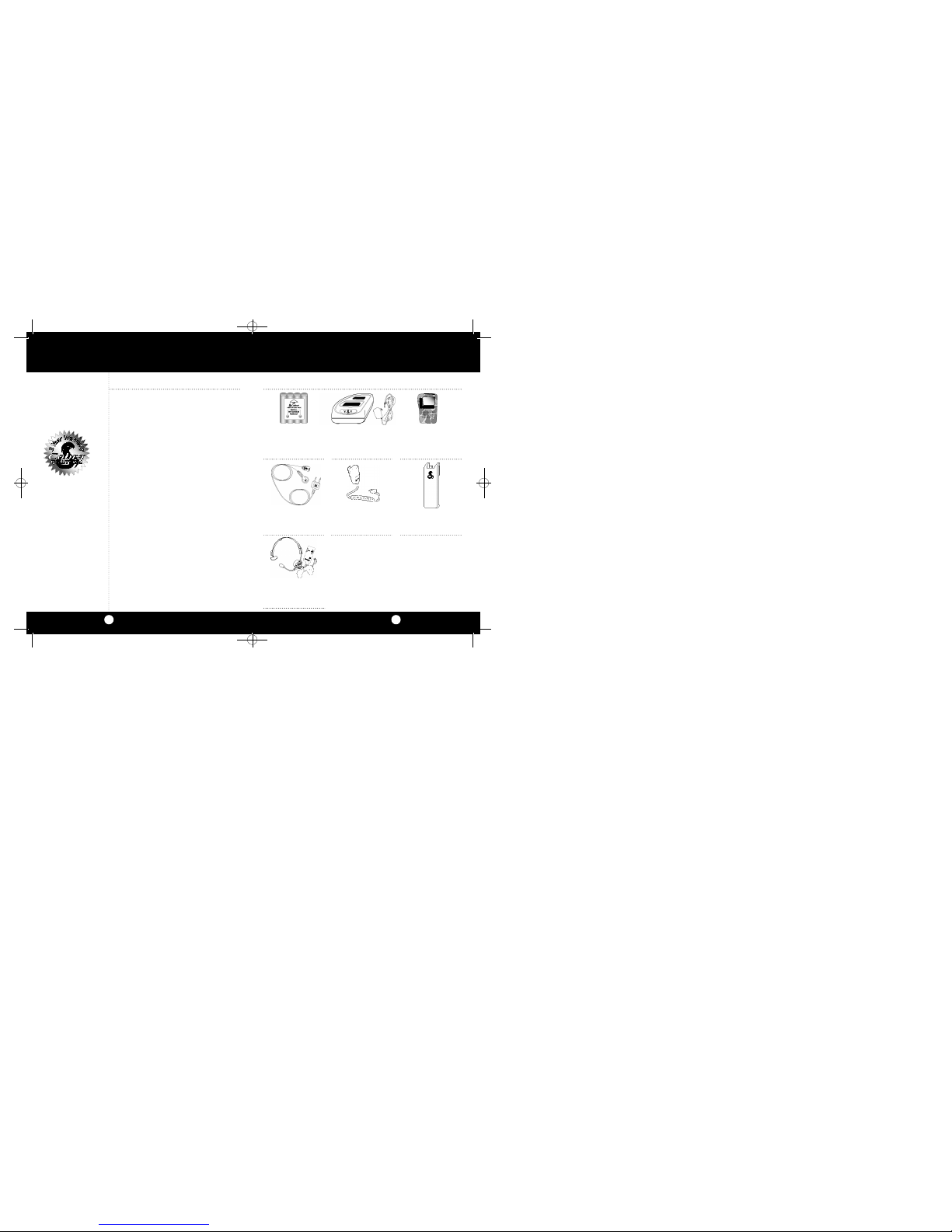

Optional Accessories............................................................47

Order Form...............................................................................48

IfYou Think You Need Service......................Back Cover

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 7

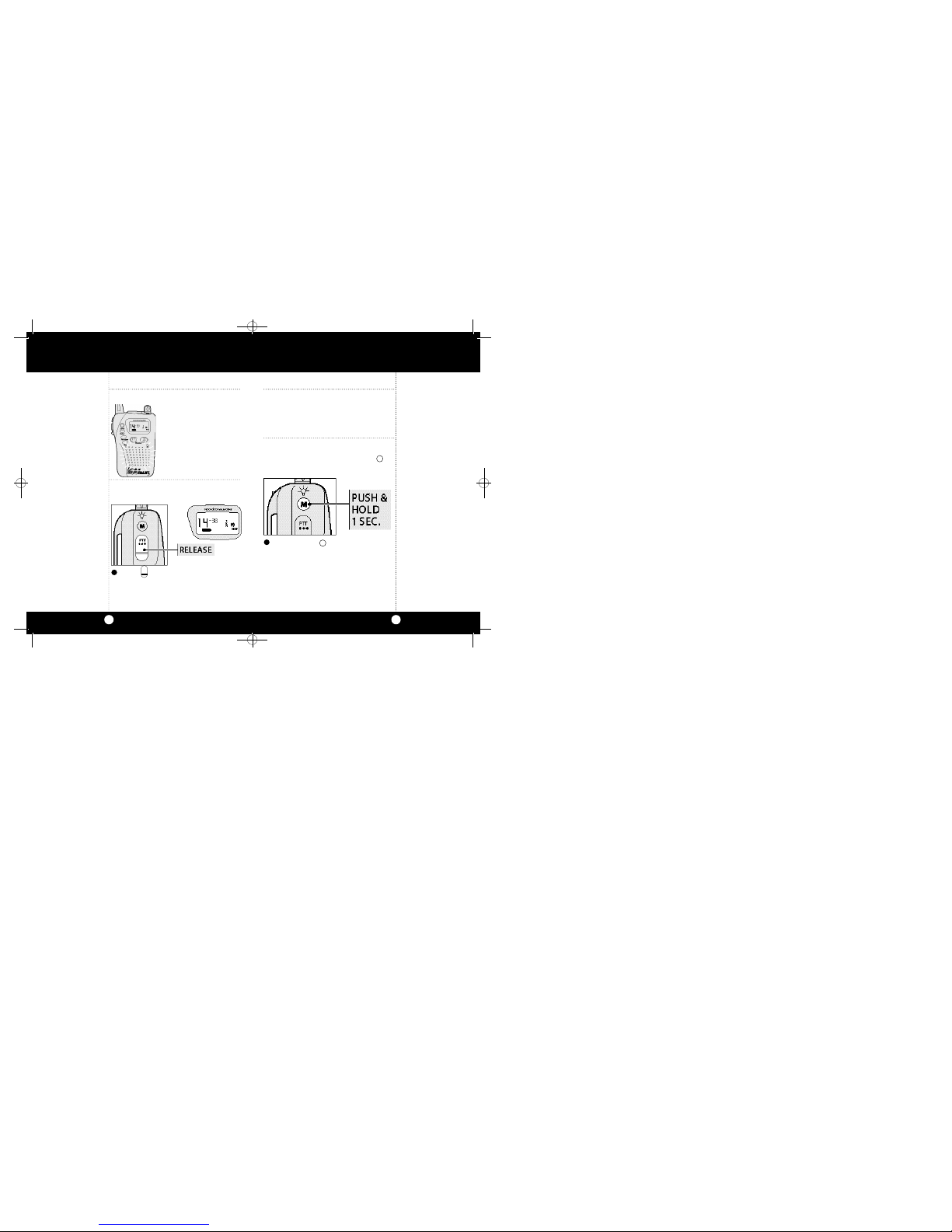

Pull lock tab down and lift door up (towards you) to remove battery cover.

Insert four “AAA” batteries.Position batteries according to po l a ri ty marki n g s.

Removebelt clip by (A.) pulling tab out and (B.) Sliding belt clip up and off unit.

Operation

Note

Batteries not included with MicroTalk 3 2-way radio.

Note

Always use high quality alkaline or NiMH batteries.

Incorrect positioning can damage both the batteries and the unit.

Only the Cobra NiMH battery (Part # FA-BP) pack can be recharged.

See Accessories on page 47. Charge ports for recharging NiMH (Nickel Metal Hydride) battery pack are located on back of unit.

Note

When batteries are low or need charging the BATT LOW indicator will blink.Replace alkaline batteries or recharge NiMH battery pack.

Install Batteries

Battery Installation

Clear antenna.

3 4

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 8

Turning On Your MicroTalk

Rotate ON - OFF Volume Control clockwise. An audible “tone”will indicate the unit is on and then the LCD will go through a 3 second self-test and then go to operational mode.

Operation

Note

Whenever the unit is on you can receive communications.

Turning On Your MicroTalk 3

Operation

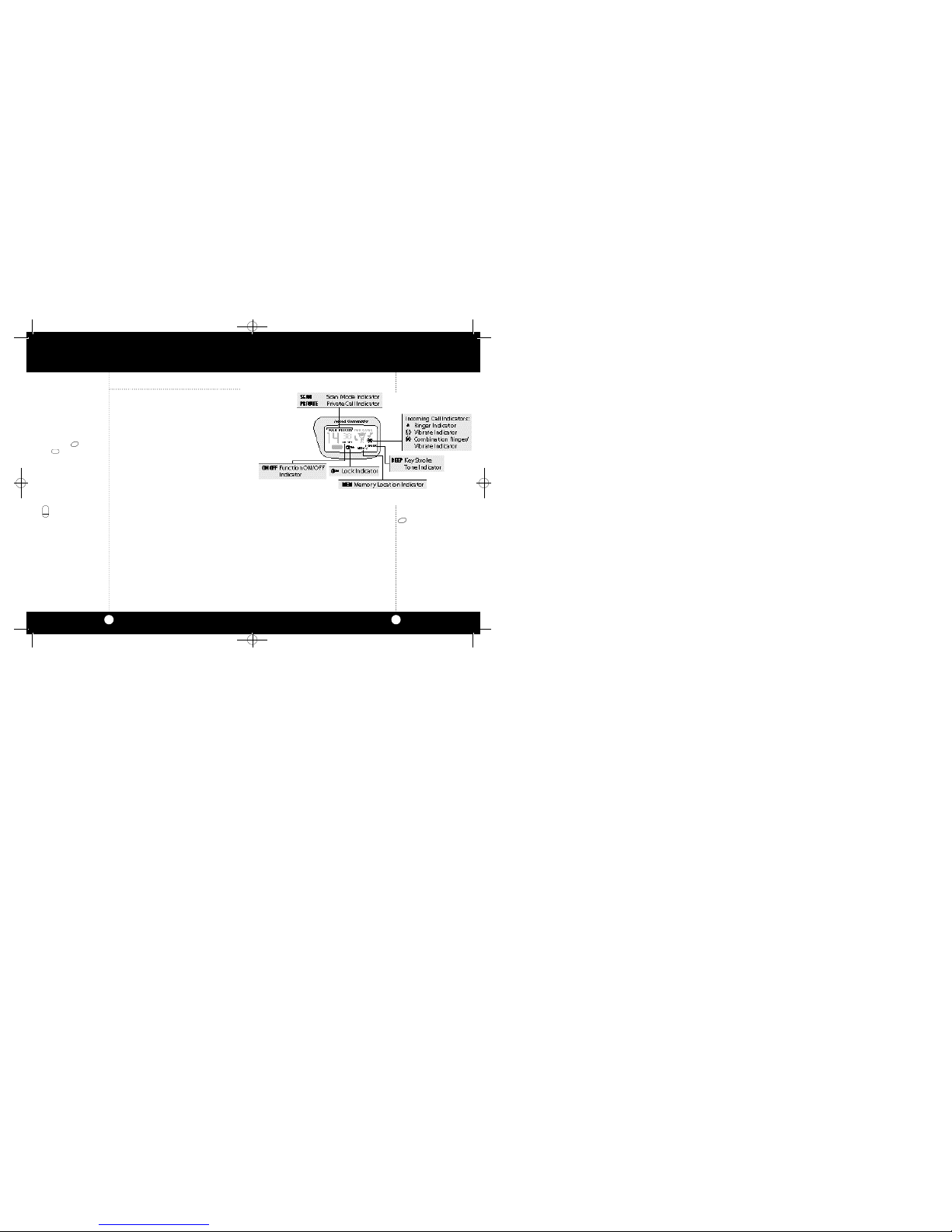

LCD Display

Note

The Auto Battery Save Circuit does not effect the unit’s ability to receive incoming transmissions.

Auto Battery Power Saver

Your MicroTalk 3 has a unique circuit designed to extend battery life. If there are no transmissions within 10 seconds,the unit will automatically switch to battery save mode.

The

PWR SAVER

icon will flash.

Auto Battery Power Saver

Operational Mode

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 10

Select main channel by pushing and releasing

buttons.

Operation

Note

Units must be on same channel and subchannels to communicate.

Note

Channels 8-12 generally are less used and give better results for communications in most areas.

Note

Push and hold the buttons for fast channel advance.

Select Main Channel

Operation

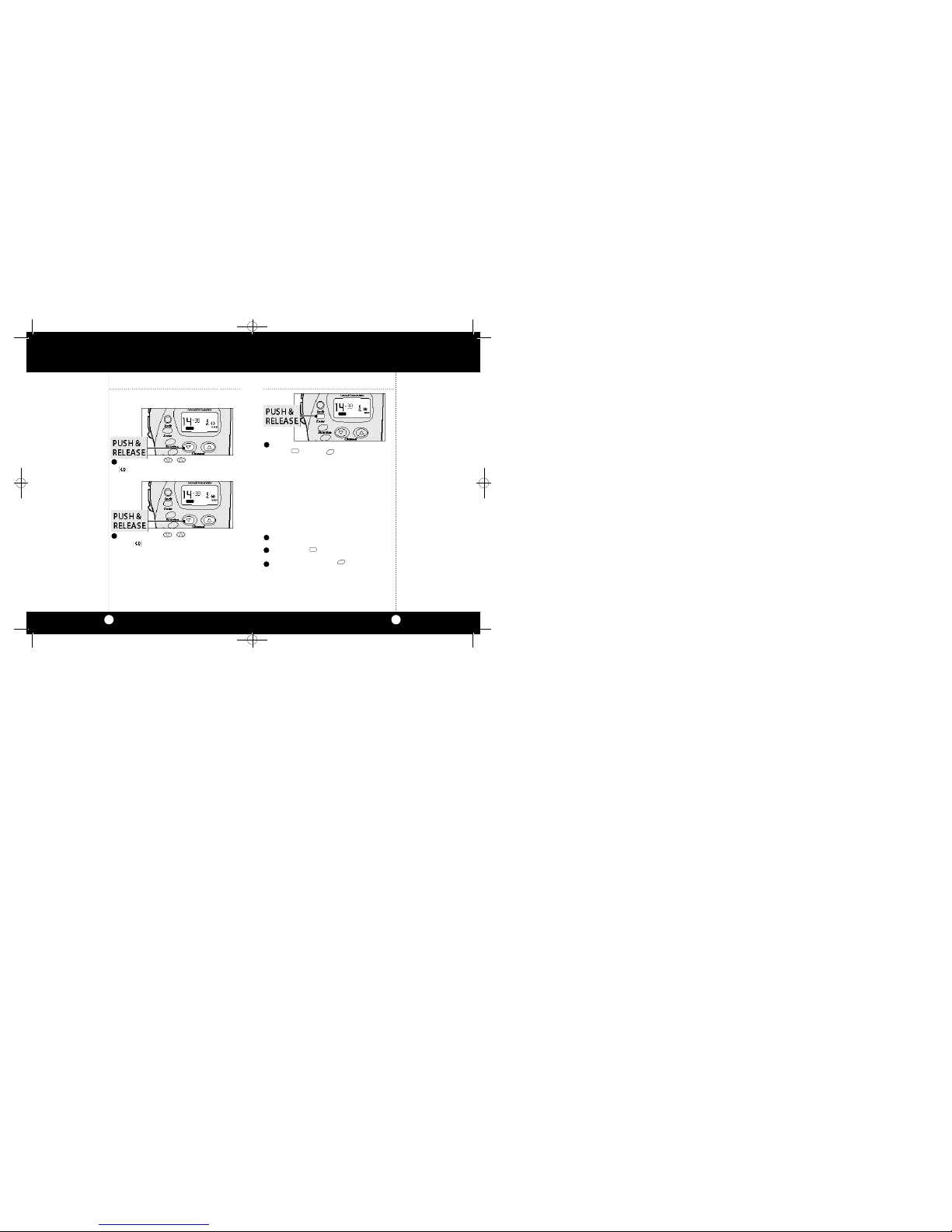

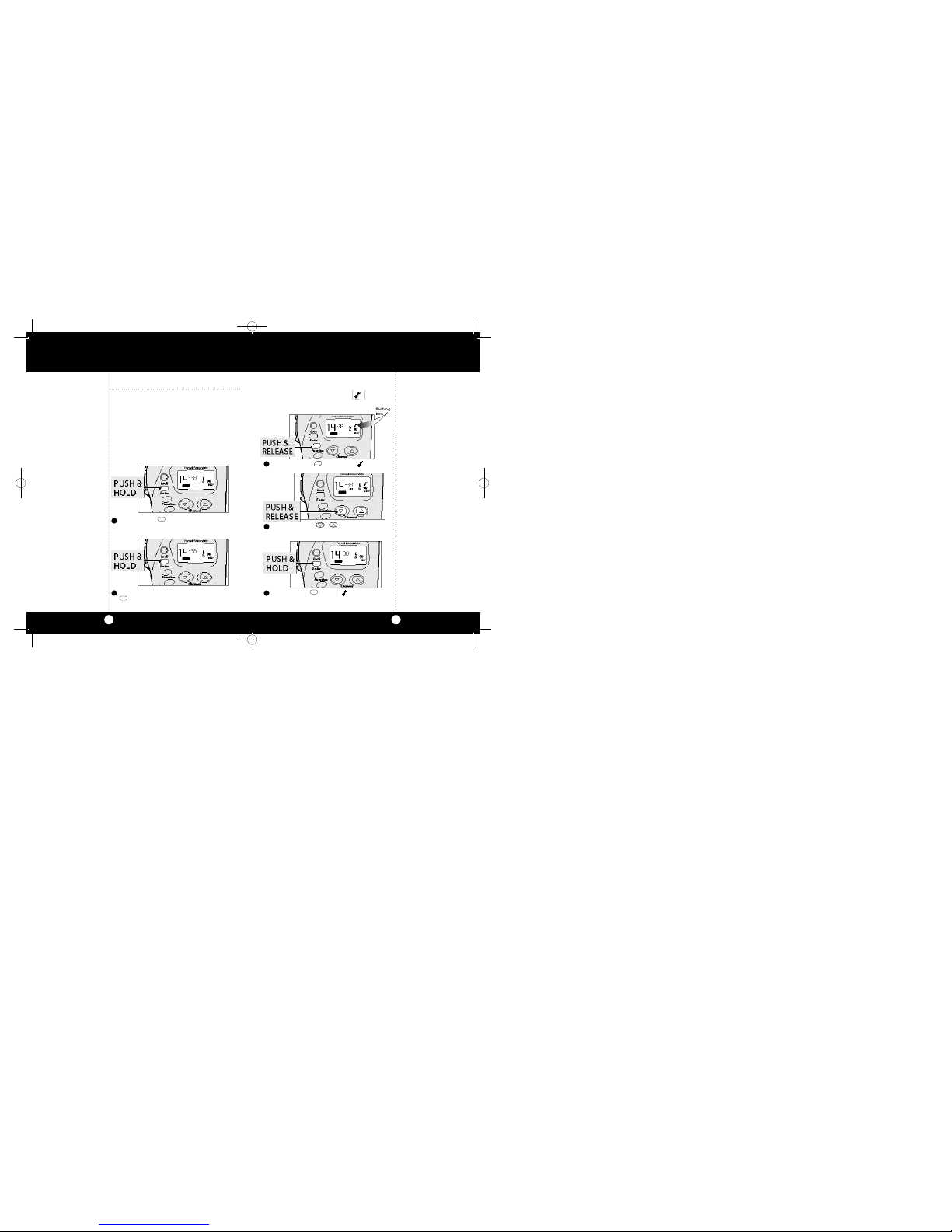

Select Main Channel (1-14)

Rotate ON - OFF Volume Control clockwise. An audible “tone”will indicate the unit is on and then the LCD will go through a 3 second self-test and then go to operational mode.

Select channel by pushing and releasing

buttons.

Note

If you push and hold the button,the LCD display will cycle through the different functions.

Note

To return to operational mode and not save your last setting push and release button.

Note

CTCSS (Coded Tone Controlled Squelch System) is an advanced subcoding system that allows segmentation of a main channel.

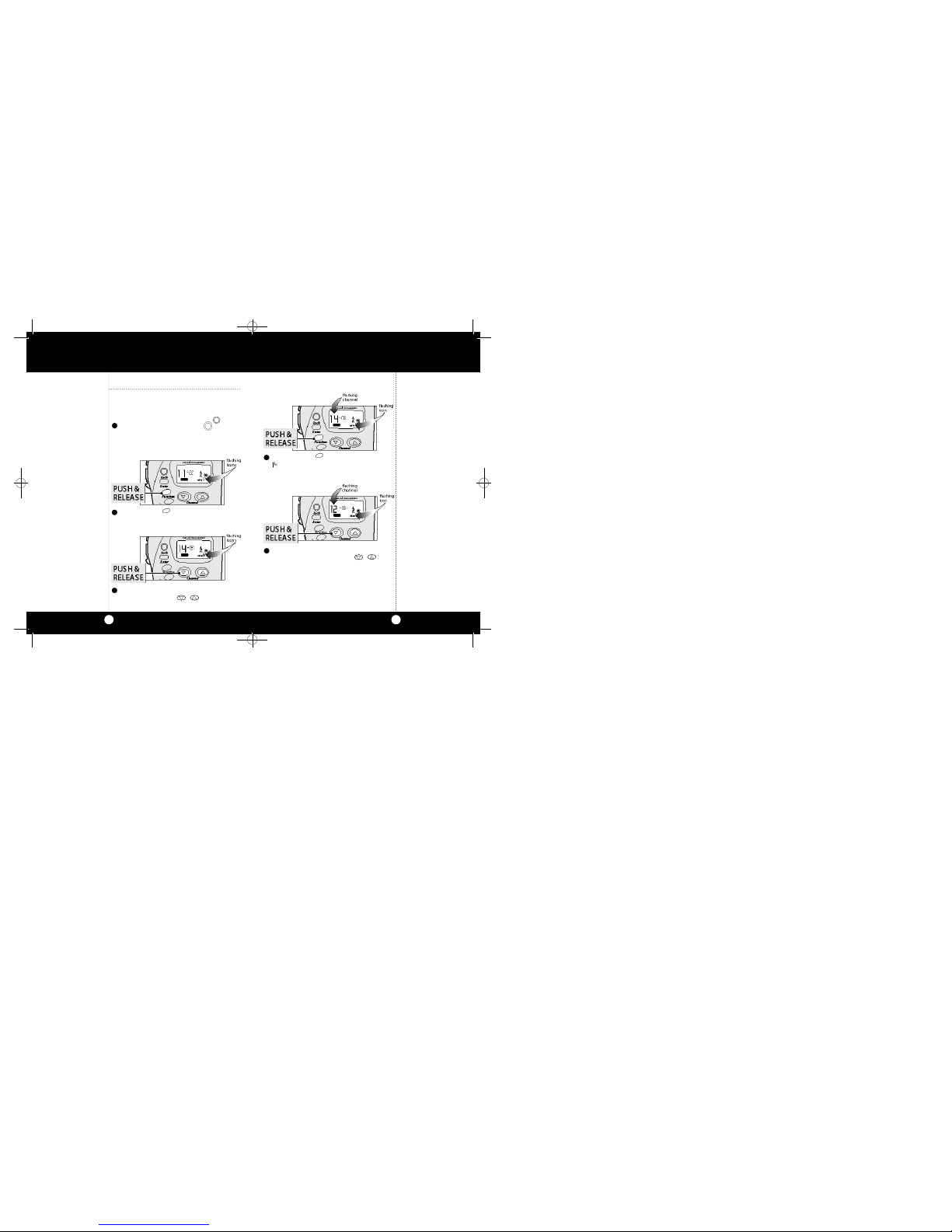

Select CTCSS Subchannel

Push and release button.Small numbers flash next to channel display on LCD.

Select CTCSS Subchannel (00-38)

The CTCSS Subchannel allows the user to utilize a less used channel range (00-38) within a main c h a n n e l .

Rotate ON - OFF Volume Control clockwise. An audible “tone”will indicate the unit is on and then the LCD will go through a 3 second self-test and then go to operational mode.

continued

Channel

PTT

...

Function

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 12

Operation

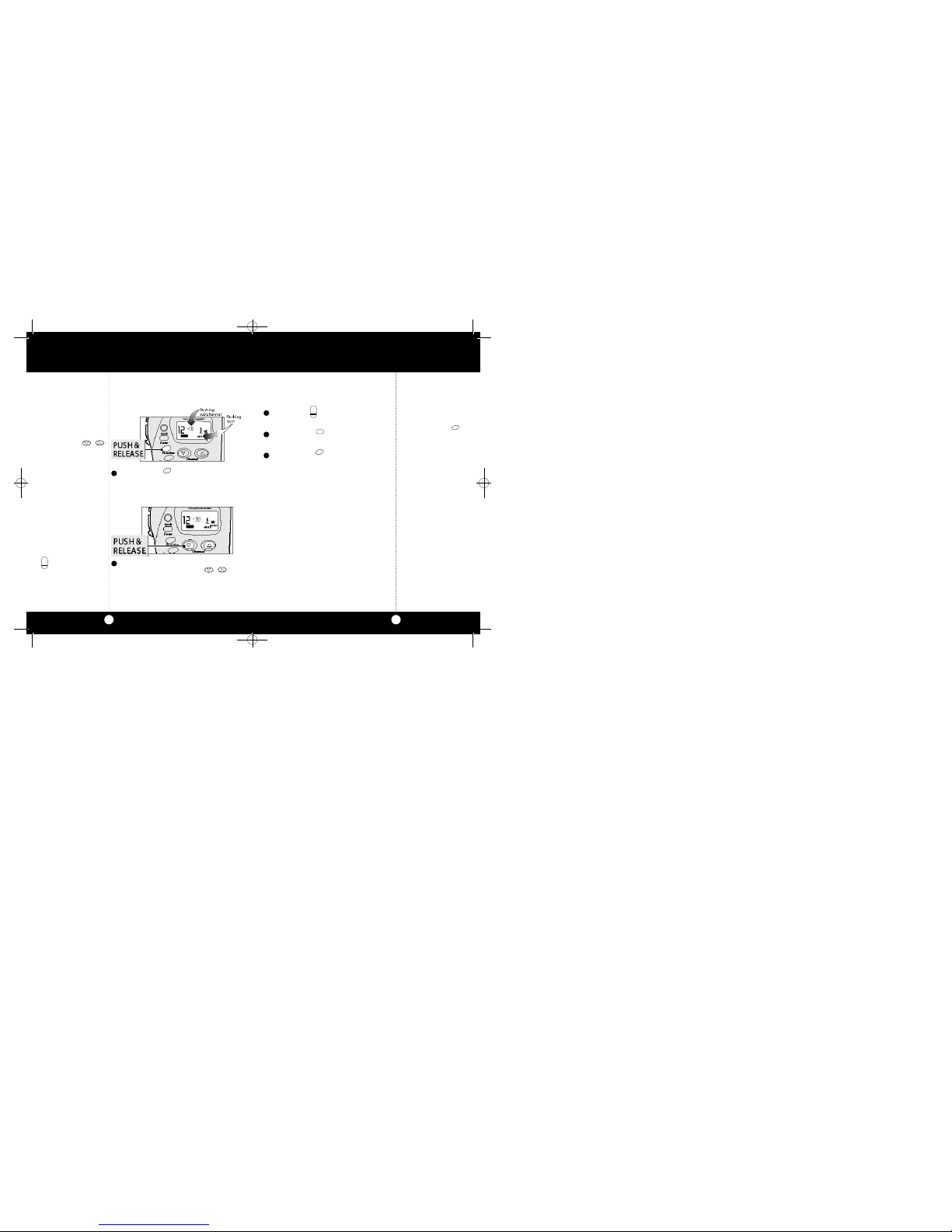

Se l e ct s u bcode number by pushing and re l e a s i n g

buttons.

When desired code is displayed push and release button.If key stroke tone is on, an audible tone will confirm your selection.

Select CTCSS Subchannel

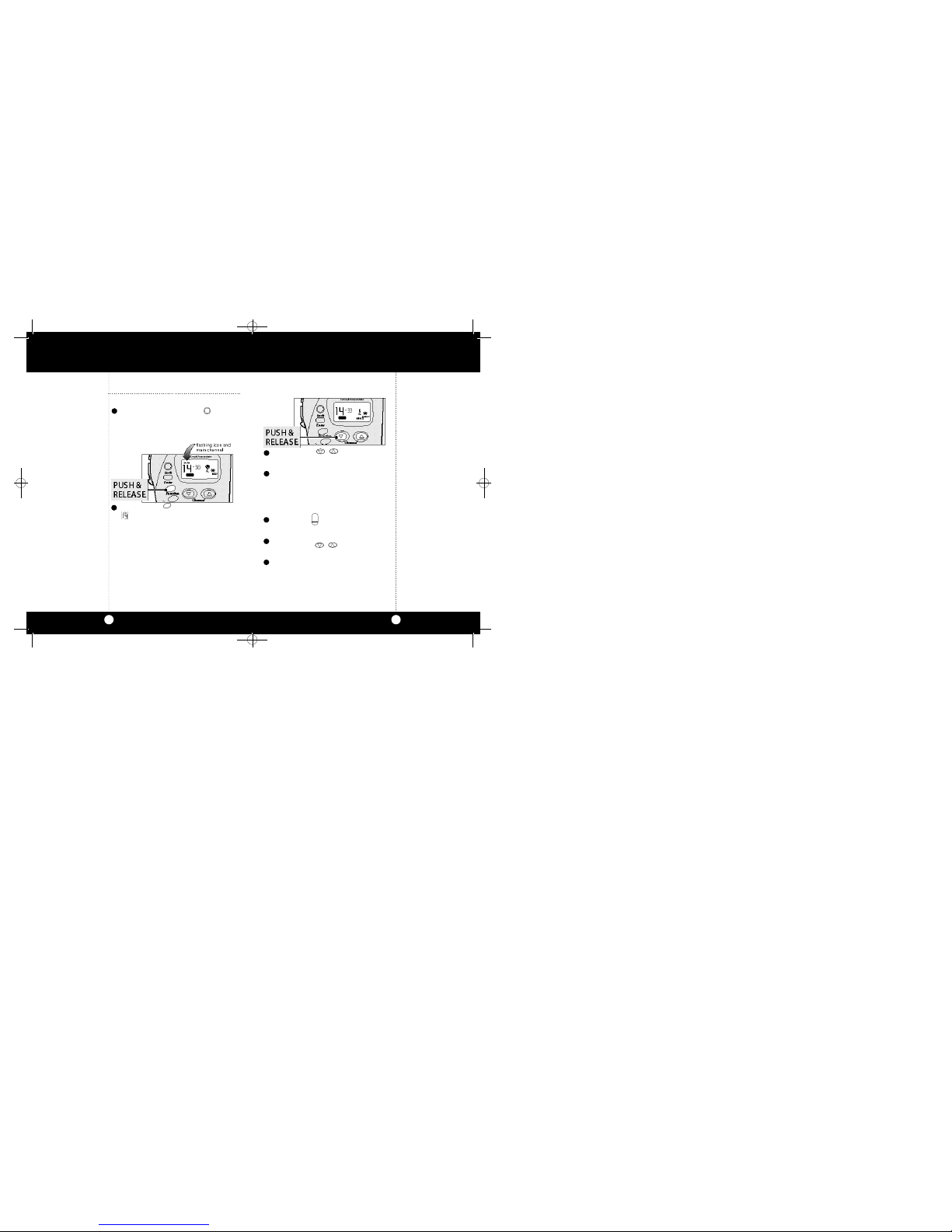

Battery Low

When in normal use the icon may begin flashing. This is a warning to you that your batteries are getting low.

Replace alkaline batteries as soon as possible and/or recharge NiMH battery pack.

Note

When battery capacity is at the 1/4 level it is recommended that you replace alkaline batteries or recharge your NiMH (Nickel Metal Hydride) battery pack.

Only the Cobra NiMH battery (Part # FA-BP) pack can be recharged.

Note

NiMH rechargeable battery Pack (item #FA-BP) and 2 port desktop charger (item #FA-CH) are not included with this unit. See Accessories section on page 47.

Battery Low

Se l e ct CTCSS Su b channel (00-38) co n t i n u e d

Note

Push and hold the buttons for fast channel advance.

Channel

Enter

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 14

Turn on your MicroTalk 3 2-way radio. An audible “tone”will indicate the unit is on. The LCD will go through a 3 second self test and then to operational mode.

Note

Both the calling and receiving units must be on same channel and subchannel for the call function to work.

Note

Your incoming “Call”audio ringing level is dependent on your unit’s volume s e t t i n g.

Operation

Select desired channel by pushing and

releasing buttons.

Wait for the party’s response or proceed to

“Talking To Another Party”section on next

page.

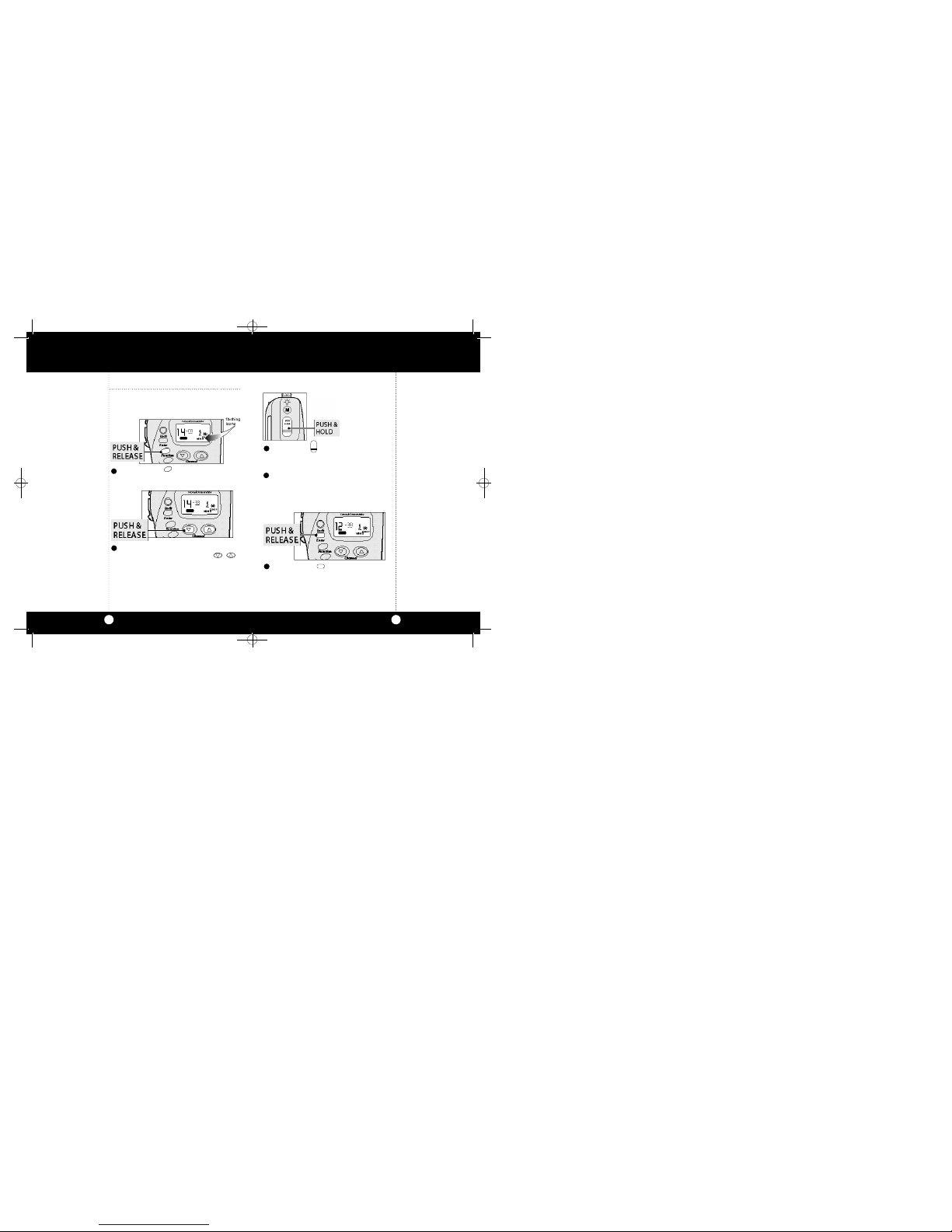

Calling Another Party

To alert another party that you wish to communicate:

Channel

CallPush and release button.The indicator

icon will flash and the icon will remain on

for 3 seconds.The unit you are calling will hear

a 2 second ring tone.

Place antenna in full upright position.

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 16

Operation

Note

While PTT button is depressed you cannot receive incoming calls.

Note

When you release the PTT button,the person you are talking to will hear a tone indicating that it’s ok to talk. See Talk Confirmation Tone section on page 14.

Operation

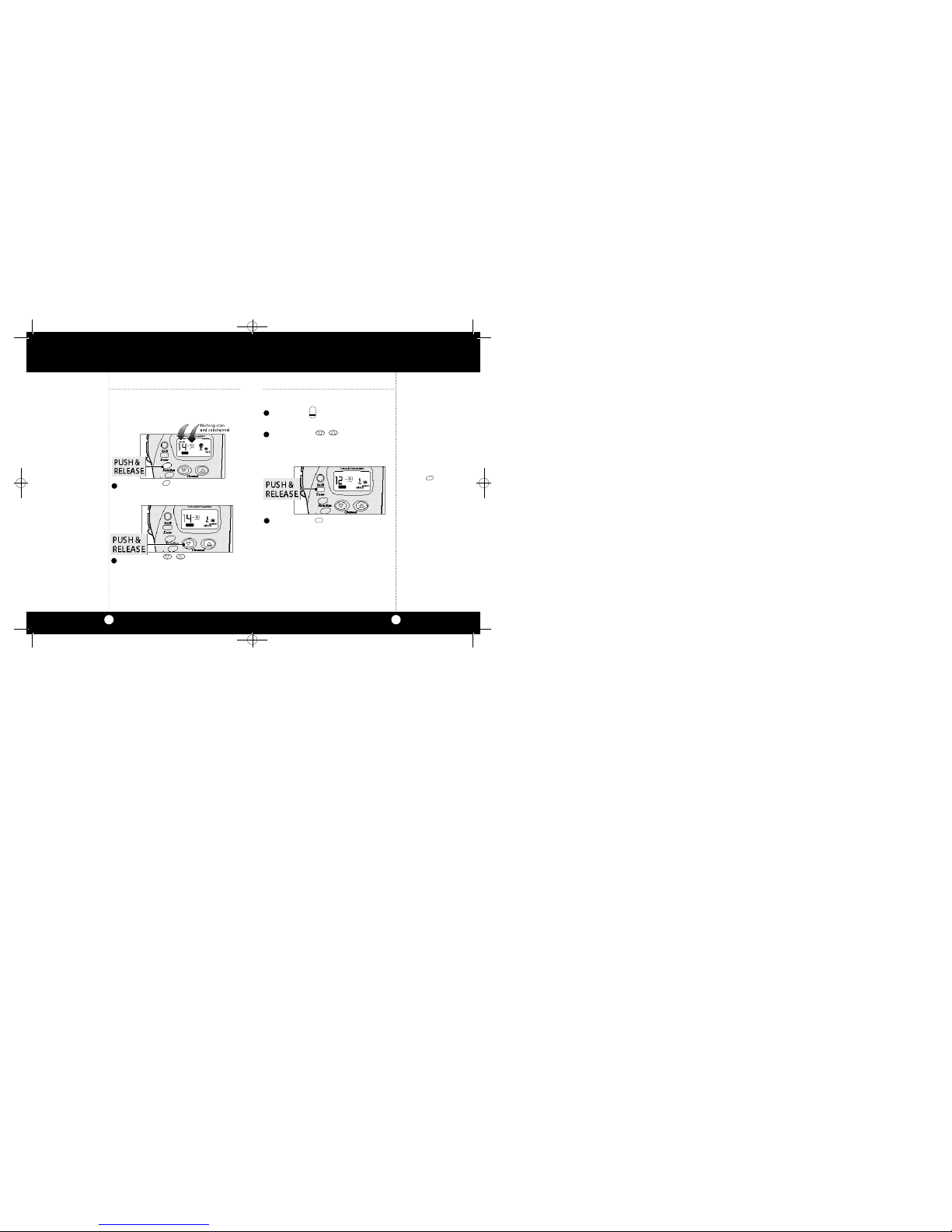

Talking To Another Party

To send your outgoing message:

Turn on your MicroTalk 3 2-way radio. An audible “tone”will indicate the unit is on. The LCD will go through a 3 second self test and then go to operational mode.

Talking to Another Party

5 6

Place antenna in full upright position.

Note

Both units must be on same channel to communicate.

PTT

...

PTT

...

The i con will appe a r.

Push and hold button.

Hold mic about

2 inches from

mouth. Speak in

a normal voice.

Release button and listen for response.

FRS300.MANUAL.qx 10/2/98 12:39 PM Page 18
