Cobra Harley-Davidson 29 LX HD LE Operating Instructions Manual

COBRA 29 LX
HARLEY DAVIDSON
LIMITED EDITION

The Citizens Band lies between the shortwave
broadcast and 10-meter Amateur radio bands,
and was established by law in 1949. The Class D
two-way communications service was opened in

1959. (CB also includes a Class A citizens band
and Class C remote control frequencies.)

FCC Regulations

FCC regulations permit only “transmissions”
(one party to another) rather than “broadcasts”
(to a wide audience). Thus, advertising is not
allowed on CB Channels because that is “broad­casting.”

FCC Warnings

All transmitter adjustments other than those
supplied by the manufacturer as front panel
operating controls, must be made by, or under
the supervision of, the holder of an FCC-issued
General Radio-Telephone Operator’s License.

Replacement or substitution of transistors, regu­lar diodes or other parts of a unique nature, with
parts other than those recommended by Cobra,
may cause violation of the technical regulations
of Part 95 of the FCC Rules, or violation of Type
Acceptance requirements of Part 2 of the Rules.

You should read and understand Part 95 (included
with this unit) of the FCC Rules and Regulations,
before operating your Cobra radio, even though
the FCC no longer requires you to obtain an oper­ator’s license.

What’s Included with Your 29 LX HD LE

1. CB transceiver 5. Operating Manual

2. Microphone 6. DC power cord
3 Transceiver bracket 7. FCC rules (not shown)

4. Microphone bracket 8. Certificate of Authenticity

(not shown)

29 LX HD LE

©2014 Cobra Electronics Corporation
Printed in China

Part No. 480-1001-P Version A

Limited Edition

Nothing Comes Close to a Cobra®

Operating Instructions for your

Cobra 29 LX HD LE

The CB Story

A1

Product Service and Support

For any questions about operating or installing this new Cobra product, PLEASE CONTACT COBRA
FIRST…do not return this product to the retail store. The contact information for Cobra will vary

depending on the country in which you purchased and utilize the product. For the latest contact
information, please go to www.cobra.com/support

For products purchased in the U.S.A. you may also call 1-800-262-7212 (1-800-COBRA-12).
For Products Purchased in the U.S.A., if your product should require factory service, please go

to www.cobra.com/support and follow the instructions for returning your product to the Cobra
Factory Service Department for service.

FCC and IC Regulations

FCC and IC Information For Users

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS 210. Opera­tion is subject to the following two conditions: (1) This device may not cause harmful interference; and
(2) this device must accept any interference received, including interference that may cause undesired
operation.

Radio and Television Interference

This equipment has been tested and found to comply with the limits for a Class B digital device, pursu­ant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio­frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause interference to radio or television reception,
which can be determined by turning the equipment off and then on, the user is encouraged to try to
correct the interference by one or more of the following measures:

• Increase the separation between the equipment and the receiver.

• Connect the equipment to a different outlet so that the equipment and receiver are on different

branch circuits.

• Consult the dealer or an experienced radio/ TV technician for help.
NOTE: Changes or modifications not expressly approved by Cobra Electronics Corp. could void the

user’s authority to operate the equipment.

IC Statement and Warning (Canada Only)

This Class B digital apparatus complies with Canadian ICES-003.

Trademark Statement and Prop 65

Cobra®, Dynamike®, Nothing Comes Close to a Cobra® and the snake design are registered
trademarks of Cobra Electronics Corporation, USA.

Cobra Electronics Corporation™ is a trademark of Cobra Electronics Corporation, USA.
California Proposition 65 Warning: This product contains a chemical known to the State of California to

cause cancer, birth defects or other reproductive harm.

3

2

5

6

1

cb tranceiver

29 LX HD LE

©2014 Cobra Electronics Corporation
Printed in China

Part No. 480-1001-P Version A

Limited Edition

Nothing Comes Close to a Cobra®

Operating Instructions for your

Cobra 29 LX HD LE

4

29LXHDLE_MANL.indd 42-44 9/2/14 3:29 PM

Thank you for purchasing the Cobra 29 LX HD LE
Limited Edition CB Radio. Properly used, this
Cobra product will give you many years of
reliable service.

Customer Support

Should you encounter any problems with the
product or not understand its many features,
please refer to this owner’s manual. If , after
referring to the manual, you still need help,
call Cobra Customer Service at 773.889.3087.

Controls and Indicators

Cobra Customer Service

Live operators are available
M-F 8:00 am - 5:30 pm Central
Time at: 773-889-3087

Automated Technical
Assistance available 24 hours a
day, seven days a week. E-mail
questions to: productinfo@
cobra.com

Cobra on the World Wide Web:
Frequently Asked Questions
(FAQ) can be found on-line at:
www.cobra.com

Our Thanks to You

A3

A2

1. 4-Pin Microphone

Connector

2. Power On/Off, Volume

3. Squelch

4. Dynamike

5. Menu/Enter/Channel

Selector

6. RF Gain

7. Delta Tune

8. Talk Back Control

9. SWR Calibration

10. Dim/Escape Button

11. Channel 9/Channel 19

Button

12. Scan/Memory Scan

13. CB/WX Weather/PA Button

14. LCD Display

15. RX (Receive)/TX (Transmit),

Indicators

16. Signal Strength Meter

17. NB/ANL Button

18. S/RF SWR CAL Button

19. 1Microphone

Back Side

20. Public Address Speaker

Jack

21. External Speaker Jack

22 Antenna Connector

23. Power Jack

2

3

COBRA 29 LX
HARLEY DAVIDSON
LIMITED EDITION

6

7

8

10

12

14

15

16

19

Assistance

Warranty

Customer
Assistance

NOTE

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two (2) conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,
including interference that may cause undesired operation.

The manufacturer is not responsible for any radio or tv inter­ference caused by unauthorized modifications to this equip­ment. Such modifications could void the user’s authority to
operate the equipment.

ANT

PA.SP. EXT.SP.

+POWER –

4

5

1

11

13

17

20

21

23

22

9

18

42

Optional Accessories

Ordering From U.S.A.

Call 773-889-3087 for pricing or visit www.cobra.com.

For Credit Card Orders
Call 773-889-3087 [Press one from the main menu] 8:00 a.m.
to 5:30 p.m. Central Time, Monday through Friday.

Make Check or Money Order Payable To
Cobra Electronics, Attn: Accessories Dept.,
6500 West Cortland Street, Chicago, IL 60707 U.S.A.

To Order Online
Please visit our website: www.cobra.com

Front Side

©2014 H-D, All Rights Reserved
Manufactured by Cobra Electronics Coproration
under license from Harley-Davidson Motor
Company

29LXHDLE_MANL.indd 45-47 9/2/14 3:29 PM

How to Use Your Cobra 29 LX HD LE

Contents

Features .........................................................................................................1

The CB Story .................................................................................................A1

FCC Regulations
FCC Warnings
Included Accessories

Controls & Indicators ................................................................................A2

Our Thanks to You .....................................................................................A3

Customer Support

Installation

Location ....................................................................................................2

Mounting and Connection ................................................................2

Antennas

CB Antenna ..............................................................................................6

Marine Installation ................................................................................6

Ignition Noise Interference....................................................................7

Operating Your 29 LX HD LE

Turning On Your CB .............................................................................. 8

Setting Channel Selector .................................................................... 9

Calibrate For SWR (Standing Wave Ratio) .................................... 10

To Receive ................................................................................................ 12

Selecting a Channel .............................................................................. 13

S-Meter ...................................................................................................... 13

To Transmit .............................................................................................. 14

Setting Dynamike® ...............................................................................15

Menu Mode .............................................................................................16

Radio Check Mode ................................................................................ 17

Setting Display Color Mode ............................................................... 18

Setting Brightness Mode .................................................................... 19

Setting Contrast Mode ........................................................................ 19

Weather Information ............................................................................ 20

Weather Channels ................................................................................. 21

Weather Alert Mode ............................................................................. 22

Setting Weather Alert Scan................................................................ 22

Setting Weather Auto Scan ...............................................................22

Key Tones Mode ....................................................................................23

Software version/Factory Settings .................................................. 23

NB-ANL/Off (Noise Blanker/Automatic.......................................... 24

Noise Limiter Switch)

RF Gain Control ...................................................................................... 24

Program Memory Channels ............................................................... 25

Scan/Memory Scan ............................................................................... 25

Scan CB Channels .................................................................................. 29

Scan Memory Channels ......................................................................26

Dimmer Control ..................................................................................... 26

Setting Squelch ...................................................................................... 26

S/RF Meter ................................................................................................ 28

External Speaker .................................................................................... 29

PA (Public Address) ............................................................................... 30

Home And Office Set-Up .................................................................... 32

Temporary Mobile Set-Up .................................................................. 33

How Your CB Can Serve You ................................................................. 34

A Few Rules You Should Know ........................................................34

Channel 9 Emergency Messages .....................................................34

CB 10 Codes .............................................................................................36

Frequency Ranges .....................................................................................38

29 LX HD LE Specifications .................................................................... 39

Warranty Information ..............................................................................40

Optional Accessories ................................................................................41

Optional Accessories Order Info .........................................................42

If You Need Service/Trademark Info ................................Back Cover

Features of This Product

• Selectable 4-Color LCD Display

• 10 Weather Channels

• Weather Scan

• Emergency Weather Alert

• 40 CB Radio Channels

• 40 Channel Scan

• Memory Channels

• Channel Frequency Read-Out

• Radio Check Diagnostic

• Heavy-Duty Dynamic
Microphone

• Full 4 Watts AM RF Power Output

• SWR Calibration Meter

• Instant Channel 19 and 9

• Front Panel 4-Pin Microphone
Connector

• Switchable Automatic Noise
Limiter & Noise Blanker

• Adjustable Dynamike Boost

• Tactile Controls

• 9 Ft Mic Cord

• Programmable Dimmer Control

• RF Gain

1

Installation

Installation

Location

32

Mounting and
Connection

Mounting and Connection

Hold the radio with the mounting bracket in

the exact desired location. If there is no inter­ference, remove the bracket and use it as a
template to mark the location for the mount­ing screws.

Location

Plan location of transceiver and microphone
bracket before starting the installation.

Select a location that is convenient for operation,
yet does not interfere with the driver or passenger.

The transceiver is usually mounted to the under­side of the dash with the microphone bracket
beside it.

Note

The transceiver is held in the
universal mounting bracket by
two thumbscrews which allow
for adjustment at a convenient
angle.

The bracket includes two self­tapping screws and star wash­ers. The mounting must be
mechanically strong, conve­niently located.

continued

Drill the holes and secure the bracket.

2

1

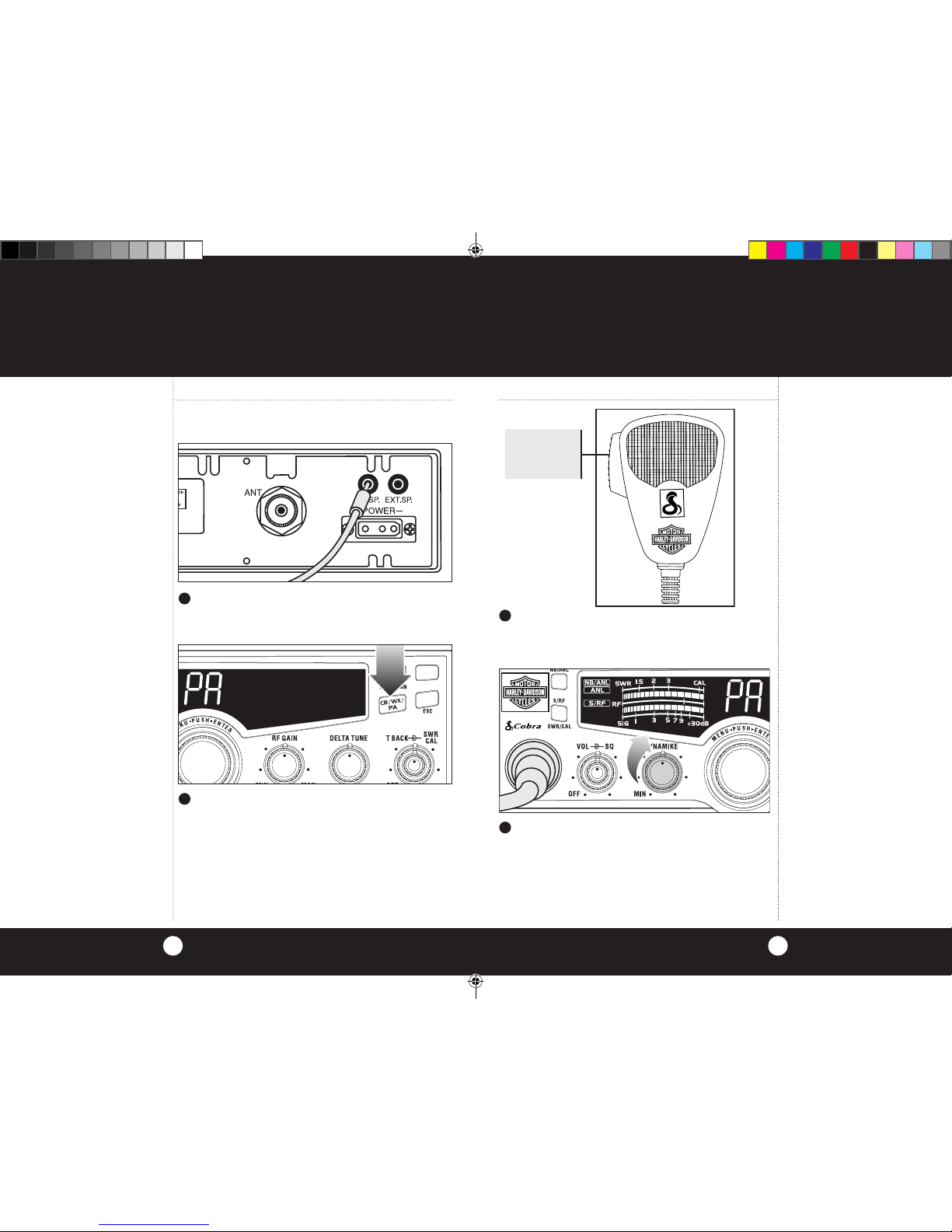

Connect the antenna cable plug to the recep-

tacle marked “ANT” on the back of the unit.

3

29LXHDLE_MANL.indd 2-3 9/2/14 3:29 PM

Installation

54

Note

Before installing the CB radio,
visually check the vehicle’s
battery connection to deter­mine which terminal, positive
or negative, is grounded (pos­itive is the larger of the two)
to the engine block (or chas­sis). A negatively grounded
vehicle has its negative lead
grounded to the chassis.

Note

Connecting to an accessory fuse
prevents the unit from being left
on accidentally, and also per­mits operating the unit without
running the engine.

Note

In positive ground vehicles the
red wire goes to the chassis and
the black wire is connected to
the ignition switch.

Note

When connected to an acces­sory fuse, unit will self test
the emergency weather alert
automatically when ignition
is turned on. Turns itself on & off.

In a negative grounded vehicle, connect the

red lead of the DC power cord to an accessory
12 volt fuse.

Connect the black lead to the negative side

of the vehicle. This is usually the chassis. Any
convenient location with a good electrical
contact (remove paint) may be used.

4

5

Plug power cable into back of unit marked

“Power”. Be sure to observe polarity markings.

Mount the microphone

bracket on either side
of the unit (driver’s left)
using two screws sup­plied. Bracket should be
placed under the dash
so microphone is readily
accessible.

6

7

Attach the 4-pin microphone cable to

receptacle on front of unit and install unit
in bracket securely.

8

ANT

PA.SP. EXT.SP.

+ POWER–

SWR/CAL

NB/ANL

VOL SQ DYNAMIK

ERF GAIN DELTA TUNE

T BACK

SWR

CAL

OFF MIN

MI

NOFFMAX

ESC

MEM SCAN

S/RF

M

E

N

U

P

U

S

H

E

N

T

E

R

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

TX

RX

NB/ANL

MEMWX

!

ANL

S/RF
SWR

CAL

CH 9/

19

CB/WX /

DIM

SCAN

PA

Installation

Note

If microphone is not
connected, audio will not
be heard at speaker.

29LXHDLE_MANL.indd 4-5 9/2/14 3:29 PM

Ignition Noise Interference

Antennas

Use of a mobile receiver at low signal levels is
normally limited by the presence of electrical
noise. The primary source of noise in automo­biles is from the alternator and ignition system.
Typically, when signal level is adequate, the back­ground noise does not present a serious problem.
Also, when extremely low level signals are being
received, the transceiver may be operated with
the vehicle’s engine turned off. The unit requires
very little current and therefore will not signifi­cantly discharge the vehicle’s battery.

Even though the Cobra 29 LX HD LE has an auto­matic noise limiter, in some installations ignition
interference may be high enough to make good
communications impossible. Many possibilities
exist and variations between vehicles require
different solutions. Consult your Cobra dealer or
a 2-way radio technician for help in locating the
source of a severe noise.

CB Antenna

Since the maximum allowable power output of
the transmitter is limited by the FCC, the antenna
is critical in affecting transmission distance. Only a
properly matched antenna system will allow maxi­mum power output. Cobra loaded type antenna
models are highly recommended for most instal­lations. For models with Weather Feature (WX),

a Dual Band (Center Load/Base Load) antenna
is recommended. Consult your Cobra dealer for

further details, or call 773.889.3087 and speak to a
Cobra representative.

Marine Installation

The transceiver will not operate at maximum
efficiency in a boat without a ground plate,
(unless it has a steel hull). Before attempting
installation , consult your dealer for information
regarding an adequate grounding system and
prevention of electrolysis between fittings in the
hull and water.

CB Antenna

7

Note

For optimum performance in
passenger cars the ideal anten­na location is on the center of
the roof. Second choice is on the
center of the trunk.

Note

Because many newer trucks
feature fiberglass door skins,
the outside mirror must be
grounded to the chassis via a
ground strap, if the antenna is
mounted on the mirror bracket.

Note

3-way Combination Antennas
are also available which allow
operation of all three bands
(AM-FM & CB), using a single
antenna. However, this type
of antenna usually results in
less than normal transmit and
receive range when compared
to a standard-type “Single
Band” CB antenna. Call 773­889-3087 for further informa­tion.

6

1

A standard antenna connector is provided

on the transceiver for easy connection.

29LXHDLE_MANL.indd 6-7 9/2/14 3:29 PM

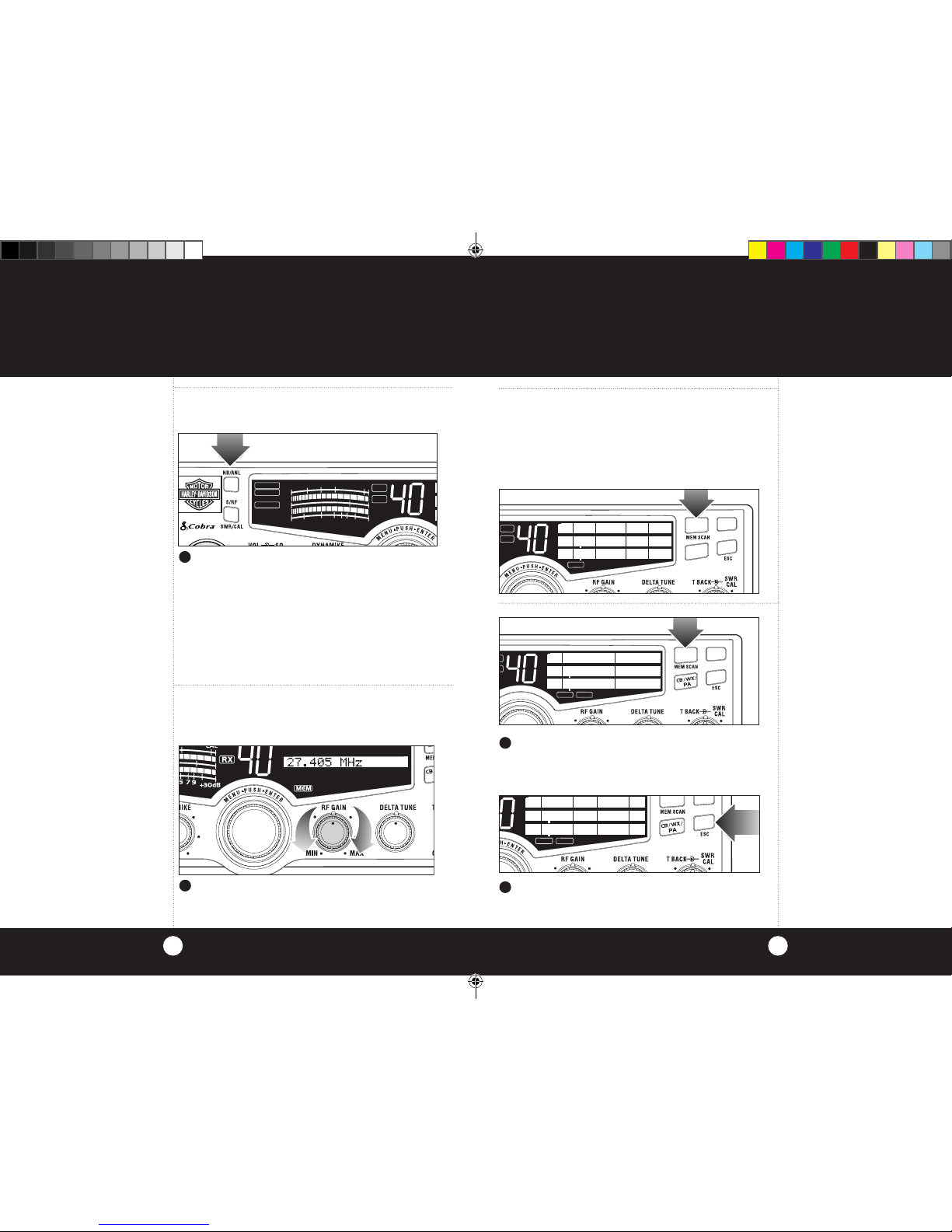

Press the CB/PA/WX button to change modes.

Operation

9

Operation

Turning On

Setting Channel
Selector

8

Turning On

Make sure the power cord, antenna and micro­phone are connected to their proper connectors
before starting.

Setting Channel Selector

1

RF GAIN DELTA TUNE

T BACK

SWR

CAL

ESC

MEM SCAN

H

E

N

T

E

R

MEMWX !

CH 9/

19

CB/ WX/

DIM

SCAN

PA

2

Rotate the On/Off Volume knob clockwise to

turn unit on and adjust to a normal listening
level.

Select one of forty channels and adjust

volume. The selected channel (1 through

40) will be indicated by the readout directly
above the channel selector knob

3

CAL

VOL SQ DYNAMIKE

RF GA

OFF MIN

MIN

RF

M

E

N

U

P

U

S

H

E

N

T

E

R

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

TX
RX

NB/ANL

ME

MWX !

ANL

S/RF
SWR

CAL

Note

Press CB/WX/PA to select CB,
weather channels or PA (public
address) modes.

29LXHDLE_MANL.indd 8-9 9/2/14 3:29 PM

While holding mic

button adjust the
SWR CAL knob so
the meter swings
to the CAL mark on
the meter (located
on the right).

Operation

Operation

Calibrate For
SWR (Standing
Wave Ratio)

1110

continued

Note

Calibration must be made in an
open area (never in a garage).
Vehicle doors must be closed.
No one should be standing near
the antenna. (See your antenna
directions for more complete
information).

Note

The reading will be slightly
higher on Channels 1 and 40
compared to Channel 20.

Push and hold mic button.

Press SWR/CAL button to select CAL.

2

1

3

Calibrate for SWR (Standing Wave Ratio)

SWR calibration is done to properly adjust the
length of the antenna and to monitor the quality
of the coaxial cable and all RF connections.
This calibration is critical in order to achieve opti­mum performance.

PUSH &
HOLD

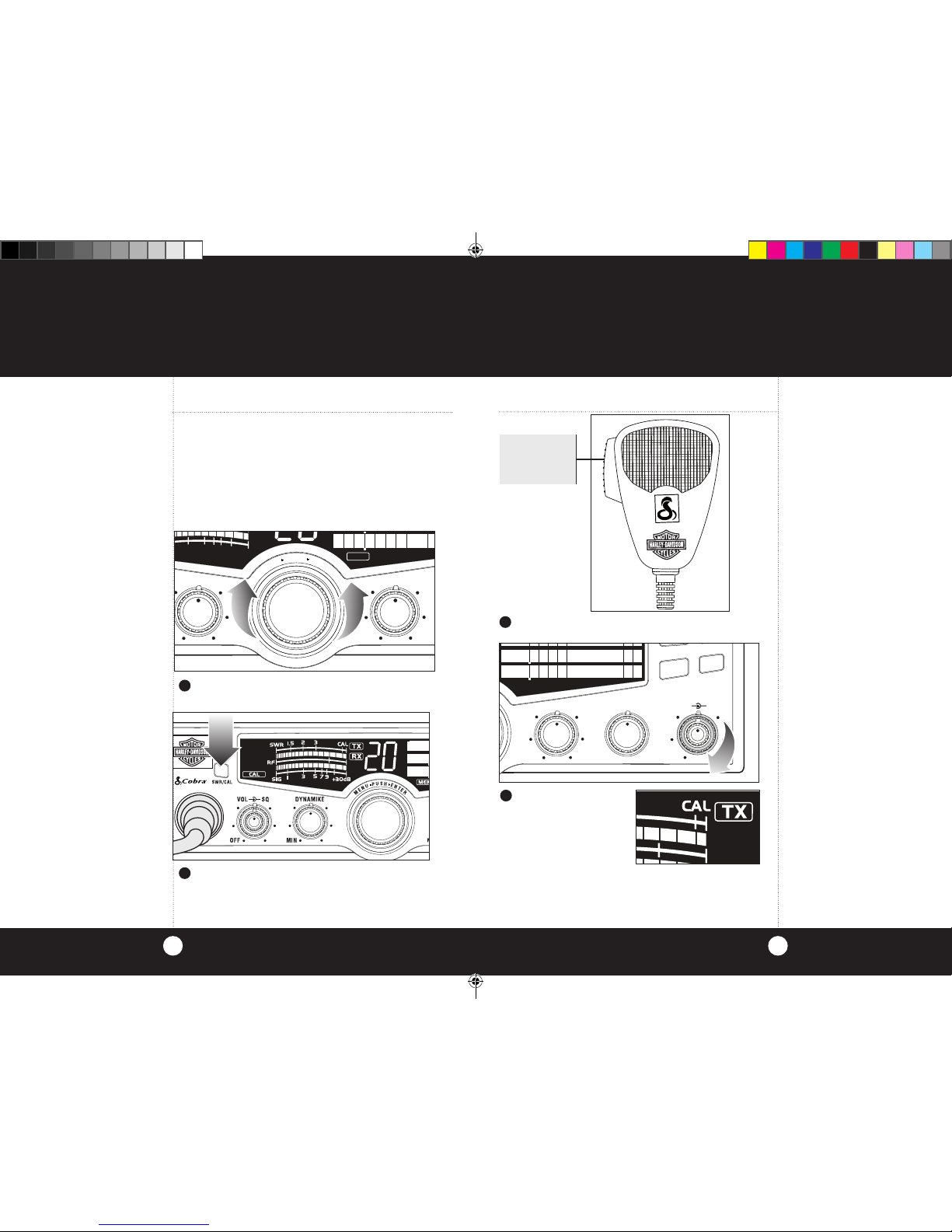

Select channel 20.

4

DYNAMIK

ER

F GAIN

DELT

N

MIN MAX

M

E

N

U

P

U

S

H

E

N

T

E

R

+30dB

CAL

3

5

7

9

RX

MEM

RF GAIN DELTA TUNE

T BACK

SWR

CAL

MI

NO

FF

MAX

ESC

MEM SCAN

CH 9/

19

CB/ WX/

DIM

SCAN

PA

29LXHDLE_MANL.indd 10-11 9/2/14 3:29 PM

Rotate the On/Off Volume knob clockwise.

The RX icon will be displayed.

Repeat the same steps two through five on

Channel 1 and 40. This will check SWR for all
channels.

The S/RF-SWR-CAL switch must be in the S/RF

setting to read the meter.

6

While still holding down the mic button, press

and release the S/RF SWR CAL button to the
SWR setting, to read the SWR reading.

5

Operation

13

Operation

12

1

Note

When switched to SWR
mode the meter reading
should ideally be as far to the
left as possible. Anything over
3 is not acceptable. A slight
antenna height adjustment
(higher or lower) may be
required. Repeat recalibration
steps.

S-Meter

S-Meter

Swings proportionately to strength of incoming
signal when receiving.

Unit should be in CB mode. Rotate channel
selector clockwide or counter-clockwise to

select desired channel.

1

Selecting A
Channel

Selecting A Channel

To Receive

1

To Receive

SWR/CAL

NB/ANL

VOL SQ DYNAMIKE

OFF MIN

M

S/RF

M

E

N

U

P

U

S

H

E

N

T

E

R

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

RX

ME

M

SWR

Calibrate for
SWR continued

SWR/CAL

NB/ANL

VOL SQ DY NAMIKE

OFF MIN

M

S/RF

M

E

N

U

P

U

S

H

E

N

T

E

R

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

RX

NB/ANL

ME

M

ANL

S/RF
SWR

CAL

DYNAMIK

ER

F GAIN DEL

T

MIN

MIN MAX

M

E

N

U

P

U

S

H

E

N

T

E

R

IG

+30dB

1

CAL

3

5

7

9

RX

MEM

OL SQ DYNAMIKE

M

E

N

U

P

U

S

H

E

N

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

RX

S/RF

29LXHDLE_MANL.indd 12-13 9/2/14 3:29 PM

Setting Dynamike®

This controls the microphone sensitivity
(outgoing audio level).

To Transmit

15

To Transmit

14

Setting
Dynamike

®

Caution!

Be sure the antenna is properly
connected to the radio before
transmitting. Prolonged trans­mitting without an antenna,
or a poorly matched antenna,
could cause damage to the
transmitter.

Be sure to read the F.C.C. Rules
and Regulations included with
this unit before transmitting.

Operation

Operation

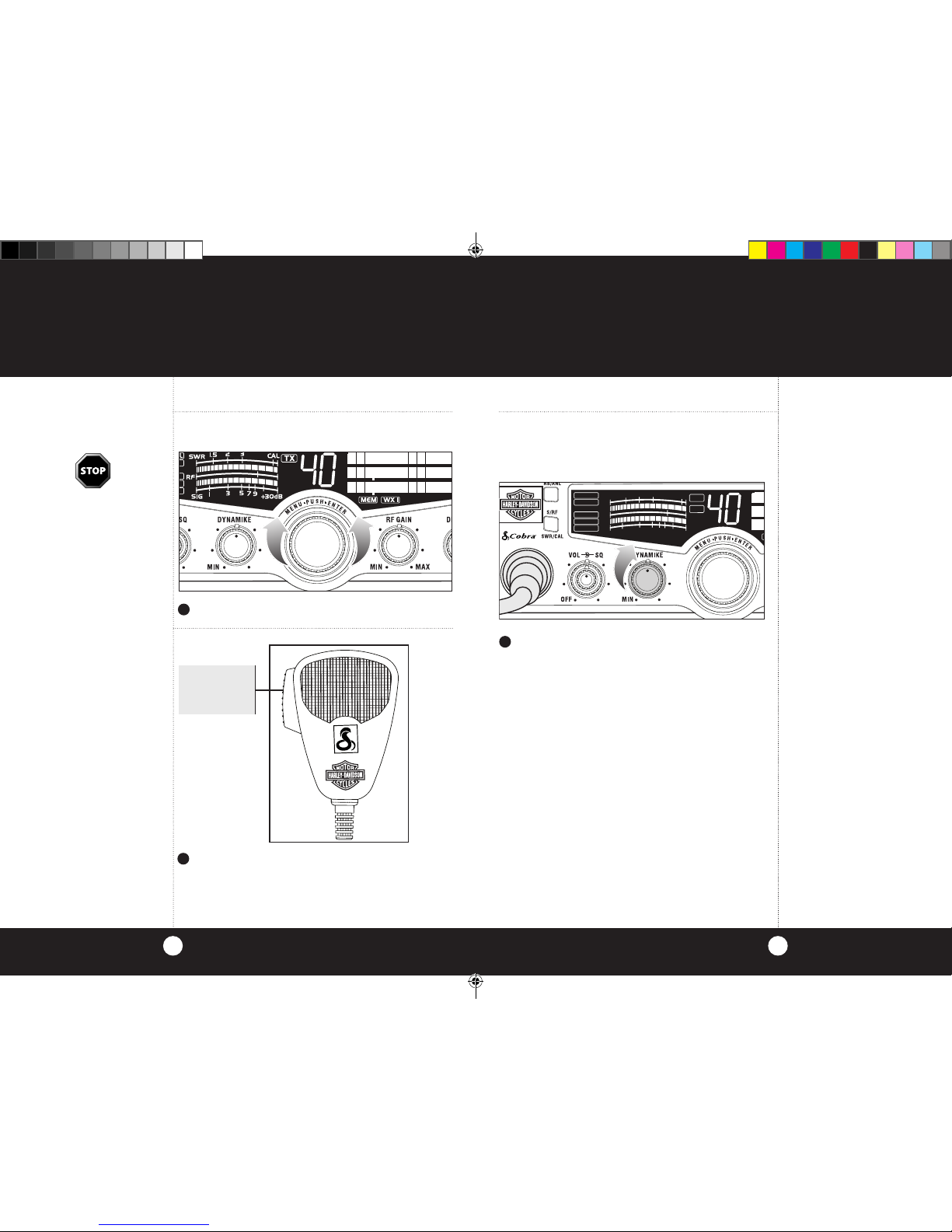

3

Select desired channel.

1

Initially, set fully clockwise so that maximum

voice volume is available. Dynamike may
have to be reduced in some conditions.

2

Transmit

Push and hold mic button to transmit.

Transmitter is now activated. When transmit­ting, hold the microphone two inches from
your mouth and speak in a clear, normal voice.
Release to receive.

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

TX

RX

NB/ANL

M

ANL

S/RF

SWR

CAL

PUSH &
HOLD

29LXHDLE_MANL.indd 14-15 9/2/14 3:29 PM

Operation

Operation

17

16

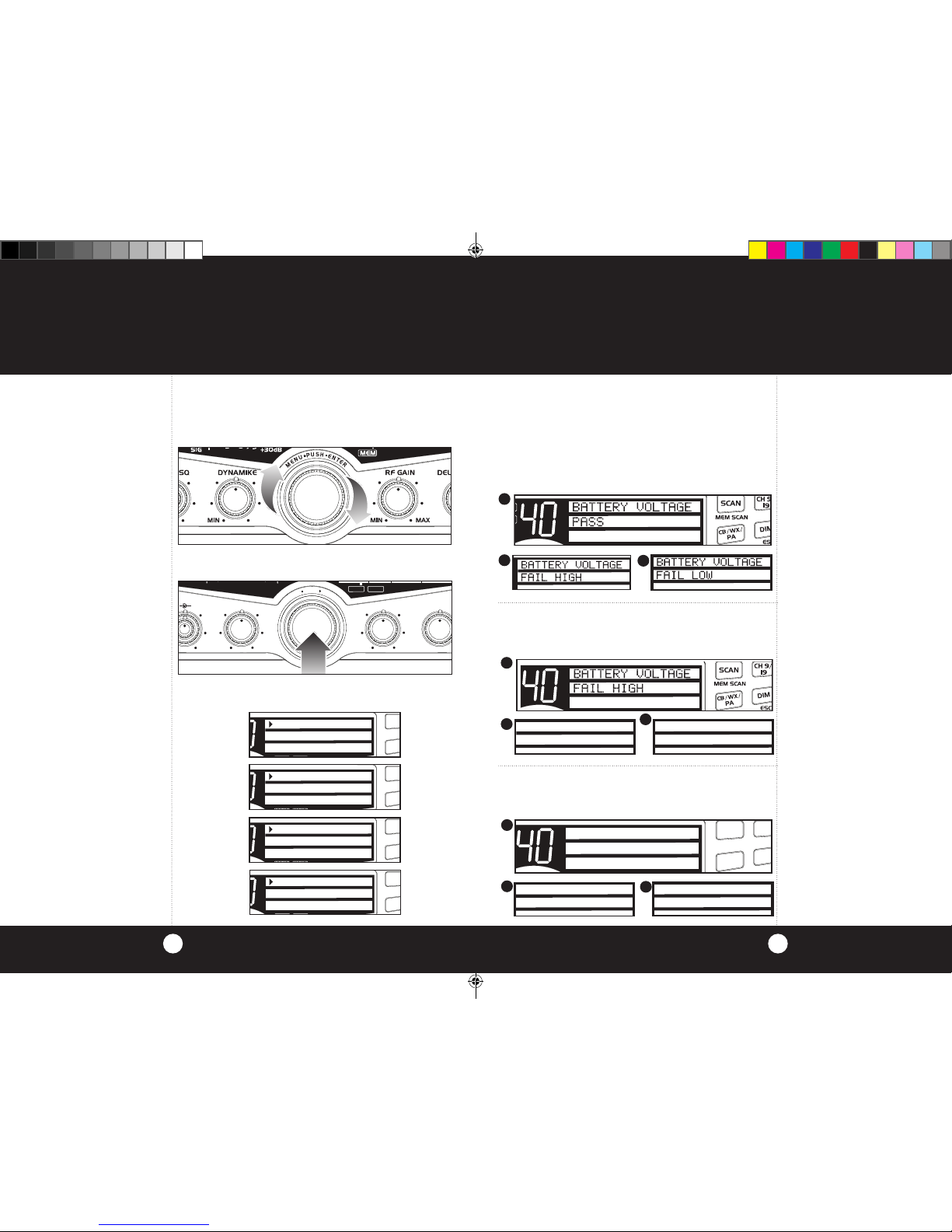

Menu Mode

Menu Mode

Used to program special features. Menu/Enter
knob is used to move cursor to desired feature
to program.

Rotate Menu/Enter knob clockwise to navigate
menu levels.

Press Menu/Enter knob to select feature to be
programmed.

Level 1:

Level 2:

Level 3:

Level 4:

Note

Use Dim/Escape button to exit
from any routine back to CB
standby mode.

ESC

MEM SCAN

CH 9/

19

CB

/WX/

DIM

SCAN

PA

DISPLAY COLOR
BRIGHTNESS
WX ALERT

ESC

MEM SCAN

CH 9/

19

CB

/WX/

DIM

SCAN

PA

WX ALERT SCAN
WX AUTO SCAN
CONTRAST

ESC

MEM SCAN

CH 9/

19

CB

/WX/

DIM

SCAN

PA

KEY TONES
RADIO CHECK
SETTINGS

Radio Check
Mode

Radio Check Mode

Allows testing of important radio functions.
Test 1- Battery Level: Confirms that battery

voltage level is between 10.8 V to 15.8 V. If in that
range, it is “PASS”. Outside of that range, either
FAIL LOW” or “FAIL HIGH” will be displayed. Press
Menu/Enter knob to advance to next test.

Note

Press Dim/Escape button to
return to CB standby mode.
If 10 seconds pass or if Enter
button pressed, unit goes to
2nd test.

Test 2- RF Power Output: Confirms 3.3 to 4 Watt
output level. Once Push-to-Talk button is pressed,
Pass or Fail will be displayed if level is outside limits.

Note

Press Dim/Escape button to
return to CB standby mode. If
10 seconds pass or if Enter button
pressed, go to 3rd test.

Note

Press Push-To-Talk within 10
seconds or unit will go to the
next test.

MEM SCAN

CH 9/

19

CB/WX /

DIM

SCAN

RF POWER OUTPUT
PASS

MEM SCAN

CH 9/

19

CB/WX /

DIM

SCAN

RF POWER OUTPUT
FAIL

Note

Press Dim/Escape button to
return to CB standby mode.
If 10 seconds pass or if Enter
button pressed, testing is
complete. Unit will return to
CB Standby mode.

Test 3- Antenna Mismatch Warning: Press
Push-to-Talk button to check antenna/radio for

proper matching.

ESC

MEM SCAN

CH 9/

19

CB/ WX/

D

IM

SCAN

PA

PRESS PTT
BUTTON TO
CHECK ANTENNA

MEM SCAN

CH 9/

19

CB/WX /

DIM

SCAN

ANTENNA

PASS

MEM SCAN

CH 9/

19

CB/WX /

DIM

SCAN

ANTENNA

FAIL

1

2

3

1

2

3

1

2

3

SQ DYNAMIK

ER

F GAIN DELTA

TUNE

T BACK

SWR

CAL

MIN

MI

NOFF

MAX

ESC

MEM SCAN

M

E

N

U

P

U

S

H

E

N

T

E

R

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

RX

MEMWX !

CH 9/

19

CB/WX /

DIM

SCAN

PA

ESC

MEM SCAN

CH 9/

19

CB

/WX/

DIM

SCAN

PA

EXIT

29LXHDLE_MANL.indd 16-17 9/2/14 3:29 PM

Operation

Operation

19

18

Setting
Brightness
Mode

Setting Brightness Mode

Press Menu/Enter knob to select Set Brightness

Rotate Menu/Enter knob clockwise to Select

Brightness. Press Menu/Enter knob to select
Day-Bright. Turn Menu/Enter clockwise to

increase brightness and turn counter-clockwise to
decrease brightness.

To set the day bright level, turn the Menu/Enter
knob clockwise to a desired setting and then
press Menu/Enter. To set the Night-Dim level,
repeat instructions above then select Night-Dim.

Press Menu/Enter knob again to exit routine.

Note

If an attempt is made to
exceed the highest or lowest
brightness levels, 3 error beeps
will be heard.

Note

Exit will return to menu mode.
ESC will exit and return to CB
Standby.

Weather Auto

Setting Display
Color Mode

Note

Select EXIT to return to
main menu. Press Dim/Escape
button to return to CB mode.

Setting Display Color Mode

Press Menu/Enter knob to select Display Color.

Press and release Menu/Enter to set the color.

Rotating Menu/Enter knob clockwise changes the
display color from green to blue to amber to red
then back to green.

Press Menu/Enter knob or escape button again
to exit routine.

ESC

MEM SCAN

TX
RX

MEMWX !

CH 9/

19

CB/ WX/

D

IM

SCAN

PA

DISPLAY COLOR
BRIGHTNESS
WX ALERT

SQ DYNAMIK

ER

F GAIN DELTA

TUNE

T BACK

SWR

CAL

MIN

MI

NOFF

MAX

ESC

MEM SCAN

M

E

N

U

P

U

S

H

E

N

T

E

R

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

RX

MEMWX !

CH 9/

19

CB/WX /

DIM

SCAN

PA

ESC

MEM SCAN

CAL

TX
RX

CH 9/

19

CB/

WX/

DIM

SCAN

PA

SET COLOR
EXIT

1

2

3

4

Note

To select day or night levels,
press and release Dim/Escape
button once levels are set.

Note

To toggle from day to night
settings, see page 26.

Setting
Contrast Mode

Setting Contrast Mode

Press Menu/Enter knob and rotate clockwise to
select Set Contrast. Press Menu/Enter knob
again and rotate clockwise to increase contrast,
counter-clockwise to decrease contrast.
Press Menu/Enter knob to set contrast.

Press Menu/Enter knob again to exit routine.

Note

If an attempt is made to
exceed the highest or lowest
contrast levels, 3 error beeps
will be heard.

29LXHDLE_MANL.indd 18-19 9/2/14 3:29 PM

Weather
Information

Note

If you wish to receive a list­ing of NOAA ‘Weather Radio
Transmitter locations, contact
your nearest National Weather
Service Office.

Service Office, or write to:
National Weather Service
(Attn: W/OM11) NOAA
Silver Springs, MD 20910.

For ideal weather reception use
a dual band antenna (center
load/baseload).

Weather Alert

What You Should Know About Weather

If threatening weather is nearby, the National
Weather Service may broadcast a 10 second alert
tone. This tone will be heard through the CB,
even if the CB/WX Control is in the CB mode or
the unit is turned off.

This enables you to monitor CB frequencies and
still be warned by the National Weather Service
Emergency Alert. When you hear the alert, press
the CB/WX/PA button in the WX mode. You
will then be able to hear the Weather Warning
Broadcast.

Your 29 LX HD LE has a special auto squelch cir­cuit for weather transmission which disables your
squelch control.

Weather
Channels

Weather Alert Scan

The unit will continually scan all 10 WX channels for
1050 Hz tone. If the tone is detected the unit will
activate WX mode on the channel with the tone.
Default state is Off. Go to Menu mode to choose
On/Off (see page 22):

What is Weather Radio?

NOAA Weather Radio (NWR) is a
service of the National Oceanic
and Atmospheric Administration
(NOAA), of the U.S. Department
of Commerce. 380 NWR sta­tions are in operation by the
U.S. Government in addition to
several NWR stations that are
maintained by private interest
groups. The capability is to sup­plement warnings by sirens and
by commercial radio and televi­sion.

The 10 National Weather
Channels provide full cover­age to keep you informed of
weather conditions, 24 hours a
day, 7 days a week.

Weather Auto Scan

If active while in CB or PA mode, will determine
if the present WX channel is active. If the present
WX

channel is not active, will search for the stron­gest WX channel and auto change to that channel.
Default is off. Go to Menu mode to choose On/Off
(see page 22).

F GAIN DELTA TUNE

T BACK

SW

R

CA

L

ESC

MEM SCAN

U

P

U

S

H

E

N

T

E

R

WX !

CH 9/

19

CB/ WX/

DIM

SCAN

PA

163.275

2120

Operation

Operation

29LXHDLE_MANL.indd 20-21 9/2/14 3:29 PM

Operation

Operation

2322

Key Tones
Mode

Key Tones Mode On and Off

Press Menu/Enter knob and rotate clockwise
to Set Key Tones. Press Menu/Enter to set Key
Tones On/Off.

Press Menu/Enter knob to select On/Off and
exit to main menu.

ESC

MEM SCAN

TX

RX

CH 9/

19

CB/ WX/

D

IM

SCAN

PA

SET KEY TONES
ON
OFF

Setting Weather Auto Scan

Press Menu/Enter knob and rotate clockwise to WX
Auto Scan. Press Menu/Enter knob to select On/Off.

Press Menu/Enter knob to select On/Off and exit
to main menu.

ESC

MEM SCA

N

TX
RX

CH 9/

19

CB/ WX/

DIM

SCAN

PA

WX AUTO SCAN
ON
OFF

Setting Weather
Auto Scan

Setting Weather Alert Scan

Press Menu/Enter knob and rotate clockwise to
WX Alert Scan. Press Menu/Enter knob to select
On/Off.

Press Menu/Enter knob to select On/Off and exit
to main menu.

ESC

MEM SCA

N

TX
RX

CH 9/

19

CB/ WX/

DIM

SCAN

PA

WX ALERT SCAN
ON
OFF

Weather Alert
Mode

Setting Weather Alert Mode

Turns WX Alert On/Off. Default is Off.
Press Menu/Enter knob to select Set WX Alert.
If Weather is On, WX Alert Icon will be displayed.

Press Menu/Enter knob to select On/Off and exit
to main menu.

ESC

MEM SCAN

TX
RX

CH 9/

19

CB/ WX/

DIM

SCAN

PA

SET WX ALERT
ON
OFF

Setting
Weather Alert
Scan

Note

Press Dim/Escape
button to return to CB mode.

Note

Press Dim/Escape
button to return to CB mode.

Software
Version/Factory
Settings

Software Version/Factory Settings

Displays current software version and returns
unit to original factory settings. To view software
version, rotate Menu/Enter knob clockwise to
select Settings then Software Version.

To restore default settings, Press Menu/Enter
knob again. Rotate Menu/Enter knob clockwise
to select Settings then Go To Default.

Press Menu/Enter knob to restore default
settings. Choose NO to maintain present
setting with no change.

ESC

MEM SCAN

TX
RX

CH 9/

19

CB/ WX/

D

IM

SCAN

PA

SET KEY TONES
RADIO CHECK
SETTINGS

MEM SCAN

TX
RX

CH 9/

19

CB/ WX/

D

IM

SCAN

SOFTWARE VER.
GO TO DEFAULT

ESC

MEM SCAN

TX
RX

CH 9/

19

CB/ WX/

D

IM

SCAN

PA

RESTORE DEFAULT
YES
NO

Note

If an alert is detected the unit
will activate WX mode on the
channel with the alert. Use
Menu/Enter knob to select
On/Off and press to set.

MEM SCAN

TX
RX

CH 9/

19

CB

/WX /

D

IM

SCAN

SOFTWARE VER.
GO TO DEFAULT

Note

Default display color is green.

Note

Press Dim/Escape
button to return to CB mode.

Note

Press Dim/Escape
button to return to CB mode.

29LXHDLE_MANL.indd 22-23 9/2/14 3:29 PM

2524

Operation

Operation

When switched to ANL the Automatic Noise

Limiter is activated. This helps reduce noise
created by the vehicle’s electronics.

When switched to NB/ANL mode the RF Noise

Blanker is also activated, providing increased
noise filtration.

When switched to OFF mode all noise

filtration will be turned off.

NB-ANL/OFF
(Noise Blanker /
Automatic Noise
Limiter) Button

RF Gain Control

RF Gain Control

The RF Gain is used to optimize reception in
strong or weak signal areas.

Note

The RF Gain is used to optimize
reception in weak signal areas.

Note

The RF noise blanker is very
effective in reducing repetitive
noises such as ignition interfer­ence.

Rotate the RF Gain knob counterclockwise to

reduce gain in strong signal areas. In weak
signal areas turn clockwise to increase gain.

1

NB-ANL/OFF (Noise Blanker/Automatic
Noise Limiter) Button

1

SIG

RF

+30dB

1

1.5

2

3

CAL

3

5

7

9

SWR

TX

RX

NB/ANL

MEMWX !

ANL

S/RF

CH 9/

19

CB/ WX/

DIM

SCAN

PA

Pressing the Scan/Memory Scan button

toggles from Off to Scan All Channels to
Memory Channel Only Scan and back to Off.

Press Dim/Escape button to end Scan and
return to CB mode.

1

MEMWX !

CH 9/

19

DIM

SCAN

Note

If more than 10 channels are
attempted to be programmed,
3 error beeps will be heard and
“Memory Full” will be displayed
for 10 seconds or until any
button is pushed.

Note

If in WX mode the unit will
scan Weather channels.

2

MEMWX !

CH 9/

19

DIM

SCAN

Note

The radio should be
squelched before scan
features are activated.

Note

Keying the microphone will
stop the scan feature.

Set first channel. Press and hold Scan/MemScan
button. Memory icon will appear. Select second
channel, press and hold Scan/MemScan button
again until Memory icon appears. Repeat above
steps to enter up to 10 channels in memory.

Program Memory Channels

Program Memory
Channels

TX

RX

MEM

CH 9/

19

CB/WX /

DIM

SCAN

PA

Note

To remove a channel from
memory, go to the unwanted
memory channel then press
and hold the scan button until
the MEM icon turns off.

29LXHDLE_MANL.indd 24-25 9/2/14 3:29 PM

Operation

Operation

27

26

Full clockwise rotation closes the gate

allowing only very strong signals to enter.

Full counterclockwise rotation opens the “gate”

allowing all signals in.

Dimmer Control

Setting Squelch

Squelch is the “control gate” for incoming signals.

Dimmer Control

1

2

1

Press Dim/Esc button to toggle between day

and night settings.

See setting instructions on page 19.

NOISE

WEAK SIGNALS

MEDIUM SIGNALS

STRONG SIGNALS

NOISE

WEAK SIGNALS

MEDIUM SIGNALS

STRONG SIGNALS

GATE

OPEN

NOISE

WEAK SIGNALS

MEDIUM SIGNALS

STRONG SIGNALS

Gate open

NOISE

WEAK SIGNALS

MEDIUM SIGNALS

STRONG SIGNALS

GATE CLOSED

Gate closed

Setting Squelch

MEMWX !

CH 9/

19

DIM

SCAN

Scan CB Channels

Scan CB
Channels

To scan all 40 CB channels, the unit must be
squelched. Press and release Scan/Mem Scan
button once.

CH 9/

19

CB/ WX/

DIM

SCAN

PA

CB SCAN

27.405

Scan Memory Channels

To scan memory channels, press and release
Scan/Mem Scan button twice.

Scan Memory
Channels

MEM

CH 9/

19

CB/ WX/

DIM

SCAN

PA

CB MEM SCAN

27.405

29LXHDLE_MANL.indd 26-27 9/2/14 3:29 PM

Operation

Operation

29

S/RF Meter

External Speaker

S/RF Meter

This meter swings proportionately to the RF
output (outgoing signal) while transmitting.

External Speaker

The external speaker jack is used for remote
receiver monitoring.

The S/RF-SWR-CAL button must be in the

S/RF mode.

1

Note

The external speaker should
have 8-ohm impedance and
be rated to handle at least 4.0
watts. When the external speak­er is plugged in, the internal
speaker is automatically discon­nected. See accessory page 41.

Note

Cobra external speakers are
rated at 10 watts.

Connect an external speaker to the external

speaker jack on the rear panel.

1

28

To achieve the Desired Squelch Setting (DSS),

turn the Squelch control counterclockwise
until you hear noise. Now turn the control
clockwise just until the noise stops. This is the
DSS setting.

3

NOISE

WEAK SIGNALS

MEDIUM SIGNALS

STRONG SIGNALS

GATE

Gate set to Desired
Squelch Setting (DSS)

Setting Squelch

Continued

29LXHDLE_MANL.indd 28-29 9/2/14 3:29 PM

Operation

Operation

31

30

PA (Public
Address)

PA (Public Address)

Connect an external PA speaker to the PA jack

on the rear panel.

Press CB/WX/PA button to select PA.

Push and hold microphone button and speak

in a normal voice. Your voice will now transmit
on the PA speaker.

Adjust PA speaker volume with the

Dynamike® control.

Note

Speaker should have 8-ohm
impedance and be rated to
handle at least 4.0 watts.

Note

The speaker should be directed
away from the microphone to
prevent acoustic feedback.

Note

Activity on the CB channel will
be heard through the PA speak­er. Adjust Volume Control to a
normal listening level.

1

2

3

4

PUSH &
HOLD

CH 9/

19

DIM

SCAN

29LXHDLE_MANL.indd 30-31 9/2/14 3:29 PM

Temporary Mobile Set-Up

Home And Office Set-Up

3332

Base Station
Operation
(From 120V AC
House Current)

Temporary
Mobile Set-Up

Temporary Mobile Operation

For temporary mobile operation you may want
to purchase an optional cigarette lighter adapter
from your COBRA dealer. This adapter and a
magnetic mount antenna allow you to quickly
“install” your transceiver for temporary use.

Base Station Operation
(From 120V AC House Current)

To operate your transceiver from home or office
you will need a 13.2 volt DC Power Pack rated at
a minimum of 2 amps, and a properly installed
base station antenna.

Warning!

Do not attempt to operate this
transceiver by connecting it
directly to 120V AC.

Note

For further information call
Cobra Customer Service

1.773.889.3087.

1

Connect properly installed and matched base

station antenna.

Simply connect the red (+) and black (-)

leads of the transceiver to the corresponding
terminals of the power pack.

Plug power cable into back of unit marked

“Power”. Be sure to observe polarity markings.

2

3

+—

29LXHDLE_MANL.indd 32-33 9/2/14 3:29 PM

How Your CB Can Serve You

3534

How Your CB Can Serve You

The FCC gives these examples of permitted and
prohibited messages for channel 9. These are
only guidelines and not all-inclusive:

Permitted Example Message

Yes “Tornado sighted six miles north
of town.”

No “Post number 10.
No tornado sighted.”

Yes “Out of gas on I-95 at mile
marker 211.”

No “Out of gas in my driveway.”

Yes “Four car accident on I-94 at
Exit 11. Send police and
ambulance.”

No “Traffic moving smoothly on I-94.”

Yes “Weather Bureau has issued
thunderstorm warning.
Bring sailboat into port.”

No “Attention motorists.
Weather Bureau advises snow
tomorrow will accumulate
4 to 6 inches.”

Yes “Fire in building at 539 Main,
Evanston.”

No “Halloween patrol number 3.
All quiet.”

1. Set to channel 9 for emergencies

Be sure antenna is properly connected.

2. CB Distress Data

When transmitting an emergency, you should

request a “REACT BASE” and provide the CB
distress data (called CLIP):

C all Sign Identify yourself.
L ocation Be exact.
I njuries Number. Type. Trapped?
P roblem Give details and help needed.

Transmit CLIP repeatedly so any monitor can assist.

Channel 9
Emergency
Messages

Note

If no response on channel 9,
try channels 19 or 14.

• Warn of traffic problems

• Provide weather and road data

• Provide help in event of an emergency

• Provide direct contact with home or office

• Assist police by reporting erratic drivers

• Get “local information” to find destination

• Communicate with family and friends

• Suggest spots to eat and sleep

• Keep you alert while traveling

A Few Rules You Should Know

A. Conversations cannot last more than 5 minutes

with another station. A one minute break is
required to let others use the channel.

B. You cannot blast others off the air by use of
illegally amplified transmitters or illegally
high antennas.

C. You cannot use CB to promote illegal activities.
D. Profanity is not allowed.
E. You may not transmit music with a CB.
F. Selling of merchandise and/or services is

prohibited.

A Few Rules
You Should
Know

29LXHDLE_MANL.indd 34-35 9/2/14 3:29 PM

How Your CB Can Serve You

3736

Code Meaning

10-29 Time is up for contact

10-30 Does not conform to FCC rules

10-33 Emergency traffic

10-34 Trouble at this station

10-35 Confidential information

10-36 Correct time is

10-37 Wrecker needed at

10-38 Ambulance needed

10-39 Message delivered

10-41 Turn to channel

10-42 Traffic accident at

10-43 Traffic tie up at

10-44 Have a message for

10-45 All units within range please report

10-50 Break channel

10-60 What is next message number?

10-62 Unable to copy. Use phone

10-63 Net directed to

10-64 Net clear

10-65 Awaiting your next message/assignment

10-67 All units comply

10-70 Fire at

10-71 Proceed, transmission in sequence

10-77 Negative contact

10-81 Reserve hotel room for

10-82 Reserve room for

10-85 My address is

10-91 Talk closer to mic

10-93 Check my frequency on this channel

10-94 Give me a long count

10-99 Mission completed, all units secure

10-200 Police needed at

CB 10-Codes

Citizen Bands have adopted the “10-CODES” for
standard questions and answers. These codes
provide quick and easy communication, especially
in noisy areas. Following are some of the more
common codes and meanings:

Code Meaning

10-1 Receiving poorly

10-2 Receiving well

10-3 Stop transmitting

10-4 OK, message received

10-5 Relay message

10-6 Busy, stand by

10-7 Out of service, leaving

10-8 In service, subject to call

10-9 Repeat message

10-10 Transmission completed standing by

10-11 Talking too rapidly

10-12 Visitors present
10-13 Advise weather/roads
10-16 Make pick up at
10-17 Urgent business
10-18 Anything for us?
10-19 Return to base
10-20 My location is
10-21 Call by phone
10-22 Report in person to
10-23 Stand by
10-24 Completed last assignment
10-25 Can you contact
10-26 Disregard last info
10-27 Moving to channel
10-28 Identify your station

29LXHDLE_MANL.indd 36-37 9/2/14 3:29 PM

29 LX HD LE Specifications

3938

Frequency Ranges

GENERAL

CHANNELS CB - 40 CH
FREQUENCY RANGE CB - 26.965 TO 27.405 MHZ
WX - 162.400 TO 162.775 MHZ
FREQUENCY TOLERANCE 0.005 %
FREQUENCY CONTROL PLL (PHASE LOCK LOOP) SYNTHESIZER
OPERATING TEMPERATURE
RANGE -30° C TO + 50° C
MICROPHONE Plug-in dynamic
INPUT VOLTAGE 13.2VDC nom. (positive or negative ground)
Current Drain Transmit: AM full mod., 1.5A (maximum)
Receive: Squelched, 0.3A;
full audio output, 1.2A (nominal)

Size ..............................................................8-5/8” D x 7-9/32” W x 2-13/63” H

Weight ..........................................................4 lbs.

Antenna Connector ................................. UHF; SO-239

Meter .............................................................Indicates relative

power output received
signal strength, and vswr

TRANSMITTER

Power Output ............................................4 watts

Modulation .................................................AM (Amplitude Modulation)

Frequency Response ...............................300 to 3000 Hz

Output Impedance ..................................50 ohms, unbalanced

RECEIVER

Sensitivity ....................................................Less than 1 µV for 10 dB (S+N) /N

Selectivity ....................................................6 dB @ 7 KHz, 60 dB @ 10KHz

Image Rejection ........................................80 dB, typical

Adjacent-Channel Rejection ................60 dB, typical

IF Frequencies ...........................................Double Conversion: 1st: 10.695 MHz

2nd: 455 KHz

Automatic Gain Control (AGC) ............Less than 10 dB change in audio

output for inputs from 10 to 50,000
microvolts

RF Gain range ............................................40 db

Noise Blanker .............................................RF type

Squelch ........................................................Adjustable; threshold less than 1µV

Audio Output Power ...............................4 watts

Frequency Response ...............................300 to 3000 Hz

Distortion ....................................................Less than 7% @3 watts @ 1000 Hz

Built-in Speaker ......................................... 8 ohms, 5w

External Speaker (Not supplied)............8 ohms; disables internal speaker

when connected

PA SYSTEM

Power Output ............................................4 watts into external speaker

External Speaker for PA..........................8 ohms 4 Watts min.

(Not Supplied) ...........................................the PA speaker also monitors the

receiver; separate jack provided

(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)

The Cobra 29 LX HD LE transceiver represents one
of the most ad vanced AM two-way radios used as
a Class D station in the Citizens Radio Service. This
unit features advanced Phase Lock Loop (PLL)
circuitry providing complete cov er age of all 40 CB
chan nels.

1 26.965 21 27.215 1 162.550
2 26.975 22 27.225 2 162.400
3 26.985 23 27.255 3 162.475
4 27.005 24 27.235 4 162.425
5 27.015 25 27.245 5 162.450
6 162.500
6 27.025 26 27.265 7 162.525
7 27.035 27 27.275 8 161.650
8 27.055 28 27.285 9 161.775
9 27.065 29 27.295 10 163.275
10 27.075 30 27.305

11 27.085 31 27.315
12 27.105 32 27.325
13 27.115 33 27.335
14 27.125 34 27.345
15 27.135 35 27.355

16 27.155 36 27.365
17 27.165 37 27.375
18 27.175 38 27.385
19 27.185 39 27.395
20 27.205 40 27.405

Channel Channel
CB Freq. CB Freq. WX Freq.
Channel In MHz Channel In MHz Channel In MHz

29LXHDLE_MANL.indd 38-39 9/2/14 3:29 PM

4140

Optional Accessories

LIMITED TWO-YEAR WARRANTY

Cobra Electronics Corporation warrants that this product and the component parts
thereof, will be free of defects in workmanship and materials for a period of one
year from the date of first consumer purchase. This warranty may be enforced by
the first consumer purchaser. If the product is under warranty, it will be repaired or
exchanged depending on the model as determined at Cobra’s sole discretion. Such
remedy shall be your sole and exclusive remedy for any breach of warranty.

The procedure for obtaining service and support, and the applicability of this war­ranty, will vary depending on the country or jurisdiction in which you purchased and
utilize the product. For the details on obtaining product service, support and war­ranty please visit www.cobra.com/support

Provided that the product is utilized within the U.S.A.- Cobra will, without charge,
repair or replace, at its option, defective products, products or component parts
upon delivery to the Cobra Factory Service department, accompanied by proof of the
date of first consumer purchase, such as a duplicated copy of a sales receipt.

You must pay any initial shipping charges required to ship the product for warranty
service, but the return charges, to an address in the U.S.A., will be at Cobra’s expense,
if the product is repaired or replaced under warranty.

This warranty gives you specific legal rights, and you may also have other rights
which may vary from state to state and country to country.

Exclusions: This limited warranty does not apply: 1) To any product damaged by acci­dent; 2) In the event of misuse, ordinary wear, failure to follow directions, or improper
maintenance of the product or as a result of unauthorized alterations or repairs; 3) If
the serial number has been altered, defaced, or removed; 4) If the product was pur­chased or is utilized in a jurisdiction not covered by the limited warranty.

All implied warranties, including warranties of merchantability and fitness for a par­ticular purpose are limited in duration to the length of this warranty. Cobra shall not
be liable for any incidental, consequential or other damages; including, without limi­tation, damages resulting from loss of use or cost of installation.

Some states and countries do not allow limitations on how long an implied warranty
lasts and/or do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights which vary from state to
state and country to country.

Limited Two Year Warranty

Replacement DC Power Cord

For in vehicle use
426-002-N-001

Replacement Mounting
Bracket

For in vehicle use
251-353-9-001

Replacement Thumb Screws

For in vehicle use
634-081-9-001

Replacement Microphone
Bracket

For in vehicle use
741-080-9-001

21” Base Loaded Magnet
Mount Antenna

HG A1000

38” Base Loaded Magnet
Mount Antenna

HG A1500

Dynamic External
Speaker

HG S100

Noise Canceling
With Talk Back
External Speaker

HG S500

Noise Canceling
External Speaker

HG S300

You can find quality Cobra products and accessories at your local Cobra dealer, or in the
U.S.A., you can order directly from Cobra. See ordering info on page 38.

29LXHDLE_MANL.indd 40-41 9/2/14 3:29 PM
