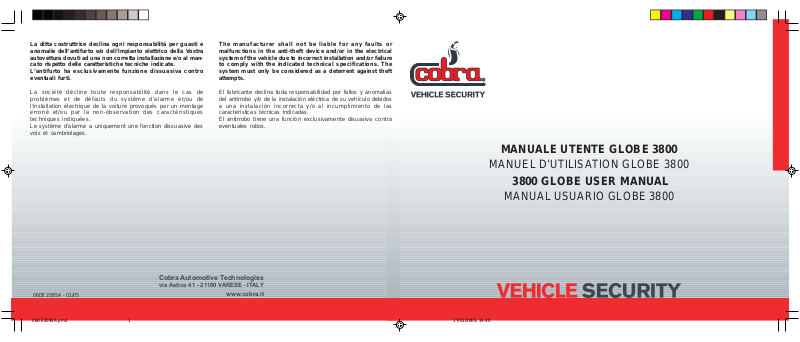

Cobra GLOBE 3800 User Manual

MANUALE UTENTE GLOBE 3800
MANUEL D’UTILISATION GLOBE 3800
3800 GLOBE USER MANUAL
MANUAL USUARIO GLOBE 3800
Dear customer, Congratulations on your purchase of this product which has been designed and manufactured to the highest automotive standards utilising the latest technology for total reliability as per the European Community directives. The manual is divided in 9 parts:
Page 23 __________ INTRODUCTION
24 __________ ADDITIONAL PROTECTION 25 __________ BRIEF INSTRUCTIONS 26 __________ BASIC FUNCTIONS 27 __________ ADVANCED FUNCTIONS 28 __________ ALARM MEMORY 29 __________ EMERGENCY OVERRIDE 30 __________ PERSONAL PIN CODE 31 __________ TROUBLE SHOOTING
This manual contains also the product installation certificate.
Please read this manual to get the full benefit of the system. We suggest you to keep this manual with the registration documents of the vehicle. It will be easier for you to find the information in the event of emergency. Your dealer will be pleased to clarify any queries you may have with the system or its operation in the case you did not find any suggestion in chapter 9.
06DE2085A.pmd 17/01/2005, 14.4022
1 - INTRODUCTION
This anti-intrusion alarm system is operated by the original high-security radio control of the vehicle. The total protection of your vehicle is assured by:
.DOM NOITCETORPERIWTOH
8683BA 3683BA 1683BA
CIRTEMULOV NOITCETORP
•••
CIRTEMIREP
NOITCETORP
GNITTUCELBAC
NOITCETORP
1.1 - Personal PIN code
Each of the 3000 series has a PIN-CODE that can be used for the emergency override of the system. The PIN-CODE programmed in the factory is 1111. We suggest that you replace this number with another commonly used by you (for ex. cellular phone, credit card, etc...), as it would be easier to remember it.
GLOBE 3800 1 - INTRODUCTION
23
2 - ADDITIONAL PROTECTION
You can increase the protection level of the system with the following additional sensors:
5452: Level monitor module
When the system is armed, this sensor will detect the vehicle being jacked up to tow it away or to steal the wheels.
5462: Hyperfrequency module
When the system is armed a microwave emission from the hyperfrequency module hidden in the passenger compartment will ensure the volumetric protection of the vehicle. For use on convertible vehicles, the volumetric protection will be stable even with the soft top, windows or sunroof left open.
2980: Window lift module
When the system is armed, the car electric windows will raise automatically. Can be fitted to any car with electrical windows.
24
06DE2085A.pmd 17/01/2005, 14.4021
2 - ADDITIONAL PROTECTION GLOBE 3800
3 - BRIEF INSTRUCTIONS
3.1 - Arming
• Press the button of the radio control to lock the doors (if the vehicle has central locking).
• The turn indicators will blink.
• The buzzer will issue two beeps (if activated).
• The protections activate after a 40 s timer has elapsed.
• The LED will come on constantly for 40 s then it will flash.
3.2 - Protection
When armed the system will generate an acoustic and visual 30 s alarm when the bonnet, boot or one of the doors is opened. System with the volumetric sensor will generate the alarm in case of intrusion. The system remains armed at the end of the cycle.
3.3 - Interrupting an alarm cycle
When sounding, disarm the system (see point 3.4).
3.4 - Disarming
• Press the button on the radio control to open the doors.
• The turn indicators will blink.
• The buzzer will issue one beep (if activated).
• The protection are deactivated immediately.
• The LED will go OFF.
3.5 - Alarm memory
If an alarm has occured the buzzer and the turn indicators will give four signals instead of one. See the chapter 6.
GLOBE 3800 3 - BRIEF INSTRUCTIONS
3.6 - Deactivating the volumetric ultrasonic sensor
The volumetric sensor can be deactivated if you want to leave the windows open or if someone remains in the passenger compartment.
1) Press the button on the emergency panel within 5 s after having switched off the ignition key. Keep pressed the push-button until the long flash of the LED. If fitted it is possible to obtain the deactivation of the hyperfrequency or antijacking up sensor just pressing again the button within 5 s from the flashing of the LED. The LED will confirm with another flashing that the signal has been received.
2) Arm the system pressing the button of the radio control. The sensor has been inhibited; all other functions remain activated. Sensors will automatically armed again when the ignition key will be switched on.
3.7 - Garage function
The ‘garage’ function allows you to temporarily exclude passive arming and anti-hi-jack functions. This can be useful when you have to take the car for service interval without having to leave the radio control.
IMPORTANT: never leave radio control key and PIN code together with car keys. Before you leave the car, proceed as follows: switch ON the ignition, open a door and digit the PIN code by using the emergency button. Confirmation of the function activation is given by a single blink of the turn indicators. This function is automatically deactivated when the system is armed and disarmed by the radio control or the ignition key is switched ON and OFF for 10 times.
BRIEF INSTRUCTIONS
25
4 - BASIC FUNCTIONS
4.1 - Introduction
As the standard working features of this system can be modified by the installer he should have indicated the differences with the standard factory set-up (black squares) on this manual.
4.2 - Buzzer
Activated
If activated the buzzer will sound in synchronism with the turn indicators to signal the arm and disarm of the system.
Deactivated
4.3 - Doors/bonnet/boot opened signal
Activated
If the doors, bonnet or boot are opened when you arm the system, the turn indicators will blink 5 times. The buzzer will do the same, if activated. If they are closed within 40 s their subsequent opening will be signalled again; after the 40 s set up delay there is no further trigger until they are closed and opened again.
Deactivated
4.4 - Arm/disarm blinker
Activated
The arming of the system is indicated by 2 blinks of the turn indicators and disarm by 1 blink. If this function is deactivated, the turn indicators will only blink during an alarm trigger.
26
06DE2085A.pmd 17/01/2005, 14.4019
Deactivated
4.5 - Automatic arming
Activated
The system will automatically arm 2 min. after the ignition is switched off and the last door closes, but the doors will not automatically lock. The system will not auto arm if the ignition is switched on within 2 min..
Deactivated
4.6 - Immobilizer automatic arming
Activated
The engine immobilization will automatically activate 4 min. after the ignition is switched off. The LED will flash. The engine will be immobilized. Close and open the doors with the radio control to deactivate the system.
Deactivated
4.7 - Immobilizer alarm
Activated
An alarm function can be added to the immobilizer automatic arming. 25 s after the ignition is switched ON the alarm will trigger.
Deactivated
4 - BASE FUNCTIONS GLOBE 3800
5 - ADV ANCED FUNCTIONS
5.1 - Immobilizer auto re-arm
Activated
The immobilizer will automatically rearm if the ignition is not switched on within 4 min. after the system has been disarmed.
Deactivated
5.2 - Alarm auto re-arm
Activated
When the system has been disarmed by using the radio control, after a delay the alarm will rearm if the ignition is not switched on. The timer will reset if the doors are opened and closed.
Deactivated
5.3 - Automatic anti-hi-jack
Activated
The anti hi-jack is always active. To drive the vehicle, the first two digits of the PIN code must be entered into the override button within 10 s of the ignition being switched ON. Confirmation of acceptance is signalled by a long blink of the LED; the vehicle can now be used normally until the next ignition OFF/ON cycle. If this procedure is not followed, the vehicle can be driven for 4 min. then the siren sounds for 30 s. If the ignition is switched off the alarm stops sounding and the engine is immediately immobilized. It is necessary to enter the PIN code using the emergency button to disarm the system.
Deactivated
5.4 - Volunt ary anti-hi-jack
Activated
The driver can activate the anti hi-jack function by pressing the button on the emergency panel for about 2 s each time the ignition key is switched ON. The LED will blink quickly to signal that anti hi-jack is activated. If a door is opened, the radio controls will not operate the alarm anymore and the vehicle can be driven for 4 min. then the siren sounds for 30 s. If the ignition is switched off the alarm stops sounding and the engine is immediately immobilized. It is necessary to enter the PIN code using the emergency button to disarm the system. If you need to open a door while the anti hi-jack is active (the LED will flash quickly) you can deactivate the function by pressing the button on the emergency panel again for about 2 s: the LED will blink one long flash and go out.
Deactivated
5.5 - Anti hi-jack engine immobilization controlled
by movement sensor (VSS input)
Activated
The vehicle will be immobilized immediately when it stops moving, when the anti hi-jack is activated. The engine is cut off even if the ignition key is switched ON. Note: This working mode is available only for non EC products model.
Deactivated
GLOBE 3800 5 - ADVANCED FUNCTIONS
27
6 - ALARM MEMORY
If an alarm trigger has occurred the buzzer and the turn indicators will give four signals. The alarm status history is displayed by LED when the system is disarmed, this is played until the ignition is switched ON.
LANGISDEL NOITPIRCSEDMRALA
knilb1 deneponeebevahtoob,srood
sknilb2dereggirtrosnescirtemulovcinosartlu
sknilb3 deneponeebsahtennob
sknilb4)eriwtoh/yeknoitingi(tratsotspmetta
sknilb5 mrala/tupnirosnestnemevom
sknilb6edomrepmat
28
06DE2085A.pmd 17/01/2005, 14.4017
6 - ALARM MEMORY GLOBE 3800
7 - EMERGENCY OVERRIDE
To deactivate the system without a radio control proceed as follows: Push the button of the emergency panel the number of times corresponding to the first digit of your PIN code. The LED will blink everytime you press the button, a longer blink will confirm that the right PIN code digit has been input. Proceed in the same way with the 3 further digits. The system will disarm as soon as the last digit is input.
Push for a number of times correspondent to the digit of your PIN code
SIREN
ON
GLOBE 3800 7 - EMERGENCY
quick
flashing
pause
Enter following
digit of your
PIN CODE
long
flashing
PIN CODE
OK
ALARM
DISARMED
EMERGENCY
29
8 - PERSONAL PIN CODE
The PIN code should be personalized. The system is delivered with the code 1111 and it must be replaced by a four digits code without the number ‘0’. To program the system with your own four digit PIN code, disarm the system then proceed as follows:
• open a door.
• turn the ignition On.
PERSONAL PIN CODE
• push the button on the emergency panel for a number of times corresponding to the first digit of the old PIN code. The LED will blink everytime you press the button, a longer blink will confirm that the right PIN code digit has been input. Proceed in the same way for all others digits. When the code is recognized the turn indicators will blink once.
• you have 20 s to start again the old PIN code input: press the button on the emergency panel for a number of times corresponding to the first digit of the old PIN code. The LED will blink everytime you press the button, a longer blink will confirm that the right PIN code digit has been input. If this PIN code is the same as the previous the LED goes on a fixed way for 3 s. When it goes off you can digit the new PIN code.
• press the button on the emergency panel for a number of times corresponding to the first digit of the new PIN code. The LED will blink everytime you press the button, a longer blink will confirm that the right PIN code digit has been input.
• turn the ignition off.
• repeat the new code entry: press the button on the
emergency panel for a number of times corresponding to the first digit of the new PIN code. The LED will blink everytime you press the button, a longer blink will confirm that the right PIN code digit has been input.
• If this PIN code is the same as the previous the system will store it: The storage confirmation is given by a 3 s blink of the turn indicators and of the LED.
To exit the program at any time, close the opened door and the old PIN will not be modified.
8.1 - Loss of the personal PIN code
In case of loss of the PIN code there is no possibility to enter in the system and to program it again.
30
06DE2085A.pmd 17/01/2005, 14.4015
8 - PERSONAL PIN CODE GLOBE 3800
9 - TROUBLE SHOOTING
.)6retpahc(
noituloSA
noituloSB
GLOBE 3800 9 - TROUBLE SHOOTING
nosaertnerappaonrofdereggirtsahmralanA
DELehtmetsysehtmrasiduoynehW
hcihwedochsalfaseiressyalpsid
reggirtehtfoesuacehtsetacidni
etomerlanigiroelcihevehT
gnikrowtonsilortnoc
gnikcolroodlartnecetomer(
mrasid/mratonseodmetsysehT
s'renwoelcihevehtotrefeR
.launam
.)detarepoton
,nwohssireggirtcirtemulovcinosartlufI
riadnafoornus,swodniwtahtkcehc
gnikrowsilortnoc
gnivomontahtdnadesolcerastnev
melborpehtfI.elcihevehtnierastcejbo
etomerlanigiroelcihevehT
gnikcolroodlartnec(
.)detarepoyltcerroc
elcihevehtkcehC
hcihwreknilbycnegreme
.ffodehctiwsebtsum
.relaedecnedifnocruoytcatnoctsisrep
toob,srood(reggirttcatnoctceridfI
foeno,nwohssi)gninepotennobdna
.tnemetsujdaseriuqersehctiwseht
.relaedecnedifnocruoytcatnoC
31
