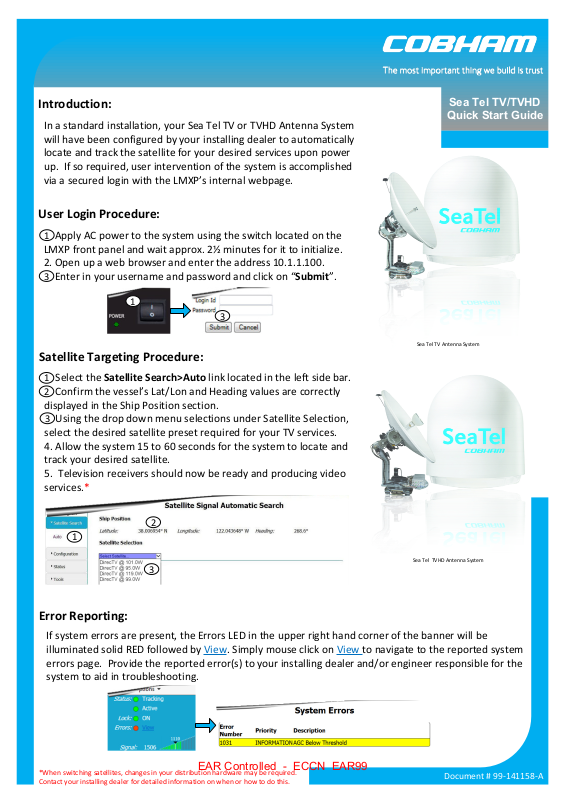

COBHAM Sea Tel TV, Sea Tel TVHD Quick Start Manual

Introduction:

EAR Controlled - ECCN EAR99

In a standard installation, your Sea Tel TV or TVHD Antenna System
will have been configured by your installing dealer to automatically
locate and track the satellite for your desired services upon power
up. If so required, user intervention of the system is accomplished
via a secured login with the LMXP’s internal webpage.

User Login Procedure:

1

1. Apply AC power to the system using the switch located on the
LMXP front panel and wait approx. 2½ minutes for it to initialize.

2. Open up a web browser and enter the address 10.1.1.100.

3

3. Enter in your username and password and click on “Submit”.

1

3

Satellite Targeting Procedure:

Sea Tel TV/TVHD

Quick Start Guide

Sea Tel TV Antenna System

1. Select the Satellite Search>Auto link located in the left side bar.

1
2

2. Confirm the vessel’s Lat/Lon and Heading values are correctly
displayed in the Ship Position section.

3

3. Using the drop down menu selections under Satellite Selection,
select the desired satellite preset required for your TV services.

4. Allow the system 15 to 60 seconds for the system to locate and
track your desired satellite.

5. Television receivers should now be ready and producing video
services.*

2

1

Sea Tel TVHD Antenna System

3

Error Reporting:

If system errors are present, the Errors LED in the upper right hand corner of the banner will be
illuminated solid RED followed by View. Simply mouse click on View to navigate to the reported system
errors page. Provide the reported error(s) to your installing dealer and/or engineer responsible for the
system to aid in troubleshooting.

*When switching satellites, changes in your distribution hardware may be required.
Contact your installing dealer for detailed information on when or how to do this.

Document # 99-141158-A

Login ID

EAR Controlled - ECCN EAR99

Ships Name

Tracking State

Control

Navigation Pane

Vessel Bearing and

Antenna Relative
Azimuth Position

IMA User Interface

Antenna Positions

Sea Tel TV/TVHD

Quick Start Guide

System Status

Signal Level

System Firmware

Active Webpage

IMA Footer

NOTE: The IMA Banner, Navigation Pane, & Footer are always displayed regardless of the active webpage selected.

Navigation Pane

Upon login, all of the navigation pane selections are collapsed

and the System Status is the active (selected) webpage.

NOTE: The Hardware and webpages shown in this guide is for graphic reference only and are subject to change.

To expand the navigation pane, mouse click on the page

arrow. Then, select the desired page.

Document # 99-141158-A
