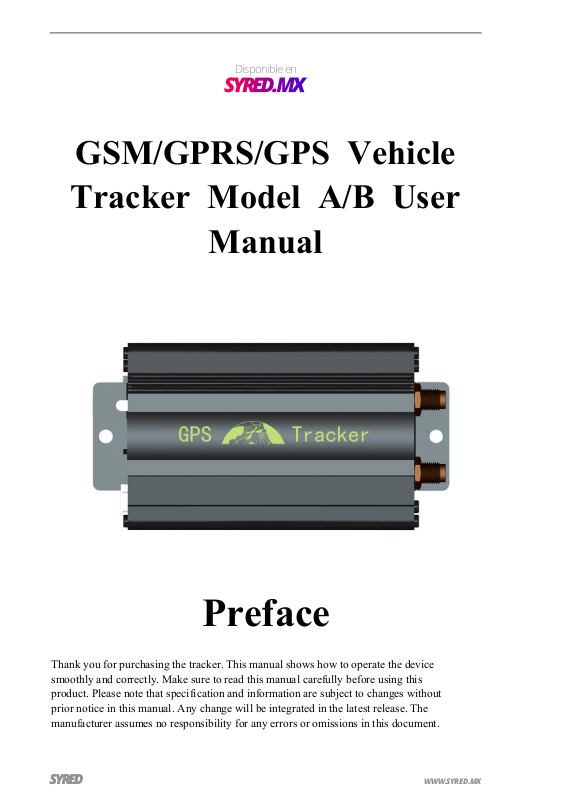

GSM/GPRS/GPS Vehicle
Tracker Model A/B User
Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device
smoothly and correctly. Make sure to read this manual carefully before using this
product. Please note that specification and information are subject to changes without
prior notice in this manual. Any change will be integrated in the latest release. The
manufacturer assumes no responsibility for any errors or omissions in this document.
WWW.SYRED.MX
Contents
1. Function Introduction ......................................................................................................... 4
2. Applications ....................................................................................................................... 4
3. Hardware Description ........................................................................................................ 4
4. Accessories ........................................................................................................................ 5
5. Specifications ..................................................................................................................... 6
6. Operating Instructions ........................................................................................................ 7
6.1 Terminal Installation .................................................................................................. 7
6.2 SIM CARD Installations ............................................................................................ 8
6.3 Turn on the Tracker Device ....................................................................................... 8
6.4 GSM/GPS LED Indicator .......................................................................................... 8
6.5 Initialization ............................................................................................................... 8
6.6 Change Password ....................................................................................................... 9
6.7 Authorization ............................................................................................................. 9
6.8 Single Locating .......................................................................................................... 9
6.9 Auto track continuously ........................................................................................... 10
6.9.1 Track with limited times upon time interval ................................................ 10
6.9.2 Track with unlimited times upon time interval ............................................ 10
6.9.3 Smart track upon time and distance interval ................................................ 10
6.10 Turning points update automatically ........................................................................ 11
6.11 GPS drift suppression .............................................................................................. 11
6.12 Exact street address .................................................................................................. 11
6.13 Location based service (LBS) / Cell-ID Locating ................................................... 11
6.14 Monitor .................................................................................................................... 12
6.15 Data logging ............................................................................................................. 12
6.16 Data Load ................................................................................................................. 12
6.17 Forward the third parties’ message .......................................................................... 12
6.18 SIM card Balance Inquiry ........................................................................................ 13
6.19 ACC working alarm ................................................................................................. 13
6.20 Cut off the Oil and Power System ........................................................................... 14
6.21 Calibration of fuel sensor ......................................................................................... 14
6.22 Function of Remote Controller (Option, for model B ONLY) ................................ 14
6.23 Arm .......................................................................................................................... 15
6.24 Disarm ...................................................................................................................... 15
6.25 Silent Mode .............................................................................................................. 15
6.26 Decide how many times of alarm message .............................................................. 16
6.27 Alarms ...................................................................................................................... 16
WWW.SYRED.MX
6.27.1 Low battery alarm ........................................................................................ 16
6.27.2 Power off alarm ............................................................................................ 16
6.27.3 GPS blind Spot alert ..................................................................................... 16
6.27.4 SOS .............................................................................................................. 16
6.27.5 Geo-fence ..................................................................................................... 17
6.27.6 Multi-area management ............................................................................... 17
6.27.7 Movement alarm .......................................................................................... 18
6.27.8 Over speed alarm ......................................................................................... 18
6.27.9 Fuel alarm .................................................................................................... 18
6.28 Alarms under Arm State ........................................................................................... 18
6.28.1 Door open alarm .......................................................................................... 18
6.28.2 ACC Alarm .................................................................................................. 18
6.28.3 External Shock Sensor alarm(Optional) ...................................................... 19
6.28.4 Built in Acceleration Sensor Alarm ............................................................. 19
6.28.5 Built in Shock sensor sensitivity configuration ........................................... 19
6.28.6 Alarm without GSM network service .......................................................... 19
6.29 Sleep Mode .............................................................................................................. 19
6.30 Check the Vehicle State ............................................................................................ 20
6.31 Check IMEI .............................................................................................................. 21
6.32 Terminal (local) Time Setting .................................................................................. 21
6.33 Reset Hardware ........................................................................................................ 21
6.34 Configure parameters by USB ................................................................................. 21
6.35 GPRS Setting ........................................................................................................... 21
6.36 Less GPRS traffic ..................................................................................................... 22
6.37 Activate "Fuel" value in GPRS data ........................................................................ 23
6.38 Instructions for web platform and mobile APP ........................................................ 23
7. Cautions ........................................................................................................................... 29
8. Faults & the Solutions ...................................................................................................... 29
WWW.SYRED.MX
1. Function Introduction
1.1. This tracker is a new product based on the GSM / GPRS network and GPS satellite
positioning system, which set multiple functions of security, positioning, monitoring
surveillance, emergency alarms and tracking in its entirety. It can track and monitor
remote target by SMS or internet.
1.2. Features
1.2.1 Support both GPS & LBS (Location based service).
1.2.2 Support SMS/GPRS/Internet Network data transmission
1.2.1 Support GPRS on-line and GPRS re-connected automa
drops
1.2.3 Support SMS / GPRS dual-mode switching
1.2.4 Support configuration by remote terminal.
1.2.5 Support for point-to-point, point to group, group-to-group monitoring.
1.2.6 Set multiple functions of security, positioning, monitoring surveillance,
emergency alarms and tracking in its entirety.
tically if GPRS
2. Applications
Used widely for vehicle and other moving objects tracking.
3. Hardware Description
WWW.SYRED.MX
（1）GSM Antenna connector （8）Shock sensor port
（2）SIM card slot （9）Harness Port
（3）SIM card slot Pop-up switch （10）GSM/GPS LED
（4）MicroSD slot （11）Backup battery switch
（5）Microphone jack （12）Remote controller antenna(Optional for Model B only)
（6）Micro USB
（7）GPS Antenna connector
4. Accessories
No. photoes NAME note
1 GPS Antenna 2 meters
2 GSM Antenna 2 meters
3
Microphone 1.5 meters
WWW.SYRED.MX
4
Band
850/900/1800/1900Mhz
GPS Sensitivity
-159dBm
GPS Accuracy
5m
12 V -24V
Harness 10PIN
5
6
7
8 Remote controller Option for model B ONLY
9 Fuel Sensor Option for both model A and B
Relay
Shock sensor Option for both model A and B
Siren
12V/40A to 24V/40A
according to vehicles
Option for both model A and B
5. Specifications
Content specifications
DIM. 83*54*26mm
Weight 120g
Network GSM/GPRS
Cold status 45s
GPS Start time
Voltage
Backup battery Chargeable 3.7V350mAh Polymer Li-Battery
Storage Temp. -40°C to +85°C
Warm status 35s
Hot status 1s
WWW.SYRED.MX
Operation Temp. -20°C to +65°C
Humidity 5%--95% non-condensing
6. Operating Instructions
6.1 Terminal Installation
6.1.1 Please ask the qualified engineers to install it.
6.1.2 Do not install it in an environment which is over GSM performance index, and
please pay attention to fix the antennas in an appropriate position with good signals.
6.1.3 Pay attention to make installation location preventing water and dust.
6.1.4 Find the 10 PIN harness and insert it into the corresponding holes of the products,
and connect the wires with the original car circuit showing below:
Wiring diagram
Note: The orange wire can be connected to the original car horn; it can also be
connected to the siren you buy with the tracker. (Siren is Option)
6.1.5 Knowing about the type of the door trigger is positive or negative trigger. Please
connect the green wire to the door control circuit if it is positive, and connect blue
WWW.SYRED.MX
wire if it is negative.
per 3 seconds
6.1.6 Please put SOS button at the place driver can touch.
6.1.7 Insert the shock sensor plug into the sensor jack. (Shock sensor is Option)
6.1.8 Insert the external monitor Microphone into the monitor jack.
6.1.9 Connect the GPS and GSM antenna to the right connector, and find an appropriate
place to fix the antennas to make sure it receives signals well.
6.2 SIM CARD Installations
6.2.1 Use a tweezers or a sharp thing to touch the SIM CARD popup switch,
the SIM CARD
slot will pop up, take out the SIM card slot and put SIM card in it. And
then put the SIM card slot back to its original position after confirm the SIM card in the
right place.
6.2.2 Please make sure the SIM card is for GSM network and able to execute the function
of incoming calls display, no calls can be diverted and the PIN code is locked. The SMS
format must be TXT format, and can’t recognize the PDU format.
6.3 Turn on the Tracker Device
Connect the positive and negative wire, red and black ones, with 12V or 24V car power
system, wait for 1 minute after connecting power to wait tracker works normal, and
then turn on the backup battery switch.
6.4 GSM/GPS LED Indicator
LED Indicator Type Behavior Meaning
ON No GSM signal
Red LED
Green LED
Flash quickly, 1 time
per second
Flash slowly, 1 time
ON Fix to satellites
OFF Lost fix to satellites
GSM mode with good reception
GPRS mode
6.5 Initialization
Send SMS “begin+password” to the unit, it will reply “begin ok” and initialize all the
settings to default factory settings.（default password: 123456）
For example: send SMS “begin123456”, it will reply “begin ok”. (No quotation marks“”
when sending all the SMS)
WWW.SYRED.MX
6.6 Change Password
6.6.1 Send SMS “ password+old password+space+new password” to the unit to change
the password.
For example: send SMS “password123456 888888” to the unit. If succeeded,
“password ok” will reply to your cell phone from the device tracker.
6.6.2 Be sure to keep the new password in mind, you have to upload the software to restore
the original setting in case of losing the new password.
6.6.3 Attention: Make sure the new password is in 6 digits Arabic numbers, or else the
tracker canno
6.6.4 When reading this user manual, you will notice that we have used "+" and "space"
between some words;"+" between two words means they should be written together as
one word and "space" between two words means you should leave one character space
between two words.
t recognize the password.
6.7 Authorization
6.7.1 You must setup the authorized phone number before using SOS, geo-fence alarm, etc.
Up to 5 numbers can be authorized.
6.7.2 Call the tracker for 10 times continuously and get its position, then it will save the cell
phone number as t
6.7.3 Authorization: Send SMS “admin+password+space+cell phone number” to set up an
authorized number, the other authorized numbers should be set by the first authorized
number, if the number is successfully authorized, the unit will reply “ admin OK” by
SMS.
6.7.4 Delete authorization: Send SMS “noadmin+password+space+authorized number” to
delete the authorized number.
6.7.5 If you want to track the target when it enters into anoth
country code before the cell phone number. You should authorize your number in
international format as follows: “admin123456 008613322221111” to tracker to set
13322221111 as an authorized number.
he authorized number automatically. and reply “add master ok”.
er country, you must add the
6.8 Single Locating
6.8.1 If there aren’t any authorized number set-up, it will reply all calls with a location
report; if there are authorized numbers set-up, then it will not respond when an
unauthorized number calls it.
6.8.2 If you call it from authorized phone number, it will hang up and repor
location as below:
t a real-time
WWW.SYRED.MX
Loading...
