Coban TK06B User Manual

1

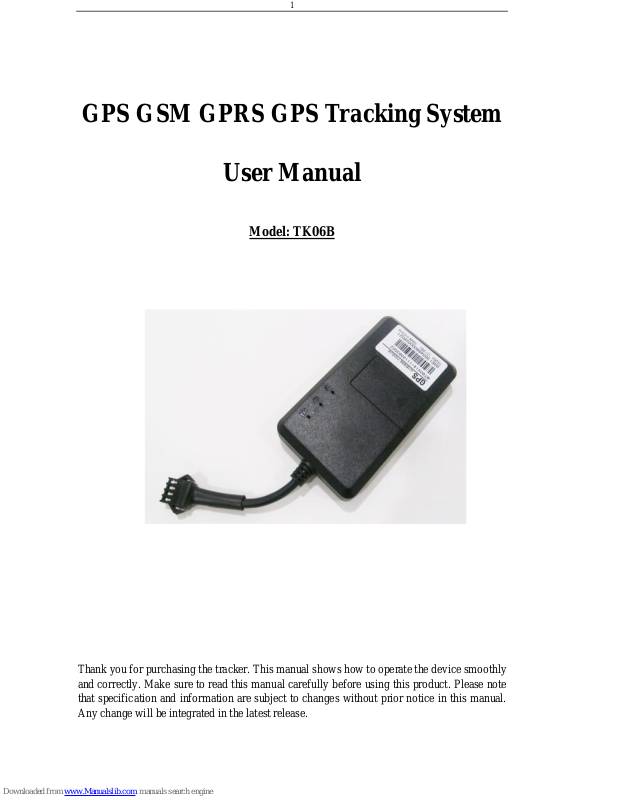

GPS GSM GPRS GPS Tracking System

User Manual

Model: TK06B

Thank you for purchasing the tracker. This manual shows how to operate the device smoothly
and correctly. Make sure to read this manual carefully before using this product. Please note
that specification and information are subject to changes without prior notice in this manual.
Any change will be integrated in the latest release.

2

Contents

◆Installation attentions ........................................................................................ 3

◆Attentions .......................................................................................................... 3

1.Summary ............................................................................................................ 4

2.Specs. .................................................................................................................. 4

3. Installation instructions ..................................................................................... 5

4. Wires connection ............................................................................................ 6

5. Function setting ............................................................................................... 7

5.1 Initialization .................................................................................................... 7

5.2 Change Password ............................................................................................ 8

5.3Authorization .................................................................................................... 8

5.4 Set up monitor central number ..................................................................... 8

5.5 Single Tracking ............................................................................................ 9

5.6 Continuous Tracking Automatically ............................................................ 9

5.7 Cell ID Tracking .......................................................................................... 9

5.8 Modes switch between “track” & “monitor” ............................................... 9

5.9 Data logging ............................................................................................... 10

5.10 Alarms ..................................................................................................... 10

5.11 Low battery alarm ................................................................................... 10

5.12 Power off alarm ....................................................................................... 10

5.13 Geo-fence alarm ...................................................................................... 11

5.14 Movement alarm ..................................................................................... 11

5.15 Overspeed alarm ...................................................................................... 12

5.16 ACC working alarm ................................................................................ 12

5.17 Vibration alarm ....................................................................................... 12

5.18 Set all alarm mode ................................................................................... 13

5.19 Cut off the Oil and Power System .......................................................... 13

5.20 Resume the Oil and Power System ......................................................... 13

5.21 Check the Vehicle State .......................................................................... 13

5.22 Device Resetting ..................................................................................... 14

5.23 IMEI Checking ........................................................................................ 14

5.24 Time Setting ............................................................................................ 14

5.25 GPRS Setting .......................................................................................... 14

5.25.1 Set APN ................................................................................................. 15

5.25.4 Set IP and Port ....................................................................................... 15

6 .Cautions ....................................................................................................... 15

7 . Faults & the Solutions ................................................................................. 16

3

◆Installation attentions

NOTE: device front side towards the sky.

When install in car, if the windscreen glued by metal thermal insulation layer or

heating layer, it will reduce the GPS receive signal and lead to GPS work

disorder.

◆Attentions

◆Device light

1）No yellow light: failed to read SIM card, need reinstall SIM card.

2）Blue light flash: no GPS signal, make sure device started outside.

3）Three lights off: lights entered sleep mode, make a call can wake up.

◆Device failed located

1）Failed located: message replied with all 0, make sure device started outside

not in room.

2）Can’t reach the call: make sure SIM card has balance and installed properly.

4

◆Device can’t track on platform
1） Check three lights are stable lighting on. Make sure device can

communicate by sending SMS and make a call.

2）Check the Vehicle State
Send SMS command “check+password” to the tracker device to check the IP
port etc info.

1.Summary

Working Based on existing GSM/GPRS network and GPS satellites, this

product can locate and monitor any remote targets by SMS or GPRS.

NOTE: Please turn on small switch inside SIM card hole after install SIM card

2.Specs.

Content

Specs.

Dim.

84 mm x47.5 mm x 15 mm

Weight

50g

Network

GSM/GPRS/GPS

Band

850/900/1800/1900 Mhz

GPS chip

UBLOX 7020

GSM module

MT6260A

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status 45s

Warm status 35s

Hot status 1s

Work voltage

9V-36V

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +45°C

Humidity

5%--95%

5

3. Installation instructions

3.1 Preparation

4.1.1 Open the package to check the device model number is correct, be with

full accessories, or else please contact your supplier;

4.1.2 Choose SIM card, need insert a GSM SIM card into the device, please

refer to the suggestion of your supplier for SIM card choice.

Notice:
Please insert SIM card before turning the device power switch to on;
The SIM card need open the GPRS function;Please make sure SIM card

with full balance.

3.2 Installation

The device is hidden type installation, we suggest the device installing by

professional institution. Please pay attention to the following points:

3.2.1 To avoid the thieves destruction, the device installation place should be as

far as hidden.

3.2.2 Avoid putting the device with reversing radar, car burglar alarm and any

other vehicle communication devices;

3.2.3 Can fix the device by ribbon or wide sponge powerful two-side glue stick;

3.2.4 The device has built-in GSM and GPS antenna, make sure the receive side

upward and there is no metal shielding.

3.2.5 Recommended installation place: ①The hidden place in the board below

the front windscreen; ② The hidden place around former dashboard (nonmetal
