Cobalt Digital Inc Cobalt Qube 2 User Manual

Cobalt Qube

User Manual

Part Number: 070-00221-01

Date: 07-2000

Cobalt Networks and Cobalt Qube are trademarks of Cobalt Networks, Inc. All other company, brand and product names may be registered trademarks or trademarks of their respective companies and are hereby recognized.

This publication and the information herein is furnished “AS IS”, subject to change without notice, and should not be construed as a commitment by Cobalt Networks, Inc. Furthermore, Cobalt Networks, Inc., assumes no responsibility or liability for any errors or inaccuracies, makes no warranty of any kind (express, implied or statutory) with respect to this publication, and expressly disclaims any and all warranties of merchantability, ﬁtness for particular purposes and non-infringement of third-party rights.

The majority of the software used within the Cobalt Qube 2 can be freely distributed under the terms of the BSD copyright and the GNU Public License. However, some applications remain the property of their owners and require their permission to redistribute. For a complete listing of the software used within the Cobalt Qube 2, and the terms under which it can be distributed, refer to the Cobalt Web site at http://www.cobalt.com.

The copyright for the Glimpse search engine used in this product is held by the University of Arizona. Use of it is limited to this product. Rights to distribute Glimpse can be obtained from the University of Arizona. For more information, access the Glimpse Web site at http:// glimpse.cs.arizona.edu.

The copyright for the InfoPlace Document Organizer is held by InfoPlace. Its use is limited to the Qube 2 only. For more information, or to obtain rights to distribute the Document Manager software, access the InfoPlace Web site at http://www.infoplace.com.

The Cobalt Qube 2 includes software developed by the Apache Group for use in the Apache HTTP server project (http://www.apache.org/).

The Cobalt Qube 2 also includes Majordomo, a package for managing Internet mailing lists. The latest version of Majordomo can be obtained from ftp://ftp.greatcircle.com/pub/ majordomo/ .

Sendmail is a trademark of Sendmail, Inc.

Cobalt Networks, Inc. 555 Ellis Street Mountain View, CA 94043 www.cobalt.com

In the U.S.A.:

Phone (888) 70-COBALT

(650) 623-2500

Fax (650) 623-2501

Outside the U.S.A.:

Phone +1 (650) 623-2500 Fax +1 (650) 623-2501

Important Safeguards

For your protection, please read all these instructions regarding your Cobalt Qube 2 and retain for future reference.

1. Read Instructions Read and understand all the safety and operating instructions before operating the appliance.

2. Ventilation The Cobalt Qube 2’s bottom vents and fan opening are provided for ventilation and reliable operation

of the product, and to protect it from overheating. These openings must not be blocked or covered. This product should not be placed in a built-in installation unless proper ventilation is provided.

3. Lithium Battery The lithium battery on the system board provides power for the real-time clock and CMOS RAM.

The battery has an estimated useful life expectancy of 5 to 10 years. If your system no longer keeps accurate time and date settings, it may be time to change the battery. Contact Cobalt for service information. There are no operator-serviceable parts inside.

Warning:

replaced or replaced with the wrong type of battery. Replace only with the same or equivalent type recommended by the equipment manufacturer. Dispose of used batteries according to manufacturer’s instructions.

Avertissement :

incorrect de la pile. Remplacer uniquement avec une pile du même type ou d’un type équivalent recommandé par le fabricant. Mettre au rebut les piles usagées conformément aux instructions du fabricant.

Achtung:

eingesetzt wird. Nur mit einem gleichen oder ähnlichen, vom Hersteller empfohlenen Typ, ersetzen. Verbrauchte Batterien müssen per den Instructionen des Herstellers verwertet werden.

There is a danger of explosion if the battery is incorrectly

Il y a danger d’explosion s’il y a remplacement

Explosionsgefahr wenn die Battery in umgekehrter Polarität

iii

4. Power Cord

Caution:

device. Ensure that the socket outlet is located or installed near the equipment and is easily accessible.

The power-supply cord is used as the main disconnect

Attention :

prise de courant doit être située ou installée à proximité du matériel et offrir un accès facile.

Le cordon d’alimentation sert d’interrupteur général. La

Achtung:

Netzstecker zu ziehen. Vergewissern Sie sich, dass die Steckdose leicht zugänglich ist.

5. Electrical Shock To reduce the risk of electrical shock, do not disassemble this product. Take it to a qualiﬁed service

person when service or repair work is required. Opening or removing covers may expose you to dangerous voltage or other risks. Incorrect reassembly can cause electric shock when this product is subsequently used.

Zur sicheren Trennung des Gerätes vom netz ist der

6. Browsers Both Netscape Navigator® and Microsoft® Internet Explorer have bugs that can cause intermittent,

unexplained failures. When using a Web browser to interact with your Cobalt Qube 2, you may occasionally experience a browser failure. Released product versions of the browsers are usually more reliable than beta versions and later versions typically work the most reliably. A browser program failure, although annoying, does not adversely affect your Cobalt Qube 2’s data.

Regulations and Information

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Re-orient or re-locate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modiﬁcations made to the equipment without the approval of manufacturer can void the user’s authority to operate this equipment.

This equipment is in compliance with Underwriters Laboratories (UL) and is UL-listed.

Important Safeguards iii

1 Introduction 1

General 2

Front view of the Qube 2 2

Rear view of the Qube 2 3

Qube 2 requirements 4

Target audience for the Qube 2 5

Cobalt Developer Network 5

Organization of the user manual 5

List of chapters and appendices 7

Customer Service and Technical Support 8

General Cobalt information 8

Cobalt Technical Support and Service 8

Email contact 8

Technical Support telephone numbers 8

Further information 9

Before contacting Cobalt Networks Technical Support 10

To speed up your support call 10

Cobalt logo badge 11

2 Setting up the Qube 2 13

Qube 2 setup 13

Phase 1: Making the Connection 13

Connecting to the network 13

Connecting the locking power supply 14

Powering on the Qube 2 14

Configuring Network Settings 14

Using the LCD console to configure the network 15

Configuring the Qube 2 through a DHCP server 16

Configuring the Qube 2 manually 17

Entering the IP address 17

vii

Contents

Phase 2: Setting up with the Web browser 19

Active Assist — Online Help 20

Configuring the Qube 2 with the Setup Wizard 20

Network Integration 20

Administrator Setup 22

Password guidelines 24

Services Setup 25

Time Setup 26

Access Rights 27

Users Setup 28

Groups Setup 29

Product Registration 30

Completing configuration with the Setup Wizard 30

3 Services on the Qube 2 33

Managing your Personal Profile 34

Using email on the Qube 2 34

Setting up your email client 35

Email aliases 36

Email relaying 37

Developing Web pages 38

FrontPage 98 and FrontPage 2000 Server Extensions 38

Using Page Builder 39

Using an HTML editor 39

CGI scripts 39

Publishing Web pages using FTP 40

Sharing files and transferring data 41

Using Windows file sharing (SMB) 42

Before you begin: Windows 95 and

Windows 98 users 42

Setting up Windows file sharing for

Windows 95 and 98 43

Setting up Windows file sharing for

Windows NT 44

Using AppleShare 45

Using AppleShare over IP 46

Using FTP 46

viii

Contents

Working in collaboration through discussions 47

Dynamic Host Configuration Protocol (DHCP) server 47

What is DHCP and what are the benefits? 47

What is a configuration? 48

What are leases? 48

How does DHCP work? 48

Domain Name System (DNS) 50

Network Address Translation (NAT) 50

IP Firewall 52

Internet access through high-speed serial port 52

Searching for information on the Qube 2 52

Managing documents 53

Creating a new InfoBase 53

Install software 53

4 Administrator Site 55

Qube 2 Administrator 57

Configuring the Qube 2 Administrator settings 57

Modifying the Qube 2 Administrator settings 59

Resetting the Qube 2 Administrator password 60

Users 61

Configuring the user settings 61

Configuring the default user settings 61

Adding a user 63

Modifying a user account 65

Modifying a user’s email settings 66

Adding an email alias for a user 68

Removing a user 68

Groups 69

Configuring the group settings 70

Configuring the default group settings 71

Adding a group 72

Modifying a group 74

Removing a group 75

Contents

Mailing lists 75

Configuring the mailing list settings 77

Adding a mailing list 77

Forwarding incoming email to several recipients 78

Modifying a mailing list 79

Removing a mailing list 80

Network 80

Ethernet settings 81

Entering the settings for the network configuration 82

Network Address Translation (NAT) 84

Enabling or disabling the NAT feature 84

Modem settings and the high-speed serial port 84

Changing the modem settings 86

Verifying the status of the modem connection 87

Control Panel 87

Services 88

Managing the settings for the services 89

Web server 89

Discussion group 89

Email server 89

SMTP server 90

Enabling the email server 91

Enabling the email relaying feature 94

File Transfer Protocol server 95

Windows file sharing (SMB) 97

Apple file sharing (AppleShare) 98

Simple Network Management Protocol (SNMP) agent 99

Legato file backup 99

Domain Name System (DNS) server 100

Dynamic Host Configuration Protocol (DHCP) server 100

Access rights 103

User add and remove 104

Public site access 104

Install CGI scripts 104

Telnet access 105

Contents

IP Firewall 106

Adding an IP filtering rule 107

Modifying an IP filtering rule 109

Removing an IP filtering rule 110

Time 110

Maintenance 111

Backup 111

Manual backup 112

Scheduled backup 114

Backup file locations 116

Restore 117

Install software 119

Third-party software 121

Installing third-party software 121

Reboot 121

Shutdown 122

System Status 122

Memory 123

Central Processing Unit (CPU) 123

Disk 123

Network 124

Modem 124

Service Status 124

Web 125

Email 126

File sharing services 126

Simple Network Management Protocol (SNMP) 126

Domain Name System (DNS) 126

Dynamic Host Configuration Protocol (DHCP) 126

Telnet 126

Public Site 127

Active Monitor 127

Contents

5 Public Site 129

Home 130

View Users 131

Viewing the users 131

Viewing a user’s personal Web page 132

Sending an email to another user 132

Creating Web content 132

View Groups 133

Viewing the groups 133

Viewing a group’s public Web page 134

Viewing a group’s private Web page 134

Sending an email to a group 134

Posting a message to a discussion thread 135

Creating Web content 135

Working in collaboration through discussions 135

Rules of discussions 135

Description of a discussion thread 135

Creating a new discussion topic 137

Joining an existing discussion 138

Viewing an existing message 138

Changing the order of the messages 138

Adding a new message 139

Adding an attachment to a message 139

Replying to a message 140

Deleting a message 140

Deleting a discussion thread 140

Exiting a discussion 140

Search 141

Performing a search 142

Interpreting search results 144

Personal Profile 144

Modify user 145

Email 145

Forward email to 146

Automatic vacation reply 146

Forwarding incoming email to several recipients 146

xii

Contents

Usage data 146

Backup 147

Restore 148

Page Builder 149

Accessing the Page Builder tool 149

Page Builder window 150

Programs 151

Managing documents 151

Using the Infoplace Document Organizer 153

Logging in to an InfoBase 153

Accessing online help 153

Designating easy-to-find documents 153

Finding specific documents 154

Administrator Site 154

A Using the LCD console 155

Changing network configuration 156

Rebooting 157

Powering down 158

Resetting network configuration 159

Resetting IP Firewall 160

B Product Specifications 161

Technical Data for the Qube 2 161

Hardware 161

Software 161

Features 161

System management 162

Physical data 162

Regulatory approvals 163

Upgrading your Qube 2 163

Opening the Qube 2 164

Adding a memory module 165

Adding a PCI expansion card 166

Closing the Qube 2 167

I/O board 168

CPU card 169

xiii

Contents

C Advanced Information 171

URL for the default Qube 2 home page 171

Telnet access 171

CGI scripts 172

D Domain Name System 173

Basic DNS 173

Enabling the DNS server feature 173

Configuring a primary DNS server 174

Specifying a reverse lookup (PTR) record 175

Specifying a mail server (MX) record 175

Specifying an alias (CNAME) record 176

Configuring a secondary DNS server 177

Adding a secondary name-server authority

for a domain 177

Adding a secondary name-server authority

for a network 177

Advanced DNS 178

Network Mask Notation Conversion 178

Quick Start Guide for Domain Name Service (DNS) 179

Brief history of the Domain Name System (DNS) 184

What is a DNS record? 185

Who manages your DNS records? 185

How does DNS work? 185

E Licenses 187

F Glossary 193

xiv

Chapter 1

Introduction

The Cobalt Qube 2 is a powerful and versatile network server. It ﬁts easily within an existing network, and it enhances workgroup activities by providing many communication and collaboration services. Here is a sample of what you can do with the Cobalt Qube 2:

•

Web publishing

capabilities for users and groups.

•

The Qube 2’s email service allows you to communicate internally and externally to individuals and groups. It includes autoforward and auto-response capabilities. You can even create mailing lists that include external users.

•

Share access to the Internet

port to connect through a modem, or the second Ethernet port to connect through a leased line.

•

File sharing

network device, you can move ﬁles easily to and from the Qube 2, using standard ﬁle-sharing capabilities.

•

Private discussion groups

(and remotely from) the members of your group to develop and document information related to a particular topic. Only group members can access these discussions.

•

Searching and automatic text indexing

information on the Qube 2 by searching for words or phrases stored in text and HTML ﬁles. The search index is updated automatically every day.

•

Document archival and retrieval

Organizer allows you to store, locate and retrieve any kind of document.

You can access a broad range of Web publishing

You can use the high-speed serial

By displaying the Qube 2 on the desktop as a shared

You can work in collaboration with

You can locate

The InfoPlace Document

These services can be used within an extranet or an intranet environment, or across the Internet.

Chapter 1

General

Figure 1 and Figure 2 show the Qube 2 controls, indicators and connectors.

Front view of the Qube 2

The indicator light bar on the front glows green when the Qube 2 is powered on.

Figure 1 Qube 2 front view

Power On Indicator

Rear view of the Qube 2

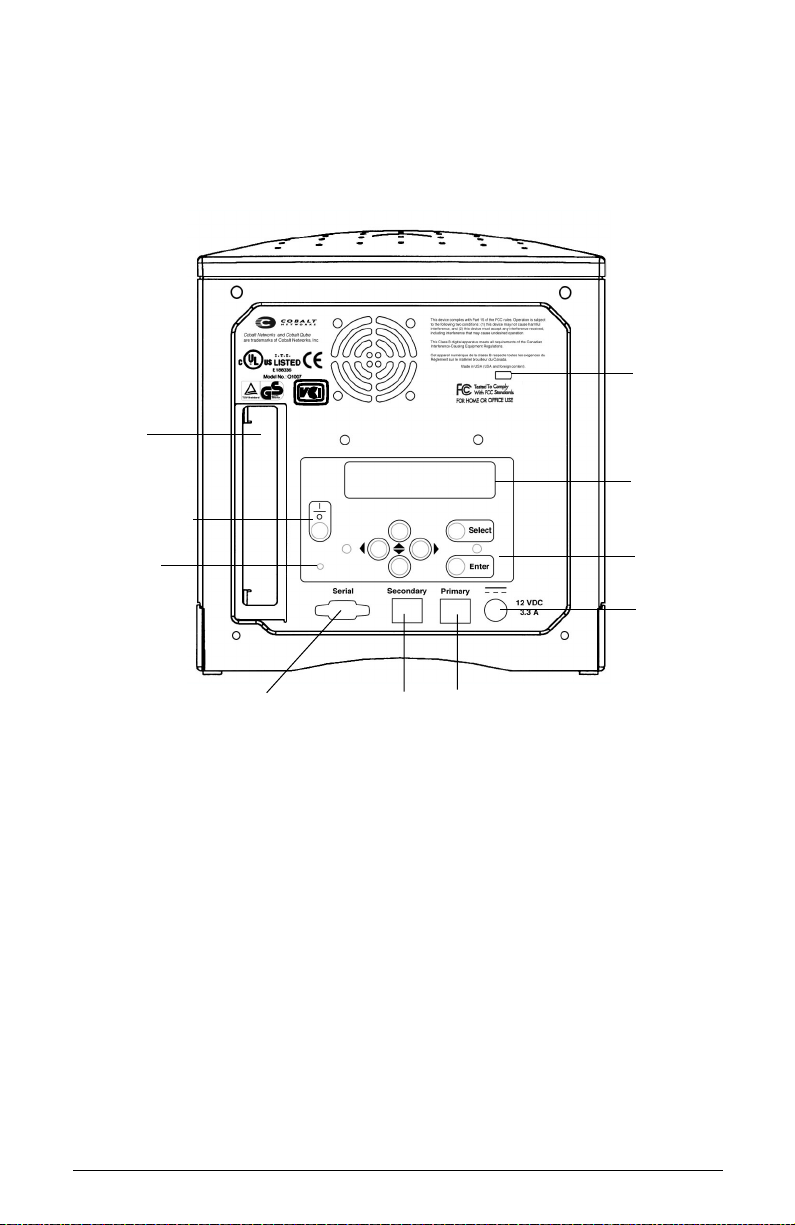

Figure 2 shows the controls and connectors on the back panel.

Figure 2 Qube 2 rear view

PCI slot shield

On/Off switch

Reset Password

Introduction

Security lock hole

LCD screen

LCD console

Locking power socket

Primary Network Interface

1. The

Serial port

PCI slot shield

Secondary Network Interface

covers the PCI expansion slot of the Qube 2. This shield is removed when a PCI expansion card is plugged in. (See “Adding a PCI expansion card” on page 166.)

2. The

3. You can use the recessed

On/Off

switch powers the Qube 2 on or off.

Reset Password

button if you forget the Qube 2 Administrator password. (See “Resetting the Qube 2 Administrator password” on page 60.)

4. The

Serial port

allows you to connect a standard

(Hayes™-compatible) external modem to the Qube 2.

Chapter 1

5. The

Secondary Network Interface

10/100 BaseTX network cable and, as an option, can connect the Qube 2 to the Internet.

6. The

Primary Network Interface

network cable and is used to connect the Qube 2 to your intranet.

7. The

Locking power socket

power adaptor.

8. The

LCD console

allow you to enter network conﬁguration information, reboot the Qube 2, reset the network conﬁguration, reset the IP ﬁrewall ﬁltering rules and power down the Qube 2.

9. The

LCD screen

displays messages and values entered. Use the arrow buttons to toggle between choices or to enter values. (See “Using the LCD console to conﬁgure the network” on page 15.)

10. The

Security lock hole

computer-locking security cable.

Qube 2 requirements

To use the Qube 2, you need:

• A 10/100BaseTX Transmission Control Protocol/Internet Protocol (TCP/IP) -based local area network (LAN).

• A personal computer (attached to the network) that uses a Web browser (Netscape Navigator or Microsoft Internet Explorer, versions 4.0 or later).

• Network parameters, which you can obtain from your system or network administrator; these include the Qube 2’s assigned IP address, the subnet mask of your network and, if communicating with other networks, a gateway/router address.

accepts a second

accepts a 10/100 Base-TX

receives the power connector from the

is used to secure the unit with a standard

Note:

If you intend to set up the Qube 2 to obtain its network parameters from a dynamic host conﬁguration protocol (DHCP) server, you do not need to obtain this information from the network administrator. For more information, see “Dynamic Host Conﬁguration Protocol (DHCP) server” on page 47.

• An Internet service provider, if you plan to connect to the Internet.

Target audience for the Qube 2

The user manual is for anyone who will set up the Qube 2 network server appliance for a group of users. You should be familiar with Microsoft® WindowsTM, Macintosh® or other operating systems, and Netscape Navigator®, Microsoft® Internet Explorer or other Web browsers.

For solutions that extend the functionality of the Qube 2, visit the Online Solutions Directory on Cobalt’s Web site at http://www.cobalt.com/solutions/ .

Cobalt Developer Network

Cobalt provides a wide range of resources, such as technical notes and white papers, for developers of Linux applications for Cobalt platforms. Premium resources are also available.

To register with the Cobalt Developer Network at no cost, visit the Web site at http://developer.cobalt.com/ .

Organization of the user manual

Chapter 3 describes the features of the Qube 2.

Introduction

Chapter 4 is based on the Administrator Site screen of the browserbased user interface (UI); the Administrator Site screen has a brown border on the left side. See Figure 3.

Chapter 5 is based on the Public Site screen of the UI; the Public Site has a blue border down the left side. See Figure 4.

Chapter 1

Figure 3 Administrator Site screen

Figure 4 Public Site screen

Introduction

List of chapters and appendices

Chapter 1 “Introduction” on page 1 includes an overview of the

Qube 2’s features and directs you to the information in other chapters of this guide.

Chapter2 “Setting up the Qube 2” on page 13 describes the

hardware setup of the Qube 2 and the network integration process.

Chapter 3 “Services on the Qube 2” on page 33 explains the

features available on the Qube 2.

Chapter 4 “Administrator Site” on page 55 explains the features

on the Qube 2 Administrator user interface (UI) screen.

Chapter 5 “Public Site” on page 129 explains the features on the

Qube 2 Public Site UI screen.

Appendix A “Using the LCD console” on page 155 explains the

LCD console functions.

Appendix B “Product Speciﬁcations” on page 161 lists the Qube 2

technical speciﬁcations.

Appendix C “Advanced Information” on page 171 provides

information on backup URLs, resetting the administration password, telnet and CGI scripts.

Appendix D “Domain Name System” on page 173 gives an

in-depth explanation of the DNS service.

Appendix E “Licenses” on page 187 lists licensing information.

Appendix F “Glossary” on page 193 provides a glossary of terms

used in the Qube 2 manual.

Chapter 1

Customer Service and Technical Support

For Cobalt product information, visit the support section of the Cobalt Web site at http://www.cobalt.com/support/. The site includes a Knowledge Base that customers can query; a list of Frequently Asked Questions (FAQs) that provide additional information is also available through the Knowledge Base.

General Cobalt information

In the U.S.A.

to info@cobalt.com.

Outside the U.S.A.

info@cobalt.com.

In Europe, the Middle East and Africa

email to info-emea@cobalt.com.

In Japan

, call (888) 70-COBALT or (888) 702-6225, or send email

, call +1 650 623-2500, or send email to

, call +31 71 565 7000, or send

, send email to info-japan@cobalt.com.

Cobalt Technical Support and Service

Email contact

You can contact Cobalt Networks Technical Support by email using the Online Email Support Form. This form provides us all the information we need to service your request in a timely fashion.

Go to the URL http://www.cobalt.com/support/ and click on the

Contact Support

Technical Support telephone numbers

In the U.S.A.

In Europe, the Middle East and Africa

(Netherlands)

link.

, call (800) 266-4378.

, call +31 (71) 565-7070

Customers

in Japan

can send email to support-japan@cobalt.com.

Further information

Cobalt also offers other information resources.

Introduction

Discussion Groups

groups through which users can share information.

To view the current list of Cobalt discussion groups, type the URL http://www.cobalt.com/support/resources/usergroups.html. The names of the discussion groups show up as hypertext links.

To subscribe to or unsubscribe from a discussion group, or to view previous postings to a group, click on the group name. A new browser window opens, displaying information about the discussion group.

New discussion groups are added periodically. The current groups include:

• an announcement list concerning Cobalt products

• an information list for developers working on Cobalt products

• a users list for sharing information between users of Cobalt products

• a security list for users to address network security issues on Cobalt products

The Knowledge Base

common installation and conﬁguration problems and solutions. You can access the site under http://www.cobalt.com/support/kb/ .

Online technical papers

technical information, there are a number of technical papers available on Cobalt Networks’ Web site at http://www.cobalt.com/support/ . The technical papers cover, among others, such topics as:

Cobalt has made available a number of discussion

Cobalt offers access to its online database of

For customers looking for more in-depth

• a quick start guide for Domain Name System (DNS)

• a FAQ for email relay

• how to deploy a Qube 2 with Digital Subscriber Loop (DSL)

• how to create a package (.pkg) ﬁle

Education

with Cobalt Networks products, we offer a number of training courses. The intended audience includes end users, Cobalt resellers, system and network administrators, systems engineers, product developers, support technicians, consultants and trainers. You can access the site at http://www.cobalt.com/support/education/index.html/ .

For those who desire a premium level of technical expertise

Chapter 1

Solutions

concerning Cobalt products, there are also a number of white papers available on Cobalt’s Web site at http://www.cobalt.com/solutions/ .

Developers If you are a software or hardware developer, look for information at http://developer.cobalt.com/ .

For customers looking for business-case information

Before contacting Cobalt Networks Technical Support

First, make an effort to resolve the problem on your own. Take note of all actions you perform and any error messages so that, if necessary, you can describe them to a member of the Technical Support team.

Refer to the user manual and try our online services to answer your questions. The Technical Support KnowledgeBase, the User Groups, the Online Documentation and the Solutions page offer a wealth of information and may answer your question quickly.

To speed up your support call

When contacting Cobalt Networks Technical Support, the more information you can provide, the better. Before you call or email, have the following information ready.

• the serial number, located on the back panel, or the MAC address of the Primary Network Interface, accessible through the user interface, of your Qube 2

• any additional software installed on your system

• any peripherals connected to your system

• a hard copy of any error messages you have received and the time when they occurred

• the process you were running or the changes you had made when the error occurred

• the steps you have taken to resolve the problem

Cobalt logo badge

For more information on the Qube 2 server, click on the Cobalt Networks logo badge in the top left corner.

A table with the conﬁguration information for your Qube 2 server appears. The table shows:

• the amount of RAM

• the size of the hard disk

• the version of the Cobalt OS

• Cobalt Networks trademark information

The table also contains three hypertext links:

• About The Product displays the services available on the Qube 2 server, links to Cobalt Networks Technical Support and a link to the Solutions guide.

• Cobalt Networks, Inc. Web site takes you to the URL http://www.cobalt.com.

• Credits and Acknowledgements acknowledges the software used on the Qube 2.

Introduction

Chapter 1

This chapter guides you through the process of connecting and conﬁguring the Cobalt Qube 2 for your network and user community. A typical setup process takes less than 15 minutes, after which you can begin using all of the Qube 2 services.

If the Qube 2 has been conﬁgured previously for a different network, refer to “Changing network conﬁguration” on page 156 in Appendix A.

Qube 2 setup

The setup process occurs in two phases.

• “Phase 1: Making the Connection” explains the physical connection of the Qube 2 to a power source and the network.

• “Phase 2: Setting up with the Web browser” explains the network integration process and allows the administrator to select services and create users and groups, using any browser-enabled computer.

Chapter 2

Setting up the Qube 2

Phase 1: Making the Connection

Connecting to the network

Connect the Primary Network Interface (10/100 BaseTX) of the Qube 2 to your local network with a twisted-pair ethernet cable; see Figure 5.

Figure 5 Network connectors

Serial port

Secondary Network Interface

Primary Network Interface

Locking power socket

Chapter 2

If you want to connect the Qube 2 to the Internet, you can use either an external modem or the Secondary Network Interface (if you have a leased line to the Internet).

• For a modem connection to the Internet: Connect a standard (Hayes-compatible) external modem to the serial port of the Qube 2; see Figure 5.

• For a leased line connection to the Internet: Connect the Secondary Network Interface (10/100 BaseTX) to your Internet line with twisted-pair ethernet cabling; see Figure 5.

Connecting the locking power supply

To connect the locking power supply, pull back on the sliding connector and push the connector into the 12V DC locking power socket; see Figure 5. Connect the other end of the power supply cord to an electrical outlet.

Powering on the Qube 2

Turn on the power by pressing the On/Off switch on the back of the Qube 2; see Figure 2.

The hard disk spins up and the fan turns on. The light bar on the front of the unit blinks a few times and then glows steadily.

A number of status messages are displayed on the LCD screen as the Qube 2 completes its boot process.

Caution: It is important to follow the proper power-down procedure before turning off the Qube 2. Refer to “Powering down” on page 158 in Appendix A.

Conﬁguring Network Settings

Now that you have made the network and power connections, you can conﬁgure the network settings.

The Qube 2 requires speciﬁc network information in order to function properly. Depending on the network environment, the Qube 2 may be able to obtain all of the necessary information from a dynamic-host-conﬁguration-protocol (DHCP) server on the network. If

Setting up the Qube 2

so, the Qube 2 tries to conﬁgure itself automatically. If not, you must enter the necessary information manually, using the LCD console on the back of the Qube 2; see Figure 6.

Before you proceed, make sure you have the following information:

• the IP address assigned to the Qube 2

• the subnet mask of your network

Note: A gateway or router address is not required for a Qube 2 that is only connected to a local area network (LAN). If you connect to another network through the Qube 2, you require a gateway address. If you use a modem to connect to the Internet, the modem serves as the gateway.

Using the LCD console to conﬁgure the network

Figure 6 shows the LCD console for the Qube 2.

The LCD screen on the back of the Qube 2 displays two lines of text. The top line of the LCD presents instructions on data to enter; the bottom line displays the data already entered. Use the arrow buttons below the LCD screen to enter the required network information manually.

Appendix A, “Using the LCD console”, on page 155 provides more information about the LCD console.

Figure 6 LCD console

Select

Enter

Chapter 2

During startup, the LCD screen on the back of the Qube 2 displays status information about the boot process itself. When setting up the Qube 2, you use the LCD console to enter network conﬁguration information for the Qube 2. Once the Qube 2 is running, the LCD console is used to change network conﬁguration information, reboot the unit and power down the unit.

The arrow buttons function as follows:

The Left arrow button moves the cursor to the left between the digits displayed in the LCD screen.

The Right arrow button moves the cursor to the right between the digits displayed in the LCD screen.

The Up arrow button increases the digit located at the cursor position.

The Down arrow button decreases the digit located at the cursor position.

The Select button displays the next option.

Select

The Enter button accepts the information entered or the

Enter

option displayed.

Conﬁguring the Qube 2 through a DHCP server

The Qube 2 ﬁrst checks to see whether a DHCP server is present on the network. If there is a functioning DHCP server that is set up to serve leased IP addresses, the Qube 2 conﬁgures itself automatically. If the network information can be conﬁgured automatically, the LCD screen displays the Qube 2’s actual IP address upon completion of the boot process.

IMPORTANT: To function properly over long periods of time, the IP address of the Qube 2 must remain ﬁxed, meaning that the DHCP server must not assign it to a different machine at a later date. Unfortunately, some DHCP servers do not honor requests for permanent IP addresses. As a result, the system or network administrator may need to assign a different (and permanent) IP address to the Qube 2. If so, you will need to change the network conﬁguration information.

Coordinate any changes to the IP address, subnet mask or gateway address with your system administrator.

Setting up the Qube 2

Conﬁguring the Qube 2 manually

IMPORTANT: In this phase, you conﬁgure only the Primary Network Interface. To complete this phase, you must know:

• the IP address assigned to the Qube 2

• the subnet mask of your network

If the Qube 2 is unable to ﬁnd a DHCP server on the network, the LCD display reads:

PRIMARY IP ADDR:

00.000.000.000

A blinking cursor appears on the second line of the LCD display. The following steps explain how to enter the required network information for the Primary Network Interface. The Secondary Network Interface is conﬁgured through the Web browser as described in the next section.

An IP address consists of four numbers, ranging from 0 to 255, separated by periods (for example, 192.168.25.77).

Entering the IP address

To enter the IP address for the Qube 2:

1. Use the arrow buttons on the LCD console to enter the IP address assigned to the Qube 2.

2. Press the button to accept the IP address.

Enter

If the IP address is valid, the following prompt appears:

PRIMARY NETMASK:

00.000.000.000

3. Enter the IP address of the netmask for your network.

4. Press the button to accept the entry.

Enter

If the netmask is valid, the following prompt appears:

ENTER GATEWAY:

00.000.000.000

Chapter 2

5. Enter the IP address of the gateway for your network. If your network does not have a gateway, do not enter a number — press the button to accept the default value of

Enter

“000.000.000.000.”

6. Press the button.

Enter

The LCD displays:

[S]AVE [C]ANCEL

7. To save the conﬁguration information, use the left and right arrow buttons to select [S]ave, and then press the button. You’ll

Enter

see:

VERIFYING AND SAVING

Note: Selecting [C]ancel cancels the conﬁguration and the LCD screen displays: PRIMARY IP ADDR: again. You must go through the entry process again.

After verifying and saving, the Qube 2 completes the boot process. The LCD screen shows several messages in succession before displaying the IP address assigned to the Qube 2.

Conﬁguration is complete when the LCD screen displays the IP address assigned to the Qube 2, for example:

IP Address:

192.168.25.77

Setting up the Qube 2

Phase 2: Setting up with the Web browser

The remainder of the setup process is performed through a Web browser on any computer on your network. Use one of the standard browsers available (for example, Netscape Navigator or Microsoft Internet Explorer, versions 3.0 or later) to do this. Once the setup process is complete, the Qube 2 can be managed from any computer on the network that has a browser. To use the browser to set up the Qube 2, follow these steps:

1. Launch a standard Web browser on any computer connected to the network.

2. Enter the IP address of the Qube 2 (displayed on the LCD screen on the back of the Qube 2) in the URL ﬁeld of your browser, for example:

3. Then press Return (or Enter) on your keyboard.

If you conﬁgured the Qube 2 network settings successfully, the Cobalt Welcome screen appears; see Figure 7.

Click the Start button to being using the Setup Wizard. A separate browser window opens with the ﬁrst screen of the Setup Wizard.

Figure 7 Qube 2 Welcome screen

Chapter 2

Active Assist — Online Help

Active Assist provides real-time context-sensitive help on the UI.

To access Active Assist, place the cursor over the icon beside any item. A description of the item appears at the bottom of the browser page.

Conﬁguring the Qube 2 with the Setup Wizard

To conﬁgure the Qube 2, enter information into the ﬁelds on the Setup Wizard screens. These ﬁelds are described in the sections that follow.

The Setup Wizard is a series of seven screens that guide you through the setup process. After completing each step, click on the NEXT button to apply the changes and move on to the next step.

The Qube 2 performs automatic checks on the information entered and alerts you when an illegal value or a problem is encountered. When the information is entered correctly at each stage, the Qube 2 enters the changes in its conﬁguration ﬁles before proceeding to the next step. Changes may take several seconds to complete.

Note: For help with a particular ﬁeld in the Setup Wizard, move

the pointer over the Active Assist

and help text is displayed at the bottom of the screen.

icon adjacent to the ﬁeld

Network Integration

Figure 8 shows the Network Integration screen. For more information on the network settings, see “Network” on page 80.

If the Qube 2 obtained its network parameters from a dynamic host conﬁguration protocol (DHCP) server, the Network Integration screen of the Setup Wizard appears with all the ﬁelds ﬁlled in. You just need to click the NEXT button to move to the next screen.

For more information, see “Dynamic Host Conﬁguration Protocol (DHCP) server” on page 47.

On this screen, you can:

• assign a host name (for example, qube1) to the Qube 2

• enter your domain name (the ofﬁcial name that is registered with InterNIC, for example, cobalt.com)

The host name and domain name must be coordinated with your network administrator in order for you to access the Qube 2 by its name and not just by its IP address.

• enter the IP address of your domain name system (DNS) server

A DNS server maintains a list of computer names and their IP addresses. The Qube 2 needs access to this list on the DNS server in order to convert between IP addresses and names. This conversion is essential for sending and receiving email external to the Qube 2.

For more information on DNS, see Appendix D, “Domain Name System”, on page 173.

Click the NEXT button to move to the next screen.

Figure 8 Network Integration (screen 1 of 7)

Setting up the Qube 2

Chapter 2

Administrator Setup

The Administrator Setup screen appears; see Figure 9. The Qube 2 Administrator has several responsibilities:

1. setting up and maintaining the users, groups and services on the Qube 2

2. responding to email alerts from the Qube 2 in order to forestall potential problems

Figure 9 Administrator Setup (screen 2 of 7)

Setting up the Qube 2

To set up the Qube 2 Administrator, you must enter the following information.

• Full name Enter the ﬁrst name and last name, separated by a space, of the person serving as the Qube 2 Administrator.

• Password Enter a password in this ﬁeld. A value must be entered to proceed. For guidelines on choosing a password, see “Password guidelines” on page 24.

• Existing email address The Qube 2 Administrator can enter an address here so that all email messages addressed to the admin account and any system alerts for failed services are forwarded to this address. This feature is important if the Qube 2 Administrator does not use the “admin” account as his or her main email account. This address can be an email address on the Qube 2 or an external address.

Note: We recommend that you reserve the email account

“admin” for system messages and alerts only, and that you do not publicize this admin account. To send comments or suggestions to the Qube 2 Administrator, create instead an email alias such as “sysadmin” for that user.

For information on how to add an email alias, see “Adding an email alias for a user” on page 68.

Be sure to remember the password to access the Qube 2 Administration features in the future.

If you forget the password or want to reset the password, see “Resetting the Qube 2 Administrator password” on page 60.

If you want to change the password, see “Modifying the Qube 2 Administrator settings” on page 59.

Click the NEXT button to move to the next screen.

Chapter 2

Password guidelines

Use the following guidelines when choosing a password:

1. Use between six and eight alphanumeric characters; you can use a password with more than eight characters, but Linux truncates the password at eight characters and veriﬁes the password against those eight characters only.

The valid characters include: a-z A-Z 0-9 % ! @ $ ^ & * - _ = \ | . , / ? ; : +

2. Use both upper- and lower-case letters.

Note: A password is case-sensitive.

3. Do not use a proper name.

4. Do not use a word found in a dictionary.

5. Do not use a date.

6. Do not use a command word.

7. Do not use a string of consecutive keys on a keyboard (for example, “qwerty”).

Services Setup

The Services Setup screen appears; see Figure 10. Choose the services that you would like to be active on the Qube 2.

For an explanation of services, refer to Chapter 3, “Services on the Qube 2”, on page 33.

Click the NEXT button to move to the next screen.

Figure 10 Services Setup (screen 3 of 7)

Setting up the Qube 2

Chapter 2

Time Setup

The Time Setup screen appears see Figure 11. Enter the current date, time and time zone on the Qube 2.

For more information on the time settings, see “Time” on page 110.

Click the NEXT button to move to the next screen.

Figure 11 Time Setup (screen 4 of 7)

Access Rights

The Access Rights screen appears; see Figure 12. Two options are available:

• The open option allows any individual to self-register as a user.

• The restricted option allows only the Qube 2 Administrator to add a user.

Note: Cobalt recommends using the restricted option.

For more information on the settings for access rights, see “Access rights” on page 103.

Click the NEXT button to move to the next screen.

Figure 12 Access Rights (screen 5 of 7)

Setting up the Qube 2

Chapter 2

Users Setup

The Users Setup screen appears; see Figure 13. From this screen, you can add users to the Qube 2 and allocate the user disk space limits. The Qube 2 Administrator can modify how the Qube 2 selects the user name, password and the default disk usage limits by clicking Set User Defaults.

For more information on the setting up users, see “Conﬁguring the user settings” on page 61.

The Qube 2 Administrator can manage the services on the Qube 2. The administrator is also a special user — that is, he or she is (by default) a member of all groups created on the Qube 2.

Note: To add users through the browser interface after the Qube 2 is set up, see “Conﬁguring the user settings” on page 61.

Note: Due to a limitation in the Linux operating system, a Qube 2 Administrator or any other user can belong to a maximum of 32 groups only.

Click the NEXT button to move to the next screen.

Figure 13 Users Setup (screen 6 of 7)

Groups Setup

The Groups Setup screen appears; see Figure 14. On this screen, the Qube 2 Administrator can create different groups of users. Each group has its own mailing list, Web site, ﬁle storage and private discussion area. “Set Group Defaults” establishes the maximum allowed disk space that groups can use.

Note: To add groups through the browser interface after the Qube 2 is set up, see “Conﬁguring the group settings” on page 70.

For more information on the setting up groups, see “Conﬁguring the group settings” on page 70.

Click the NEXT button to move to the next screen.

Figure 14 Groups Setup (screen 7 of 7)

Setting up the Qube 2

Chapter 2

Product Registration

The Product Registration screen appears; see Figure 15. If you are connected to the Internet, you can register the Qube 2 by completing the online registration.

If you are not connected to the Internet, this screen does not appear. Fill out the registration card included in the packaging materials and return it to Cobalt Networks, Inc. By doing so, you will receive notiﬁcations of system and security upgrades and new product information.

Cobalt Networks, Inc. 555 Ellis Street Mountain View, CA USA 94043

Note: If you are not yet connected to the Internet, you cannot register online.

Completing conﬁguration with the Setup Wizard

When you’ve entered the information in the Setup Wizard, click FINISH.

Once the Qube 2 has been conﬁgured, the Public Site screen appears and the setup is complete; see Figure 16. This page also appears when you point your browser at the URL http://<IP address>/cobalt/ .

The buttons on the left side of this screen provide access to the information and functions on this site. Move the cursor over the buttons to ﬁnd out what they do.

Figure 15 shows the online registration page.

Figure 15 Online registration page

Setting up the Qube 2

Chapter 2

Figure 16 shows the Public Site screen on the Qube 2.

Figure 16 Public site on the Qube 2

Chapter 3

Services on the Qube 2

This chapter offers a brief overview of the services available on the Cobalt Qube 2. The services are described in detail in Chapter 4, “Administrator Site”, on page 55 and Chapter 5, “Public Site”, on page 129.

These services include:

• email and mailing lists

• Web publishing

• ﬁle sharing through Windows ﬁle sharing, Appleshare and ﬁle transfer protocol (FTP)

• discussion groups

• Dynamic Host Conﬁguration Protocol (DHCP) server

• Domain Name System (DNS) server

• Network Address Translation (NAT)

• IP ﬁrewall

• Internet access through a high-speed serial port

• text search

• document management with the InfoPlace Document Organizer

• installation of software

Chapter 3

Managing your Personal Proﬁle

Registered users on the Qube 2 can manage their own Personal Proﬁle using any standard Web browser. The features accessible from this screen are:

• modify user

• email

• usage data

• backup

• restore

• Page Builder

For more information, see “Personal Proﬁle” on page 144.

Using email on the Qube 2

To use all of the Qube 2’s email capabilities, you must conﬁgure the email parameter settings correctly. You must also conﬁgure your email client to send email to and retrieve email from the Qube 2.

For more information on setting up email on the Qube 2, see “Email server” on page 89.

Services on the Qube 2

Setting up your email client

Ensure that the following information is entered into your email client on your personal computer.

Note: The Qube 2 does not offer an email client. The Qube 2 is an email server that receives email addressed to a domain name. To access your email messages, you require an email client such as Microsoft Outlook or Qualcomm’s Eudora products.

1. Email address The format is either

<username>@domainname (see the note below) or

<username>@hostname.domainname

(for example, myname@qube1.cobalt.com) where:

• <username> is the user ID assigned to you (for example,

myname)

• <hostname> is the name assigned to the Qube 2 (for example,

qube1)

• <domainname> is either the official domain name that is

registered with InterNIC (for example, “cobalt.com”), or an intranet domain name specific to your network. Obtain this information from your system administrator.

Note: To use the shorter email format <username>@domainname, you must enter the domain name in the email parameters table, in the ﬁeld “Receive email addressed to these hosts/domains.”

2. SMTP server The format is hostname.domainname (for example, qube1.cobalt.com).

3. POP3 server The format is hostname.domainname (for example, qube1.cobalt.com).

4. IMAP server The format is hostname.domainname (for example, qube1.cobalt.com).

Note: Occasionally, an email application asks for an “incoming” mail server. The incoming mail server is the POP3 server.

Chapter 3

Email aliases

Each registered user on the Qube 2 must have a unique user name (for example, mary or john.smith or khoward). This user name is used to send or retrieve email.

The Email Alias feature allows you to create an arbitrary email address without creating a user account on the Qube 2. An email message addressed to the alias is forwarded to an existing email address.

If you add more than one alias for a user, enter one alias per line. You can only use lowercase alphanumeric characters, periods (.), hyphens (-) and underscores (_) in the alias.

Let us say that the XYZ Company has a Qube 2 and that the company’s domain name is xyz.com. The email addresses for the users of the Qube 2 is <username>@xyz.com. Employee Timothy Stonis has a user name of “tstonis”; his email address is “tstonis@xyz.com”.

A user can have several email aliases that point to a his or her user name. For example, Timothy Stonis can have can have the aliases “timothy@xyz.com” and “tim.stonis@abc.com”; if he were an avid soccer player, he might want to use the alias “striker@xyz.com”. All of these aliases point to his user name <tstonis> at xyz.com. Emails addressed to any of these aliases are forwarded to “tstonis@xyz.com”.

However, having a large number of aliases for each user can cause problems. If a new user is added and the user name that is automatically generated by the Qube 2 is already in use, a warning appears in the help text at the bottom of the screen, stating that <username> is already in use as a mailing list or alias. The Qube 2 does not accept the New User entry.

Following the previous example, let us say that Timothy Howard is a new employee at the XYZ Company. If he wanted to have “timothy” as his user name, the Qube 2 help text would state that “Name timothy is already in use as a mailing list or alias.”

A Qube 2 Administrator can also set up aliases such as webmaster@xyz.com, info@xyz.com, sales@xyz.com, comments@xyz.com or support@xyz.com that point to a speciﬁc user name.

Services on the Qube 2

Email relaying

Simple Mail Transfer Protocol (SMTP) service is different from Post Ofﬁce Protocol (POP), telnet and ﬁle transfer protocol (FTP) services in that SMTP does not try to authenticate a user when an SMTP connection is made. Every email server on the Internet has to be able to deliver email to you, so the email servers must be able to connect freely to send the email.

The Qube 2 accepts email if the recipient has a user account or an alias email account, or if the sending host (your client computer) is trusted to relay outgoing emails to another domain. These trusts are deﬁned by host or domain names, as well as by IP addresses and networks. A network is a range of IP addresses; a network can be as small as one IP address, but that is not very practical.

Caution: Some users advise you to open relay to all.com, .edu, .net and other top-level domain addresses. This is BAD ADVICE. Doing so allows hosts belonging to .com, .edu, .net and others to relay email through your Cobalt server. These open relays can lead to unsolicited commercial email (“spam mail”) being forwarded through your server.

Spam mail can appear as though it originated from your server and as a result, others may blacklist your server as a known spam site. If your server is blacklisted, many mail servers will not relay your email and your customers will not receive a large amount of their email messages.

Chapter 3

If you have users who access your server through the Internet, ask your Internet Service Provider (ISP) which networks are used by their remote access (dial-up) equipment.

For example, if the ISP says the network 192.168.10.5 through

192.168.10.24, then enter “192.168.10” to the “Relay email from these

hosts/domains” ﬁeld of the Email Parameters menu. If your ISP gives you a list of 30 networks used by 30 points-of-presence (POPs) (which are regional ISP ofﬁces) across the country and your clients can dial in from any of them, then you must trust all 30 networks or these users cannot send email through your Qube 2.

Note: If you do not want to allow email to be sent through the Qube 2, leave the “Relay email from these hosts/domains” ﬁeld blank.

For more information, see “Enabling the email relaying feature” on page 94.

Developing Web pages

The Qube 2 automatically provides a default home page for each individual user and each group. It also supports a broad range of Web publishing capabilities that allow both novice and expert users to build and publish custom Web pages.

Note: To access your home page, enter the URL http://<hostname>/users/<username>/ , where <hostname> is the fully qualiﬁed domain name of your Qube 2 and <username> is your user identiﬁcation on the Qube 2.

FrontPage 98 and FrontPage 2000 Server Extensions

The Qube 2 includes the FrontPage 98 and FrontPage 2000 Server Extensions, which allow users with FrontPage client applications to publish and edit Web content easily. Users can create and post Web pages using standard style templates and pre-conﬁgured tools— including form processing and search tools. It is not necessary to know anything about FTP or other ﬁle transfer protocols.

Services on the Qube 2

Using Page Builder

The Qube 2 includes Page Builder, a tool that allows you to create Web pages without having to learn how to write HTML scripts.

To enter the Page Builder tool:

• click Edit This Page at the bottom of your home page, or

• from the Personal Proﬁle screen, click Page Builder at the top

Once you are in the Page Builder tool, you can get instructions for using it by clicking the Instructions button on the left side of the screen.

For more information, see “Page Builder” on page 149.

Using an HTML editor

You can create complex Web pages using any of the standard HTML editors and the HTML publishing capabilities of many popular desktop productivity applications. You can create and link the Web pages themselves on your desktop computer, and then move them to the appropriate subdirectory in the Qube 2 through an FTP application; see “Publishing Web pages using FTP” on page 40.

CGI scripts

The Qube 2 supports common gateway interface (CGI) scripts, such as those written in Perl or C, as well as Unix shell scripts.

CGI scripts allow you to develop highly interactive, powerful Webbased applications by building server-side CGI scripts that generate Web pages in response to speciﬁc user inputs. These applications range from simple scheduling and conferencing applications to sophisticated electronic commerce solutions.

You can develop CGI scripts on your desktop machine and then transfer them to the Qube 2 through an FTP-based application that allows permission bits to be set to “Executable”.

CGI scripts must use .pl or .cgi ﬁlename extensions in order to be executed by the Web server.

Chapter 3

Use FTP to upload .cgi and .pl ﬁles; use ASCII mode to upload CGI ﬁles. Once the ﬁle is on the Qube 2, use your FTP program to make the script executable. You can also use the telnet command: chmod 775 <ﬁlename>.cgi.

The path to Perl is /usr/bin/perl .

To set the access rights for installing CGI scripts, see “Install CGI scripts” on page 104.

Publishing Web pages using FTP

After creating your Web pages, you can publish them on the Qube 2 using FTP.

Ensure that you have the following information:

• the host name or the IP address of your Qube 2

• your username and password

• a ﬁlename of your choice to save as your main page (the default ﬁlename is index.html)

Launch your FTP software and establish an FTP link to the Qube 2. Upload your HTML ﬁles. If you need help, consult the instructions for your FTP application.

By default, the ﬁles you upload using FTP are stored in your personal directory; the directory path is

/<IP address>/users/<username

> where

• <IP address> is the Qube 2’s IP address

• <username> is your user name

Note to Qube 2 Administrators: To post Web pages for the private home site, you must upload to the directory /groups/home/private/ .

Sharing ﬁles and transferring data

You can access or connect to the Qube 2 through your desktop computer as you would any other shared network volume. The Qube 2 can be mounted from any Windows or Macintosh computer — it appears as a mounted volume on your desktop computer.

Note: Windows ﬁle sharing is enabled by default on the Qube 2; Appleshare must be enabled by the user. For more information, see “Windows ﬁle sharing (SMB)” on page 97 and “Apple ﬁle sharing (AppleShare)” on page 98.

Once you have mounted the Qube 2, you can copy and move individual ﬁles and entire subdirectories to and from the Qube 2 by dragging and dropping.

The method of connecting to the Qube 2 varies, depending on your computer’s operating system.

The Qube 2 offers several methods for transferring data. Use the following guidelines to decide which method is appropriate:

• Windows ﬁle sharing (Server Message Block [SMB]) for Windows 95, Windows 98 and Windows NT.

• Apple ﬁle sharing (AppleShare) for Macintosh.

• File Transfer Protocol (FTP) on all platforms. Advanced users use FTP to transfer ﬁles.

Services on the Qube 2

Note: The ﬁle-sharing protocol is selected in the Setup Wizard or in the Control Panel screen of the Qube 2 Administrator Site. See “Control Panel” on page 87.

Chapter 3

Using Windows ﬁle sharing (SMB)

Windows-based machines use a ﬁle-sharing protocol called Server Message Block (SMB) or Common Internet File System (CIFS). Once SMB is set up, the Qube 2 appears in your Network Neighborhood as a machine named <hostname>. The <hostname> is the name that the Qube 2 Administrator assigned to the Qube 2, either in the Setup Wizard or the Control Panel screen of the Qube 2 Administrator Site.

Clicking the <hostname> icon in Network Neighborhood opens a window that provides an overview of the ﬁles and subdirectories that you can access.

Note: If you don’t see the Network Neighborhood on your computer, consult with your network administrator.

Before you begin: Windows 95 and Windows 98 users

The user name on the Qube 2 must be identical to the user name on your computer before you can access your subdirectory on the Qube 2. If necessary, restart your computer and log in as a new user, using the user name and password that are stored on the Qube 2.

If your Windows password does not match the Qube 2 password, you are prompted for the Cobalt password when you ﬁrst connect to your Qube 2 through Network Neighborhood.

Services on the Qube 2

Setting up Windows ﬁle sharing for Windows 95 and 98

1. If the user name is the same on both your computer and the Qube 2, go to Step 6.

2. If the user name on your computer is different from the user name on the Qube 2, click the Start button in the bottom left corner of your screen.

3. Select Shut Down. The Shut Down Windows dialog appears.

4. Within the Shut Down Windows dialog, select “Close all programs and log on as a different user”. Click Ye s .

Your computer closes any applications that are running, logs you out and prompts you with an Enter Network Password menu.

5. Enter the same user name and password that are stored on the Qube 2. Your computer logs you in. If your Windows password does not match the Qube 2 password, you are prompted for the Cobalt password when you ﬁrst connect to your Qube 2 through Network Neighborhood on your Windows desktop.

6. Double-click on the Network Neighborhood icon. The Qube 2 (listed as the <hostname> assigned to the Qube 2) should be included in the listing.

7. If the Qube 2 is not listed, double-click on the Entire Network icon to cause your computer to scan the entire network for devices that can be shared. Select the name of the workgroup/domain of which the Qube 2 is a member. The default workgroup for the Qube 2 is WORKGROUP.

You can also use the Find feature in Windows to locate the Qube 2.

• Click Start in the bottom left corner of the Windows screen.

• Select Find and then Computer. The Find:Computer dialog

appears.

• Enter the hostname of the Qube 2 in the ﬁeld and click Find

Now. The results appear in a window below the Find:Computer dialog.

Note: It can take up to 15 minutes for a Windows PC to update its network information so that the Qube 2 is visible in the Network Neighborhood. The Find feature should produce quicker results.

Chapter 3

8. Once the Qube 2 shows up in the Network Neighborhood list, double-click it to open it on your desktop computer. A password prompt appears. Enter the user name and password used on the Qube 2; the password is case-sensitive.

Click OK.

9. If you are using a workgroup name other than WORKGROUP, the Qube 2 may not appear in Network Neighborhood immediately.

• To view your current workgroup name, click Start in the

bottom left corner of the Windows screen.

• Select Settings and then Control Panel. The Control Panel

window appears.

• Select Network. The Network dialog appears.

• Select the Identiﬁcation tab. The computer name, workgroup

and computer description are displayed. Make note of the workgroup name and return to Step 7.

Note: The Qube 2 Administrator can change the server workgroup name through the Control Panel so that it matches your Windows 95/98 workgroup name. See “Windows ﬁle sharing (SMB)” on page 97.

Setting up Windows ﬁle sharing for Windows NT

1. Double-click the Network Neighborhood icon. If you are using the WORKGROUP domain or workgroup name, the Qube 2 (listed as <hostname>) should be included in the list.

If the Qube 2 is not listed, double-click on the Entire Network icon to have your computer scan the entire network for devices that can be shared. Select WORKGROUP.

2. Once the Workgroup server list is visible, double-click the Qube 2 that you want to access. You can log into the Qube 2 as the Qube 2 Administrator or as any one of the registered users.

3. You may see a password prompt (depending on how your computer has been conﬁgured). If so, enter the user name and password used on the Qube 2; the password is case-sensitive.

Click OK.

Services on the Qube 2

4. You may want to log in to the Qube 2 as a different user. If you see a password prompt in Step 3, you can do so.

However, if your Windows NT account uses the same user name and password as the Qube 2, account, the password prompt in Step 3 will not appear. In this case, you must ﬁrst exit your Windows NT session.

• From the Start menu, select “Shut down the computer”. The

Shut Down Windows NT dialog appears.

• Select the radio button “Close all programs and log on as a

different user”. The computer closes all programs and logs out as the current user. A password prompt then appears for a new user.

• Enter the enter the user name and password.

• Click OK.

Using AppleShare

The Macintosh ﬁle-sharing protocol is called AppleShare. If AppleShare is enabled in the Setup Wizard, the Qube 2 appears as an AppleShare volume in the Macintosh’s Chooser.

1. From the Apple menu in the top left corner, select Chooser. The Chooser dialog appears.

2. In the window on the left, select AppleShare.

3. In the list in the scrolling window on the right, double-click the Qube 2 you want to access (listed as <hostname>).

“Connect to the ﬁle server...” appears in the dialog box.

4. Select Registered User. Enter the user name and password used on the Qube 2; the password is case-sensitive.

5. Click OK. A dialog displays the volumes on the Qube 2; if a volume is not accessible, it is grayed-out.

6. Double-click the volume(s) you want to access:

• GroupHome — provides access to group directories

• [<username>] — provides access to user directories

7. Click OK. The selected volume appears on the desktop.

Chapter 3

Using AppleShare over IP

The Qube 2 supports the use of AppleShare over IP, which means you can access your Qube 2 across an intranet or over the Internet. The Qube 2 shares its volume through AppleShare over IP by default.

If you want to connect to a remote Appleshare volume over the Internet:

1. From the Apple menu in the top left corner, select Chooser. The Chooser dialog appears.

2. In the window on the left, select AppleShare.

3. In the right corner, click Server IP Address. The Server IP Address dialog appears.

4. Enter the fully qualiﬁed host name or IP address of the Qube 2 that you want to access.

5. Click Connect.

Using FTP

File Transfer Protocol (FTP) is typically available on platforms that support Transmission Control Protocol/Internet Protocol (TCP/IP), which are the underlying protocols used by the Qube 2. FTP is designed for transferring individual ﬁles.

1. In your FTP application, enter the IP address or the host name of the Qube 2.

2. Enter your user name and password.

You are logged into the user main directory. Refer to the documentation of your FTP program for instructions on transferring ﬁles.

Note: The user root directory is not the same as the Qube 2’s root directory. Many HTML publishing programs that use FTP require full path names to transfer ﬁles.

For example, user Bill Lumbergh’s home directory is accessed through the URL ftp://<hostname.domainname>/home/users/ blumbergh/ . The “sales” group home directory is accessed through the URL ftp://<hostname.domainname>/home/groups/ sales/ .

Services on the Qube 2

Working in collaboration through discussions

Threaded discussions allow groups of individuals to develop and document a body of information on a particular topic. The discussion feature lets users collaborate without having to meet face-to-face. This feature is especially useful for individuals who are geographically dispersed or who otherwise ﬁnd it difﬁcult to meet.

Another key feature is the self-documenting nature of a threaded discussion: users can review postings to understand the who, what and why of a particular topic.

For more information, see “Working in collaboration through discussions” on page 135.

Dynamic Host Conﬁguration Protocol (DHCP) server

The Dynamic Host Conﬁguration Protocol (DHCP) allows the Qube 2 to assign automatically the network conﬁguration information (such as IP address, domain name, DNS service, subnet mask and gateway) to client computers that support DHCP, including Macintosh and Windows desktop computers.

The Qube 2 Administrator can enable the DHCP feature on the Qube 2 so that the Qube 2 is able to assign automatically the network information necessary for your desktop computer.

For more information on setting up DHCP on the Qube 2, see “Dynamic Host Conﬁguration Protocol (DHCP) server” on page 100.

What is DHCP and what are the beneﬁts?

DHCP is a way for a networked computers to obtain its TCP/IP settings when it boots up. With DHCP conﬁgured and enabled, a network administrator does not need to conﬁgure workstations manually, or modify networking settings when computers move or the network changes. This saves time and expense.

Chapter 3

What is a conﬁguration?

The Qube 2 DHCP conﬁguration includes the default Gateway, DNS servers, subnet mask and IP address from an address pool.

What are leases?

When the Qube 2 sends a conﬁguration to a requesting DHCP client, one of the DHCP options returned is the lease time. The lease time tells the DHCP client how long it can use the IP address. Before the lease time expires, the DHCP client sends a lease renewal request to the Qube 2. The Qube 2 then sends back to the client a renewed lease time, along with any other settings that have changed (for example, new IP address[es] for the DNS server).

A short lease time is useful in a network that has a limited number of IP addresses at its disposal.

How does DHCP work?

DHCP requires a client and a server. The following steps brieﬂy describe how a DHCP server provides a client with its proper TCP/IP conﬁguration:

1. When booted, a DHCP client broadcasts a request, known as a DHCP Discover, looking for a DHCP server to provide TCP/IP settings. DHCP clients are found in most TCP/IP software suites for PC, Macintosh and UNIX workstations.

Services on the Qube 2

2. The Qube 2, as a DHCP server, receives the DHCP Discover request from a client and sends a reply, known as a DHCP Offer, to the DHCP client.

3. The DHCP client looks at the DHCP Offer it has received from the Qube 2 and sends back an acknowledgment (ACK) message to the Qube 2.

4. The Qube 2 responds to the client, reserves the IP address, acknowledges the client’s acceptance of the offer and delivers the conﬁguration information.

Chapter 3

Domain Name System (DNS)

The Domain Name System (DNS) is a vital and integral part of the Internet. Setting up DNS correctly on your Qube 2 is very important. For this reason, we have created an appendix solely for explaining DNS. See Appendix D, “Domain Name System”, on page 173.

The appendix covers the following items:

• basic DNS issues

• advanced DNS issues

• a quick start guide detailing a sample setup of DNS for a Qube 2

• a brief history of the DNS service

If your network administrator is using the Qube 2 as a DNS server, you can enter the IP address of the Qube 2 into the “DNS server” ﬁeld in the TCP/IP conﬁguration on your desktop computer.

Network Address Translation (NAT)

The Network Address Translation (NAT) feature simpliﬁes and conserves IP addresses by presenting a single IP address for a private network to the public network. NAT enables private IP intranetworks that use non-registered IP addresses to connect to the Internet. NAT is both a security measure and a method of conserving IP addresses.

To enable NAT, see “Network Address Translation (NAT)” on page 84.

On the Qube 2, NAT functions as a router connecting two networks together. NAT advertises only one IP address for the entire network to the outside world. This provides additional security, since the entire internal network is hidden from the outside world behind that single IP address.

All packets transmitted from the local area network (LAN) to the Internet (including over modem connections) are masqueraded by NAT.

Services on the Qube 2

For outgoing packets, NAT translates a private IP address (an IP address that is not globally unique) on the internal network into the legal address of the secondary interface; packets are then forwarded onto the Internet.

For incoming packets, NAT does the opposite. NAT receives a packet from the Internet and translates the legal address of the secondary interface into the private IP address on the internal network.

Chapter 3

IP Firewall

A ﬁrewall is a set or ﬁltering rules used to allow or deny IP packets access to the Qube 2.

The IP Firewall option allows you to specify simple packet-ﬁltering rules, which limit access to your Qube 2. You can choose to deny or allow communication in either direction between your Qube 2 and any or all IP addresses.

For more information, see “IP Firewall” on page 106.

Internet access through high-speed serial port

The Qube 2 is equipped with a high-speed serial port to which you can connect an external modem. If you have (or can obtain) a standard point-to-point protocol (PPP) dial-up account with an Internet Service Provider (ISP), a phone line and a modem, your Qube 2 can provide Internet access for your network — no router is required.

For more information, see “Modem settings and the high-speed serial port” on page 84.

Searching for information on the Qube 2

The search function allows a user to search rapidly for a string of text in all text and HTML ﬁles on the Qube 2, including the Web pages. The search index is updated nightly.

The results are presented as a list that includes the ﬁle name and a one-line description of the ﬁles that meet the criteria.

For more information, see “Search” on page 141.

An index entry for each stored text ﬁle is created on the Qube 2 every day at 1:00 a.m. This index is a database of all of the key words used in a particular ﬁle, their location within that ﬁle and their relation to other words used in that ﬁle. For more information, see “Designating easy-toﬁnd documents” on page 153.

Managing documents

The InfoPlace Document Organizer allows users to store information — documents, images, graphics, multimedia ﬁles and URLs — on the Qube 2 in such a way that other users can ﬁnd it quickly. The InfoPlace Document Organizer is entirely Web-based; you do not have to leave your browser to use it.

The InfoPlace Document Organizer maintains a database of information about the documents it stores on the Qube 2. This database is called an Infobase. Each Qube 2 group can have several Infobases; each Infobase can be accessed and used only by the group members.

For more information, see “Managing documents” on page 151.

Creating a new InfoBase

The Qube 2 Administrator can create can create an Infobase for any group. To create a new InfoBase:

1. On the Public Site screen, click Programs on the left. The Program List table appears.

2. Click “InfoPlace Document Organizer” in the table. An authentication dialog appears.

Services on the Qube 2

3. Enter your user name and password.

4. Click OK. A separate browser window opens to the Log In screen of the InfoPlace Document Organizer software.

5. Select “New InfoBase” from the pull-down menu.

6. Click Continue. A new InfoBase appears in the window.

Install software

You can add new software to the Qube 2 from the browser. You can install new software obtained either from the Cobalt Networks Web site or from a CD supplied by Cobalt Networks.

For more information, see “Install software” on page 119.

Chapter 3

Chapter 4

Administrator Site

This chapter describes the functions that can be performed only by the Cobalt Qube 2 Administrator. To access the Qube 2 Administrator Site, you can either:

• from the Public Site, click Administrator Site on the left, or

• enter the URL http://<hostname>.<domainname>/admin/ into your browser

You are prompted for the Qube 2 Administrator user name and password.

Figure 17 shows the Administrator Site screen. The options on this screen are described in the remainder of this chapter.

• users (see page 61)

• groups (see page 69)

• mailing lists (see page 75)

• network (see page 80)

• control panel (see page 87)

• maintenance (see page 111)

• system status (see page 122)

• service status (see page 124)

• public site (see page 127)

• Active Monitor (see page 127)

Chapter 4

Figure 17 Administrator Site screen

Qube 2 Administrator

The Qube 2 Administrator, with the user name “admin”, has full control of the Qube 2. The administrator enters the network settings, enables or disables the various services, performs maintenance functions and receives system alerts and warnings by email.

The Qube 2 Administrator is automatically a member of each group created on the Qube 2.

Note: Due to a limitation in the Linux operating system, a Qube 2 Administrator or any other user can belong to a maximum of 32 groups only.

Conﬁguring the Qube 2 Administrator settings

Caution: Be sure to remember the password you enter here — otherwise, you will need to reset it (See “Resetting the Qube 2 Administrator password” on page 60).

Administrator Site

To conﬁgure the settings for the Qube 2 Administrator:

1. On the Administrator Site screen, click Users on the left. The User List table appears.

2. Click Administrator at the top. The Administrator Settings table appears. See Figure 18.

3. Enter the ﬁrst name and last name of the administrator, separated by a space. The user name is automatically set as “admin”.

4. Enter the password twice to ensure that you have entered it as intended. For guidelines on choosing a password, see “Password guidelines” on page 24.

5. As an option, enter an email address that will receive system alerts for failed services.

6. Click Save Changes.

Chapter 4

Figure 18 shows the Administrator Settings table.

Figure 18 Administrator Settings table

Administrator Site

Modifying the Qube 2 Administrator settings

Caution: Be sure to remember the password you enter here — otherwise, you will need to reset it (See “Resetting the Qube 2 Administrator password” on page 60).

To modify the settings for the Qube 2 Administrator:

1. On the Administrator Site screen, click Administrator at the top of the screen. The Administrator settings table appears.

2. Modify the one or all of the following ﬁelds. You cannot modify the user name.

• Full name Enter the ﬁrst name and last name of the

administrator, separated by a space.

• New password Enter the new password twice to ensure that

you have entered it as intended. For guidelines on choosing a password, see “Password guidelines” on page 24.

• Existing email address As an option, enter an email address

that will receive system alerts and warning messages for failed services.

3. Click Save Changes. The UI on the screen refreshes.

Chapter 4

Resetting the Qube 2 Administrator password

When the Qube 2 Administrator password is cleared, the root account is not accessible until a new administrator password is assigned.

Caution: After you clear the password, enter a new one as soon as possible to protect the security of the Qube 2. At this point, anyone on the network can assign the Qube 2 Administrator password until you assign a new one.

If you forget the password for the Qube 2 Administrator, you can reset the password:

1. Push and hold a paper clip in the recessed Reset Password button (on the back of the Qube 2; see Figure 2). Hold the button in for approximately 2 seconds.

The LCD screen displays

RESETTING ADMIN

PASSWORD

2. In your Web browser, enter the URL http://<IP address>/admin/ to access the Administrator Site screen.

3. If a prompt appears asking for a user name or password, enter “admin” as the user name and leave the password blank. Click OK.

4. Click Users on the left.

5. Click Administrator at the top. The Administrator Settings table appears.

6. Enter the new password twice to ensure that you have entered it as intended. For guidelines on choosing a password, see “Password guidelines” on page 24.

7. Click Save Changes.

Users

In the Users section, you can manage user settings and the Qube 2 Administrator settings.

To access this section, on the Administrator Site, click the Users button on the left. The Users List table appears; the table displays the full name of each user (for example, Jessica Smith) and the name he or she uses to log in to the Qube 2 (for example, jsmith). This is called the “user name” or “userID”.

Conﬁguring the user settings

The Qube 2 Administrator can:

• conﬁgure the default user settings

• add a user

• modify the user’s information

• modify the user’s email settings

• remove a user

Conﬁguring the default user settings

To conﬁgure the default user settings:

Administrator Site

1. On the Administrator Site screen, click Users on the left. The Users List table appears.

2. Click Set User Defaults. The User Defaults table appears. See Figure 19.

You can conﬁgure the default settings for:

• the maximum allowed disk space (MB). This value is the

default amount of disk space available to a newly created user for file storage and Web pages. The original default value is 30 MB.

The value entered must be a whole number greater than zero.

• the format of the user name. You can choose the format for

creating user names.

3. Click Save Changes.

Chapter 4

Figure 19 shows the User Defaults table.

Figure 19 User Defaults table

Administrator Site

Adding a user

To add a user:

1. On the Administrator Site screen, click Users on the left. The Users List table appears.

2. Click Add User. The Add New User table appears. See Figure 20.

3. Fill in the ﬁelds:

• Full name Enter the first and last names of the user, separated

by a space (for example, Bill Lumbergh).

• User name The user name is generated automatically from the

user’s full name, according to the user name format specified in the default settings.

Note: The Qube 2 Administrator can change the generated user name.

• Password Enter the password twice to ensure that you have

entered it as intended. For guidelines on choosing a password, see “Password guidelines” on page 24.

• Maximum allowed disk space (MB) This value is the amount

of disk space available to a user for file storage and Web pages.

The value entered must be a whole number greater than zero.

• Email aliases Enter additional names for which the user can

receive email. To add more than one alias, enter one alias per line or separate them with spaces.

For more information on email aliases, see “Email aliases” on page 36.

4. Click Save Changes. The UI on the screen refreshes and the Users List table appears with the new user.

Chapter 4

Figure 20 shows the Add New User table.

Figure 20 Add New User table

Administrator Site

Modifying a user account

To modify the information for user’s account:

1. On the Administrator Site screen, click Users on the left. The Users List table appears.

2. In the Users List table, locate the user whose account information you want to modify.

3. Click the green pencil icon next to that user’s name. The Modify User table appears.

4. Modify the one or all of the following ﬁelds. You cannot modify the user name.

• New full name Enter the first and last names of the user,

separated by a space (for example, Alan Williams).

• New password Enter the new password twice to ensure that

you have entered it as intended. For guidelines on choosing a password, see “Password guidelines” on page 24.

• Maximum allowed disk space (MB) This value is the amount

of disk space available to a user for file storage and Web pages.

The value entered must be a whole number greater than zero.

5. Click Conﬁrm Modify. The UI on the screen refreshes and the Users List table appears with the modiﬁed user. If you modiﬁed the full name, the user may appear in a different position in the list.

Chapter 4

Modifying a user’s email settings

To change a user’s email settings:

1. On the Administrator Site screen, click Users on the left. The Users List table appears.

2. In the Users List table, locate the user whose email settings you want to modify.

3. Click the blue envelope icon next to that user’s name. The Email Settings table appears. See Figure 21.

4. Modify the one or all of the following ﬁelds.

• Forward email to Enter the email address to which you want

to forward automatically your email messages.

To forward email to more than one address, see “Forwarding incoming email to several recipients” on page 78.

• Email aliases Enter additional names for which the user can

receive email. To add more than one alias, enter one alias per line or separate them with spaces.

For more information on email aliases, see “Email aliases” on page 36.

• Vacation/Autoresponder Email Reply If you want to

automatically send a custom email message to everyone who sends you email, check the box and enter the response message.

This feature is useful if you want to send an automatic response message to the sender, or when you know that you will not be reading or responding to incoming email messages for a period of time.

Note: A vacation-reply email is sent only once per week to each sender.

5. Click Save Changes. The UI on the screen refreshes and the Users List table appears. If you modiﬁed the email aliases, the modiﬁcations show up in the table.

Figure 21 shows the Email Settings table for a user.

Figure 21 Email Settings table

Administrator Site

Chapter 4

Adding an email alias for a user

To add an email alias for a user:

1. On the Administrator Site screen, click Users on the left. The Users List table appears.

2. In the Users List table, locate the user for whom you want to add an email alias.

3. Click the blue envelope icon next to that user’s name. The Email Settings table appears.

4. In the Email aliases ﬁeld, enter additional name(s) for which the user can receive email. To add more than one alias, enter one alias per line.

For more information on email aliases, see “Email aliases” on page 36.

5. Click Save Changes. The UI on the screen refreshes and the Users List table appears. If you modiﬁed the email aliases, the modiﬁcations show up in the table.

Removing a user

To remove a user:

Caution: You cannot undo this action.

If you remove a user, you delete the user account and all of the ﬁles.

1. On the Administrator Site screen, click Users on the left. The Users List table appears.

2. In the users list, locate the user that you want to remove.

3. Click the brown trashcan icon next to that user’s name. A conﬁrmation dialog box appears, asking if you want to delete the user.

4. Click OK in the conﬁrmation dialog box. The UI on the screen refreshes and the Users List table appears. The deleted user has been removed from the table.

Groups

In the Groups section, you can manage the group settings.

To access this section, on the Administrator Site, click Groups on the left. The Groups List table appears; see Figure 22. The table displays the group name and the members of each group.

You can add groups to the Qube 2 and allocate disk space for each group. New users can be added easily, and existing users can be removed easily from a group — just click to turn their check boxes on or off.

Only members of a group can join in the threaded discussion of that group, and view or post Web content to the home page of the private group. The Qube 2 Administrator can delete messages from a threaded discussion or Web content from a home page.

When a new group is added, a mailing list is automatically created for that group. See “Mailing lists” on page 75.

The Qube 2 Administrator is automatically a member of each group created on the Qube 2.

Administrator Site

Note: Due to a limitation in the Linux operating system, a Qube 2 Administrator or any other user can belong to a maximum of 32 groups only.

Chapter 4

Figure 22 shows the Groups List table.

Figure 22 Groups List table

Conﬁguring the group settings

The Qube 2 Administrator can:

• conﬁgure the default group settings

• add a group

• modify the members of a group and the maximum allowed disk space for the group

• remove a group

The group “home” is generated automatically. Its members have the ability to modify the home page of the Qube 2 server.

Conﬁguring the default group settings

To conﬁgure the default settings for a group:

1. On the Administrator Site screen, click Groups on the left. The Groups List table appears.

2. Click Set Group Defaults. The Group Defaults table appears. See Figure 23.

3. Enter a value (in MB) for the maximum amount of disk space available to a group for ﬁle storage, Web pages and threaded discussions.

The value entered must be a whole number greater than zero.

4. Click Save Changes.

Figure 23 shows the Group Defaults table.

Figure 23 Group Defaults table

Administrator Site

Chapter 4

Adding a group

To add a group:

1. On the Administrator Site screen, click Groups on the left. The Groups List table appears.

2. Click Add Group. The Add New Group table appears. See Figure 24.

3. Fill in the ﬁelds:

• Group name Enter the name of the group.

The name can be a maximum of 12 characters long; you can only use lowercase English letters, numbers, and the hyphen (-) and underscore (_) characters.

• Maximum allowed disk space (MB) This value is the amount

of disk space available to a user for file storage and Web pages.

The value entered must be a whole number greater than zero.

4. The lower part of the Add New Group table lists all of the users on the Qube 2.

To add a member to the group, click to turn on the check box next to the user name.

To remove a member from the group, click to turn off the check box next to the user name.

5. Click Conﬁrm New Group. The UI on the screen refreshes and the Groups List table appears with the new group and members.

Figure 24 shows the Add New Group table.

Figure 24 Add New Group table

Administrator Site

Chapter 4

Modifying a group

To modify the members of a group or the maximum allowed disk space for the group:

1. On the Administrator Site screen, click Groups on the left. The Groups List table appears.

2. In the list, locate the group that you want to modify.

3. Click the green pencil icon next to that group. The Modify Group table appears.

4. Modify the one or both of the following ﬁelds.

• Maximum allowed disk space (MB) This value is the amount

of disk space available to a user for file storage and Web pages.

The value entered must be a whole number greater than zero.

• Group Members Add members to or remove members from

the group

To add a member to the group, click to turn on the check box next to the user name.

To remove a member from the group, click to turn off the check box next to the user name.

5. Click Conﬁrm Modify. The UI on the screen refreshes and the Groups List table appears. If you modiﬁed the group members, the modiﬁcations show up in the table.

Administrator Site

Removing a group

To remove a group:

Caution: You cannot undo this action.

If you remove a group, you delete the group, all of the ﬁles in the group directory, the group directory itself, the associated mailing list for that group (if one has been created), and the Windows ﬁle sharing and Appleshare settings.

1. On the Administrator Site screen, click Groups on the left. The Groups List table appears.

2. In the list, locate the group that you want to remove.

3. Click the brown trashcan icon next to that group. A conﬁrmation dialog box appears, asking if you want to delete the group.

4. Click OK in the conﬁrmation dialog box. The UI on the screen refreshes and the Groups List table appears. The deleted group is removed from the table.

Mailing lists

In the Mailing Lists section, you can create and manage mailing lists for the site.

To access this section, on the Administrator Site, click Mailing Lists on the left. The Mailing Lists table appears; see Figure 25. The table displays the mailing list name and the recipients for each mailing list.

Chapter 4

A mailing list with a dimmed trashcan is a mailing list created as part of a group on the Qube 2.

A mailing list can receive email from an address that is external to the Qube 2.

Note: When you reply to a message addressed to a mailing list, your reply is copied to everyone on the mailing list; the reply does not go only to the sender. The Qube is designed this way. You can change the settings in majordomo, but this is not supported by Cobalt.

To reply to the sender only, “forward” the email back to that person. Do not use the “reply” command.

Figure 25 shows the Mailing Lists table.

Figure 25 Mailing Lists table

Administrator Site

Conﬁguring the mailing list settings

The Qube 2 Administrator can:

• add a mailing list

• modify a mailing list

• remove a mailing list

Adding a mailing list

To add a mailing list:

1. On the Administrator Site screen, click Mailing Lists on the left. The Mailing Lists table appears.

2. Click Add Mailing List. The Add Mailing List table appears. See Figure 26.

3. Enter a name for the mailing list.

You can only use lowercase English letters, numbers, and the hyphen (-) and underscore (_) characters. There is no limit on the number of characters in the name.

4. Add recipients to the mailing list.

• To add an external recipient to the mailing list, enter the

complete email address in the “External Recipients” field (for example, tstonis@xyz.com)

• To add an existing Qube 2 user, click to turn on the check box

next to the user name at the bottom of the table.

To remove an existing Qube 2 user, click to turn off the check box next to the user name

5. Click Conﬁrm New Mailing List. The UI on the screen refreshes and the Mailing Lists table appears with the new mailing list and members.

Chapter 4

Figure 26 shows the Add Mailing List table.

Figure 26 Add Mailing List table

Forwarding incoming email to several recipients

If a user will not be accessing his or her email account for a period of time and wants to forward incoming email messages to several recipients, the Qube 2 Administrator can create a mailing list for the user. To do so:

1. The Qube 2 Administrator creates a mailing list made up of the email addresses to which the user wants to forward the email. See “Adding a mailing list” on page 77.

2. In the user’s email settings, the Qube 2 Administrator enters the name of the mailing list in the Forward Email To ﬁeld. See “Modifying a user’s email settings” on page 66.

Note: The forwarded email message is NOT saved in the email account of the original recipient.

Administrator Site

Modifying a mailing list

To modify a mailing list:

1. On the Administrator Site screen, click Mailing Lists on the left. The Mailing Lists table appears.

2. In the list, locate the group that you want to modify.

3. Click the green pencil icon next to that mailing list. The Modify Mailing List table appears.

4. Modify the one or both of the following ﬁelds.

• Mailing list name Modify the name of the mailing list.

You can only use lowercase English letters, numbers, and the hyphen (-) and underscore (_) characters. There is no limit on the number of characters in the name.

• External recipients Add or remove external recipients.

To add an external recipient, enter the complete email address in the field (for example, tstonis@xyz.com)

• Registered users Add or remove Qube 2 users.

To add a member to the group, click to turn on the check box next to the user name.

To remove a member from the group, click to turn off the check box next to the user name.

5. Click Conﬁrm Modify. The UI on the screen refreshes and the Mailing Lists table appears with the modiﬁcations to the mailing list.

Chapter 4

Removing a mailing list

A mailing list with a dimmed trashcan is a mailing list created as part of a group on the Qube 2. To remove this mailing list, you must remove the corresponding group. See “Removing a group” on page 75.

To remove a mailing list:

1. On the Administrator Site screen, click Mailing Lists on the left.

2. In the list, locate the group that you want to remove.

3. Click the brown trashcan icon next to that mailing list. A

4. Click OK in the conﬁrmation dialog box. The UI on the screen

Network

In the Network section, you can enter the network conﬁguration information and the modem settings for the Qube 2. The network settings make the Qube 2 visible to other computers.

The Mailing Lists table appears.

conﬁrmation dialog box appears, asking if you want to delete the mailing list.

refreshes and the Mailing Lists table appears. The deleted mailing list is removed from the table.

If you change the IP address on this screen (or from the LCD console), the Qube 2 reboots.

IMPORTANT: Coordinate the network conﬁguration information with your system administrator to ensure the integrity of your network. Incorrect network settings can result in a loss of connectivity.

The Qube 2 can be set up in three different ways:

• Both intranet and Internet communication is provided through the Primary Network Interface.

• Intranet access is provided through the Primary Network Interface; Internet access is provided through the Secondary Network Interface.

• Intranet access is provided through the Primary Network Interface; Internet access is provided by modem through the high-speed serial port.

Ethernet settings

Be sure to enter the IP address of your DNS server(s) here. Otherwise, the Simple Mail Transfer Protocol (SMTP) will not work. SMTP is used for transferring electronic mail messages.

For more information on DNS, see Appendix D, “Domain Name System”, on page 173.

Figure 27 shows the network settings tables.

Figure 27 Network settings tables

Administrator Site

Chapter 4

Entering the settings for the network conﬁguration

To enter or change the settings for the network conﬁguration for the Qube 2:

1. On the Administrator Site screen, click Network on the left. The settings tables for the network conﬁguration appear. See Figure 27.

2. Modify the one or all of the general settings.

Note: For help with a particular ﬁeld, move the mouse pointer

over the Active Assist

appears in a window at the bottom of the screen.

icon adjacent to the ﬁeld. Help text

• Host name This is a name you assign to the Qube 2 — for

example, qube1. This field must be filled in.

• Domain name The Qube 2 requires a domain name (for

example, mydomain.com or xyz.com). The host name and domain name must be coordinated by the network administrator in order for you to access the Qube 2 by its name and not just by its IP address.

The Qube 2 Administrator must also register the domain name. Visit the Internet Corporation for Assigned Names and Numbers (ICANN) at http://www.icann.org for a list of accredited domain-name registrars.

• Primary DNS server address This is the IP address of your

primary domain name system (DNS) server. A primary DNS server maintains a list of computer names and their IP addresses. The Qube 2 needs access to this list on the primary DNS server in order to convert between IP addresses and names. This conversion is essential for sending and receiving email external to the Qube 2.

Note: The Qube 2 can serve as the DNS server and provide the host name.

Administrator Site

• Secondary DNS server address This is the IP address of your

secondary DNS server. A secondary DNS server can provide redundant DNS service to your computers. If the primary DNS server is turned off, then your Qube 2 can use the secondary DNS server with no loss of performance.

Note: Your primary DNS server and secondary DNS server cannot not be on the same server.

• Default gateway This is the IP address of the network

gateway, such as your router or firewall. A gateway address is required to connect to systems outside the local network. It may be left empty if you do not wish to access outside networks. If you are using a modem, the word modem is entered in this field.

• IP forwarding If this feature is enabled, IP packets from one

network interface can be routed to another.

3. Modify the one or all of the interface settings.

• IP address This is the IP address of the primary interface

which connects to your Intranet. This field must be filled in.

• Subnet mask This is the subnet mask of the primary interface.

The normal subnet mask for a class C network is 255.255.255.0. Yours may differ depending on the size of your network.

• Network Address Translation (NAT) If this feature is

enabled, network traffic on the internal network (the primary network interface) sent through the Qube 2 is masqueraded as if it were coming from the external interface (the modem or secondary network interface).

For more information, see “Network Address Translation (NAT)” on page 84.

• Media Access Control (MAC) address The MAC address is

the ethernet hardware address of the primary network interface. This hardware address is unique to every ethernet device; it cannot be changed.

4. Click Save Changes.

Chapter 4

Network Address Translation (NAT)

The Network Address Translation (NAT) feature allows the Qube 2 to present a single IP address for a private network to the public network. NAT enables private IP intranetworks that use non-registered IP addresses to connect to the Internet. NAT is both a security measure and a method of conserving IP addresses.

For more information on how NAT works, see “Network Address Translation (NAT)” on page 50.

Caution: Before enabling NAT on your network, coordinate this with your system administrator to ensure the integrity of your network.

Enabling or disabling the NAT feature

To enable or disable the NAT feature on the Qube 2:

1. On the Administrator Site screen, click Network on the left. The settings tables for the network conﬁguration appear.

2. In the Interface Settings table, click the check box next to Network Address Translation (NAT). A check mark indicates that NAT is enabled.

3. Click Save Changes.

Modem settings and the high-speed serial port

Using the external modem and the second Ethernet port, the Qube 2 can also act as a router. The Qube 2 Administrator can set the phone number, user name, password and initialization string for the modem settings.

Administrator Site

The Qube 2 Administrator can also determine the connection mode between the Qube 2 and the ISP. There are three possible connection-mode settings; these settings determine how the Qube 2 uses the modem to connect to your ISP.

• “Not Used” means the Qube 2 does not connect at all.

• “Dial-on-demand” means the Qube 2 connects only when there is trafﬁc that is destined for an external network.

• “Always Connected” means the Qube 2 is connected at all times.

The setting you choose depends on your phone line and access charges.

• If you have a dedicated phone line for Internet access, then you can choose “Always Connected.”

• If the phone line you use for Internet access is also used for voice or fax communication, or if your Internet access is charged by the minute, then choose “Dial-on-demand.” The modem accesses the Internet only when a user requires Internet access.

Note: If you choose Dial-on-demand, your ﬁrst attempt to access the Internet may time out before your modem can establish a connection to your ISP. If this happens, wait for a short period, then try again.

Figure 28 shows the Modem Dial-out Settings table.

Figure 28 Modem Dial-out Settings table

Chapter 4

Changing the modem settings

To enter or change the modem settings for the Qube 2:

1. On the Administrator Site screen, click Network on the left. The settings tables for the network conﬁguration appear.

2. Click Modem at the top. The Modem Dial-out Settings table appears. See Figure 28.

3. Modify the one or all of the following ﬁelds.

Note: For help with a particular ﬁeld, move the mouse pointer

over the Active Assist

appears in a window at the bottom of the screen.

icon adjacent to the ﬁeld. Help text

• Connection mode The connection mode determines when the

modem connects to the PPP account.

• Phone number This is the phone number to dial to access the

PPP account for the given user. Do not include spaces in the phone number.

• User name This is the user name used to log into the

PPP account. This is set by the provider of the PPP account, for example your ISP.

• New password This is the password used to authenticate the

PPP connection for the given user. Enter the password twice for verification.

• Modem initialization string (optional) Just before dialing, the

initialization string is sent to the modem to initialize the modem, for example ATZ. The Qube 2 brings the modem to its default factory settings.

• Local IP address (optional) This is the IP address for the

PPP link if you are using a fixed IP address assigned by your provider. If the IP address for the PPP link is assigned dynamically by the connecting server, leave this field blank.

• Local subnet mask (optional) This is the netmask for the

PPP link if you are using a fixed IP address assigned by your provider. If the IP address for the PPP link is assigned dynamically by the connecting server, leave this field blank.

4. Click Save Changes.

Cobalt Digital Inc Cobalt Qube 2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important Safeguards

Contents

General

Cobalt Developer Network

Organization of the user manual

Figure 3 Administrator Site screen

Figure 4 Public Site screen

List of chapters and appendices

Customer Service and Technical Support

General Cobalt information

Cobalt Technical Support and Service

Email contact

Technical Support telephone numbers

Further information

Before contacting Cobalt Networks Technical Support

To speed up your support call

Cobalt logo badge

Phase 1: Making the Connection

Connecting to the network

Figure 5 Network connectors

Connecting the locking power supply

Figure 6 LCD console

Phase 2: Setting up with the Web browser

Active Assist — Online Help

Network Integration

Figure 8 Network Integration (screen 1 of 7)

Administrator Setup

Figure 9 Administrator Setup (screen 2 of 7)

Password guidelines

Services Setup

Figure 10 Services Setup (screen 3 of 7)

Time Setup

Figure 11 Time Setup (screen 4 of 7)

Access Rights

Figure 12 Access Rights (screen 5 of 7)

Users Setup

Figure 13 Users Setup (screen 6 of 7)

Groups Setup

Figure 14 Groups Setup (screen 7 of 7)

Product Registration

Figure 15 Online registration page

Setting up your email client

Email aliases

Email relaying

Developing Web pages

Using Page Builder

Using an HTML editor

CGI scripts

Publishing Web pages using FTP

Before you begin: Windows 95 and Windows 98 users

Using AppleShare

Using AppleShare over IP

Using FTP

Working in collaboration through discussions

What are leases?

How does DHCP work?

Domain Name System (DNS)

Network Address Translation (NAT)

IP Firewall

Internet access through high-speed serial port

Managing documents

Creating a new InfoBase

Install software

Users

Adding a user

Modifying a user account

Modifying a user’s email settings

Adding an email alias for a user

Removing a user

Groups

Adding a group

Modifying a group

Removing a group

Mailing lists

Adding a mailing list

Forwarding incoming email to several recipients
