Cobalt Digital Inc 200, 232 BOWRIDER, 220, 222, 262 Owner's Manual

200

COBALT BOATS

Owner’s Manual

We Wish You Safe and Happy Boating!

Your Cobalt boat was built to meet or exceed all applicable boat building standards at the time of manufacture. Your Cobalt boat was inspected and certified prior to introduction, and periodic inspections of this model are conducted in-plant to ensure continued compliance. Cobalt is affiliated with the following organizations for your safety and pleasure.

The American Boat and Yacht Council, Inc. (ABYC) is an independent organization dedicated to developing and maintaining the highest level of marine equipment safety standards for U.S. boat manufacturers. Working closely with the U.S. Coast Guard (USCG) and other authorities, the ABYC reviews marine equipment and systems, including electrical systems, ventilation, steering, flotation, load capacity, fuel system and others that may have an impact on your safety.

The National Marine Manufacturers Association (NMMA) is an independent organization involved in a wide range of activities aimed toward the promotion and improvement of all aspects of boating. Members include manufacturers of boats, engines and marine equipment of all types.

One division of the NMMA provides an inspection and certification program to members. Inspections are performed to the rigid and detailed standards of the USCG and ABYC. Certification requires compliance with all applicable standards and recommendations.

ABLE

200 Owner’s Manual

GENERAL INFORMATION

WELCOME .............................................................................................. 1-1

CERTIFICATE OF LIMITED WARRANTY .............................................. 1-2

INTRODUCTION ..................................................................................... 1-4

Intended Use...................................................................................... 1-4

Craft Design Category........................................................................ 1-4

OWNER RESPONSIBILITY/WARRANTY PROCEDURE ....................... 1-5

Before Operating ................................................................................ 1-5

Warranty Service Requirements ........................................................ 1-5

Extended Service Agreement............................................................. 1-5

If You Sell Your Cobalt Boat............................................................... 1-5

CERTIFICATIONS ................................................................................... 1-6

NMMA ................................................................................................ 1-6

MerCruiser.......................................................................................... 1-6

Volvo Penta ........................................................................................ 1-6

FEATURES/CONSTRUCTION ................................................................ 1-6

Amenities............................................................................................ 1-6

Construction Standards/Certifications ................................................ 1-6

Serial Number Locations .................................................................... 1-6

WARNING LABELS ................................................................................. 1-7

PUBLICATIONS ....................................................................................... 1-9

NAUTICAL TERMS .................................................................................. 1-9

SYMBOLS .............................................................................................. 1-12

SPECIFICATIONS ................................................................................. 1-13

200 ................................................................................................... 1-13

200WSS ........................................................................................... 1-13

LAYOUT ................................................................................................. 1-14

PROPELLER APPLICATION CHART .................................................. 1-15

ALPHABETICAL INDEX ........................................................................ 1-16

ONTENTS

200 Owner’s Manual

COBALT

RESPONSIBILITIES AND SAFETY

OWNER/OPERATOR RESPONSIBILITIES ............................................ 2-1

Registration/Documentation .............................................................. 2-1

Required Safety Equipment ............................................................... 2-2

Recommended Safety Equipment ..................................................... 2-2

Recommended Spare Parts............................................................... 2-3

Education Opportunities ..................................................................... 2-3

Insurance .......................................................................................... 2-3

BOAT THEORY ...................................................................................... 2-3

Remote Control System ..................................................................... 2-3

Steering System................................................................................. 2-3

Fuel System ....................................................................................... 2-3

Ventilation System ............................................................................. 2-3

Electrical Systems .............................................................................. 2-4

Cooling System .................................................................................. 2-4

Exhaust System ................................................................................. 2-4

Lubrication System............................................................................. 2-4

Seaworthiness Inspection .................................................................. 2-4

Operation Checklist ........................................................................... 2-4

Environmental Considerations ........................................................... 2-5

Components, Maintenance and Repairs............................................ 2-7

Emergency Considerations ................................................................ 2-7

Lifesaving Equipment ......................................................................... 2-9

SAFETY ................................................................................................. 2-12

Signal Words/Definitions.................................................................. 2-12

General Safety ................................................................................. 2-12

Water Sports Safety ......................................................................... 2-18

Safety Alert From August 28, 2001: ................................................. 2-20

Navigation ....................................................................................... 2-20

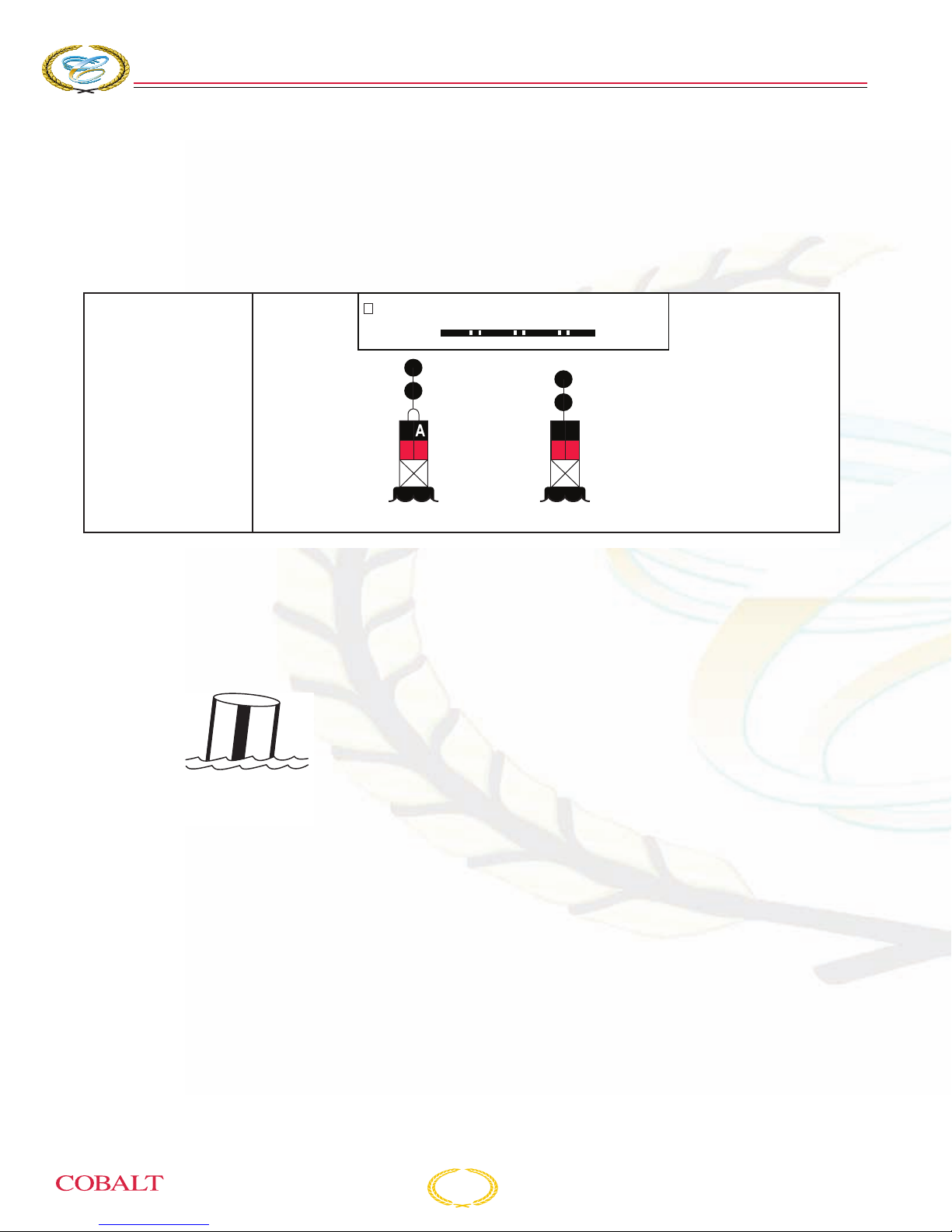

Aids to Navigation ............................................................................ 2-22

200

BOWRIDER

OPERATING INFORMATION

PRECAUTIONS ....................................................................................... 3-1

Before You Start................................................................................. 3-1

Fire/Explosion .................................................................................... 3-1

FIRST-TIME OPERATION....................................................................... 3-1

FUEL ........................................................................................................ 3-2

Fuel Requirements............................................................................. 3-2

Fueling ............................................................................................... 3-2

LAUNCHING ............................................................................................ 3-4

Launching Checklist........................................................................... 3-4

On the Water ...................................................................................... 3-4

Boarding ............................................................................................. 3-4

Loading .............................................................................................. 3-4

Shipshape .......................................................................................... 3-4

GETTING UNDERWAY ........................................................................... 3-5

Before Starting Checklist.................................................................... 3-5

Handling Dock and Mooring Lines ..................................................... 3-6

200 Owner’s Manual

ABLE OF

Starting/Shifting/Steering/Stopping .................................................... 3-6

Basic Maneuvering........................................................................... 3-12

Environmental Considerations ......................................................... 3-18

Entertainment System ...................................................................... 3-19

COBALT INSTRUMENTATION SYSTEM ............................................. 3-20

HELM AND INSTRUMENTATION ......................................................... 3-21

Remote Control(s) ............................................................................ 3-24

3" DIGITAL GAUGE ............................................................................... 3-25

Alarms .............................................................................................. 3-25

STANDARD AND OPTIONAL EQUIPMENT ......................................... 3-27

CAPTAIN’S CHAIR ADJUSTMENTS AND OPERATION...................... 3-30

EXTENDED SWIM PLATFORM/BOARDING LADDER......................... 3-30

FLIP DOWN SWIM STEP - OPTIONAL................................................. 3-31

Boat in the Water.............................................................................. 3-31

Boat on a Trailer ............................................................................... 3-31

VOLVO PENTA OCEAN SERIES OUTDRIVE ...................................... 3-32

ICE CHEST ............................................................................................ 3-32

COCKPIT DINETTE TABLE - OPTIONAL ............................................. 3-32

BOW CUSHION INSERT - OPTIONAL ................................................. 3-32

AIR COMPRESSOR - OPTIONAL......................................................... 3-33

ANCHOR LIGHT .................................................................................... 3-33

CRUISE CONTROL - OPTIONAL.......................................................... 3-33

BATTERY SWITCH ............................................................................... 3-34

VOLTAGE SENSITIVE RELAY (VSR) - OPTIONAL ............................. 3-34

Features ........................................................................................... 3-34

BOW TONNEAU COVER - OPTIONAL ................................................. 3-34

COCKPIT TONNEAU COVER - OPTIONAL ......................................... 3-35

BIMINI TOP - OPTIONAL ...................................................................... 3-35

SKI TOW EYE ........................................................................................ 3-35

TRANSOM TILT SWITCH - OPTIONAL ................................................ 3-36

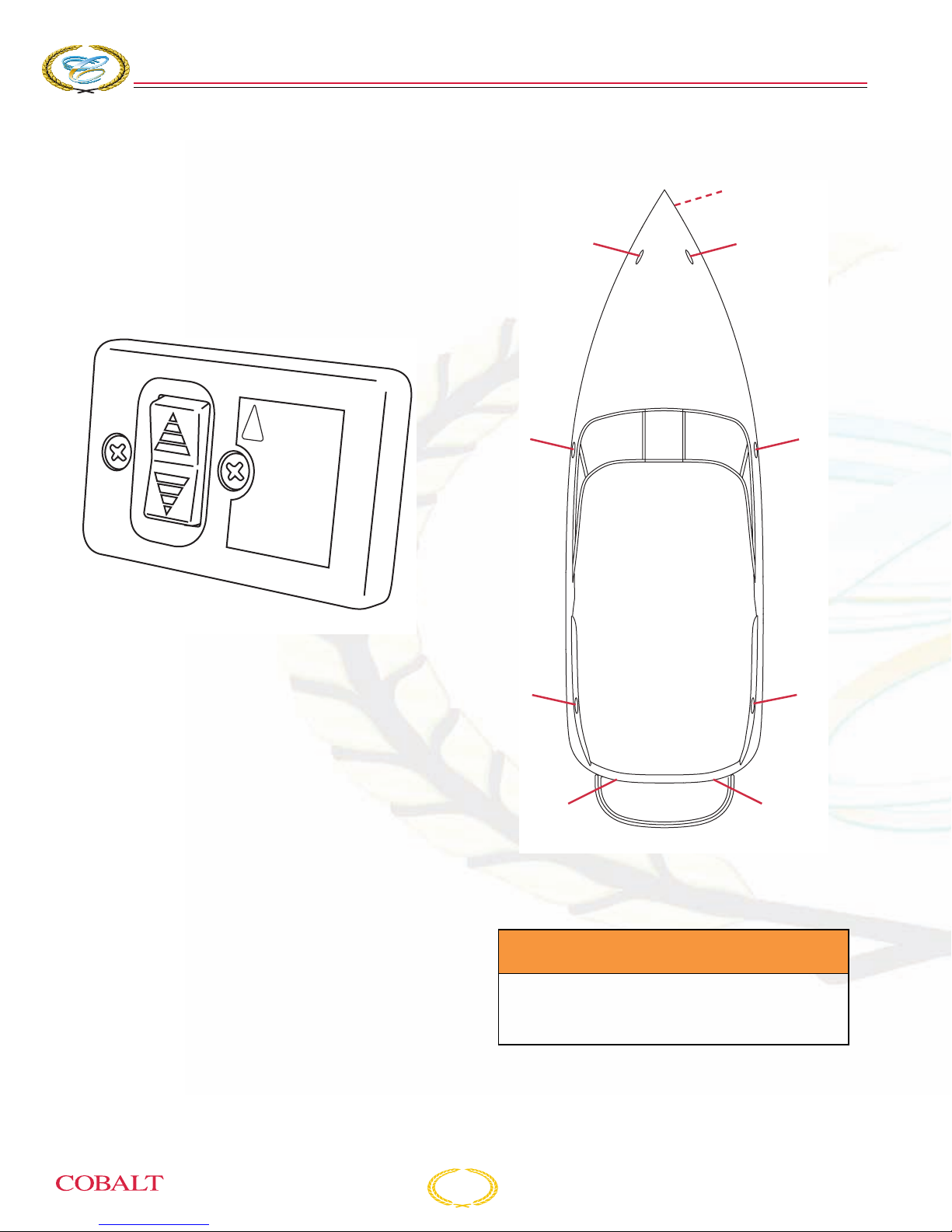

TIE-DOWN LOCATIONS ....................................................................... 3-36

MOTOR BOX ASSEMBLY..................................................................... 3-37

TOOL KIT - OPTIONAL ......................................................................... 3-37

FLAGPOLE WITH FLAG - OPTIONAL .................................................. 3-37

ONTENTS

SYSTEMS

INTRODUCTION...................................................................................... 4-1

ELECTRICAL WIRING HARNESS .......................................................... 4-2

FUEL ROUTING ...................................................................................... 4-3

FIRE SUPPRESSION EQUIPMENT........................................................ 4-4

ELECTRICAL SYSTEM ........................................................................... 4-4

CIRCUIT BREAKER PANEL.................................................................... 4-4

FUSES ..................................................................................................... 4-5

200 Owner’s Manual

iii

COBALT

LIGHTING/BULB REPLACEMENT.......................................................... 4-6

BATTERY CONNECTIONS ..................................................................... 4-7

INTERIOR/EXTERIOR CARE

VINYL INTERIOR AND UPHOLSTERY................................................... 5-1

Care and Cleaning of Vinyl ................................................................ 5-1

Special Cleaning Problems ............................................................... 5-1

SISAL SEAGRASS CARPET ALTERNATIVE CLEANING

INSTRUCTIONS ................................................................................ 5-3

CABINETRY AND WOOD ....................................................................... 5-3

Cabinetry ............................................................................................ 5-3

Ebony Woodgrain Dash ..................................................................... 5-3

Teak Swim Platform ........................................................................... 5-3

Cedar ................................................................................................. 5-4

CARPET................................................................................................... 5-4

DECK AND HULL .................................................................................... 5-4

Cleaning Deck and Hull...................................................................... 5-4

Deck and Hull Care ............................................................................ 5-4

STAINLESS STEEL AND CHROME ....................................................... 5-4

Preventive Steps ................................................................................ 5-4

Cleaning Stainless Steel .................................................................... 5-4

CORROSION PROTECTION .................................................................. 5-5

CorrosionX ......................................................................................... 5-5

Topside .............................................................................................. 5-5

Inside the Bulkhead............................................................................ 5-5

Other Areas ........................................................................................ 5-6

Galvanic Corrosion............................................................................. 5-6

Salt Water .......................................................................................... 5-6

CANVAS .................................................................................................. 5-7

Cleaning Canvas................................................................................ 5-7

Special Cleaning Problems ................................................................ 5-7

OTHER CANVAS COMPONENTS .......................................................... 5-8

Clear Vinyl “Isinglass” ........................................................................ 5-8

Zippers ............................................................................................... 5-8

Snap Fasteners.................................................................................. 5-8

WINDSHIELD........................................................................................... 5-8

BILGE....................................................................................................... 5-8

MARINE GROWTH .................................................................................. 5-8

200

BOWRIDER

MAINTENANCE AND TROUBLESHOOTING

SCHEDULED MAINTENANCE AND SERVICE ...................................... 6-1

Maintenance Schedule....................................................................... 6-1

Break-In.............................................................................................. 6-2

Before Each Use ................................................................................ 6-2

Every 50 Hours .................................................................................. 6-2

Every 100 Hours ................................................................................ 6-3

Monthly............................................................................................... 6-3

Quarterly ............................................................................................ 6-3

200 Owner’s Manual

ABLE OF

UNSCHEDULED MAINTENANCE........................................................... 6-3

Engine/Propulsion/Cooling System.................................................... 6-3

Electrical System................................................................................ 6-3

Fuel System ....................................................................................... 6-4

Water System (if equipped)................................................................ 6-4

LIFTING THE BOAT ................................................................................ 6-4

Using Lifting Slings............................................................................. 6-4

Storage Cradle ................................................................................... 6-4

STORAGE/WINTERIZATION .................................................................. 6-5

Reactivating the Boat After Storage ................................................... 6-5

Cockpit Heater.................................................................................... 6-6

TROUBLESHOOTING ............................................................................. 6-6

Engine ............................................................................................... 6-7

Electrical ............................................................................................. 6-8

Plumbing ........................................................................................... 6-8

REFERENCE AND FORMS

OPERATION QUICK REFERENCE ........................................................ 7-1

Before Launching ............................................................................... 7-1

Pre-Operation..................................................................................... 7-1

Starting Engines ................................................................................. 7-2

Casting Off ......................................................................................... 7-2

During Operation ................................................................................ 7-2

Returning to Port ................................................................................ 7-2

Stopping the Engines ......................................................................... 7-2

After Boating....................................................................................... 7-2

SERVICE LOG ......................................................................................... 7-3

FUEL LOG ............................................................................................... 7-4

FLOAT PLAN ........................................................................................... 7-5

BOAT INFORMATION ............................................................................. 7-6

WARRANTY TRANSFER FORM............................................................. 7-7

ONTENTS

200 Owner’s Manual

NOTES

COBALT

200

BOWRIDER

200 Owner’s Manual

WELCOME

Dear New Cobalt Owner,

From all of us at the factory and from your authorized Cobalt dealer, thank you for purchasing a Cobalt boat. We greatly appreciate your business and look forward to a long and enjoyable relationship with you as part of the Cobalt family.

ENERAL

NFORMATION

ECTION

This manual is designed to help you maximize the enjoyment of your Cobalt boat, and to acquaint you with proper operation, care, storage and maintenance of your investment.

Even if you’re a seasoned boater and have previously owned a Cobalt boat, I recommend you take time to read through this Owner’s manual. As you read this manual, please remember that “common sense” and “courtesy” are the most valuable traits you can have to fully enjoy safe boating. It is also to your personal advantage to become well acquainted with the rules and general “know how” of boating.

For service and for assistance, contact your authorized Cobalt dealer. The dealership staff will be happy to answer questions concerning maintenance, warranty or any other operational questions you may have about your Cobalt boat.

All the best in boating,

Pack St. Clair, Chairman and C.E.O.

200 Owner’s Manual

1-1

COBALT

200

BOWRIDER

ECTION

CERTIFICATE OF LIMITED WARRANTY

Subject to the terms and conditions in this warranty, Cobalt Boats, LLC, a Delaware limited liability corporation doing business as Cobalt Boats (“Cobalt”), warrants to the original retail purchaser (and any subsequent owner) of a new Cobalt boat purchased from an authorized Cobalt dealer for personal, non-racing and non-commercial use (“Owner”), as follows:

Ten (10) Year Limited Transferable Warranty on Hull and Deck.

including floor, stringers, bulkheads, motor mounts, transom and deck/hull joints of a new Cobalt boat are free from structural defects in material and workmanship under normal, non-racing and non-commercial use for a period of (10) years from the date of delivery to the original retail purchaser.

Three (3) Year Limited Transferable Warranty on Gelcoat Finish, Upholstery, Canvas, Components Not Separately Warranted by the Manufacturer and All Components Manufactured by Cobalt Other Than the Hull and Deck. Cobalt warrants that the gelcoat finish, upholstery, canvas, components not

separately warranted by the manufacturers thereof and all components manufactured by Cobalt with respect to a new Cobalt boat are free from structural defects in material and workmanship under normal, non-racing and non-commercial use for a period of three (3) years from the date of delivery of such Cobalt boat to the original retail purchaser. Because local area operating conditions and customer care have an effect on gelcoat finishes, the gelcoat finish warranty does not include (1) damage or deterioration (i.e.: fading, oxidation, discoloration) due to in-water storage or improper care of the gelcoat surface; or (2) deterioration (i.e.: fading, oxidation, discoloration) to the gelcoat finish of any Cobalt boat with colored (non-white) gelcoat located below the static waterline.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THE ABOVE LIMITED EXPRESS WARRANTIES. IN THE EVENT ANY LAW DOES NOT PERMIT THE DISCLAIMER OF ANY IMPLIED WARRANTY, THEN IN NO EVENT SHALL ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND THE DURATION OF THESE EXPRESS WRITTEN WARRANTIES.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Cobalt warrants that the hull and deck

Exclusions.

time commercially, industrially, for racing or other competition or for revenue producing purposes, and also do not apply to: (1) engines, outdrives, propellers, controls, batteries, or other equipment or accessories which are separately warranted by the manufacturers thereof; (2) engines, outdrives, propellers, controls, trailers, equipment or accessories installed by persons or parties other than Cobalt or an authorized Cobalt dealer; (3) windshield leakage, rainwater leakage, windshield or window damage or breakage; (4) deterioration or damage, fading or shrinkage of upholstery, carpet or canvas; (5) damage related to the alteration or modification of such Cobalt boat with any structurally affecting addition, component or accessory not specifically in accordance with Cobalt’s specifications or offered as an option by Cobalt; (6) damage, deterioration (i.e.: fading, oxidation, corrosion) of surface finishes, vinyls, fabrics, aluminum and stainless steel finishes; (7) damage or failures caused by operation of the Cobalt boat outside of the maximum horsepower specifications recommended by Cobalt; (8) damage or failure related to repairs made by any service provider not approved by Cobalt; (9) damage (i.e.: scratches, fading, oxidation, discoloration) to the gelcoat finish; (10) deterioration (i.e.: fading, oxidation, discoloration) to the gelcoat finish of any Cobalt boat with colored (non-white) gelcoat located below the static waterline; (11) damage or failure related to alteration, modification, misuse, neglect, negligence, accident or failure to provide reasonable care and maintenance of such Cobalt boat.

The above described limited warranties do not apply if such Cobalt boat has been used at any

1-2

200 Owner’s Manual

ENERAL

Remedies. During the applicable limited warranty period, as set forth above, covered warranty repairs shall be made without charge by an authorized Cobalt dealer or, at the option of Cobalt, by Cobalt at its plant in Neodesha, Kansas or at a facility specifically authorized by Cobalt. All warranty repairs shall be subject to the authorization of factory-trained personnel of Cobalt, whose decision shall be final. Transportation to and from an authorized Cobalt dealer, and/or to and from the Cobalt plant in Neodesha, Kansas, for warranty repairs, shall be at Owner’s expense. Repair of blisters, when authorized by Cobalt, are covered by this warranty, provided the original factory gelcoat surface has not been altered in any way.

The rights and benefits granted under the above described limited warranty extend to (1) the original retail purchaser of a new Cobalt boat, and (2) any owner of such Cobalt boat during the applicable warranty period, commencing with the date of delivery of such Cobalt boat to the original retail purchaser provided that such limited warranty is validated by such subsequent owner, as set forth herein. COBALT’S ONLY

RESPONSIBILITY, AND THE OWNER’S ONLY REMEDY, IS REPAIR AS DESCRIBED IN THIS WARRANTY. COBALT SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT OR SPECIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

NFORMATION

How to obtain Warranty Service.

purchaser or authorized Cobalt dealer must complete and return the warranty registration card to Cobalt Boats at 1715 N. 8th Street, Neodesha, KS 66757, within ten (10) days after purchase of any new Cobalt boat covered by such limited warranty, and (2) any subsequent owner of a Cobalt boat during the applicable limited warranty period must give written notice of the acquisition of a Cobalt boat to Cobalt within ten (10) days after such purchase. Notification of any warranty claim arising within the applicable warranty period, as set forth above, must be made in writing by the owner of such Cobalt boat or by an authorized Cobalt dealer to Cobalt within thirty (30) days after the discovery of the alleged basis for any warranty claim. The five (5) year extended Service Agreement is administered by a third party. For more information regarding this coverage and obtaining service, refer to the Extended Service Agreement booklet in your boat bag. All warranties, Cobalt and Extended Service are transferable and transfer fees are applicable.

To validate the above described limited warranty, (1) the original retail

200 Owner’s Manual

1-3

COBALT

200

BOWRIDER

INTRODUCTION

This manual was created following International Organization for Standards (ISO) 10240:2004 as a guideline. Not all information to conform to the standards set forth by ISO can be included in this manual without certain manufacturer’s consent of the equipment included on your boat.

This owner’s manual contains information that is necessary to run the boat properly, safety topics, and operation and maintenance hints.

Even if everything has been planned and designed for the safety of the boat and its users, boating is highly dependent on the weather conditions, the sea state, and the experience and physical shape of the crew, and one can never ensure full safety. It is your responsibility as the owner or user to know the boat’s equipment, its capabilities and the boat’s intended use.

The specific information on the operation of the equipment and systems your boat is supplied with or fitted with should be supplied by that manufacturer. Read, understand and keep all the information supplied, and familiarize yourself and all users with the boat before you put it into use.

All persons should wear a suitable life preserver/personal flotation device when on deck. In some countries it is a legal requirement to wear a suitable life preserver/personal flotation device that complies with those countries’ regulations at all times.

ECTION

WARNING

Avoid serious injury or death.

• Children, disabled people and non-swimmers should wear a personal flotation device at all times. Children and non-swimmers need special instruction in the use of life preservers. Inform all passengers on the proper use of personal flotation devices and of the location of safety equipment, man overboard recovery equipment, and the location and deployment of the ladder.

• Avoid contact with any running machinery moving parts, such as an engine, generator or propeller. Contact can result in loss of body parts, strangulation, burns and/or severe loss of blood. Keep all machinery guards in place when machinery is operating.

Intended Use

Your Cobalt boat is intended for use as a pleasure and sport craft.

Craft Design Category

Significant Wave Height – is the mean height of the highest one-third of the waves, which approximately corresponds to the wave height estimated by an experienced observer. Some waves will be double this height.

OCEAN – Category A

Craft designed to operate in winds that may exceed wind Beaufort force 8 and in significant wave heights of 13' 1.44" (4 m) and above, and is largely self-sufficient. Abnormal conditions such as hurricanes are excluded. Such conditions may be encountered on extended voyages, for example across oceans, or inshore when unsheltered from the wind and waves for several hundred nautical miles.

1-4

200 Owner’s Manual

ENERAL

NFORMATION

OFFSHORE – Category B

Craft designed to operate in winds up to Beaufort force 8 and the associated wave heights and in significant wave heights up to 13' 1.44" (4 m). Such conditions may be encountered on offshore voyages of sufficient length, or on coastal waters when unsheltered from the wind and waves for several dozens of nautical miles. These conditions may also be experienced on inland seas of sufficient size for the wave height to be generated.

INSHORE – Category C

Craft designed to operate in winds up to Beaufort force 6 and the associated wave heights and significant wave heights up to 6' 6.7" (2 m). Such conditions may be encountered in exposed inland waters, in estuaries and in coastal waters in moderate weather conditions.

SHELTERED WATERS – Category D

Craft designed to operate in winds up to Beaufort force 4 and the associated wave heights (occasional maximum waves of 1' 7.7" [0,5 m] height). Such conditions may be encountered in sheltered inland waters, and in coastal waters in fine weather.

OWNER RESPONSIBILITY/ WARRANTY PROCEDURE

Before Operating

Before operating your new Cobalt boat, it is necessary that you read and understand this manual. Also, take the time to read the other component manuals supplied to you in your owner’s packet.

Warranty Service Requirements

All Cobalt warranty service must be completed by an authorized Cobalt dealer. If you are not able to return your boat to your selling dealership, you must contact him so he may assist you in coordinating the warranty repairs. Any claims against Cobalt Boats without prior approval from Cobalt Boats on repairs completed by an unauthorized dealership may be denied.

Extended Service Agreement

With your Cobalt purchase, an Extended Limited Service Agreement is included. Your dealer submitted the necessary forms to implement this coverage. Please read the Extended Service Agreement supplied to you in your boat bag for specific coverages and exclusions.

It is important your Cobalt boat is serviced per the engine manufacturer’s recommended instructions. You must keep, in your possession, records of all service performed should the extended service coverages be needed. This is to prove the required maintenance has been performed. Be sure to collect receipts for work performed and make an entry in the Service Log in the back of this manual.

If you have any questions referencing your Extended Service Agreement, please contact your authorized Cobalt dealer.

If You Sell Your Cobalt Boat

Your warranties are transferable. If you sell your Cobalt boat to anyone other than an authorized Cobalt dealer, please refer to the Warranty Transfer Form on the last page of this manual. If the proper transfer procedures are not followed, future warranty may be denied.

200 Owner’s Manual

1-5

COBALT

200

BOWRIDER

ECTION

CERTIFICATIONS

NMMA

Cobalt Boats is a member of the National Marine Manufacturers Association (NMMA). This independent organization’s members include boat, engine and marine equipment manufacturers that are focused on the improvement and safety of boating.

Your new Cobalt boat is NMMA certified. An NMMA certification not only satisfies the U.S. Coast Guard (USCG) regulations but also the more rigorous equipment and system standards based on those established by the American Boat and Yacht Council, Inc. (ABYC).Your Cobalt boat meets or exceeds NMMA safety-based certifications.

Cobalt Boats has made a significant contribution to the boating industry by successfully completing the Mercury MerCruiser certification program and the Volvo Penta Certified OEM Program.

MerCruiser

The MerCruiser Program partners boat builders with MerCruiser to improve product quality and enhance boating-enthusiast satisfaction. The certification program is designed to review all facets of manufacturing and installation processes and to identify opportunities to implement Lean Six Sigma processes and training programs. Key areas of focus include assembly and component specifications, propulsion-installation processes and industry-standard end-of-line test procedures.

Volvo Penta

propulsion-installation quality

FEATURES/CONSTRUCTION

Amenities

Your Cobalt boat incorporates classic styling with the long, clean lines that have defined Cobalt design for over 40 years.

Performance features include a hand-laid reinforced Kevlar with an all-fiberglass stringer system and AME 1000 vinylester resins used on the deck and hull for superior strength, toughness and weight savings.

Construction Standards/Certifications

A Warranty Statement explaining terms and conditions is supplied in this section. Please familiarize yourself with this statement. Failure to follow operating instructions and proper maintenance can void the warranty.

Construction Standards detailing industry standards followed in building your Cobalt boat are explained in this section. Please contact your authorized Cobalt dealer for additional construction information.

Serial Number Locations

Your Cobalt boat, its engines and propulsion units, and other equipment onboard will have a serial number for identification. It is a good practice to prepare a list of all serial number items and store it in a safe place other than onboard the boat. A page is supplied at the end of this manual for this purpose. Please refer to the equipment operator’s manuals supplied in your owner’s packet for location of serial numbers.

The Volvo Penta Program requires the boat builder commitment to follow the established training requirements, installation procedures and documentation processes throughout the engine installation and testing process. Ultimately, the goal of the program is to improve integrated product quality and customer satisfaction as well as to reduce warranty visits and costs.

1-6

200 Owner’s Manual

ENERAL

NFORMATION

WARNING LABELS

The warning labels on your Cobalt boat must remain legible. If a label is damaged or you suspect a label is missing, contact your authorized Cobalt dealer for immediate replacement.

Transom of Boat

WARNING

Gasoline vapors can explode

Before starting engine:

• Check engine compartment for gasoline or vapors.

• Operate blower for 4 minutes.

Run blower below cruising speed

Helm

WARNING

LEAKING FUEL IS A FIRE AND EXPLOSION HAZARD. INSPECT SYSTEM REGULARY. EXAMINE FUEL SYSTEM FOR LEAKS OR CORROSION AT LEAST ANNUALLY.

NMMA 1990/NO.200

CARBON MONOXIDE IS COLORLESS, ODORLESS AND

DANGEROUS. ALL GASOLINE POWERED ENGINES AND

GENERATORS EXHAUST CARBON MONOXIDE (CO).

DIRECT AND PROLONGED EXPOSURE TO CO WILL

CAUSE BRAIN DAMAGE OR DEATH. SIGNS OF EXPOSURE

TO CO INCLUDE NAUSEA, DIZZINESS AND DROWSINESS.

Keep Cabin and cockpit Areas Well Ventilated.

Avoid Blockage of Exhaust Outlets.

See Owner’s Manual for More Details.

Carbon monoxide will cause brain damage or death.

DO NOT OCCUPY THIS AREA AT-ANY TIME

There are several labels used to point out hazards. All of these labels shown may not be included on your boat. The general location of the labels is as follows:

Helm

DANGER

Helm and Cabin

WARNING

Ventilation is not provided.

WARNING

PROPELLER LOCATED BEHIND THIS BOAT. CONTACT MAY CAUSE SEVERE INJURY OR FATALITY. DO NOT APPROACH OR USE LADDER AND PLATFORM WHEN THE ENGINE IS RUNNING.

Transom of Boat

Engine Compartment

DO NOT OCCUPY EXTENDED SWIM PLATFORM WHILE

ENGINE IS RUNNING OR ENGAGED. PROPELLER

CONTACT MAY CAUSE SEVERE INJURY OR FATALITY.

ALL GASOLINE POWERED ENGINES PRODUCE

CARBON MONOXIDE (CO). CO IS COLORLESS,

ODORLESS, AND DANGEROUS. DIRECT AND

PROLONGED EXPOSURE TO CO WILL CAUSE BRAIN

WARNING

DAMAGE OR DEATH.

Extended Swim Platform Extended Swim Platform

Unvented Storage Areas

WARNING

EXTENDED SWIM PLATFORM MUST BE

ATTACHED WHILE BOAT IS IN USE TO AVOID

POSSIBLE INJURY OR DROWNING. SWIM

LADDER IS ATTACHED TO THE PLATFORM.

REMOVABLE FEATURE IS FOR BOAT

STORAGE PURPOSES ONLY.

Hydraulic Swim Platform

WARNING

AVOID OBSTRUCTION OF NAVIGATION

LIGHTS AND POSSIBLE COLLISION. REMOVE CANVAS

BEFORE USING NAVIGATION OR ANCHOR LIGHTS.

Navigation LightAft Sun Pad

COB_0018_A

200 Owner’s Manual

1-7

COBALT

200

BOWRIDER

ECTION

WARNING

Keep hands and feet away from drive unit when tilting.

Transom of Boat

Engine Compartment, Generator

WARNING!

SECURE DOOR WHEN CRUISING

DO NOT SIT, STAND, OR PLACE

HEAVY OBJECTS ON DOOR.

KEEP CABIN DOOR CLOSED WHEN

ENGINES OR GENERATOR ARE RUNNING.

CAUSTIC MATERIALS TO CLEAN.

WASH WITH MILD SOAP AND WATER.

To minimize shock and fire hazards:

(1) Turn off the boat’s shore connection switch before connecting or disconnectong short cable (2) Connect shore power cable at the boat first. (3) If polarity warning indicator is activated. immediatly disconnect cable. (4) Disconnect shore power cable at shore outlet first. (5) Close shore power inlet cover tightly.

DO NOT ALTER SHORE POWER

Shore Power Connection

DO NOT USE

Cabin Door

WARNING

CABLE CONNECTORS

CAUTION

UNLOCK & REMOVE

KEY TO AVOID

BREAKING

Cabin Door

For maximum enjoyment and safety, check each of these items BEFORE you start your engine: — DRAIN PLUG (securely in Place?) — LIFE-SAVING DEVICES (One for every person on board?) — STEERING SYSTEM (Working smoothly and properly?) — FUEL SYSTEM (Adequate fuel? Leaks? Fumes?) — BATTERY (Fully charged? Proper water level) — ENGINE (In neutral?) — CAPACITY PLATE (Are you overloaded or overpowered?) — WEATHER CONDITIONS (Safe to go out) — ELECTRICAL EQUIPMENT (Lights, horn, pump, etc?) — EMERGENCY GEAR (Fire extinguisher, bailer, paddle,anchor and line, signalling device, tool kit, etc?)

— REMAIN SEATED WHILE UNDERWAY — AVOID USING REAR PAD OR SUNDECK WHILE ENGINE IS RUNNING — DO NOT USE BOARDING LADDER WHILE ENGINE IS RUNNING — TURN OFF ENGINE AND ALL ELECTRICAL SYSTEMS WHILE RE-FUELING — TURN OFF ENGINE WHEN SWIMMERS ARE NEAR BOAT

COBALT CHECK LIST

RECOMMENDED SAFETY RULES

Helm

Above Hydraulic Swim Platform Switch

CAUTION

TO AVOID INJURY, GLASS DOOR MUST BE SECURED IN A CLOSED AND LOCKED POSITION WHEN BOAT IS UNDER WAY. USE BOTH TURN LOCKS TO SECURE DOOR.

Walk-Through Door/Windshield

CAUTION

FOOT CAN SLIP THROUGH

RUNG CAUSING BODILY

INJURY, CLOSE CABIN DOOR

BEFORE USING FORE DECK

LADDER

Companionway Area

Engine Compartment

Helm

(actual capacity varies by model)

Helm (California Only)

COB_0019_A

1-8

200 Owner’s Manual

ENERAL

NFORMATION

PUBLICATIONS

Your owner’s packet includes information about onboard systems and equipment furnished by suppliers other than Cobalt Boats. Please refer to these manufacturer’s manuals for additional operation and maintenance instructions not covered in this manual.

NAUTICAL TERMS

ABOARD – On or in the boat.

ABYC – American Boat and Yacht Council, Inc.

AFLOAT – On the water.

AFT – Toward the rear or stern of the boat.

AGROUND – Touching bottom.

AMIDSHIP – Center or middle of the boat.

ANCHOR – (1) An iron casting shaped to grip the

lake bottom to hold the boat. (2) The act of setting the anchor.

CAPACITY PLATE – A plate that provides maximum weight capacity and engine horsepower rating information. It is located in full view of the helm.

CAPSIZE – To turn over.

CAST-OFF – To unfasten mooring lines in

preparation for departure.

CENTER LINE – A lengthwise imaginary line which runs fore and aft with the boat’s keel.

CHINE – The point on a boat where the side intersects (meets) the bottom.

CLEAT – A deck fitting with ears to which lines are fastened.

CONSOLE – Also called helm. The steering wheel area of the boat.

CRANKING BATTERY – The main battery used for engine starting and electrical circuits.

CURRENT – Water moving in a horizontal direction.

ASHORE – On the shore.

ASTERN – Toward the stern.

BAIL – To remove water from the bottom of the

boat with a pump, bucket, sponge, etc.

BEAM – The widest point on the boat.

BEARING – Relative position or direction of an

object from the boat.

BILGE – The lowest interior section of the boat hull.

BOARDING – To enter the boat.

BOUNDARY WATERS – A body of water between

two areas of jurisdiction; i.e., a river between two states.

BOW – The front of the boat.

BULKHEAD – Vertical partition (wall) in a boat.

BUNKS – Carpeted trailer hull supports.

BURDENED BOAT – Term for the boat that must

“give-way” to boats with the right-of-way.

DECK – The open surface on the boat where the passengers walk.

DEEP CYCLE BATTERIES – Special long-running batteries which can be repeatedly discharged and recharged without significant loss of power.

DOLLY WHEEL – A rolling jack assembly at the front of the trailer used for positioning the coupler during trailer hookup.

DRAFT – The depth of the boat below the water line, measured vertically to the lowest part of the hull.

ELECTROLYSIS – The break-up of metals due to the effects of galvanic corrosion.

EPIRB – Emergency Position Indicating Radio Beacon.

FATHOM – Unit of depth or measure; 1 fathom equals 6 feet.

FENDERS – Objects placed alongside the boat for cushioning. Sometimes called bumpers.

200 Owner’s Manual

1-9

COBALT

200

BOWRIDER

ECTION

FORE – Toward the front or bow of the boat. Opposite of aft.

FREEBOARD – The distance from the water to the gunwale.

FUEL SENDING UNIT – The electrical device that is mounted on the outside of a built-in fuel tank and controls the dashboard fuel gauge.

GIVE-WAY BOAT – (1) Term for the boat that must take whatever action necessary to keep well clear of the boat with the right-of-way in meeting or crossing situations. (2) The burdened boat.

GUNWALE – The rail or upper edge of a boat’s side.

HEAD – A marine toilet.

HELM – The steering wheel or command area.

HULL – The body of the boat.

HYPOTHERMIA – A physical condition where the

body loses heat faster than it can produce it.

IN-LINE FUSE – A type of protective fuse located in the power wire of a direct current (DC) circuit usually near the battery.

KEEL – The lowest portion of the boat; extends fore and aft along the boat’s bottom.

LIST – Leaning or tilt of a boat toward the side.

LOA – Length overall.

NO-WAKE SPEED – The speed at which a boat

travels to produce an imperceptible wake.

PFD – Personal flotation device.

PITOT TUBE – See SPEEDOMETER PICKUP

TUBE.

PLANING HULL – A hull designed to lift, thereby reducing friction and increasing efficiency.

PORPOISE – A condition in which the bow bounces up and down caused by trimming the engine too far out.

PORT – (1) The left side of a boat when facing the bow. (2) A destination or harbor.

PRIVILEGED BOAT – Term used for the boat with the right-of-way.

RIGHT-OF-WAY – Term for the boat that has priority in meeting or crossing situations. The stand on or privileged boat.

RULES OF THE ROAD – Regulations for preventing collisions on the water.

SPEEDOMETER PICKUP TUBE – Also called pitot tube. The plastic device that extends below the bottom of the boat. It connects to the speedometer with plastic flexible tubing.

STAND ON BOAT – Term for the boat that must maintain course and speed in meeting or crossing situations. The privileged boat.

MAKING WAY – Making progress through the water.

MARINE CHART – Seagoing maps showing depths, buoys, navigation aids, etc.

MOORING – An anchor, chain, or similar device that holds a boat in one location.

NAVIGATION AID – Recognizable objects on land or sea such as buoys, towers or lights which are used to fix position to identify safe and unsafe waters.

NMMA – National Marine Manufacturers Association.

STARBOARD – The right side of the boat when looking toward the bow.

STERN – The back of the boat.

STOW – To pack the cargo.

SURGE BRAKES – A type of trailer braking system

designed to automatically actuate when the tow vehicle’s brakes are applied.

TRANSDUCER – The unit that sends/receives signals for the depth sounder.

TRANSOM – The transverse beam across the stern.

TRIM – Fore to aft and side to side balance of the boat when loaded.

1-10

200 Owner’s Manual

ENERAL

UNDERWAY – Boat in motion, i.e., not moored or anchored.

USCG – United States Coast Guard.

VISUAL DISTRESS SIGNAL – A device used to

signal the need for assistance such as flags, lights and flares.

WAKE – The waves that a boat leaves behind when moving through the water.

WATERWAY – A navigable body of water.

WINDLASS – An electric winch to raise the anchor.

NFORMATION

200 Owner’s Manual

1-11

COBALT

SYMBOLS

200

BOWRIDER

ECTION

Light Filter Sling Point Compass Anchor

Lights

Boat

Profile

STOP

Engine

Stop

Bow Tr im

Engine Fuel

Do Not

Use Water

Ta nk

Draft Engine

Caution

Grease Height

Above Water

Blower Boat

Engine

Hour Meter

Holding

Tank

Engine

Key

Horn

Ignition

Switch

Overall Length

Tr im

Tabs

Lift

Point

Water

Tank

Light Navigation

Lights

Windshield

Wipers

1-12

Safety Alert

Symbol

Oil Tank

COB_0030_A

200 Owner’s Manual

ENERAL

NFORMATION

SPECIFICATIONS

200

Length Overall w/o Swim Platform 19' 4" (5.89 m)

Length Overall w/Swim Platform 20' 10" (6.35 m) Beam 8' 4" (2.54 m)

Deadrise at Transom 20°

Capacity, Fuel 40 gal (151 L) Capacity, Freshwater 10 gal (38 L)

Bridge Clearance w/o Bimini 3' 11" (1.19 m)

Bridge Clearance w/Tower 6' 10" (2.08 m) Draft, Drive Up 24" (0.61 m)

Draft, Drive Down 37" (0.94 m)

Dry Weight 3500 lbs (1588 kg) Boat Certified Capacity 11 persons

Boat Certified Capacity w/Gear 1515 lbs (687 kg)

200WSS

Length Overall w/o Swim Platform 20' 4'' (6.20 m) Length Overall w/Swim Platform 22' 5'' (6.83 m)

Beam 8' 6'' (2.59 m)

Interior Cockpit Width 89'' (2.26 m) Deadrise at Transom 20°

Capacity, Fuel 40 gal (151 L)

Capacity, Freshwater 10 gal (38 L) Bridge Clearance w/o Bimini 4' 0'' (1.22 m)

Bridge Clearance w/Arch or Tower 7' 7'' (2.31 m)

Draft, Drive Up 24'' (0.61 m) Draft, Drive Down 36'' (0.92 m)

Dry Weight 3850 lbs (1746 kg)

Boat Certified Capacity 12 persons

Boat Certified Capacity w/Gear 1650 lbs (748 kg)

200 Owner’s Manual

1-13

COBALT

LAYOUT

200

BOWRIDER

ECTION

1. Anchor Locker

2. Bow Storage

3. Fire Extinguisher/Storage

4. Circuit Breaker Panel

5. Ignition Safety Switch

6. Fuel Tank Vent

7. Battery Switch/Storage

8. Fuel Fill

9. Bilge Pump-out

10. Engine Vent

11. Boarding Ladder/Swim Platform

12. Ski Tow

13. Bilge Pump

14. Optional Flagpole Receptacle

15. Navigation Lights

16. Anchor Light Storage

17. Ice Chest/Removable

18. Optional Dinette Table Mount

19. Glove Box/Stereo/12V Outlet

20. Storage/Dockline

21. Ski Locker

22. Fuel Tank/Access

COB_0319_A

23. Air Compressor/Storage

24. Optional Transom Tilt Switch

25. Optional Stereo Remote

1-14

200 Owner’s Manual

ENERAL

PROPELLER APPLICATION CHART

NFORMATION

MFGR ENGINE DRIVE PHP

MERC 4.3 L MPI & ECT ALPHA 220 MPI 1.62 1.81 14-1/2 x 19 Blk Mx 480084 48-832830A45 14-1/2 x 17 Veng 480091 48-16314A46

MERC 4.3 L MPI & ECT BRAVO 3 220 MPI 2.2 2.43 24 pitch 4 Blade 481228 8M8022420

MERC 5.0 L MPI & ECT ALPHA 260 MPI 1.47 1.62 15 x 17 RH 480085 77344A45 14-1/2 x 17 Veng 480091 48-16314A46

MERC 5.0 L MPI & ECT BRAVO 1 260 MPI 1.65 1.65

MERC 5.0 L MPI & ECT BRAVO 3 260 MPI 2.2 2.43 24 pitch 4 Blade 481228 8M8022420

MERC 350 MAG MPI & ECT ALPHA 300 MPI 1.47 1.62

MERC 350 MAG MPI & ECT BRAVO 1 300 MPI 1.65 1.65

MERC 350 MAG MPI & ECT BRAVO 3 300 MPI 2.2 2.43 26 pitch 4 Blade 481230 8M8022440

MERC 377 MAG MPI & ECT BRAVO 1 320 MPI 1.65 1.65

MERC 377 MAG MPI & ECT BRAVO 3 320 MPI 2.2 2.43

VOLVO 4.3 Gxi & GXiC SX 225 MPI 1.79 1.89 19 pitch 480342

VOLVO 4.3 Gxi & GXiC DP 225 MPI 2.32 2.32 FH7’s 481407 3885843

VOLVO 5.0 Gxi & GXiC SX 270 MPI 1.6 1.79 21 pitch 3 blade 480341

VOLVO 5.0 Gxi & GXiC DP 270 MPI 1.95 2.32 FH5’s 481405 3851495

VOLVO 5.7 Gi & GiC DP 30 0 MPI 1.95 2.14

VOLVO 5 .7 Gxi & GXiC SX 3 20 MPI 1.51 1.5 1

VOLVO 5 .7 Gxi & GXiC D P 320 MPI 1.95 1.95

FUEL

SYSTEM

STD

RATIO

OPT

RATIO

AL PROP AL PART#

AL MFG

PART#

SS PROP

24 pitch 3 Blade 481229 8M8022430

26 pitch 3 Blade 481231 8M8022450

PART#

SS MFG

PART#

200 Owner’s Manual

1-15

COBALT

200

BOWRIDER

ECTION

ALPHABETICAL INDEX

200. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

200WSS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

3" Digital Gauge. . . . . . . . . . . . . . . . . . . . . . . 3-25

After Boating . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

After Boating:. . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

After Fueling: . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Aids to Navigation . . . . . . . . . . . . . . . . . . . . . 2-22

Air Compressor - Optional . . . . . . . . . . . . . . . 3-33

Alarm Overview . . . . . . . . . . . . . . . . . . . . . . . 3-25

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25

Alphabetical Index . . . . . . . . . . . . . . . . . . . . . 1-16

Amenities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Anchor Light. . . . . . . . . . . . . . . . . . . . . . . . . . 3-33

Anchoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Approaching a Mooring . . . . . . . . . . . . . . . . . 3-12

Approaching a Slip. . . . . . . . . . . . . . . . . . . . . 3-12

Audible/Visual Distress Signals . . . . . . . . . . 2-10

Basic Maneuvering . . . . . . . . . . . . . . . . . . . . 3-12

Battery Connections . . . . . . . . . . . . . . . . . . . . 4-7

Battery Switch . . . . . . . . . . . . . . . . . . . . . . . . 3-34

Before Each Use . . . . . . . . . . . . . . . . . . . . . . . 6-2

Before Launching. . . . . . . . . . . . . . . . . . . . . . . 7-1

Before Operating . . . . . . . . . . . . . . . . . . . . . . . 1-5

Before Starting Checklist . . . . . . . . . . . . . . . . . 3-5

Before You Start . . . . . . . . . . . . . . . . . . . . . . . 3-1

Bilge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Bimini Top - Optional . . . . . . . . . . . . . . . . . . . 3-35

Boarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Boat in the Water. . . . . . . . . . . . . . . . . . . . . . 3-31

Boat Information . . . . . . . . . . . . . . . . . . . . . . . 7-6

Boat on a Trailer . . . . . . . . . . . . . . . . . . . . . . 3-31

Boat Theory . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Bow Cushion Insert - Optional. . . . . . . . . . . . 3-32

Bow Tonneau Cover - Optional . . . . . . . . . . . 3-34

Break-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Burdened Boats. . . . . . . . . . . . . . . . . . . . . . . 2-20

Cabinetry and Wood . . . . . . . . . . . . . . . . . . . . 5-3

Cabinetry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

California Air Resource Board (CARB)

Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Canvas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Captain’s Chair Adjustments and

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30

Carbon Monoxide Detectors, if equipped . . . . 3-6

Care and Cleaning of Vinyl . . . . . . . . . . . . . . . 5-1

Carpet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Casting Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Cedar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Certificate of Limited Warranty . . . . . . . . . . . . 1-2

Certifications. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Check Engine Alarm. . . . . . . . . . . . . . . . . . . . 3-26

Circuit Breaker Panel . . . . . . . . . . . . . . . . . . . . 4-4

Cleaning Agents. . . . . . . . . . . . . . . . . . . . . . . . 2-6

Cleaning Canvas . . . . . . . . . . . . . . . . . . . . . . . 5-7

Cleaning Deck and Hull . . . . . . . . . . . . . . . . . . 5-4

Cleaning Stainless Steel . . . . . . . . . . . . . . . . . 5-4

Clear Vinyl “Isinglass”. . . . . . . . . . . . . . . . . . . . 5-8

Cobalt Check List . . . . . . . . . . . . . . . . . . . . . . . 3-7

Cobalt Instrumentation System . . . . . . . . . . . 3-20

Cockpit Dinette Table - Optional . . . . . . . . . . 3-32

Cockpit Heater . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

Cockpit Tonneau Cover - Optional . . . . . . . . . 3-35

Collisions/Leaks . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Components, Maintenance and Repairs . . . . . 2-7

Construction Standards/Certifications . . . . . . . 1-6

Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Corrosion Protection. . . . . . . . . . . . . . . . . . . . . 5-5

CorrosionX . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Craft Design Category . . . . . . . . . . . . . . . . . . . 1-4

Crossing Situation . . . . . . . . . . . . . . . . . . . . . 2-21

Cruise Control - Optional . . . . . . . . . . . . . . . . 3-33

Dark Stowage Areas . . . . . . . . . . . . . . . . . . . . 5-2

Deck and Hull Care . . . . . . . . . . . . . . . . . . . . . 5-4

Deck and Hull . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

Discharge of Oil . . . . . . . . . . . . . . . . . . . . . . . 2-17

Discharge/Disposal of Waste . . . . . . . . . . . . . . 2-6

Distress Signals . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Docking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Drive Unit Trim . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Drowning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Drugs/Alcohol. . . . . . . . . . . . . . . . . . . . . . . . . 2-14

During Operation . . . . . . . . . . . . . . . . . . . . . . . 7-2

During Operation: . . . . . . . . . . . . . . . . . . . . . . . 3-5

Ebony Woodgrain Dash . . . . . . . . . . . . . . . . . . 5-3

Education Opportunities. . . . . . . . . . . . . . . . . . 2-3

Electrical System . . . . . . . . . . . . . . . . . . . . . . . 4-4

Electrical System . . . . . . . . . . . . . . . . . . . . . . . 6-3

Electrical Systems . . . . . . . . . . . . . . . . . . . . . . 2-4

Electrical Wiring Harness . . . . . . . . . . . . . . . . . 4-2

Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Emergency Considerations . . . . . . . . . . . . . . . 2-7

Emission Control Warranty Information . . . . . . 2-5

Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Engine/Propulsion/Cooling System . . . . . . . . . 6-3

Entertainment System . . . . . . . . . . . . . . . . . . 3-19

Environmental Considerations . . . . . . . . . . . . . 2-5

Environmental Considerations . . . . . . . . . . . . 3-18

1-16

200 Owner’s Manual

ENERAL

NFORMATION

Every 100 Hours . . . . . . . . . . . . . . . . . . . . . . . 6-3

Every 50 Hours . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Excessive Noise . . . . . . . . . . . . . . . . . . . . . . 2-17

Excessive Noise . . . . . . . . . . . . . . . . . . . . . . . 2-6

Exhaust Emissions . . . . . . . . . . . . . . . . . . . . . 2-6

Exhaust System. . . . . . . . . . . . . . . . . . . . . . . . 2-4

Extended Service Agreement . . . . . . . . . . . . . 1-5

Extended Swim Platform/Boarding Ladder . . 3-30

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-34

Features/Construction . . . . . . . . . . . . . . . . . . . 1-6

Federal, State and Local Regulations . . . . . . 2-17

Fire Extinguisher . . . . . . . . . . . . . . . . . . . . . . . 2-2

Fire Suppression Equipment . . . . . . . . . . . . . . 4-4

Fire. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Fire/Explosion . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

First-Time Operation . . . . . . . . . . . . . . . . . . . . 3-1

Fishery Resources . . . . . . . . . . . . . . . . . . . . . . 2-6

Flagpole with Flag - Optional. . . . . . . . . . . . . 3-37

Flip Down Swim Step - Optional . . . . . . . . . . 3-31

Float Plan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Flooding/Swamping . . . . . . . . . . . . . . . . . . . . . 2-8

Foreign Species. . . . . . . . . . . . . . . . . . . . . . . . 2-7

Freezing Temperatures . . . . . . . . . . . . . . . . . 3-18

Fresh Water . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Fuel Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Fuel Requirements . . . . . . . . . . . . . . . . . . . . . 3-2

Fuel Routing . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Fuel System . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Fuel/Spillage . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Galvanic Corrosion . . . . . . . . . . . . . . . . . . . . . 5-6

General Safety. . . . . . . . . . . . . . . . . . . . . . . . 2-12

Getting Underway . . . . . . . . . . . . . . . . . . . . . . 3-5

Gray Water . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Guardian Active Alarm. . . . . . . . . . . . . . . . . . 3-26

Handholds . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Handling Dock and Mooring Lines. . . . . . . . . . 3-6

Helm and Instrumentation . . . . . . . . . . . . . . . 3-21

Helm Fault Alarm . . . . . . . . . . . . . . . . . . . . . . 3-26

High Voltage Alarm . . . . . . . . . . . . . . . . . . . . 3-25

High-Speed Operation. . . . . . . . . . . . . . . . . . 3-15

Horn or Whistle . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Ice Chest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32

If You Sell Your Cobalt Boat . . . . . . . . . . . . . . 1-5

INSHORE – Category C . . . . . . . . . . . . . . . . . 1-5

Inside the Bulkhead . . . . . . . . . . . . . . . . . . . . . 5-5

Insurance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Isolated Danger Markers . . . . . . . . . . . . . . . . 2-26

Lateral Markers . . . . . . . . . . . . . . . . . . . . . . . 2-24

Launching Checklist . . . . . . . . . . . . . . . . . . . . . 3-4

Launching. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

Leather Care . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Leaving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Life Raft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Lifesaving Devices . . . . . . . . . . . . . . . . . . . . . . 2-2

Lifesaving Equipment . . . . . . . . . . . . . . . . . . . . 2-9

Lifting the Boat . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Light Structures . . . . . . . . . . . . . . . . . . . . . . . 2-26

Lighthouses . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Lighting/Bulb Replacement . . . . . . . . . . . . . . . 4-6

Load Distribution . . . . . . . . . . . . . . . . . . . . . . 3-13

Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Loading. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Low Block Pressure Alarm . . . . . . . . . . . . . . . 3-25

Low Drive Lube Alarm . . . . . . . . . . . . . . . . . . 3-26

Low Oil Pressure Alarm . . . . . . . . . . . . . . . . . 3-25

Low Voltage Alarm . . . . . . . . . . . . . . . . . . . . . 3-25

Lowering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Lubrication System. . . . . . . . . . . . . . . . . . . . . . 2-4

Maintenance Schedule. . . . . . . . . . . . . . . . . . . 6-1

Marine Growth . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Marine Sanitation . . . . . . . . . . . . . . . . . . . . . . 2-17

MARPOL Treaty . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Medical Emergency . . . . . . . . . . . . . . . . . . . . . 2-8

Meeting Head-On . . . . . . . . . . . . . . . . . . . . . . 2-21

MerCruiser . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Minor Lights . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26

Monthly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Mooring Buoys . . . . . . . . . . . . . . . . . . . . . . . . 2-23

Motor Box Assembly . . . . . . . . . . . . . . . . . . . 3-37

Nautical Terms . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Navigation Lights . . . . . . . . . . . . . . . . . . . . . . . 2-2

NMMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

OCEAN – Category A. . . . . . . . . . . . . . . . . . . . 1-4

OFFSHORE – Category B . . . . . . . . . . . . . . . . 1-5

On the Water . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Operating Conditions . . . . . . . . . . . . . . . . . . . 2-13

Operation Checklist . . . . . . . . . . . . . . . . . . . . . 2-4

Operation Failure . . . . . . . . . . . . . . . . . . . . . . . 2-8

Operation Quick Reference . . . . . . . . . . . . . . . 7-1

Other Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

200 Owner’s Manual

1-17

COBALT

200

BOWRIDER

ECTION

Other Canvas Components . . . . . . . . . . . . . . . 5-8

Overheat Alarm . . . . . . . . . . . . . . . . . . . . . . . 3-25

Overtaking . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

Owner Responsibility/Warranty Procedure . . . 1-5

Owner/Operator Responsibilities. . . . . . . . . . . 2-1

Paints. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Personal Flotation Devices . . . . . . . . . . . . . . . 2-9

Platform Dragging (“Teak Surfing”) . . . . . . . . 2-19

Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Pre-Operation . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

Pre-Operation: . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Preventive Steps . . . . . . . . . . . . . . . . . . . . . . . 5-4

Privileged Boats. . . . . . . . . . . . . . . . . . . . . . . 2-20

Propeller Application Chart . . . . . . . . . . . . . . 1-15

Proposition 65 . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Qualified Boat Operators . . . . . . . . . . . . . . . . 2-17

Quarterly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Radar Reflectors . . . . . . . . . . . . . . . . . . . . . . 2-11

Radio Communication . . . . . . . . . . . . . . . . . . . 2-9

Range Lights . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Reactivating the Boat After Storage . . . . . . . . 6-5

Recommended Cleaning Solutions for

PreFixx-Coated Nautolex Vinyls . . . . . . . . . . . 5-2

Recommended Safety Equipment. . . . . . . . . . 2-2

Recommended Spare Parts . . . . . . . . . . . . . . 2-3

Registration/Documentation . . . . . . . . . . . . . . 2-1

Regulatory Markers . . . . . . . . . . . . . . . . . . . . 2-23

Remote Control System. . . . . . . . . . . . . . . . . . 2-3

Remote Control(s) . . . . . . . . . . . . . . . . . . . . . 3-24

Rendering Assistance . . . . . . . . . . . . . . . . . . 2-18

Reporting Accidents. . . . . . . . . . . . . . . . . . . . 2-18

Required Safety Equipment. . . . . . . . . . . . . . . 2-2

Returning to Port . . . . . . . . . . . . . . . . . . . . . . . 7-2

Returning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Rules of the Road/Sound Signals . . . . . . . . . 2-20

Safety Alert From August 28, 2001:. . . . . . . . 2-20

Safety While Boating . . . . . . . . . . . . . . . . . . . 2-17

Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Salt Water . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Salt Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

Scheduled Maintenance and Service . . . . . . . 6-1

Sea Anchors . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

Seating. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Seaworthiness Inspection . . . . . . . . . . . . . . . . 2-4

Serial Number Locations . . . . . . . . . . . . . . . . . 1-6

Service Log . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

SHELTERED WATERS – Category D . . . . . . . 1-5

Shifting/Running. . . . . . . . . . . . . . . . . . . . . . . . 3-8

Shipshape . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Signal Words/Definitions . . . . . . . . . . . . . . . . 2-12

Sisal Seagrass Carpet Alternative

Cleaning Instructions . . . . . . . . . . . . . . . . . . . . 5-3

Ski Tow Eye . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35

Skill/Experience . . . . . . . . . . . . . . . . . . . . . . . 2-14

Snap Fasteners . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Solid Waste Disposal . . . . . . . . . . . . . . . . . . . 2-17

Special Cleaning Problems . . . . . . . . . . . . . . . 5-1

Special Cleaning Problems . . . . . . . . . . . . . . . 5-7

Special Situations. . . . . . . . . . . . . . . . . . . . . . 2-22

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

Stainless Steel and Chrome. . . . . . . . . . . . . . . 5-4

Standard and Optional Equipment . . . . . . . . . 3-27

Starting Engines . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Starting the Engine. . . . . . . . . . . . . . . . . . . . . . 3-7

Starting/Shifting/Steering/Stopping . . . . . . . . . 3-6

Steering System . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Step 1 Cleaners . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Step 2 Cleaners . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Step 3 Cleaners . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Stopping the Engine. . . . . . . . . . . . . . . . . . . . 3-10

Stopping the Engines . . . . . . . . . . . . . . . . . . . . 7-2

Storage Cradle . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

Storage/Winterization. . . . . . . . . . . . . . . . . . . . 6-5

Storms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

Teak Swim Platform . . . . . . . . . . . . . . . . . . . . . 5-3

Techniques. . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

Tie-Down Locations . . . . . . . . . . . . . . . . . . . . 3-36

Tool Kit - Optional. . . . . . . . . . . . . . . . . . . . . . 3-37

Topside. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Transom Tilt Switch - Optional . . . . . . . . . . . . 3-36

Trim Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 6-6

Types of Buoys. . . . . . . . . . . . . . . . . . . . . . . . 2-22

Unscheduled Maintenance. . . . . . . . . . . . . . . . 6-3

Using Lifting Slings. . . . . . . . . . . . . . . . . . . . . . 6-4

Ventilation System . . . . . . . . . . . . . . . . . . . . . . 2-3

Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Vinyl Interior and Upholstery . . . . . . . . . . . . . . 5-1

Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14

Visual Distress Signals. . . . . . . . . . . . . . . . . . . 2-2

Voltage Sensitive Relay (VSR) - Optional . . . 3-34

Volvo Penta Ocean Series Outdrive. . . . . . . . 3-32

1-18

200 Owner’s Manual

Volvo Penta . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Wake/Wash . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Wake/Wash . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Warning Markers . . . . . . . . . . . . . . . . . . . . . . 2-28

Warranty Service Requirements . . . . . . . . . . . 1-5

Warranty Transfer Form . . . . . . . . . . . . . . . . . 7-7

Water Rescue (Man Overboard) . . . . . . . . . . . 2-8

Water Sports Safety. . . . . . . . . . . . . . . . . . . . 2-18

Water System (if equipped) . . . . . . . . . . . . . . . 6-4

Weather/Seas . . . . . . . . . . . . . . . . . . . . . . . . 2-13

Weighing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

When Fueling: . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Whistle/Horn Signals . . . . . . . . . . . . . . . . . . . 2-20

Windshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

Zippers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

ENERAL

NFORMATION

200 Owner’s Manual

1-19

NOTES

COBALT

200

BOWRIDER

ECTION

1-20

200 Owner’s Manual

ESPONSIBILITIES

AFETY

ECTION

AND

Your safety, the safety of your passengers, and other boaters are among your responsibilities as operator of this boat. Your boat must be in compliance with U.S. Coast Guard (USCG) safety equipment regulations. You should know how to react correctly to adverse weather conditions, have good navigation skills and follow the “Rules of the Road” as defined by the USCG and state/county/local regulations.

OWNER/OPERATOR RESPONSIBILITIES

At the time of delivery, the owner/operator is responsible for:

• Understanding warranty terms and conditions of both the propulsion unit(s) and boat.

• Obtaining insurance.

• Examining boat to ensure proper operation of all systems.

Before operating the boat, the owner/operator is responsible for:

• Obtaining state registration of the boat.

• Providing the proper USCG required safety equipment.

• Following proper break-in procedure for the propulsion units.

While operating the boat, the owner/operator is responsible for:

• Knowing that all safety equipment and personal flotation devices are in good condition and suitable for your boat and passenger load.

• Having at least one other passenger who is capable of handling the boat in an emergency.

• Following safe operating practices and the rules of the road.

• Understanding proper maintenance and knowledge of the boat’s operating systems.

• Providing safety training for the passengers.

• Avoiding use of alcohol and other drugs.

• Providing assistance to other boaters.

Registration/Documentation

The USCG requires that all power boats operated on the navigable waters of the U.S. must be registered in the state of main use; also, many states require registration in that state whenever boating on waters within their state boundary. Contact your state boating authorities (and neighboring states) for registration information on boats and trailers.

Your authorized Cobalt dealer can supply you with the appropriate forms.

• Understanding safety information and proper operating procedures within this manual.

200 Owner’s Manual

2-1

COBALT

200

BOWRIDER

ECTION

Required Safety Equipment

The Federal Boat Safety Act of 1971 (FBSA/71) established minimum safety standards for boats and associated equipment, specified by the USCG. In addition, the ABYC and the NMMA work with boat builders to develop voluntary standards that exceed base requirements.

The included safety equipment on your Cobalt boat meets or exceeds the standards of the USCG, ABYC and the NMMA. Some required safety equipment such as personal flotation devices are not included with your Cobalt boat. Your authorized Cobalt dealer can help you choose the appropriate equipment.

NOTICE: Many states’ equipment requirements go beyond USCG requirements. Contact your state boating office for further information. Equipment requirements for coastal and inland waters differ. Check with local authorities or the USCG for further information about coastal water requirements.

Navigation Lights

All power boats underway between sunset and sunrise must display proper navigation lights. All boats at anchor must display a proper anchor light. Anchor light must be visible 360 degrees. Your Cobalt boat is equipped with international navigation lights.

Horn or Whistle

All boats over 16 ft (4.8 m) in length must be equipped with an operable horn or whistle, audible from one mile. Your Cobalt boat is equipped with a USCG approved horn.

Fire Extinguisher

All inboard/outboard boats must carry an appropriate portable marine type fire extinguisher in operable condition and accessible location. Your Cobalt boat is equipped with a portable fire extinguisher and may have a fixed system fire extinguisher.

Lifesaving Devices

All boats must carry one USCG approved Type I, II or III, wearable, personal flotation device, of the proper size, for each person onboard. All boats over 16 ft (4.8 m) in length must carry one USCG approved Type IV throwable lifesaving device, such as a ring buoy or buoyant cushion. To meet requirements, each lifesaving device must have a currently legible USCG approval stamp permanently affixed. Your authorized Cobalt dealer can help you select appropriate PFDs and throwable lifesaving devices for your area.

Visual Distress Signals

All boats over 16 ft (4.8 m) must have onboard day and night visual distress signals. Your authorized Cobalt dealer can help you select appropriate visual distress signals for your area.

Recommended Safety Equipment

In spite of all efforts to the contrary, problems or mishaps sometimes occur while boating. Stock these items listed below on your boat to help make unexpected events more manageable.

• Anchor and anchor line

• Compass

• First aid kit

• Distress signals (flag for daytime, flares for darkness)

• Flashlight and spare batteries

• Portable radio

• Cellular phone

• Sea anchor

• Binoculars

• Emergency Position Indicating Radio Beacon (EPIRB)

• Boat hook

• Sun glasses and sun block lotion

2-2

200 Owner’s Manual

ESPONSIBILITIES AND

AFETY

Recommended Spare Parts

The following list contains common spare parts you should carry onboard. Review all the equipment on your boat. Be sure to have spare parts available to maintain and make minor repairs if necessary. Refer to all operator’s manuals in your owner’s packet for the manufacturer’s recommended spare parts.

• Lanyard for ignition safety switch

• Engine and generator oil

• Hydraulic fluid for the steering system and trim system

• Ignition keys

• Tape, tie straps and rope

• Light bulbs and fuses

• Propeller with attaching hardware

Education Opportunities

Be boat smart from the start, take a boating safety course and get a free vessel safety check annually for your boat. For more information, contact: United States Coast Guard Auxiliary, www.cgaux.org; United States Power Squadrons, 888-FOR-USPS, www.usps.org. Most boaters can enhance their enjoyment of boating experiences through increased knowledge of safe operation, navigation and regulation of pleasure boats. The following is a list of some other agencies and organizations that offer Water Safety, First Aid and CPR courses or information.

Insurance

You must get insurance before operating your new boat. Insurance for loss by fire, theft or other causes, or liability protection against accidents is a must for responsible boaters. The boat owner is legally responsible for any damage or injury caused when he, or someone else operating the boat, is involved in an accident. Many states have laws detailing minimum insurance needs. Your insurance agent or your dealer may be able to supply you with more information.

BOAT THEORY

The following information briefly explains main system theory.

Remote Control System

The shift levers and throttle levers are connected to the engine and propulsion units by mechanical push/pull cables. The shift lever controls the direction of the boat, and the throttle lever controls the speed of the boat.

Steering System

The steering wheel (helm) is connected to a hydraulic cylinder. As you turn the helm, hydraulic fluid directs movement of a steering cylinder. The cylinder is mechanically connected to the drive units. In an emergency the drive units can be turned manually by connecting a line to the drive unit and directing them.

To find boating safety courses in your area, call your state’s local boating agency or the USCG boating safety course line at 800-336-2628 (800-245-2628 in Virginia).

• American Red Cross

• U.S. Coast Guard Auxiliary

• U.S. Power Squadrons

• State Boating Offices

• Canadian Power and Sail Squadrons

• Yacht Clubs

200 Owner’s Manual

Fuel System

The fuel system consists of a permanent tank with an air vent system, fuel level sensor and fuel fill components. The tank has an anti-siphon valve to prevent fuel from accumulating in the bilge if a hose should break.

Ventilation System

The engine compartment ventilation system consists of switch operated blowers installed within the engine compartment. When activated, the blowers exhaust dangerous fumes and intake fresh air through vents. Operate the blowers for at least four minutes before starting the engines.

2-3

COBALT

200

BOWRIDER

ECTION

Electrical Systems

Your Cobalt boat can be equipped with one or two electrical systems. A direct current (DC) system is battery powered and supplies electricity to lights, pumps, blowers, engine ignition and sometimes a refrigerator. An alternating current (AC) system is shore power, or generator, and supplies electricity to the electrical outlet, air conditioning, battery charger and other 110V AC or 220V AC appliances or components.

Cooling System

The engines and generator, if equipped, are cooled by the continuous intake of raw water through independent water intakes. The water flows to water pumps on the engines and/or generator for circulation around internal components. The engine water intakes and outlets are located in the drive units. A generator water intake is in the bottom of the hull and the exhaust is usually on the side of the boat, above the waterline. If your boat is equipped with an air conditioner, the air conditioner water intake is in the bottom of the hull and exits from the side. Your Cobalt boat may be equipped with a self-contained cooling system that pumps a mixture of fresh water and antifreeze through a large heat exchanger to reduce temperatures. Raw water is circulated through the other side of the heat exchanger to dissipate heat absorbed by the coolant mixture.

Exhaust System

The engine and generator exhaust systems, if equipped, remove the gases produced by the running engine and vents them away from the boat. Engine exhaust is usually vented through the drive unit propeller but may be diverted through the transom with the optional captain’s call exhaust system. Engine and generator cooling water are also removed along with the exhaust gases.

Lubrication System

The engines and generator, if equipped, use a pressurized continuous loop lubrication system that must be periodically serviced in accordance with the manufacturer’s recommendations. The engines have electrical transducer units to provide oil pressure signals to gauges at the helm. Full oil pressure must be available for proper lubrication, so monitoring the gauges is important, especially when operating at cruising speeds and above.

Seaworthiness Inspection

The following checks are essential to safe boating and must be performed before starting the engines. Get into the habit of performing these checks in the same order each time so that it becomes routine.

• Check the weather report, wind and water conditions.

• Check that required safety equipment is onboard.

• Check that fire extinguisher(s) is fully charged.

• Check that bilge drain plug is properly installed.

• Check that no fuel, oil or water is leaking or has leaked into the bilge compartment.

• Check all hoses and connections for leakage and damage.

• Check that all batteries are fully charged and have the proper level.

• Check electrical circuits (lights, pumps, horn, etc.) for proper operation.

• Check that steering system operates properly.

• Be sure the boat is not overloaded.

• Check that all maintenance has been performed.

Operation Checklist

While operating your boat, frequently check that the control and steering systems continue to operate smoothly. Monitor your gauges for signs of abnormal behavior. Beware of any excessive

vibration. Refer to Section 3, Before Starting

Checklist.

2-4

200 Owner’s Manual

WARNING

ESPONSIBILITIES AND

DANGER

AFETY

Avoid the risk of creating a hazardous situation. DO NOT operate the boat if any problem is found during this inspection.

Problems found during this inspection should be handled by your authorized Cobalt dealer.

Environmental Considerations

As a boater, you already appreciate nature’s beauty and the peace of the great outdoors. It is a boater’s responsibility to protect the natural environment by keeping waterways clean.

MARPOL Treaty

The USCG enforces the International Convention for the Prevention of Pollution from ships, commonly referred to as the MARPOL Treaty (MARine POLlution). This treaty prohibits the overboard dumping of all ship-generated plastics, chemicals, garbage and oil.

Fuel/Spillage

Avoid fire or explosion. Fumes from rags can collect in bilge and be extremely hazardous. DO NOT store rags used to wipe up fuel or solvent spills in the boat. Dispose of rags properly ashore.

Emission Control Warranty Information

The engine in your Cobalt boat meets the strict requirements set forth by CARB. The engine has a special environmental

COB_0016_A

label are required by CARB. The label has 1, 2, 3 or 4 stars. The label MUST be affixed to the boat, if the boat is operated in the state of California and/or bordering waters.

tag and the boat has this label affixed to it. The tag and the

The spilling of fuel or oil into our waterways contaminates the environment and is dangerous to wildlife. Do not discharge or dispose of fuel or oil into the water; it is prohibited and you can be fined. These are two common, accidental types of discharge:

• Overfilling the fuel tanks

• Pumping contaminated bilge water

California Air Resource Board (CARB) Label

Your boat may have an environmental star label affixed on the bow, port side of the boat as part of the California Air Resource Board (CARB) SD/I rule. This label must stay affixed to the boat if it is operated in California. The label identifies your boat is equipped with a California Certified Engine. The label is positioned so it will be at the leading or trailing edge of the state registration numbers.

200 Owner’s Manual

2-5

COBALT

200

BOWRIDER

ECTION

Proposition 65

WARNING

A wide variety of components used on this vessel contain or emit chemicals known to the state of California to cause cancer, birth defects and other reproductive harm.

EXAMPLES INCLUDE:

• Engine and generator exhaust

• Engine and generator fuel, and other liquids such as coolants and oil, especially used motor oil

• Cooking fuels

• Cleaners, paints and substances used for vessel repair

• Waste materials that result from wear of vessel components

• Lead from battery terminals and from other sources such as ballast or fishing sinkers

TO AVOID HARM:

• Keep away from engine, generator and cooking fuel exhaust fumes.

Excessive Noise

Noise means engine noise, radio noise or even voices. Many bodies of water have adopted noise limits. Do not use thru-transom exhaust unless you are well offshore. Music and loud conversation can carry a considerable distance on water, especially at night.

Wake/Wash

Be alert for NO WAKE zones. You may be responsible for any damage or injury caused by your wake/wash. Prior to entering a no wake zone, come off plane to the slowest steerable speed.

Exhaust Emissions

Increased exhaust (hydrocarbon) emissions pollute our water and air. Keep your engine tuned and boat hull clean for peak performance. Consult your authorized Cobalt dealer and propulsion unit operator’s manual for information.

Paints

If your boat is kept in water where marine growth is a problem, the use of anti-fouling paint may reduce the growth rate. Be aware of environmental regulations that may govern your paint choice. Contact your local boating authorities for information.

• Wash areas thoroughly with soap and water after handling the substances above.

Discharge/Disposal of Waste

Waste means all forms of garbage, plastics, recyclables, food, wood, detergents, sewage and even fish parts in certain waters - in short, nearly everything. We recommend you bring back everything you take out with you for proper disposal ashore. Use an approved pump-out facility at your marina. Many areas prohibit the discharge of sewage overboard or even an operable overboard waste discharge.

Cleaning Agents

Household cleaners should be used sparingly and not discharged into waterways. Do not mix cleaners and be sure to use plenty of ventilation in enclosed areas. DO NOT use products which contain phosphates, chlorine, solvents, nonbiodegradable or petroleum based products. Citrus-based cleaners are excellent for marine cleaning purposes and are safe for you and the environment. Do not use citrus-based cleaners on stainless steel.

Fishery Resources

There is a tremendous drain on our fishery resources. Over-fishing and pollution have strained the fish population. Do your part by keeping only what you will eat and practice catch-and-release.

2-6

200 Owner’s Manual

ESPONSIBILITIES AND

AFETY

Foreign Species

If you trailer your Cobalt boat from lake to lake, you may unknowingly introduce a foreign aquatic species from one lake to the next. Thoroughly clean the boat below the waterline, remove all weeds and algae, and drain the bilge before launching the boat in a new body of water.

Components, Maintenance and Repairs

Only your authorized Cobalt dealer should make any alterations, modifications or repairs that could affect safety, design integrity or warranty coverage. Included with your owner’s packet are your propulsion unit manuals. These manuals were prepared by the manufacturer and contain information concerning the operation and care of your engine and drive unit. Please read these manuals thoroughly and become acquainted with this information.

It is advisable to maintain a service log to record service checks, such as oil changes, so you can determine when it is time for servicing. A maintenance log is helpful when requesting warranty service using the extended warranty coverage. Be sure to collect receipts for work performed and make an entry in the Service Log in the back of this manual.

Emergency Considerations

Be prepared to deal with emergencies before they happen. Try to formulate a plan for each type in advance so that decisions can be made quickly and without hesitation. Precious moments lost can mean the difference between losing and saving a life.

Fire

You must be prepared and act quickly when dealing with a fire. It is not recommended to battle a fire for an extended period of time. Turn engines off and abandon the boat if the fire cannot be extinguished quickly. Swim at least 25 yards (23 meters) upwind from the boat and use the visual distress signals to get assistance. Onboard fires involving the fuel system usually result in either an explosion that completely destroys the boat, or the boat burning to the waterline and self-extinguishing. Deciding on abandoning the boat or staying to fight the fire is difficult and depends on many factors. Try to formulate a fire plan in advance to make that decision quickly and without hesitation.

The USCG and other law enforcement agency requirements for fire extinguishers are only the minimum needed. Your Cobalt boat is equipped with at least one portable fire extinguisher and may have fixed fire extinguishers in the generator compartment and in the engine compartment (fixed fire extinguishers are normally an option on most Cobalt boats). If you are in question of whether your boat is equipped with fixed fire extinguishers, contact your authorized Cobalt dealer. For the

location of your fire extinguisher, refer to Section 1,

Layout. Remember, install extra extinguishers where they might be needed. Inspect extinguishers on a regular basis.

WARNING

Avoid injury or death. Gasoline will float on top of water and can burn. If the boat is abandoned, swim upwind, far enough to avoid fuel that may spread over the surface of the water.

200 Owner’s Manual

2-7

COBALT

200

BOWRIDER

ECTION

Grounding

In the event you run aground, assess the situation before proceeding. Immediately stop any water from entering the boat. Inspect the propulsion unit(s), steering and control systems, and the hull for damage. Maneuver the boat to safe water only if the hull and all operating systems are in satisfactory operating condition. Otherwise, call or signal for assistance.

KC-0083C

1– Recharge 2 – Overcharge

Be sure to:

• Use caution and do not smoke when refueling.

• Verify that fuel does not leak.

• Use only marine approved equipment on your boat.

Flooding/Swamping

Improper loading, handling, water conditions, weather and anchoring are the most common causes of flooding. Insist on a safe, stable load. Do not operate the boat exceeding your ability to maneuver it. Use extreme caution in hazardous weather and rough water conditions. Anchor from the bow when using one anchor.

Collisions/Leaks

If a collision occurs, immediately account for all passengers. Assess the hull for damage and activate the bilge pumps to reduce any water intake. Try to operate the boat to keep the damaged area above water. If necessary, call or signal for assistance. If a leak is discovered, immediately determine the cause. A collision with an underwater object could cause the hull to develop a leak. A loose fitting or hose clamp on a piece of equipment could cause a leak. Try to repair the leak if possible. If a leak is threatening the safety of you and your passengers, call or signal for assistance.

Storms

Take common sense precautions if you are forced to operate your boat in stormy conditions.

• Wear personal flotation devices (PFDs).

• Stow gear below deck and batten down equipment on deck.

• Reduce speed and head for a safe place that you can easily reach.

• If you lose power, keep the boat headed into the waves by using the anchor.

Water Rescue (Man Overboard)

Immediately react to a person that has fallen overboard. Keep the victim constantly in your sight. Safely return to the victim as soon as possible. Throw the person a PFD. Turn the engines off and help the person into the boat.

Medical Emergency

Be prepared in the event of an emergency. Know how to use your first aid kit. Be aware of any special medical conditions of your passengers.

Drowning

React to a drowning victim the same as described in Water Rescue. Handle victims with care; they could be injured. If necessary, resuscitate the victim. Immediately signal for help and keep the victim warm.

Operation Failure

If you experience a propulsion, steering or control failure, immediately turn off the engines. Release the anchor to prevent drifting. Try to determine the failure and repair, if possible. Otherwise, call or signal for assistance.

2-8

200 Owner’s Manual

TYPE II

BUOYANT VESTS

KC-0051C

ESPONSIBILITIES AND

AFETY

Distress Signals

Federal law also requires boats 16 ft (4.8 m) and longer to carry day and night visual distress signals when operating on coastal waters, the Great Lakes, territorial seas or those waters directly connected to them, up to a point where the body of water is less than two miles wide. Carry several types of signaling devices to handle a variety of conditions. Have enough signals onboard to last three days.

NOTICE: Some pyrotechnics are restricted from use on certain bodies of water, so check with local authorities.

Radio Communication

Radio communication is the most important avenue of receiving and sending information. Use a VHF/FM radio for short-range communication, and a single-sideband radio (SSB) for long-range. For all U.S. waters, the National Weather Service operates the NOAA Weather Radio (NWR). This service provides continuous weather information on the following VHF/FM frequencies:

There are four types of PFDs to wear and one type used for throwing in emergency situations.

Type I Life Preserver: Most buoyant PFDs are effective on all waters, especially open, rough water.

TYPE I

LIFE PRESERVERS

KC-0041C

Type II Buoyant Vest: Good for calm water near shore on most inland waters where quick rescue is likely.

• 162.400 MHz • 162.500 MHz

• 162.425 MHz • 162.525 MHz

• 162.450 MHz • 162.550 MHz

• 162.475 MHz

Coast Guard Marine Information Stations

• 2670.0 kH • 8765.4 kH

• 4428.7 kH • 13113.2 kH

• 6506.4 kH

It is good practice to periodically monitor the weather.

Lifesaving Equipment

The following equipment may or may not be required by federal/local regulations.

Personal Flotation Devices

Federal law requires at least one Type I, II, III or V Personal Flotation Device (PFD) for each person onboard or being towed, and at least one Type IV throwable PFD in the boat.

Type III Flotation Aid: Good for most inland water applications where quick rescue is likely. Comes in various styles and some are designed for water sport activities.

TYPE III

FLOTATION AIDS

KC-0042C

200 Owner’s Manual

2-9

COBALT

200

BOWRIDER

ECTION

Type IV Throwable Device: Intended for heavy traffic inland waters where help is available. Designed to be thrown to a person in the water and should never be worn.

TYPE IV

THROWABLE DEVICES

KC-0071C

Type V Hybrid PFD: Inflatable design for special use activities and may be used instead of a Type I, II, or III PFD if used in accordance with the approval conditions on the label and if worn when the boat is underway. Some Type V PFDs provide increased protection against hypothermia.

PFDs are intended to help save lives. The operator should set an example by wearing a PFD whenever boating. It is especially important that children and non-swimmers wear a PFD at all times.

Make certain all passengers know how to put on and properly adjust their PFDs. Also, selecting the proper type PFD for your kind of outing helps ensure your time on the water can be the safest possible. At the beginning of each season, check PFDs for damage and test for proper flotation. Refer to the PFD manufacturer’s information.

Audible/Visual Distress Signals

A distress call is transmitted on VHF/FM radio channel 16 (156.800 MHz) or 2182 kHz (SSB). Know your audible signals:

• For emergency, the call sign is “Mayday.”

• For an urgent situation, the call sign is “Pan-Pan.”

• For navigational safety and weather warnings, the call sign is “Security.”

Repeat the call sign three times. Immediately react to a distress call. Assist, if possible, using an emergency frequency. Otherwise, continue to monitor the situation until help has arrived.

TYPE V HYBRID PFD

MUST BE WORN

WHEN UNDERWAY

KC-0043C

NOTICE:

• A Type V PFD must be worn to be counted toward the minimum carriage requirements.

• Special PFDs are available for skiing and other water sports. These PFDs are constructed with materials suitable for high impact falls.

2-10

200 Owner’s Manual

ESPONSIBILITIES AND

AFETY

VISUAL DISTRESS SIGNALS

USE DAY ONLY

ARMS SIGNALS (USE BRIGHT CLOTH)

USE DAY ONLY

ELECTRIC DISTRESS LIGHT

RED DISTRESS FLARE (HAND)

USE DAY AND NIGHT

USE DAY ONLY

SIGNAL (HAND)

RED METEOR FLARE USE DAY AND NIGHT

DYE MARKER

Life Raft

If operating offshore, you should consider carrying an inflatable life raft. A USCG-approved life raft meets a number of stringent specifications. The life raft must be large enough to hold all the boat’s occupants and have its own equipment pack including a paddle.

A life raft can be stored in the aft storage area or in any other accommodating place on your boat.

USE DAY ONLY

USE NIGHT ONLY

COB_0031_A

If you are required to carry distress signals, you must have three USCG-approved pyrotechnic devices. Be sure they are in serviceable condition, not exceeding the expiration date and stored in a cool, dry location in a waterproof container.

Sea Anchors

You should have a separate sea anchor onboard to slow drifting. In heavy seas, a sea anchor is set from the bow to control the boat’s behavior. The sea anchor holds the bow to the sea and a slow drift.

Radar Reflectors

Radar reflectors allow you to be seen by other vessels’ radar within your area. Mount the reflector as high as possible on the radar arch.

200 Owner’s Manual

2-11

COBALT

200

BOWRIDER

SAFETY

The popularity of boating and other water sports has undergone an immense growth over the past few years. Because of this, safety is an important issue for everyone who shares in the use of our waterways. Be smart when boating and using your equipment.

In emergency situations, it may be necessary to resort to measures which are not commonly practiced. Always assess the dangers of being in harm’s way versus the protection of equipment. Keep a sound mind during an emergency and always think safety.

• Know the conditions of your boat and the environment.

• Have a float plan and inform others when you will return.

• Secure or store loose items before getting underway.

• Avoid sudden maneuvers at high speed and reduce speed in waves.

ECTION

WARNING

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a property damage message.

The precautions listed in this manual and on your Cobalt boat are not all-inclusive. If a procedure, method, tool or part is not specifically recommended, you must satisfy yourself that it is safe for you and others, and that the boat will not be damaged or made unsafe as a result of your decision. REMEMBER - USE COMMON SENSE WHEN OPERATING YOUR BOAT!

WARNING

Avoid fire, explosion, injury or property damage from improperly handled pyrotechnic signaling devices. Follow the manufacturer’s directions.

Signal Words/Definitions

Throughout this manual specific precautions and symbols identify safety related information.

The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!

DANGER

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

General Safety

Before each outing you should check all safety equipment, such as fire extinguishers, PFDs, flares, distress flags, flashlights and engine stop switches. They should be operable, in good condition, readily visible and easily accessed.

Check local weather reports before casting off; do not leave the dock area when strong winds and electrical storms are in the area or predicted to be in the area.

Tell someone your travel plans and leave them a float plan. A float plan makes the job of search and rescue much easier for authorities. A float plan template can be found in the back of this manual.

Seating

Keep your passengers seated in seats. The boat’s bow, gunwale, transom platform and seat backs are not intended for use as seats while underway.

2-12

200 Owner’s Manual

ESPONSIBILITIES AND

AFETY

Handholds

WARNING

Avoid injury or death.

• Passengers should use handholds whenever the boat is underway.

• DO NOT allow passengers to sit on or in the stern sun lounges when the boat is underway.

• Read and understand this manual and the propulsion unit manual, and be sure that you understand all controls and operating instructions before attempting to operate the boat.

• Be in control of your boat. DO NOT operate your boat under the influence of alcohol or other drugs.

Handholds are provided for your passengers’ safety. Be sure your passengers use the handholds whenever the boat is underway. Failure to use handholds could result in a man overboard situation or personal injury.

Capacity

Know the weight capacity of your boat. Do not overload your boat. Overloading of passengers, personal equipment and supplies could result in an accident, especially in rough waters.

Be sure that passengers, personal equipment and supplies are in their proper location before operating the boat. This does not necessarily mean you can carry a passenger for every seat. Keep personal equipment and supplies to an “as needed” basis. Maintain a balanced load (front to back and side to side) at all times.

Operating Conditions

Every waterway poses hazards that you should avoid, such as shallow water, tree stumps and sand bars. Ask local boaters for information and consult a marine chart when boating on unfamiliar waters. As the operator of the boat, you should try to avoid all hazards, known and unknown. The following information does not contain all possible water hazards. Operating in shallow water presents a number of hazards. Mud, sand, weeds and debris can foul a propulsion unit propeller or its cooling water. If a propulsion unit strikes an underwater object, check the propulsion unit and boat for damage. If a propulsion unit vibrates after striking an object, it may indicate a damaged propeller.

Sand bars in narrow inlets are constantly shifting, making it difficult to mark them with buoys. Tides in coastal areas affect water levels, producing sand bars. Sometimes sand bars are indicated by waves as they form into breakers when passing over the sand bar. Refer to Grounding, in this section, if you run aground on a sand bar. The water level around a dam spillway is a hazardous area. It is subject to rapid changes caused by currents and turbulence. Keep clear of the spillway areas below dams.

Weather/Seas

Getting caught in severe weather is hazardous. It is recommended to check the weather, sea and wind conditions not only before you boat, but also periodically while you are boating. Refer to Radio Communications, in this section, for weather channel information. A change in wave height, wind direction and speed indicates deteriorating weather. Take common sense precautions if you are forced to operate your boat in stormy conditions:

• Wear PFDs.

• Stow gear below deck and batten down equipment on deck.

200 Owner’s Manual

• Reduce speed and head for a safe place that you can easily reach.

If you lose power, keep the boat headed into the waves by using the anchor.

2-13

COBALT

200

BOWRIDER

ECTION

Learn the storm signals.

DAYTIME WARNING

DESCRIPTION

Small Craft Advisory - Winds

greater than 18 knots,

sustained for two hours or more

or hazardous wave conditions.

Following a storm, hazardous

wave conditions can persist

long after the high winds have

Gale Warning - Sustained

winds (2 or more hours),

of 34-47 knots.

Storm Warning - Sustained winds of 48 knots or grea

subsided.

ter.

NIGHTTIME

WARNING

Skill/Experience

WARNING

Avoid injury or death from drowning. Wear your Personal Flotation Device and remain seated when operating the boat.

Practice your boat operating skills often in calm water. Avoid windy conditions and rough water. Be sure to maintain good visibility at all times. Do not practice close to any obstructions such as piers, bridges, swim areas or moored boats.

Proceed slowly and give yourself plenty of time to react. Remember, your boat is not an automobile. It requires additional time to maneuver and stop.

Visibility

WARNING

Avoid injury or death. Maintain clear visibility at all times. If necessary, arrange passengers and equipment. Designate a passenger to assist when visibility is limited due to operating conditions.

Hurricane Warning - Forecast

winds of 64 knots and above.

Displayed only in connection

with a hurricane.

COB_0032_A

It is best to avoid operating your boat in foggy weather. When fog sets in, use your GPS and radar unit, if equipped, to take bearings and log courses and speeds. You are required to emit a five-second blast from your horn or whistle once every minute. Additionally, have passengers wear PFDs and observe for oncoming vessels.

Visibility is not only sight, but also hearing. It is very important the operator maintains good visibility at all times. Arrange passengers and equipment to ensure you have unobstructed vision at all times. Check for other boats or any obstacles before turning the boat.

Drugs/Alcohol

WARNING

Avoid injury or death from impaired operation. Federal and state law prohibit operating a boat under the influence of alcohol and other drugs. These regulations are actively enforced.

2-14

200 Owner’s Manual

ESPONSIBILITIES AND

Boating, alcohol and the use of other drugs just do not mix. Mixing boating, alcohol and other drugs results in many marine accidents and deaths. These substances reduce your reaction time and affect your better judgment. Combined with the sun, wind, waves and noise of other watercraft, the effects of drugs are increased and will significantly reduce your reaction time. Do not operate your boat under the influence of alcohol or other drugs. As the owner/operator, you are responsible for the alcohol/drug use and onboard behavior of your passengers.

KC-015

If the operator’s blood alcohol content is above the state’s legal limit, violators are subject to a civil or criminal penalty, imprisonment or both. Operating a boat under the influence can also result in a loss of automobile driving privileges.

Passengers

Whenever you are going for an outing, make sure that at least one passenger is familiar with the operation and safety aspects of the boat in case of emergency. Show all passengers the location of emergency equipment and explain how to use it. Do not allow passengers to drag their feet or hands in the water, or sit on the bow, deck, gunwale or transom platform while engines are running.

AFETY

DANGER

Avoid the possibility of injury or death from exposure to carbon monoxide (CO). All gasoline and diesel engines and fuel burning appliances such as heaters, stoves and generators produce CO. CO is a colorless, odorless and dangerous gas. Direct and prolonged exposure to CO will cause brain damage or death. Signs of exposure to CO include nausea, dizziness, drowsiness, ears ringing, headaches, unconsciousness and cherry red skin color. Avoid exposing your passengers or yourself to carbon monoxide. Test the carbon monoxide detector operation before each trip, at least once a week and after the boat has been in storage. DO NOT tamper with the operation of the carbon monoxide detector. It is installed for your safety.

A carbon monoxide (CO) detector will only detect the presence of carbon monoxide gas at its sensor and will not detect other vapors such as gasoline. Carbon monoxide may be present in other areas.

Carbon monoxide poisoning should not be confused with seasickness, intoxication or heat stress. If someone complains of irritated eyes, headache, nausea, weakness or dizziness, or you suspect carbon monoxide poisoning, immediately move the person to fresh air, investigate the cause and take corrective action. Seek medical attention if necessary.

Ventilation

Your Cobalt boat may be equipped with carbon monoxide (CO) detector(s), if your boat is a cabin type or built with an enclosed changing area.

200 Owner’s Manual

2-15

COBALT

200

BOWRIDER

ECTION

To reduce CO accumulation:

• Ventilate the boat interior by opening the deck hatches, windows and cabin door to provide adequate ventilation.

• Do not operate the engines or generator with the canvas installed.

Blockage of boat exhausts by obstruction. Operating with high bow angle.

Exhausts traveling along obstruction. Exhausts from other vessels in confined areas.

• Avoid idling or using the generator while at idle for extended periods.

• Regularly inspect the engine and generator exhaust system for proper operation.

For additional information, refer to the carbon monoxide detector operator’s manual supplied with your boat.

Operating at slow speed or while dead in the water. Operating with canvas tops and side

curtains in place without ventilation.

COB_0033_A

2-16

200 Owner’s Manual

ESPONSIBILITIES AND

AFETY

Qualified Boat Operators

This manual is not intended to provide complete training on all aspects of boat operation. We strongly recommend that all operators of this boat seek additional training on boat handling and safety. Have all operators become familiar with the handling characteristics, and proper steering and control system usage before attempting high-speed operation.

Some states require youths 16 years of age and younger to complete a boating safety course before operating any watercraft. Many others require operators under the age of 18 to be licensed in small boat operation.

Minors must be supervised by an adult whenever operating a boat. Many states have laws regarding the minimum age and licensing requirements of minors. Be sure to contact the state boating authorities for information.

Safety While Boating

Discharge of Oil

The discharge of fuel, oil and other chemicals into the water is prohibited. Be sure to clean up all fuel and oil spillage in the bilge using rags and sponges. Properly store and dispose of them when you get to shore. Do not allow any fuel or oil spills to be pumped out into the water. If fuel or oil leaks continue to be a problem, immediately have the problem repaired.

When refueling, do not “top-off” the fuel tanks. Allow for expansion which will reduce fuel spills from the fuel tank vents.

Solid Waste Disposal

NOTICE: It is illegal to dispose of any plastic trash into waters of the U.S.

The disposal of solid waste and plastics into the water is prohibited. Bag all refuse and properly dispose of it when you get ashore.

Your Cobalt boat is affixed with various safety labels at the time of manufacture. These labels appear at specific locations on the craft where

safety is of particular concern. Refer to Section 1,

Warning Labels.

Safety labels must remain legible. If you suspect a label is missing or becomes damaged, contact your authorized Cobalt dealer for immediate replacement.

Federal, State and Local Regulations

The USCG is the authority of the waterways; it is there to help the boating public. State boating regulations are enforced by local authorities. You are subject to marine traffic laws and “Rules of the Road” for both federal and state waterways; you must stop if signaled to do so by enforcement officers, and permit to be boarded as asked.

Marine Sanitation

NOTICE: Direct disposal of sanitation waste into some waters could result in fines. Be sure to check local regulations.

NOTICE: Avoid damage to the waste disposal system and the environment. Do not place facial tissues, paper towels or sanitary napkins in the head.

Have your authorized Cobalt dealer properly service the waste disposal system when needed.

Excessive Noise

Noise limits are regulated in many areas. Be sure to follow regulations and be courteous.

200 Owner’s Manual

2-17

COBALT

200

BOWRIDER

ECTION

Wake/Wash

WARNING

Avoid injury, death or damage to property. Observe “No Wake” markers. Use caution when operating around smaller crafts, in channels and marinas, and in congested areas. You are responsible for injury and damage caused by your wake.

Reporting Accidents

The USCG requires the owner or operator of a boat involved in an accident to report the incident to the proper marine law enforcement agency for the state in which the accident occurred.

Immediate notification to the nearest state boating authority is required if a person dies or disappears as a result of a recreational boating accident. If a person dies or sustains injuries requiring more than first aid, a formal report must be filed within 48 hours of the accident. A formal report must be filed within 10 days for accidents exceeding $500 in property damage or complete loss of boat.

Water Sports Safety

Larger boats produce a larger wake which may be too big for skiers. Only boats equipped with a ski tow eye or ski tow pylon should be used to pull water skiers. If you use your Cobalt boat for water sports, you should be familiar with water sport safety and hand signals.

CIRCLE

TURN LEFT

TURN RIGHT

BACK TO DOCK

SKIER IN WATER

WATER SPORT HAND SIGNALS

NOTICE: It is unlawful to participate in water sports while under the influence of alcohol or other drugs.

When participating in water sports, be safe and courteous and follow these guidelines:

CUT ENGINE

SPEED FASTER

SPEED SLOWER

SPEED OK

STOP

SKIERS O.K.

KC-0271C

Rendering Assistance

If you see a distress signal or suspect a boat is in trouble, you must assume it is a real emergency and render assistance immediately. By law, the operator in charge of the craft is obligated to provide assistance to any individual in danger if such assistance can be provided safely. Failure to render assistance can result in a fine and/or imprisonment.

The 1971 Boating Safety Act grants protection to a “Good Samaritan” boater providing good faith assistance, and absolves a boater from any civil liability arising from such assistance.

• Be considerate to fishermen and others you share the water with.

• Do not perform water sports in congested areas.

• Stay away from navigation markers.

• Stay away from other boats and water sport participants.

• Return immediately to a fallen water sport participant and turn off engines.

• Regularly inspect water sport equipment to ensure it is safe.

• Do not use any fuel burning appliances with a transom exhaust port when swimming from the stern swim platform.

DANGER

Avoid injury or death. DO NOT practice unsafe water sports.

2-18

200 Owner’s Manual

ESPONSIBILITIES AND

AFETY

• Water sport participants must wear a USCG approved flotation device. A Type III water ski vest is an approved and practical PFD.

• Keep at least 100 ft (30 m) away from all other objects.

• Have an experienced driver and aft-facing observer in the boat when water sporting.

• Do not water sport in shallow water or at night.

• Do not jump from a moving boat.

• Keep a downed water sporter in sight.

• Turn the engine(s) off before you get close to someone in the water.

• Do not use the boarding ladder with engine(s) running.

Skiers and/or passengers are obligated to be aware of the same safety rules as operators. If you are new to water sports, seek certified training before starting. You will find it especially helpful to join a ski club, World Wakeboard Association and/or the U.S.A. Water Ski when it is possible. Always remember the majority of water sport injuries result from impact with other objects.

Always look where you are going and be aware of your surroundings.

Platform Dragging (“Teak Surfing”)

READ, KNOW and UNDERSTAND the information on warning labels and adhere to the boat operation practices described on them. The USCG issued a SAFETY ALERT on August 28, 2001, which covers some issues regarding improper use of the boarding ladder/swim platform. The SAFETY ALERT and portions of the information follow:

Tragic deaths occur from the negligence of unsafe boating and dangerous activities. Experts say, “many of these deaths may have been caused by an invisible hazard, carbon monoxide poisoning.” Taking the risk of swimming under a boarding platform when the engine is running, skiing within 20 ft (6.1 m), or “teak surfing” or “dragging” behind a moving boat, can be fatal. Dangerous activities which can result in serious injury or death are not considered water sports. Cobalt Boats does not promote unsafe boating risks or jeopardizing any boater’s safety. “Teak Surfing” or “Platform Dragging” may be illegal in your state, or the states you operate in.

WARNING

Avoid injury or death. DO NOT use the swim platform for any other purpose than boarding the boat or preparation of entering the water, and do not use the swim platform when engines are running.

200 Owner’s Manual

2-19

COBALT

200

BOWRIDER

ECTION

Safety Alert From August 28, 2001:

The United States Coast Guard advised boaters not to “Teak/Drag Surf.” Recent boating fatalities revealed carbon monoxide (CO) emitted from a vessel’s exhaust resulted in CO poisoning and death. Do not allow persons in the vicinity of the Swim Platform (in the water or in the boat) with the engine(s) or generator operating, while at rest or underway at slow speed. “Teak/Drag Surfing” places the individual in a position directly exposed to the CO in the engine’s exhaust. This can result in a loss of coherent responses and even death. In addition, “Teak/Drag Surfing” dangerously exposes the individual to a possible propeller injury. Since “Teak/Drag Surfing” is done without a life jacket (PFD), it significantly increases the probability of drowning. The Coast Guard stresses, “Teak/Drag Surfing” is a very dangerous activity and advises boaters not to participate in it.

The Coast Guard also stated that carbon monoxide is one of the most dangerous gases. It strikes before you know you are exposed and it impairs in a way that can, and too often does, lead to death. This is why the Coast Guard feels it is critical that CO is avoided in every circumstance.

Navigation

Rules of the Road/Sound Signals

The General Prudential Rule regarding right-of-way is that if a collision appears unavoidable, neither boat has right-of-way. As prescribed in the “Rules of the Road,” both boats must act to avoid collision.

The information in this section outlines only the most basic of the nautical “Rules of the Road.” For more information, contact your local USCG Auxiliary.

Whistle/Horn Signals

Signaling other boats with a whistle or horn is similar to using turn signals on an automobile. It is not necessary to sound a signal every time a boat is nearby. In general, boat operators should signal their intention, as to avoid potentially confusing or hazardous situations.

It is customary for the privileged boat to signal first, and the burdened boat to return the same signal to acknowledge she understands and will comply. Use the danger signal (five or more short and rapid blasts) if intent is not clear.

Use the following signal blast early enough to be noticed and understood by other boaters:

• One long blast: Warning signal (coming out of slip or passing astern)

• One short blast: Pass on my port side

• Two short blasts: Pass on my starboard side

• Three short blasts: Engines in reverse

• Five or more short and rapid blasts: Danger signal!

Privileged Boats

Privileged boats have right-of-way and can hold course and speed. Sailboats and boats paddled or rowed have the right-of-way over motor boats. Sailboats under power are considered motorboats. Small pleasure craft must yield to large commercial boats in narrow channels.

Burdened Boats

The burdened boat is the boat that must make the necessary adjustment to course and speed to keep out of the way of the privileged boat.

WARNING

Avoid injury, death or collisions. Like traffic laws for automobiles, the operator is legally required to follow the rules.

In general, boats with less maneuverability have right-of-way over more agile craft. You must stay clear of the vessel with right-of-way and pass to his stern.

2-20

200 Owner’s Manual

4 O'CLOCK

GIVE-WAY

(BURDENED)

VESSEL

DANGER ZONE

12 O'CLOCK

STAND-ON

(PRIVILEGED)

VESSEL

COB_0005_A

ESPONSIBILITIES AND

AFETY

Crossing Situation

In crossing situations, the boat to the right from the 12 o’clock to the 4 o’clock position has the right-of-way. It must hold course and speed. The burdened boat keeps clear and passes behind the privileged boat. Boats going up and down a river have the privilege over boats crossing the river.

Meeting Head-On

Neither boat has the right-of-way in this situation. Both boats should decrease speed, should turn to the right and pass port-to-port. However, if both boats are on the left side of the channel, each vessel should sound two short blasts and pass starboard-to-starboard.

HONK

HONK HONK

PASSING PORT TO

PORT

MEETING HEAD TO

HEAD

PASSING

STARBOARD TO

STARBOARD

COB_0034_A

200 Owner’s Manual

2-21

COBALT

200

BOWRIDER

ECTION

Overtaking

The boat that is overtaking one ahead of it is the burdened boat and must make any adjustments necessary to keep out of the way of the privileged boat. The privileged boat should hold its course and speed.

HONK

(LONG)

STAND-ON

(PRIVILEGED)

VESSEL BEING

OVERTAKEN

HONK

(LONG)

The size, speed and direction of the other vessels are determined at night from their running lights. A green light indicates the starboard side of the boat, and a red light indicates the port side. Generally, if you see a green light, you have the right-of-way; if you see a red light, give-way to that vessel.

Aids to Navigation

Learn to recognize the different buoys and day markers; they are the signposts of the waterways. The United States Aids to Navigation System (USATONS) is the primary marking system used on inland water, coastal waters and rivers. This system is maintained by the U.S. Coast Guard (USCG).

Types of Buoys

There are several types and shapes of buoys. Buoys may be unlighted, lighted, with sound or may have both an audible and a visual signal. Lights, bells and horns are used on buoys for night or poor visibility conditions. Different shapes of buoys are shown below.

GIVE-WAY

(BURDENED)

VESSEL

OVERTAKING

COB_0035_A

Special Situations

Boats operating between sunset and sunrise (hours vary by state) must use navigational lights, nighttime operation, especially during bad weather or fog can be dangerous. All “Rules of the Road” apply at night; it is best to slow down and stay clear of all boats, regardless of who has right-of-way.

Protect your night vision by avoiding bright lights and have a passenger, if possible, help keep watch for other boats, water hazards and aids to navigation.

UNLIGHTED

BELL BUOY

LIGHTED BUOY

SPAR BUOY

NUN BUOY

CAN BUOY

SPHERICAL SAFE

WATER MARKER

KC-1908

Buoys with unique light-flashing characteristics are identified on nautical charts with the specific flashing pattern.

2-22

200 Owner’s Manual

ESPONSIBILITIES AND

Mooring Buoys

The only buoys you are permitted to moor to are mooring buoys. Mooring buoys are white with a blue horizontal stripe. Mooring to a navigation buoy, regulatory markers or lateral markers is illegal.

KC-1901

Regulatory Markers

Regulatory markers indicate dangerous or restricted controlled areas. These markers are used to indicate speed zones, areas set aside for particular use, general information and directions.

AFETY

Regulatory markers are white with orange geometric shapes and also have orange bands near the top and at the water line of the buoy. You must obey regulatory markers (see below).

CONTROLLED

AREA

DANGER BOATS

KEEP OUT

INFORMATION

KC-1903

200 Owner’s Manual

2-23

COBALT

200

BOWRIDER

ECTION

Lateral Markers

Lateral markers are oriented from the perspective of being entered from seaward (the boater is going toward the port). This means that red buoys are passed on the starboard (right) side of the vessel when proceeding from open water into port, and green buoys to the port (left) side.

The right side (starboard) of the channel is marked with RED, even-numbered buoys. The left side (port) of the channel is marked with GREEN, odd-numbered buoys.

GREEN LIGHT ONLY

Flashing (2) Flashing Occulting

Port Side Odd Numbers

Lateral Aids Marking the Sides of Channels as Seen When Entering From Seaward

Lighted Buoy

RED LIGHT ONLY

Flashing (2) Flashing Occulting

Day markers are colored and numbered the same as buoys. RED, triangular day markers with even numbers mark the starboard side of the channel.

GREEN, square day markers with odd numbers mark the port side of the channel.

Fairways and mid-channels may be marked with safe water marks or buoys. These marks indicate safe water all around. Safe water marks are red and white striped and are round or have a red spherical topmark.

Quick Flashing Iso

Daymark

Can Buoy

Safe Water Aids Marking Mid-Channels and Fairways (No Numbers–May be Lettered)

Starboard Side Even Numbers

Lighted Buoy

WHITE LIGHT ONLY MORSE CODE

Mo (A)

Spherical Buoy

Lighted

2-24

Nun Buoy

Daymark

KC-1909

Daymark

KC-1910

200 Owner’s Manual

ESPONSIBILITIES AND

GREEN LIGHT ONLY

Composite Group Flashing (2+1)

AFETY

Preferred Channel to Starboard

Preferred Channel Aids (No Numbers–May be Lettered)

Preferred Channel to Port

Lighted Buoy

RED LIGHT ONLY

Composite Group Flashing (2+1)

Lighted Buoy

Obstructions, channel junctions, etc. are marked with RED and GREEN horizontally striped buoys.

A RED band at the top means the preferred channel is to the left of the buoy; a GREEN top band means the preferred channel is to the right of the buoy.

Daymark

Can Buoy

Nun Buoy

Daymark

KC-1911

200 Owner’s Manual

2-25

COBALT

Isolated Danger Markers

Isolated danger markers indicate an isolated danger which may be passed on all sides. These markers are colored black with one or more broad horizontal red bands and are equipped with a topmark of two black spheres, one above the other.

Isolated Danger (No Numbers–May be Lettered)

200

BOWRIDER

WHITE LIGHT ONLY

FI (2) 5s

Lighted Unlighted

ECTION

KC-1912

On inland waters, a buoy with alternating vertical black and white stripes may be used to indicate that an obstruction or other danger exists between the buoy and the nearest shore. DO NOT pass between the buoy and the shore.

BLACK-STRIPED

WHITE BUOY

KC-1902

Light Structures

Maneuvering a boat at night can be dangerous and confusing. To aid boaters with navigation and warn of hazards, the USCG and the state and local authorities maintain a variety of light structures. Some light structures may be equipped with radio beacons, radar reflectors and/or signals.

Minor Lights

Minor lights are colored according to the buoyage marking system in use. They are similar to lighted buoys, except they are usually higher and on more stable platforms to increase visibility. Most minor lights are part of a series to mark a channel, river or harbor.

2-26

200 Owner’s Manual

ESPONSIBILITIES AND

Range Lights

Range lights are usually visible in one direction and help a boat operator navigate in a generally safe direction. Steering a course to keep range lights arranged in a line (one on top of the other) will help guide a boat through a channel.

RANGE LIGHTS

FRONT MARKER

AFETY

REAR MARKER

LEFT OF RANGE LINE RIGHT OF RANGE LINE

ON RANGE LINE

Lighthouses

Lighthouses can be found at harbor entrances, prominent headlands, isolated danger areas and along the coast. These striped or patterned structures have unique flashing characteristics to help identify them.

COB_0038_A

200 Owner’s Manual

KC-0443C

2-27

COBALT

Warning Markers

200

BOWRIDER

ECTION

DIVERS FLAG

USED BY

RECREATIONAL

DIVERS -

INDICATES

DIVER'S

POSITION

ALPHA FLAG

WORLDWIDE

VESSELS

ENGAGED

IN DIVING

OPERATIONS -

DOES NOT

INDICATE

DIVER'S

POSITION

DISTRESS FLAG

INDICATES

FELLOW

BOATER IS IN

NEED OF

ASSISTANCE

COB_0039_A

It is a good idea to ask local authorities if there are hazardous areas in the waters in which you plan to boat, and how they are marked. Boaters must also recognize the flag designs which indicate that skin divers are present and keep well clear of the area.

Watch for swimmers. Swimming areas may not be marked. Steer clear from the area and remain alert.

KC-0250C

2-28

200 Owner’s Manual

PERATING

NFORMATION

ECTION

This section is not intended to provide complete training on all aspects of boat operation.

We strongly recommend that all operators of this Cobalt boat seek additional training on boat handling and safety. Have all operators become familiar with the handling characteristics and proper steering and control system usage before attempting operation and especially high-speed operation.

The features described in this section are standard or optional, depending on your model. Refer to Standard and Optional Equipment, in this section, for a list of features for this model.

PRECAUTIONS

Before You Start

Become familiar with the location and operation of all equipment. Have emergency plans in place. Be sure to perform a safety check before operating your boat.

Fire/Explosion

Most fires are the result of fuel and oil accumulating in the bilge from careless fueling practices. Use the fire extinguisher at the base of the flames using a sweeping motion. Prudent and accurate use of the available chemicals should contain all but the worst fires. Verify that the fire has been extinguished. If so, check damage and get assistance immediately. If not, get out and swim at least 25 yards (23 meters) upwind from the boat and use the visual distress signals to get assistance. Refer to

Section 2, Safety, for additional information.

FIRST-TIME OPERATION

WARNING

Avoid injury or death. Improper operation can be extremely hazardous. Read and understand this manual, the propulsion unit operator’s manual and any other accessory or components of your boat. Be sure that you understand all controls and operating instructions before attempting to operate the boat.

Your safety, the safety of your passengers, and the safety of other boaters are among your responsibilities as operator of this boat.

Your boat must be in compliance with USCG safety equipment regulations.

You should know how to react correctly to adverse weather conditions, have good navigation skills and follow the “rules of the road” as defined by the USCG and state, county and local regulations.

We cannot stress enough the importance of reading your propulsion unit operator’s manual and following the manufacturer’s instructions for breaking in your engine.

Before each outing you should check all safety equipment, such as fire extinguishers, PFDs, flares, distress flags, flashlights and engine stop switch. They should be operable, in good condition, readily visible and easily accessed.

200 Owner’s Manual

3-1

COBALT

200

BOWRIDER

ECTION

FUEL

Fuel Requirements

Cobalt fuel systems are designed to meet all current ABYC and NMMA regulations using gasoline with up to 10% ethanol.

WARNING

DO NOT use fuels containing methanol (methyl alcohol) or other fuels with more than 10% ethanol (ethyl alcohol) content such as E85, which contains 85% ethanol.

Fuel that contains more than 10% ethanol voids all warranties and will increase the risk of damage to the engine, fuel system components and will also lead to the following:

• Corrosion of metal parts

• Deterioration of plastic, rubber parts or permeation of fuel through rubber fuel lines

• Leaking fuel resulting in explosion and/or fire

• Starting and operating difficulties

• Potential damage to your engine

NOTICE: Prevent unwarranted engine damage. Use the recommended fuel type and octane rating. Refer to your propulsion unit operator’s manual.

DANGER

Avoid injury, fire or explosion. Fuels are extremely flammable and highly explosive under certain conditions.

• Stop engines, generators and any fuel operated machinery.

• DO NOT smoke or allow open flames or sparks within 50 ft (15 m) of the fueling area.

• Avoid damaging fuel lines and connectors, and the contact of fuel on hot engine parts.

• DO NOT store fuel in any containers or compartments which are not designated for fuel storage.

• Clean up any spilled fuel immediately and dispose of rags properly ashore.

Fueling

Take care not to spill gasoline. If gasoline is accidentally spilled, wipe up all traces of it with dry rags and immediately dispose of the rags properly ashore. Spilled fuel may yellow the gelcoat finish and damage gunwale trim.

DANGER

Avoid injury, fire or explosion. Take all precautions every time you fuel your boat, regardless of the fuel type. Certain fuel is extremely flammable and highly explosive under certain conditions. Fumes from rags can collect in bilge and be extremely hazardous. Operate the blowers for at least four minutes. DO NOT store rags used to wipe up fuel or solvent spills in the boat. Dispose of rags properly ashore.

• Know the dangers associated with fuels.

NOTICE:

• Each time you refuel, inspect all fuel lines, hoses and connections for leaks and deterioration.

• The Federal Water Pollution Control Act prohibits the discharge of oil or oily waste into the water. Violators can be fined $5,000.00. We urge you to protect our fragile environment by avoiding any type of discharge, trash or litter into our waterways.

3-2

200 Owner’s Manual

PERATING INFORMATION

When Fueling:

1. Know your fuel tank capacity. Be sure to have enough fuel to reach your destination. If departing for an extended cruise, know the availability of fuel along your route. Practice the One Third Rule: one third to reach the destination, one third to return and one third in reserve.

2. Avoid fueling at night, except under well-lighted conditions.

3. Moor your boat securely to the dock. Know the location of the fire extinguisher in case of emergency.

4. Keep accurate records of your fuel consumption. A fuel log tracking fuel use over time will help determine average consumption.

5. Close all doors, hatches, windows and other compartments.

6. Extinguish cigarettes, pipes and all other flame producing items.

7. Make sure all power is off, and do not operate any electrical switches.

8. Remove the fuel filler cap.

9. Insert the hose nozzle and make sure nozzle is in contact with or grounded against fill opening. This will reduce the risk of static spark.

COB_0040_A

To c l o s e: Reinstall cap, press and turn clockwise. The fuel cap key is not necessary unless the cap is overtightened.

10. Add fuel in accordance with the propulsion unit operator’s manual. Do not overfill, and allow enough room for fuel expansion.

The fuel cap is retained by a chain, to prevent losing the cap after it is opened. Be careful when fueling to avoid damaging the chain. If it breaks, have it replaced.

After Fueling:

1. Tighten the fuel fill cap using the fuel cap key, unless your filler cap is the pop-up type. Wipe up any fuel spills.

When your boat is equipped with the pop-up fuel filler cap, open by pressing the cap and turning the cap counterclockwise (approximately 10°); remove cap.

200 Owner’s Manual

KC-0991

2. Open all windows, hatches, doors and compartments.

3. Check all fuel lines, hoses and connections for leaks and deterioration.

4. Be sure to run the blower for at least four minutes before starting the engine. If you smell gasoline fumes, do not start the engine; continue to run the blower until fumes have dissipated.

3-3

COBALT

200

BOWRIDER

ECTION

LAUNCHING

Launching Checklist

Federal and local laws require certain safety equipment to be onboard at all times. In addition, responsible boaters carry other equipment in case of an emergency. Check with local boating authorities for any additional requirements over and above federal requirements.

For maximum enjoyment and safety, check each of these items BEFORE launching:

• Install drain plug.

• Have enough personal flotation devices for every person onboard.

• Be sure the steering system operates smoothly and properly.

• Verify the amount of fuel in the fuel tanks.

• Verify the batteries are fully charged.

• Check weather conditions.

• Be sure the lights, horn, bilge pumps and other electrical equipment are in proper operating condition.

Do not overload your boat. The performance of your boat is dependent on load weight and distribution. Passengers should distribute themselves to maintain trim. Remember to distribute weight from right to left, and also from front to back.

• Avoid excess weight in the bow or stern.

• Securely stow all extra gear in stowage areas to prevent load shifting. Do not stow gear on top of safety equipment; safety equipment must be quickly accessible.

• In adverse weather, reduce the load in the boat. People/load capacity ratings are based upon normal boating conditions.

• Do not use the drive unit as a boarding ramp; use the boarding ladder. To prevent injury, make sure the engine is off when swimmers, divers and skiers are boarding.

Overloading of passengers, personal equipment and supplies could result in an accident, especially in rough waters. Maintain a balanced load at all times.

• Be sure the fire extinguisher, signaling devices and other emergency gear are onboard and in proper operating condition.

On the Water

Start your engine before casting off. Remember, the boat turns from the stern. Allow plenty of space between the boat and the dock before trying to move away.

Boarding

When boarding the boat, always step in. Do not jump. Avoid stepping on fiberglass or other potentially slippery surfaces. Board one person at a time.

Do not board the boat while carrying gear. Set the gear on the dock, board the boat and then pick up the gear.

Shipshape

Keep the weight distributed evenly. Store all gear in secure areas. Safety equipment must be immediately accessible at all times.

DANGER

Avoid injury or death. All passengers should be carefully seated while the boat is moving. DO NOT sit on the bow, bow pulpit, deck, gunwale or sundeck pads when the boat is moving.

3-4

200 Owner’s Manual

PERATING INFORMATION

GETTING UNDERWAY

There are many things to consider when planning a safe and enjoyable boating trip.

You are responsible for the safety of all passengers, the boat and any damage the boat or its wake may cause. Keep passengers from blocking your view so that you do not run into other boats, swimmers, water skiers, personal water vehicles or aids to navigation.

Before Starting Checklist

The following checks are essential to safe boating and must be performed before starting the engine. Get into the habit of performing these checks in the same order each time so that it becomes routine.

Pre-Operation:

• Refer to Section 5, Before Every Use.

• Refer to Launching Checklist, in this section.

• Test operation of carbon monoxide detectors.

• Open all seacocks and check for leaks.

• Check seawater strainers for leaks and accumulation of debris.

• Open windows, doors and hatches.

• Check that no fuel, oil or water is leaking or has leaked into the bilge compartment.

• Check all hoses and connections for leaks and damage.

• Verify the shift lever is in the NEUTRAL position.

• Check that the steering system operates properly.

During Operation:

• Check gauges frequently for signs of abnormal operation.

• Check that steering, shift and throttle controls continue to operate smoothly.

• Check for excessive vibration.

• Monitor your fuel supply.

• Verify batteries are charged.

After Boating:

• To prevent marine growth from accumulating on the hydraulic cylinder shafts, make sure trim tabs are up and propulsion unit drives are in the full trim DOWN position.

• Remove the ignition keys.

• Stow and secure all equipment.

• Pump bilges dry with manual switch.

• Close all water inlet seacocks.

• If possible, inspect the hull and propellers for damage.

• Check for fuel, oil and water leaks.

• Clean any spills, stains or moisture from the boat. Inspect sea strainers.

• Turn battery select switches off.

• Turn off DC breaker on electrical panel and if not using shore power, turn off AC breaker.

• Remove any food, garbage and wet gear from the boat.

• Secure lockers, hatches and canvas as equipped.

DANGER

Avoid injury or death. DO NOT operate the boat if any problem is found during this inspection. A problem could lead to an accident when using an unsafe boat. Immediately have any problem attended to by your authorized Cobalt dealer.

• Operate bilge blowers for at least four minutes before starting engines or generators.

• Do not overload your boat.

200 Owner’s Manual

3-5

COBALT

200

BOWRIDER

ECTION

Handling Dock and Mooring Lines

Be sure to use enough fenders to protect your boat from damage. Only use good quality, double-braided nylon line. Protect your boat’s finish by using chafing protectors on the lines. Only use the cleats, bow eye and stern eyes to secure your boat. Do not use the handrails or windshield. The foredeck handrails should only be used for tying a “Jackline” in an emergency situation. If possible, tie up your boat with the bow toward the waves and leave a little slack in the lines to allow for some wave movement or tidal action.

1 – Stern Line 2 – Forward Quarter Spring 3 – After Bow Spring 4 – Bow Line

Use your dock lines to help maneuver the boat near the pier and to secure it. Use the following information to secure your boat to a pile or dock cleat:

The bow line is fastened to the bow cleat and is pulled forward at about a 45° angle. This line keeps the boat from moving astern.

The stern line is fastened to an after cleat and pulled astern at about a 45° angle. This line keeps the boat from moving forward.

The spring lines can help you control the boat when leaving a dock. Be sure to use spring lines when boating in waters where the tide movement is significant. The forward quarter spring line is fastened to a forward cleat and heads aft. The after bow spring is fastened to a stern cleat and heads forward.

3 4

COB_0060_A

Starting/Shifting/Steering/Stopping

Your Cobalt boat may be equipped with a warning system that will sound an alarm if an engine problem develops. The horn may emit a short chirping sound during starting to verify operation. If the warning horn sounds when operating the boat, IMMEDIATELY throttle back to idle speed and shift into the NEUTRAL position. IMMEDIATELY check the gauges and stop the engine.

NOTICE: Continued operation after the warning alarm has sounded may cause severe engine damage.

Carbon Monoxide Detectors, if equipped

Avoid the possibility of injury or death from exposure to carbon monoxide (CO). All gasoline and diesel engines and fuel burning appliances such as heaters, stoves and generators produce CO. CO is colorless, odorless and dangerous. Direct and prolonged exposure to CO will cause brain damage or death. Signs of exposure to CO include nausea, dizziness, drowsiness, ears ringing, headaches, unconsciousness and cherry red skin color. Avoid exposing your passengers and yourself to carbon monoxide. Test the CO detector operation before each trip, at least once a week and after the boat has been in storage. Do not tamper with the operation of the CO detector. The detectors are installed for your safety.

3-6

200 Owner’s Manual

PERATING INFORMATION

Starting the Engine

DANGER

Avoid death, injury, fire or explosion. Operate the blower for at least four minutes each time you start the engine.

In addition, the blower should be operated continuously when at idle and during slow speed operation.

Cobalt Check List

For maximum enjoyment and safety, check each of these items.

BEFORE you start your engine:

• DRAIN PLUG (Securely in place?)

• PERSONAL FLOTATION DEVICES (One for every person onboard?)

• STEERING SYSTEM (Working smoothly and properly?)

• FUEL SYSTEM (Adequate fuel? Leaks? Fumes?)

• BATTERY (Fully charged? Proper water level?)

• ENGINE (In the NEUTRAL position?)

• CAPACITY PLATE (Are you overloaded or overpowered?)

• WEATHER CONDITIONS (Safe to go out?)

• ELECTRICAL EQUIPMENT (Lights, horn, pump, etc.?)

• EMERGENCY GEAR (Fire extinguisher, bailer, paddle, anchor and line, signaling device, tool kit, etc.?)

RECOMMENDED SAFETY RULES

• REMAIN SEATED WHILE UNDERWAY.

• AVOID USING REAR PAD OR SUNDECK WHILE ENGINE IS RUNNING.

• DO NOT USE BOARDING LADDER WHILE ENGINE IS RUNNING.

• TURN OFF ENGINE AND ALL ELECTRICAL SYSTEMS WHILE REFUELING.

• TURN OFF ENGINE WHEN SWIMMERS ARE NEAR BOAT.

After launching and pre-start checks and procedures have been followed, the engine can be started. Please refer to the propulsion unit operator’s manual for additional starting procedure information.

Start the engine with the shift control lever in the NEUTRAL position. Your boat is equipped with a neutral safety switch which will not allow engine to be started unless the shift control levers are in the NEUTRAL position.

Make sure:

• Control lever is in the NEUTRAL position.

• Throttle lever is at the IDLE position.

1. Turn the ignition key to START position. Release the key immediately after the engine starts. If the engine fails to start, refer to the propulsion unit operator’s manual for additional information.

NOTICE: Release the ignition key after the engine starts. Do not run the start motor for more than 10 seconds at a time. Failure to follow this procedure can damage an engine and the engine’s starter motor.

2. Operate the engine at approximately 1,000 RPM and check the oil pressure gauge. If oil pressure is not within specified range, stop the engine immediately. Have your authorized Cobalt dealer service the engine.

3. Make sure the water pressure gauge indicates water pressure immediately after starting the engine. If it does not, turn off the engine and contact your authorized Cobalt dealer.

4. Allow the engine to warm up. Check the water temperature gauge to be sure water temperature remains within the specified range.

If the temperature gauge reads abnormally high, stop the engine immediately. Check the drive unit’s water inlets for blockage. If the inlets are open, have your authorized Cobalt dealer service the engine.

200 Owner’s Manual

3-7

COBALT

Shifting/Running

200

BOWRIDER

CAUTION

Avoid injury, swamping the boat or taking water in over the transom. Go slowly when traversing in reverse.

Follow these guidelines when shifting your boat:

• Pause in the NEUTRAL position before shifting from FORWARD to REVERSE, or REVERSE to FORWARD.

• Avoid shifting into REVERSE while the boat is traveling forward at speed.

• Keep the control area clean and clear of obstructions.

Steering

1 – Release Lever

WARNING

ECTION

COB029

DANGER

Avoid injury or death. The steering system is the most important system in the entire boat from a safety standpoint. The boat’s steering system is not self-centering. Propeller torque, trim setting, water condition and boat speed affect the steering. Constant attention to the steering system is required for safe operation. Have the system inspected and maintained on a quarterly basis by a qualified service technician.

Your Cobalt boat is equipped with a tilt steering wheel. Adjust the tilt position with the release lever.

Avoid loss of control and/or injury. DO NOT adjust the steering wheel tilt position while the boat is moving. Sudden boat movement may cause loss of balance resulting in loss of control.

The steering system must be working correctly and properly maintained. Be sure to:

• Keep mooring lines, tow lines and other obstructions clear of the steering system.

• Keep the steering system’s moving parts clean and lubricated.

• Regularly inspect the steering system for kinks, damage and corrosion.

Refer to Basic Maneuvering, in this section, for additional steering information.

3-8

200 Owner’s Manual

PERATING INFORMATION

RIGHT TURN Turn wheel to right—Stern will move to left

LEFT TURN Turn wheel to left—Stern will move to right.

BACKING TO LEFT Turn wheel to left—Stern will pull to left.

COB_0062_A

200 Owner’s Manual

3-9

COBALT

200

BOWRIDER

ECTION

Stopping the Engine

WARNING

Avoid creating a hazardous condition. DO NOT use the engine stop switch and lanyard for normal stopping of the engine. Using the stop switch will impair your ability to restart the engine quickly if a hazardous situation arises.

1. Slowly bring the throttle lever to the IDLE position, or the NEUTRAL position.

2. Move the shift lever to NEUTRAL.

3. After operating at high speeds, allow a 2-3 minute engine cooldown period at low idle.

4. Turn the ignition key to the OFF position.

NOTICE: If any problems are encountered during the outing, have your boat inspected by your authorized Cobalt dealer and request any necessary repairs before your next outing.

Returning

WARNING

Avoid injury. DO NOT use your hands, arms or another part of your body to attempt to keep the boat from hitting the dock.

Approach a dock slowly and use caution. Plan your maneuvers ahead of time. Allow wind and current movement to help maneuver your boat.

Be sure to read Basic Maneuvering, in this section.

Leaving

Use caution when casting off. Wind, water conditions and other boat traffic will affect your boat’s movement. Move slowly and:

• Be sure the engine is warmed up before

casting off.

• Have enough space between the boat and the

dock to allow you to swing the boat’s bow away from the dock. The boat’s stern will move toward the dock as the bow moves away. Allow for enough room or the stern will hit the dock.

• Retrieve all mooring lines and fenders.

• Proceed slowly. Sound a long blast to alert

other boaters that you are departing.

When leaving a mooring, you should already have enough space around the boat to maneuver. Untie from the mooring and move back slowly until you can see it. Proceed slowly while giving the buoy wide clearance.

3-10

200 Owner’s Manual

PERATING INFORMATION

WIND or CURRENT

COB_0063_A

Docking

Follow these guidelines when docking:

• Come to a stop a short distance from the dock, then proceed slowly.

• Have your fenders, mooring lines and the crew ready.

• Observe how the wind and current are moving your boat. Approach the dock with the boat pointed into the wind, if possible. If the wind or current is pushing you away from the dock, use a sharper angle of approach. If you must approach the dock downwind or down current, use a slow speed and shallow angle. Be ready to reverse in order to stop and maintain position.

• If there is no wind or current, approach the dock at a 10° to 20° angle.

• If possible, throw a line to a person on the dock and have that person secure a bow line. If no one is on the dock, maneuver as close as you can, then secure any line to a piling or dock cleat.

• With the bow secure, swing the stern in using engine thrust, or pull it in with a boat hook.

200 Owner’s Manual

3-11

COBALT

200

BOWRIDER

ECTION

Approaching a Slip

This maneuver is similar to backing an automobile into a garage or parking space. When approaching a slip:

• Have fenders, mooring lines and the crew ready.

• Turn the boat’s stern toward the slip.

• Shift to REVERSE.

• Maneuver slowly into the slip then shift to FORWARD. Use your steering wheel and throttles to align the boat with the slip.

• Once aligned, shift to REVERSE and continue to back in slowly. Shift into FORWARD when completely in to stop the movement of the boat.

• Shift to the NEUTRAL position, secure the mooring lines and stop the engine.

COB_0064_A

Approaching a Mooring

COB_0065_A

1 – Mooring Buoy

The only buoys you are permitted to moor to are mooring buoys. Mooring to a navigation buoy or other navigational aids or regulatory marker is illegal.

Approach a mooring buoy by heading into the wind or current. Observe the direction of other boats that already lie at mooring buoys. Since they are heading into the wind or current, approach your buoy at the same heading.

• When you think you can move enough forward without using your engine, shift to the NEUTRAL position.

• Have a crew member positioned on the bow with a hook to retrieve the mooring line. At that point, the crew member should be guiding your maneuvers toward the buoy.

• Turn off the engine after the mooring line is attached to the boat.

Basic Maneuvering

Techniques

Wandering is a characteristic of all deep V-hulls at slow speed. There is no cure for wandering; however, a very basic operational technique can be applied which will minimize this characteristic.

If the steering wheel is moved back and forth to compensate for wandering, invariably, the situation will be magnified. If the steering wheel remains in a centered position, the boat will wander back and forth slightly; however, the overall course of the boat will be a straight one.

3-12

200 Owner’s Manual

PERATING INFORMATION

Trim

Boat trim while on plane is influenced by three factors:

1. Load distribution

2. Drive unit trim

3. Trim tab position, if equipped

Determining best boat trim while underway takes time. It is best to experiment with different drive and tab trim combinations while taking note of the condition.

Load Distribution

The performance of your Cobalt boat depends on load weight and distribution.

Distribute weight evenly, from bow to stern, and also from port to starboard.

Drive Unit Trim

Trim angle is the angular relationship between the drive unit and the transom of the boat. Boat trim while underway greatly affects the performance and efficiency of your boat. For best results, the boat should be on plane and trimmed to reduce the amount of the boat’s hull in the water (known as wetted surface). With less boat in the water, both speed and fuel economy increase.

Continuous trim adjustment is required when operating your boat to maintain maximum performance and efficiency.

If the drive unit is trimmed in too far (closer to the boat bottom), speed drops, fuel economy decreases and the boat may not handle correctly. However, it does provide better acceleration from a standstill; and because it forces the bow down, visibility is improved. If the drive unit is trimmed out too far (away from the boat bottom), steering torque may increase, the boat may be difficult to get on plane and it may bounce.

To use power trim effectively, start with the drive unit trimmed in. As the boat planes, increase the angle out. Experience is the best teacher for understanding proper drive trim.

200 Owner’s Manual

3-13

COBALT

200

BOWRIDER

Trim Tabs

The trim tabs, if equipped, are a separate system in themselves and are not to be used in lieu of the drive unit power trim system. Water is deflected and redirected as the trim tabs are raised and lowered. This change in the water flow creates upward pressure under the tabs, and raises the stern. When the stern raises, the bow is lowered. Likewise, lowering the port tab will cause the port stern to raise, making the starboard bow lower.

Using trim tabs in conjunction with the drive trim will compensate for uneven weight distribution, listing, water conditions and other factors that cause inefficient operation. Remember that trim tabs are trimming the hull, while power trim is trimming the drive unit.

Some systems may include indicators to show position of the tabs and drive unit.

ECTION

STERN

RISES

WATER IS REDIRECTED

CREATING UPWARD

FORCE AT STERN

PORT TAB LOWERED

PORT STERN RISES STARBOARD BOW LOWERS

STARBOARD TAB LOWERED

STARBOARD STERN RISES PORT BOW LOWERS

COB_0067_A

BOW

LOWERS

HULL

COB_0068_

3-14

200 Owner’s Manual

PERATING INFORMATION

To adjust boat trim while underway:

1. Before accelerating, make sure both trim tabs are fully raised.

2. Adjust the trim tabs to achieve a planing attitude.

3. Use the drive trim to position the propeller path parallel to the water flow.

UNTRIMMED

PLANING

ATTITUDE

PROP PARALLEL TO WATER FLOW

COB_0069_A

4. Readjust the trim tabs to fine tune attitude. Operate only one tab at a time and in small increments. As the tab takes effect, you will notice it causes the boat to veer off course slightly. Correct for this as it happens.

5. To prevent the boat from listing, do not move one tab significantly further down than the other tab.

DANGER

Avoid injury or death. Use the trim tabs slowly to adjust trim. Adjustments are not immediate. Improper use of the trim tabs at high speeds can cause an accident.

High-Speed Operation

DANGER

Avoid injury, death or property damage. Maneuverability above 50 mph is limited. Sudden turns may cause loss of control. Your Cobalt boat is not designed for wake jumping. When crossing another boat’s wake, throttle back to prevent your boat from leaving the water. Wake jumping is very dangerous. It is possible for the boat to re-enter the water on its side, transom or bow. You and your passengers could suffer serious injury. Also, damage to the boat could take place causing a hazardous condition.

When operating any boat at high speed, exercise a great deal of caution. This is particularly true during turns. Gradual turns can be completed at high speed by a competent driver, but it must be emphasized that sudden turns at any speed, and particularly at high speed, can be especially dangerous. It is possible to throw passengers from their seats and even from the boat if caution is not exercised. Remember, common sense is the rule for safe boating.

We recommend that you have 10 hours of experience with the boat before any full throttle operation. Do not operate your boat until you are completely experienced with its handling characteristics. The following are some guidelines for performance operation.

• Keep bottom of the hull clean and free of barnacles and other growth. Growth on the hull can slow the boat down considerably.

• Prepare the boat. Be sure all gear is properly stowed and compartments are latched.

• Weight distribution affects performance. Keep weight in the boat to a minimum and evenly distributed.

200 Owner’s Manual

3-15

COBALT

200

BOWRIDER

ECTION

• The propellers should be of the proper pitch to turn the recommended RPM rating for the engine with an average boat load. Refer to your propulsion unit operator’s manual for additional information.

• Watch the tachometer. Keep the engine within the full throttle operating range. Refer to the propulsion unit operator’s manual for full throttle operating range.

DANGER

Avoid injury, death or loss of control. Keep one hand on the steering wheel and the other on the throttle control at all times. If the boat begins to operate in an unsafe way, pull back on the throttle. Trim the drive unit in at the same time and maintain control.

High-speed operation on smooth water is very stable, but quick reactions and adjustments are needed to maintain control. Know your limits and stay within them. Keep one hand on the steering wheel and the other on the throttle; constant adjustments are necessary for rapidly changing conditions. Small inputs of throttle, steering and trim movement are exaggerated at high speeds. Keep watch well ahead so that you have enough time to react.

Anchoring

There are many types of anchors available on the market. The choice of one anchor over another depends on many factors. An anchor will usually hold best in a mixture of mud and clay or in hard sand. A Danforth anchor is recommended for general boating. For more information on anchors, contact your authorized Cobalt dealer.

DANFORTH

ANCHOR

KC-1571

The windlass, if equipped, gets its power from the 12V DC system. The windlass can be operated at the driver’s helm or from the foredeck on some models and only from a switch located in the anchor locker area on others.

The windlass system can also be operated manually. On the anchor locker lid on the foredeck, you will find a crank. A longer windlass crank is located in one of the cockpit storage areas or in the engine compartment bulkhead.

Please consult the operator’s manual supplied with the windlass system for proper operation of the system in the electric and manual modes.

WARNING

Avoid injury, death or swamping. Anchor from the bow, not from the stern. A strong current can pull a boat underwater, anchored by the stern, and keep it there.

Be sure the anchor is adequate for your boat. Use caution when anchoring. Look for signs of underwater pipes or cables. With the engine off, you have no control of the boat. Water and wind conditions will affect an anchored boat. Be sure the anchor will hold before leaving the boat.

The circuit breaker on the battery switch panel under the port aft seat must be in the ON position to operate the windlass. When not in use, turn the circuit breaker to the OFF position.

3-16

200 Owner’s Manual

WARNING

Avoid injury and/or property damage.

• Keep hands, feet, loose clothing and hair well clear of the winch and rope/chain during operation.

PERATING INFORMATION

Setting

When the anchor hits bottom, slowly back up the boat, keeping tension on the line. The anchor line should be five to seven times the depth of the water.

Weighing

• Keep clear view of the winch when operating it.

• Run the boat’s engine while raising or lowering the anchor. Not only is this a safety precaution, it also prevents draining of the batteries.

• DO NOT use the winch as a bollard. When anchored, secure the anchor line directly to a bollard or deck cleat.

• Secure the anchor with a rope or fastener pin when operating the boat at high speed, in heavy weather or while transporting.

• Turn the WINDLASS switch off when the winch is not in use and before leaving the boat.

• Keep the rope in good condition and free from twists, knots, heavy abrasions and salt buildup. In the event of the rope slipping or jamming, reverse the direction of the winch and check the rope for damage.

• Ensure the size and type of chain used with this switch is compatible with the rope/chain.

Use caution when anchoring. Look for signs of underwater pipes or cables. With the engine off, you have no control of the boat. Water and wind conditions will affect an anchored boat. Be sure the anchor will hold before leaving the boat.

Lowering

Bring the boat to a stop with the bow facing into the wind or current. Lower the anchor. On dash control, place safety switch in the ON position.

Press and hold the toggle switch down to pay out sufficient rope/chain to set the anchor.

To weigh (retrieve) the anchor, start the engine and slowly move forward. Press the toggle switch up while taking in anchor line as you go. Carefully retrieve the last meter (36 inches) of rope/chain, then seat the anchor in the bow fitting. Use snubber to secure the anchor at all times in case of windlass clutch failure.

Refer to the windlass operator’s instructions for additional operating information.

Towing

If seas are rough, it may not be easy to extend the tow line from one boat to another. In these cases, use a light throwing line with a weight on one end and with the heavier towing line secured to it.

Do not attempt to tow a larger or grounded vessel.

Because of the tremendous stress caused by towing, use a tow line that is rated at least four times the gross weight of the boat being towed.

Tow ropes must be in good condition, free of any cuts or abrasions.

Attach the tow line (2) to the bow eye (3) on the disabled boat. Attach the opposite end of the bridle only to the stern cleats (1) of the tow boat. Wrap the bridle with chafing gear where it rubs against the boat.

Leave at least two boat lengths between the boats for adequate movement.

DANGER

Avoid injury, death or property damage. When towing, only use the bow eye and stern eyes. DO NOT use deck cleats or handrails. DO NOT allow anyone to be in line with the tow rope.

200 Owner’s Manual

3-17

COBALT

200

BOWRIDER

ECTION

Adjust the tow line to match wave action. Keep the boats on the crest or in the trough of the waves at the same time. In protected, calm waters, shorten the line for better handling. Tow at moderate speed, allowing for adverse wind and wave conditions. Have the operator of the towed boat steer with you, if possible.

If you need a tow, or wish to tow another boat, use great care. The boat structure can be damaged by excessive pulling strain. You should offer help to a boat in trouble. However, towing a capsized, grounded or hull-damaged boat is dangerous. Give assistance to the occupants, then call the proper authorities.

Environmental Considerations

Using your boat in different environments requires special operating considerations.

Salt Water

During long periods of mooring, if possible, tilt the propulsion unit drives out of the water – except in freezing temperatures. Refer to the drive system owner’s manual for more information on saltwater operation and protection.

Freshwater flushing of the engine is recommended after operating in salt, polluted or brackish water. Refer to your engine operator’s manual for additional information.

COB_0003_A

Freezing Temperatures

When boating in temperatures below freezing, keep the propulsion unit drives tilted down (submerged) at all times. This will help prevent damage from freezing.

Upon removing your Cobalt boat from the water, leave the drive unit in the vertical position until cooling system has drained.

Refer to your propulsion unit operator’s manual for additional information regarding winterization.

3-18

200 Owner’s Manual

PERATING INFORMATION

Entertainment System

Your Cobalt boat is equipped with an AM-FM CD player, iPod™/MP3 Port and may have been accessorized to enhance its fidelity. To operate your entertainment system, you must first supply power to the unit(s). Make sure the battery switch is on and the ignition switch is set on “ACC.” If your boat is equipped with a Power Distribution Panel, the switches for the entertainment system components must be turned to ON before operation. For additional operating information, refer to the operator’s manual for your stereo and accessories supplied to you in your owner’s packet. For a list of what is standard, or is available for your entertainment system, refer to Standard and Optional Equipment in this section.

The audio speakers in your Cobalt are designed to deliver maximum fidelity in a marine environment. The speakers can be damaged if struck by a sharp object or if the moving elements are restricted from movement. Do not store or place any sharp objects near the speakers, or restrict the element movement.

200 Owner’s Manual

3-19

COBALT

200

BOWRIDER

ECTION

COBALT INSTRUMENTATION SYSTEM

Your Cobalt boat is equipped with instruments manufactured by Medallion Instrument Systems. Each instrument has been manufactured in an ISO 9001-2000 registered facility, built to stringent standards and has passed a comprehensive quality control procedure prior to shipment. Each instrument is backed by a limited lifetime warranty. While most of the instruments have the look and easy readability of analog gauges, the instruments are digitally controlled, providing reliable and trouble-free performance for years. Digitally controlled instrumentation simplifies engine diagnosis, provides more accurate information and data can be generated directly from the engine.

The Cobalt Instrument System: Each gauge system consists of a single Data Interface Gauge (DIG) and several auxiliary gauges. The Data Interface Gauge collects information from the CAN bus and analog inputs and drives the auxiliary gauges via a low-speed data bus. The auxiliary gauges receive power from the Data Interface Gauge. The backlight of all the gauges is powered on a connector terminal, not associated with any data bus.

In twin-engine applications, data for both engines is on the CAN (P) bus attached to the Starboard Master DIG to enable this system. The Master (Starboard) and the Port DIGs are unique, distinct gauges and are defined by the software programmed into each gauge. It is not unusual for tachometers and other system gauges to have slightly different readings between engines as long as the readings are within the engines’ specified operating range.

System Startup: With the ignition key in the “ON” position, all the gauges will perform a pointer reset (go to zero, or minimum reading). With the speedometer as the Data Interface Gauge, it will perform an LCD all-segments-on test. Once the initializations are complete, the gauges will be able to receive and display data.

System Shutdown: With the ignition key in the “OFF” position, all gauge pointers will return to “zero” or minimum value. The Data Interface Gauge will turn its LCD window off and shut off power to the auxiliary gauges.

Tachometers: Most tachometers have a tolerance of 2% of full scale (120 RPM on a 6000 RPM tach). In a twin-engine application, this could be a 240 RPM difference between each tach reading when the engines are in sync. The tachometers will read zero when the key is turned on, without the engine running. The tach may display a reading when the key is turned off.

Trim Gauges: Trim gauges are calibrated to be the most accurate and useful in the engine down or “trim” range. The gauge may not read full “up” in some cases. This is not unusual, nor does it indicate a problem with either the trim sender or the gauge.

Fuel Gauges: Fuel gauges may “bounce” from fuel sloshing in the tank. This does not necessarily indicate a problem with the gauge or sender.

Instrument Fogging: The instruments are designed to be “fog resistant.” There are small vents in their cases to allow trapped moisture to escape. Occasionally moist air may be drawn into the vents when the air inside the gauge cools down, after the instrument is turned off. The morning sun can draw this moisture up against the lens, causing fogging. Turning on the instrument with the instrument light “ON” will speed up moisture removal. Your Cobalt instruments are built to withstand the harsh marine environment, and fogging will not harm them.

Radio Transmissions: Some interference (erratic operation) may be noticed on tachometers or synchronizers during radio transmissions. This will not damage the instrument or affect its accuracy.

3-20

200 Owner’s Manual

PERATING INFORMATION

HELM AND INSTRUMENTATION

COB_0324_A

Your Cobalt boat helm will monitor and provide operation of the boat’s functions. The gauges are illuminated for night operation.

On occasion, a small fluctuation in a gauge reading is not unusual. If an instrument reading is outside the normal or recommended ranges, determine the cause or see your authorized Cobalt dealer.

Refer to the engine operator’s manual for normal recommended ranges.

WARNING

Avoid the risk of injury, death or equipment damage. If the safety of you or others depends on running the engine during an abnormal condition, make the right decision on saving equipment or lives. DO NOT jeopardize the safety of you or others to protect your boat.

200 Owner’s Manual

3-21

COBALT

200

BOWRIDER

ECTION

1. FUEL (Fuel Level Gauge) - Measures the approximate level of fuel in a fuel tank.

The ignition switch must be in the RUN position to activate the gauge. Since the accuracy of your gauge varies with the attitude of your Cobalt boat, and the fuel pick-up tube cannot withdraw all fuel out of the tank, please observe the One Third Rule. Use one third of your fuel to go out, one third to come back and one third as a reserve.

2. SPEEDOMETER - Registers forward speed in miles per hour. Since the speedometer input is received from water pressure, accuracy is only approximate.

The following information may also be displayed in the LCD window of the Speedometer gauge if the required sensors, senders or transducers are present in the system:

• Water Depth

• Outdrive Trim Position

• Oil Pressure

• Engine Coolant Temperature

• Actual Engine Run Time in Hours

• Engine RPM (Revolutions Per Minute)

• Temperature of Sea Water

• Air Temperature

4. TRIM (Trim Gauge) - This gauge indicates the angle position of the engines’ outdrive relative to the position of the bow, up or down when boat is on plane. Use this gauge in combination with the trim switches located in the throttle control.

5. ACCESSORY PANEL WITH STORAGE OR GPS (Optional)

NAV. LIGHTS - NAV/ANC “Lights” - This three-

position switch activates the navigational (running) lights and the anchor light. After installing the light, press the switch toward the “NAV.” Press the switch toward the “ANC” and the anchoring/mooring light (360° white) will illuminate.

NOTICE: Operate the boat between sunset and sunrise using your navigational lights.

Navigational lights are legally required to indicate direction and right-of-way at night.

Navigational Lights - You must use your navigational lights (running lights) when operating your Cobalt boat between sunset and sunrise, and when day time visibility is limited. Also, check with the local authorities before operating your boat, for other requirements concerning the use of navigational lights.

• Battery Voltage

• Fuel Tank Level

• Fuel Burn Rate

• Engine faults are displayed if present

The ignition key switch must be in the “ON” or “accessory” position in order to display LCD window data. Push the button located on the underside of the dash below the speedometer to scroll through the information modes of the LCD display window on the speedometer dial face.

3. TACHOMETER - Registers engine speed in revolutions per minute (RPM). Use this gauge to keep the engine within the proper operating range. Refer to the engine operator’s manual for correct specifications.

The navigational lights are identified by a red light on the port side of the vessel, and a green light on the starboard side.

Anchor/Mooring Light - All boats at anchor or moored must display a proper white anchor light.

The anchor light (all around light) is the white light located aft of the cockpit. The anchor light must be visible from 360° and will remain on when operating the navigational lights.

HORN - This switch activates the horn. Press the switch to activate.

BILGE PUMP - This switch manually controls the bilge pump.

INTERIOR LIGHTS - This switch provides illumination within the cockpit.

3-22

200 Owner’s Manual

PERATING INFORMATION

DOCKING LIGHTS (Optional) - This switch operates the docking lights.

Docking lights are to be used for docking only. It is illegal to use your docking lights while cruising.

GPS POWER (Optional) - This switch provides power to the GPS system.

ACCESSORY - These switches are available to operate switched accessory items.

6. SHIFT/THROTTLE LEVER - Your control will have a single lever for a single-engine application and dual levers for twin-engine applications.

In some applications, multiple levers can be used for each drive unit’s shift and engine’s throttle. The left levers are for the port engine and the right levers are for the starboard engine. The controls are arranged with the shift levers (all one size) grouped together and throttle levers (all one size, and larger than the shift levers) grouped together.

7. IGNITION SAFETY SWITCH

WARNING

Avoid injury, death or damage to equipment. DO NOT allow your boat to be operated without the proper use of the ignition safety switch and lanyard.

Your Cobalt boat is equipped with an ignition safety switch located on the lower lip of the helm. The ignition safety switch and lanyard will stop the engine in case of an emergency. Attach the lanyard to the boat operator whenever the engine is running, but be aware there will be a loss of boat control if the switch is activated. If the operator is thrown from the seat or moves too far from the helm, the lanyard will become disconnected from the ignition safety switch, shutting off the engine.

1 – Ignition Safety Switch 2– Lanyard 3 – Hook

COB_0042_A

200 Owner’s Manual

3-23

COBALT

DANGER

Avoid injury or death. Attach the ignition safety switch lanyard to the operator before starting the engine. This will prevent the boat from becoming a runaway if the operator is accidentally thrown away from the helm. The ignition safety switch can only be effective when it is in good working condition. Observe the following:

• DO NOT remove or modify the ignition safety switch and/or lanyard.

• The lanyard must be free from obstructions that could interfere with its operation.

• DO NOT operate the boat if the ignition safety switch does not function properly.

• Attach the ignition safety switch lanyard to a secure place on your clothing, your arm or leg while operating.

• DO NOT attach the lanyard to clothing that could tear loose. DO NOT route the lanyard where it could become entangled, preventing it from functioning.

200

BOWRIDER

ECTION

Remote Control(s)

DANGER

Avoid injury or death. Make sure all shift/throttle hardware and cables are regularly inspected and maintained. Improperly maintained controls are hazardous and may cause sudden loss of control.

NOTICE: Do not use the shift levers when the engine is not running. Do not shift too quickly from FORWARD to REVERSE. Damage to the engine and transmission can result. When shifting from FORWARD to REVERSE, pause in the NEUTRAL position until the engine is at idle speed and the boat has slowed. When shifting from NEUTRAL to FORWARD or REVERSE, shift briskly and decisively.

Your Cobalt boat is equipped with a safety switch for “start-in-neutral-only” operation. The shift lever(s) must be in the NEUTRAL position before attempting to start the engine.

• Avoid accidentally pulling the lanyard during normal operation. Loss of engine power means loss of most steering control. Also, without engine power, the boat could slow rapidly. This could cause occupants and objects in the boat to be thrown forward.

The following information relates to the general description about your controls. Refer to the engine operator’s manual or the control operator’s manual for specific use.

8. DRIVE UNIT TRIM SWITCH - Drive Unit Trim Switch controls the trim angle of the drive unit. This switch will maximize the performance and ride of the boat. If combined with the optional trim tabs, more enhancement to performance and ride can be achieved.

9. SHIFT DETENT BUTTON - Press to shift from NEUTRAL into FORWARD or REVERSE.

10. GAUGE MODE SWITCH - Allows toggling of LCD screen on speedometer.

3-24

200 Owner’s Manual

PERATING INFORMATION

11. UNDERWATER LIGHTING SWITCH (Optional) - Your boat may be equipped with

underwater lighting and the operating switch may be located here. If not located under the dash, you will find the switch in the transom area.

12. TILT STEERING RELEASE LEVER - Adjusts the steering wheel angle to a comfortable operating position when the boat is not moving.

13. BILGE BLOWER - This switch activates the engine compartment ventilation blower to remove explosive fumes from the area. The blower must be operated for a minimum of four minutes each time before starting the engine or generator. In addition, the blower should be operated continuously when at idle or running at slow speeds.

14. IGNITION - Each engine has its separate ignition switch. In dual-engine applications, the left switch is for the port engine, and the right switch is for the starboard engine.

WARNING

Avoid injury, death or explosion.

• Check engine compartment for gasoline or vapors.

• Operate blower for four minutes.

• Verify blower operation.

• Run blower below cruising speed.

15. STEREO REMOTE CONTROL (standard on

dash, transom mount, optional) - This panel provides remote control of the stereo system from the helm.

17-VOLT ACCESSORY POWER RECEPTACLE -

Your Cobalt boat is equipped with a 12-volt accessory power receptacle. The receptacle provides electricity to operate 12V DC accessory items. Limit the accessory to 10 Amps.

3" DIGITAL GAUGE

Alarms

Alarm Overview

Alarm information will be displayed as described below. This system does not allow for acknowledgement and de-emphasis of the alarms in the various display modes.

High Voltage Alarm Appearance - Voltage is displayed on the

Speedometer LCD. High voltage will cause the voltage text and digits to flash on and off in 0.5 ±0.25 second intervals as long as the high voltage message is received.

Low Voltage Alarm

Appearance - Voltage is displayed on the

Speedometer LCD. Low voltage will cause the voltage text and digits to flash on and off in 0.5 ±0.25 second intervals as long as the low voltage message is received.

Low Oil Pressure Alarm

Appearance - Oil Pressure is displayed in the Trim

Gauge, on an LCD, in the form of a bar-type histogram. When the low oil pressure message is received, the LCD display will flash on and off in 0.5 ±0.25 second intervals.

16. CIRCUIT BREAKERS - These are the breakers for helm labeled protected device. These breakers will activate if overloaded and cut power to the switch. To restore power, turn off the device, push the breaker button in and release. If the button continues to pop out when the device is used, see your authorized Cobalt dealer. Your boat may not be equipped with all of these features or options.

200 Owner’s Manual

Low Block Pressure Alarm

Appearance - When the low block pressure

message is received, the Tachometer LCD display, in the segmented digits, shows “W P”, alternating with the magnetic heading and any other alarm message, in 1.0 ±0.3 second intervals.

Overheat Alarm

Appearance - Coolant temperature is displayed in

the Fuel Gauge, on an LCD, in the form of a bar-type histogram.

3-25

COBALT

When the Overheat message is received, the LCD will flash on and off in 0.5 ±0.25 second intervals.

Low Drive Lube Alarm Appearance - When the Low Drive Lube Alarm is

received, the Tachometer LCD display, in the segmented digits, shows “L L”, alternating with the magnetic heading and any other alarm message, in

1.0 ±0.3 second intervals.

Check Engine Alarm

Appearance - When the Check Engine Alarm is

received, the Tachometer LCD display, in the segmented digits, shows “C E”, alternating with the magnetic heading and any other alarm message, in

1.0 ±0.3 second intervals.

Guardian Active Alarm

Appearance - When the Guardian Active Alarm is

received, the Tachometer LCD display, in the segmented digits, shows “C E”, alternating with the magnetic heading and any other alarm message, in

1.0 ±0.3 second intervals.

200

BOWRIDER

ECTION

Helm Fault Alarm Appearance - When the Helm Fault Alarm is

received, the Tachometer LCD display, in the segmented digits, shows “H F”, alternating with the magnetic heading and any other alarm message, in

1.0 ±0.3 second intervals.

3-26

200 Owner’s Manual

PERATING INFORMATION

STANDARD AND OPTIONAL EQUIPMENT

Feature

Standard Optional Standard Optional

Canvas

Bimini Top w/SS Adj. Stanchions X

Bow Tonneau Cover X X

Cockpit Tonneau Cover X X

Mooring Cover X X

Dash

Accessory Power Plug - 12 Volt X X

Aluminum Dash Panels X X

Compass XX

Composite Helm Eyebrow, Custom Stitching X X

Depth & Water/Air Temp Gauge Pkg. X X

GPS, Touch Screen w/Maps (Garmin™ 640) X X

GPS w/Weather, Touch Screen w/Maps (Garmin™ 640) X X

Hour Meter X X

Leather Steering Wheel w/Auto Leveling Hub X X

Stainless Steel Switches X X

Woodgrain Dash/Trim Package X

Exterior

Anchor Locker X X

Arch, Aluminum, Fwd. Folding w/Bimini X

Black Chrome “Cobalt” Letters X

Bow Scuff Plate, Stainless Steel X X

Docking Lights - Stainless Steel X X

Extended Running Surface X X

Fender Clips w/Line (4) X X

Flagpole w/Flag X

Flip-Down Swim Step w/o Ladder X X

Graphics, Molded-In Gelcoat X

Lights, Tower X

Midship Cleats X X

Recessed Hull - Side Logo X

Ski Tow Eye - Stainless Steel X X

Sof-Trac Mat (std swim platform) X X

Sof-Trac Mat (swim platform w/step) X X

SS Tubular Platform Perimeter Rail X X

Stainless Top Trim Windshield X X

200 200WSS

200 Owner’s Manual

3-27

COBALT

200

BOWRIDER

ECTION

Feature

Standard Optional Standard Optional

Swim Platform, Extended w/Ladder X X

Three Color Custom Graphics X

Tower (folding), WSS Razor w/Boardracks & Bimini X

Transom Tilt Switch X X

Wakeboard Racks w/Swivel (2) (requires tower) X

WSS Classic w/All White Deck X

WSS Classic, Aft Hull Color w/All White Deck X

WSS Sport Graphics w/All White Deck X

Interior

Aft Sunpad w/Adjustable Backrest X X

Aft Sunpad w/Walk-Thru Transom X X

Aft Walk-Thru Carpet X X

Aft Walk-Thru Filler Cushions X X

Aft Walk-Thru Gate X X

Air Compressor w/Holder X X

Bow Center Cushion Insert X X

Bow Walk-Thru Door X

Bow Walk-Thru Doors X

Carpet, 40 oz., Snap-In w/Neoprene Back X X

Carpet, Waterweave (Sand & Terra) X X

Dinette Table w/Cockpit Receptacle X X

Floor Covering, Seagrass (Sand & Terra) X X

Remote Courtesy Lights w/Key Fob X X

Removable Bow & Cockpit Carpet X X

Removable Ice Chest X X

Seating, Helm Flip-Up X X

Seating Varadense Comfort X X

WSS Custom Interior (piping, monograms) X

Stereo

AM-FM, Single CD Stereo w/6 Speakers X X

iPod/MP3 Port X X

Premium Sound System w/Transom Remote X X

Premium Sound w/Transom Remote & Speakers X X

Satellite Radio System X X

Speakers, WSS Tower - 1 Pr. X

Stereo Remote, Dash X X

Stereo Remote, Transom X X

200 200WSS

3-28

200 Owner’s Manual

PERATING INFORMATION

Feature

Standard Optional Standard Optional

Structure

10/5/3 Year Warranty Protection X X

Battery Switch, Dual w/VSR X X

Battery Switch, Single X X

Battery Tender/Charger, 110V X X

Battery Tender/Charger, 220V X X

CE Requirements w/Auto Fire Extinguisher X X

Circuit Breaker Protected Elec System X X

Composite Floor X X

Composite Seat Bases X X

Composite Transom X X

Cruise Control (Perfect Pass) w/GPS X X

Cruise Control, Volvo w/EVC X X

Driver’s Rearview Mirror X

Fiberglass Cockpit Liner X X

Fiberglass Stringer System X X

Fire Extinguisher, Automatic System X X

Fire Extinguisher, Manual X X

Ignition Safety Switch X X

Kevlar™ Reinforced Hull X X

Stainless Steel Windshield Braces X X

Through-Prop Exhaust X X

Tool Kit XX

200 200WSS

200 Owner’s Manual

3-29

COBALT

200

BOWRIDER

CAPTAIN’S CHAIR ADJUSTMENTS AND OPERATION

Your captain’s chair has the flip-up position for greater visibility and maneuverability while docking. You can sit on the raised cushion or stand in front of the cushion.

Standing while driving your boat should only be done while maneuvering at an idle by an experienced driver.

The chair is adjustable fore and aft.

ECTION

DANGER

Avoid potential injury or ejection of occupants. DO NOT stand while driving above engine idle speeds and make sure all passengers are seated and seats are in a locked/secured position when the boat is underway.

EXTENDED SWIM PLATFORM/BOARDING LADDER

The swim platform was designed for use by people – not for the storage of personal equipment. Maximum platform weight capacity is 800 lbs (363 kg). If the swim platform is removed, the boat will not pass Coast Guard inspection, and the boat cannot be boarded until a boarding ladder is installed. The swim platform may be removed for off-season storage only.

COB_0320_A

1. Lift lever (1) to adjust fore and aft.

2. Turn rotation friction handle (2) clockwise to increase friction and counterclockwise to decrease friction. The chair should always be operated with slight friction.

Make sure there is no one in the area behind the boat and the boarding ladder is properly stowed before starting the engine and engaging the shift mechanism.

Use caution when stowing the ladder to prevent pinching fingers.

3-30

200 Owner’s Manual

PERATING INFORMATION

COB_0294_B

WARNING

Avoid the possibility of injury or death. DO NOT occupy the platform or use the ladder when the engine is running or engaged. Propeller contact or exposure to CO can cause severe injury or death. All gasoline engines produce CO. CO is colorless, odorless and dangerous. Direct and prolonged exposure to CO will cause brain damage or death. The stern drive unit and the propeller have many sharp edges.

The extended swim platform must be attached to the boat when it is in use. The boarding ladder is attached to the boarding platform. The removable feature is for boat storage only.

FLIP DOWN SWIM STEP OPTIONAL

Boat in the Water

First, lower the drive all the way.

To deploy the step:

1. Kneel down to reach the plunger; pull the plunger out and pull up on the step at the same time.

2. Push the step over into the water. The step will be buoyant.

3. Sit on the platform and push the step down with your feet; it will automatically lock into place.

To raise the step:

1. Push down slightly on the step with your feet while sitting on the platform.

2. Pull the plunger and allow the step to float up.

3. Move to the side and pull the step onto the platform. It will automatically lock into place.

Boat on a Trailer

Lower the drive as low as possible without hitting the ground or trailer.

To deploy the step:

1. Stand behind the platform; pull the plunger out and pull up on the step at the same time.

2. Pull the step towards you, do not let go.

3. Gently let the step down; it will lock into place automatically. Do not let the stainless tube hit or rest on the drive or props at any time.

200 Owner’s Manual

To raise the step:

Pull the plunger and raise the step at the same time. Be careful when folding the step over onto the platform. Do not allow the step to slam down.

Always make sure the area in the platform is clear before closing the step.

3-31

COBALT

200

BOWRIDER

ECTION

COB_0325_A

COB_0312_B

1 – Swim Step 2 – Plunger

VOLVO PENTA OCEAN SERIES OUTDRIVE

Your boat may be equipped with an Ocean Series Outdrive from Volvo Penta. In addition to a composite outdrive, there is a Neutra-Salt switch located in the helm area of your Cobalt boat. Please refer to the Neutra-Salt Operator’s Manual located in your boat bag for operating information.

ICE CHEST

The ice chest can be accessed by lifting the starboard aft sunpad cushion UP and OUT.

COCKPIT DINETTE TABLE OPTIONAL

Remove the j-shaped table leg from the storage area underneath the ice chest. Slide the leg into its mounting support. Slide the table top onto the leg. If your table top has a lever, tighten the lever.

BOW CUSHION INSERT OPTIONAL

The bow area can be converted into a sun deck by placing the bow cushion insert. Position inserts to create the sun deck.

3-32

200 Owner’s Manual

COB_0097_A

PERATING INFORMATION

AIR COMPRESSOR OPTIONAL

Switch

Air Flow

COB_0101_A

A high-volume air compressor is conveniently located in the starboard aft walk-thru storage compartment to inflate your favorite water toys. Plug into the accessory receptacle on the dash or in the air compressor area.

CRUISE CONTROL OPTIONAL

WARNING

Avoid injury or death. DO NOT use the cruise control feature as a means for navigation or for “no hands” operation.

To operate the Cruise Control speed control system, set desired speed. Once your boat reaches the set speed, the Cruise Control will hold the speed constant. For additional operating information, refer to Cruise Control operator’s manual in your owner’s packet.

PERFECTPASS

ON/OFF MENU

WAKBD 22 . 5 22 . 5

Avoid direct exposure to water and keep stowed when not in use.

ANCHOR LIGHT

To install anchor light insert pole into socket and turn clockwise until it locks into place.

Cap the anchor light socket when the anchor light is removed.

WAKEBOARD PRO

COB_0029_A

200 Owner’s Manual

3-33

COBALT

200

BOWRIDER

ECTION

BATTERY SWITCH

The single and/or optional dual battery switch provides isolation and positive disconnect from the battery or batteries to protect against tampering, electrical fire hazards and battery rundown. Battery selection should be done when the engine is off (alternate battery usage daily). Switch to the “primary,” “secondary” or both batteries. Under normal conditions, the switch should be in the ON position for one battery rather than the ON position for both batteries. This will keep one battery in reserve should the other fail. You can operate the boat with the switch in the “both” position, but this is not recommended for extended periods. In the OFF position, the boat will be isolated from the batteries, except for the automatic bilge pump.

NOTICE: The purpose of dual batteries is to keep one as a spare. In the “both” position, you essentially have one larger battery and if a failure should occur with the electrical systems or either battery, both batteries will end up discharged.

VOLTAGE SENSITIVE RELAY

• Meets external ignition protection

requirements

• Waterproof rated IP67 – temporary immersion

for 30 minutes

• Designed for 12-volt systems

• Senses charge source on either battery bank

BOW TONNEAU COVER OPTIONAL

Follow these procedures to attach the bow tonneau cover:

1. Open walk-thru doors.

2. Starting at bow, slip bow opening over bow, work aft, and snap the cover to the boat.

3. Close windshield center door and snap the canvas to the underside of the windshield.

4. Install the adjustable tonneau cover support pole. Make sure the pole is perpendicular to the floor and adjust to “tent” the cover.

5. Walk-thru doors may be closed if desired.

Do not use bow tonneau cover for extended storage. It is not designed for storage, but can be used for overnight storage or trailering.

(VSR) - OPTIONAL

Features

• Automatically combines batteries during charging; isolates batteries when discharging and when starting engines

• Allows temporary isolation of house loads from engine circuit during engine cranking to protect sensitive electronics – starting isolation indicated by blinking LED

• Supports high-output alternators up to 120 Amps

• Ignition protected – safe for installation aboard gasoline-powered boats

• Undervoltage lockout will not close when the lower battery is below 10.8V at 12V operation – lockout indicated by blinking LED

• Built-in LED light indicates when batteries are combined

NOTICE: Always double-check snaps are secure.

3-34

200 Owner’s Manual

PERATING INFORMATION

COCKPIT TONNEAU COVER OPTIONAL

Follow these directions for the cockpit tonneau cover.

1. Unroll the cover and snap to the deck, starting

at the center of the windshield. Snap to the forward outside edge of the windshield only.

2. Install tonneau support pole(s) to underside of

the cover (just in front of rear seat) with snap and adjust pole to approximate height of windshield. Some models have two support poles. Make sure the poles are perpendicular to the floor and adjust to “tent” the cover.

3. Pull elastic cords over discs on transom,

starting in the center and working outboard (you may have to readjust the support poles for proper fit).

4. Continue snapping up the sides.

5. The walk-thru doors may be closed if desired.

Do not use cockpit tonneau cover for extended storage. It is not designed for storage, but can be used for overnight storage or trailering.

NOTICE: Always double-check snaps are secure.

BIMINI TOP - OPTIONAL

1. Remove the stainless adjustable arms from the storage area.

2. Unfold the top and install the stainless adjustable arms (tensioners) into the quick-disconnect fittings on the deck, forward of the windshield. Secure the forward arms to the forward cross members with the pins.

3. Tighten the bimini by twisting the tensioners.

Do not trailer with the bimini top up. Store and trailer the bimini top in the stowed position, in its canvas boot.

SKI TOW EYE

The stainless steel ski tow eye is designed for a single skier only.

WARNING

Avoid injury or death. DO NOT overload the ski tow eye or use it for anything other than water sports. The ski tow eye maximum load is 1,000 lbs (454 kg).

200 Owner’s Manual

BOW TONNEAU (BOW RIDERS ONLY)

COBALT

COCKPIT TONNEAU

COB_0245_A

COB_0138_A

3-35

COBALT

200

BOWRIDER

ECTION

TRANSOM TILT SWITCH OPTIONAL

The remote transom tilt switch allows you to raise or lower the drive unit from the stern. The remote tilt switch is connected directly to the battery switch and does not require the ignition key to be on. If your boat has twin engines, each drive unit will have a switch.

WARNING

Keep hands

and feet

away from

drive unit

when tilting

TIE-DOWN LOCATIONS

COB_0151

1– Bow Eye 2– Cleats 3– Stern Eyes

WARNING

Avoid injury, death or property damage. Never anchor a boat from the stern, and keep the boat headed into the waves.

COB_0001_A

3-36

200 Owner’s Manual

PERATING INFORMATION

NOTICE: Only use properly positioned slings to lift your boat. Do not use deck cleats to anchor or for towing. If towing, only use the bow eye or the stern eyes in a bridle manner.

Tie-down locations are for keeping your Cobalt boat secured when moored. The bow eye and/or stern

eyes can also be used. Refer to Section 3,

Anchoring.

MOTOR BOX ASSEMBLY

DANGER

Avoid injury or death. DO NOT occupy or operate an engine when the motor box is open. The motor box assembly is a machinery guard.

TOOL KIT - OPTIONAL

A tool kit assists you with correcting minor mechanical and electrical problems. For location of

the tool kit, refer to Section 1, Layout.

FLAGPOLE WITH FLAG OPTIONAL

The flagpole with flag can be easily installed by positioning the pole into the receptacle at approximately 30°, pushing it in and twisting it clockwise to secure. Make sure the pole is secured before getting underway. Do not use the flagpole for any purpose other than displaying the flag.

CAUTION

Avoid injury or damage to your boat. The motor cover is heavy and may require more than one person to lift it manually. If lifting the box manually, position one person at each grab handle and lift straight up. Place support into position.

Before opening the motor box, make sure no items are on top of the motor box and any cushions, inserts or stored equipment are secure or removed. Make sure all obstructions are cleared before closing the box. Wind and conditions may allow the motor box to open beyond its limits; use caution during these conditions.

(30˚)

COB_0244_A

200 Owner’s Manual

3-37

NOTES

COBALT

200

BOWRIDER

ECTION

3-38

200 Owner’s Manual

YSTEMS

INTRODUCTION

This section discusses the mechanical, electronic, and manual operating systems of your Cobalt boat. It describes basic operating characteristics and provides information for efficient use of the equipment, and for prevention of casualties. Be sure to read and understand all information provided before operating its systems.

ECTION

WARNING

Avoid injury, death or damage to equipment. Regularly inspect and maintain all systems to prevent unexpected hazards associated with worn or faulty components. Be sure to replace system components and hardware with marine grade parts, not automotive components.

200 Owner’s Manual

4-1

COBALT

200

BOWRIDER

ELECTRICAL WIRING HARNESS

SIRIUS ANTENNA

NAV./LT

DOCK/LT

ECTION

DOCK/LT

INT.LT.

HORN

BOW SPEAKER

INT, LIGHT

BOW SPEAKER

AMP POWER/ GROUND

STEREO CONNECTIONS

SWITCH

TOWER SPEAKERS

ACC. PLUG/ SIRIUS POWER

SPEAKER

INT. LIGHT(ENG)

SPEAKER

INT. LT(GLOVEBOX)

TOWER SPEAKERS (20)

TOWER SPEAKERS

TO AMP

GROUND

SPEAKER

DASH STEREO REMOTE

ADDITIONAL HELM FEED

DASH CON.

FEMALE END

TOWER SPEAKERS

FUEL SENDER

ANCHOR LT.

INT, LIGHT

FUEL FILL GROUND

SPEAKER

INT, LIGHT(ENG)

FIRE EXT.

TRANSOM SPKR

HELM FEED

BILGE PUMP POWER

AMP POWER

AFT GROUND

BILGE PUMP

4-2

BILGE BLOWER

VOLVO NEUTRA-SALT

TRANSOM SPKR

COB_0321_A

200 Owner’s Manual

FUEL ROUTING

YSTEMS

200 Owner’s Manual

FUEL FILL HOSE

FUEL VENT HOSE

FUEL LINE TO ENGINE

COB_0322_A

4-3

COBALT

200

BOWRIDER

ECTION

FIRE SUPPRESSION EQUIPMENT

If your Cobalt boat is equipped with a fixed automatic fire extinguisher that uses FE-241 (or optional FM-200, for European requirements) as an extinguishing agent, it is mounted on the engine compartment and generator compartment (if equipped). These extinguishers are activated when the heat-sensitive head reaches a predetermined temperature. The extinguisher discharges and saturates the engine and/or generator compartment, smothering the fire.

Inspect fire extinguishers for proper charge before operating the boat.

WARNING

Avoid injury, death or explosion. DO NOT open the engine compartment hatch immediately. This will allow oxygen to the fire, and flashback can occur. When the fire extinguisher discharge occurs, turn off all engines, bilge blowers and electrical system components.

CIRCUIT BREAKER PANEL

Most electrical standard equipment devices are controlled with circuit breakers located below the helm. The breakers are labeled to identify the device protected. These breakers will activate if overloaded and cut power to the switch. To restore power, turn off the device, push the breaker button in and release. If the button continues to pop out when the device is used, see your authorized Cobalt dealer. Your boat may not be equipped with all of these features or options.

IGNITION BILGE BLOWER

HORN NAVIGATION LIGHTS

INTERIOR LIGHTS BILGE PUMP

DOCKING LIGHTS

AIR/WATER

PUMP

ACCESSORY ACCESSORY

STEREO

GPS

ELECTRICAL SYSTEM

Your Cobalt boat has a 12-volt negative ground DC system. The positive wire is hot, and feeds current from the batteries to all 12-volt equipment; the negative wire is the ground.

The DC components are controlled from the helm switches after the battery switch. If your Cobalt boat has a cabin, it may have an electrical system panel that supplies 12 volts to these types of accessories:

• Cabin lights

• Cockpit lights

• Head

• Freshwater pressure pump

• Air compressor

• Entertainment system

COB_0223_A

4-4

200 Owner’s Manual

FUSES

Some accessories or electrical components have in-line fuses in them. Check the failed component for the possibility of an in-line fuse if a tripped circuit breaker is not found. Some of these accessories or electrical components may not be included or available on your boat.

In-line Fuse Components: Amperage

Depth Sounder and Air/Water Gauge 1 amp (located behind dash)

Trim Tab Control 20 amp (breaker used on dash) Stereo 10 or 20 amp (breaker used on dash)

Bilge Pump 20 amp (located at battery switch)

Amplifier 40 amp (located at battery switch) Bilge Pump 1000 GPH 5 amp (located behind dash)

Head Blower* 3” 6 amp

YSTEMS

Head Blower* 4” 6 amp

*Fuses are located behind the dash panel.

200 Owner’s Manual

4-5

COBALT

200

BOWRIDER

ECTION

LIGHTING/BULB REPLACEMENT

Some of these lights or electrical components may not be included or available on your boat.

Electrical Component Bulb Number

External Lights

Bow Light(s) 71 Anchor Light 1004

Arch 212-2

Internal Lights

Open Bulb Utility Light 1004 or 211

Cuddy Cabin Reading Light MR16

Black Rectangular Courtesy Light 1044-99A Chrome Courtesy Light (Round) 90

Overhead Console Light GE 912

Dome Light 211

Instrument Lighting

Tachometer 194 SF2

Speedometer 194 SD2 Voltmeter 658 S11

Oil Pressure 658 SH2

Temperature 658 SC2 Fuel 658 SC2

Trim 658 SC2

4-6

200 Owner’s Manual
