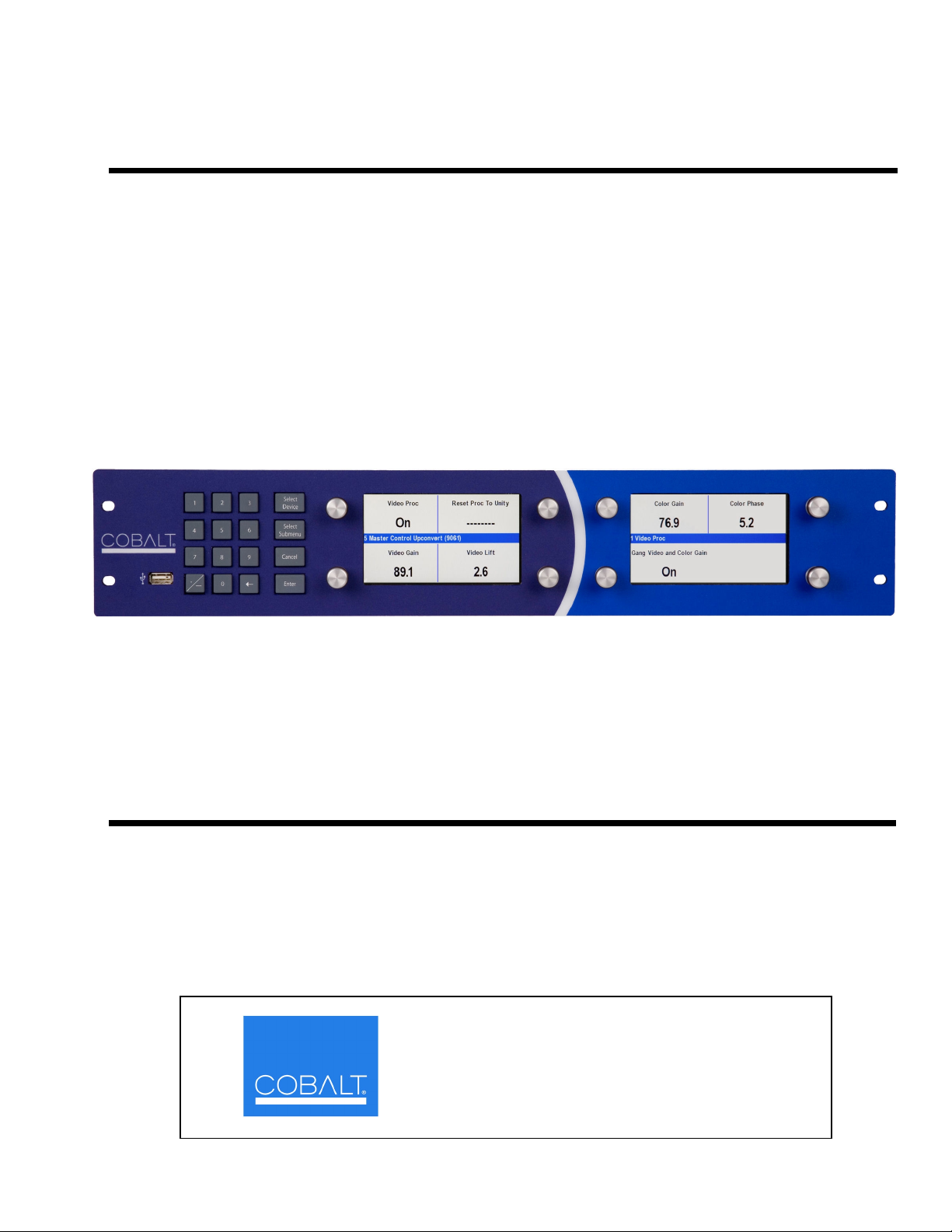

Page 1
OGCP-9000
Remote Control Panel
Product Manual
Cobalt Digital Inc.
2506 Galen Drive
Champaign, IL 61821
Voice 217.344.1243 • Fax 217.344.1245
www.cobaltdigital.com
OGCP-9000-OM (V2.5)
Page 2
Copyright
©Copyright 2016, Cobalt Digital Inc. All Rights Reserved.
Duplication or distribution of this manual and any information contained within is strictly prohibited without the express written
permission of Coba lt Digital Inc. This manual and a ny information contained within, may not be re produced, distribute d, or
transmitted in any form, or by any means, for any purpose, without the express written permission of Cobalt Digital Inc.
Reproduction or reverse engineering of software used in this device is prohibited.
Disclaimer
The information in this document has been carefully examined and is believed to be entirely reliable. However, no responsibility
is assumed for inaccuracies. Furthermore, C obalt Digit al Inc. res erves the right to ma ke changes to any pro ducts herein to improve
readability, function, or design. Cobalt Digital Inc. does not assume any liability arising out of the application or use of any
product or circuit described herein.
Trademark Information
Cobalt® is a registered trademark of Cobalt Digital Inc.
openGear
names or trademarks appearing in this manual are the property of their respective owners.
®
is a registered trademark of Ross V ideo Limited. DashBoard™ is a trademark of Ross Video Limited. Other product
Congratulations on cho osing the OGCP-90 00 Remote Control Panel. Should yo u have question s pertaining to
the installation or operation of your OGCP-9000 Remote Control Panel, please contact us at the contact
information on the front cover.
Manual No.: OGCP-9000-OM
Document
Version: 2.5
Release Date: August 29, 2016
OGCP-9000-OM (V2.5)
Page 3
Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Warning
Warning
Warning
Warning
Clean only with a dry cloth.
Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.

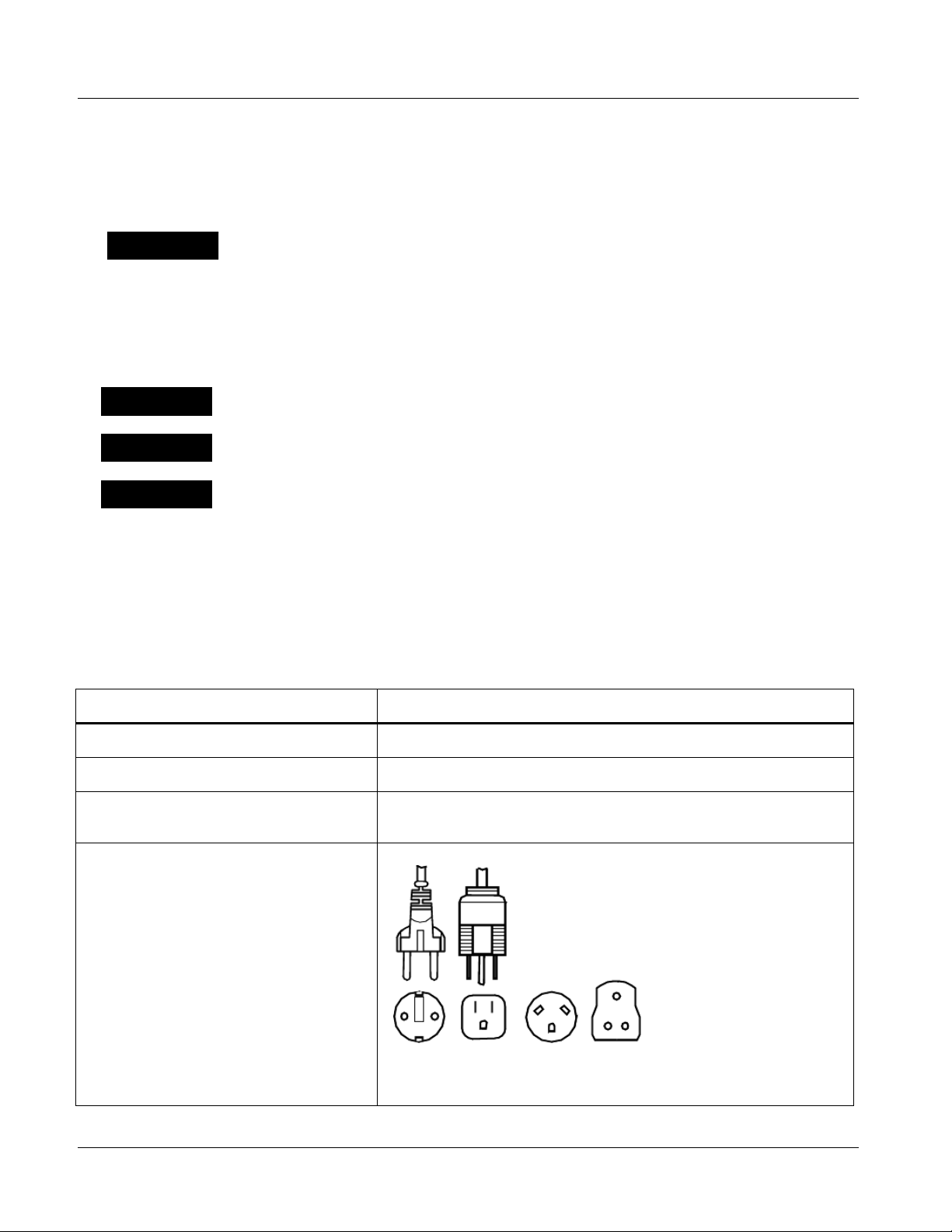

Do not defeat the safety purpose of polari zed or grounding-type plug. A polarized pl ug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the thir d pron g are provided for your sa f e ty. If the
provided plug does not fit int o your outlet, consult an elect rician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point whe r e th ey exit from the apparatus.
Only use attachments/accessori es specified by the manufacturer and in t hi s manual.
Unplug this appara tus during lightning storms or when unused f or long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as when the power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moi s ture, does not operate normally, or has been dropped.
Warning
Warning
Warning
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The AC mains power receptacle on the rear of the ap paratus shall only be connected by
means of the power cord supplied with this apparatus. No other devices or cables shall be
connected to this connector. If the supplied AC power cord is damaged or lost, it shall only
be replaced using the AC power cord specified in this manual or by the manufacturer.
To Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or
Moisture.
Danger of explosion if battery is incorrect l y replaced. Replace only with the same or
equivalent type.
To reduce the risk of fire, replacemen t fuses shall be the same type and rating as instal led
and as specified on the rear labe l adjacent to the power receptacle fuse holder.
Page 4
(Français) Consignes de sécurité importantes
Lisez ces consignes.
Conservez ces consignes.
Observez tous les avertissements.
Suivez toutes les consignes.
N'utilisez pas cet appareil près de l'eau.
Avertissement
Avertissement
Avertissement
Avertissement
Avertissement
Nettoyez l'appareil avec un chiffon sec uniquement.
N'installez pas l'appareil près d'une source de chaleur (radiat eurs, bouches d'air, poêle,
amplificateurs, etc.).
Ne tentez pas de contourner la protection offert e par la fiche polarisée ou avec mise à la
terre. Une fiche polarisée est dotée de deux lames dont l'une est plus large que l'autre. Une
fiche av e c m i s e à la terre est dotée de deux lames et d'un e broche de mise à la terre. La lame
large et la broche de mise à la terre sont des dispositifs de sécurité. Si la fiche de l'appareil ne
convient pas à la prise murale, demandez à un électricien de remplacer celle-ci.
Ne placez pas le câble d'alimentation de façon qu'il soit possible de le piétiner ou de le
pincer, surtout au niveau de la fiche, de la prise et de l'appareil.
Utilisez uniquement les fixations et accessoires spécifiés par le fabricant et dans le présent
manuel.
Débranchez l'appareil durant les orag es et lor squ' il n'est pas utilisé durant de longues
périodes.
Confiez toute réparation à du personnel qualifié. L'appareil doit être réparé s'il a été
endommagé (appareil, câble d'alimentation ou fic he, liquide renversé ou chute d'objets à
l'intérieur, exposition à l'hum idité excessive ou à l'eau, mauvais fonctionnement ou chute de
l'appareil).
Votre appareil ne doit pas être exposé aux fuites goutte à goutte ou aux éclaboussures et
aucun objet rempli de liquide, par e xemple un vase, ne doit être placée sur l'appareil.
Avertissement
Avertissement
La prise d'alimentation à l'arrière de l'appareil doit être utilisée uniquement avec le câble
fourni. Aucun autre câble ne doit être bran ch é sur cette prise. Si le câbl e d' al im enta tio n
fourni est perdu ou endommagé, il doit être remplacé par celui indiqué dans le présent
manuel ou spécifié par le fabricant.
Pour réduire les risq ues d'incendie ou de choc électrique, ne pas exposer cet app arei l à la
pluie ou à l'humidité.
Danger d'explosion si la batterie est rempla cée incorrectement. Remplacez uniquement avec
le même type ou équivalent.
Pour réduire le risque d'incendie, le fusible doit être remplacé par un du même type et de la
même capacité (voir l'étiquette apposée à côté du porte-fusible).
Page 5
Table of Contents
Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Overview ................................................................................................................ 1-1
Manual Conventions............................................................................................... 1-2
Warnings, Cautions, and Notes .................................................................. 1-2
Labeling Symbol Definitions...................................................................... 1-3
Safety Summary ..................................................................................................... 1-4
Warnings..................................................................................................... 1-4
Cautions...................................................................................................... 1-4
Technical Specifications......................................................................................... 1-4
Warranty and Service Information ......................................................................... 1-6
Cobalt Digital Inc. Limited Warranty......................................................... 1-6
Contact Cobalt Digital Inc...................................................................................... 1-7
Chapter 2 Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Overview ................................................................................................................ 2-1
Installing the Control Panel in Equipment Rack.................................................... 2-1

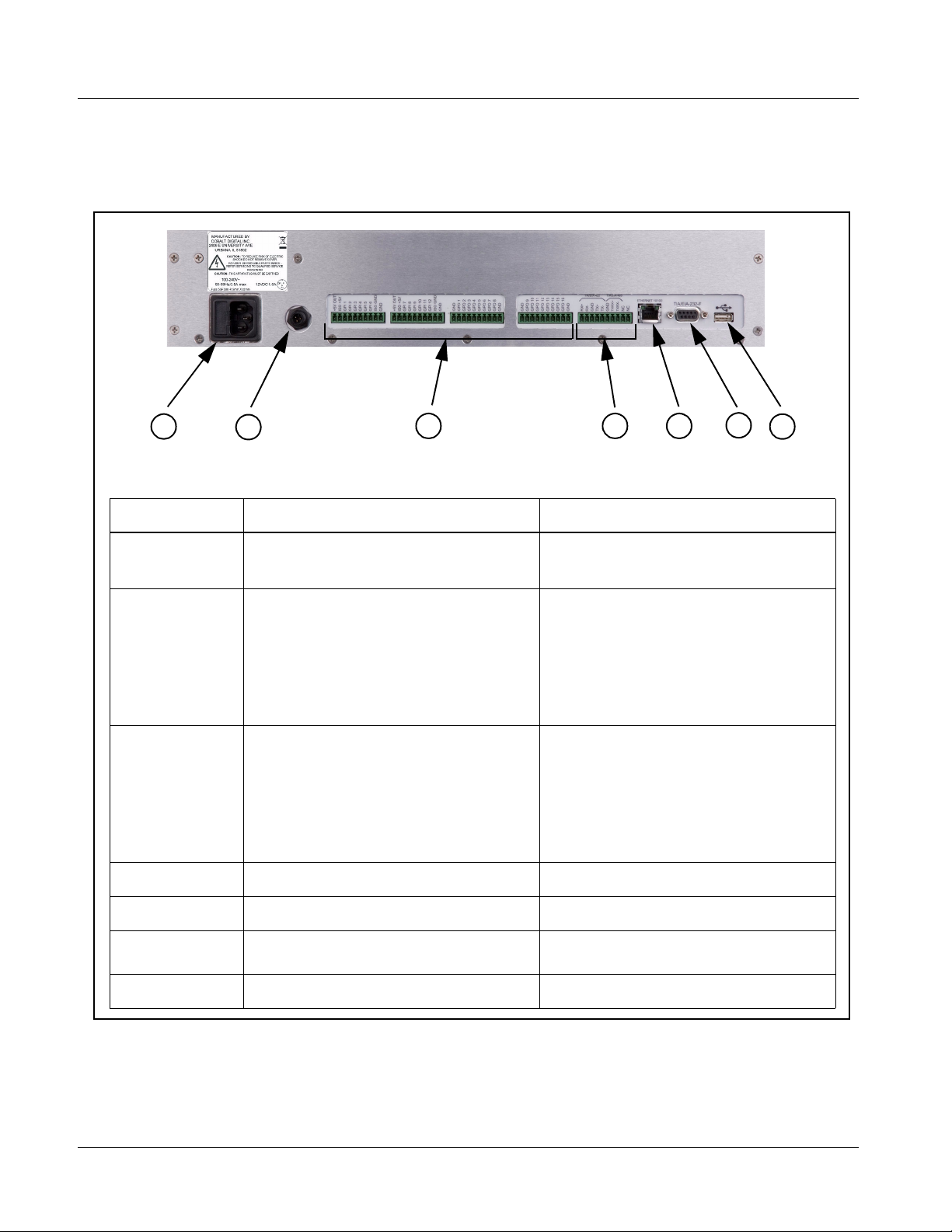

Connecting the Control Panel Cabling................................................................... 2-2
Chapter 3 Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Overview ................................................................................................................ 3-1

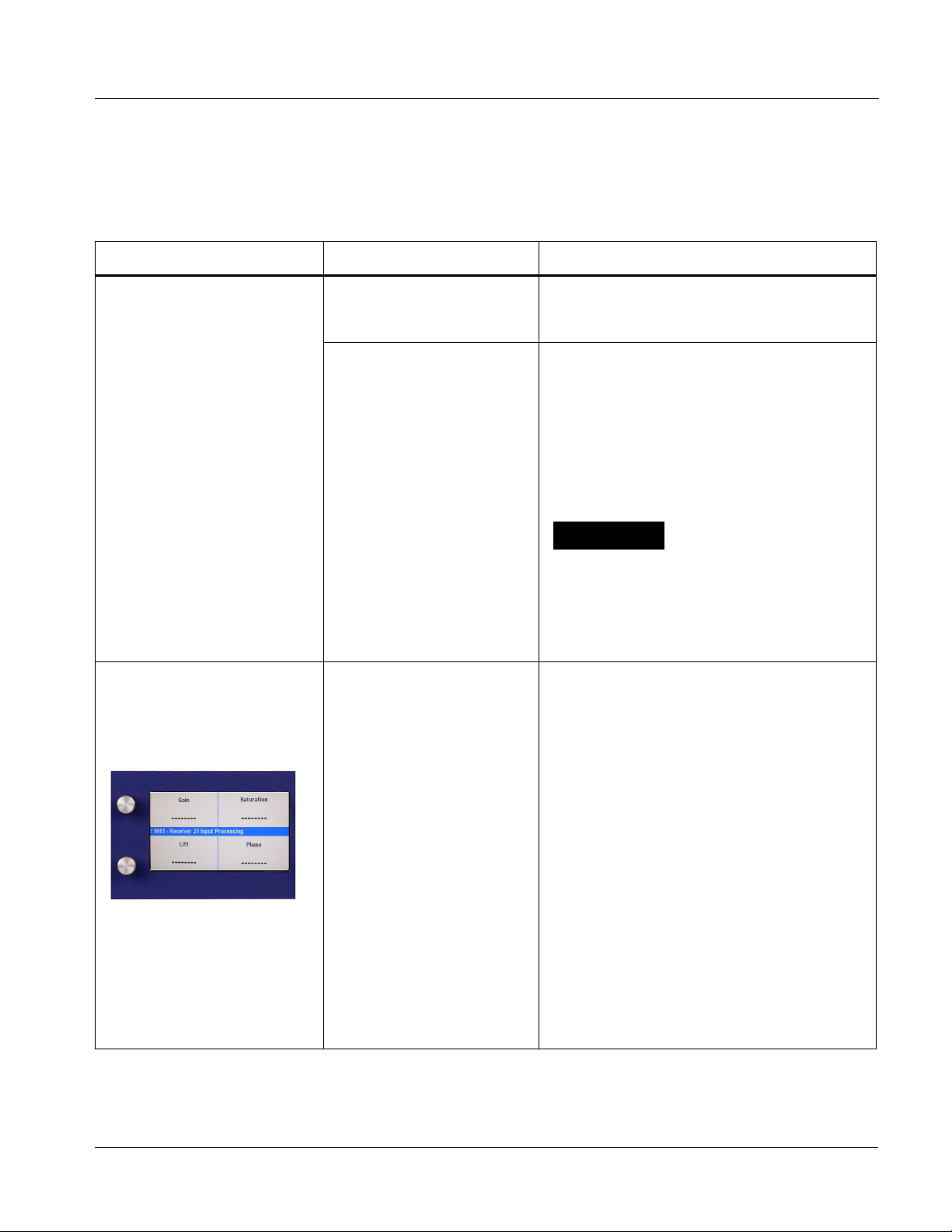

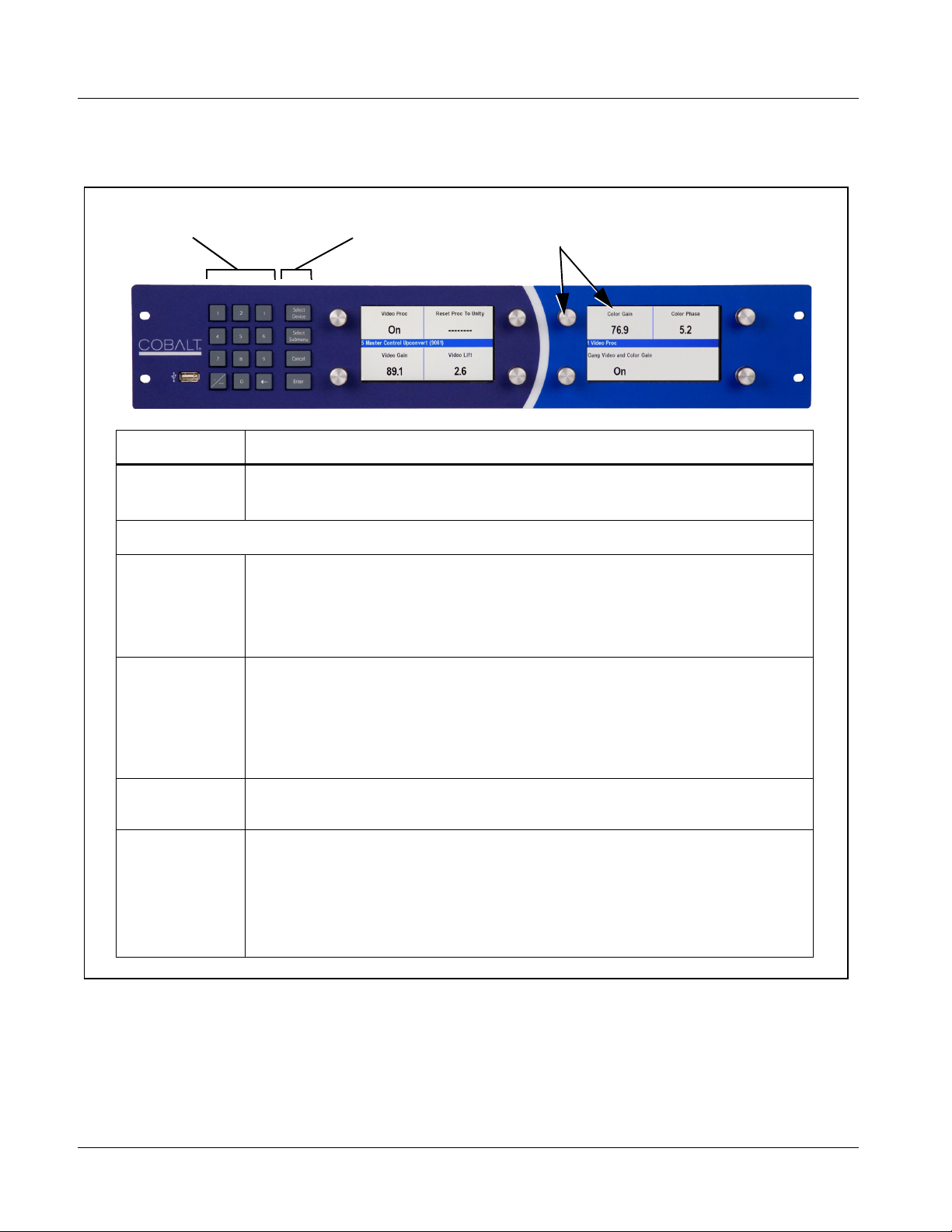

Control and Display Descriptions........................................................................... 3-1

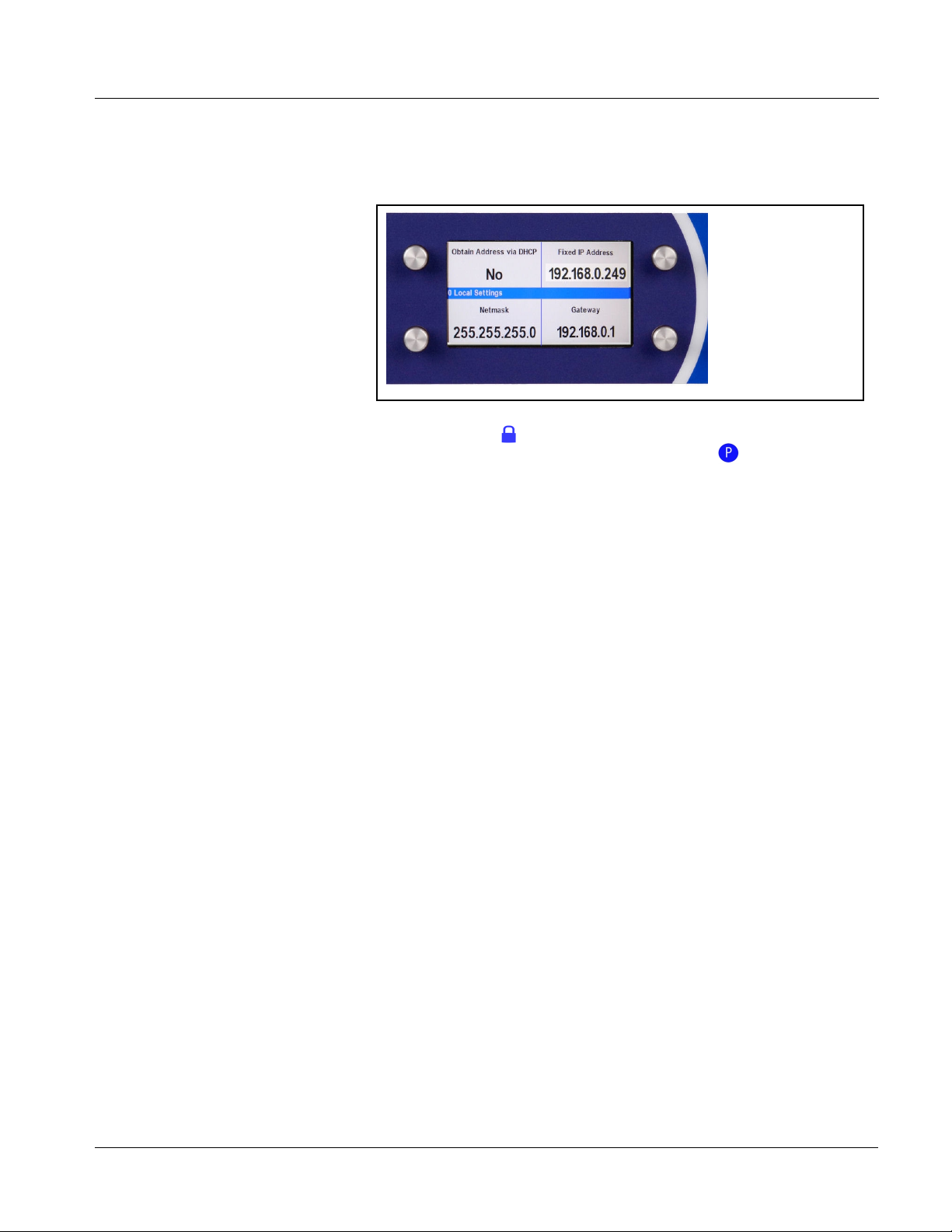

Network Setup........................................................................................................ 3-3
Using the Control Panel To Select and Monitor Frame Cards............................... 3-3

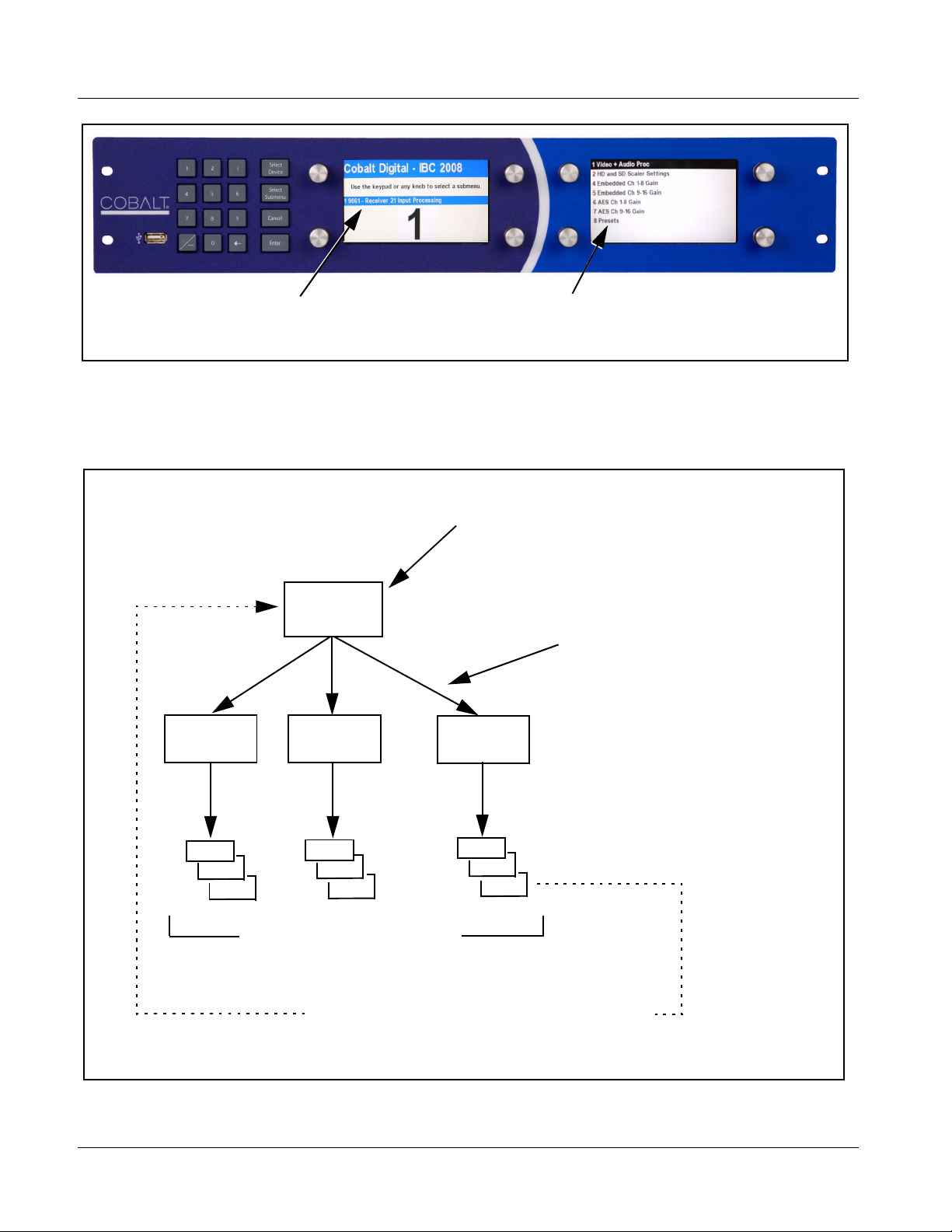

Device and Parameter Submenu Overview................................................ 3-3

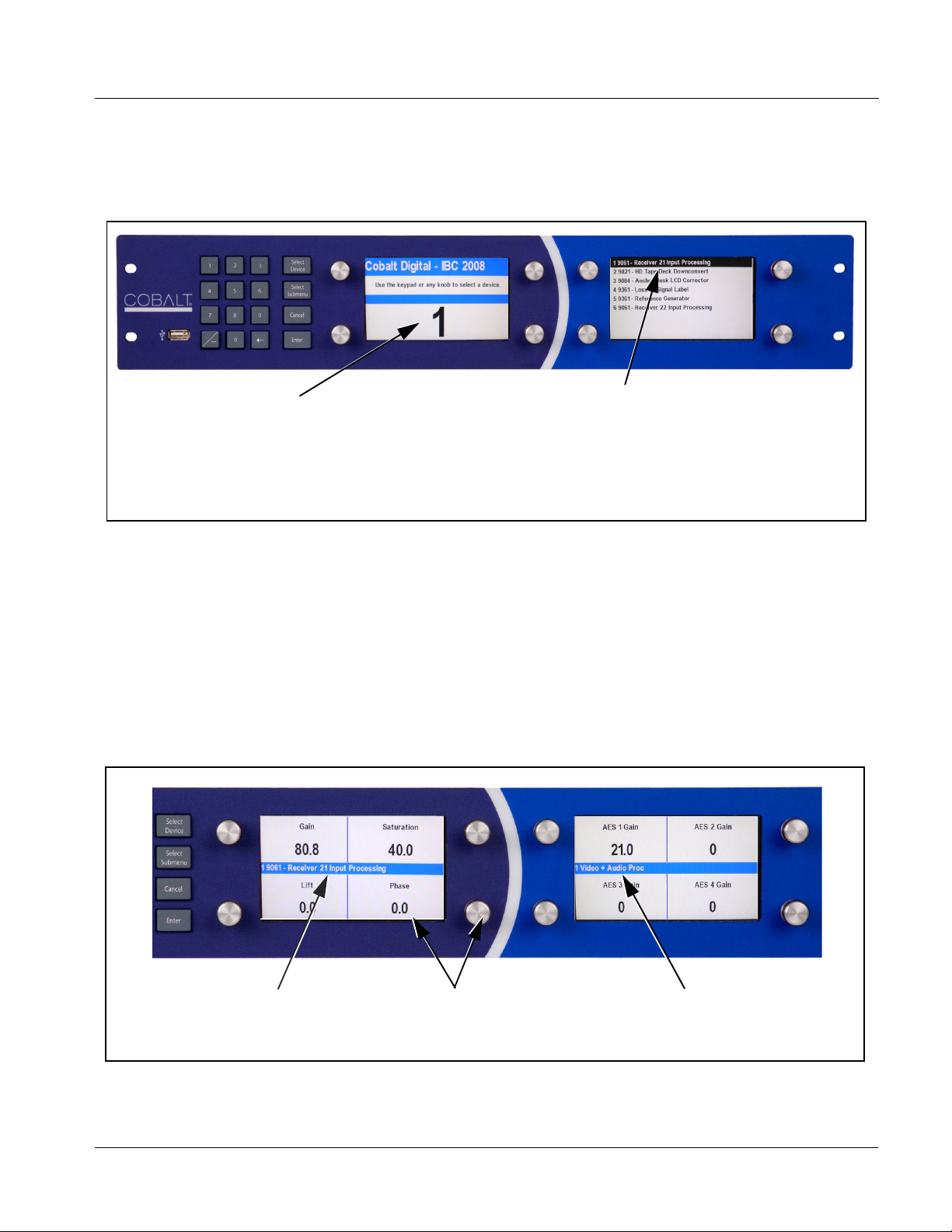

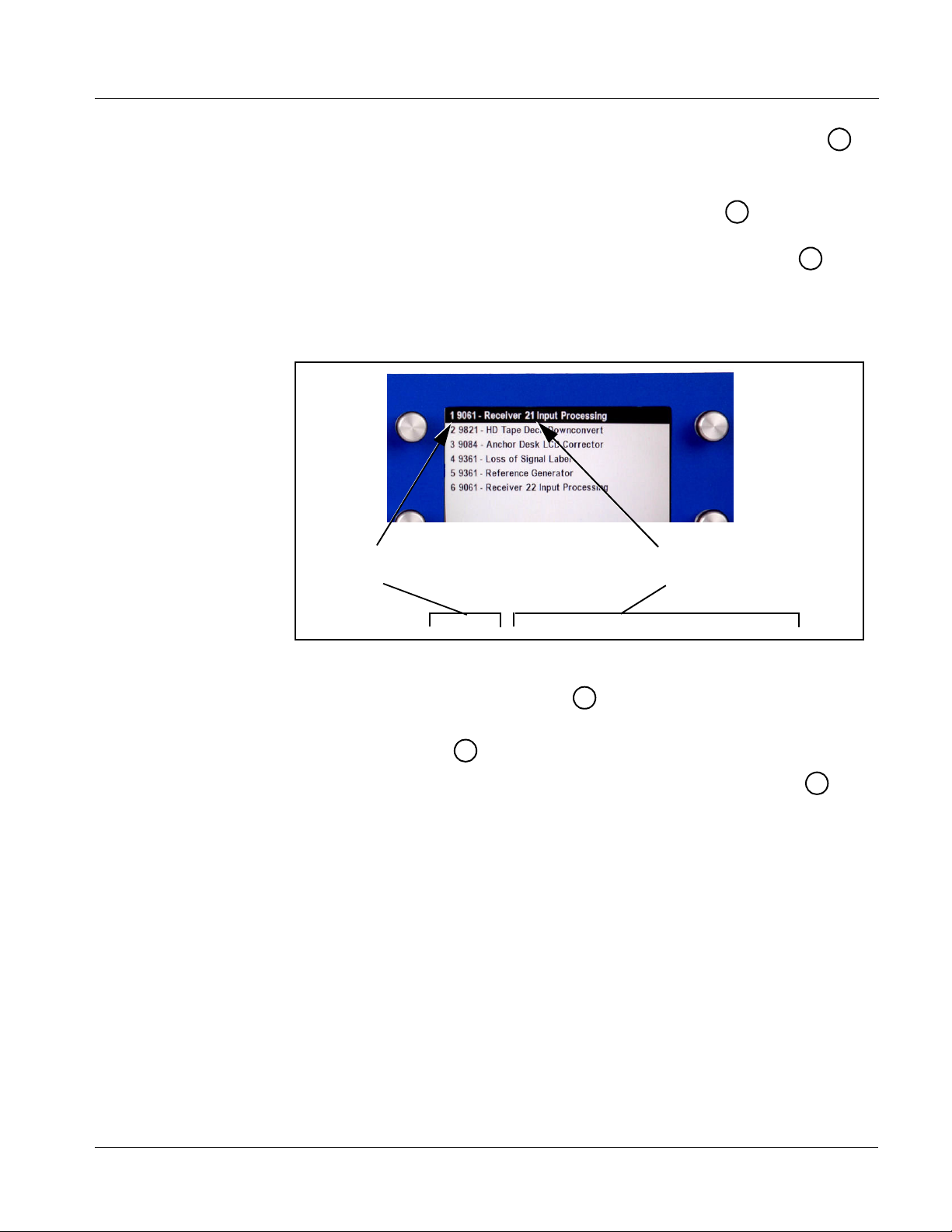

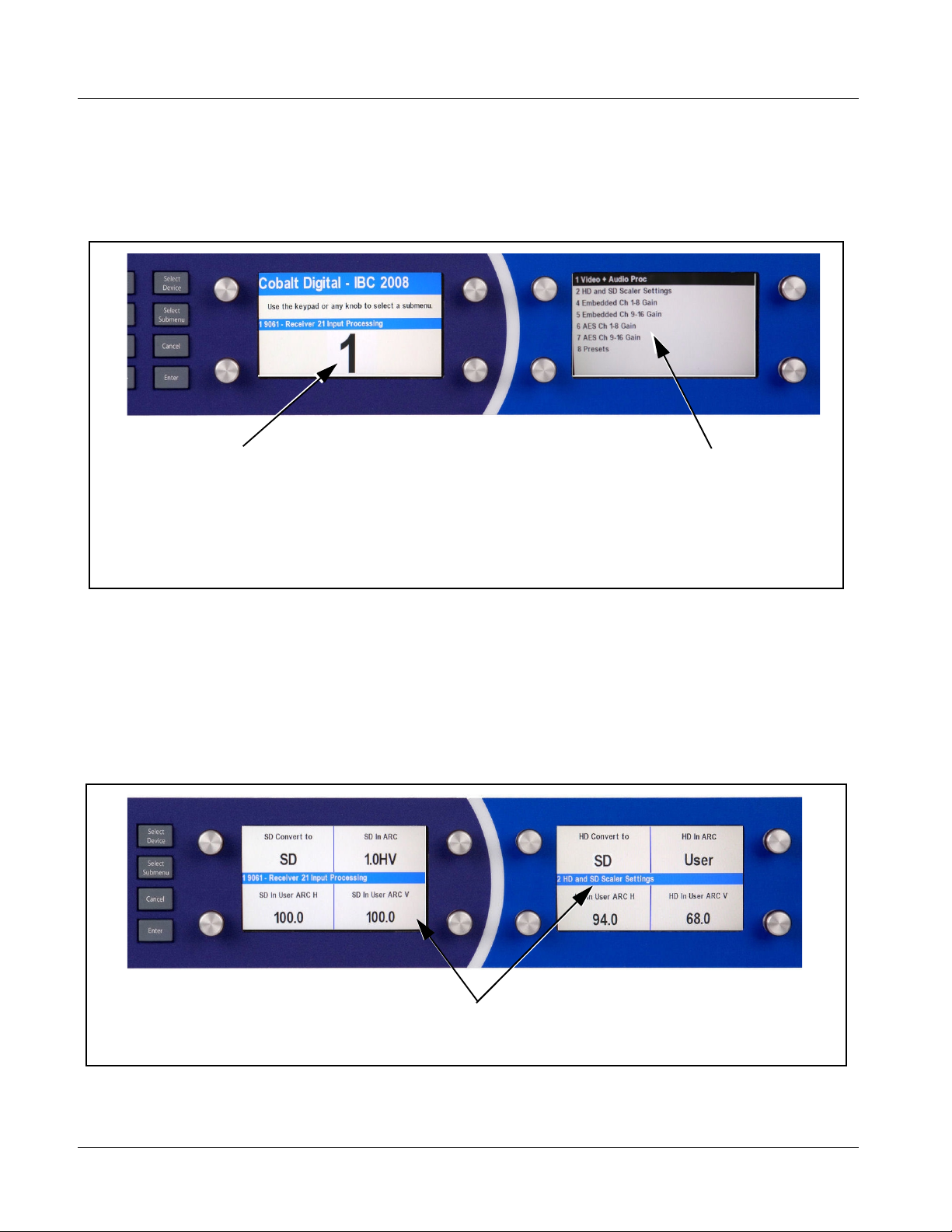

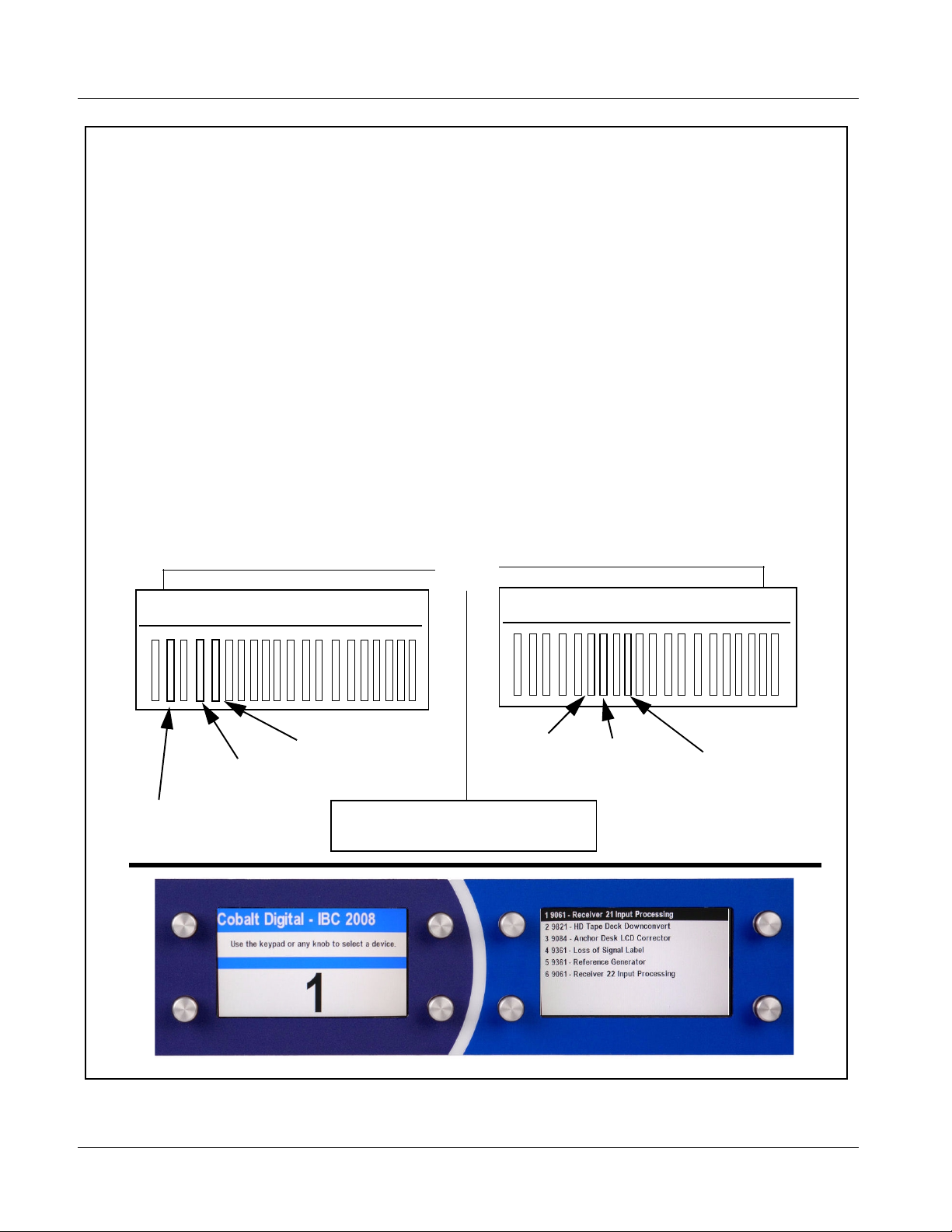

Selecting a Device ...................................................................................... 3-5

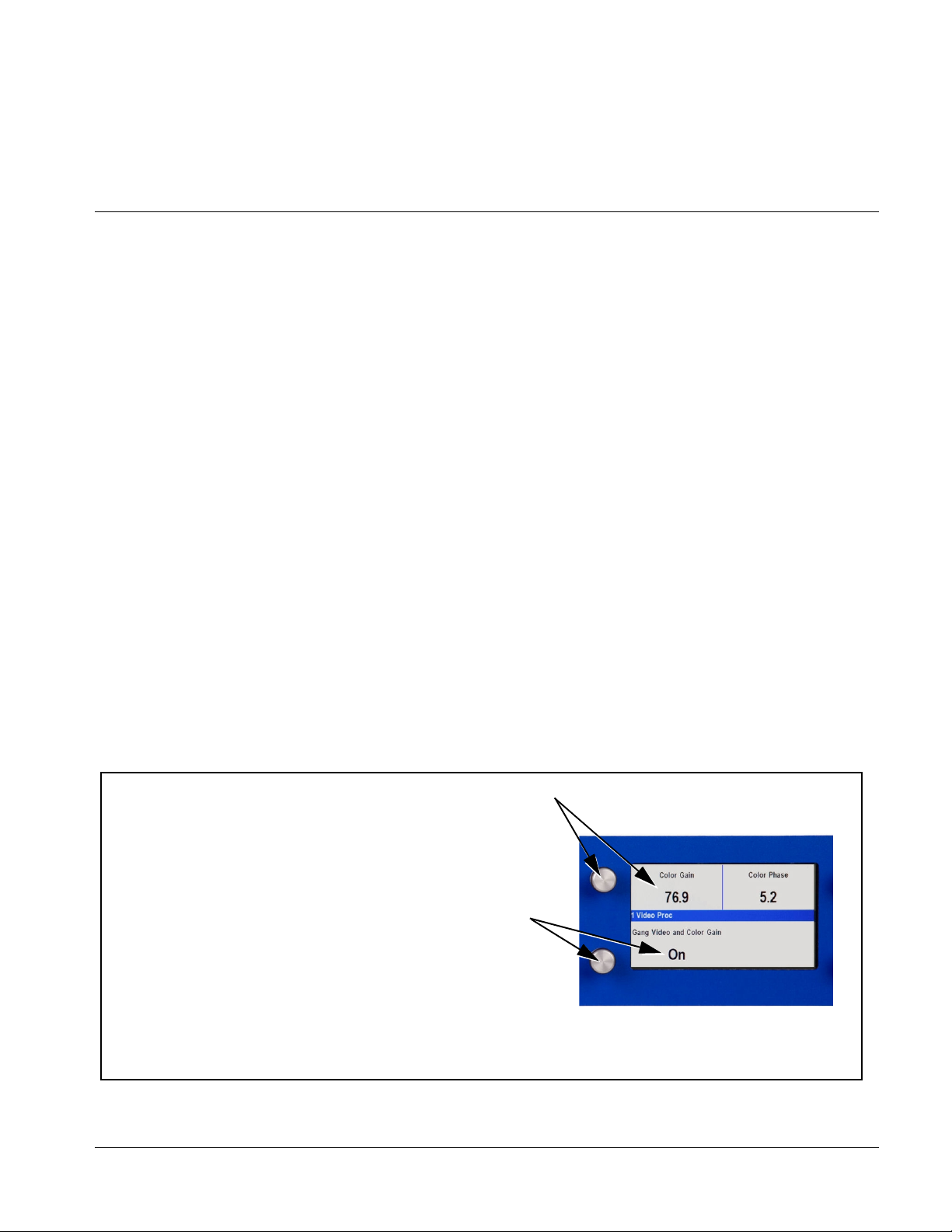

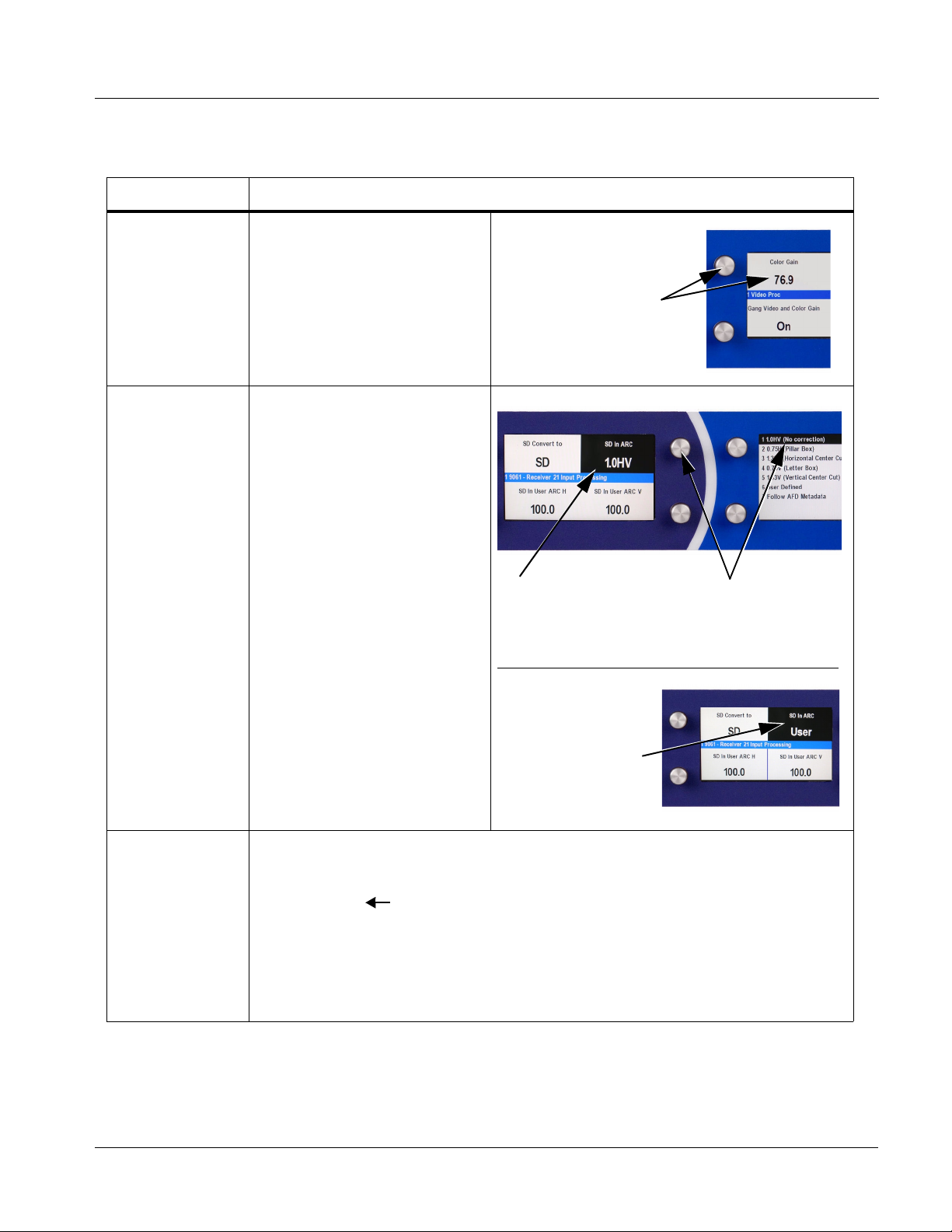

Displaying and Adjusting Device Parameters............................................ 3-6

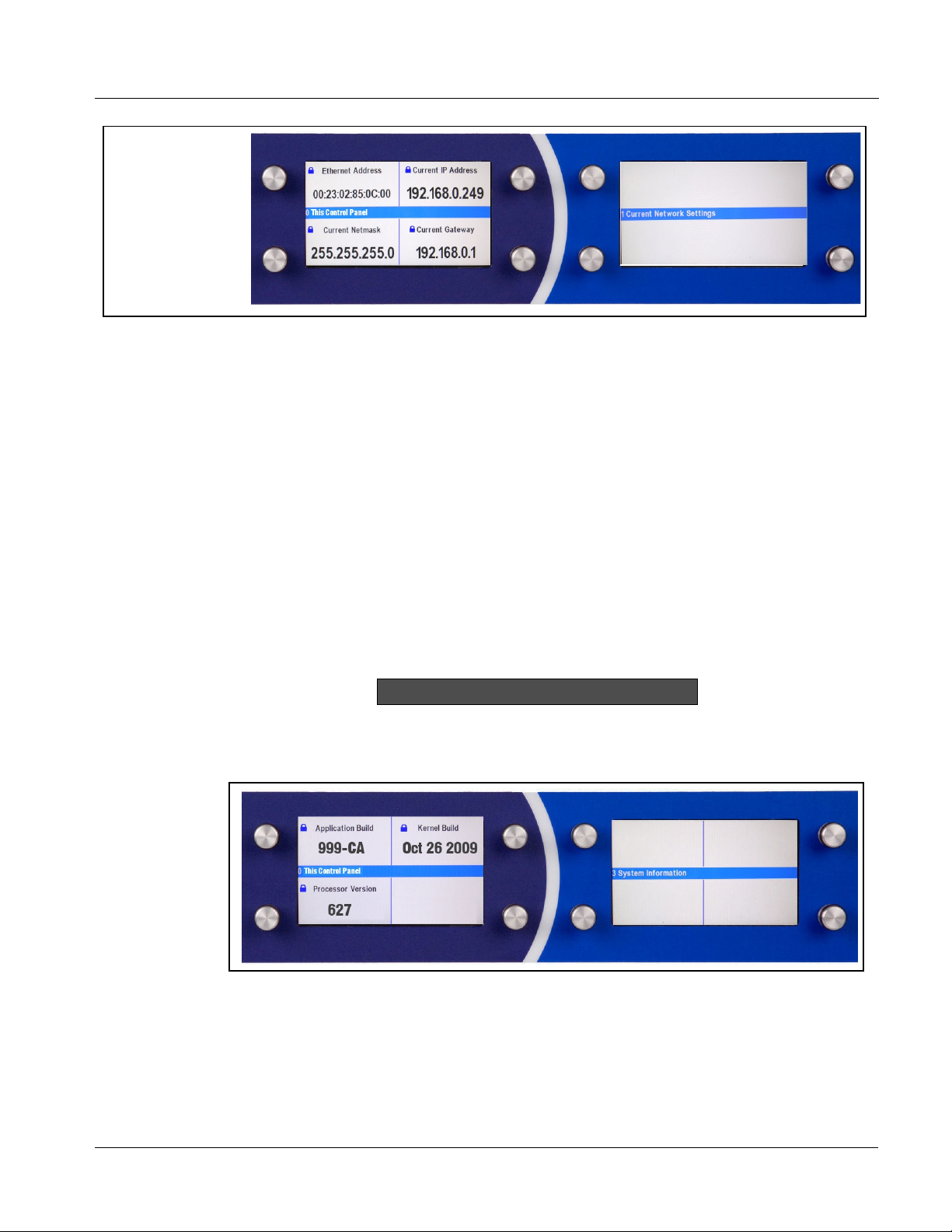

System Information/User Interface Functions............................................ 3-8

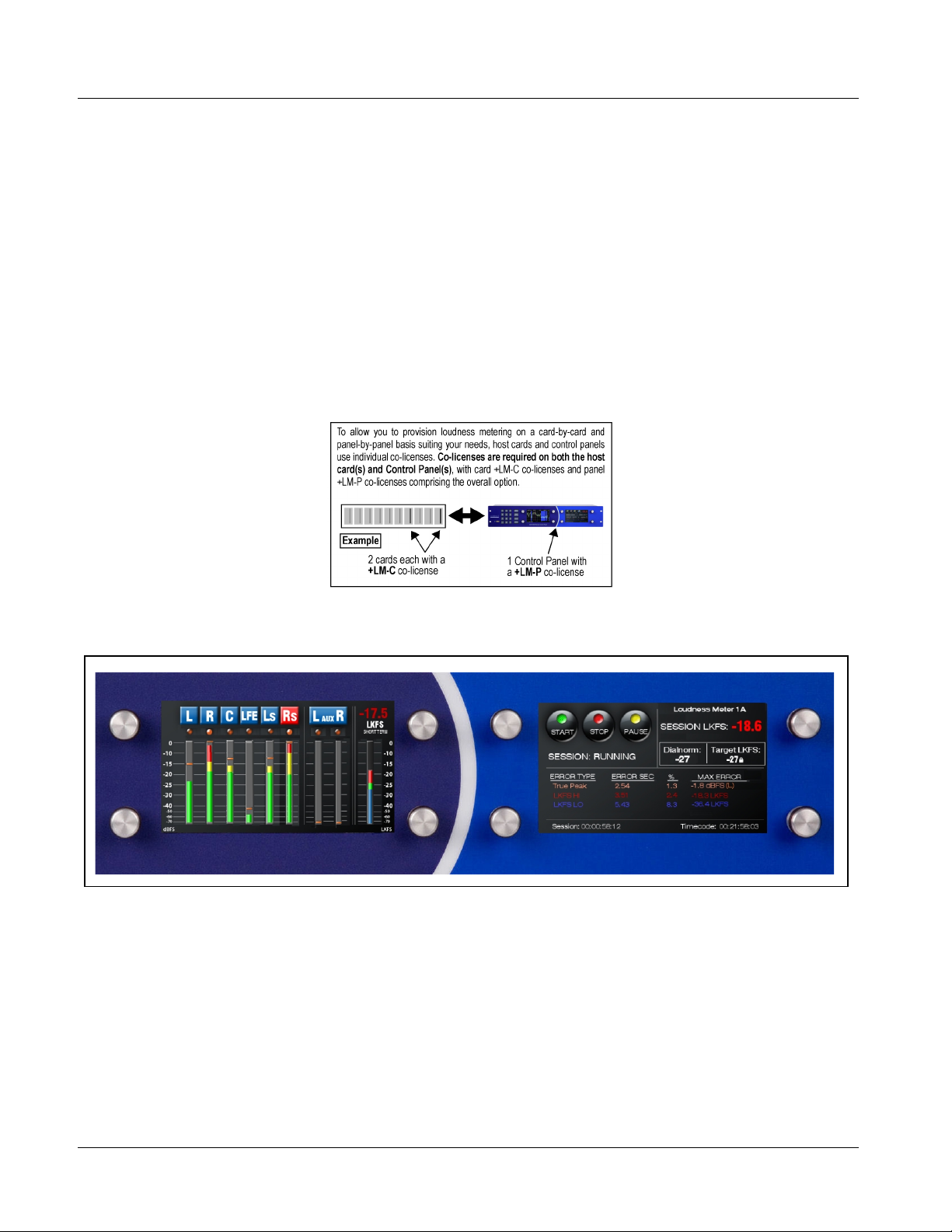

Loudness Metering Option....................................................................... 3-12
Troubleshooting.................................................................................................... 3-13
In Case of Problems.................................................................................. 3-14
OGCP-9 0 00- OM (V2.5) OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL i
Page 6
Appendix A Supplemental Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Overview................................................................................................................ A-1

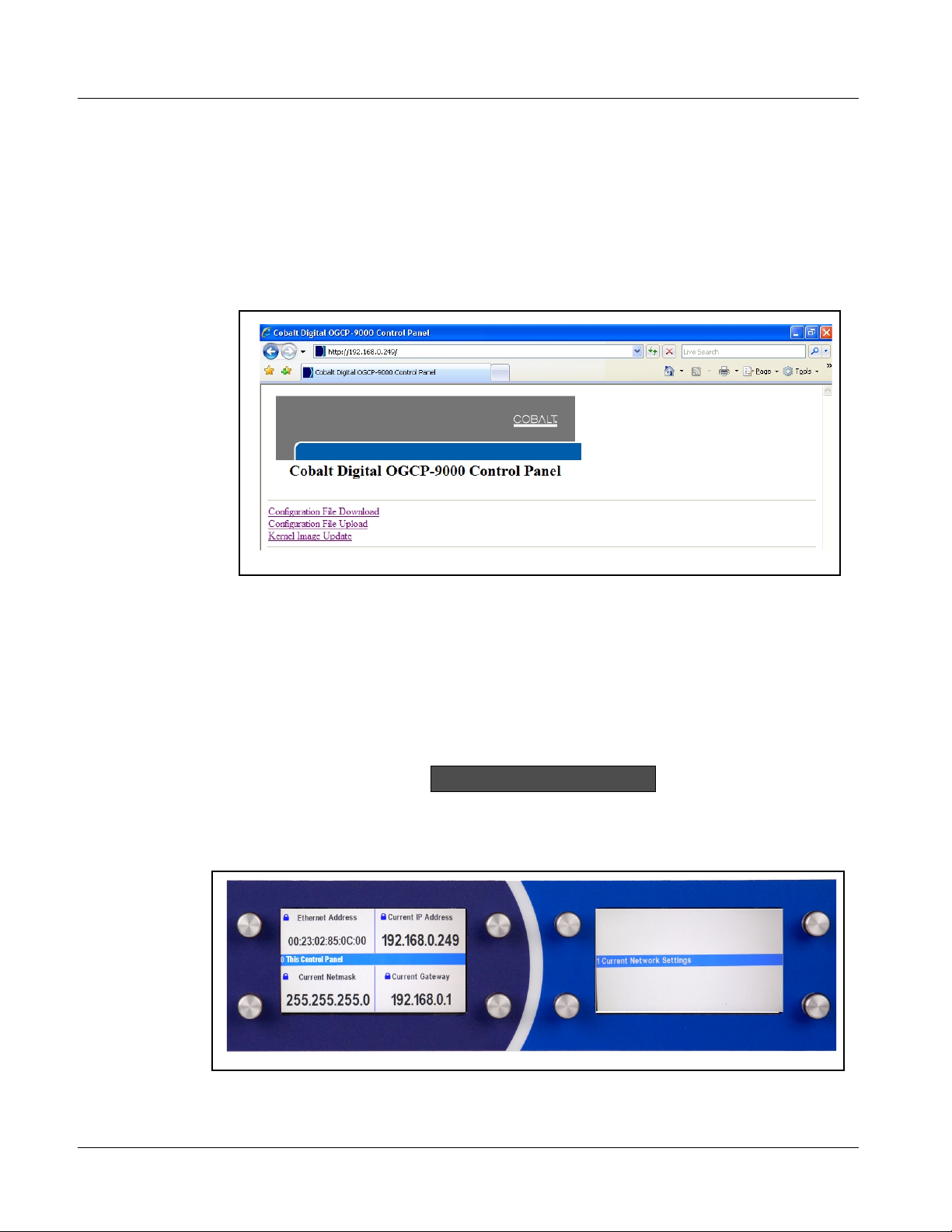

Changing the Control Panel Network Settings ...................................................... A-2

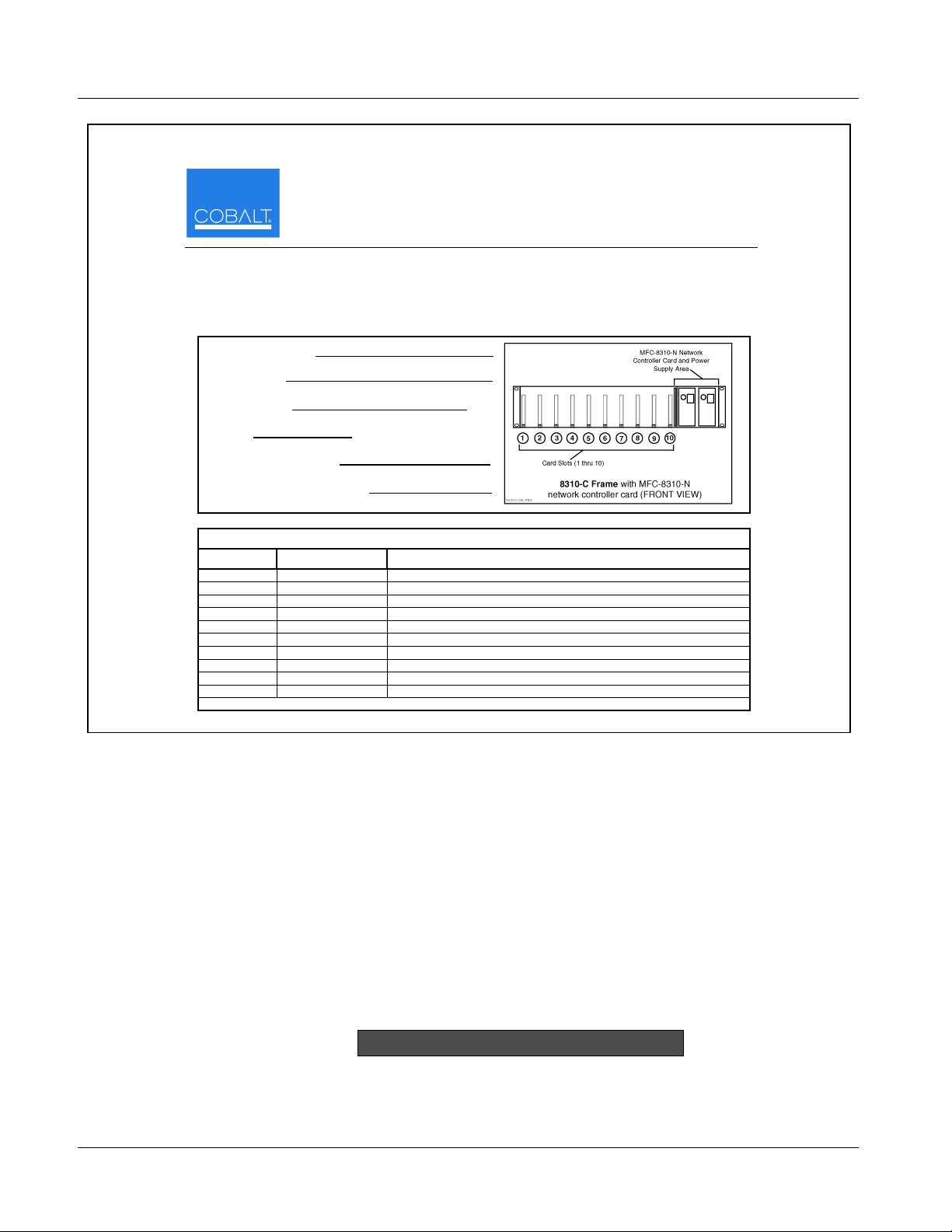

Changing Frame Network Settings and/or Card Assignments............................... A-5

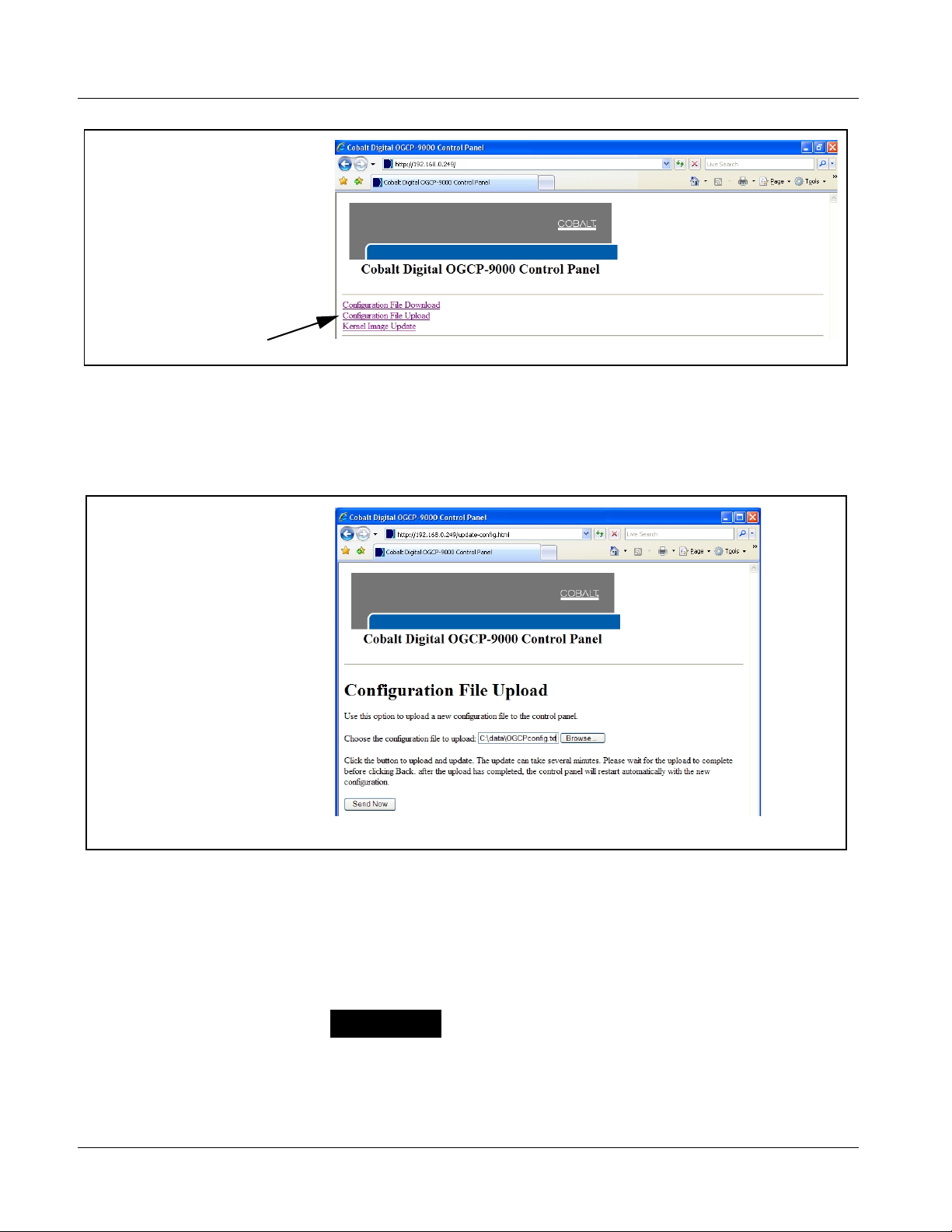

Uploading a Configuration File to the Control Panel ................................ A-5
Editing a Configuration File....................................................................... A-7
ii OGCP-9000 REMOTE CONTROL PANEL PR ODU CT MANUAL OGCP-9000-OM (V2.5)
Page 7
Overview
Chapter 1
Chapter 1 Introduction
This manual provides installati on and o per at ing instr uct ions for the
OGCP-9000 Remote Control Panel (also referre d to herein as t he
Control Panel).
The manual consists of th e following chapters:
• Chapter 1, “Introduction” – Provid es informa tion about this manual
and what is covered. Als o pr ovi des general information re gar di ng the
OGCP-9000 Remote Control Panel.
• Chapter 2, “Installation and Setup” – Provides instructions for
installing the OGCP-9000 Remote Control Panel, and connecting the
OGCP-9000 Remote Control Panel to the system in which it is
intended to operate.
• Chapter 3, “Operating Instructions” – Provides instructions fo r
using the OGCP-9000 Remote Control Panel to monitor and control
parameter v alues for cards.
• Appendix A, “Supplemental Information” – Provides
supplemental information for configuring the Control Panel.
The OGCP-9000 Remote Control Panel conve nient ly and int uiti vely pr ovides
parameter monitor and control of video and audio processing terminal
1
equipment meeting the open-architecture openGear
COMPASS
®
and FUSION3G® cards. It in stalls in a standard 19” EIA
®
standard for Cobalt®
equipment rack, and is 2 RU high. All communication with the frame occurs
over an Ethernet netwo rk, allowin g fast interaction with m ultiple frames.
In addition to circumventing the need for a computer to monitor and control
signal processing cards, the OGCP-9000 allows quick and intuitive access to
hundreds of cards in a faci lity, and can monitor an d allows adj ustment of u p to
eight parameters at one time. Two large format wide-angle LCDs show sharp
and clear text for the currently visible parameters. Eight dials corresponding
to each of the eight displayed parameters allow ease in accessing and
controlling the displayed parameters.
1. openGear® is a registered trademark of Ross Video Limited. DashBoard™ is a trademark of Ross
Video Limited.
OGCP-9 00 0- OM (V2.5) OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL 1-1
Page 8
1 Manual Conventions
The OGCP-9000 is totally compatible with the openGear® control software
DashBoard™; any changes made with either system are reflected on the
other.
This chapter contains the following information:
• Manual Conventions, p. 1-2
• Safety Summary, p. 1-4
• Technical Specifications, p. 1-4
• Warranty and Service Information, p. 1-6
• Contact Cobalt Digital Inc., p. 1-7
Manual Conventions
In this manual, all keys, displays, and connectors are shown using the exact
name shown on the Control Panel itself. Examples are provided below.
• Keys are shown like this: Select Device
In this manual, the terms below are applicable as follows:
Warnings, Cautions, and Notes
• Display messages are shown like this:
Gain
98.9 dB
• Connector names are shown like this: ETHERNET 10/100
• Control Panel refers to the OGCP-9000 Control Panel.
• Frame refers to the HPF-9000, OG3-FR, 8321 (or similar) 20-slot
frame that houses the Cobalt Digital Inc. COMPASS
FUSION3G
• Device and/or Card refers to a COMPASS
®
cards.
®
and/or FUSION3G®
card.
• System and/or Video System refers to the mix of interconnected
production and terminal equipment in which the Control Panel and
COMPASS
®
and/or FUSION3G® cards operate.
®
and/or
Certain items in this manual are highlighted by special messages. The
definitions are provided below.
1-2 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 9
Introduction Manual Conventions
Warnings
Warning messages indicate a possible hazard which, if not avoided, could
result in pe rsonal injury or death.
Cautions
Caution messages indicate a problem or incorrect practice which, if not
avoided, could result in improper operation or damage to the product.
Notes
Notes provide supplemental information to the accompanying text. Notes
typically precede the text to which they apply.
Labeling Symbol Definitions
To reduce risk of electric shock DO NOT REMOVE COVER.
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CONNECT AC POWER CORD TO PROPERLY GROUNDED AC
OUTLET
THIS APPARATUS MUST BE EARTHED
Attention, consult accompanying documents.
Symbol (WEEE 2002/96/EC)
For product disposal, ensure the following:
• Do not dispose of this product as unsorted municipal waste.
• Collect this product separately.
• Use collection and return systems available to you.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 1-3
Page 10
1 Safety Summary
Safety Summary
Warnings
! WARNING !
• To reduce risk of electric shock DO NOT REMOVE COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
• CONNECT AC POWER CORD TO PROPERLY GROUNDED AC OUTLET.
Cautions
CAUTION
CAUTION
CAUTION
This device is intended for environmentally controlled use only in appropriate video
terminal equipment operating environments.
Do not edit or alter the file content s pr ecedi ng the # # start of Device Definitions ## section.
When performing the firmware update, use only the files provided by Cobalt Digital Inc.
and obtained as described here.
Technical Specifications
Table 1-1 lists the technical specifications for the OGCP-9000 Control Panel.
Table 1-1 Technical Specifications
Item Characteristic
Part number, nomenclature OGCP-9000 Remote Control Panel
AC power requirements 90 to 264 VAC, 47-63 Hz (automatically sensed)
AC power inlet IEC C14 chassis receptacle with 2-position integral fuse holder.
Fuse type: Two, 500 mA, 250 V, 5 x 20 mm fast-action
AC power cord (standard and available
alternatives)
Note: Standard US/North
America power cord
supplied with unit.
Power
Cord
(European)
Power
Cord
(US/NA)
Power
Cord
(AUS)
Power
Cord
(UK)
Alternate cords shown
here can be specified
upon unit purchase.
1-4 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 11
Introduction Technical Specifications
Table 1-1 Technical Specifica tions — continued
Item Characteristic
Auxiliary DC power inlet
Connector Polarity (as viewed from rear panel)
Note:Optional mating male connector not
supplied. Order Cobalt PN 5030-0002-000R
or Conxall PN 16282-3SG-311.
Locking connector, 12 VDC @ 1 A max
GND
+12 VDC
NC
Power consumption 9 Watts maximum
Environmental:
Operating temperature:
Relative humidity (operating or storage):
32° – 104° F (0° – 40° C)
< 95%, non-condensing
Installation dimensions Standard EIA 19 in. rack mounting
2RU height
5 in. (127 mm) depth (not including component projections)
Frame communication 10/100 Mbps Ethernet with Auto-MDIX using RJ-45 receptacle.
DC isolation provided.
Auxiliary communication ports • GPIO; 12 GPI (opto-isolated), 16 GPO
• TIA/EIA-422 and TIA/EIA-485 using Phoenix terminal blocks
• TIA/EIA-232 using female DB-9 receptacle
• Two USB ports (reserved)
Displays Two identical LCD displays, each as follows:
• 3.75 x 2.25 in. W x H (95 x 57 mm)
• 500 cd/m
2
, 300:1 contrast ratio. Adjustable brightness.
Controls • Eight control knobs; flexible function based on operating mode.
• Numeric keypad and control buttons
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 1-5
Page 12
1 Warranty and Service Information
Warranty and Service Information
Cobalt Digital Inc. Limited Warranty
This product is warranted to be free from defects in material and workmanship for a period of five (5)
years from the date of shipment to the original purchaser, except that 4000, 5000, 6000, 8000 series
power supplies, and Dolby
material and workmanship for a period of one (1) year.
Cobalt Digital Inc. 's (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i)
the repair or (ii) replacement of the product, and the determinati on of whether a defect is covered under
this limited warranty shall be made at the sole discretion of Cobalt.
This limited warranty applies onl y to the original end-purchaser of the pr oduct, and is not assigna ble or
transferrable therefrom. This warranty is limited to defects i n material a nd workman shi p, and shal l not
apply to acts of God, accidents, or negligence on behalf of the purchaser, and shall be voided upon the
misuse, abuse, alteration, or modification of the product. Only Cobalt authorized factory
representatives are authorized to make repairs to the product, and any unauthorized attempt to repair
this product shall immediately void the warranty. Please contact Cobalt Technical Support for more
information.
®
modules (where applicable) are warranted to be free from defects in
To facilitate the resolution of warranty related issues , Cobalt recommends registering the product by
completing and returning a product registration form. In the event of a warrantable defect, the
purchaser shall notify Cobalt with a description of the problem, and Cobalt shall provide the purchaser
with a Return Material Authorization (“RMA”). For return, defective product s should be double boxed,
and sufficiently protected, in the original packaging, or equivalent, and shipped to the Cobalt Factory
Service Center, postage prepaid and insured for the purchase price. The purchaser should include the
RMA number, description of the problem encountered, date purchased, name of dealer purchased
from, and serial number with the shipment.
Cobalt Digital Inc. Factory Service Center
2506 Galen Drive Office: (217) 344-1243
Champaign, IL 61821 USA Fax: (217) 344-1245
www.cobaltdigital.com Email: info@cobaltdigital.com
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR
LIABILITIES ON COBALT'S PART. ANY SOFTWARE PROVIDED WITH, OR FOR USE WITH,
THE PRODUCT IS PROVIDED “AS IS.” THE BUYER OF THE PRODUCT ACK NOWLEDGES
THAT NO OTHER REPRESENTATIONS WERE MADE OR RELIED UPON WITH RESPECT TO
THE QUALITY AND FUNCTION OF THE GOODS HEREIN SOLD. COBALT PRODUCTS ARE
NOT AUTHORIZED FOR USE IN LIFE SUP PORT APPLICATIONS.
COBALT'S LIABILITY, WHETHER IN CONT RACT, TORT, WARRANTY, OR OTHERWISE, IS
LIMITED TO THE REPAIR OR REPLACEMENT, AT ITS OPTION, OF ANY DEFECTIVE
PRODUCT, AND SHALL IN NO EVENT INCLUDE SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES (INCL UDING LOST PROFITS), EVEN IF IT HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
1-6 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 13
Introduction Contact Cobalt Digital Inc.
Contact Cobalt Digital Inc.
Feel free to contact our friendly and professional support representatives for
any of the following:
• Name and address of your local dealer
• Product information and pricing
• Technical support
• Upcoming trade show i nformation
Phone: (217) 344-1243
Fax: (217) 344-1245
Web: www.cobaltdigital.com
General Information: info@cobaltdigital.com
Technical Support: support@cobaltdigital.com
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 1-7
Page 14
This page intentionally blank
1-8 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 15
Chapter 2 Installation and Setup
Overview
This chapter contains the following information:
• Installing the Control Panel in Equipment Rack, p. 2-1
• Connecting the Control Panel Cabling, p. 2-2
Installing the Control Panel in Equipment Rack
Chapter 2
Install the Control Panel in an eq uipment rack as follows:
1. Select a mounting location within the rack that offers proper access and
meets the following requirements:
• Standard EIA 19 in. rack mounting
• 2RU height
• 7 in. (17.8 cm) minimum available depth
Note: The Control Panel does not require any special ventilation clearance.
2. Place the Control Panel in rack mounting position. Start four 10-32 x 3/4
machine screws and nylon washers which secure the Control Panel to the
rack.
3. Evenly tighten the four Control Panel securing screws.
OGCP-9 00 0- OM (V2.5) OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL 2-1
Page 16
2 Connecting the Control Panel Cabling
Connecting the Control Panel Cabling
Refer to Figure 2-1 fo r the Control Panel rear panel connectors. Perform
Control Panel connections as described below.
1
2
3 4 5
No. Description Comments
1
2
3
4
AC Power Input Connector IEC C14 female receptacle.
DC Power Input Connector 3-wire female locking connector with connections
GPIO Connector Bank Special use. Not used for typical installation.
TIA/EIA-422, TIA/EIA-485 Connector Bank Special use. Not used for typical installation.
90-240 VAC, 47-63 Hz, auto-sensing
Dual fused; 500 mA, 250 V 5mm x 20mm
for GND and +12 VDC.
For use with optional external DC power supply
(Cobalt PN PS-24). Provides redundant power
source when used with external DC power supply.
Also allows use where power is supplied from
distributed DC power system using optional
connector (Cobalt PN 5030-0002-000R; Conxall
PN 16282-3SG-311).
12 general-purpose input signals allow outside
devices to control the currently displayed
processing card, which enables automatic router
following on QC stations, or interfacing with
simple button boxes for special applications.
16 general-purpose output signals can be used to
indicate the currently selected card.
6
7
5
6
7
ETHERNET 10/100 Connector RJ-45 10/100 Ethernet connection to frame LAN
TIA/EIA-232-F Connector DB-9 TIA/EIA-232 serial control/alarm port.
Special use. Not used for typical installation.
USB Connector Reserved for future use
Figure 2-1 Control Panel Rear Panel Connectors
2-2 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 17
Installation and Setup Connecting the Control Panel Cabling
1. Using a CAT5 RJ-45 jumper cable (not supplied), connect the
ETHERNET 10/100 connector to the Ethernet switch that links the Control
Panel to the LAN. Figure 2-2 shows an example LAN interconnection
used with the Control Panel and a frame equipped with a required
optional Network Controller Card (Cobalt PN MFC-8320-N or
equivalent).
OGCP-9000 Control Panel
20-Slot Frame with Network
Controller Card
Computer
with NIC
IP: 192.168.0.251
Figure 2-2 Example Control Panel LAN Interconnections
IP: 192.168.0.249
IP: 192.168.0.250
10/100 Switch
Connect the power cord (supplied) to the rack power strip, but do not
2.
apply power yet. Connect the IEC connector on the power cord to the
female IEC on the Control Panel.
3. Apply power to the cord connected to the Control Panel.
®
Upon power-up ve rify that the COBALT
opening screen (sh own below)
is shown on both Control Panel front panel screens. This verifies the
Control Panel self-test.
4. Proceed to Chapter 3,“Operating Instructions”.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 2-3
Page 18
This page intentionally blank
2-4 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 19
Chapter 3 Operating Instructions
Overview
This chapter contains the following information:
• Control and Display Descriptions, p. 3-1
• Network Setup, p. 3-3
• Using the Control Panel To Select and Monitor Frame Cards, p. 3-3
• Troubleshooting, p. 3-13
Control and Display Descriptions
Chapter 3
In its normal operating use, the Control Panel allows the user to
simultaneously display up to eight parameter settings of a selected
COMPASS
®
and/or FUSION3G® card and, in turn, remotely adjust the
parameter value or selection using the control knob adjacent to the displayed
parameter with no ke ypad intervention bei ng re qui red. Figure 3-1 provides an
example and describes this funct ion .
Just like a potentiometer on a console, rotating the control knob adjacent to
its display area (in this example, “Co lor G a in” and its corresponding knob)
changes the value of the displayed numeric parameter.
In this example, rotating the knob clockwise increases the Color Gain value
in tenth-unit steps. Rotating the knob counter-clockwise similarly re duces
the value of the corresponding parameter.
Where the display shows a selection choice, the k nob acts as a rotary
selector switch.
In this example, rotating the knob selects between On and Off for
Gang Video and Color Gain.
Note: • Values displayed at any time is the actual v alue as s et on t he card.
• Units characters ( such as “dB” or “deg”) are displayed per ordered
configuration preference and may not appear on some control
panel displays.
Figure 3-1 Basic Display/Knob Function
OGCP-9 00 0- OM (V2.5) OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL 3-1
Page 20
3 Control and Display Descriptions
Figure 3-2 shows and describes the front panel control knobs, keys, and
displays.
Numeric
Keypad
Selection
Keypad
Item Function
Numeric
Keypad
• Allows optional keypad numeric entry of parameter settings (as opposed to using a knob).
• Allows entry of Control Panel network parameters.
Selection Keypad
Select Device
key
• Press Select Device to display the list of devices controlled by the Control Panel.
• Select the device to be monitored by rotating any knob until the desired device is highlighted.
Press any knob in (or press the Enter key) to select the device.
• Directly go to a device by entering its device list number. Press any knob in (or press the Enter
key) to go to the device.
Knob/Display
(1 of 8)
Select
Submenu
key
Cancel key
key
Enter
Knob/Display
• Press Select Submenu to display a list of submenus for the selected device. Each submenu
consists of parameter groups for the card.
• Select the submenu to be monitored by rotating any knob until the desired parameter is
highlighted. Press any knob in (or press the Enter key) to select the submenu.
• Directly go to a submenu by entering its list number. Press any knob in (or press the Enter key)
to go to the submenu.
Used to either cancel or confirm entries used with numeric keypad regardless of current mode.
• Displays the list of devices controlled by the Control Panel.
• When a device has been selected and a parameter group for the device has been selected, the
selected parameters are now displayed, with each parameter displayed in one of eight areas of the
display. The knob corresponding to the display area now exclusively controls the respective
parameter. Rotate the knob to adjust the value of the displayed parameter. The parameter change
is received by the device, with the current value displayed being the actual value as effected by the
device.
Figure 3-2 OGCP-9000 Remote Control Panel Controls and Displays
3-2 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 21
Operating Instructions Network Setup
Note: • Although the keypad and Enter key can always be used to enter a selection,
where the Control Panel displays a list of selection options it is more convenient to simply rotate a knob to select the option, and then press the knob in
to enter the selection.
• For numeric parameters (such as level settings), the knob ballistics are such
that rapid rotation of the knob yields coarse wide-span adjustment of the
parameter. Slower or incremental rotation of the knob yields correspondingly
finer adjustment, eventually providing step adjustment corresponding to the
decimal precision of the displayed value.
• The keypad keys are backlighted in modes where the key can be used. If a
key is not applicable to a particular mode or configuration of the Control
Panel, the key is not backlit.
Network Setup
Typically, your Control Panel is delivered with all network settings and card
assignments configured per your instructions for your frames and cards that
are to be controlled by the Control Pane l. This is facili tated by the “Setting Up
Yo ur Cobalt
your instructions.
®
Remote Control Panel” fill-in sheet that we offer you, or per
• If your Control Panel is configured with your custom settings, it is
now ready for use. Proceed to Using the Control Panel To Select and
Monitor Frame Cards below.
• If your Control Panel is not configured with yo ur custom s ettings, the
Control Panel must first be configured t o work with your netw ork and
the frames to be contr olled by the Cont rol Pane l. These config ura tion
changes are easily accomplished using the instructions in Appendix
A, Supplemental Information.
Using the Control Panel To Select and Monitor Frame Cards
Select devices (cards) and monitor/adjust the card parameters as described in
this section.
Device and Parameter Submenu Overview
Each device has its user parameters organized into submenu groups, as
shown in the example on the next page.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 3-3
Page 22
3 Using the Control Panel To Select and Monitor Frame Cards
In this example, device list number 1
(“1 9061 Receiver 21 Input Processing”)
is currently selected
Figure 3-3 shows how a device and its respective submenus are organized,
and also provides an overview of how to navigate between devices and
submenus.
Device
Submenu 1 Submenu 2
• • •
For the selected device, each submenu of parameter
choices is now displayed ("1 Video + Audio Proc" among
others in this example)
Select a device by pressing the Select Device key and then
selecting the device by either:
• Rotating any knob to select from the list of devices, and then
entering the device (press Enter or press in any knob).
• Directly entering the device list number using the numeric
keypad, and then entering the device (press Enter or press
in any knob).
Select from the submenu of parameters for
a device by pressing the Select Subm enu
key and then selecting the submenu by either:
• Rotating any knob to select from the list of
submenus, and then entering the submenu
Submenu n
(press Enter or press in any knob).
• Directly entering the submenu list number
using the numeric keypad, and then entering
the submenu (press Enter or press in any
knob).
Individual Parameters
Each submenu consists of groups of
individual parameters for a particular device.
(Device list numbers 1 through 9 only.)
When parameters are currently displayed jump directly to a
different device by simply entering the device list number of the
new device.
Figure 3-3 Device and Parameter Submenu Overview
3-4 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 23
Operating Instructions Using the Control Panel To Select and Monitor Frame Cards
Selecting a Device
1. Press the Select Device key. The Select Device screen is displayed (as
shown in the example below).
This display shows the list
order number of the device that
is ready for selection
This display shows the devices assigned to the Control Panel.
• Rotate any knob to select from the list of devices. The device selected
using a knob is displayed with a reversed background (in this example,
“1 9061 - Receiver 21 Input Processing”). Press any knob in to select
the device.
• Directly enter a device by entering its list number using the numeric
keypad, and then pressing Enter or pressing in any knob).
The currently displayed
device and its list order is
shown here
2. Select a device by either:
• Rotating any knob to select from the list of devices. Wh en the desired
device is selected in the right display, press any knob in to display the
device.
• Directly entering the device list number using the numeric keypad,
and then pressing
Enter or pressing in any knob).
When the selected device is displayed, device parameters are displayed
(as shown in the example below).
Displayed parameter and its
associated control knob
(“Phase”, being 1 of 8 parameters
shown in this example)
The currently displayed parameter
submenu and its list order number
is shown here
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 3-5
Page 24
3 Using the Control Panel To Select and Monitor Frame Cards
Displaying and Adjusting Device Parameters
1. Display parameter submenus by pressing the Select Submenu key. The
available parameter group choices are displayed on the right display (as
shown in the example below).
This display shows the
parameter group submenu list
number that is ready for
selection (in this example,
submenu "1")
2. Select a submenu by either:
This display shows available parameter group submenus for the displayed
device.
• Rotate any knob to select from the list of parameters.
The parameter selected using a knob is displayed with a reversed
background (in this example, “1 Video + Audio Proc”).
• Directly enter a parameter submenu by entering its list number using the
numeric keypad, and then pressing Enter or pressing in any knob.
• Rotating any knob to select from the list of submenus. When the
desired submenu is selected in the right display, press any knob in to
display the submenu. (The example below now shows submenu 2
displayed.) Enter the submenu by pressing any knob in.
• Directly entering t he s ubmenu list number using the numeric keypad,
and then pressing
Enter or pressing in any knob).
This display now shows submenu 2 items for the selected
device. The parameter group 2 list order number and title is
displayed (in this example, “2 HD and SD Scaler Settings”)
3-6 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 25
Operating Instructions Using the Control Panel To Select and Monitor Frame Cards
3. Depending on the type of parameter displayed, change the setting as
follows:
Parameter Type: Change setting by:
Numeric (scalar)
value using knob
to adjust
Selection
from list
using knob
to select
• Rotate the knob adjacent to the
parameter to select the de sired
setting. The displayed value is
now the current setting for the
parameter.
Note: Holding knob in sets value to
default setting where
applicable.
• Press the knob adjacent to the
parameter. The parameter is now
displayed in reversed
background, indicating a
selection can now be made.
• The available choices for the
parameter are now displayed on
the opposite display. Rotate the
knob adjacent to the para meter to
select from the available choices.
Rotate the knob clockwise to
increase the value of the
corresponding parameter
Rotate the knob
counter-clockwise to reduce
the value
Reversed background
indicates parameter is
selected
Rotate the knob adjacent to
the parameter to select
from available choices
Numeric value or
selection from list
using keypad
• After selecting a change, press
the knob adjacent to the
parameter to apply the change.
The changed value is now the
current setting (as shown in the
Changed value
example here).
• Press the knob adjacent to the parameter. The parameter is now displayed in
reversed background, indicating a change can now be made.
• Using the numeric keypad, enter the desired changed numeric value (or selection
from list). The key clears each keystroke. The
Cancel key clears the entire
entry and reverts to the original setting.
• Press the knob adjacent to the parameter (or press the
Enter key) to apply the
change.
Note: Out-of-range entries are ind icated by red text bein g displa yed. Press Cancel key to clear
the entry.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 3-7
Page 26
3 Using the Control Panel To Select and Monitor Frame Cards
4. To select another parameter group for the currently displayed device,
press
Select Submenu and select the parameter group as described in
steps 1 and 2 above.
5. To select another device, press S elect Device and select the device as
described in Selecting a Device, p. 3-5.
Note: If a different device is selected, submenu and parameter value settings are
retained for the previous device. When the previous device is again selected,
its settings are again displayed and take effect.
System Information/User Interface Functions
The System Information/User Interface Functions mode allows the user to:
• Check current network settings of the Control Panel.
• Check system information related to the Control Panel.
• Set user preferences such as bac klight bri ghtness (“Backlight Level”)
of the Control Panel displays.
This mode has no effect on functional operation of the Control Panel.
Checking Current Network Settings
Check current network settings of the Control Panel as follows:
1. Press the Select Device key and then press the 0 key.
2. Press the Select Submenu key. The Control Panel Submenu selection
screen is now displayed.
3. Rotate any knob to select
1 Current Network Settings
4. Press any knob in to display curren t ne twor k se tt ings. An example of this
display is shown on the next page.
Note: Where the Lock icon ( ) appears, this indicates values cannot be changed
in the currently displayed screen. Where the “P” icon ( ) appears, this indicates to press the adjacent knob to open the value for editing.
3-8 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL OGCP-9000-OM (V2.5)
Page 27
Operating Instructions Using the Control Panel To Select and Monitor Frame Cards
5. Exit the Current Network Settings screen as follows:
• Press the Select Submenu key to go to other Con trol Pa nel Submenu
choices.
• Press the Select Device key to exit the Control Panel Submenu.
Checking System Information
The System Information screen shows application build, kernel build, and
processor version information for the Control Panel. Check system
information as follows:
1. Press the Select Device key and then press the 0 key.
2. Press the Select Submenu key. The Control Panel Submenu selection
screen is now displayed.
3. Rotate any knob to select
3 System Information
4. Press any knob in to display current system information. An example of
this display is shown below.
5. Exit the Current Settings screen as follows:
6. Exit the Current Network Settings screen as follows:
• Press the Select Submenu key to go to other Con trol Pa nel Submenu
choices.
• Press the Select Device key to exit the Control Panel Submenu.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 3-9
Page 28
3 Using the Control Panel To Select and Monitor Frame Cards
Setting User Interface Preferences
The Control Panel User Interface submenu allows display appearance and
knob/key hold time preferences to be set as described below.
Adjust the backlight brightness level of the displays as follows:
1. Press the Select Device key and then press the 0 key.
2. Press the Select Submenu key. The Control Panel Submenu selection
screen is now displayed.
3. Rotate any knob to select
4 User Interface
4. Press any knob in to enter User Interface mode.
5. Select the desired User Interface item (described below) by p ressing the
knob adjacent to the item and rotating the knob.
Item Function
Color Theme • Bright setting provides white background with
black text.
• Dim setting provides reversed background with
white text and black background.
Backlight Level With Color Theme set to Bright, adjusts the
Key/knob hold time Sets the required time (in seconds) that a knob or
6. Exit the User Interface screen as follows:
• Press the Select Submenu key to save the changes and go to other
saturation of both the text and the background.
With Color Theme set to Dim, a djust s the brightness
of the text (background is always full black).
key must be held for the resp ec tiv e se ttin g to retu rn
to its default value.
User Interface submenu choices.
• Press the Select Device key to save the changes and exit the User
Interface submenu screen.
3-10 OGCP-9000 REMOTE CONTROL PANEL PRO DUCT MAN UAL OGCP-9000-OM (V2.5)
Page 29
Operating Instructions Using the Control Panel To Select and Monitor Frame Cards
Setting Knob Ballistics
The default knob ballist ics pr ovides rapid ac cess to values across t he range of
an item while providi ng ease of fi ne adjus tmen t. The ba llis tics c an be ta ilor ed
using the submenu described below.
Note: • This submenu may not be present on all Control Panels.
• Settings resulting in very large adjustment spans may require very slow
knob increment/decrement rotation to make a desired selection (especially
for items in a list). Always test knob action when making changes. Knob ballistic setting can be reset to default by holding knob in.
1. Press the Select Device key and then press the 0 key.
2. Press the Select Submenu key. The Control Panel Submenu selection
screen is now displayed.
3. Rotate any knob to select
5 Knob Ballistics
4. Press any knob in to enter Knob Ballistics mode.
5. Listed and described below are the knob ballistics controls. Select the
desired item by pressing the knob adjacent to the item and rotating the
knob.
Item Function
Jump Interval
(major and minor)
Jump Multiplier
(major and minor)
• Greater settings allow for greater va lue increm ent
or decrement accumulation while knob is being
rotated.
• Lesser settings allow for finer value increment or
decrement accumulation while knob is being
rotated.
• Greater settings allow for greater spans in value
increment or decrement while knob is being
rotated.
• Lesser settings allow for smaller spans in value
increment or decrement while knob is being
rotated.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 3-11
Page 30
3 Using the Control Panel To Select and Monitor Frame Cards
Loudness Metering Option
Audio Loudness Meter option (+LM) can be instal led as a so ftware upg rade to
any of several Fusion3G
Control Panel. As such, with the option installed on a Fusion3G
COMPASS
®
host card and the Control Panel, the option provides an audio
®
or COMPASS® cards and the OGCP-9000 Remote
®
or
loudness meter function. Note that the host card and Control Panel retain all
of their normal functions; the Audio Loudness Meter functions are available
as seamlessly added submenu selections on the Control Panel.
See “+LM Audio Loudness Meter Software” on our web site or catalog for
more information.
Note: Host card(s) and control panel(s) use separate option licensing as shown
below.
Figure 3-4 Typical Loudness Metering Display with Option +LM-P
3-12 OGCP-9000 REMOTE CONTROL PANEL PRO DUCT MAN UAL OGCP-9000-OM (V2.5)
Page 31
Operating Instructions Troubleshooting
Troubleshooting
In the event that the Control Panel does not function as described in this
manual or as expected, use Table 3-1 to perform basic troubleshooting.
Table 3-1 Troubleshooting by Symptom
Symptom Check Corrective Action
Displays are blank and not
illuminated
Display item shows dashes or
blank spaces instead of value or
selection (see example below).
This indicates Control Panel ma y
not be connecting with selected
device.
• Make certain AC power (or
auxiliary DC power if used) is
present
• Blown fuse (located in IEC
AC receptacle housin g)
• Select another device and
check the displays.
• Fix power as required.
• The IEC AC receptacle on the rear o f the C ontrol
Panel contains two fuses. Access the fuses by
removing the power cord and opening the fuse
door adjacent to the receptacle using a small
flat-blade screwdriver.
Check both fuses for continuity. Replace fuse(s)
with the same value and type fuse (as identified
on the label adjacent to the receptacle).
CAUTION
Replace fuses only with the same value and
type as specified on the rear panel label.
• Power up the Control Panel again . If fuse(s) b low
again, contact Cobalt Digital Inc. Technical
Support Department.
• If other devices display properly, the device
showing dashes or blanks may not be
communicating with the Control Panel. Check
the following:
• Make certain the card is installed in the
intended frame and slot location.
• If all other devices do not display properly,
the Control Panel may not be connecting to the
LAN. Check the following:
• Make certain the Control Panel network
settings are as expected. Apply the correct
settings if required.
Note: Refer to Changing the Control Panel
Network Settings in Appendix A,
“Supplemental I nformation” for Contro l Panel
configuration instru cti ons .
• Make certain the Control Panel Ethernet
cable is properly con nected and showing
activity on the LAN switch. Use ping- to
check the connection.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MANUAL 3-13
Page 32
3 Troubleshooting
Table 3-1 Troubleshooting by Symptom — continued
Symptom Check Corrective Action
Upon power-up, COBALT®
opening screen is not displayed.
In Case of Problems
• With power applied to the Control Panel, reset
the Control Panel by simultaneously holding the
following keys:
- 1
• / –
-
- Enter
• If the action above does not correc t the problem,
contact Cobalt Digital Inc. Technical Support
Department.
Should any problem arise with your Control Panel that was not solved by the
information in this section, please contact the Cobalt Digital Inc. Technical
Support Department. (Contact information is supplied on the front cover of
this manual.)
If required, a Return Material Authorization number (RMA) will be issued to
you, as well as specific shipping instructions. If required, a temporary
replacement Control Panel will be made available at a nominal charge. Any
shipping costs incurred are the customer’s responsibility. All products
shipped to you from Cobalt Digital Inc. will be shipped collect.
The Cobalt Digital Inc. Technical Support Department will continue to
provide advice on any product manufactured by Cobalt Digital Inc., beyond
the warranty period without charge, for the life of the equipment.
See Contact Cobalt Digita l Inc., p. 1- 7 in Chapt er 1, “Introduction“for contact
information.
3-14 OGCP-9000 REMOTE CONTROL PANEL PRO DUCT MAN UAL OGCP-9000-OM (V2.5)
Page 33
Overview
Appendix A
Chapter 1 Supplemental Information
Typically, your Control Panel is typically delivered with all network settings
and card assignments configured per your instructions for your frames and
cards that are to be controlled by the Control Panel. This is facilita ted by the
“Setting Up Your Cobalt
you, or per your instructions.
An example of a filled-in sheet is shown in Figure A-1. As shown, this
information consists o f the following:
• IP address of the Control Panel itself
• IP address of the frame(s) connecting to the Control Panel
®
Remote Control Panel” fill-in sheet that we offer
• Card assignments for each frame(s)
By providing us this information before you receive your Control Pane l, your
Control Panel will be immediately ready to use.
Should the need arise to change any of the following, use the instructions in
this appendix.
• Changing the Control Panel Network Settings, p. A-2
• Changing Frame Network Settings and/or Card Assignments, p. A-5
OGCP-9 00 0- OM (V2. 5) OGCP-9000 REMOTE CONTROL PANEL PRODUCT MANUAL A-1
Page 34
Appendix A Changing the Control Panel Network Settings
Cobalt Digital Inc.
2406 E. University Ave.
Urbana, IL 61802
Voice 217.344.1243 • Fax 217.344.1245
www.cobaltdigital.com
The form below can be used to sort out and arrange the setup of your Control Panel. Print or photocopy as many
as needed.
Customer Name: XYZ Inc.
Area/Plant: Post 1A
PO Number: CDI-CP-XYZ
Date: 10/2/09
Control Panel Name: Post 1A-5
Control Panel IP Address: 192.168.0.249
Frame Name/Number:
Slot Card Model Name/Description
1 9061 Post 1A Format
2 9083 Post 1A Audio/FS
3 9323 Post 1A Audio #2
4 9323 Post 1A Audio #3
5 9323 Post 1A Audio #4
6 9323 Post 1A Audio #5
7
8
9
10
Frame IP Address: 192.168.0.55
Figure A- 1 Example “Setting Up Your Cobalt® Remote Control Panel” Sheet
Changing the Control Panel Network Settings
Change the network settings to desired settings as described below.
1. Press the Select Device key and then press the 0 key.
2. Press the Select Submenu key. The Control Panel Submenu selection
screen is now displayed.
3. Rotate any knob to select
2 Configure Network Settings
A-2 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MAN UAL OGCP-9000-OM (V2.5)
Page 35
Appendix A Changing the Control Panel Network Settings
4. Press any knob in. The current network settings for the Control Panel are
now displayed (as shown in the example below). Note at this point that
the setting selection items on the screens are now adjacent to respective
knobs.
Note: Where the Lock icon ( ) appears, this indicates values cannot be changed
in the currently displayed screen. Where the "P" icon ( ) appears, this indicates to press the adjacent knob to open the value for editing.
5. Noting the setting selection item to be changed and its respective knob,
press the knob in to open t he item f or editi ng. The set ting sel ection i tem is
now displayed in revers ed ba ckgr ound , indicating a selection can now be
made.
Note: Obtain Address via DHCP item should first be set. If set to Yes, manually
entered static values for a static IP address will not take effect.
6. Rotate the knob adjacent to the parameter to select from a list of choices
(or use the keypad and
Enter key for numeric string settings) to enter the
desired change. Reject or enter the change as follows:
• Cancel the entry or selection by pressing the Cancel key.
• Execute the entry or selection by either pressing the corresponding
knob in again (or pressing the
Enter key). The changed entry now
appears in the respective item field.
7. Repeat steps 5 and 6 for all four setting selection items displayed (and
listed below), making certain all four setting selection items are set as
intended.
• Obtain Address via DHCP (Y/N?)
• Fixed IP Address
• Netmask
• Gateway
Note: Static IP addresses are recommended for the Control Panel and the frame(s)
that the Control Panel is to communicate with.
8. Save changes by pressing the Select Device or Select Submenu key.
Saving Changes and Restarting is displayed. The Control Panel now
restarts (followed by the power-up COBALT
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MAN UAL A-3
®
opening screen).
Page 36
Appendix A Changing the Control Panel Network Settings
9. Test the Control Panel configuration setting and connectivity performed
above by going to a computer on the LAN where the Control Panel
resides. Use the Control Panel embedded web browser to access the
Control Panel as follows:
9.1 Open a browser window and enter the Control Panel IP
address.
9.2 On the computer, the Control Panel screen should now appear
(as shown below).
10. If desired, the Control Panel network settings can also be checked as
follows:
10.1 Press the Select Device key and then press the 0 key.
10.2 Press the Select Submenu key. The Control Panel Submenu
selection screen is now displayed.
10.3 Rotate any knob to select
1 Current Network Settings
10.4 Press any knob in to display current network settings. An
example of this display is shown below.
A-4 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MAN UAL OGCP-9000-OM (V2.5)
Page 37
Appendix A Changing Frame Network Settings and/or Card Assignments
Changing Frame Network Settings and/or Card Assignments
The Control Panel uses a configuration file to perform the following:
• Connect the Control Panel to its intended frame(s).
• Configure the Control Panel to provide control functions applicable
to particular COMPASS
®
and/or FUSION3G®cards. In thi s manner,
the Control Panel displays and provides the control functions
applicable to the cards controlled by the Control Panel.
• Correlate the card model list displayed on the Control Panel with the
physical order/assignment of cards within the frame.
Therefore, to change the configuration of your Control Panel, a new (or
edited) configura tion fi le tha t contai ns the de sired changes must be uploaded
to the Control Panel.
• Cobalt
®
can prepare an edited co nfiguratio n file to implement the
changes you require. Contact Cobalt Support (see “Contact Cobalt
Digital Inc.” in Chapter 1 of this manual) to obtain a new
configuration file. The file will be sent to you via e-mail.
When the file is received, it can be uploaded to the Control Panel as
described in “Uploading a Configuration File to the Control Panel”
below.
• If you desire, you can perform minor edits to a configuration file to
change a frame IP address, or card slot locations and/or additions
within a frame. Contact Cobalt Support (see “Contact Cobalt Digital
Inc.” in Chapter 1 of this manual) to obtain your configuration file.
The file will be sent to you via e-mail. You can edit the file as
described in Editing a Configuration File, p. A-7. When the file is
ready, it can then be uploaded to the Control Panel as described in
“Uploading a Configuration File to the Control Panel” below.
Uploading a Configuration File to the Control Panel
1. Open a browser window and enter the Control Panel IP address on a
computer connected to the frame LAN (“192.168.0.249” in the example
shown below).
2. When the screen shown below appears on the computer, click on
Configuration File Upload
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MAN UAL A-5
.
Page 38
Appendix A Changing Frame Network Settings and/or Card Assignments
3. The screen shown below now appears. Using the Browse... button,
browse to the location of the saved configuration file
(
C:\data\OGCPconfig.txt in the example below).
4. Click the Send Now button. Wait while the edited configuration is fully
uploaded to the Control Panel.
After the upload has completed, the Control Panel will restart
®
automatically displaying the power-up COBALT
opening screen and
show the new configuration. The browser can now be closed.
CAUTION
Do not power down the Control Panel or disturb the upload until it is
complete. Improper upload wil l resul t i f upl oad is no t a llo wed to
properly complete.
A-6 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MAN UAL OGCP-9000-OM (V2.5)
Page 39
Appendix A Changing Frame Network Settings and/or Card Assignments
Editing a Configuration File
The Control Panel configuration file can be field-edited to change frame IP
addresses or card assignments and/or slot locations as described below.
Note: If it is desired to edit the configuration file that currently resides in the Control
Panel, in the browser described on the previous page, click Configuration File
Download and browse to the location where you want it to be downloaded.
Perform edits on the file and upload when done as described below.
Note: Always save an edited configuration file using a unique name, thereby pre-
serving the original file should it be necessary to use the original file.
1. Shown below is the section of the configuration file where the user
defines frame IP address and card assignments to suit the installation.
The user-editable area of the file is defined by the
## start of Device Definitions ## and the
## end of Device Definitions ## boundaries as shown below.
User content can be
added or changed here
In the default configuration file, this area is empty (as shown below).
#########################################################
######### start of Device Definitions ###################
banner ‘’OGCP-9000 Control Panel’’
######### end of Device Definitions ###################
CAUTION
Do not edit or alter the file contents preceding the
## start of Device Definitions ##
2. Note the convention used for entering user definitions, as shown in the
section.
example in Figure A-2.
3. Noting the convention described in Figure A-2, configure the Control
Panel by adding configuration content to the downloaded configuration
file as follo ws:
Note: For additional reference if desired, Figure A-3 on page A-10 shows an exam-
ple configuration file and the resulting Control Panel configuration setup.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MAN UAL A-7
Page 40
Appendix A Changing Frame Network Settings and/or Card Assignments
This comment line can be used to identify the card
2
(in this example, a 9061 card).
Content entered in quotation marks here provides a
custom display banner for the Control Panel Select
1
Device screen (in this example, “Control Panel 2A”).
Enter in the form of:
banner [space] “[banner display text]” [return]
#########################################################
######### start of Device Definitions ###################
banner "Control Panel 2A"
# 9061
device 1 "9061 - Receiver 21 Input Processing"
from-template cobalt-9061 192.168.0.151 2
# 9821
device 2 "9821 - HD Tape Deck Downconvert"
from-template cobalt-9821 192.168.0.151 4
3
This line:
• Sets the order in which the device is displayed on the Control
Panel Select Device screen (in this example, “device 1” sets
this entry as the first card displayed in the list).
• Sets the custom display banner to be displayed for the device
(in this example, “9061 - Receiver 21 Input Processing”).
Enter in the form of:
device [space] [device list number] [space] “[device custom
name]“[return]
Notes:
• Text shown here in bold must be entered exactly as
shown.
• # denotes comment text which can be entered as
desired.
Figure A-2 Device Definition Field Descriptions
3.1
Definition field for
second device
4
This line:
• Applies the appropriate control display/parametric template
for the defined device (in this example, “from-template
cobalt-9061” configures this assignment for a Cobalt 9061
card).
• Sets the IP address of the frame where the device is located
(in this example, “192.168.0.151”).
• Sets the frame slot where the device is located (in this
example, slot “2”).
Enter in the form of:
[tab] from-template [space] cobalt- [card model number]
[space] [IP address] [space] [slot number] [return]
Enter the banner text to be displayed for the Control Panel
Select Device screen ( in Figure A-2).
Enter any text as desired to help identif y the Control Panel and
its specific function.
1
A-8 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MAN UAL OGCP-9000-OM (V2.5)
Page 41
Appendix A Changing Frame Network Settings and/or Card Assignments
3.2 For the first device (card) to be added, if d esired enter the
device model number or other identifying information ( in
Figure A-2).
3.3 Assign and enter the device list number and the device custom
display banner text for the first device. ( in Figure A-2).
3
This sets the order in which the device appears in the Select
Device display list, as well as its displayed name. ( in
Figure A-2).
Enter any text as desired to help identify the device and its
specific function. An example is shown below.
2
3
device 1 sets this
device to first device in list
Example line: device 1 "9061 - Receiver 21 Input Processing"
3.4 Apply the appropriate control display/parametric template for
the added device ( in Figure A-2).
3.5 Set the IP address of the fra me where th e device is t o be loca ted
( in Figure A-2).
4
3.6 Set the frame slot where the device is to be located ( in
“9061 - Receiver 21 Input Processing”
custom banner text sets displayed device name as shown
4
4
Figure A-2).
3.7 Repeat steps 3.2 through 3.6 for additional devices.
3.8 Save the edited configuration file.
4. Uplo ad the edited configuration file to the Control Panel as described in
Uploading a Configuration File to the Contro l Panel, p. A-5.
Note: • Any number of configuration files may be renamed and saved as desired. It
is recommended to save all viable configuration files in case a previous
setup may be required in the future.
• A saved configuration can be used to identically configure additional Control
Panels if desired.
OGCP-9000-OM (V2.5) OGCP-900 0 REMO TE CONT RO L PANEL PR ODU CT MAN UAL A-9
Page 42
Appendix A Changing Frame Network Settings and/or Card Assignments
#########################################################
######### start of Device Definitions ###################
banner "Cobalt Digital - IBC 2008"
# 9061
device 1 "9061 - Receiver 21 Input Processing"
from-template cobalt-9061 192.168.0.151 2
# 9821
device 2 "9821 - HD Tape Deck Downconvert"
from-template cobalt-9821 192.168.0.151 4
# 9084
device 3 "9084 - Anchor Desk LCD Corrector"
from-template cobalt-9084 192.168.0.151 5
# 9361
device 4 "9361 - Loss of Signal Label"
from-template cobalt-9361 192.168.0.152 6
# 9361
device 5 "9361 - Reference Generator"
from-template cobalt-9361 192.168.0.152 7
# 9061
device 6 "9061 - Receiver 22 Input Processing"
from-template cobalt-9061 192.168.0.152 9
######### end of Device Definitions ###################
192.168.0.151
20-Slot Frame
Device 1
9061
slot 2
Device 2
9821
slot 4
Device 3
9084
slot 5
TO LAN
OGCP-9000
20-Slot Frame
Device 4
9361
slot 6
Device 5
9361
slot 7
192.168.0.152
Device 6
9061
slot 9
Figure A-3 Example Configuration File and Resulting Setup
A-10 OGCP-9000 REMOTE CONTROL PANEL PRODUCT MAN UAL OGCP-9000-OM (V2.5)
Page 43
Page 44
Cobalt Digital Inc.
2506 Galen Drive
Champaign, IL 61821
Voice 217.344.1243 • Fax 217.344.1245
www.cobaltdigital.com
OGCP-9000-OM (V2.5) Printed in USA
