Cobalt Digital COMPASS 9034 User Manual

Download

9034

Input Processing Analog to Digital Video

Converter with Audio Embedding and Frame

Sync and Dolby® Decoding Option

Product Manual

Cobalt Digital Inc.

2406 E. University Ave. Urbana, IL 61802 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com

9034-OM (V4.1)

Duplication or distribution of this manual and any information contained within is strictly prohibited without the express written permission of Coba lt Digital Inc. This manual and a ny information contained within, may not be re produced, distribute d, or transmitted in any form, or by any means, for any purpose, without the express written permission of Cobalt Digital Inc. Reproduction or reverse engineering of software used in this device is prohibited.

Disclaimer

The information in this document has been carefully examined and is believed to be entirely reliable. However, no responsibility is assumed for inaccuracies. Furthermore, C obalt Digit al Inc. res erves the right to ma ke changes to any pro ducts herein to improve readability, function, or design. Cobalt Digital Inc. does not assume any liability arising out of the application or use of any product or circuit described herein.

Trademark Information

Cobalt® is a registered trademark of Cobalt Digital Inc. COMPASS openGear Dolby

property of their respective owners.

Linear Acoust ic licensed feature uses the AutoMAX-II™ upmix algorithm provided under licens e from Linear Acoustic Inc. Linear Acoustic, the "LA" symbol, AutoMAX, and AutoMAX-II are trademarks of Linear Acoustic Inc.

and FUSION3G® are registered trademarks of Cobalt Digital Inc.

is a registered trademark of Ross Video Limited. DashBoard™ is a trademark of Ross Video Limited.

is a registered trademark of Dolby Laboratories, Inc. Other product names or trademarks appearing in this manual are the

, AEROMAX® and UPMAX® are registered trademarks of Linear Acoustic, Inc. 2.0-to-5.1 audio upmixer

Congratulations on choosing the Cobalt Embedding and Frame Sync. (90 34-SD is a function ally identical SD-onl y version.) The 9034 i s part of a full line of modular processing and conversion gear fo r broadcast TV env ironments. The Co balt Digital Inc. line includes video decoders and encoders, audio embedders and de-embedders, distribution amplifiers, format converters, remote control systems and much more. Shoul d you have questions pertaining to the ins tallation or operation of your 9034, pleas e contact us at the contact informa tion on t he front cover.

9034 Input Processing Analog to Digital Video Converter with Audio

Manual No.: 9034-OM Document Version: V4.1 Release Date: September 23, 2013 Applicable for

Firmware Version

3314

(or greater): Description of

product/manual changes:

- New manual design with added GUI sections.

- Update to add new Rear I/O Modules.

- Revise manual for latest functionality with latest firmware.

- Update manual to include latest available card options.

9034-OM (V4.1)

Table of Contents

Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Overview ................................................................................................................ 1-1

9034 Card Software Versions and this Manual...................................................... 1-2

Cobalt Reference Guides........................................................................................ 1-2

Manual Conventions............................................................................................... 1-3

Warnings, Cautions, and Notes .................................................................. 1-3

Labeling Symbol Definitions...................................................................... 1-4

Safety Summary ..................................................................................................... 1-4

Warnings..................................................................................................... 1-4

Cautions...................................................................................................... 1-4

9034 Functional Description .................................................................................. 1-5

9034 Input/Output Formats ........................................................................ 1-5

Video Processor Description ...................................................................... 1-7

Audio Processor Description...................................................................... 1-9

AES Audio Input Advanced Features ...................................................... 1-14

Dolby® Decoding (9034-DEC only)......................................................... 1-15

User Control Interface .............................................................................. 1-16

9034 Rear I/O Modules ............................................................................ 1-18

Audio and Video Formats Supported by the 9034................................... 1-18

Technical Specifications....................................................................................... 1-20

Warranty and Service Information ....................................................................... 1-24

Cobalt Digital Inc. Limited Warranty....................................................... 1-24

Contact Cobalt Digital Inc.................................................................................... 1-25

Chapter 2 Installation and Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Overview ................................................................................................................ 2-1

Setting I/O Switches for AES I/O (1-4) Ports ........................................................ 2-1

Installing the 9034 Into a Frame Slot ..................................................................... 2-2

Installing a Rear I/O Module.................................................................................. 2-5

9034 Rear I/O Modules .............................................................................. 2-6

Setting Up 9034 Network Remote Control ............................................................ 2-9

9034-OM (V4.1) 9034 PRODUCT MANUAL i

Chapter 3 Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Overview................................................................................................................. 3-1

Control and Display Descriptions........................................................................... 3-1

Function Submenu/Parameter Submenu Overview .................................... 3-2

DashBoard™ User Interface ....................................................................... 3-3

Cobalt® Remote Control Panel User Interfaces .......................................... 3-4

Accessing the 9034 Card via Remote Control........................................................ 3-5

Accessing the 9034 Card Using DashBoard™ ........................................... 3-5

Accessing the 9034 Card Using a Cobalt® Remote Control Panel ............. 3-6

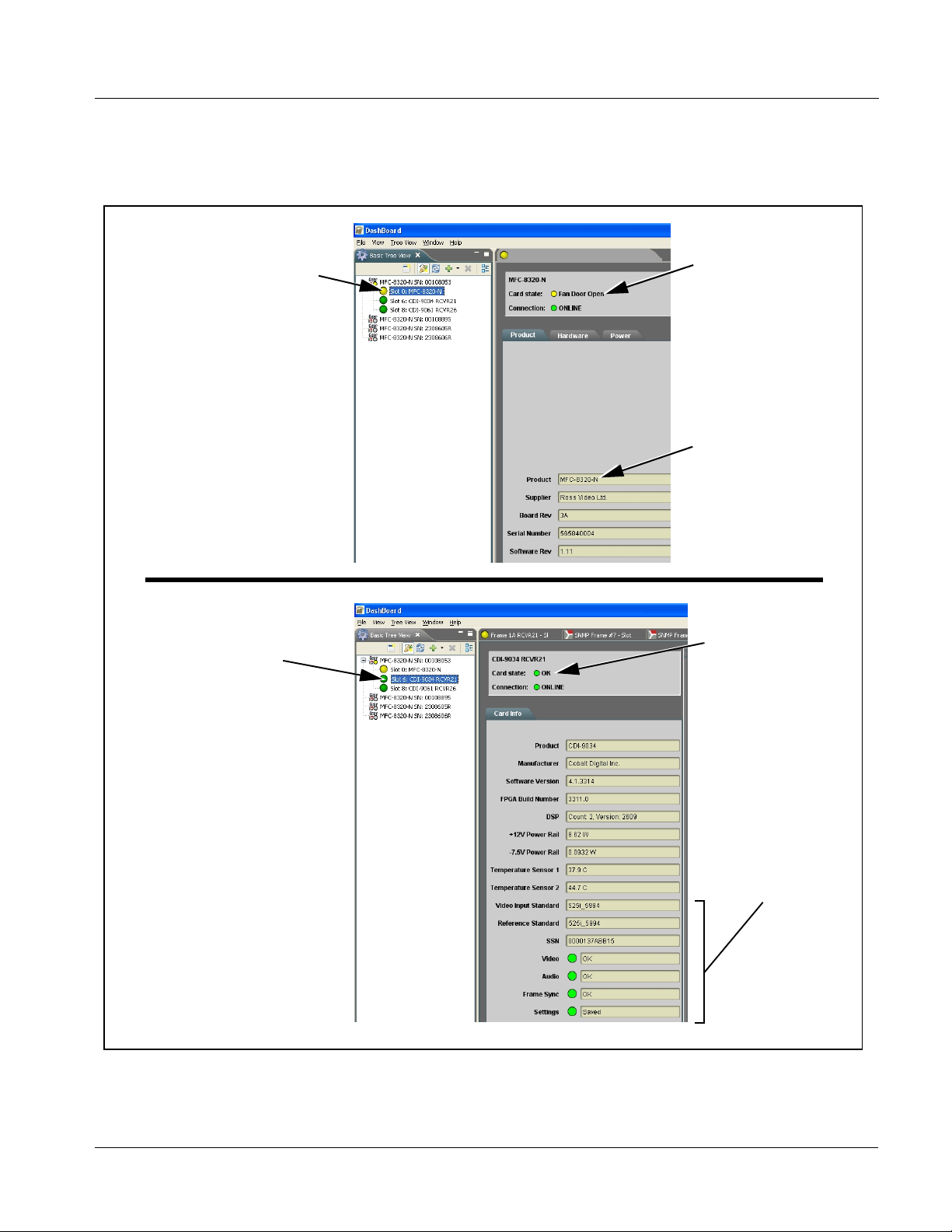

Checking 9034 Card Information............................................................................ 3-7

Ancillary Data Line Number Locations and Ranges .............................................. 3-8

9034 Function Submenu List and Descriptions...................................................... 3-9

Video Signal Controls .............................................................................. 3-10

Audio Input Controls ................................................................................ 3-11

Video Proc ................................................................................................ 3-14

AFD .......................................................................................................... 3-15

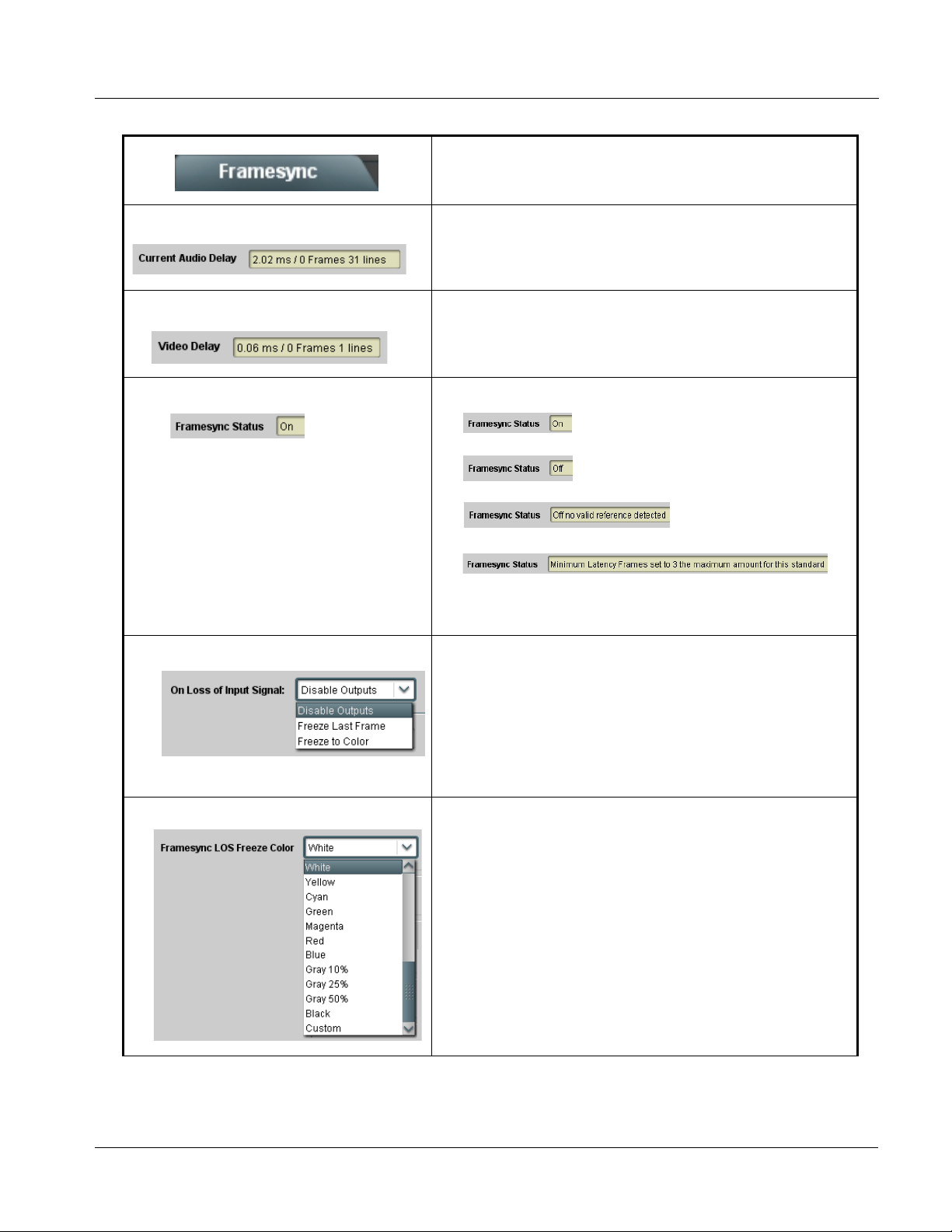

Framesync ................................................................................................ 3-16

Embedded Audio Group 1/2 .................................................................... 3-21

Embedded Audio Group 3/4 .................................................................... 3-25

AES Audio Out Pairs 1-4 ......................................................................... 3-26

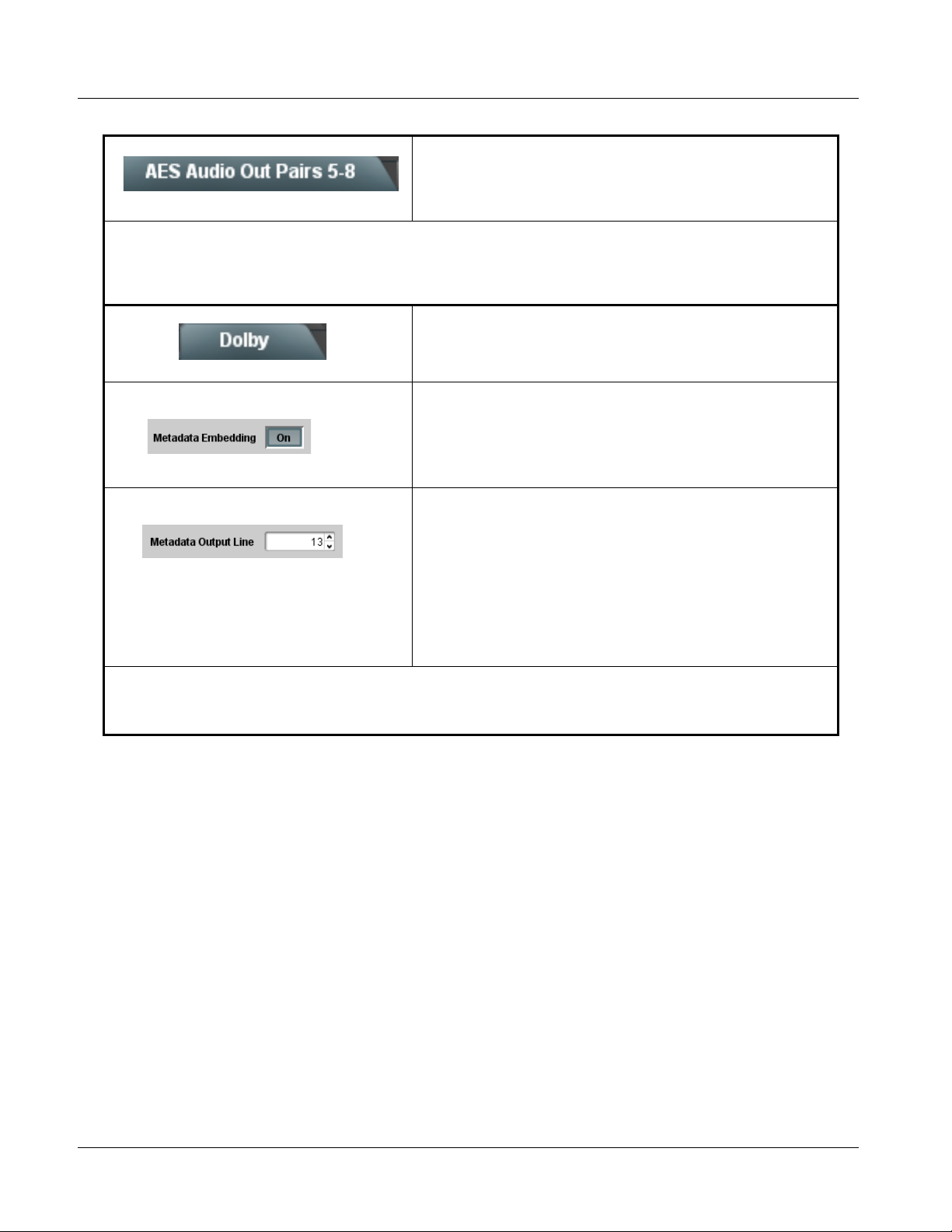

AES Audio Out Pairs 5-8 ......................................................................... 3-30

Dolby Metadata ........................................................................................ 3-30

Dolby Decoder ......................................................................................... 3-31

Dolby E Metadata .................................................................................... 3-34

Dolby D Metadata .................................................................................... 3-35

Timecode .................................................................................................. 3-36

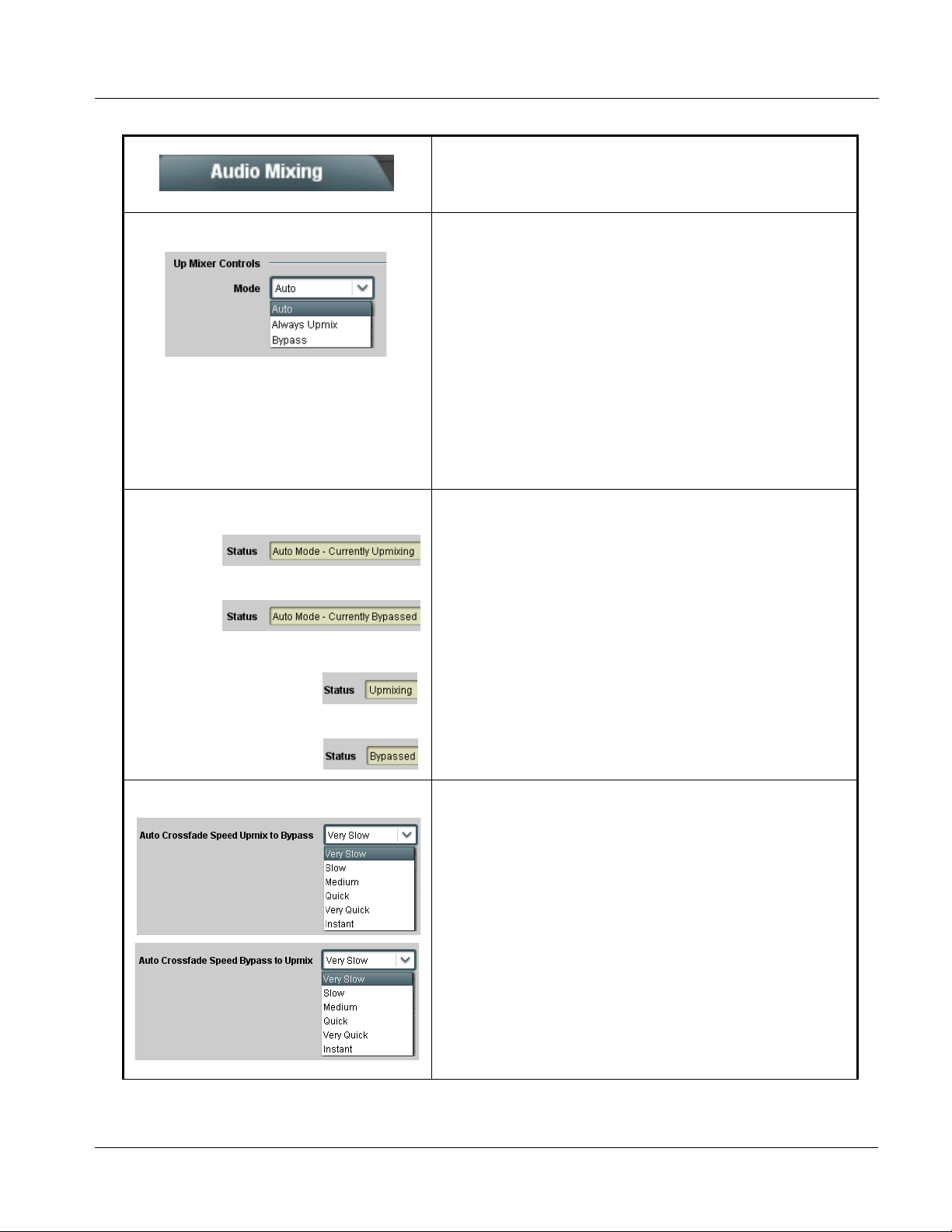

Audio Mixing ........................................................................................... 3-40

Tone Generator ......................................................................................... 3-45

Licensable Features.................................................................................. 3- 45

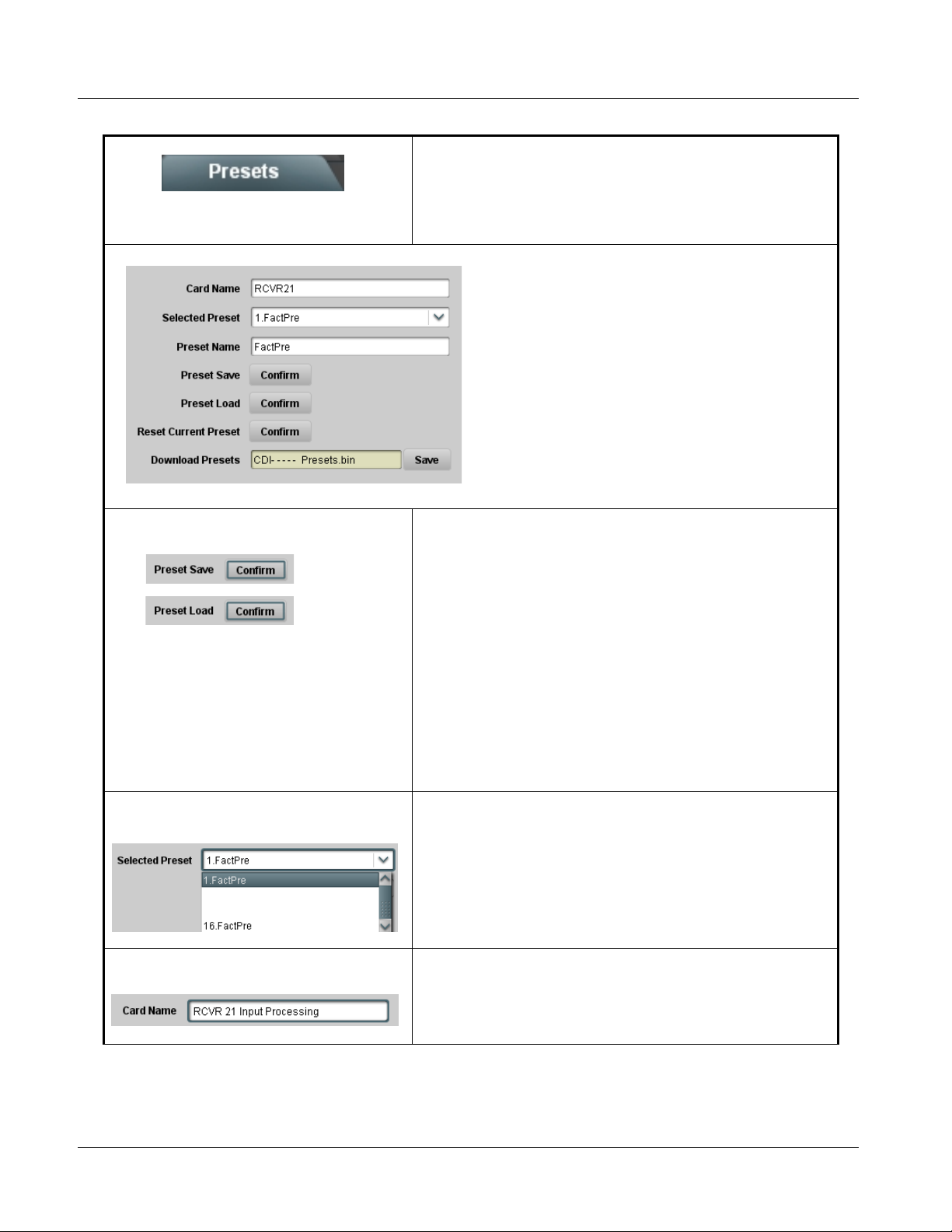

Presets ...................................................................................................... 3-46

Troubleshooting .................................................................................................... 3-48

Error and Failure Indicator Overview....................................................... 3-48

Basic Troubleshooting Checks.................................................................. 3-52

9034 Processing Error Troubleshooting.................................................... 3-53

Troubleshooting Network/Remote Control Errors.................................... 3-56

In Case of Problems .................................................................................. 3-56

ii 9034 PRODUCT MANUAL 9034-OM (V4.1)

Overview

Chapter 1

Chapter 1 Introduction

This manual provides installati on and o per at ing instr uct ions for the 9034 Input Processing Analog to Digital Video Converter with Audio Embedding and Frame Sync and Dolb y to herein as the 9034).

Decoding Option card (al so r efe rr ed

Note: This manual also covers the 9034-DEC, which is the 9034 card equipped with

Dolby sively to either the 9034 or the 9034-DEC are respectively denoted by (9034 only) or (9034-DEC only). In all other aspects, both the 9034 and 9034-DEC function identically as described in this manual.

decoding as an option. Where applicable, descriptions related exclu-

This manual consists of the following chapters:

• Chapter 1, “Introduction” – Provid es informa tion about this manual

and what is covered. Als o pr ovi des general information re gar di ng the

9034.

• Chapter 2, “Installation and Setup” – Provides instructions for

installing the 9034 i n a fr ame, and option ally i nsta lling 9034 Rear I/O Modules.

• Chapter 3, “Operating Instructions” – Provides overviews of

operating controls and instructions for using the 9034.

This chapter contains the following information:

• 9034 Card Software Versions and this Manual (p. 1-2)

• Manual Conventions (p. 1-3)

• Safety Summary (p. 1-4)

• 9034 Functional Description (p. 1-5)

• Technical Spe cification s (p. 1-20)

• Warranty and Service Information (p. 1-24)

• Contact Cobalt Digital Inc. ( p. 1-25)

9034-OM (V4.1) 9034 PRODUCT MANUAL 1-1

1 9034 Card Software Versions and this Manual

9034 Card Software Versions and this Manual

When applicable, Cobalt Digital Inc. provides for continual product enhancements through software updates. As such, functions described in this manual may pertain specifically to cards loaded with a particular software build.

The Software Version of your card can be ch eck ed by vi ewi ng the Card Inf o menu in DashBoard™. See Checking 9034 Card Information (p. 3-7) in Chapter 3, “Operating Instructio ns” for more infor mation. You can then check our website for the lates t software version currently released for the card as described below.

Check our website and proceed as follows if your card’s software does not match the latest versi on:

Card Software earlier than latest version

Card Software newer than version in manual

Card is not loaded with the latest software. Not all functions and/or specified performance described in this manual may be available.

You can update your card with new Update software by going to the Support>Firmware Downloads link at www.cobaltdigital.com. Download “Firmware Update Guide”, which provides simple instructions for downloading the latest firmware for your card onto your computer, and then uploading it to your card through DashBoard™.

Software updates are field-installed without any need to remove the card from its frame.

A new manual is expediently released whenever a card’s software is updated and specifications and/or functionality have changed as compared to an earlier version (a new manual is not necessarily released if specifications and/or functionality have not changed). A manual earlier than a card’s software version may not completely or accurately describe all functions available for your card.

If your card shows features not described in this manual, you can check for the latest manual (if applicable) and download it by going to the

Support>Documents>Product Information and Manuals link at www.cobaltdigital.com.

Cobalt Reference Guides

From the Cobalt® web home page, go to Support>Documents>Reference

Guides

updates, and other topics.

1-2 9034 PRODUCT MANUAL 9034-OM (V4.1)

for easy to use guide s covering network remot e control , card fir mware

Introduction Manual Conventions

Manual Conventions

In this manual, display messages and connectors are shown using the exact name shown on the 9034 itself. Examples are provided below.

• Card-edge display messages are shown like this:

Ch01

• Connector names are shown like this: SDI OUT

In this manual, the terms below are applicable as follows:

Warnings, Cautions, and Notes

Certain items in this manual are highlighted by special messages. The definitions are provided bel ow.

Warnings

• 9034 refers to the 9034 Input Processing Analog to Digital Video

Converter with Audio Embedding and Frame Sync and Dolby

Decoding Option card.

• Frame refers to the HPF-9000, OG3-FR, 8321, or similar 20-slot

frame that houses the Cobalt

• Device and/or Card refers to a COMPASS

• System and/or Video System refers to the mix of interconnected

or other cards..

card.

production and terminal equipment in which the 9034 and other COMPASS

• Functions and/or features that are available only as an option are

cards operate.

denoted in th is manual like this:

Warning messages indicate a possible hazard which, if not avoided, could result in pe rsonal injury or death.

Cautions

Caution messages indicate a problem or incorrect practice which, if not avoided, could result in improper operation or damage to the product.

Notes

Notes provide supplemental information to the accompanying text. Notes typically precede the text to which they apply.

9034-OM (V4.1) 9034 PRODUCT MANUAL 1-3

1 Safety Summary

Labeling Symbol Definitions

Attention, consult accompanying documents.

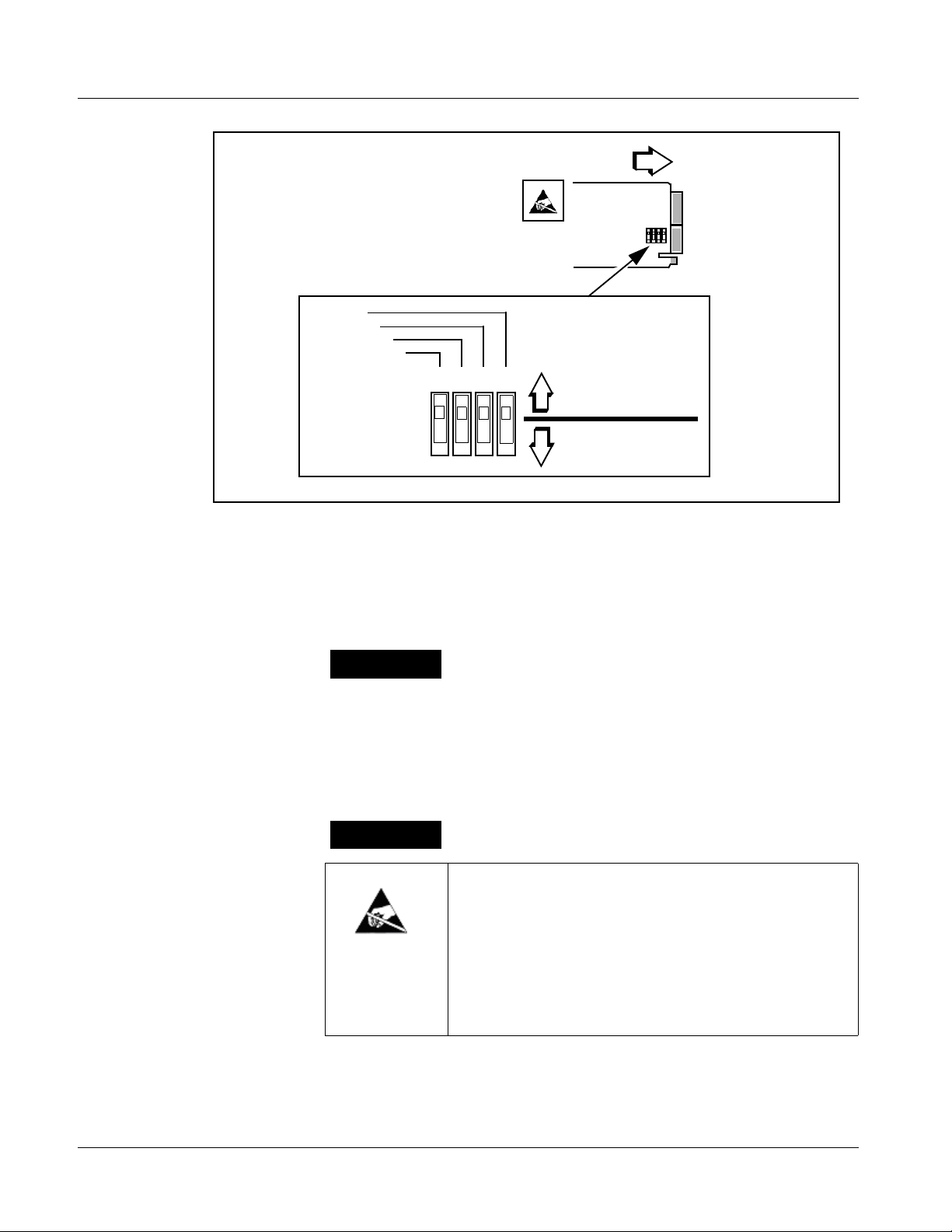

Electronic device or assembly is susceptible to damage from an ESD event. Han dle only using appropriate ESD prevention practices.

If ESD wrist strap is not available, handle card only by edges and avoid contact with any connectors or components.

Symbol (WEEE 2002/96/EC) For product disposal, ensure the following:

• Do not dispose of this product as unsorted municipal waste.

• Collect this product separately.

• Use collection and return systems available to you.

Safety Summary

Warnings

! WARNING !

Cautions

CAUTION

T o redu ce risk of electr ic shock do not remove line voltage service barrier cover on frame equipment containing an AC power supply. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This device is intended for environmentally controlled use only in appropriate video terminal equipment operating environments.

This product is intended to be a component product of an openGear® frame. Refer to the openGear frame Owner's Manual for important safety instructions regarding the proper installation and safe operation of the frame as well as its component products.

Heat and power distribution requirements within a frame may dictate specific slot placement of cards. Cards with many heat-producing components should be arranged to avoid areas of excess heat build-up, particularly in frames using only convection cooling. The 9034 has a moderate power dissipation (13 W). As such, avoiding placing the card adjacent to other cards with similar dissipation values if possible.

CAUTION

1-4 9034 PRODUCT MANUAL 9034-OM (V4.1)

If required, make certain Rear I/O Module(s) is installed before installing the 9034 into the frame slot. Damage to card and/or Rear I/O Module can occur if module installation is attempted with card already installed in slot.

If card resists fully engaging in r ear I/O module mating connector, check for alignment and proper insertion in slot tracks. Damage to card and/or rear I/O module may occur if improper card insertion is attempted.

Introduction 9034 Functional Description

9034 Functional Description

Figure 1-1 shows a functional block diagram of the 9034. The 9034 frame synchronizer includes a full 16-channel audio embedder that receives either 8-pair AES or 8-channel bala nced analog audio inputs . The 9034 also ha ndles AFD code insertion and transfer of Dolby

(9034-DEC only) The 9034-DEC also performs Dolby Digital™ decoding and decoded channel routing.

(9034-SD only) The 9034-SD is functionally equivalent to the 9034, except that it is limit ed to SD an alog video input, proces sing, and assoc iated contr ols.

metadata.

E and Dolby®

Note: Some of the functions described below are available only when using the

9034 Input/Output Formats

DashBoard™, or Cobalt user interfaces. Refer to User Control Interface (p. 1-16) for user interface descriptions.

OGCP-9000 or OGCP-9000/CC Control Panels

The 9034 provides the following inputs and outputs:

• Inputs:

• Y/Cmpst IN, Pr/C IN, Pb IN – analog composite/component video

inputs

• AES I/O (1-4) – user-switchable as AES inputs or AES outputs

• AES IN (5-8) – dedicated AES inputs

• AN-AUD IN (1-8) – balanced analog audio inputs

• Outputs:

• SDI OUT – two dual-rate HD/SD-SDI buffered video outputs

• AES OUT (1-8) – dedicated AES outputs

• AES I/O (1-4) – user-switchable as AES inputs or AES outputs

• DOLBY META – RS-485 Dolby

input video). (9034-DEC only) RS-485 Dolby can consist of input video or Dolby

metadata output (extracted from

decoder metadata output.

metadata output

Note: The input/output complement listed above represents the maximum capability

of the 9034. The practical input/output complement is determined by the particular Rear I/O Module used with the 9034. Refer to 9034 Rear I/O Modules (p. 1-18) for more information.

9034-OM (V4.1) 9034 PRODUCT MANUAL 1-5

1 9034 Functional Description

SDI OUT

AES OUT

(5-8)

decode

function applicable

only for 9034-DEC.

upmixer licensable

shown depicts full input/

output capability.

Practical input/output

signal availability is

determined by Rear I/O

Module used.

2. Dolby

feature.

3. Optional 2.0-to-5.1

(1-4)

Insertion

AFD Code

Sync

Frame

Video

Processing

DOLBY

Technical Specifications

Table 1-2 lists the technical specifications for the 9034 Input Processing Analog to Digital Video Converter with Audio Embedding and Frame Sync card.

Table 1-2 Technical Specifications

Item Characteristic Note: HD specifications apply only to 9034; 9034-SD only accepts and outputs SD signals.

Part number, nomenclature • 9034 – Input Processing Analog to Digital Video Converter with

Audio Embedding and Frame Sync

• 9034-DEC – Input Processing Analog to Digital Video Converter with Audio Embedding and Frame Sync and Dolby Option

• 9034-SD is functionally equivalent, but processes only SD anlaog video with a resulting SMPTE 259M SDI output

Decoding

Installation/usage environment Intended for installation and usage in frame meeting openGear

modular system definition. Power consumption < 13 Watts (not including Dolby decoder) Environmental:

Operating temperature:

Relative humidity (operating or storage): Frame communication 10/100 Mbps Ethernet with Auto-MDIX. Indicators Card edge display and indicators as follows:

Controls Card edge switches as follows:

Internal Tone Generators Four built-in tone generators, each configurable for 18 discrete

32° – 104° F (0° – 40° C) < 95%, non-condensing

• 4-character alphanumeric display

• Status/Error LED indicator

• Input Format LED indicator

• Menu Enter pushbutton switch

• Menu Exit pushbutton switch

• Up/down selection toggle switch

sine wave frequencies ranging from 50 Hz to 16 kHz.

Generator source signal level is equivalent to -20 dBu.

Analog Video Input Input Complement:

Separate component Y/composite, Pr/C, and Pb inputs

Input Type:

Differential; Common Mode Rejection = 5 VAC

1-20 9034 PRODUCT MANUAL 9034-OM (V4.1)

Introduction Technical Specifications

Table 1-2 Technical Specifica tions — continued

Item Characteristic

Analog Video Input (cont.) Video Input Types:

HD: Component YPbPr and RGB SMPTE SD: Composite, Component YPbPr (BetaCam™, MII™,

SMPTE/N10), RGB, and Y/C

Conversion Bit Depth:

12 bits

SD Color Separation:

5-Line Adaptive Comb or Notch Filter

Frequency Response (HD):

Y: 0 – 25 MHz ± 0.3 dB Pb/B: 0 – 13.5 MHz ± 0.3 dB Pr/R: 0 – 13.5 MHz ± 0.3 dB

Frequency Response (SD):

0 – 5.2 MHz ± 0.25dB

Differential Phase (SD):

< ± 0.4° typical

Differential Gain (SD):

< ± 0.4% typical

Analog Front-End Crosstalk:

Within noise floor measurement

Return Loss:

> 20 dB to 30 MHz Resolution 10-bit video data path Video A/D Process HD: 4:4:4

SD: 8:8:8 Resolution: 12-bit A/D and 10-bit video data path SD Comb Filter: 5-line adaptive Post-Processor Serial Digital Video

Outputs

Number of Outputs:

Two HD/SD-SDI BNC per IEC 60169-8 Amendment 2 (9034-SD is SD only)

Impedance:

75 Ω

Return Loss:

> 15 dB at 5 MHz – 270 MHz > 12 dB at 270 MHz – 1.485 GHz

9034-OM (V4.1) 9034 PRODUCT MANUAL 1-21

1 Technical Specifications

Table 1-2 Technical Specifications — continued

Item Characteristic

Post-Processor Serial Digital Video Outputs (cont.)

AES Audio Input Standard:

Signal Level:

800 mV ± 10%

DC Offset:

0 V ± 50 mV

Jitter (HD):

< 0.15 UI (all outputs)

Jitter (SD):

< 0.10 UI (all outputs)

Overshoot:

< 0.2% of amplitude

SMPTE 276M

Number of Inputs (maximum):

8 unbalanced

Input Level:

0.1 to 2.5 Vp-p (5 Vp-p tolerant)

Input Impedance:

75 Ω

Return Loss:

> 12 dB at 100 kHz to 6 MHz

Resolution:

24-bit only

Sample Rate:

48 kHz

SRC:

32-channel; 142 dB S/N

Analog Audio Input Number of Inputs (maximum):

Eight, 3-wire balanced analog audio using Phoenix connectors with removable screw terminal blocks (Phoenix PN 1803581; Cobalt PN 5000-0013-000R)

Sampling Rate:

48 kHz (locked to video input)

Signal Level: +24 dBu => 0 dBFS

A/D Frequency Response:

20 – 20 kHz ± 0.25 dB

1-22 9034 PRODUCT MANUAL 9034-OM (V4.1)

Introduction Technical Specifications

Table 1-2 Technical Specifica tions — continued

Item Characteristic

AES Audio Output Standard:

SMPTE 276M

Number of Outputs (maximum):

8 unbalanced

Output Impedance:

75 Ω

Return Loss:

> 30 dB 100 kHz to 6 MHz

Sample Rate:

48 kHz

RS-485 Metadata I/O Metadata extracted from input video (per SMPTE 2020-1-2008) or

Reference Video Input Number of Inputs:

Dolby

balanced via Phoenix terminal block connector. With option +LTC,

also provides RS-485 LTC input or output.

Standards Supported (HD):

Standards Supported (SD):

Signal Level:

Signal Type:

Impedance:

Return Loss:

Allowable Maximum DC on Ref Input:

decoder (where equipped) on RS-485 interface; 3-wire

Two non-terminating (looping) Frame Reference inputs

720p 24; 25; 29.97; 30; 50; 59.94 1080i 25; 29.97 1080p 23.98; 24; 25; 29.97; 30 1080p/sF 23.98; 24

486i 29.97 (NTSC); 575i 25 (PAL)

1 Vp-p nominal

Analog video sync (black burst or tri-level)

75 Ω

> 30 dB to 30 MHz

±1.0 V

9034-OM (V4.1) 9034 PRODUCT MANUAL 1-23

1 Warranty and Service Information

Warranty and Service Information

Cobalt Digital Inc. Limited Warranty

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of shipment to the original purchaser, except that 4000, 5000, 6000, 8000 series power supplies, and Dolby material and workmanship for a period of one (1) year.

Cobalt Digital Inc. 's (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i) the repair or (ii) replacement of the product, and the determinati on of whether a defect is covered under this limited warranty shall be made at the sole discretion of Cobalt.

This limited warranty applies onl y to the original end-purchaser of the pr oduct, and is not assigna ble or transferrable therefrom. This warranty is limited to defects i n material a nd workman shi p, and shal l not apply to acts of God, accidents, or negligence on behalf of the purchaser, and shall be voided upon the misuse, abuse, alteration, or modification of the product. Only Cobalt authorized factory representatives are authorized to make repairs to the product, and any unauthorized attempt to repair this product shall immediately void the warranty. Please contact Cobalt Technical Support for more information.

modules (where applicable) are warranted to be free from defects in

To facilitate the resolution of warranty related issues , Cobalt recommends registering the product by completing and returning a product registration form. In the event of a warrantable defect, the purchaser shall notify Cobalt with a description of the problem, and Cobalt shall provide the purchaser with a Return Material Authorization (“RMA”). For return, defective product s should be double boxed, and sufficiently protected, in the original packaging, or equivalent, and shipped to the Cobalt Factory Service Center, postage prepaid and insured for the purchase price. The purchaser should include the RMA number, description of the problem encountered, date purchased, name of dealer purchased from, and serial number with the shipment.

Cobalt Digital Inc. Factory Service Center

2406 E. University Avenue Office: (217) 344-1243 Urbana, IL 61802 USA Fax: (217) 344-1245 www.cobaltdigital.com Email: info@cobaltdigital.com

THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON COBALT'S PART. ANY SOFTWARE PROVIDED WITH, OR FOR USE WITH, THE PRODUCT IS PROVIDED “AS IS.” THE BUYER OF THE PRODUCT ACK NOWLEDGES THAT N O OTHER REPRESENTATIONS WERE MADE OR RELIED UPON WITH RESPECT TO THE QUALITY AND FUNCTION OF THE GOODS HEREIN SOLD. COBALT PRODUCTS ARE NOT AUTHORIZED FOR USE IN LIFE SUP PORT APPLICATIONS.

COBALT'S LIABILITY, WHETHER IN CONTRACT, TORT, WARRANTY, OR OTHERWISE, IS LIMITED TO THE REPAIR OR REPLACEMENT, AT ITS OPTION, OF ANY DEFECTIVE PRODUCT, AND SHALL IN NO EVENT INCLUDE SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCL UDING LOST PROFITS), EVEN IF IT HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

1-24 9034 PRODUCT MANUAL 9034-OM (V4.1)

Introduction Contact Cobalt Digital Inc.

Contact Cobalt Digital Inc.

Feel free to contact ou r th oro ugh and professional support representatives for any of the following:

• Name and address of your local dealer

• Product information and pricing

• Technical support

• Upcoming trade show i nformation

Phone: (217) 344-1243 Fax: (217) 344-1245 Web: www.cobaltdigital.com General Information: info@cobaltdigital.com Technical Support: support@cobaltdigital.com

9034-OM (V4.1) 9034 PRODUCT MANUAL 1-25

This page intentionally blank

1-26 9034 PRODUCT MANUAL 9034-OM (V4.1)

Overview

Chapter 2

Chapter 2 Installation and Setup

This chapter contains the following information:

• Setting I/O Switches for AES I/O (1-4) Ports (p. 2-1)

• Installing the 9034 Into a Frame Slot (p. 2-2)

• Installing a Rear I/O Module (p. 2-5)

• Setting Up 9034 Network Remote Control (p. 2-9)

Setting I/O Switches for AES I/O (1-4) Ports

Note: This procedure is applicable only if any of the four AES I/O (1-4) ports on the

9034 are to be used as outputs (the switches are set to input mode by factory default). The 9034 is equipped with a four-section red DIP switch that sets AES pairs 1 thru 4 as either inputs or outputs. The factory default position is the input position for each pair.

• If all of the AES I/O (1-4) ports are to be used as inputs (or not used at all), omit this procedure.

• If any of the AES I/O (1-4) ports are to be used as outputs, set the switches as described in this procedure.

Note switch S11 thru S14 settings for AES I/O 1 thru AES I/O 4 mode shown in Figure 2-1. For p ort to be used as an output, set switch to down position as shown in Figure 2-1.

Note: Regardless of S11 thru S14 settings for AES I/O 1 thru AES I/O 4, outputs

AES OUT (1-8) are still available on cards equipped with a Rear I/O Module

having dedicated AE S OUT (1-8) BNC connectors.

9034-OM (V4.1) 9034 PRODUCT MANUAL 2-1

2 Installing the 9034 Into a Frame Slot

Rear of Card

AES I/O 4

AES I/O 3

AES I/O 2

AES I/O 1

S11S12S13S14

••••

Figure 2-1 9034 AES I/O (1-4) Mode Switches

Installing the 9034 Into a Frame Slot

CAUTION

INPUT MODE (Factory Default)

OUTPUT MODE

CAUTION

This device contains semiconductor devices which are susceptible to serious damage from Electrostatic Discharge (ESD). ESD damage may not be immediately apparent and can affect the long-term reliability of the device.

Avoid handling circuit boards in high static environments such as carpeted areas, and when wearing synthetic fiber clothing. Always use proper ESD handling precautions and equipment when working on circuit boards and related equipment.

2-2 9034 PRODUCT MANUAL 9034-OM (V4.1)

Installation and Setup Installing the 9034 Into a Frame Slot

Note: • If installing the 9034 in an 8310-C-BNC or 8310-BNC frame (which is

pre-equipped with a 100-BNC rear I/O module installed across the entire backplane) or a slot already equipped with a suitable I/O module, proceed to card installation steps below.

• If installing the 9034 in a slot with no rear I/O module, a Rear I/O Module is required before cabling can be connected. Refer to Installing a

Rear I/O Module (p. 2-5) for rear I/O module installation procedure.

CAUTION

Note: Check the packaging in which the 9034 was shipped for any extra items such

as a Rear I/O Module connection label. In some cases, this label is shipped with the card and to be installed on the Rear I/O connector bank corresponding to the slot location of the card.

Install the 9034 into a frame slot as follows:

1. Determine the slot in which the 9034 is to be installed.

2. Open the frame front access panel.

3. While holding the card by the card edges, align the card such that the

plastic ejector tab is on the bottom.

4. Align the card with the top and bottom guides of the slot in which the

card is being installed.

5. Gradually slide the card into the slot. When resistance is noticed, gently

continue pushing the card until its rear printed circuit edge terminals engage fully into the rear I/O module mating connector.

CAUTION

If card resists fully engaging in rear I/O module mating connector, check for alignment and proper insertion in slot tracks. Damage to card and/or rear I/O module may occur if improper card insertion is attempted.

Verify that the card is fully engaged in rear I/O module mating connector.

7. Close the frame front access panel.

8. Connect the input and output cables as follows:

• If the 9034 is being installed in a PN 8310-BNC or 8310-C-BNC

frame, refer to the label on the connector bank corresponding to the card’s slot location for connector designations.

• If the 9034 is being installed in a frame using a specific 9034 Rear

I/O Module, connect cabling in accordance with the appropriate diagram shown in Table 2-1, “9034 Rear I/O Modules” (p. 2-6).

9034-OM (V4.1) 9034 PRODUCT MANUAL 2-3

2 Installing the 9034 Into a Frame Slot

9. Repeat steps 1 through 8 for other 9034 cards.

Note: The 9034 BNC inputs are internally 75-ohm terminated. It is not necessary to

terminate unused BNC inputs or outputs.

Note: External frame sync reference signals are received by the card over a refer-

ence bus on the card frame, and not on any card rear I/O module connectors. The frame has BNC connectors labeled REF 1 and REF 2 which receive the reference signal from an external source such as a house distribution.

Note: To remove a card, press down on the ejector tab to unseat the card from the

rear I/O module mating connector. Evenly draw the card from its slot.

10. If network rem ote control is to be used for the fram e and the frame has

not yet been set up for remote control, perform setup in accordance with Cobalt

(PN 9000RCS-RM).

Note: If installing a card in a frame already equipped for, and connected to

DashBoard™, no network setup is required for the card. The card will be discovered by DashBo ard™ and be ready for use.

reference guide “COMPASS™ Remote Control User Guide”

2-4 9034 PRODUCT MANUAL 9034-OM (V4.1)

Installation and Setup Installing a Rear I/O Module

Installing a Rear I/O Module

Note: This procedure is applicable only if a Rear I/O Module is not currently

installed in the slot where the 9034 is to be installed.

If installing the 9034 in a 8310-C-BNC or 8310-BNC frame (which is pre-equipped with a 100-BNC rear I/O module installed across the entire backplane) or a slot already equipped with a suitable I/O module, omit this procedure.

The full assortment of 9034 Rear I/O Modules is shown and described in 9034 Rear I/O Modules (p. 2-6). Install a Rear I/O Module as follows:

1. On the frame, determine the slot in which the 9034 is to be installed.

2. In the mounting area corresponding to the slot location, install

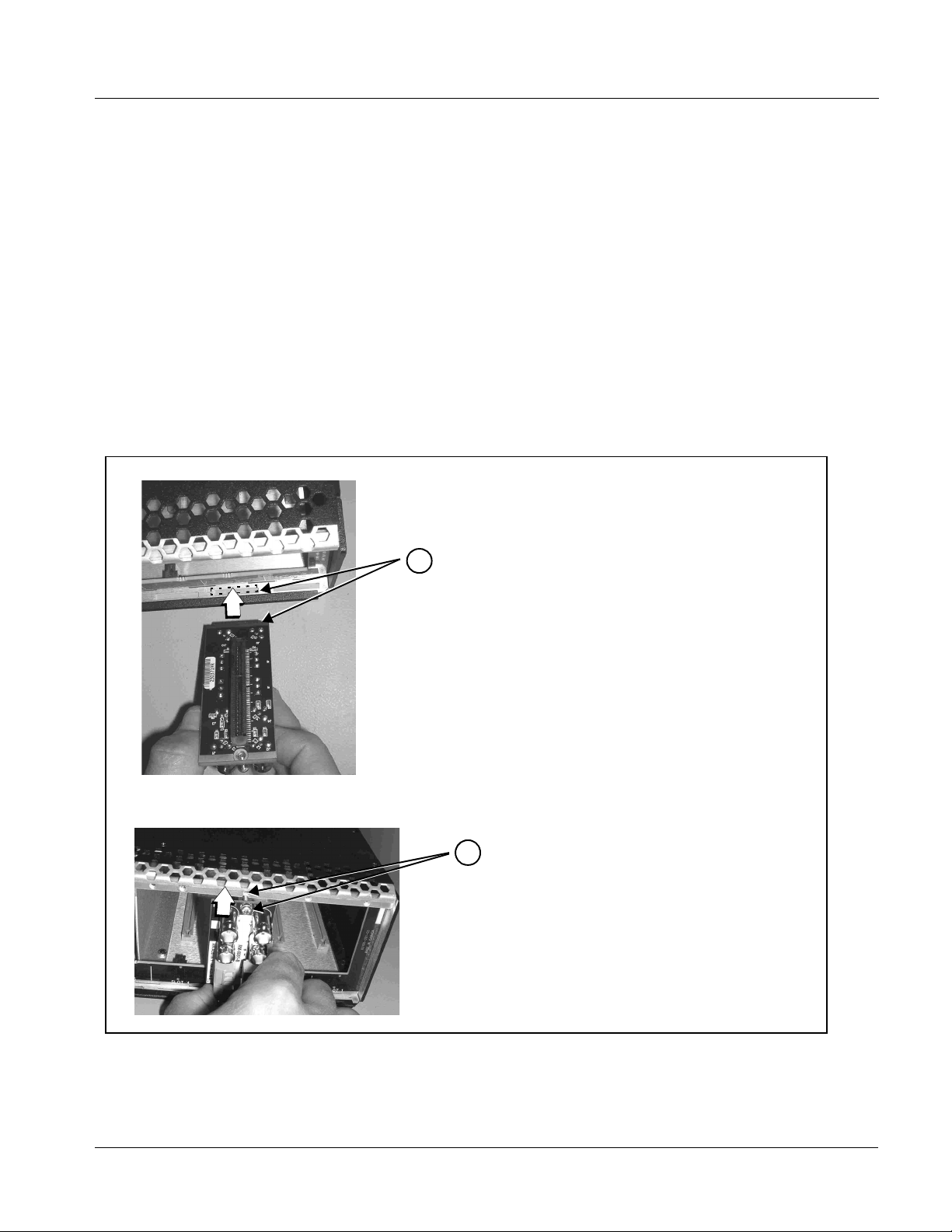

Rear I/O Module as shown in Figure 2-2.


Align and engage mounting tab on Rear I/O Module with the module seating slot

on rear of frame chassis.

Hold top of Rear I/O Module flush against frame chassis and start the captive screw.

Lightly tighten captive screw.

Note: Rear I/O Modules RM-9034-C, -D, -E, and -H occupy two

rear module slot mounting locations and use two captive screws. Rear I/O Module RM-9034-G occupies three rear module slot mounting locations and uses three captive screws.


Figure 2-2 Rear I/O Module Installation

9034-OM (V4.1) 9034 PRODUCT MANUAL 2-5

2 Installing a Rear I/O Module

9034 Rear I/O Modules

Table 2-1 shows and describes the full assortment of Rear I/O Modules specifically for use with the 9034.

Notes: • Rear I/O Modules equipped with 3-wire Phoenix connectors are supplied

with removable screw terminal block adapters. For clarity, the adapters are omitted in the drawings below.

• Rear I/O Modules with DOLBY META port provide RS-485 port usable for Dolby metadata decoder output (where equipped with option +DEC) or serial LTC I/O (where licensed for option +LTC).

• RM20-x Rear I/O Modules compatible only with 20-slot frames.

Table 2-1 9034 Rear I/O Modules

9034 Rear I/O Module Description RM20-9034-A Provides the following conne cti on s:

• Analog Y/composite, Pr/C, and Pb coaxial inputs (Y/Cmpst, Pr/C, and Pb, respectively)

• Four AES I/O coaxial input/outputs (AES I/O 1 thru AES I/O 4; I/O function of each connection is

user-configurable)

• Two buffered SDI coaxial outputs (SDI OUT 1 and SDI OUT 2)

RM20-9034-B Provides the following conne cti on s:

• Analog Y/composite, Pr/C, and Pb coaxial inputs (Y/Cmpst, Pr/C, and Pb, respectively)

• Four analog balanced audio inputs (AN-AUD IN 1 thru AN-AUD IN 4)

• Two buffered SDI coaxial outputs (SDI OUT)

2-6 9034 PRODUCT MANUAL 9034-OM (V4.1)

Installation and Setup Installing a Rear I/O Module

Table 2-1 9034 Rear I/O Modules — continued

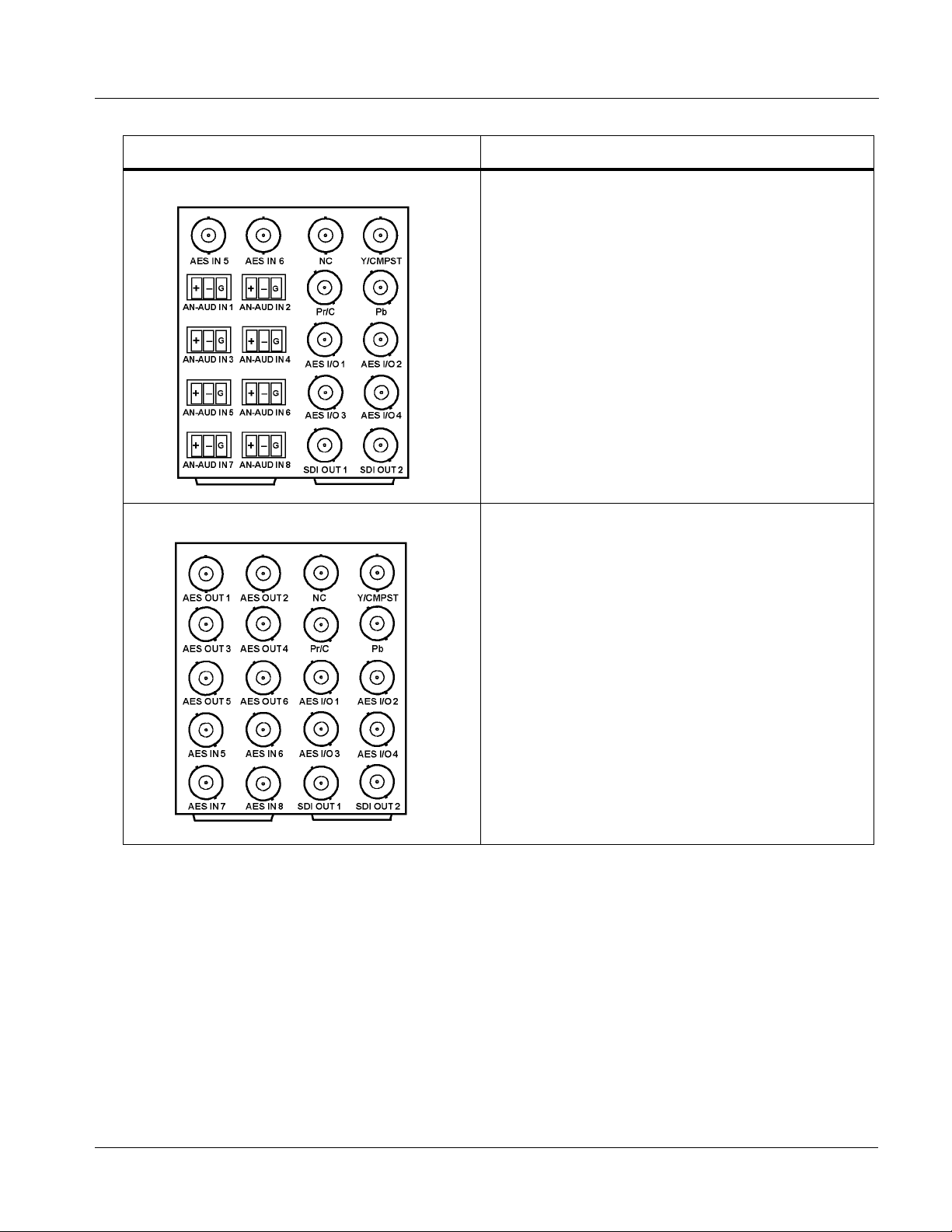

9034 Rear I/O Module Description RM20-9034-C Provides the following connections:

• Ana lo g Y/co mpo si te, Pr /C, and Pb co axi al inputs (Y/Cmpst, Pr/C, and Pb, respectively)

• Four AES I/O coaxial input/outputs (AES I/O 1 thru AES I/O 4; I/O function of each connection is

user-configurable)

• Two dedicated AES coaxial audio inputs (AES IN 5 and AES IN 6)

• Eight analog balanced audio inputs (AN-AUD IN 1 thru AN-AUD IN 8)

• Two buffered SDI coaxial outputs (SDI OUT)

RM20-9034-D Provides the following connections:

• Ana lo g Y/co mpo si te, Pr /C, and Pb co axi al inputs (Y/Cmpst, Pr/C, and Pb, respectively)

• Four AES I/O coaxial input/outputs (AES I/O 1 thru AES I/O 4; I/O function of each connection is

user-configurable)

• Four dedicated AES coaxial audio inputs (AES IN 5 thru AES IN 8)

• Six dedicated AES coaxial audio outputs (AES OUT 1 thru AES OUT 6)

• Two buffered SDI coaxial outputs (SDI OUT)

Note: AES OUT 1 thru AES OUT 4 on

RM20-9034-D Rear I/O Module always function as outputs regardless of whether AES I/O 1 thru AES I/O 4 are used as inputs or outputs.

9034-OM (V4.1) 9034 PRODUCT MANUAL 2-7

2 Installing a Rear I/O Module

Table 2-1 9034 Rear I/O Modules — continued

9034 Rear I/O Module Description RM20-9034-F Provides the following conne cti on s:

• Analog Y/composite, Pr/C, and Pb coaxial inputs (Y/Cmpst, Pr/C, and Pb, respectively)

• Eight analog balanced audio inputs (AN-AUD IN 1 thru AN-AUD IN 8)

• Four AES I/O coaxial input/outputs (AES I/O 1 thru AES I/O 4; I/O function of each connection is

user-configurable)

• Two buffered SDI coaxial outputs (SDI OUT)

• Dolby

Note: On card with +LTC option, this connector

RS-485 metadata output (RS-485)

provides RS-485 LTC I/O as well as Dolby metadata output (selectable using card control).

RM20-9034-E-DIN-HDBNC High-density rear modules provides the following

connections:

• Analog Y/composite, Pr/C, and Pb coaxial inputs (Y/Cmpst, Pr/C, and Pb, respectively)

• Four dedicated AES coaxial audio inputs (AES IN 5 thru AES IN 8)

• Four AES I/O coaxial input/outputs (AES I/O 1 thru AES I/O 4; I/O function of each connection is

user-configurable)

• Six dedicated AES coaxial audio outputs (AES OUT 1 thru AES OUT 6)

• Two buffered SDI coaxial outputs (SDI OUT)

Note: Avail a ble equipped with High-Density BNC

(HDBNC) or DIN1.0/2.3 connectors as: RM20-9034-E-HDBNC or RM20-9034-E-DIN, respectively.

2-8 9034 PRODUCT MANUAL 9034-OM (V4.1)

Installation and Setup Setting Up 9034 Network Remote Control

Setting Up 9034 Network Remote Control

Perform remote control setup in accordance with Cobalt® reference guide “Remote Control User Guide” (PN 9000RCS-RM).

Note: • If network rem ote control is to be used for the frame and the frame has not

yet been set up for remote control, Cobalt Control User Guide (PN 9000RCS-RM) provides thorough information and step-by-step instructions for setting up network remote control of COMPASS™ cards u sing Das hB oard ™. (Cobalt OGCP-9000/CC Remote Control Panel product manuals have complete instructions for setting up remote control using a Remote Control Panel.)

Download a copy of this guide by clicking on the Support> Documents>Reference Guides link at www.cobaltdigital.com and then select DashBoard Remote Control Setup Guide as a download, or contact

Cobalt

• If installing a card in a frame already equipped for, and connected to DashBoard™, no network setup is required for the card. The card will be discovered by DashBoard™ and be ready for use.

as listed in Contact Cobalt Digital Inc. (p. 1-25).

reference guide Remote

OGCP-9000 and

9034-OM (V4.1) 9034 PRODUCT MANUAL 2-9

This page intentionally blank

2-10 9034 PRODUCT MANUAL 9034-OM (V4.1)

Overview

Chapter 3

Chapter 3 Operating Instructions

This chapter contains the following information:

If you are already familiar

with using DashBoard or a

Cobalt Remote Control Panel to control Cobalt

cards, please skip to 9034

Function Submenu Li st and

Descriptions (p. 3-9).

• Control and Display Descriptions (p. 3-1)

• Accessing the 9034 Card via Remote Control (p. 3-5)

• Checking 9034 Card Information (p. 3-7)

• Ancillary Data Line Number Locations and Ranges (p. 3-8)

• 9034 Function Submenu List and Descriptions (p. 3-9)

• Troubleshooting (p. 3-48)

Control and Display Descriptions

This secti on describes the user interface controls, indicators, and displays for using the 9034 card. The 9034 function s can be acces sed and contr olle d using any of the user interfaces described here.

The format in which the 9034 functional controls, indicators, and displays appear and are used varies depending on the user interface being used. Regardless of the user interface being used, access to the 9034 functions (and the controls, ind icato rs, an d disp lays r elat ed to a particul ar f uncti on) fo llows a general arrangement of Function Submenus under which related controls can be accessed (as described in Function Submenu/Parameter Submenu Overview below).

Note: DashBoard™ and the Remote Control Panel provide greatly simplified user

interfaces as compared to using the card edge controls. For this reason, it is strongly recommended that DashBoard™ or a Remote Control Panel be used for all card applications other than the most basic cases. Card edge control codes are not included in this manual. If card-edge control is to be used, obtain a copy of “Manual Supplement – Card-Edge Control Reference Master List and Instructions for Using Compass Codes” (989CEC-MS.pdf) at www.cobaltdigital.com>Support>Documents>Reference Guides.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-1

Card-edge (Local) Control

3 Control and Display Descriptions

Note: When a setting is changed, settings displayed on DashBoard™ (or a Remote

Control Panel) are the settings as effected by the 9034 card itself and reported back to the remote control; the value displayed at any time is the actual value as set on the card.

Function Submenu/Parameter Submenu Overview

The functions and related pa rameters avai lable on the 9034 car d are organ ized into function submenus, which consist of parameter groups as shown below.

Figure 3-1 shows how the 9034 card an d its submenus ar e orga nized, and also provides an overview of how navig ation is performed be tween cards, func tion submenus, and parameters.

If using DashBoard™ or a Remote Control Panel, the desired 9034 card is first selected.

9034

Submenu a Submenu b

Individual Parameters

Each submenu consists of groups of parameters related to the function submenu. Using the “Video Proc” function submenu example, the individual parameters for this function consist of various v ideo processor parameters such as Luma Gain, Saturation, and so on.

Figure 3-1 Function Submenu/Parameter Submenu Overvie w

• • •

The desired function submenu is next selected. Function Submenus consist of parameter groups related to a particular 9034 card function (for example, “Video Proc”).

Submenu z

3-2 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions Control and Display Descriptions

DashBoard™ User Interface

(See Figure 3-2.) Th e 9034 fu nction submenus are or gani zed i n DashBoa rd™ using tabs. When a tab is selected, each parametric control or selection list item associated with the function is displayed. Scalar (numeric) parametric values can then be adjusted as desired using the GUI slider controls. Items in a list can then be selected using GUI drop-down lists. (In this manner, the setting effected using controls and selection lists displayed in DashBoard™ are comparable to the su bmenu ite ms access ed and commi tted using the 9034 card edge c ontrols.)

Typical On/Off Control

Typical Parametric Control

Typical Selection List

DashBoard Tabs

Figure 3-2 Typical DashBoard Tabs and Controls

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-3

3 Control and Display Descriptions

Cobalt® Remote Control Panel User Interfaces

(See Figure 3-3.) Similar to the function submenu tabs using DashBoard™, the Remote Control Panels have a Select Submenu key that is used t o dis pla y a list of function submenus. From this list, a control knob on the Control Panel is used to select a function from the list of displayed function submenu items.

When the desired function submenu is selected, each parametric control or selection list item associated with the function is displayed. Scalar (numeric) parametric values can then be adjusted as desired using the control knobs, which acts like a potentiometer. Items in a list can then be selected using the control knobs which correspondingly acts like a rotary switch. (In this manner, t he se ttin g effected using co ntr ols a nd sel ecti on li sts di splay ed on t he Control Panel are comparable to the submenu items accessed and committed using the 9034 card edge controls.)

Figure 3-3 shows accessing a function submenu and its parameters (in this example, “Video Proc”) using the Control Panel as compared to using the card edge controls.

Video Proc function (among others) is accessed using the Control Panel Select Submenu key. Video Proc function is selected from the list of functions (submenu items)

When the Video Proc function submenu is selected, its related parameters are now displayed.

In this example, Color Gain (saturation) is adjusted using the control knob adjacent to

Color Gain

Note: Refer to “OGCP-9000 Remote Control Panel User Manual” (PN

OGCP-9000-OM) or “OGCP-9000/CC Remote Control Panel User Manual” (PN OGCP-9000/CC-OM) for complete instructions on using the Control Panels.



Figure 3-3 Remote Control Panel Setup of Example Video Proc Function Setup

3-4 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions Accessing the 9034 Card via Remote Control

Accessing the 9034 Card via Remote Control

Access the 9034 card using DashBoard™ or Cobalt® Remote Control Panel as described below.

Accessing the 9034 Card Using DashBoard™

1. On the computer connected to the frame LAN, open DashBoard™.

2. As shown be low, in the left side Basic View Tree locate the Network

Controller Card associated with the frame containing the 9034 card to be accessed (in this example, “MFC-8320-N SN: 00108053”).


3. As shown below, expand the tree to access the cards within the frame.

Click on the card to be accessed (in this example, “Slot 6: CDI-9034 RCVR21”).


As shown on the next page, when th e car d is access ed a DashBoa rd™ its function submenu screen showing tabs for each function is displayed. (The particular submenu screen displayed is the previously displayed screen from the last time the card was accessed by DashBoard™).

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-5

3 Accessing the 9034 Card via Remote Control

Card Access/Navigation

Tree Pane

Card Info

Pane

Card Function Submenu

and Controls Pane

Accessing the 9034 Card Using a Cobalt® Remote Control Panel

Press the Select Device key and select a c ard as shown in the example below.


This display shows the list order number of the device that is ready for selection

This display shows the devices assigned to the Control Panel.

• Rotate any knob to select from the list of devices. The device selected using a knob is displayed with a reversed background (in this example,

“1 9034 - Receiver 21 Input Processing”).

• Directly enter a device by entering its list number using the numeric keypad, and

then pressing Enter or pressing in any knob).

9034_ DB_ACCESS3A3.PNG

3-6 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions Checking 9034 Card Information

Checking 9034 Card Information

The operating st atus and s oftwar e ver sion the 9 034 car d can be chec ked us ing DashBoard™ or the card edge control user interface. Figure 3-4 shows and describes the 9034 card i nformati on screen usi ng DashBoard™ a nd acces sing card information using the card edg e control user interfac e.

Note: Proper operating status in DashBoard™ is denoted by green icons for the sta-

tus indicators shown in Figure 3-4. Yellow or red icons respectively indicate an alert or failure condition. Refer to Troubleshooting (p. 3-48) for corrective action.

The Tree View shows the cards seen by DashBoard™. In this example, Network Controller Card MFC-8320-N (serial number ...8053) is hosting a 9034 card in slot 6.

Software Version Number

Refer to this number to check that documentation (such as this manual) matches the card’s Software Version Number. Use this number also when communicating to Cobalt

regarding this card.

Power Consumption and Temperature Displays

This display shows the power consumed by the 9034 for both the +12V and -7.5V rails, as well as key device temperatures.

Status Displays

These displays show the status the signal being received by the 9034. Green Settings icon shows that any changes made on DashBoard™ are sucessfully saved on the card’s memory.

Figure 3-4 9034 Card Info Utility

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-7

3 Ancillary Data Line Number Locations and Ranges

Ancillary Data Line Number Locations and Ranges

Table 3-1 lists typical default output video VANC line number locations for various ancillary data items that may be passed or handled by the card.

Table 3-1 Typical Ancillary Data Line Number Locations/Ranges

Default Line No. / Range

Item

SD HD

AFD 12 (Note 2) 9 (Note 2) ATC_VITC 12 (locked) 9/8 (Note 2) ATC_LTC — 10 (Note 2)

Dolby

Metadata 13 (Note 2) 13 (No te 2) VITC Waveform 14/16 (Note 2) — Closed Captioning 21 (locked) 10 (Note 2) Notes:

1. The card does not check for conflicts on a given line number. Make certain the selected line is available and carrying no other data.

2. While range indicated b y d rop -dow n li st o n G UI m ay al lo w a particular range o f ch oi ces , the actual range is automatically cl amped (limi ted) to c ert ain rang es to preven t inadv ertent con fli ct with a ctive pictu re ar ea depending on video format. Limiting ranges for various output formats are as follows:

Format Line No. Limiting Format Line No. Limiting Format Line No. Limiting

525i 12-19 720p 9-25 1080p 9-41 625i 9-22 1080i 9-20

Because line number allocation is not standardized for all ancillary items, consideration should be given to all items when performing set-ups. Figure 3-5 shows an example of improper and corrected VANC allocation within an HD-SDI stream.

ATC_VITC = 9/8 CC = 10

Dolby Meta data = 13

Card 1

ATC_VITC = 9/ 8 CC = 10 Dolby Metadata = 13

Card 1

AFD Insertion attempted usin g VANC line 9 (default)

AFD Insertion corrected to us e VANC line 18

ATC_VITC = 9/8 AFD = 9

CC = 10 Dolby Meta data = 13

Card n

ATC_VITC = 9/8

CC = 10 Dolby Metadata = 13

AFD = 18

Card n

Conflict between ATC_VITC and AFD both on VANC line 9

Conflict between ATC_VITC on line 9/8 and AFD (now on line 18) resolved

Figure 3-5 Example VANC Line Number Allocation Example

3-8 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

9034 Function Submenu List and Descriptions

T able 3-2 in dividu ally lists and des cribes eac h 9034 function sub menu (‘tab”) and its related list selections, co ntrols, and parameters . Where helpful, examples showing usage of a function are also provided. Table 3-2 is primarily based upon using DashBoard™ to access each function and its corresponding submenus and parameters.

Note: • All numeric (scalar) parameters displayed on DashBoard™ can be changed

using the slider controls, arrows, or by numeric keypad entry in the corresponding numeric field. (When using numeric keypad entry, add a return after the entry to commit the entry.)

• HD controls and setting described in this section are not applicable for 9034-SD card model.

On DashBoard™ itself and in Table 3-2, the function submenu items are organized using tabs as shown below.

The table below provides a quick-reference to the page numbers where each function submenu item can be found.

Function Submenu Item Page Function Submenu Item Page

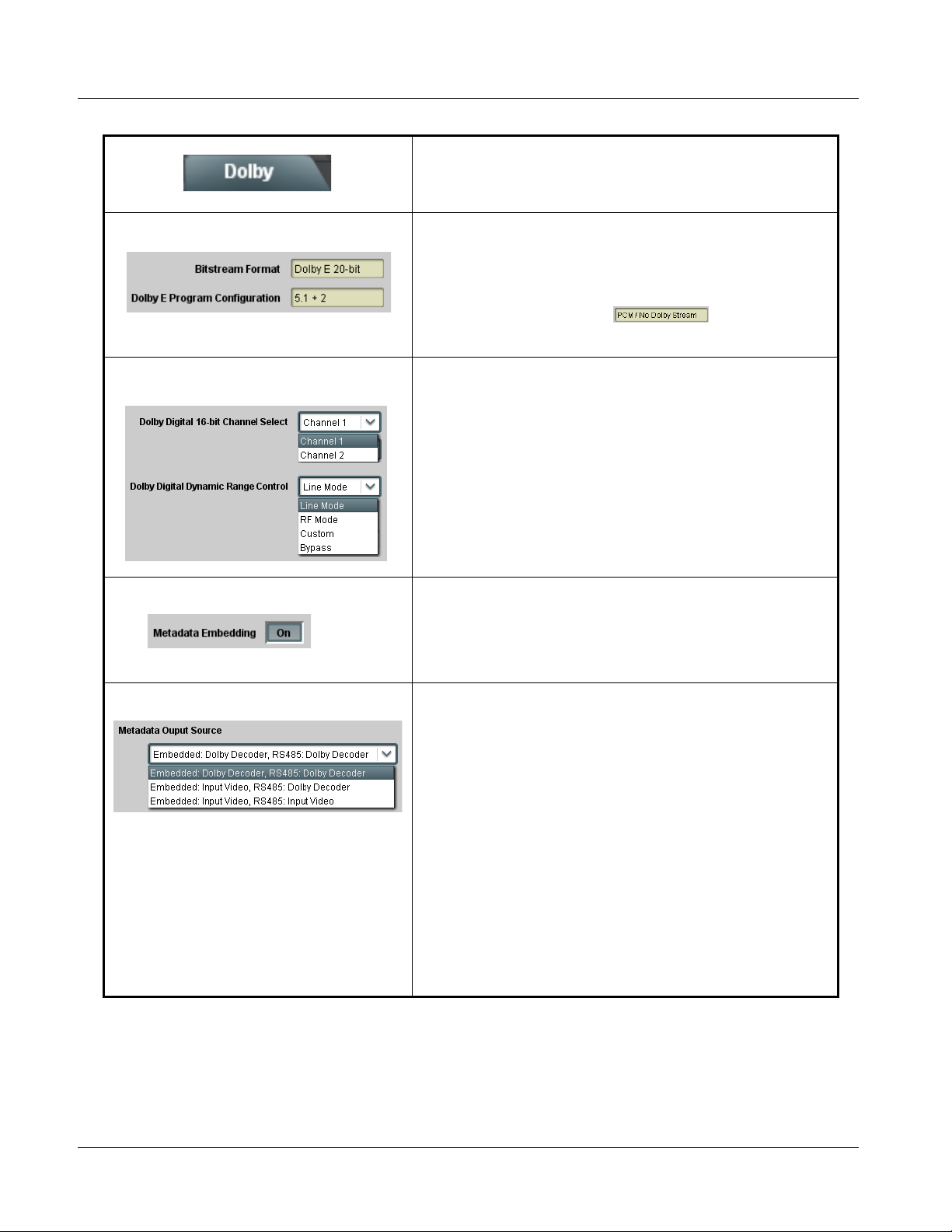

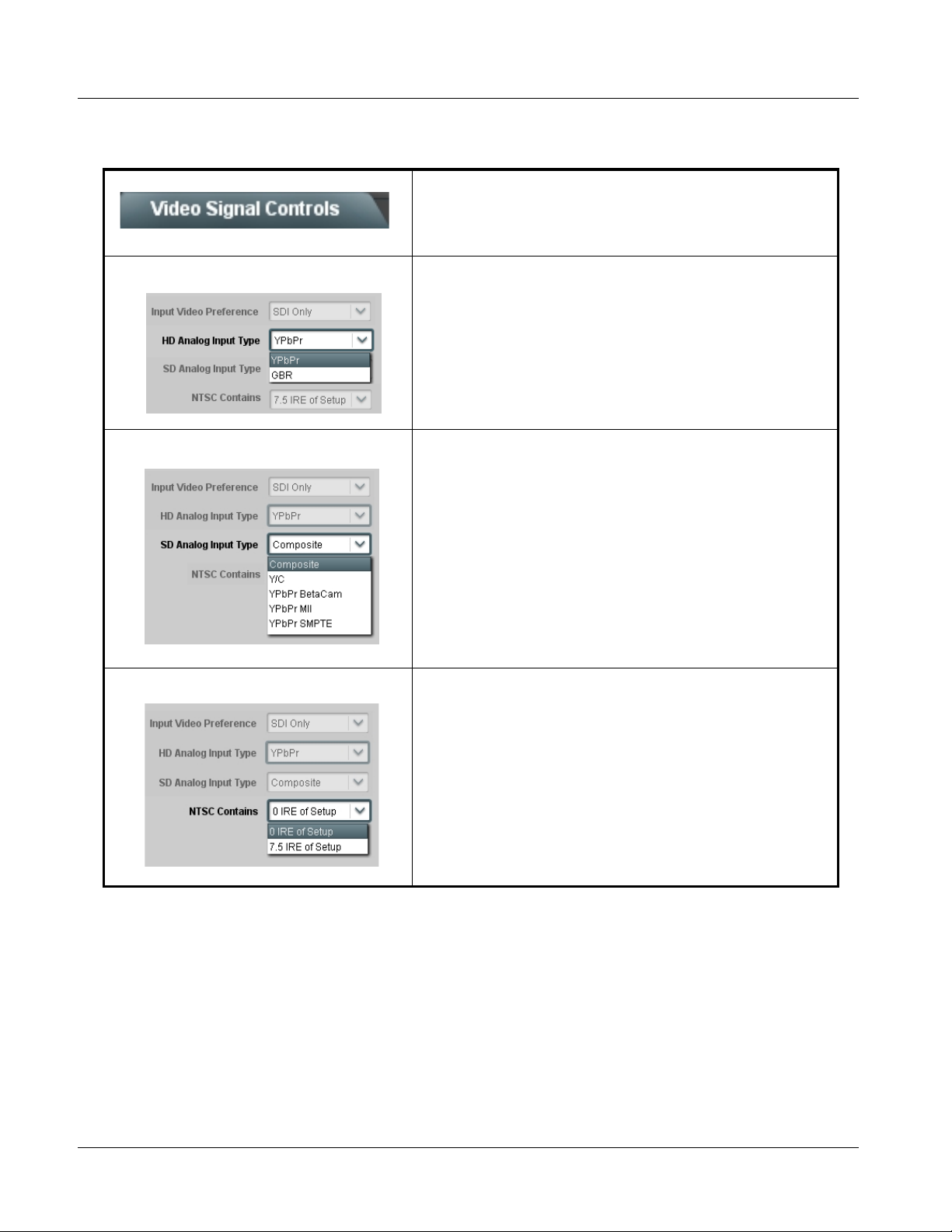

Video Signal Controls 3-10 Dolby Metadata (9034 only) 3-30 Audio Input Controls 3-11 Dolby Decoder (9034-DEC only) 3-31 Video Proc 3-14 Dolby E Metadata (9034-DEC only) 3-34 AFD 3-15 Dolby D Metadata (9034-DEC only) 3-35 Framesync 3-16 Timecode 3-36 Embedded Audio Group 1/2 3-21 Audio Mixing 3-40 Embedded Audio Group 3/4 3-25 Tone Generator 3-45 AES Audio Out Pairs 1-4 3-26 Licensable Features 3-45 AES Audio Out Pairs 5-8 3-30 Presets 3-46

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-9

3 9034 Function Submenu List and Descriptions

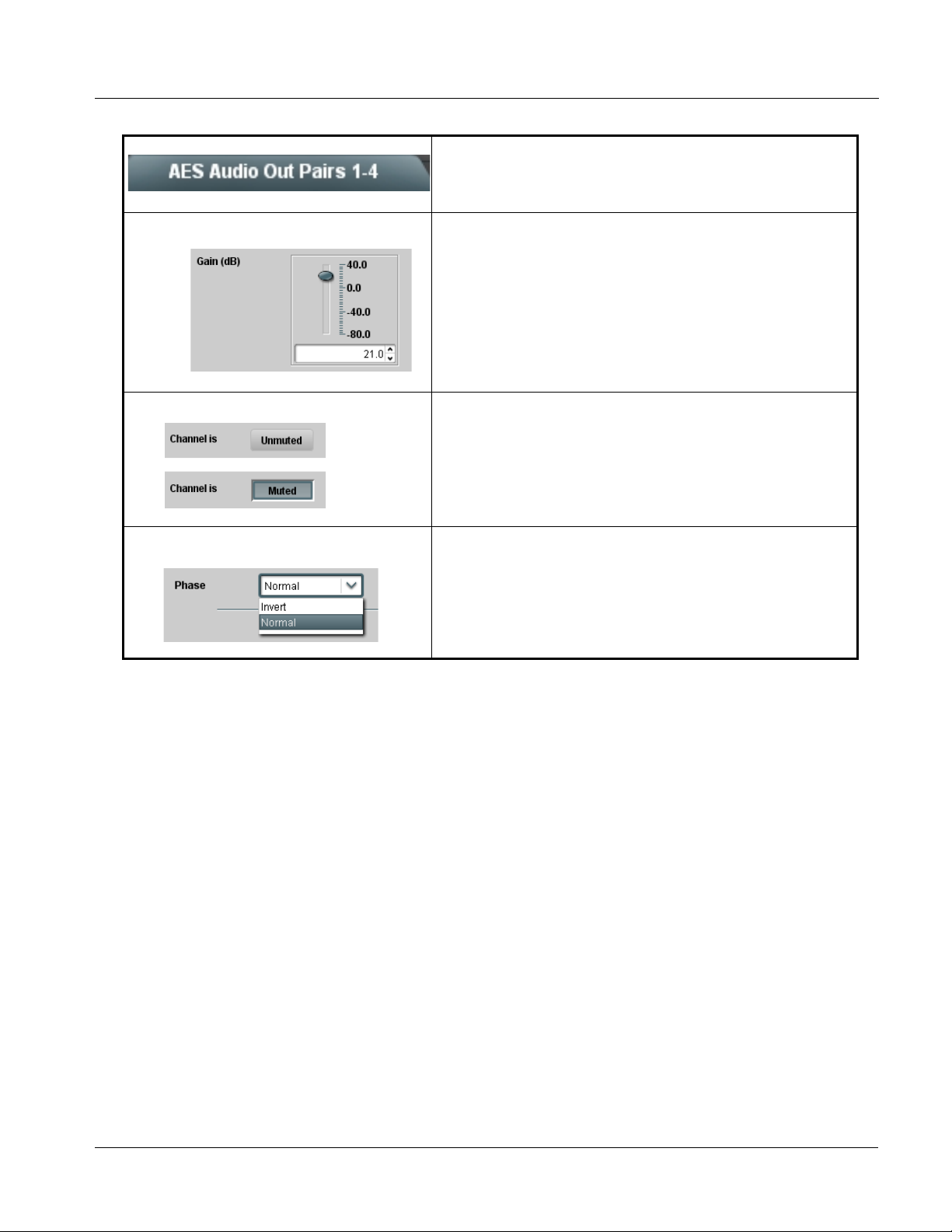

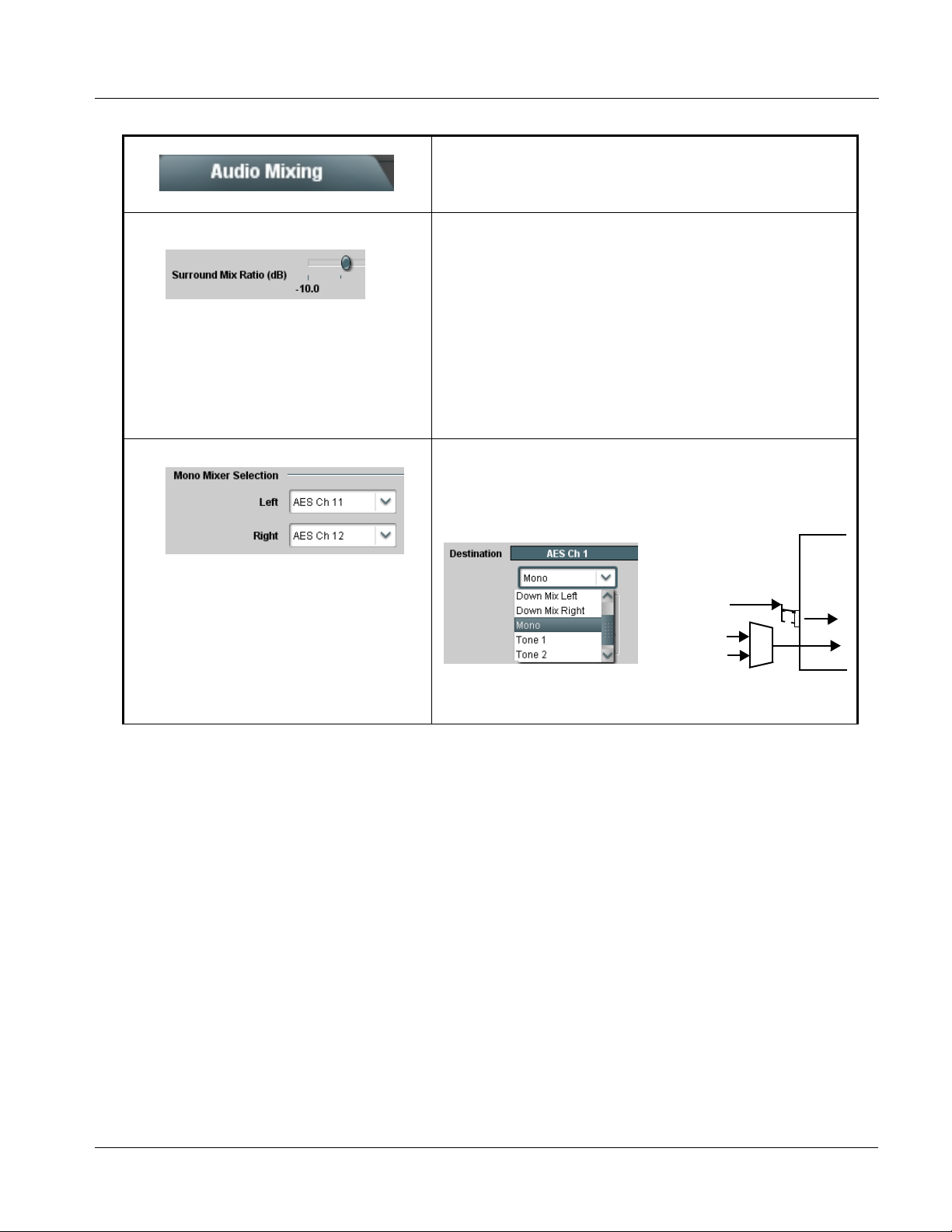

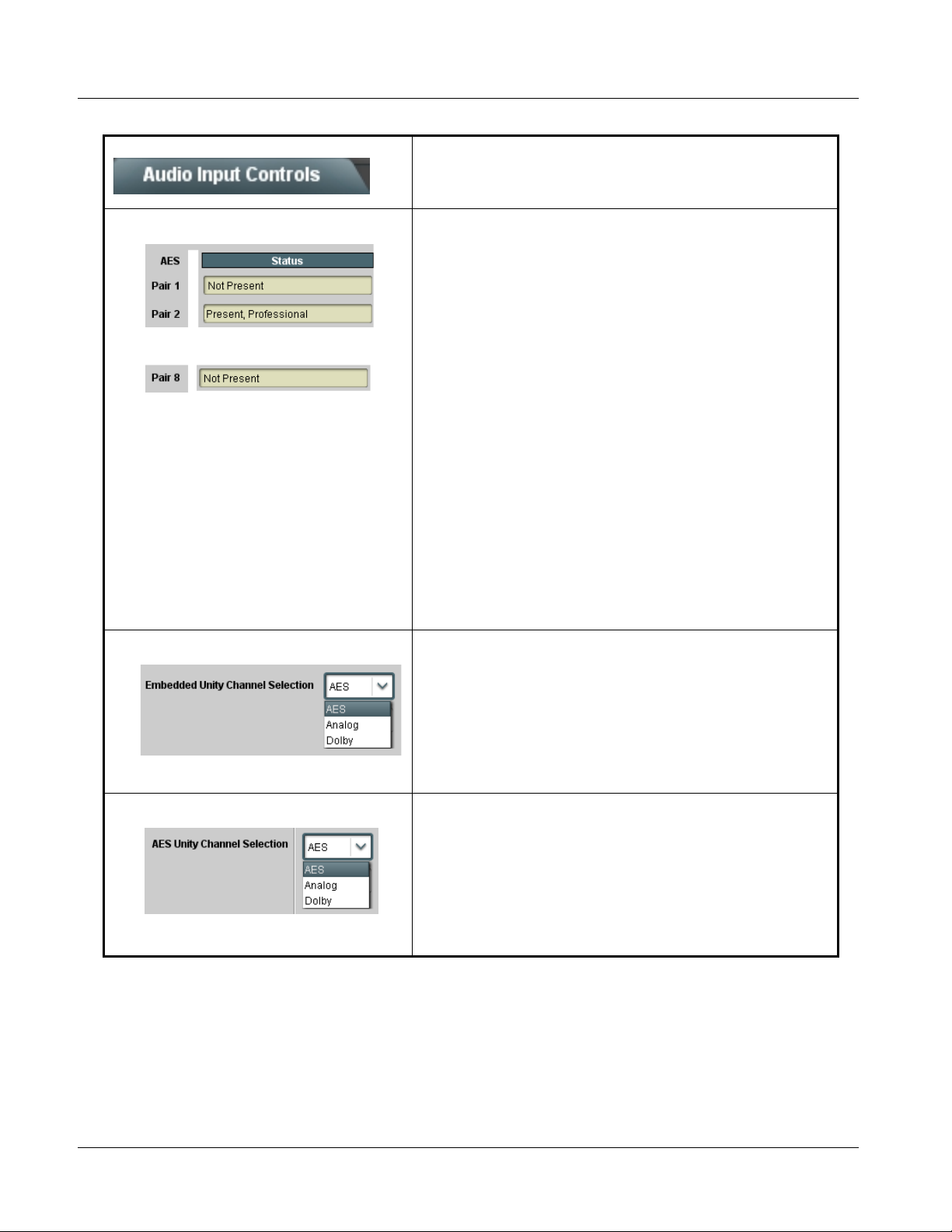

Table 3-2 9034 Function Submenu List

Sets the 9034 video signal input type and preference and priority.

Video Signal Controls

• HD Analog Input Type When receiving analog video input, sets the 9034 HD input video type to

• SD Analog Input Type When receiving analog video input, sets the 9034 SD input video type to

• NTSC Contains This setting tells the 9034 how much setup (pedestal) needs to

accept received input signal from choices shown.

Note: Input type must be appropriately set for the 9034 to correctly

process the received input.

accept received input signal from choices shown.

Note: Input format must be appropriately set for the 9034 to correctly

lock to the input.

be removed from an NTSC-formatted input.

• 0 IRE of Setup: No setup removed.

• 7.5 IRE of Setup: Removes 7.5 IRE of setup. This is typically

preferred when analog signals containing 7.5 IRE pedestal are converted to SDI.

3-10 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Controls the AES Audio Input features for the eight AES pairs, and displays signal status for received AES pairs.

Audio Input Controls

Also provides global unity routing/parameter control resets.

Note: Also refer to AES Audio Input Advanced Features (p.

1-14) in Chapter 1, “Introduction” for detailed information regarding these func ti ons .

• AES SRC Individual SRC Disable control for each AES pair (1 thru 8) disables or

•

• AES Passthrough Individual AES Passthrough On/Off control for each AES pair (1 thru 8)

•

enables Sample Rate Conversion (SRC) bypass as follows:

• Disabled On: In this mode, AES SRC for the corresponding AES pair is bypassed (button pressed in). SRC is set to Disabled (bypass turned on) by default. This mode is preferred where the AES rate matches the input video rate. This mode is necessary when embedding non-PCM AES audio such a Dolby Digital™ audio streams.

Note: In this mode AES rate must match the input video rate or

audio dropouts will occur.

Note: AES audio must be nominally 48 kHz.

• Disable Off: In this mode, AES SRC for the corresponding AES input pair is enabled (button in out position). SRC enabled allows the 9034 to interface with asynchronous AES sources (sources in which the AES timing does not match the video reference timing). SRC can be used to compensate for minor clock rate differences in the AES stream and the input video stream.

disables or enables Passthrough as follows:

• Off: Disables AES passthrough for the selected AES input pair. Passthrough is set to Off by default.

• On: Passthrough is turned on, with the corresponding AES output pair to act as a bit-for-bit copy with zero delay of the corresponding AES input pair.

Note: AES Passthrough set to On overrides normal audio routing.

Gain and polarity control is not available when AES passthrough is enabled.

E or Dolby

• AES Zero Delay Embedding Individual AES Zero-Delay Embedding On/Off control for each AES pair

•

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-11

(1 thru 8) disables or enables Zero-Delay Embedding as follows:

• Off: Disables Zero-Delay Embedding for the selected AES input pair. Zero-delay embedding is set to Off by default.

• On: The selected pair directly embeds into its corresponding group (AES Pair 1 embeds into embedded channels 1 and 2; AES pair 2 embeds into embedded channels 3 and 4, and so on) with the normal frame sync audio delay being bypassed.

Note: Zero Delay Embedding overrides the standard audio routing

system. For example, if AES Pair 1 is selected, then the controls to route into embedded channels 1 and 2 will not apply. Gain and polarity control is not available when zero-delay embedding is enabled.

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Status Displays

•

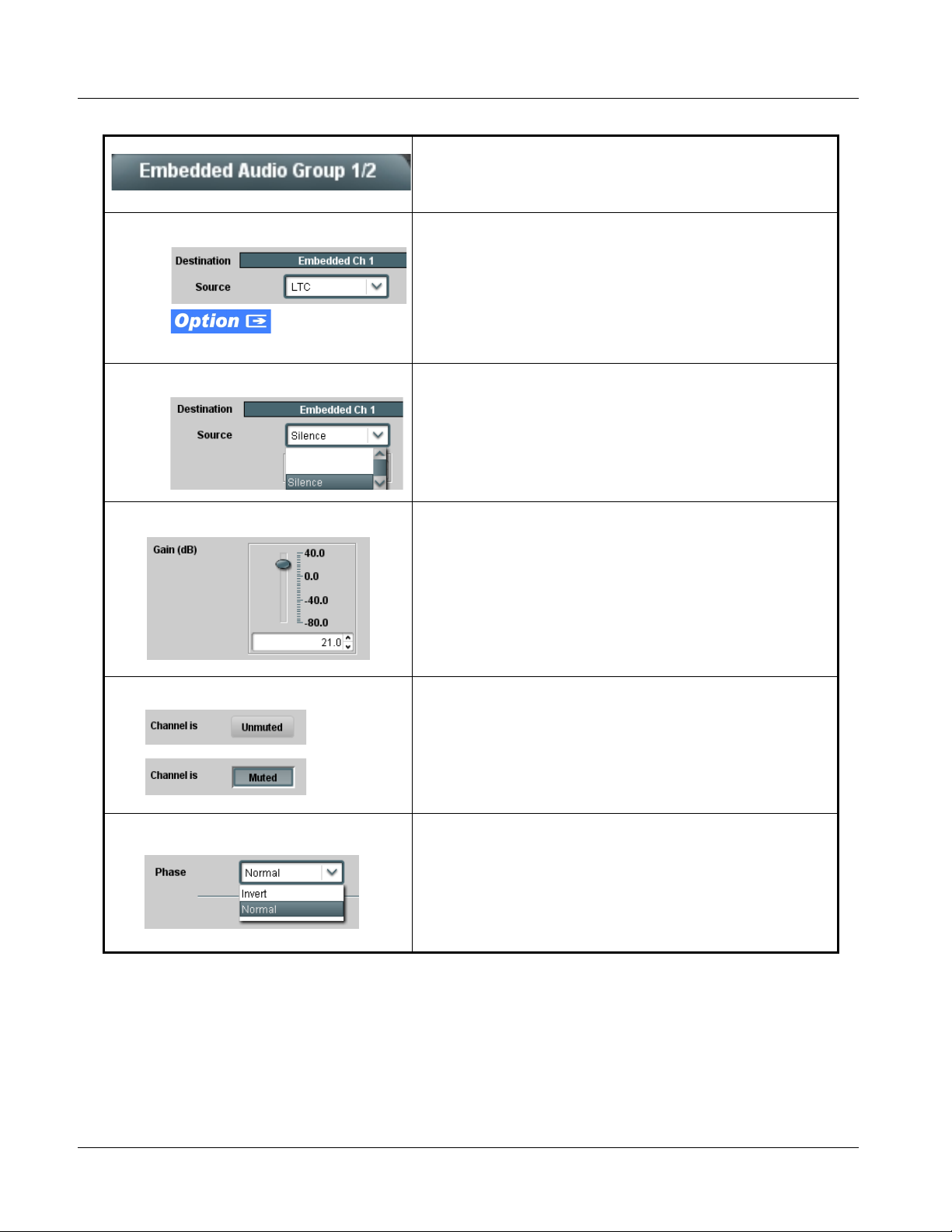

• Embedded Unity Channel Selection Selects unity reset to Embedded Audio Group 1/2 and 3/4 controls and

Individual signal status displays for AES pairs 1-8 as follows:

• Not Present: Indicates AES pair does not contain recognized audio PCM data.

Note: Channel displaying Not Present may still carry usable audio

data with Not Present being displayed due to invalid headers.

• Present, Professional: Indicates AES pair contains recognized AES audio PCM data.

• Present, Consumer: Indicates AES pair contains audio PCM data other than AES (for example, S/PDIF).

• Present, Dolby E: Indicates AES pair contains Dolby data.

• Present, Dolby Digital: Indicates AES pair contains Dolby encoded data.

Note:Dolby status displays shown to the left only occur for valid

re-establishes default 1-to-1 routing as follows:

• AES: Routes AES Ch 1 thru Ch 16 as sources to destination channels Embedded Ch 1 thru Embedded Ch 16.

• Analog: Routes Analog Ch 1 thru Ch 8 as sources to destination channels Embedded Ch 1 thru Embedded Ch 8. Sets Embedded Ch 9 thru Ch 16 to Silence.

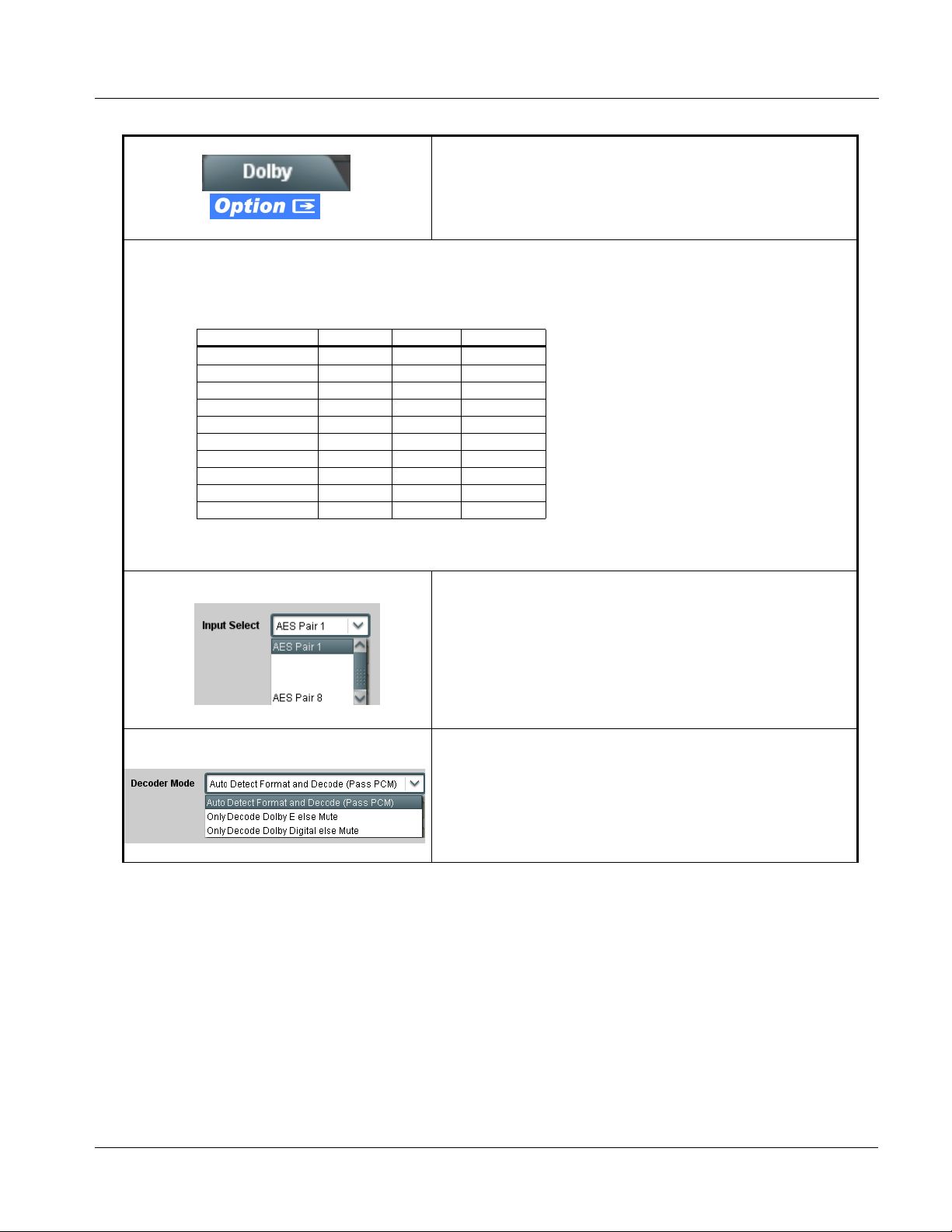

• Dolby:(9034-DEC only) Routes Dolby decoder output channels Ch 1 thru Ch 8 as sources to destination channels Embedded Ch 1 thru Embedded Ch 8. Sets Embedded Ch 9 thru Ch 16 to Silence.

signals meeting SMPTE 337M standard.

Dolby (9034 only) The 9034 card does not perform Dolby

processing on the signal. Although the 9034 controls will appear to be usable for this signal tag, the signal is passed through with SRC bypassed as well as all gain and polarity controls set to unity.

(9034-DEC only) When Dolby present on a discrete AES pair, the decoder can provide up to 10 decoded channels (according to the Dolby and received metadata). All channels are available as inputs to audio routing.

E or Dolby® Digital™ is

E encoded

sub-format

Digital

• AES Unity Channel Selection Selects unity reset of AES Outputs Pairs 1-4 and 5-8 controls and re-establishes default 1-to-1 routing as follows:

• AES: Routes AES Ch 1 thru Ch 16 as sources to destination channels AES Ch 1 thru AES Ch 16.

• Analog: Routes Analog Ch 1 thru Ch 8 as sources to destination channels AES Ch 1 thru AES Ch 8. Sets AES Ch 9 thru Ch 16 to Silence.

• Dolby:(9034-DEC only) Routes Dolby decoder output channels Ch 1 thru Ch 8 as sources to destination channels AES Ch 1 thru AES Ch 8. Sets AES Ch 9 thru Ch 16 to Silence.

3-12 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Apply Audio Channel Selection Applies embedded and AES unity channel selection (as set in the above

• Tie AES and Embedded Contr ols When set to Enabled, gangs Gain, Phase, and Mute controls for

drop-down lists). To apply the selections, click the Confirm button. When Confirm is clicked, a Confirm? pop-up appears, requesting confirmation.

• Click Yes to proceed with the unity reset.

• Click No to reject unity reset.

For any selection following confirm, the destination channel controls are default reset as follows:

• Gain is to unity

• Phase control is set to Normal

• Channel is set to Unmuted

same-numbered Embedded and AES channels. Ganging is bilateral, with embedded channel control settings affecting corresponding AES channel controls, and vice-versa.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-13

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Provides the following Video Proc parametric controls.

• Video Proc Video Proc (On/Off) provides master on/off control of all Video Proc

• Reset to Unity Reset to Unity provides unity reset control of all Video Proc functions.

• Luma Gain Adjusts gain percentage applied to Luma (Y channel).

functions.

• W hen set to Off, all processing is bypassed.

• W hen set to On, currently displayed parameter settings take effect.

When Confirm is clicked, a Confirm? pop-up appears, requesting confirmation.

• Click Yes to proceed with the unity reset.

• Click No to reject unity reset.

(0% to 200% range in 0.1% steps; unity = 100%)

Video Proc

• Luma Lift Adjusts lift applied to Luma (Y-channel). (-100% to 100% range in 0.1% steps; null = 0.0%)

• Color Gain Adjusts gain percentage (saturation) applied to Chroma (C-channel).

(0% to 200% range in 0.1% steps; unity = 100%)

• Color Phase Adjusts phase angle applied to Chroma. (-360° to 360° range in 0.1° steps; null = 0°)

• Gang Luma and Color Gain When set to On, changing either the Luma Gain or Color Gain controls increases or decreases both the Luma and Chroma levels by equal amounts.

3-14 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Allows assignment of AFD (Active Format Description)

AFD

Note: This function only marks the SDI output with an AFD code. Actual AFD processing must be performed by a downstream

card or system that recognizes an AFD code assigned here.

codes to the SDI output video.

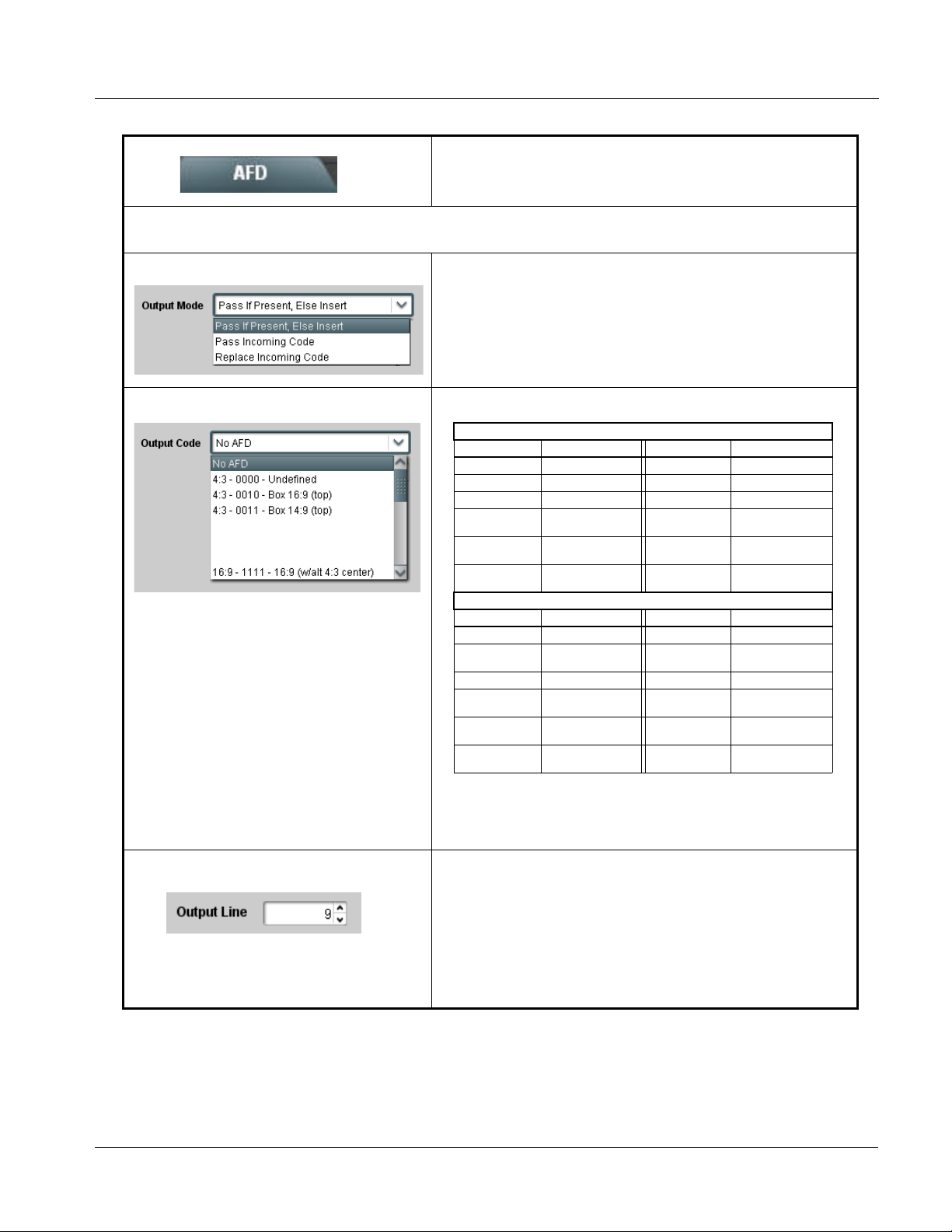

• Output Mode Drop-down selection determines action to take in presence or absence of existing AFD code on input video.

Note: The Incoming AFD and Pass Incoming AFD Code selections, while present on this card, are non-functional since the analog video input does not support AFD code embedding.

AFD

• Output Code Drop-down list assigns desired AFD to output SDI.

4:3 Coded Frame

AFD Code

•

16:9 Coded Frame

AFD Code

1: AFD codes numbering and definitions conform to SMPTE 2016-1-2007. 2: Image Prot ecte d impl ies pictu re cont ent that must not be cropped by

(1)

Description AFD Code

– No code present 1001 Full frame 0000 Undefined 1010 16:9 (center) 0010 Box 16:9 (top) 1011 14:9 (center)

0011 Box 14:9 (top) 1101 4:3 (with alternate

0100 Box > 16:9 (center) 1110 16:9 (with alternate

1000 Full frame 1111 16:9 (with alternate

(1)

Description AFD Code

– No code present 1001 4:3 (center) 0000 Undefined 1010 16:9 (image

0010 Full frame 1011 14:9 (center)

0011 4:3 (center) 1101 4:3 (with alternate

0100 Box > 16:9 (center) 1110 16:9 (with alternate

1000 Full frame 1111 16:9 (with alternate

conversion processes or display devices. Alternate center formats may have protected center areas, with areas outside of the protected area not containing mandatory content.

(1)

Description

14:9 center)

4:3 center)

Description

protected)

14:9 center)

4:3 center)

(2)

• Output Line Allows selecting the line location of the AFD data within the video signal Ancillary Data space. (Range is 9 thru 41.)

Note: • Although the output line drop-down will allow any choice within the

9 thru 41 range, the actual range is automatically clamped (limited) to certain ranges to prevent inadvertent conflict with active picture area depending on video format. See Ancillary Data Line Number Locations and Ranges (p. 3-8) for more information.

• The card does not check for conflicts on a given line number. Make certain the selected line is available and carrying no other data.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-15

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Provides video Frame Sync delay control and audio

Framesync

• Framesync Enable Disables the Frame Sync function, or selects from choices below.

re-sync tools.

• Off: Video path bypasses frame sync entirely; output video timing tracks with input video timing.

• Reference 1: Allows Frame Sync function to use external Reference 1 as the reference (“house”) standard.

• Reference 2: Allows Frame Sync function to use external Reference 2 as the reference (“house”) standard.

Note: If Reference 1 or Reference 2 is selected and an

appropriate external reference is not received, the status portion of DashBoard™, indicating invalid frame sync

reference error. (Additionally, the card edge ERR indicator illuminates indicating the same.) External reference signals Reference 1 and Reference 2 are distributed to the card and other cards via a frame bus.

• Input Video: Allows full framesync functionality (such as delay

offset), but instead uses the input video signal as the reference standard.

Note: • If Input Video is used for framesync, any timing instabilit y

on the input video will result in corresponding instability on the output video. This setting should only be used where syncing to input video is known to be reliable.

• Negative vertical or horizontal delay values (using the controls below) should not be used when using Input Video mode. This may result in image motion “jerkiness”. T o add an of fset in this case, instead apply a positi ve value that results in the desired net offset.

indication appears in the Card Info

• Vertical Delay Control When Framesync is enabled, sets vertical delay (in number of lines of

• Horizontal Delay Control Wh en Framesync is enabled, sets (in µsec of output video timing)

output video timing) between the output video and the frame sync reference.

(Range is -1124 thru 1124 lines.) Note: Lines refer to lines in the output video format, and not to the

reference format.

horizontal delay between the output video and the frame sync reference. (Range is -64.000 thru 64.000 µsec)

Note: When an external framesync reference is used, the card will not

produce a framesync reset until the variance between framesync reference and output video exceeds ± 2 clock periods. Therefore, a framesync reset will not result if offsets within this window are applied.

To apply an offset/framesync reset within this window, first apply a relatively large offset, then apply the target smaller offset.

Example: T o apply a 1-period offset, first apply a 10-period positive offset and then apply a 9-period negative offset. This results in the target 1-period offset being applied to the output video.

3-16 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Input Video Mode Fixed Delay Control When Framesync is enabled and set to Input Video, allows adding video

• Framesync Audio SRC On/Off Control When F rames ync is enabled and set to Input Video, allows disabling

• Minimum Latency Frames Control

Minimum Latency Frames Control

delay. This is useful when compensating for processes which result in large audio delays.

(Range is 0.0000 thru 300.0 msec.)

audio SRC. This is required if the card is to pass non-PCM audio such as Dolby® audio to downstream devices.

When Framesync is enabled, specifies the smallest amount of latency allowed by the frame sync (latency measurement in output video frames). The frame sync will not output a frame unless the specified number of frames are captured in the buffer. The operational latency of the frame

sync is always between the specified minimum latency and minimum latency plus one frame (not one field).

(Maximum range is 0 to 32.) Note: Due to card memory limits, the maximum available Minimum

Latency Frames is related to the output video format selected. For example, with a 525i59.94 output, the practical maximum limit is 13.

When using this control, be sure to check the Framesync Status display as follows:

• Latency frames selection within limits.

• Latency frames selection exceeds limits.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-17

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Audio Hard Resync Threshold Control Sets threshold at which hard resync is applied if audio-video offset

With offset less than selected hard resync threshold, resync is progressively applied in many small steps to provide a seamless, glitch-free retiming. After the successive steps, the audio is synchronized with the video (in this example, 40 msec). (Progressive correction is applied at 1 msec/sec appr. rate.)

Video:

40 msec

With offset greater than selected hard resync threshold, resync is immediately applied.

Video:

40 msec

Audio:

240 msec

exceeds threshold (see below). Hard resync provides fastest snyc-up suitable for off-air manipulation. Conversely, a threshold setting high enough to accommodate normal on-air offsets allows on-air resync that is glitch-free.

(Range is 1.5 to 13.0 frames in 0.1 frame increments)

In this example, initial offset of 200 msec (appr. 6 frames) is below 9 frame threshold and results in soft resync being progressively applied.

In this example, initial offset of 400 msec (appr. 12 frames) is above 9 frame threshold and results in immediate hard resync.

Audio:

440 msec

• Audio Offset Control Adds or reduces (offsets) audio delay from the matching video delay (audio delay offset setting adds or removes delay in addition to any delay included by other actions). This control is useful for correcting lip sync problems when video and audio paths in the chain experience differing overall delays.

(-575.0 msec to 575.0 msec range; null = 0.0 msec) Note: Delay offset values of less than approximately 1 frame are

progressively applied by the card to provide a seamless, glitch-free retiming. However, delay offset values exceeding 1-1/2 frames may result in a slight audio discontinuity at the moment when the offset is applied using this control if the Audio Hard Resync Threshold control is not at a setting greater than the delay offset.

To prevent this condition during an on-air manipulation, it is

recommended that the Audio Hard Resync Threshold control be set high enough such that expected delay offsets exceeding 1-1/2 frames are progressively applied.

Note: If using Audio Offset control to perform off-air co rrections, i t i s

recommended to temporarily set the Audio Hard Resync Threshold control to its minimum setting, thereby allowing the offset to be assessed and corrected as fast as possible.

3-18 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Current Audio Delay Display Displays the current input-to-output audio delay (in msec units) as well as

• Video Delay Display Displays the current input-to-output video delay (in msec units) as well as

• Framesync Status Display Displays the current framesync status as follows:

• Loss of Input Signal Sele c tion In the event of input video Loss of Signal (LOS), determines action to be

in terms of Frames/fractional frame (in number of lines).

• Framesync status OK.

• Framesync Enable set to Off.

• Improper or missing framesync reference.

• Latency frames selection exceeds limits.

Note: See Minimum Latency Frames Control (p. 3-17) for more

information about this message.

taken as follows:

• Disable Outputs: Disable all outputs.

• Freeze Last Frame: Freeze image to last good frame (last frame

free of timing errors).

• Freeze to Color: Freeze image to a color raster (as selected using Framesync LOS Freeze Color control).

Note: Freeze Last Frame and Freeze to Color choices are functional only

when frame sync is set to lock to valid reference.

• Framesync LOS Freeze Color In the event of LOS with Freeze to Color enabled above, sets the image

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-19

raster color from choices shown to the left.

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Custom Color Hue Adjusts raster hue (phase angle) for custom LOS color. (-360° to 360° range in 0.1° steps; null = 0°)

• Custom Color Saturation Adjusts raster saturation level for custom LOS color. (0% to 100% range in 0.1% steps)

• Custom Color Y Level Adjusts raster luma level for custom LOS color. (64 to 940 range)

• Reset/Resync Framesync

Reset Framesync

Reset Framesync resets the frame sync, clearing any buffered audio and video.

Resync Video and Reference resets the input processing paths for video and reference.

When Confirm is clicked, a Confirm? pop-up appears, requesting confirmation.

• Click Yes to reset the frame sync.

• Click No to reject rese t.

Note: These controls are not normally used or required when the card is

receiving a stable, continuous frame sync reference.

3-20 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Selects the audio source for each embedded audio

Embedded Audio Group 1/2

channel 1 thru 8 (Embedded Audio Groups 1 and 2). Also provides Gain, Phase Inver t, and Muting contr ol s for each channel.

Embedded

Audio Group 1

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

Embedded

Audio Group 2

The example above shows various Source selections and individual audio control settings for various audio sources fed to the Destination channels

Embedded Ch 1 thru Embedded Ch 8 in Embedded

Audio Groups 1 and 2, with the resulting setup (right).

The source-to-destination correlation shown here is only an example; any of the sources on the left can connect to any of the destinations on the right, or to Embedded Audio Groups 3 and 4 (not shown here). Additional sources not shown here are also available. These are described on the following pages.

The controls shown here are

AES I/O (1-4)

AES IN (5-8)

AN-AUD

IN (1-8)

AES Ch 1

AES Ch 3

AES Ch 5

AES Ch 8

Analog Ch 3

TG1

0 dB

-10 dB

Silence

0 dB

20 dB

15 dB

–

described in detail on the following pages.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-21

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• SD Audio Depth Allows option of using 24-bit audio data structure per SMPTE 272M,

• Group Enable When enabled (On), enables the embedding of the corresponding

§3.10 (default is 20-bit per SMPTE 272M, §3.5).

Note: • If 24-bit depth is desired, make certain downstream equipment is

compatible with 24-bit SD audio data.

• Depth control setting applied here affects both Embedded Audio Group 1/2 and 3/4.

embedded audio group (Embedded Audio Group 1 or Embedded Audio Group 2).

• Embedded Audio Group 1 consists of embedded channels 1 thru 4.

• Embedded Audio Group 2 consists of embedded channels 5 thru 8.

Two Group Enable buttons correspondingly enable or disable Embedded Audio Group 1 and Embedded Audio Group 2.

Disabling a group removes the entire group of embedded audio channels while preserving the settings of the channels belonging to the group.

Note: • Embedded Ch 2 thru Embedded Ch 8 have controls identical to the Source, Gain, Mute, and Phase controls

described here for Embedded Ch 1. Therefore, only the Embedded Ch 1 controls are shown here.

• For each channel, its source and destination should be considered and appropriately set. Unused destination

channels should be set to the Silence selection.

• Embedded Channel Source Using the Source drop-down list, selects the audio input source to be embedded in the corresponding embedded channel from the choices described below.

• AE S Ch 1 thru AES Ch 16 as Source AES Ch 1 thru AES Ch 16 range in Source drop-down list enables a

•

• An alog Ch 1 thru Ch 8 as Source Analog Ch 1 thru Analog Ch 8 range in Source drop-down list enables a

•

discrete AES channel (Ch 1 thru Ch 16) to be the source for the selected destination Embedded Audio Group channel.

(In this example, AES Ch 1 is the source for destination Embedded Ch 1)

balanced-input analog channel (Ch 1 thru Ch 8) to be the source for the selected destination Embedded Audio Group channel.

(In this example, Analog Ch1 is the source for destination Embedded Ch 1)

3-22 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Down Mix Left or Right as Source Down Mix Left and Down Mix Right selections in Source drop-down list

• Mono Mix as Source Mono selection in Source drop-down list allows mono mix content to be

• Dolby

Decoded Channel as Source (9034-DEC only) Dolby Ch 1 thru Dolby Ch 8 range in Source

•

allow either downmixer left or right channel to be the source for the selected destination Embedded Audio Group channel.

(In this example, the Down Mix Left channel is the source for destination Embedded Ch 1)

Note: Down Mix Left and Down Mix Right channels are a stereo pair

derived from the L, C, R, Ls, and Rs channel inputs selected using the Audio Mixing function. The stereo pair consists of basic L/R PCM signals with no additional encoded information.

Refer to Audio Mixing function description on page 3-40 for more information.

the source for the selected destination Embedded Audio Group channel. (In this example, the mono content is the source for destination

Embedded Ch 1)

Note: Mono mix content is set up using Mono Mixer Selection in the

Audio Mixing function). Refer to Audio Mixing function description on page 3-40 for more information.

drop-down list enables a Dolby selected destination Embedded Audio Group channel.

(In this example, Dolby Embedded Ch 1)

Note: Drop-down choices of Ch 1 thru Ch 8 and Mix 1/Mix 2 represent

maximum channels available. Actual active channel complement is per received Dolby channels should not be used.

Refer to Dolby Metada ta function description on page 3-30 for more information.

decoded channel to be the source for the

decoded Ch 1 is the source for destination

format and upstream encoding. Inactive

• Tone Generator 1 thru 4 as Source Tone Generator 1 thru Tone Generator 4 range in Source drop-down list

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-23

enables one of four tone generators (Tone 1 thru Tone 4) to be the source for the selected destination Embedded Audio Group channel.

(In this example, Tone 1 (tone generator 1) is the source for destination Embedded Ch 1)

Note: Tone generator frequencies can be independently set for the four

tone generator sources. Refer to Tone Ge ne r a tor function description on page 3-45 for

more information.

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Audio LTC as Source LTC selection in Source drop-down list allows any timecode format

• Silence (Mute) as Source Silence selection in Source drop-down list mutes the selected destination

• Gain (dB) Control Adjusts and displays relative gain (in dB) applied to the corresponding

received by the card to be outputted as audio LTC over an embedded audio output (destination) channel.

(In this example, audio LTC is the source for destination Embedded Ch 1) Note: • When LTC is selected as source, Gain and Mute controls are

disabled.

• Refer to Timecode function description on page 3-36 for mor e information.

Embedded Audio Group channel. Use this setting for unused

destination channels.

(In this example, silence (muting) is applied to Embedded Ch 1)

destination Embedded Audio Group channel. (-80 to +40 dB range in 0.1 dB steps; unity = 0.0 dB)

• Mute Control Allows pushbutton On/Off channel muting while saving all other settings.

• Phase Control Selects between Normal and Invert phase (relative to source original

phase) for the destination Embedded Audio Group channel.

3-24 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Selects the audio source for each embedded audio

Embedded Audio Group 3/4

channel 9 thru 16 (Embedded Audio Groups 3 and 4). Also provides Gain, Phase Inver t, and Muting co ntrol s for each channel.

• SD Audio Depth Allows option of using 24-bit audio data structure per SMPTE 272M,

• Group Enable

§3.10 (default is 20-bit per SMPTE 272M, §3.5).

Note: • If 24-bit depth is desired, make certain downstream equipment is

compatible with 24-bit SD audio data.

• Depth control setting applied here affects both Embedded Audio Group 1/2 and 3/4.

When enabled (On), enables the embedding of the corresponding embedded audio group (Embedded Audio Group 3 or Embedded Audio Group 4).

• Embedded Audio Group 3 consists of embedded channels 9 thru 12.

• Embedded Audio Group 4 consists of embedded channels 13 thru 16.

Two Group Enable buttons correspondingly enable or disable Embedded Audio Group 3 and Embedded Audio Group 4.

Disabling a group removes the entire group of embedded audio channels while preserving the settings of the channels belonging to the group.

Note: • Embedded Ch 9 thru Embedded Ch 16 have controls that are identical to the Source, Gain, Mute, and Phase controls

described for Embedded Ch 1. Refer to Embedded Audio Group 1/2 on page 3-21 for descriptions of these controls.

• For each channel, its source and destination should be considered and appropriately set. Unused destination channels should be set to the Silence selection.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-25

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

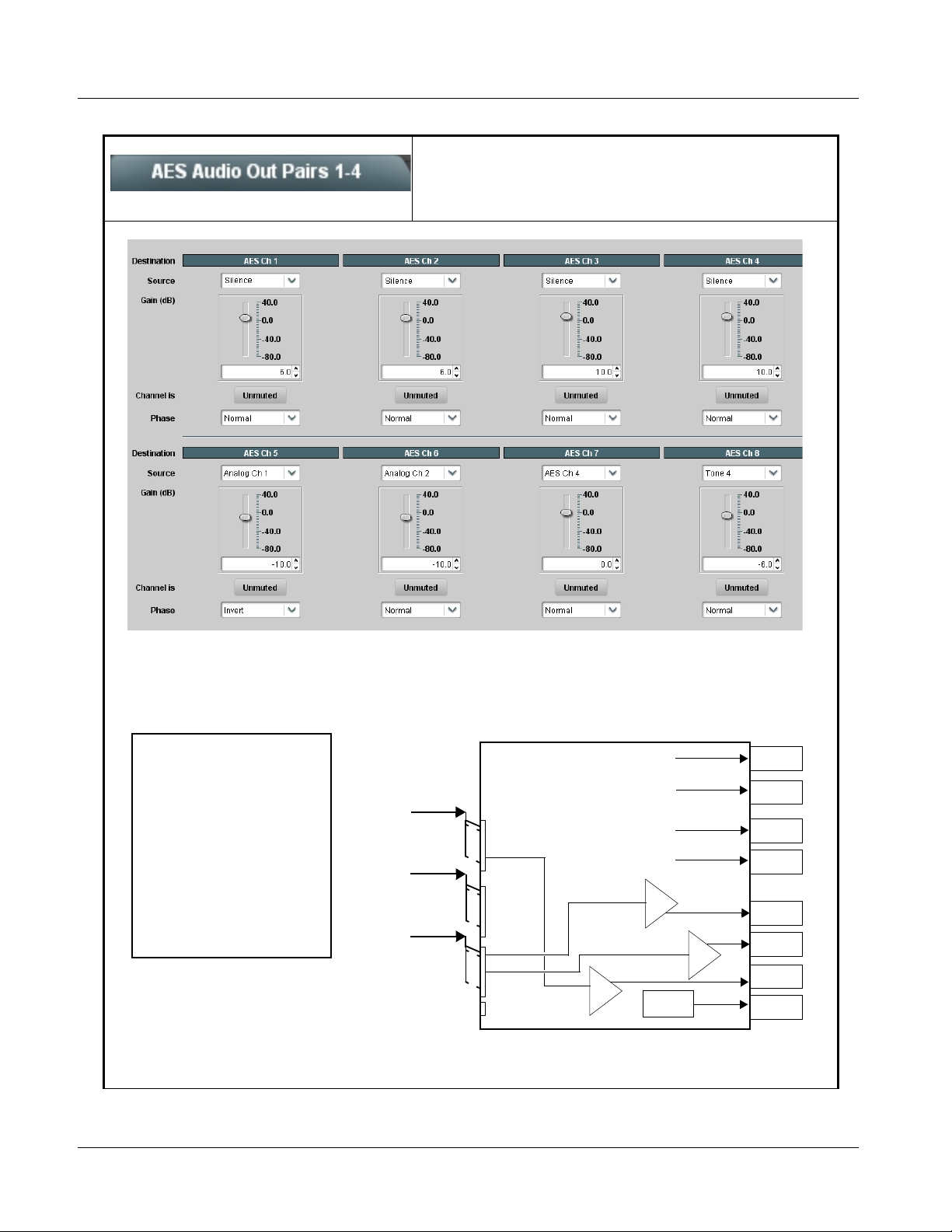

Routes audio sources to discrete AES output channels 1 thru 8 (AES Audi o Out Pai rs 1-4 ). Al so pr ovid es Ga in,

AES Audio Out Pairs 1-4

Phase Invert, and Muting controls for each channel.

The example above shows various Source selections and individual audio control settings for various audio sources fed to the Destination channels AES Ch 1 thru AES Ch 8, with the resulting setup (right).

The source-to-destination correlation shown here is only an example; any of the sources on the left can connect to any of the destinations on the right.

The controls shown here are described in detail on the following pages.

AES I/O (1-4)

AES IN (5-8)

AN-AUD

IN (1-8)

AES Ch 4

Analog Ch 1 Analog Ch 2

0 dB

AES Audio Out

Pairs 1-4

(Ch 1-8)

Silence

–10 dB

–

–10 dB

–6 dB

TG4

AES Ch 1

AES Ch 2

AES Ch 3

AES Ch 4

AES Ch 5

AES Ch 6

AES Ch 7

AES Ch 8

3-26 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

Note: • AES Ch 2 thru AES Ch 8 have controls that are identical to the Source, Gain, Mute, and Phase controls described

here for AES Ch 1. Therefore, only the AES Ch 1 controls are shown here.

• For each channel, its source and destination should be considered and appropriately set. Unused destination channels should be set to the Silence selection.

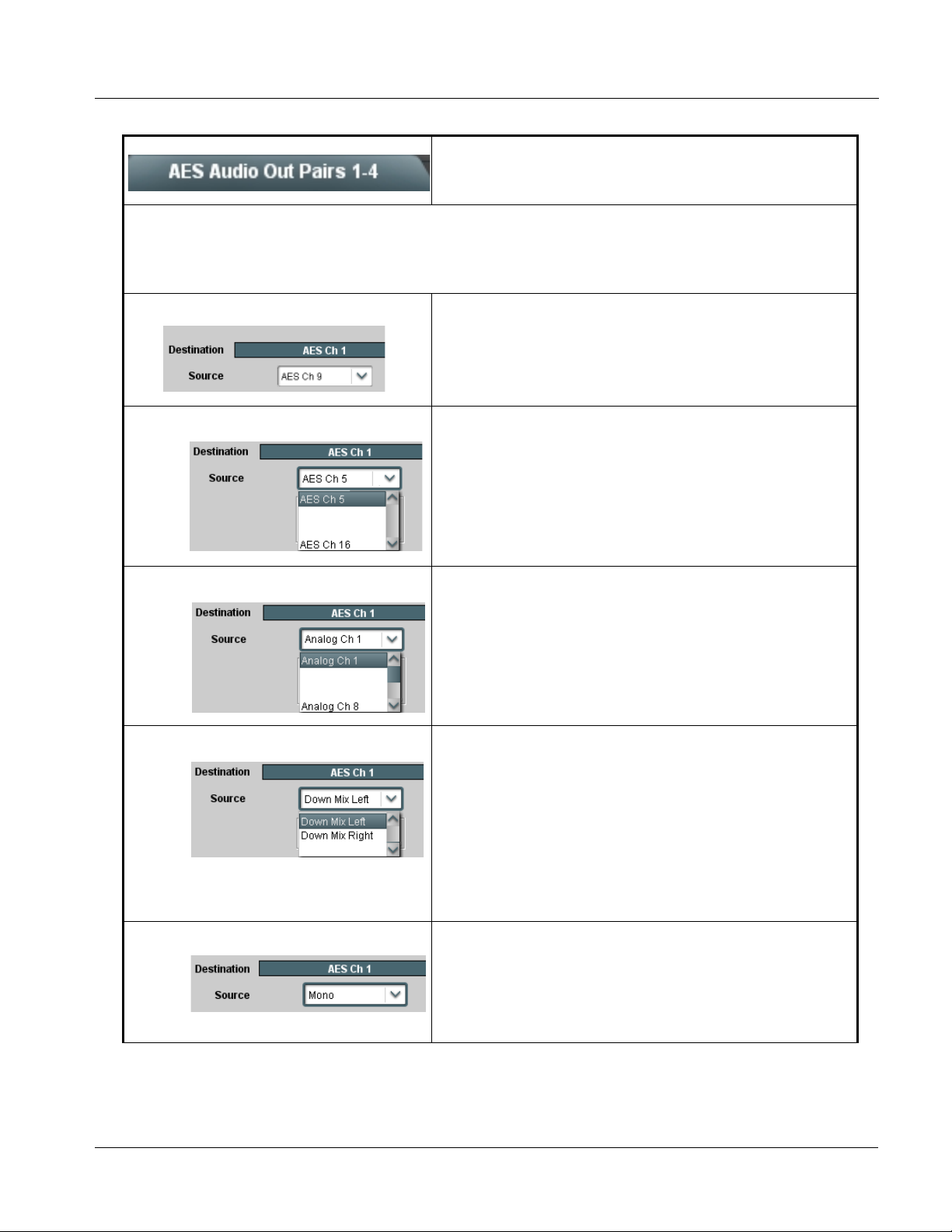

• AES Channel Source Using the Source drop-down list, selects the audio source to be routed to

• AES Ch 1 thru AES Ch 16 as Source AE S Ch 1 thr u AES Ch 16 range in Source drop-down list enables a

•

• Analog Ch 1 thru Ch 8 as Source Analog Ch 1 thru Analog Ch 8 range in Source drop-down list enables a

•

• Down Mix Left or Right as Source Down Mix Left and Down Mix Right selections in Source drop-down list

the corresponding AES output channel from the choices described below.

discrete AES channel (Ch 1 thru Ch 16) to be the source for the selected destination AES channel.

(In this example, AES Ch 5 is the source for destination AES Ch 1)

balanced-input analog channel (Ch 1 thru Ch 8) to be the source for the selected destination AES channel.

(In this example, Analog Ch1 is the source for destination AES Ch 1)

allow either downmix left or right channel to be the source for the selected destination AES channel.

(In this example, the Down Mix Left channel is the source for destination AES Ch 1)

Note: Down Mix Left and Down Mix Right channels are a stereo pair

derived from the L, C, R, Ls, and Rs channel inputs selected using the Audio Mixing function. The stereo pair consists of basic L/R PCM signals with no additional encoded information.

Refer to Audio Mixing function description on page 3-40 for more information.

• Mono Mix as Source Mono selection in Source drop-down list allows mono mix content to be

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-27

the source for the selected destination AES channel. (In this example, the mono content is the source for destination AES Ch 1)

Note: Mono mix content is set up using Mono Mixer Selection in the

Audio Mixing function). Refer to Audio Mixing function description on page 3-40 for more information.

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

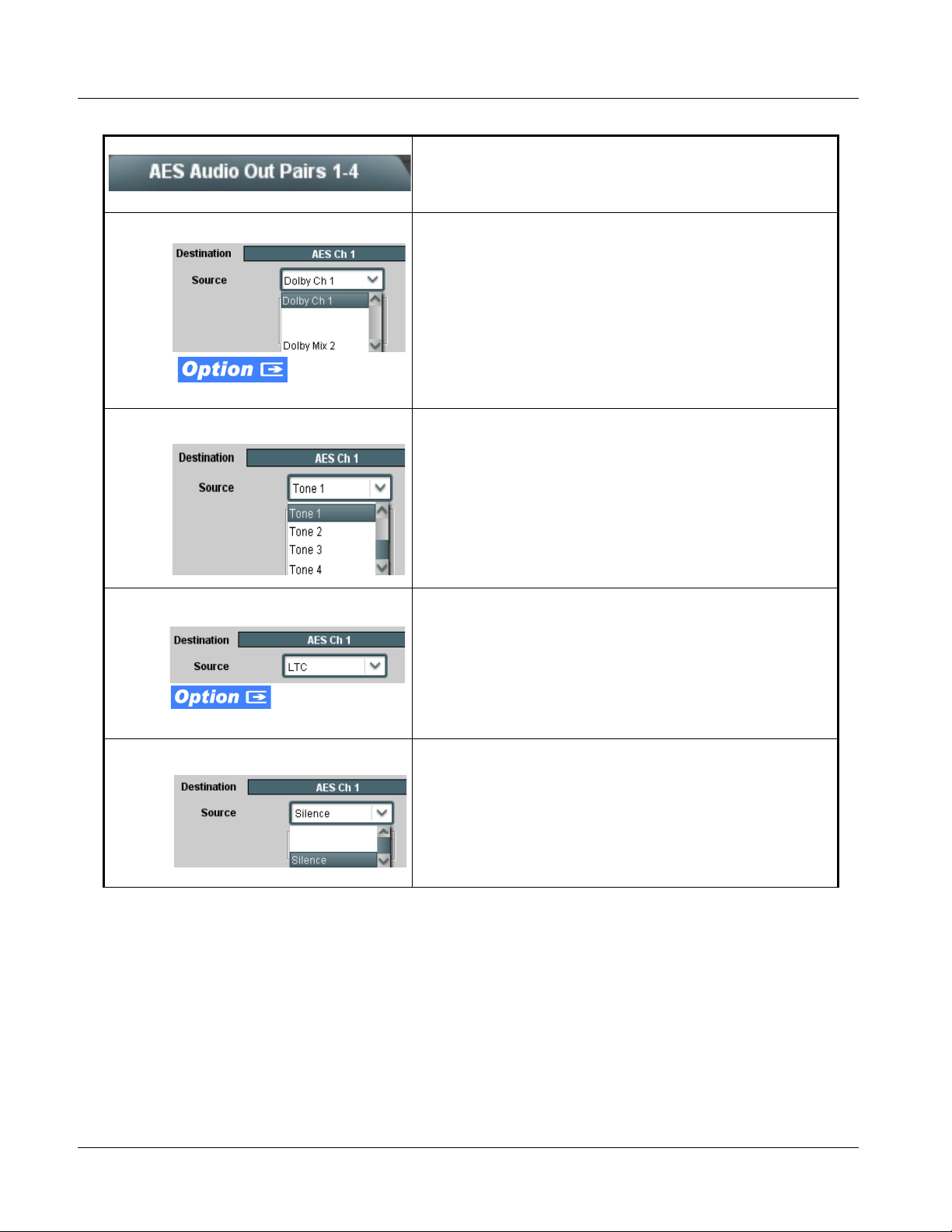

• Dolby® Decoded Channel as Source (9034-DEC only) Dolby Ch 1 thru Dolby Ch 8 range in Source

•

• Tone Generator 1 thru 4 as Source Tone Ge nerator 1 thru Tone Generator 4 range in Source drop-down list

• Audio LTC as Source LTC selection in Source drop-down list allows any timecode format

drop-down list enables a Dolby selected destination AES channel.

(In this example, Dolby Ch 1)

Note: Drop-down choices of Ch 1 thru Ch 8 and Mix 1/Mix 2 represent

maximum channels available. Actual active channel complement is per received Dolby channels should not be used.

Refer to Dolby Metadata function description on page 3-30 for more information.

enables one of four tone generators (Tone 1 thru T one 4) to be the source for the selected destination AES channel.

(In this example, Tone 1 (tone generator 1) is the source for destination AES Ch 1)

Note: Tone generator frequencies can be independently set for the four

tone generator sources. Refer to Tone Generator function description on page 3-45 for

more information.

received by the card to be outputted as audio LTC over an AES audio output (destination) channel.

(In this example, audio LTC is the source for destination AES Ch 1) Note: • When LTC is selected as source, Gain and Mute controls are

disabled.

• Refer to Timecode function description on page 3-36 for mor e information.

decoded channel to be the source for the

decoded Ch 1 is the source for destination AES

format and upstream encoding. Inactive

• Silence (Mute) as Source Silence selection in Source drop-down list mutes the selected destination AES channel. Use this setting for unused destination channels.

(In this example, silence (muting) is applied to AES Ch 1)

3-28 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Gain (dB) Control Adjusts and displays relative gain (in dB) applied to the corresponding

• Mute Control Allows pushbutton On/Off channel muting while saving all other settings.

• Phase Control Selects between Normal and Invert phase (relative to source original

destination AES channel. (-80 to +40 dB range in 0.1 dB steps; unity = 0.0 dB)

phase) for the destination AES output channel.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-29

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Routes audio sources to AES output channels 9 thru 16 (AES Audi o Ou t Pa ir s 5 -8 ). A lso provides G ain, Muting,

AES Audio Out Pairs 5-8

Note: • AES Ch 9 thru AES Ch 16 have controls that are identical to the Source, Gain, Mute, and Phase controls described

for AES Ch 1. Refer to AES Audio Out Pairs 1-4 on page3-26 for descriptions of these controls.

• For each channel, its source and destination should be considered and appropriately set. Unused destination channels should be set to the Silence selection.

Dolby Metadata

and Phase Invert controls for each channel.

(9034 only) Extracts and preserves Dolby® metadata from the input video, and in turn allows the metadata to be re-inserted in the output SDI.

• Metadata Embedding Metadata Embedding (On/Off) controls SMPTE 2020-1 metadata

• Metadata Output Line

embedding in the SDI video output.

• W hen set to On, metadata is extracted from the input video, buffered, and re-directed to the output SDI video.

• W hen set to Off, metadata is not embedded in the output SDI video.

Allows selection of SMPTE 2020-1 metadata space for re-inserted Dolby

(Range is 9 thru 41; default is line #13.) Note: • Although the output line drop-down will allow any choice within the

9 thru 41 range, the actual range is automatically clamped (limited to) certain ranges to prevent inadvertent conflict with active picture area depending on video format. See Ancillary Data Line Number Locations and Ranges (p. 3-8) for more information.

• The card does not check for conflicts on a given line number. Make certain the selected line is available and carrying no other data unless existing metadata is to be intentionally overwritten.

metadata.

line location within the VANC

Note: (9034 onl y) The Metadata Output Source button in DashBoard™ is locked to Input Video for this card. With this

function enabled, the extracted metadata is always available in the SDI video output and on cards equipped with an appropriate Rear I/O Module having a Dolby

metadata RS-485 connector.

3-30 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(9034-DEC only) Routes a Dolby® encoded pair to the

Dolby display and metadata handling controls.

Dolby Decoder

Note: • The Dolby tab controls described here appear only on card equipped with Dolby Decoder option (-DEC).

• Decoded channels shown in DashBoard™ correlate to typical channel designations as shown below. Note that

channel designations are a function of encoding. Based on encoding, actual channel designations may vary from the examples shown here.

Decoder Channels E5.1+2 E7.1+2 E8x1

Ch 1 Ch 2 RF RF Ch 2 Ch 3 C C Ch 3 Ch 4 LFE LFE Ch 4 Ch 5 LS LS Ch 5 Ch 6 RS RS Ch 6 Ch 7 Aux 1 LB Ch 7 Ch 8 Aux 2 RB Ch 8 Mix 1 Lo Lo Mono Mix 1 Mix 2 Ro Ro Mono Mix 2

LF LF Ch 1

decoder, and provides Dolby® configuration

• See other important notes in this subsection regarding the proper use of metadata embedding tools available with the decoder func tion.

• AES Pair as Input AES Pair 1 thru AES Pair 8 range in Input Select drop-down list selects

•

• Decoder Mode Using the drop-down list, selects the action to take in presence or

an AES Pair (1 thru 8) to be the input for the Dolby (In this example, AES Pair 1 is the input for the Dolby

absence of Dolby

E or Digital source from the choices shown on the left.

decoder.

decoder)

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-31

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Dolby® Mode Display Shows specific bitstream information and Dolby® decoding type (Dolby® E

• Dolby

• Metadata Embedding Metadata Embedding (On/Off) controls SMPTE 2020-1 metadata

Digital Channel and Dyna mic Range

Controls

or Dolby (In this example, Dolby

configuration is being decoded) If selected input has invalid or missing Dolby

channels are applied to decoder), is displayed. (In this case, PCM data passes undecoded and is present on Dolby Ch 1

and Dolby Ch 2 channels.)

Channel Select drop-down list sets the channel carrying the Dolby Digital encoded signal for D1/0 formats as shown from choices on the left.

Dynamic Range Control drop-down list selects from audio level compression scheme choices as shown to the left. (Line Mode is typical setting; RF Mode is used where signal may be fed through low-cost video/ audio RF modulator, in which case RF Mode helps prevent overmodulation. Refer to ATSC A/52B for more information.)

embedding in the SDI video output.

• W hen set to On, metadata from selected source is embedded in the

• W hen set to Off, metadata is not embedded in the output SDI video.

Digital) for input applied to Dolby® decoder.

output SDI video.

E 20-bit with 5.1+2 decoded channel

data (such as if wrong

• Metadata Output Source Drop-down list allows embedding and RS485 metadata routing to the choices shown to the left and described below.

• Embedded: Dolby Decoder, RS485: Dolby Decoder – Routes the metadata from the Dolby SDI and the RS485 port on card so equipped.

• Embedded: Input Video, RS485: Dolby Decoder – Preserves input metadata and directly re-routes it to the output SDI. Routes the metadata from the Dolby so equipped.

• Embedded: Input Video, RS485: Input Video – Routes the preserved input metadata to both embedding on the output SDI and the RS485 port on card so equipped.

Note: Typically, Metadata Output Source should be set to

Embedded: Dolby Decoder, RS485: Dolby Decoder, since this is

the new metadata produced by the card decoder and should also be made available in the SDI stream and to any other external systems. If embedding new metadata, make certain to set its line number such that such that any old metadata for the same purpose is overwritten (i.e., new metadata set to the same line number as the old metadata to be replaced).

decoder to both embedding on the output

decoder to only the RS485 port on card

3-32 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Metadata Output Line

Allows selection of SMPTE 2020-1 metadata space for source embedding selected above.

(Range is 9 thru 41; default is line #13.) Note: • Although the output line drop-down will allow any choice within the

• The card does not check for conflicts on a given line number. Make certain the selected line is available and carrying no other data unless existing metadata is to be intentionally overwritten.

line location within the VANC

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-33

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(9034-DEC only) Displays the status and programming details for each Dolby

E AC-3 program dictated by the

received external metadata.

Dolby E Metadata

Note: • This display is read-only. No changes can be made to the settings. All displays are reports per the received metadata.

• Information provided here is intended as an overview of the screen. Displayed parameters are per ATSC A/52B definitions.

Refer to ATSC A/52B for detailed descriptions and background.

Updates the external metadata status and program configuration display screen. The display always shows the last initiated metadata transaction; to refresh screen for any changes, click Update.

Note: Metadata does not continuously report. Use this button to report new metadata. When clicked, the button stays in the “depressed” position while updating. When the button displays the “out” position, update is complete and all displays are current.

Where AC-3 programs exist for the current metadata coding, the columns show the details for the individual AC-3 programs

Where AC-3 programs do not exist for the current metadata coding, the columns are collapsed

•

3-34 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(9034-DEC only) Displays the st a t us a n d p rog r am mi n g details f or Dolby

Digital program dictated by the

received external metadata.

Dolby D Metadata

Note: • This display is read-only. No changes can be made to the settings. All displays are reports per the received metadata.

• Information provided here is intended as an overview of the screen. Displayed parameters are per ATSC A/52B definitions.

Refer to ATSC A/52B for detailed descriptions and background.

Updates the external metadata status and program configuration display screen. The display always shows the last initiated metadata transaction; to refresh screen for any changes, click Update.

Note: M etadata does not continuously report. Use this button to report new metadata. When clicked, the button stays in the “depressed” position while updating. When the button displays the “out” position, update is complete and all displays are current.

•

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-35

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Provides timecode data extraction from various sources, and provides formatting and re-insertion

Timecode

Shown below is an example in which received video with VITC waveform timecode is to be converted to SDI ATC_VITC timecode data. Each Timecode control is fully described on the pages that follow.

controls for inserting the timecode into the output video.

525i 5994

w/ Analog VITC

Waveform

Noting that the incoming video contains VITC waveform timecode data (as shown in the status display), set the Source Priority drop-down lists to include analog VITC timecode data as a choice. This extracts VITC Waveform timecode data from the incoming video.

In this example, it is desired to provide SDI

ATC_VITC timecode data in the output video. As such, set SD ATC Insertion Insertion to Enabled.

525i

w/ VITC

Waveform

9034

VITC Detect/

Extract

525i 5994 w/ ATC_VITC

Priority/

Select

Buffer/ Format

SDI VITC

Timecode

Proc/Embed

ATC_VITC Timecode

Proc/Embed

ATC_LTC Timecode

Proc/Embed

525i SDI w/ATC_VITC

LTC Detect/

Extract

Insert

Control

Number

Control

Line

ATC_VITC Insertion = Enabled

3-36 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

Audio LTC and RS-485 LTC controls described below only appear on cards with +LTC licensed optional

feature. This feature allows bidirectional conversion between VBI-based timecode and LTC timecode on audio and RS-485 interfaces.

• Timecode Source Status Displays Displays the current status and contents of the supported timecode

• RS-485 Port LTC Control Allows RS-485 port to be used to receive LTC, or send LTC over RS-485

• Incoming ATC Packet Removal Control This control is not applicable for this card.

formats shown to the left.

• If a format is receiving timecode data, the current content (timecode running count and line number) is displayed.

• If a format is not receiving timecode data, Unlocked is displayed.

• If Audio LTC is being received, the timecode running count is

displayed.

• Audio LTC Source selects audio source to be used by card audio LTC function as listed below.

• AES Ch 1 thru Ch 16

• Analog audio Ch 1 thru Ch 8

Note: Audio LTC Source must be appropriately set for card to receive and process audio LTC.

port as follows:

• If RS-485 L TC is to be received via the shared RS-485 port, set the RS-485 Port Function control to LTC In.

• If RS-485 LTC is to be outputted via the shared RS-485 port, set the RS-485 Port Function control to LTC Output. The timecode string carried on the LTC output is that selected using the Source Priority controls described on the next page.

• Source Priority As described here, selects the priority assigned to each of the four

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-37

supported formats in the event the preferred source is unavailable. Each of the four Source Priority selection lists allows assignment of

source priority from the following choices:

Source Priority 1 thru Source Priority 4 select the preferred format to be used in descending order (i.e., Source Priority 2 selects the second-most preferred format, and so on.

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Output Stat us Dis play Displays the current content and source being used for the timecode data

• Offset Contr ols Allows the current timecode count to be advanced or delayed on the

as follows:

• O utput status OK (in this example, running analog VITC timecode received and outputted).

• Timecode not available due to lack of appropriate input timecode data on

enabled formats.

Note: • Timecode output requires that source and priority are

appropriately selected (as described above in Source Priority). Also, video input must contain appropriate timecode data.

• Because the 1’s digit of the display Frames counter goes from 0 to 29, the fractional digit (along with the 1’s digit) indicates frame count as follows:

0.0 Frame 0

0.1 Frame 1

1.0 Frame 2

1.1 Frame 3

•

29.1 Frame 59

output video.

• Offset Advance or Delay selects offset advance or delay.

• Offset Field delays or advances or delays timecode by one field.

• Offset Frame delays or advances or delays timecode by up to 5

frames.

Note: Default settings are null, with both controls set at zero as shown.

Note: • Although the output line drop-down on the controls described below will allow a particular range of choices, the actual

range is automatically clamped (limited) to certain ranges to prevent inadvertent conflict with active picture area depending on video format. See Ancillary Data Line Number Locations and Ranges (p. 3-8) for more information.

• The card does not check for conflicts on a given line number. Make certain the selected line is available and carrying no other data.

• SD VITC Waveform Insertion Controls For SD output, enables or disables SD VITC waveform timecode insertion

• SD ATC Insertion Control For SD output, enables or disables SD ATC_VITC timecode insertion into

into the output video, and selects the VITC1 and VITC2 line numbers (6 thru 22) where the VITC waveform is inserted.

Note: • If only one output line is to be used, set both controls for the same

line number.

• SD VITC Waveform Insertion control only affects VITC waveforms inserted (or copied to a new line number) by this function.

the output video, and selects the line number for ATC_VITC.

3-38 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• HD ATC_LTC Insertion Control For HD output, enables or disables ATC_LTC timecode insertion into the

• HD ATC_VITC Insertion Control

• ATC_VITC Legacy Support Control When enabled, accommodates equipment requiring ATC_VITC packet in

output video, and selects the line number for ATC_LTC timecode data.

For HD output, enables or disables ATC_VITC timecode insertion into the output video, and selects the line number for ATC_VITC1 and ATC_VITC2.

Note: If only one output line is to be used, set both controls for the same

line number.

both fields as a “field 1” packet (non-toggling). Note: Non-toggling VITC1 and VITC2 packets do not conform to

SMPTE 12M-2-2008 preferences. As such, ATC_VITC Legacy Support should be enabled only if required by downstream equipment.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-39

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

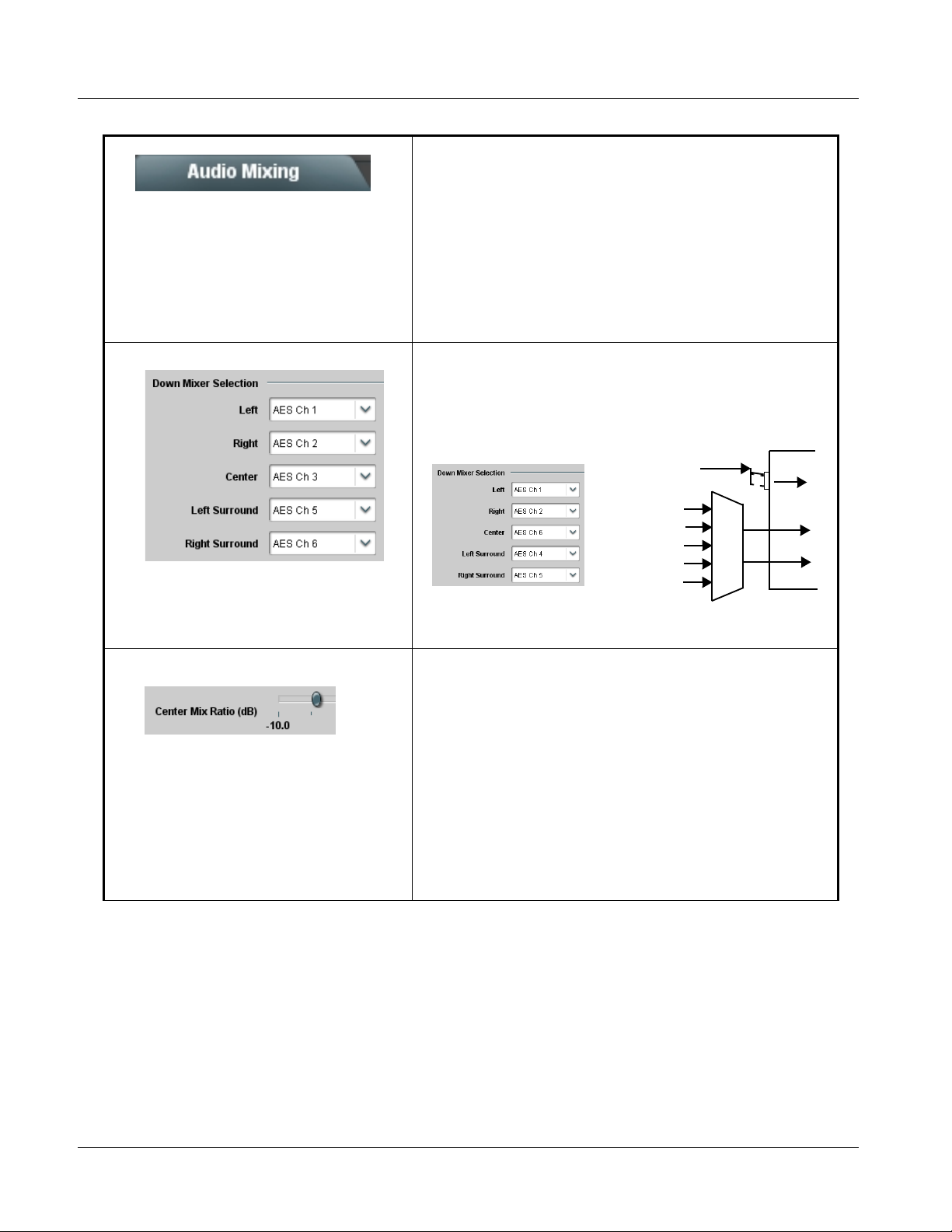

Provides down-mix audio routing selections that multiplexes any five AES, analog audio, or Dolby

Audio Mixing

decoder (where equipped) channel sources into a stereo pair (Down Mix Left and Down Mix Right), or selection of any two audio sources to be mono-mixed to serve as a monaural source.

With an optional upmixer licensable feature activated, any normal PCM stereo pair can be fed to the upmixer to generate 5.1 surround sound audio which in turn can be applied to six user-selectable channels.

• Down Mixer Selection Separate drop-down lists for Left, Right, Center, Left Surround (Ls),

• Center Mix Ratio Control

and Right Surround (Rs) inputs allow AES channel audio source selection for each of the five AES inputs.

The example below shows selection from various sources and the resulting stereo pair DM-L and DM-R. The two signals comprising the pair can be routed and processed the same as any other audio input source.

AES Ch 1 - Ch 16

AESCh 1 AES Ch 2 AES Ch 6 AES Ch 4 AES Ch 5

Note: The stereo pair consists of basic L/R PCM signals with no

additional encoded information.

Adjusts the attenuation ratio of center-channel content from 5-channel source that is re-applied as Lt and Rt content to the DM-L and DM-R stereo mix.

• Minimum attenuation setting (-0.0 dB) applies no ratiometric reduction. Center channel content is restored as in-phase center-channel content with no attenuation, making center-channel content more predominate in the overall mix.

• M aximum attenuation setting (-10.0 dB) applies a -10 dB ratiometric reduction of center-channel content. Center-channel content is restored as in-phase center-channel content at a -10 dB ratio relative to overall level, making center-channel content less predominate in the overall mix.

(0.0 dB to -10.0 dB range in 0.1 dB steps; default = -3 dB) Note: Default setting of -3.0 dB is recommended to maintain

center-channel predominance in downmix representative to that of the original source 5-channel mix.

L R C Ls Rs

DM-L

DM-R

3-40 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Surround Mix Ratio Control

• Mono Mixer Selection Separate drop-down lists for Left and Right inputs allow selected AES or

Adjusts the attenuation ratio of surround-channel content from 5-channel source that is re-applied as Lo and Ro content to the DM-L and DM-R stereo mix.

• Minimum attenuation setting (-0.0 dB) applies no ratiometric reduction. Surround-channel content is restored with no attenuation, making Lo and Ro content more predominate in the overall mix.

• Maximum attenuation setting (-10.0 dB) applies a -10 dB ratiometric reduction of surround-channel content. Surround-channel content is restored at a -10 dB ratio relative to overall level, making surround-channel content less predominate in the overall mix.

(0.0 dB to -10.0 dB range in 0.1 dB steps; default = -3 dB) Note: Default setting of -3.0 dB is recommended to maintain

surround-channel predominance in downmix representative to that of the original source 5-channel mix.

the DM-L / DM-R input channels to provide an additional mono-mixed channel.

The resulting mono mix (Mono) is available as an audio source for any of the 16 destination AES output channels as shown below.

AES Ch 1- Ch 16

AES Ch 11 AES Ch 12

L R

MONO

Note: Selection of any two channels for mono mixing in no way affects the

source channels themselves.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-41

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

Note: • 2.0-to-5.1 upmixer function is an optional licensable feature. This function and its controls appear only when a license

key is entered and activated. Refer to Licensable Features function description on page 3-45 for mor e information.

• Channel sources used by the upmixer are post-processed signals received from the Audio Routing/Gain Control function. When active, the channel selections made using this function are directly embedded in the output SDI or AES discrete pairs. Refer to 2.0-to-5.1 Upmix Function (p. 1-11) in Chapter 1, “Introduction” for detailed functional description and signal flow.

• For any six channels selected for this function, the Left and Right channel selections always serve as the stereo input

pair.

• 2.0-to-5.1 Up Mixer Selection Separate drop-down lists for Left, Right, Center, LFE, Left Surround, and Right Surround allow AES audio source selection, and channel assignments for the six generated 5.1 channels.

The example below shows selection of AES channels 1 and 2 as the received stereo source (AES Ch1 and Ch 2 for Left and Right drop-down list selections in the Up Mixer Selection tool).

Using the setup shown in the example, when upmix is active the AES channel 1/2 stereo pair is overwritten with the new stereo pair L/R on channels 1/2. As selected in the example, the additional 5.1 channels C, LFE, Left Surround (Ls), and Right Surround (Rs) overwrite AES Ch 3 – Ch 6, respectively.

AES Ch 1 – Ch 16

AES Ch 1 AES Ch 2 AES Ch 3 AES Ch 4 AES Ch 5 AES Ch 6

L R

(C)

(LFE)

(Ls) (Rs)

L – AES Ch 1 R – AES Ch 2 C – AES Ch 3 LFE – AES Ch 4 Ls – AES Ch 5 Rs – AES Ch 6

3-42 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Up Mixer Mode Control Enables or bypasses upmixer as follows:

• Auto: Automatic enable/bypass of 5.1 upmix function as follows:

• If detected signal level on all four of the selected channels

designated as Center, LFE, Left Surround, and Right Surround are below the level threshold set using the 5.1 Detection Threshold control, upmixer overwrites all six selected channels with the new 5.1 content generated by the upmixer.

• If detected signal level on any of the four of the selected channels designated as Center, LFE, Left Surround, and Right Surround is above the level threshold set using the 5.1 Detection Threshold control, upmixer is bypassed and the original channels pass unaffected.

• Always Upmix: Manual enable turns on upmixer and overwrites content on all six selected channels with new 5.1 content generated by the upmixer regardless of original signal level or content.

• Bypass: Manual disable bypasses the upmixer. When bypassed, the six embedded audio channels pass unaffected.

• Up Mixer Status Display S hows act ivity status of upmixer processing as follows:

• Auto Mode - Currently Upmixing: With upmixer enable set to Auto, indicates selected channels designated as Center, LFE, Left Surround, and Right Surround are clear for use (as described

above); upmixer is currently up-mixing received stereo pair and overwriting the six selected channels with new 5.1 upmix.

• Auto Mode - Currently Bypassed: With upmixer enable set to Auto, indicates selected channels designated as Center, LFE, Left Surround, and Right Surround have content (such as existing

original 5.1 or other content); upmixer is bypassed (disabled) and allows normal passage of six selected channels.

• Upmixing: Indicates upmixer is manually enabled (set to Always Upmix) and is currently up-mixing received stereo pair and overwriting the six selected channels with new 5.1 upmix.

• Bypassed: Indicates upmixer is manually disabled (set to Bypass) and is currently passing all selected channels unaffected.

• Auto Crossfade Speed Controls Individual controls select the relative crossfade transition speed between

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-43

Upmix to Bypass (going to inactive; from 5.1 to 2.0) and Bypass to Upmix (going to active; from 2.0 to 5.1) when upmixer enable is set to Auto and the active threshold (as set by the 5.1 Detection Threshold control) is crossed in either direction.

To suit program material and production aesthetic preferences, several choices are available as shown to the left. Slower settings allow for a more gradual transition between modes, however with a longer interval before levels stabilize. Faster settings conversely allow for a smaller interval before levels stabilize, however with greater perceived abruptness.

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• 5.1 Detection Threshold Control Adjusts the threshold at which selected channels designated as C, LFE, Ls, and Rs are considered to have viable content, or at which signal levels can be considered insignificant when upmixer enable is set to Auto. Setting affects automatic enable/bypass of 5.1 upmix function as follows:

• I f detected signal level on all four of the selected channels designated

as Center, LFE, Left Surround, and Right Surround are below the level threshold set using the 5.1 Detection Threshold control, upmixer allows overwrite of all six selected channels with the new 5.1 signal complement.

• I f detected signal level on any of the four of the selected channels

designated as Center, LFE, Left Surround, and Right Surround is above the level threshold set using the 5.1 Detection Threshold control, upmixer is bypassed, thereby releasing the selected six channels and allowing the original channels to pass unaffected.

(Range is -150 dB to 0 dB in 0.1dB steps;

0 dB equivalent to +24 dBu=> 0 dBFS)

Typically, the 5.1 Detection Threshold control should be set to provide a usable threshold that maintains a threshold at which valid levels large enough over the threshold disable the auto upmix ( , left), while

- 20 dBFS

- 60 dBFS

Above Threshold

(Bypass)

Below Threshold

(Overwrite)

nuisance levels considerably below the threshold ( , left) are rejected, allowing the upmixer to stay locked in the enabled mode and overwrite these signals with the new signals.

Optimum setting is dependent on program material general overall levels. A -60 dB setting is

recommended for material closely adhering to the SMPTE -20 dBFS Alignment level for normal material such as dialog.

• Center Width Control

Adjusts center channel content (in terms of percentage) applied to L and R channels.

• Minimum setting keeps all L+R (mono) content confined to center (C)

channel, with any center channel content removed from L and R channels.

• Higher settings progressively blend respective L and R mono content

back into L and R channels, with 100% setting resulting in center channel level going to zero and L/R channels becoming normal L/R channels containing some mono content.

(0% to 100% range in 0.1% steps; default = 0%)

• Surround Depth Control

Adjusts surround channel content (in terms of percentage) applied to Ls and Rs channels.

• M aximum setting results in greatest surround channel levels.

• Lower settings progressively diminish surround channel levels, with 0%

setting resulting in no Ls or Rs level, with Ls and Rs content progressively folded back into L and R, respectively.

(0% to 100% range in 0.1% steps; default = 100%)

3-44 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Sets the test tone frequency for each of four tone

Tone Generator

generators (T one Generator 1 thru 4).

• Frequency Selection Lists Selects the frequency for each of the four tone generators. 18 discrete

•

Licensable Features

sine wave frequencies are available, ranging from 50 Hz to 16 kHz (default frequency is 1.0 kHz).

Note: Unity-gain signal level is equivalent to -20 dBu.

Allows activation of optional licensed features.

Note: For card pre-ordered with licensed feature(s), the activation steps described below are not required; the feature will

already be installed activated. To order features and obtain a license key, contact Cobalt sales@cobaltdigital.com or at the contact information in Contact Cobalt Digital Inc. in Chapter 1, “Introduction”. Please provide the “SSN” number of your card (displayed in the Card Info pane) when contacting us for your key.

• License Feature and Key Entry window Activate licensable feature as described below.

1. Enter the feature key string in the F eature Key box. Press return or click outside of the box to acknowledge entry.

Note: Entry string is case sensitive. Do not enter any spaces.

2. In the DashBoard™ Card Info pane, wait for the feature identification to be shown for the card product number (for example, “-UM” appearing after the card part number) and V a lid Key Entered to be displayed. This indicates the key was correctly entered and recognized by the card.

Note: If DashBoard™ card function submenu/control pane does not

re-appear, close the card and re-open it.

3. Click and confirm Reboot. When the card function submenu/control pane appears again, the licensable feature will be available.

Note: Applying the licensable feature and its reboot has no effect on

prior settings. All control settings and drop-down selections are retained.

sales at

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-45

3 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

Allows up to 16 card user set tin gs co nfi gur at ion pres et s to be saved in a Preset and then recalled (loaded) as

Presets

desired. All current settings (including list selections and scalar (numeric) control settings such as Gain, etc.) are saved when a Preset Save is invoked.

The Preset Name field and Preset Save button allow custom user setting configurations to be labeled and saved to a Preset for future use.

The Preset Load button and the Selected Preset drop-down list allow saved presets to be selected and loaded as desired. When a preset is loaded, it immediately becomes active with all user settings now automatically set as directed by the preset.

Saved presets can be uploaded to a computer for use with other same-model COMPASS™ cards.

Each of the items to the left are described in detail on the following pages.

• Preset Save and Load

• Selected Preset

•

• Card Name

• Preset Save stores all current card control settings to the currently

selected preset. (For example, if Preset 1 is selected in the Selected Preset drop-down

list, clicking and confirming Preset Save will then save all current card control settings to Preset 1)

• Preset Load loads (applies) all card control settings defined by whatever preset (Preset 1 thru Preset 16) is currently selected in the Selected Preset drop-down list.

(For example, if Preset 3 is selected in the Selected Preset drop-down list, clicking and confirming Preset Load will then apply all card control settings defined in Preset 3)

The above buttons have a Confirm? pop-up that appears, requesting confirmation.

Note: Applying a change to a preset using the buttons described above

rewrites the previous preset contents with the invoked contents.

Make certain change is desired before confirming preset change.

Selected Preset 1 thru S elected Preset 16 range in drop-down list selects one of 16 stored presets as ready for Save (being written to) or for

Load (being applied to the card). Note: The preset names shown to the left are the default (unnamed)

preset names. All 16 presets in this case are loaded identically with the factory default settings.

Text entry field provides for optional entry of card name, function, etc. (as shown in this example).

Note: Card name can be 31 ASCII characters maximum.

3-46 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions 9034 Function Submenu List and Descriptions

Table 3-2 9034 Function Submenu List — continued

(continued)

• Preset Name With one of 16 presets selected, provides for entry of custom name for the

• Reset Current Preset • Reset Current Preset resets all parameters (including preset custom

• Download Presets Download Presets allows all 16 presets to be stored to a specified location

Download a presets file to a computer on the card’s DashBoard network to save presets. Preset files stored on a computer can then be uploaded back to the card.

Note also that a presets file can also be uploaded to other same-model COMPASS using a single card can be easily applied to other same-model cards without repeating the setup work on the other cards.

preset (as shown in example below).

Entering text in Preset Name field (in this example, “RCVR21”) applies custom name to selected Preset (in this example, Preset 2)

Note: • Preset name can be seven ASCII characters maximum.

• The Preset ID number does not need to be entered; it is

added automatically.

name entered) of the currently selected Preset (as displayed in the

Selected Preset field) to factory default settings. The button has a Confirm? pop-up that appears, requesting confirmation.

on a network computer for use with other same-model COMPASS™ cards.

Refer to Cobalt 9000RCS-RM) for instructions on using the Download Presets function.

reference guide “Remote Control User Guide” (PN

cards. In this manner, presets built up

Download (save) card presets to a

network computer by clicking

Download Presets – Save

at the bottom of the Presets page.

Browse to a desired save location (in this example, My

Documents\Cobalt Presets).

The file can then be renamed if desired (RCVR21 Presets in this example) before saving.

Upload (open) card presets from a network computer by clicking Upload at the bottom of DashBoard.

Browse to the location where the file was saved on the computer or drive (in this example,

My Documents\Cobalt Presets).

Select the desired file and click Open to load the file to the card.

To upload presets saved from one card to another same-model card, simply click Upload on the other same-model card’s DashBoard page and repeat the same steps here.

Note: • Preset transfer between card download and file

upload is on a group basis (i.e., individual presets cannot be downloaded or uploaded separately).

• After uploading a presets file, engagement of a desired preset is only assured by pressing the Preset Load button for a desired preset.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-47

3 Troubleshooting

Troubleshooting

This section provides general troubleshooting information and specific symptom/corrective action for the 9034 card and its remote control interface. The 9034 card requires no periodic maintenance in its normal operation; if any error indication (as described in this section) occurs, use this section to correct the condition.

Error and Failure Indicator Overview

The 9034 card itself and its remote control systems all (to varying degrees) provide error and failure indications. Depending on how the 9034 card is being used (i.e, standalone or network controlled through DashBoard™ or a Remote Control Panel), che ck all avai lable indi cations in the event of an error or failure condition.

The various 9034 card and remote control error and failure indicators are individually described below.

Note: The descriptions below provide general information for the various status and

error indicators. For specific failures, also use the appropriate subsection listed below.

• Basic Troubleshooting Checks (p. 3-52)

• 9034 Processing Error Troubleshooting (p. 3-53)

• Troubleshooting Network/Remote Control Errors (p. 3-56)

3-48 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions Troubleshooting

9034 Card Edge Status/Error Indicators and Display

Figure 3-6 shows and describes the 9034 card edge status indicators and display. These indicators and the display show status and error conditions relating to the card itself and remote (network) c ommunications (where applicable). Because these indicators are part of the card itself and require no external interface, the indicators are particularly useful in the event of communications problems with external devices such as network remote control devices.

4-Character Alphanumeric Display

RMT

REF

ERR

1080

720

625

525

9034

Status/Error

Indicators

Input Format

Indicators

Item Function

Alphanumeric Display

RMT LED Blue LED flashes when 9034 is receiving control message from remote network control (e.g., DashBoard™

REF LED Blue LED illuminates indicating 9034 is receiving valid reference when set up for framesync operation. ERR LED Red LED illuminates when 9034 unable to lock to framesync, or unable to lock to input standard. Input Format

LEDs

Displays 4-digit alphanumeric code indicating status or errors as follows:

• E0XX: Video Errors

• E002: Video Acquiring Lock

• E1XX: Audio Errors

• E100: Analog Input Clipping

• E2XX: Frame Sync Errors

• E200: Reference is Incompatible with Input Video

• E201: Reference Standard is Invalid/No Reference Present

• E202: Reference Standard is 720p2398 (a reference standard not supported by the framesync)

• E203: Reference Standard is 720p2997 (a reference standard not supported by the framesync)

or Cobalt

Four blue LEDs indicate the input signal raster format being received and locked onto by the 9034 (1080, 720, 625, 525). Continuous cycling of the LEDs indicates the 9034 has not locked onto a particular format (as in the case of no signal input).

Remote Control Panel)

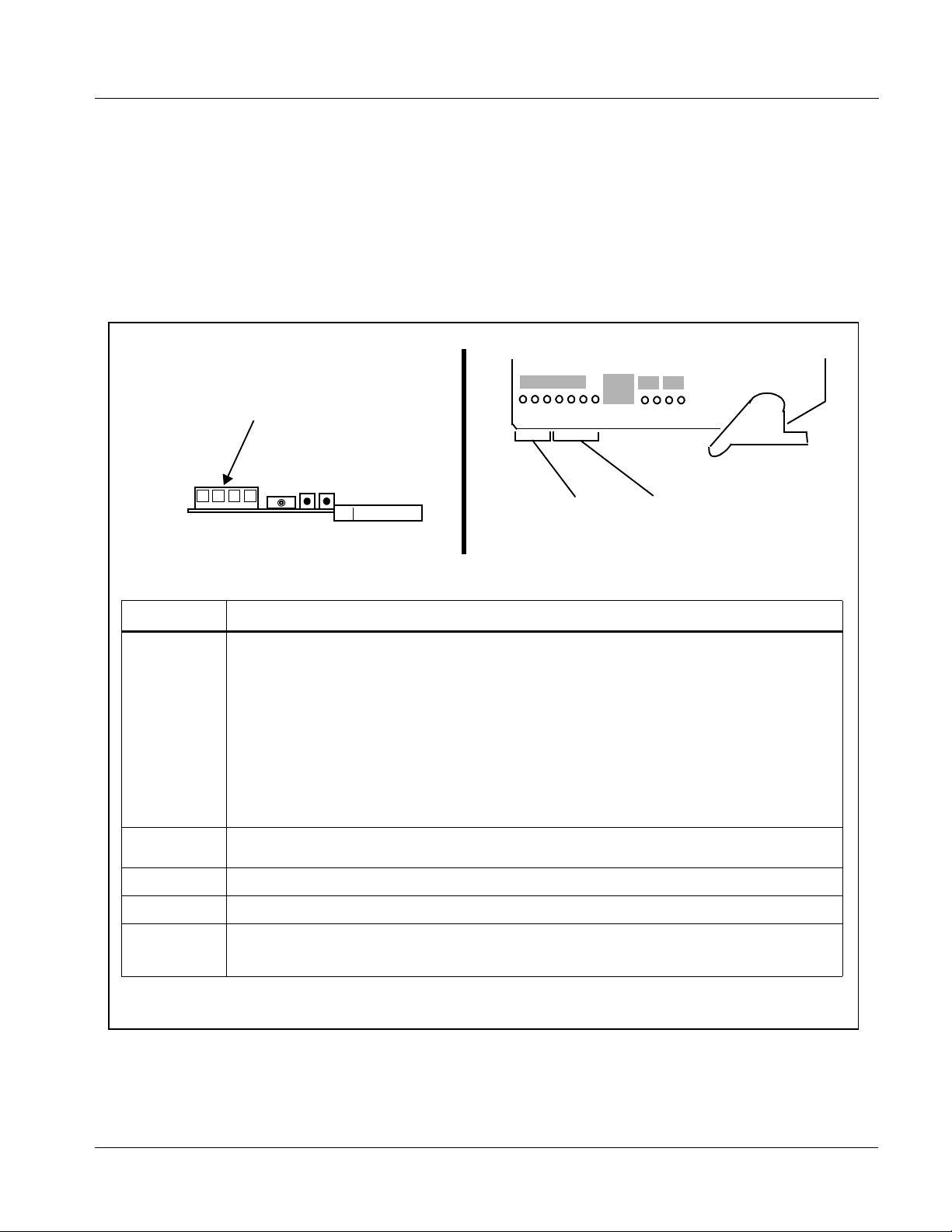

Figure 3-6 9034 Card Edge Status Indicators and Display

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-49

3 Troubleshooting

DashBoard™ Status/Error Indicators and Displays

Figure 3-7 shows and describes the DashBoard™ status indicators and displays. These indicator icons and displays show status and error conditions relating to the 9034 card itself and remote (network) communications.

Indicator Icon or Display Error Description

Red indicator icon in Card Access/Navigation Tree pane shows card with Error condition (in this example, the Card Access/Navigation Tree pane shows a general error issued by the 9034 card in slot 6).

Specific errors are displayed in the Card Info pane (in this example “No connection to device” indicating 9034 card is not connecting to frame/LAN).

If the 9034 card is not connecting to the frame or LAN, all controls are grayed-out (as shown in the example here).

Gray indicator icon in Card Access/Navigation Tree pane shows card(s) are not being seen by DashBoard™ due to lack of connection to frame LAN (in this example, both a 9034 card in slot 6 and the MFC-8320-N Network Controller Card for its frame in slot 0 are not being seen).

Yellow indicator icon in Card Access/Navigation Tree pane shows card with Alert condition (in this example, the Card Access/Navigation Tree pane shows a general alert issued by the MFC-8320-N Network Controller Card).

Clicking the card slot position in the Card Access/Navigation Tree (in this example Network Controller Card “Slot 0: MFC-8320-N”) opens the Card Info pane for the selected card. In this example, a “Fan Door Open” specific error is displayed.

Yellow indicator icon in 9034 Card Info pane shows error alert, along with cause for alert (in this example, the 9034 is receiving no video input, or a video input that is invalid for the card and/or its current settings).

Where available, error messages within a function submenu pane show highly specific information relating to detected errors (in this example, message shows an invalid or missing Framesync Enable reference selection).

Figure 3-7 DashBoard™ Status Indicator Icons and Displays

3-50 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions Troubleshooting

Access Card Info panes for specific cards by clicking the card slot position in the Card Access/Navigation Tree pane (as shown in the example in Figure 3-8).

By clicking on “Slot 0: MFC-8320-N” in this example, Card Info is displayed for frame Network Controller Card

By clicking on “Slot 6: CDI-9034 RCVR21” in this example, Card Info is shown for 9034 card in slot 6

Status for selected card is shown here (in this example, connection OK and “Fan Door Open” alert)

Card general information is displayed in lower portion of Card Info pane


Status for selected card is shown here (in this example, all indications are OK)

Where applicable, additional status is displayed (as shown in this example)


Figure 3-8 Selecting Specific Cards for Card Info Status Display

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-51

3 Troubleshooting

Basic Troubleshooting Checks

Failures of a general nature (affecting many cards and/or functions simultaneously), or gross inoperability errors are best addressed first by performing basic checks before proceeding further. Table 3-3 provides basic system checks that typically locate the source of most general problems. If required and applicable, perform further troubleshooting in accordance with the other troubleshooting tables in this section.

Table 3-3 Basic Troubleshooting Checks

Item Checks

Verify pow er presence and characteristics

Check Cable connection secureness and connecting points

Card seating within slots Make certain all cards are properly seated within its frame slot. (It is best to

Check status indicators and displays

Troubleshoot by substitution

• On both the frame Network Contro ller Card and t he 9034, in all cases when po wer is being properly supplied there is always at least one indicator illuminated. Any card showing no illuminated indicators should be cause for concern.

• Check the Power Consumed indications for both the +12 V and -7.5 V supply rails for the 9034 card. This can be observed using the DashBoard™ Card Info pane, or using the card edge controls and indicators as shown in Figure 3-4 on page 3-7.

• If either of the rail supplies show no power being consumed, either the frame power supply, connections, or the 9034 card itself is defective.

• If either of the rail supplies show excessive power being consumed (see Technical Specifications (p. 1-20) in Chapter 1, “Introduction”), the 9034 card may be defective.

Make certain all cable connections are fully secure (including coaxial cable attachment to cable ferrules on BNC connectors). Also, make certain all connecting points are as intended. Make certain the selected connecting points correlate to the intended card inputs and/or outputs. Cabling mistakes are especially easy to make when working with large I/O modules.

assure proper seating by ejecting the card and reseating it again.) On both DashBoard™ and the 9034 card edge indicators, red indications

signify an error condition. If a status indicator signifies an error, proceed to the following tables in this section for further action.

All cards within the frame can be hot-swapped, replacing a suspect card or module with a known-good item.

3-52 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions Troubleshooting

9034 Processing Error Troubleshooting

Table 3-4 provides 9034 processing troubleshooting information. If the 9034 card exhib its any of the symptoms listed in Table 3-4, follow the troubleshooting instructions provided.

In the majority of cases, most errors are caused b y simple errors where th e 9034 is not appropriately set for the type of signal being received by the card.

Note: The error indications shown below are typical for the corresponding error con-

ditions listed. Other error indications not specified here may also be displayed on DashBoard™ and/or the 9034 card edge status indicators.

Note: Where errors are displayed on both the 9034 card and network remote con-

trols, the respective indicators and displays are individually described in this section.

Table 3-4 Troubleshooting Processing Errors by Symptom

Symptom Error/Condition Corrective Action

• DashBoard™ shows Video yellow icon and Input Invalid message in 9034 Card Info pane.

• Card edge Input Format LEDs show continuous cycli ng.

• DashBoard™ shows Frame Sync red icon and Reference

Invalid message in 9034 Card Info pane.

• Card edge red ERR indicator illuminated.

No video input present Make certain intended video source is

connected to appropriate 9034 card video input. Make certain BNC cable connections between frame Rear I/O Module for the card and signal source are OK.

Frame sync reference not properly selected or not being received

• If external frame sync reference is not intended to be used, make cert ai n the Framesync Enable selection list is set to Off or Input Video as desired.

• If external frame sync reference is intended to be used, make certain selected external frame sync reference is activ e on frame syn c frame bus. (External reference signals Reference 1 and Refe rence 2 are distri buted to the 9034 and oth er c ard s vi a a fra me bu s.)

Refer to Framesync function subme nu tab on page 3-16 for more information.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-53

3 Troubleshooting

Table 3-4 Troubleshooting Processing Errors by Symptom — continued

Symptom Error/Condition Corrective Action

DashBoard™ shows Framesync St atu s error

message in 9034 Framesync function submenu screen.

Video/audio synchronization or delay noted.

Unsmooth, “jerky” motion observed on video output with Framesync set to lock to input video.

Ancillary data (closed ca ptioning, timecode, Dolby® metadata, AFD) not transferred through

9034.

Specified Minimum Latency Frames setting exceeds 9034 card buffer space for the

Reduce the Minimum Latency Frames setting as specified in the error mes sage to co rrect the error.

selected output video format

Due to card memory limits, the maximum

Note:

available Minimum Latency Frames is related to the output video format selected.

For example, with a 1080i 5994 output, the maximum setting is 5. For a 1080i film (2398) output, the maximum setting is 3 (due to the increased buffer space needed for the slower frame rate). Conversely, greater maximum settings are allowed for SD formats such as 525i 5994, where the practical maximum limit is 13.

Source synchronization condition

Use the Audio Offset from Video control to compensate for video/audio delay.

Refer to Framesync function submenu tab on page 3-16 for more information.

Incompatible negative H/V delay value user setting of Vertical Delay or Hoeizontal Delay controls

Negative vertical or horizontal delay values (using the controls below) should not be used when using Input Vi deo m ode. To add an offset in this case, instead apply a positive value that results in the desired net offset.

• Control(s) not enabled • Make certain respective control is set to On or Enabled (as appropriate).

• VANC line num ber con fli ct

between two or more ancillary data item s

• Make certain each ancillary data item to be passed is assigned a unique line number (see Ancillary Data Line Number Locations and Ranges on page 3-8).

• DashBoard™ shows red Audio icon and Analog Input

Clipping message in 9034 Card Info pane.

Analog peak audio input on selected input exceeds +24 dBu level

Reduce analog audio level at the source.

9034 audio gain controls cannot be used to

Note:

correct analog input overload condition. The condition must be corrected at the source.

• Card edge display shows code E101 .

(9034-DEC only) Dolby® data indicated as Present on Audio Input Controls Status display does not process, or cannot be

• Input Select in Dolby Decoder function selection

not set for pair carrying locked Dolby

data

• Make certain intended channels carrying locked Dolby for the Dolby

data are selected as the input

decoder.

accessed as an audio source

• Upstream metadata not enabled

• Check upstream device or system and enable as required.

3-54 9034 PRODUCT MANUAL 9034-OM (V4.1)

Operating Instructions Troubleshooting

Table 3-4 Troubleshooting Processing Errors by Symptom — continued

Symptom Error/Condition Corrective Action

Audio signal(s) do not route as expected.

Parameter control not available as expected.

Audio not processed or passed through card.

• (9034 only) AES audio contains Dolby

E or Dolby

Digital encoded signal

• Audio Input Controls AES Passthrough or Zero Delay Embedding mode may inadvertently be enabled

• Input audio of type that cannot be locked by 9034 card

• When a valid Dolby

E or Dolby Digital signal (in accordance with SMPT E 337M) is detected on an AES signal, SRC is automatically byp assed (disable d) along with gain and polarity controls being bypassed (even though controls may appear to be functional). Gain an d polarity co ntrols are not available for this signal type.

Refer to Status displays in Au dio Input Controls function submenu tab on page 3-11 for more information.

• When either of these modes is enabled, flexible routing and parametric controls are not available. When eit her of these modes is not intended for use, make sure they are disabled.

Refer to Audio Input Controls function submenu tab on page 3-11 for more information.

Routing and parametric controls may

Note:

appear functional when either of these mode are enabled, although the controls will not be functional.

• AES discrete audio must be nominal 48 kHz input.

Although the Status Displays in Audio

Note:

Input Controls function submenu tab will

show audio formats other than “Present, Professional” as being locked (such as “Present, Consumer”), in any case the audio must be at nominal 48 kHz rate for lock and processing to occur.

• Enable control not turned on • Group Enable button for Embedded Audio Group 1/2 or Embedded Audio Group 3/4

function submenu must be turned on for sources to be embedded into respective embedded channels.

9034-OM (V4.1) 9034 PRODUCT MANUAL 3-55

3 Troubleshooting

Table 3-4 Troubleshooting Processing Errors by Symptom — continued

Symptom Error/Condition Corrective Action

Audio not processed or passed through card (cont.).

• Upmixer inadvertently enabled (Upmixer Licensed Feature only)

• AES pairs 1 thru 4 switch not set for Input (factory default) mode

• Dolby-encoded pair not recognized by downstream devices/systems

Troubleshooting Network/Remote Control Errors

Refer to Cobalt® reference guide “Remote Control User Guide” (PN 9000RCS-RM) for network/remote control troubleshooting information.

• Make certain upmixer is set to Bypass if not intended for use.

Note: When manually enabled or set for automatic

enable with appropriate signal levels, upmixer overwrites selected channels with new data; same-channel output will no longer represent same-channel inputs for selected channels.

• If any of AES IN 1 thru AES IN 4 are to be used as inputs, the respective DIP switch must be set to the default INPUT mode position.

See Setting I/O Switches for AES I/O (1-4) Ports (p. 2-1) in Chapter 2, “Installati on and Setup” for more information.

• If framesync is enabled and using Input Video as source, Audio SRC must be set to Off to maintain integrity of Dolby pair for downstream devices.

In Case of Problems

Should any problem arise with this product that was not solved by the information in this section, please contact the Cobalt Digital Inc. Technical Support Department.

If required, a Return Material Authorization number (RMA) will be issued to you, as well as specific shipping instructions. If required, a temporary replacement item will be made available at a nominal charge. Any shipping costs incurred are the customer’s responsibility. All products shipped to you from Cobalt Digital Inc. will be shipped collect.

The Cobalt Digital Inc. Technical Support Department will continue to provide advice on any product manufactured by Cobalt Digital Inc., beyond the warranty period without charge, for the life of the product.

See Contact Cobalt Digital Inc. (p. 1-25) in Chapter 1, “Introduction“ for contact in formation.

3-56 9034 PRODUCT MANUAL 9034-OM (V4.1)

Cobalt Digital Inc.

2406 E. University Ave. Urbana, IL 61802 Voice 217.344.1243 • Fax 217.344.1245 www.cobaltdigital.com

9034-OM (V4.1) Printed in USA

Cobalt Digital COMPASS 9034 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Chapter 1 Introduction

9034 Card Software Versions and this Manual

Cobalt Reference Guides

Manual Conventions

Safety Summary

9034 Functional Description

Technical Specifications

Warranty and Service Information

Contact Cobalt Digital Inc.

Overview

Chapter 2 Installation and Setup

Setting I/O Switches for AES I/O (1-4) Ports

Installing the 9034 Into a Frame Slot

Installing a Rear I/O Module

Setting Up 9034 Network Remote Control

Overview

Chapter 3 Operating Instructions

Control and Display Descriptions

Accessing the 9034 Card via Remote Control

Checking 9034 Card Information

Ancillary Data Line Number Locations and Ranges

9034 Function Submenu List and Descriptions

Video Signal Controls

Audio Input Controls

Video Proc

Framesync

Embedded Audio Group 1/2

Embedded Audio Group 3/4

AES Audio Out Pairs 1-4

AES Audio Out Pairs 5-8

Dolby Metadata

Dolby Decoder

Dolby E Metadata

Dolby D Metadata

Timecode

Audio Mixing

Tone Generator

Licensable Features

Presets

Troubleshooting
