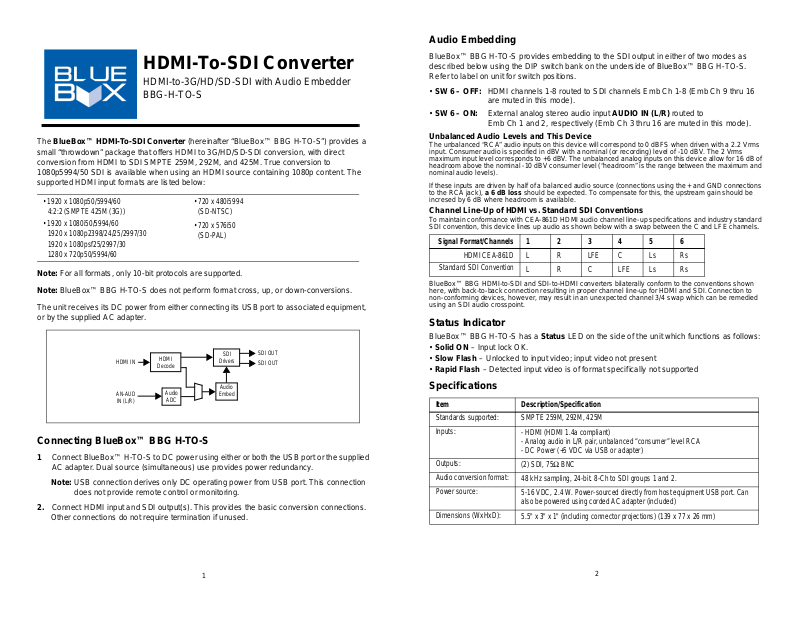

Cobalt Digital BBG H-TO-S Users Guide

HDMI-T o -SDI Converter

HDMI-to-3G/HD/SD-SDI with Audio Embedder
BBG-H-TO-S

The BlueBox™ HDMI-To-SDI Converter (hereinafter “BlueBox™ BBG H-TO-S”) provides a
small “throwdown” package that offers HDMI to 3G/HD/SD-SDI conversion, with direct
conversion from HDMI to SDI SMPTE 259M, 292M, and 425M. True conversion to
1080p5994/50 SDI is available when using an HDMI source containing 1080p content. The
supported HDMI input formats are listed below:

• 1920 x 1080p50/5994/60
4:2:2 (SMPTE 425M (3G))

• 1920 x 1080i50/5994/60
1920 x 1080p2398/24/25/2997/30
1920 x 1080psf25/2997/30
1280 x 720p50/5994/60

Note: For all formats, only 10-bit protocols are supported.
Note: BlueBox™ BBG H-TO-S does not perform format cross, up, or down-conversions.

The unit receives its DC power from either connecting its USB port to associated equipment,
or by the supplied AC adapter.

HDMI IN

AN-AUD

IN (L/R)

HDMI

Decode

Connecting BlueBox™ BBG H-TO-S

1 Connect BlueBox™ H-TO-S to DC power using either or both the USB port or the supplied

AC adapter. Dual source (simultaneous) use provides power redundancy.
Note: USB connection derives only DC operating power from USB port. This connection

does not provide remote control or monitoring.

2. Connect HDMI input and SDI output(s). This provides the basic conversion connections.
Other connections do not require termination if unused.

Audio

ADC

• 7 20 x 480i5994
(SD-NTSC)

• 720 x 576i50
(SD-PAL)

SDI

Drivers

Audio

Embed

SDI OUT
SDI OUT

Audio Embedding

BlueBox™ BBG H-TO-S provides embedding to the SDI output in either of two modes as
described below using the DIP switch bank on the underside of BlueBox™ BBG H-TO-S.
Refer to label on unit for switch positions.

• SW 6 – OFF: HDMI channels 1-8 routed to SDI channels Emb Ch 1-8 (Emb Ch 9 thru 16
are muted in this mode).

• SW 6 – ON: External analog stereo audio input AUDIO IN (L/R) routed to
Emb Ch 1 and 2, respectively (Emb Ch 3 thru 16 are muted in this mode).

Unbalanced Audio Levels and This Device

The unbalanced “RCA” audio inputs on this device will correspond to 0 dBFS when driven with a 2.2 Vrms
input. Consumer audio is specified in dBV with a nominal (or recording) level of -10 dBV. The 2 Vrms
maximum input level corresponds to +6 dBV. The unbalanced analog inputs on this device allow for 16 dB of
headroom above the nominal -10 dBV consumer level (“headroom” is the range between the maximum and
nominal audio levels).

If these inputs are driven by half of a balanced audio source (connections using the + and GND connections
to the RCA jack), a 6 dB loss should be expected. To compensate for this, the upstream gain should be
incresed by 6 dB where headroom is available.

Channel Line-Up of HDMI vs. Standard SDI Conventions

To maintain conformance with CEA-861D HDMI audio channel line-up specifications and industry standard
SDI convention, this device lines up audio as shown below with a swap between the C and LFE channels.

Signal Format/Channels123456

HDMI CEA-861D L R LFE C Ls Rs

Standard SDI Convention

BlueBox™ BBG HDMI-to-SDI and SDI-to-HDMI converters bilaterally conform to the conventions shown
here, with back-to-back connection resulting in proper channel line-up for HDMI and SDI. Connection to
non-conforming devices, however, may result in an unexpected channel 3/4 swap which can be remedied
using an SDI audio crosspoint.

LRCLFELsRs

Status Indicator

BlueBox™ BBG H-TO-S has a Status LED on the side of the unit which functions as follows:

• Solid ON – Input lock OK.

• Slow Flash – Unlocked to input video; input video not present

• Rapid Flash – Detected input video is of format specifically not supported

Specifications

Item Description/Specification

Standards supported:
Inputs:

Outputs:
Audio conversion format:
Power source:

Dimensions (WxHxD):

SMPTE 259M, 292M, 425M

- HDMI (HDMI 1.4a compliant)

- Analog audio in L/R pair, unbalanced “consumer” level RCA

- DC Power (+5 VDC via USB or adapter)
(2) SDI, 75Ω BNC
48 kHz sampling, 24-bit. 8-Ch to SDI groups 1 and 2.
5-16 VDC, 2.4 W. Power-sourced directly from host equipment USB port. Can

also be powered using corded AC adapter (included)

5.5" x 3" x 1" (including connector projections) (139 x 77 x 26 mm)
