Cobalt Digital BBG-1040 Users Guide

BBG-1040-ACO

BBG-1040-ACO

Multi-Input Modular Framesync

with Auto-Changeover and Character Burn

Product Manual

Cobalt Digital Inc.

2406 E. University Ave.
Urbana, IL 61802
Voice 217.344.1243 • Fax [phone]
www.cobaltdigital.com

PRELIMINARY BBG1040ACO-OM (V1.1P)

Copyright

©Copyright 2014, Cobalt Digital Inc. All Rights Reserved.

Duplication or distribution of this manual and any information contained within is strictly prohibited without the express written
permission of Coba lt Digital Inc. This manual and a ny information contained within, may not be re produced, distribute d, or
transmitted in any form, or by any means, for any purpose, without the express written permission of Cobalt Digital Inc.
Reproduction or reverse engineering of software used in this device is prohibited.

Disclaimer

This manual is PRELIMINARY.The information in this document has been carefully examined and is believed to be entirely
reliable. However, no responsibility is assumed for inaccuracies. Furthermore, Cobalt Digital Inc. reserves the right to make
changes to any products herein to improve readability, function, or design. Cobalt Digital Inc. does not assume any liability
arising out of the application or use of any pro duct or circu it des cribe d herei n.

Trademark Information

Cobalt® is a registered trademark of Cobalt Digital Inc.
openGear
Dolby

property of their respective owners.

®

is a registered trademark of Ross Video Limited. DashBoard™ is a trademark of Ross Video Limited.

®

is a registered trademark of Dolby Laboratories, Inc. Other product names or trademarks appearing in this manual are the

Congratulations on choosing the Cobalt
Changeover and Character Burn. The BBG-1040-ACO is part of a full line of modular processing and
conversion gear for broadcast TV environments. The Cobalt Digital Inc. line includes video decoders and
encoders, audio embedders and de-embedders, distribution amplifiers, format converters, remote control
systems and much more. Should you have questions pertaining to the installation or operation of your BBG­1040-ACO, please contac t us at the conta ct infor mat ion on t he front cover.

®

BBG-1040-ACO Multi-Input Modular Framesync with Auto-

Manual No.: BBG1040ACO-OM
Document Version: V1.1P
Release Date: January 2, 2015
Applicable for

Firmware Version

1.00.0000

(or greater):
Description of

product/manual

- Original release (preliminary)

- Add product dimensional drawings to aid in installation.

changes:

BBG1040ACO-OM (V1.1P)

Table of Contents

Chapter 1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Overview ................................................................................................................ 1-1

Cobalt Reference Guides........................................................................................ 1-1

Manual Conventions............................................................................................... 1-2

Warnings, Cautions, and Notes .................................................................. 1-2

Labeling Symbol Definitions...................................................................... 1-3

Safety Summary ..................................................................................................... 1-3

Warnings..................................................................................................... 1-3

Cautions...................................................................................................... 1-3

BBG-1040-ACO Functional Description............................................................... 1-4

BBG-1040-ACO Input/Output Formats..................................................... 1-4

Video Processor Description ...................................................................... 1-6

Audio Processor Description...................................................................... 1-9

User Control Interface .............................................................................. 1-10

Technical Specifications....................................................................................... 1-10

Warranty and Service Information ....................................................................... 1-12

Cobalt Digital Inc. Limited Warranty....................................................... 1-12

Contact Cobalt Digital Inc.................................................................................... 1-13

Chapter 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Overview ................................................................................................................ 2-1

Installing the BBG-1040-ACO............................................................................... 2-1

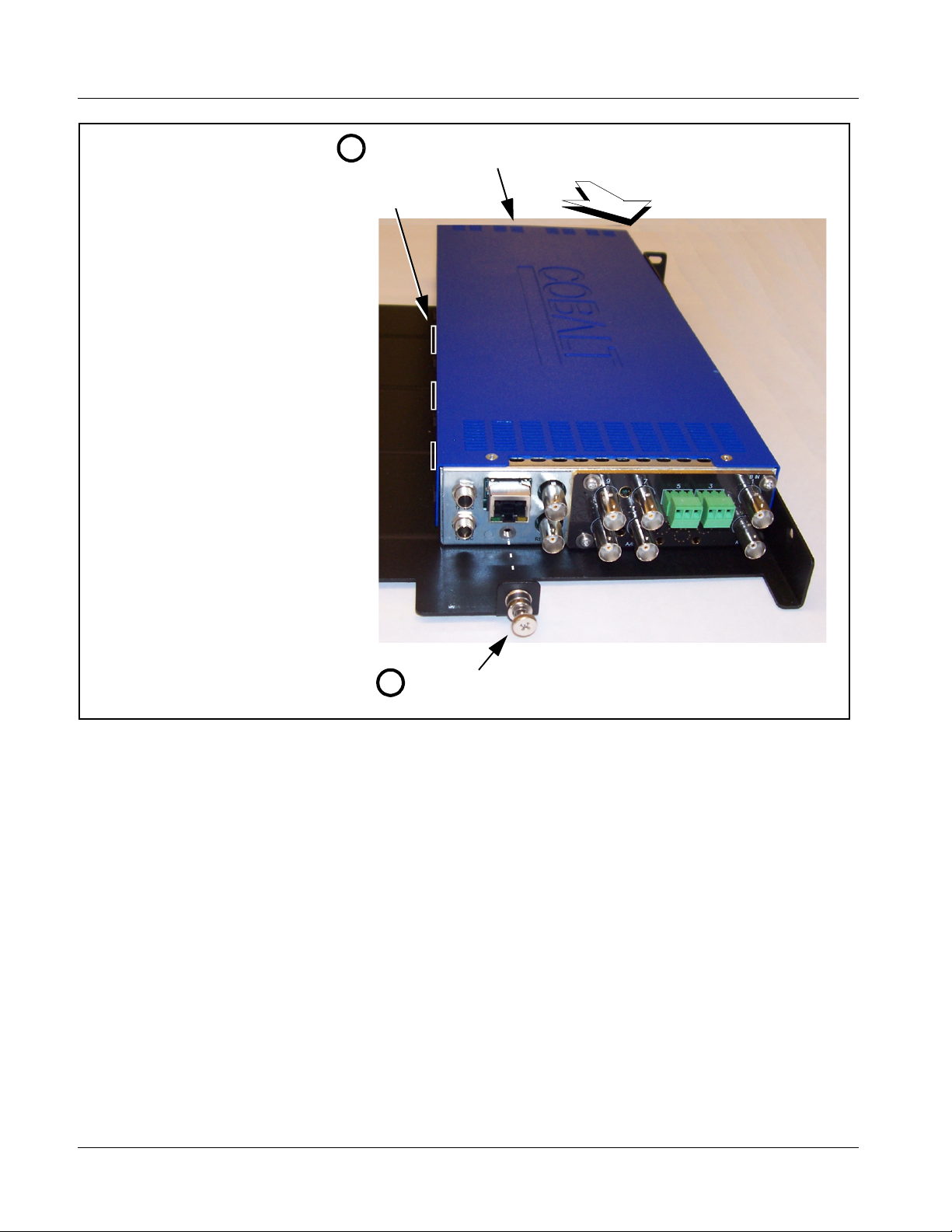

Installing Using BBG-1000-TRAY Optional Mounting Tray ................... 2-1

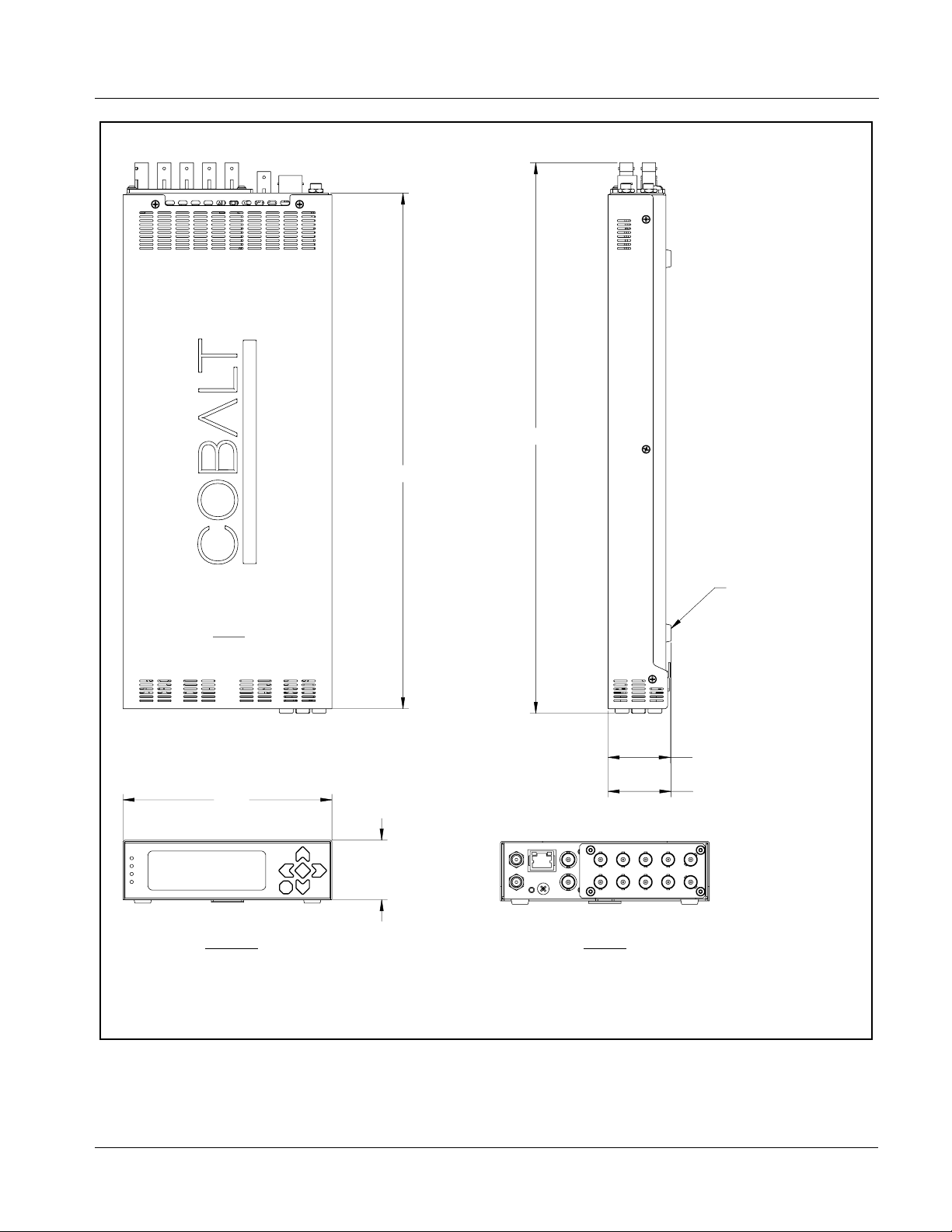

BBG-1040-ACO Unit Dimensions............................................................. 2-2

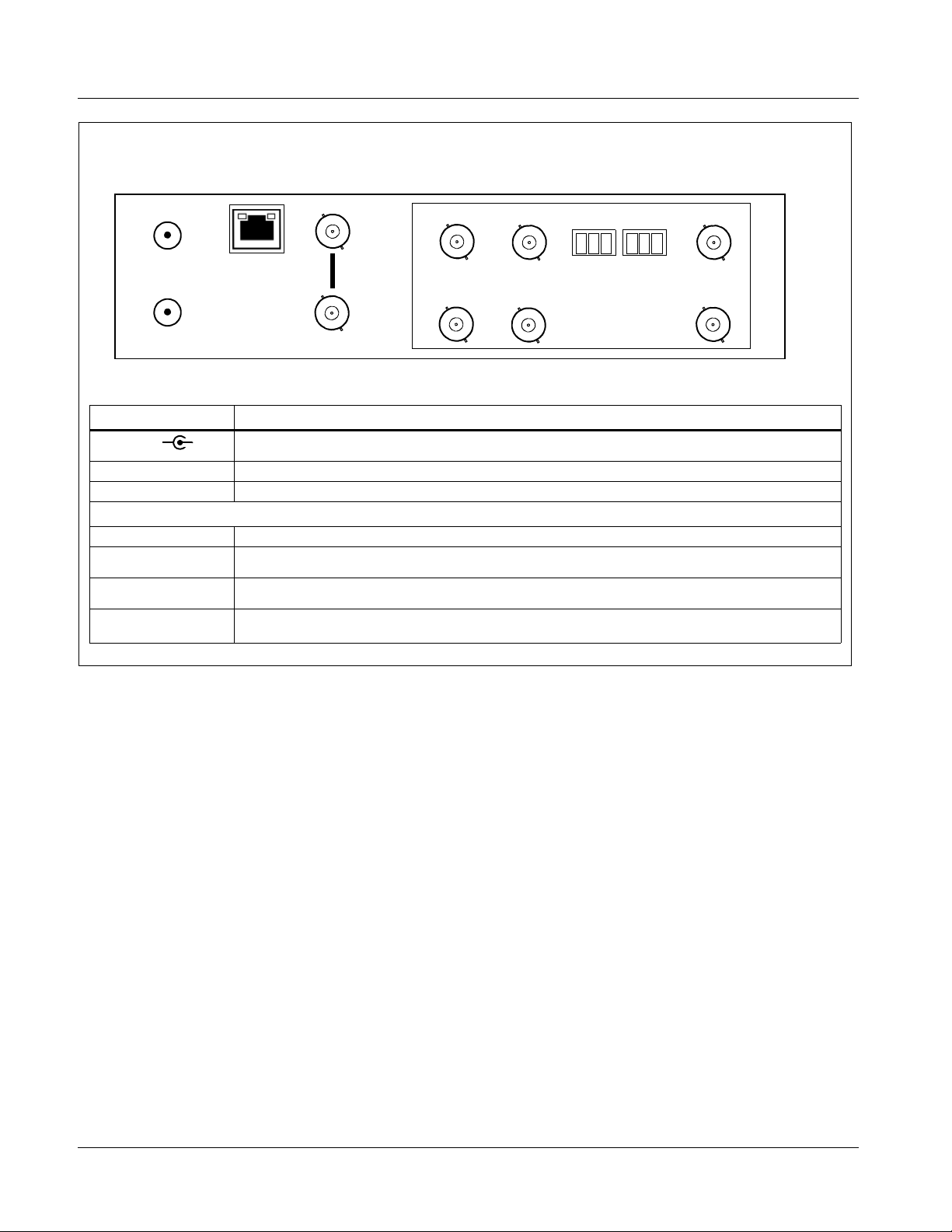

Rear Panel Connections.......................................................................................... 2-2

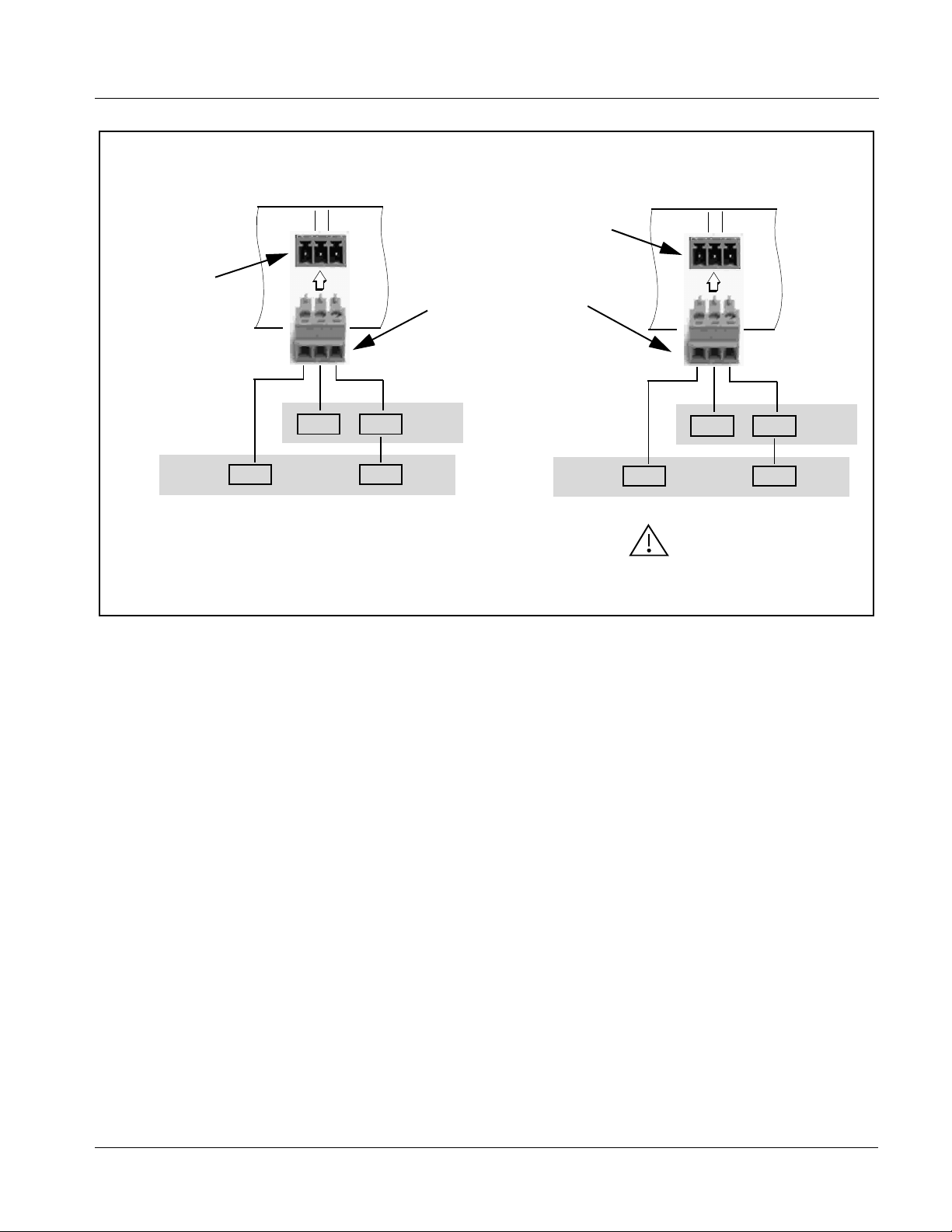

GPIO Connections.................................................................................................. 2-4

Chapter 3 Setup/Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Overview ................................................................................................................ 3-1

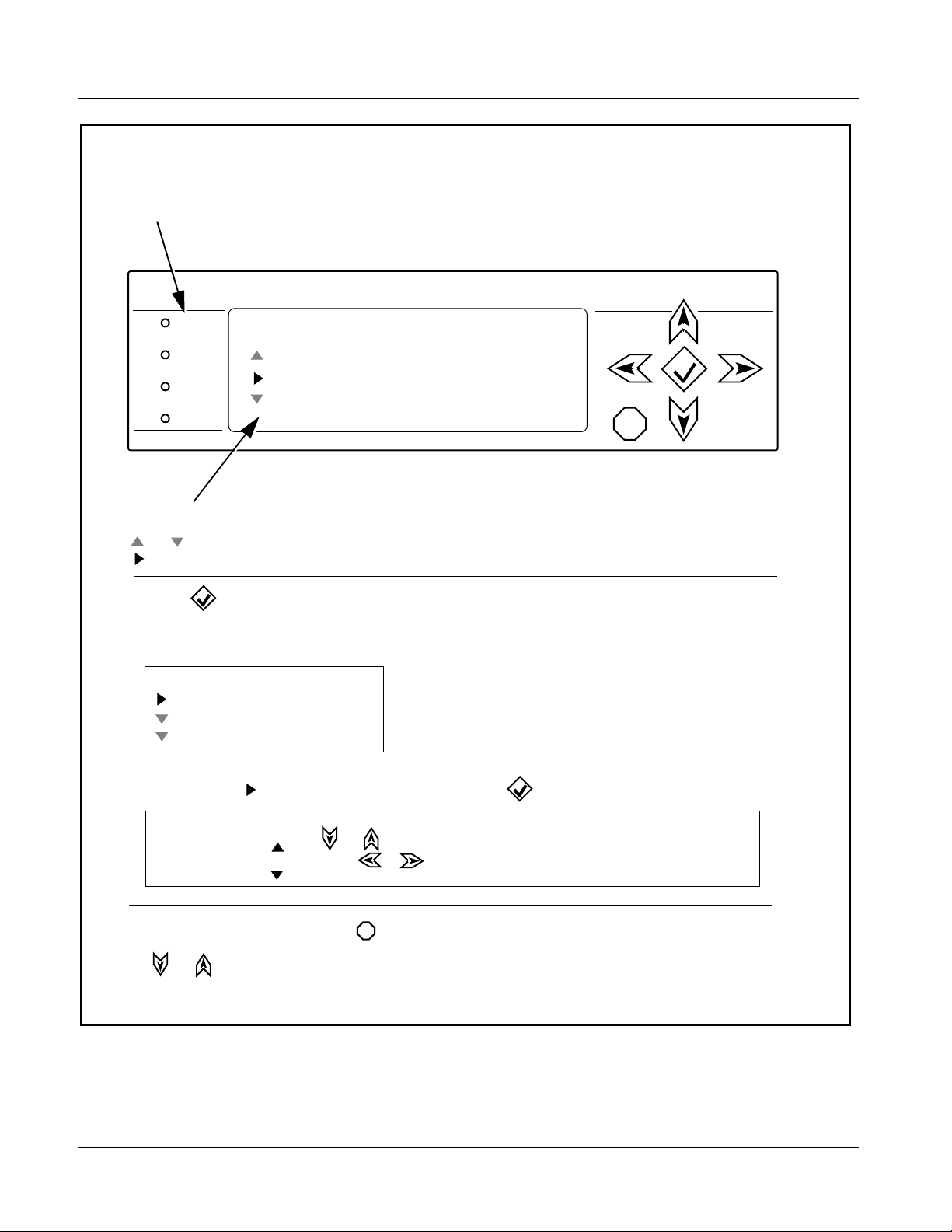

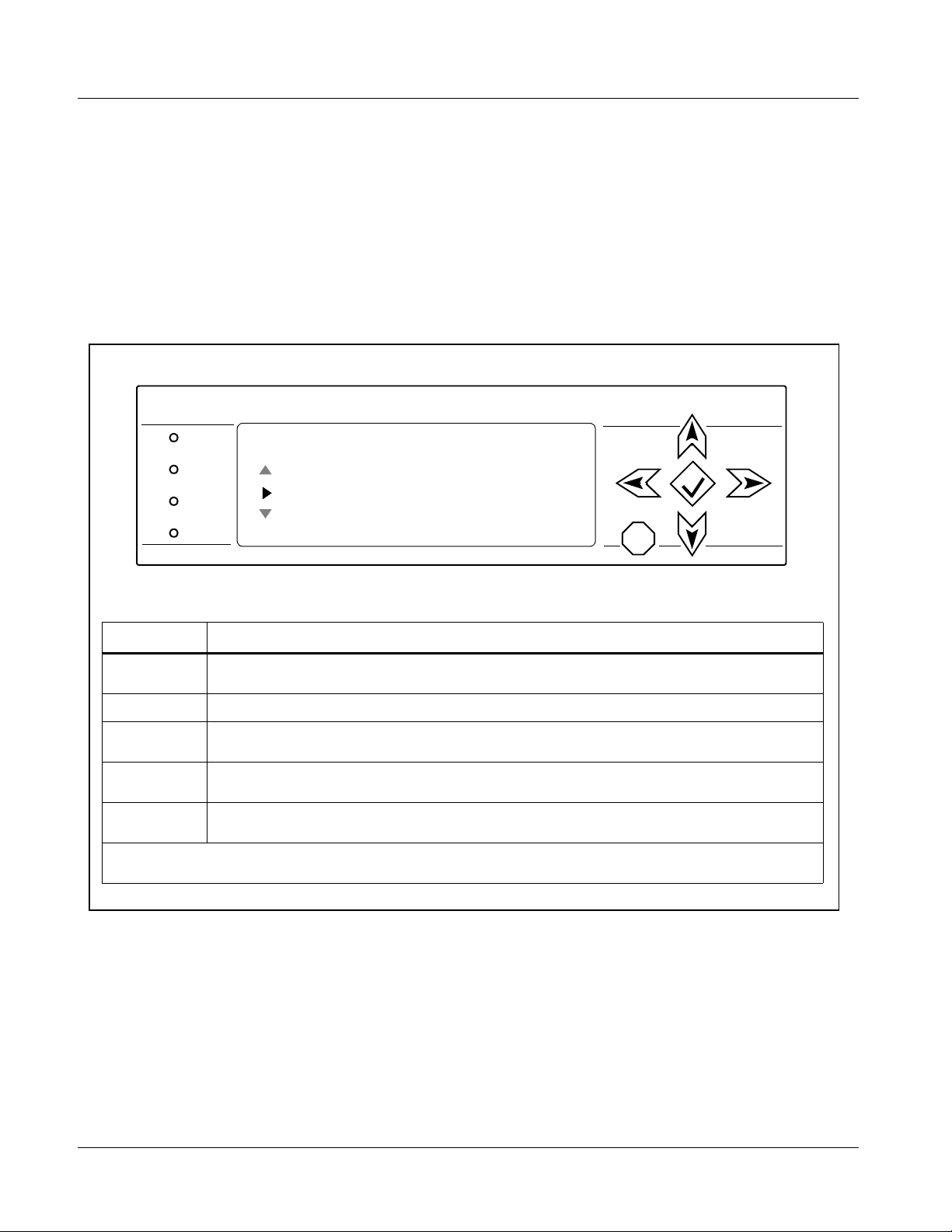

BBG-1040 Front Panel Display and Menu-Accessed Control............................... 3-1

Connecting BBG-1040 To Your Network.............................................................. 3-3

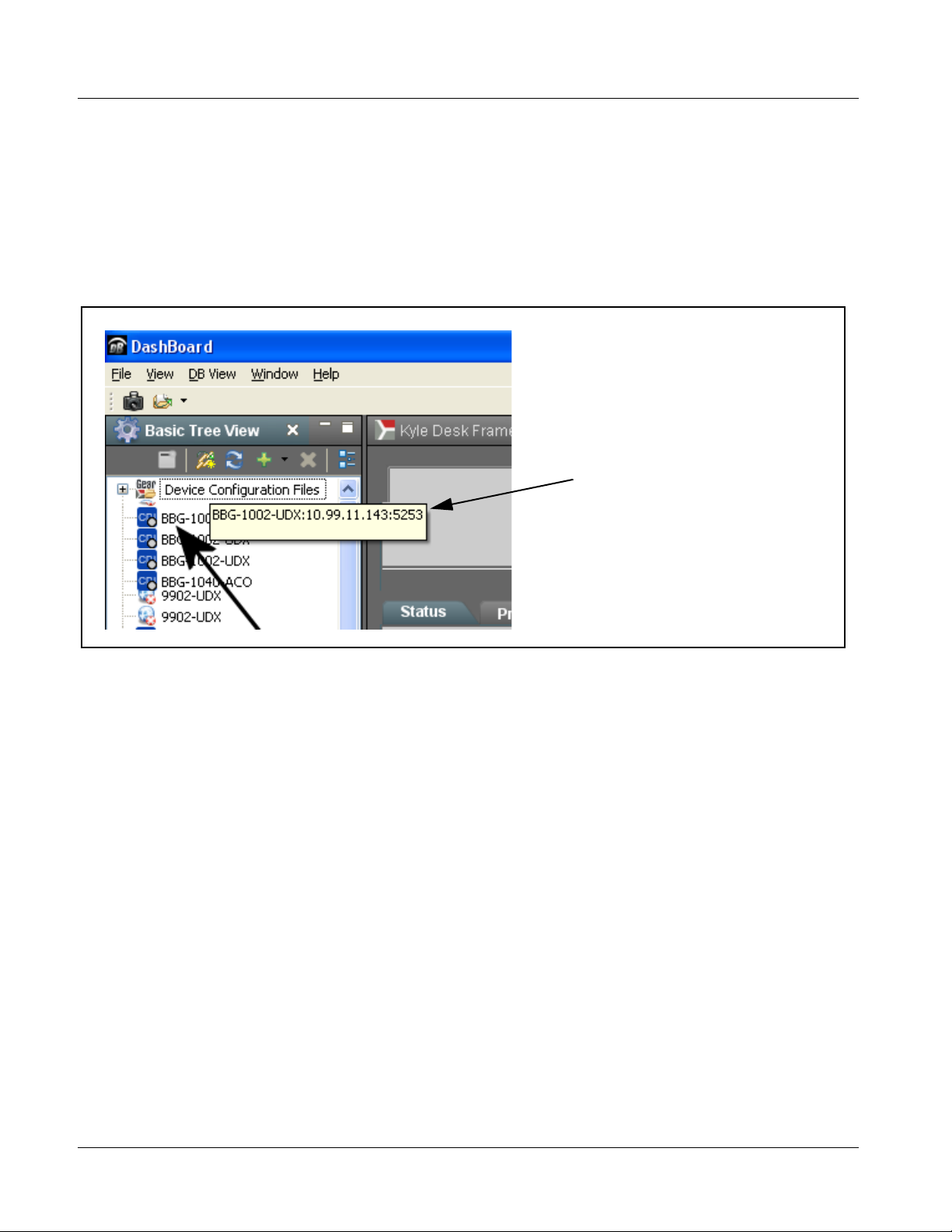

Finding a BBG-1040 Device in DashBoard............................................... 3-4

Control and Display Descriptions........................................................................... 3-5

Function Submenu/Parameter Submenu Overview.................................... 3-5

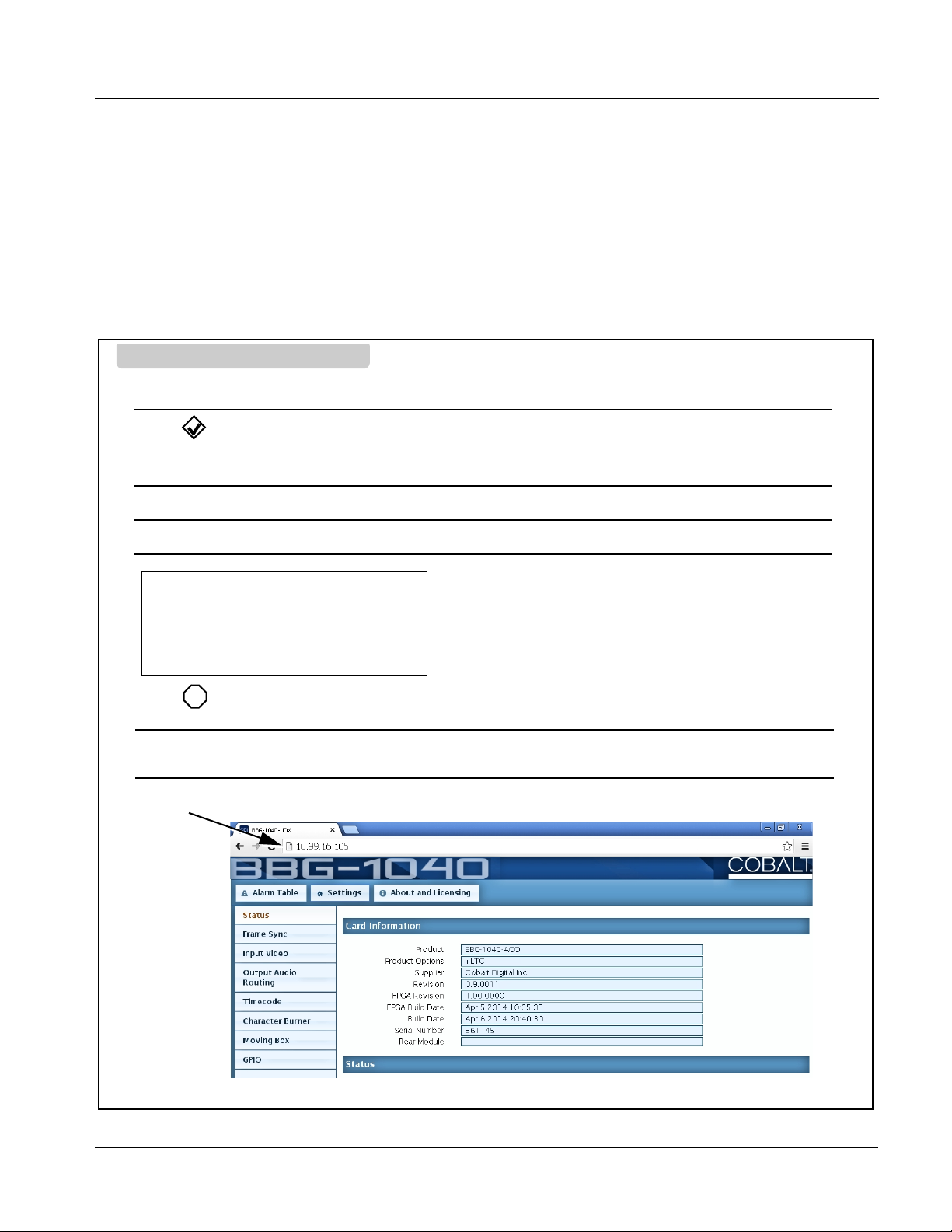

Web User Interface..................................................................................... 3-6

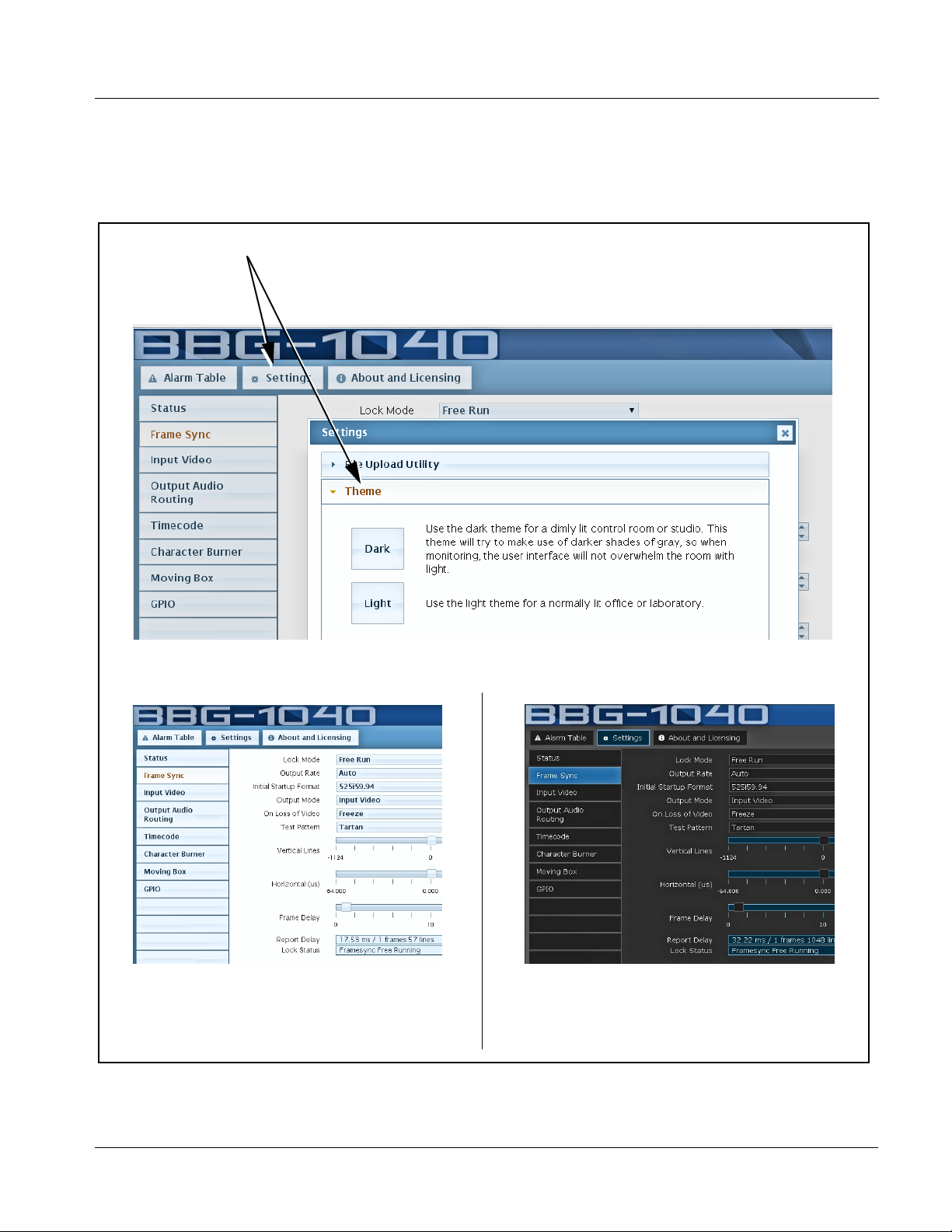

Display Theme............................................................................................ 3-7

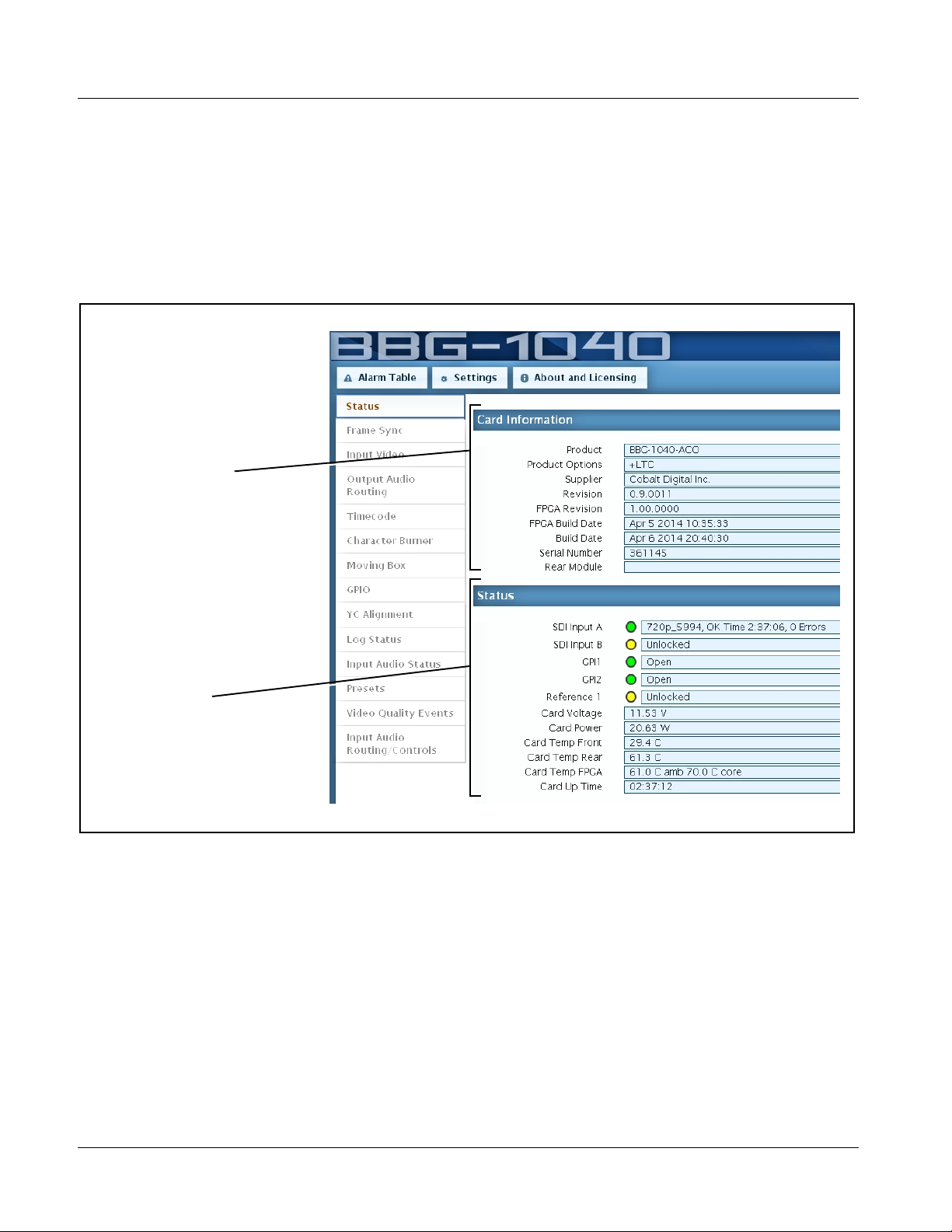

Checking BBG-1040-ACO Device Information.................................................... 3-8

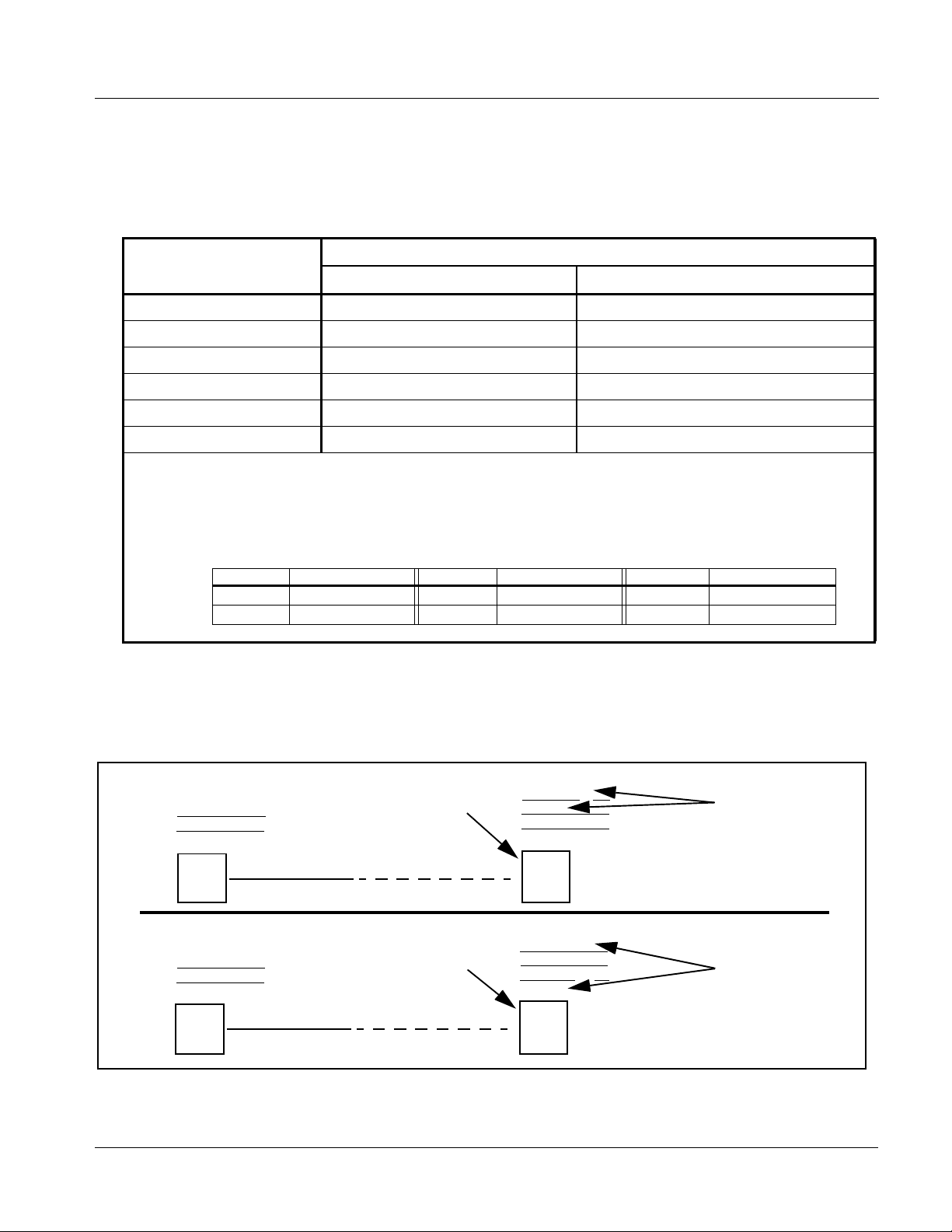

Ancillary Data Line Number Locations and Ranges.............................................. 3-9

BBG1040A CO-OM (V1.1 P) BBG-1040-ACO PRODUCT MANUAL i

BBG-1040-ACO Function Menu List and Descriptions....................................... 3-10

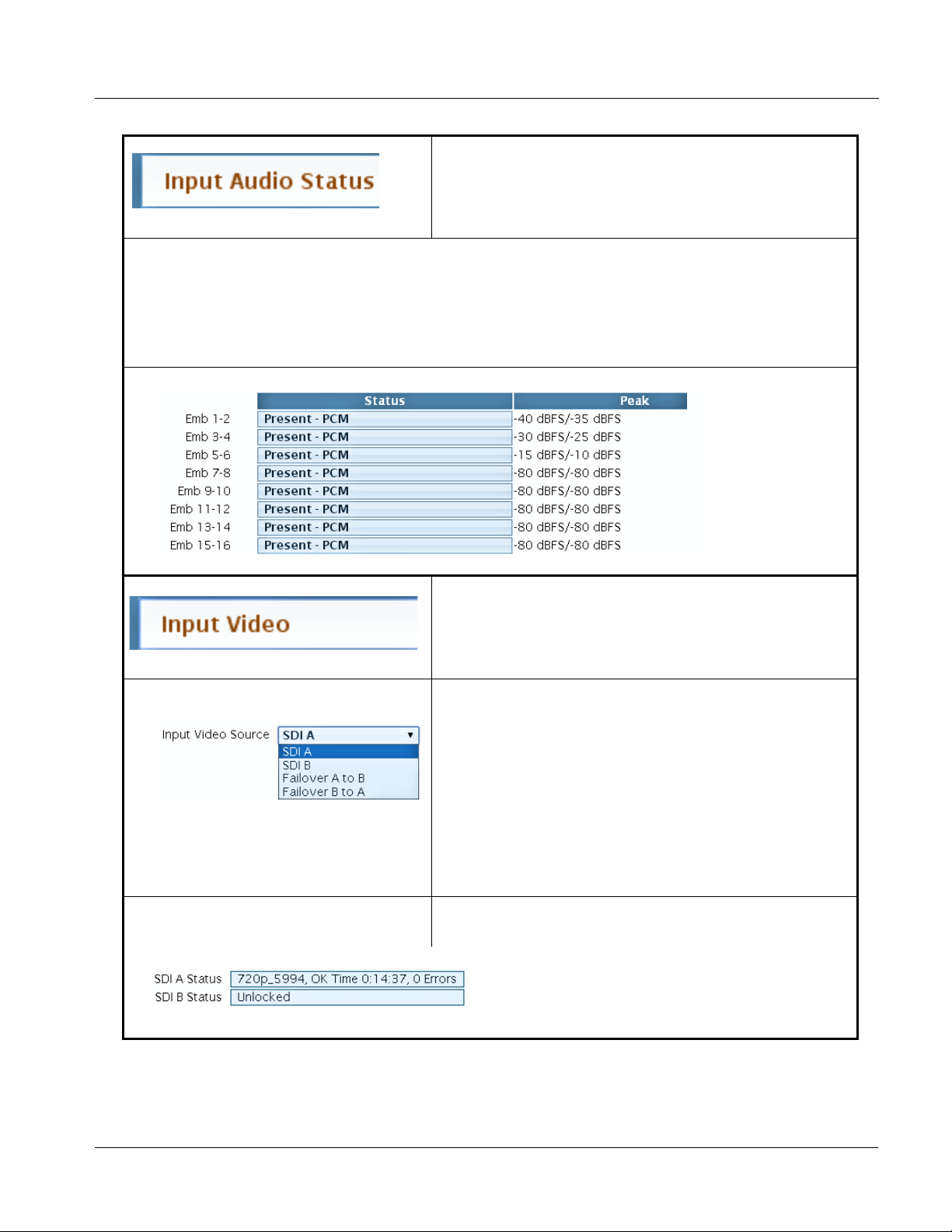

Input Audio Status .................................................................................... 3-11

Input Video Controls ................................................................................ 3-11

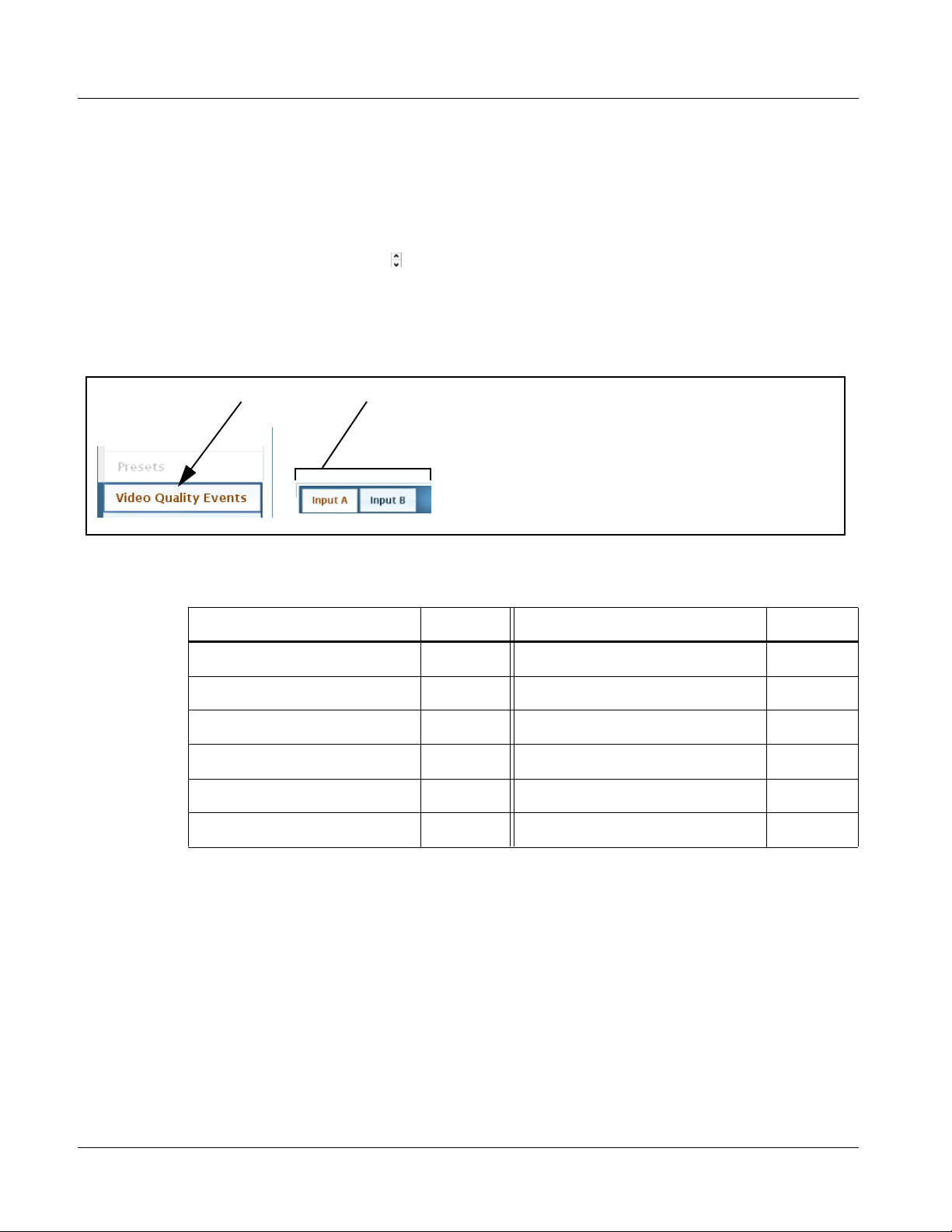

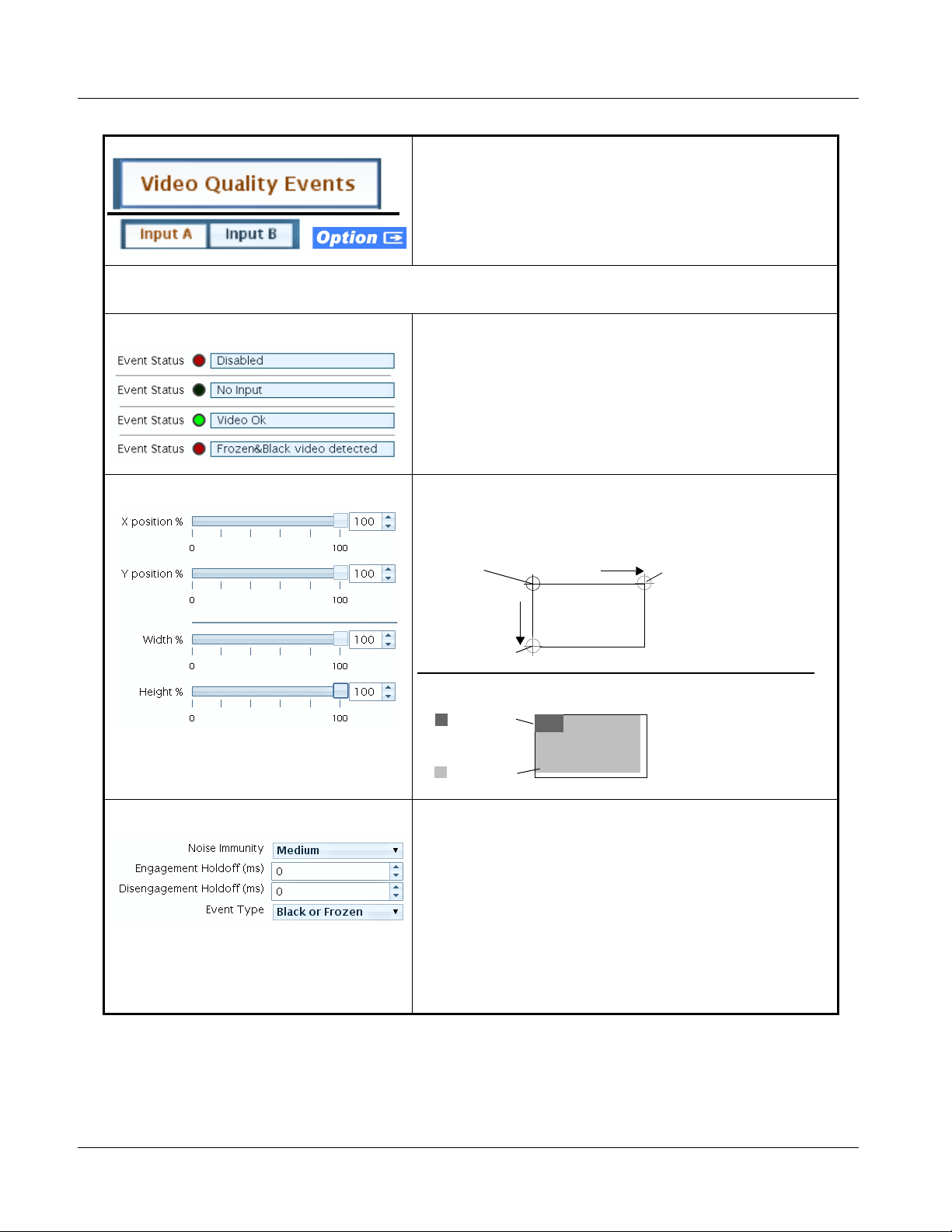

Video Quality Events ............................................................................... 3-12

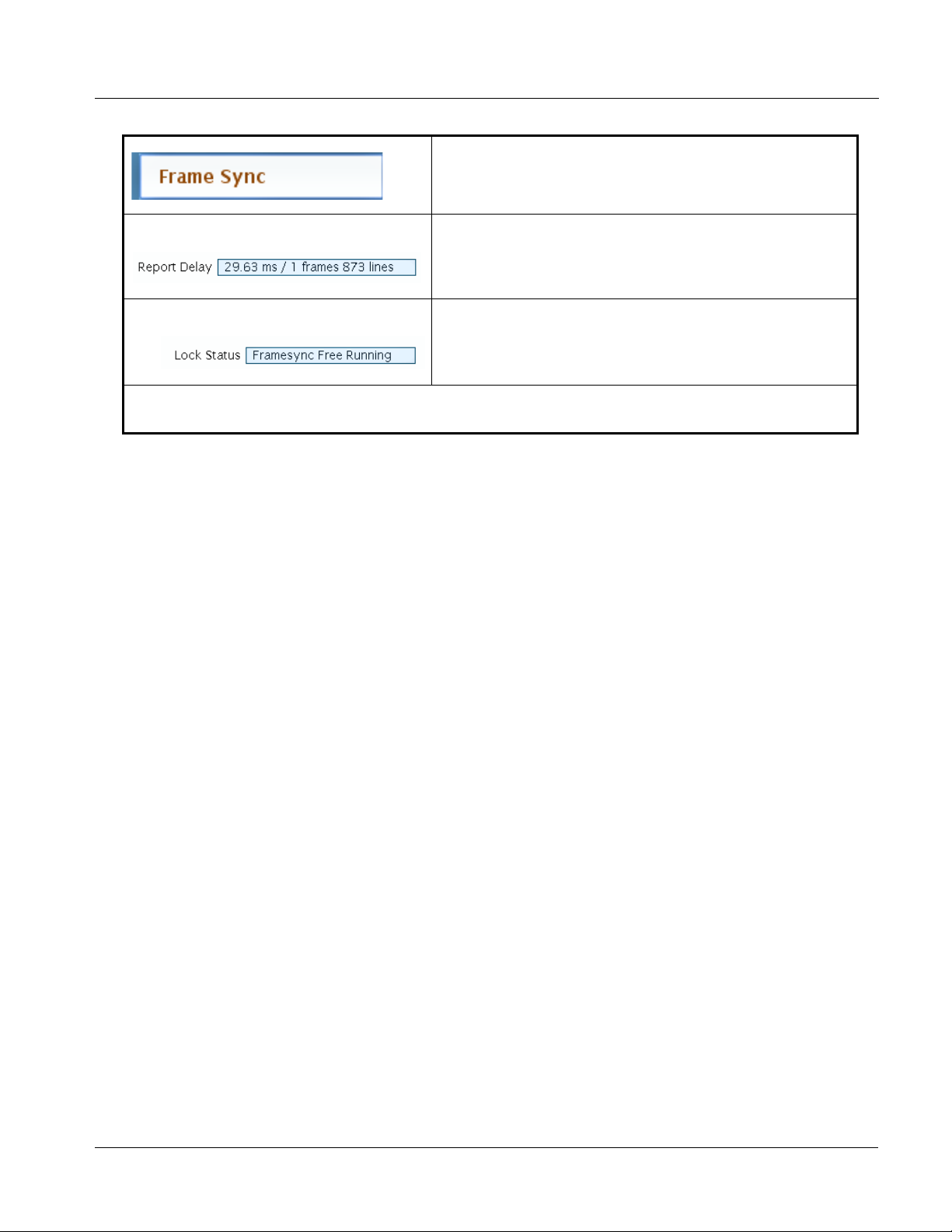

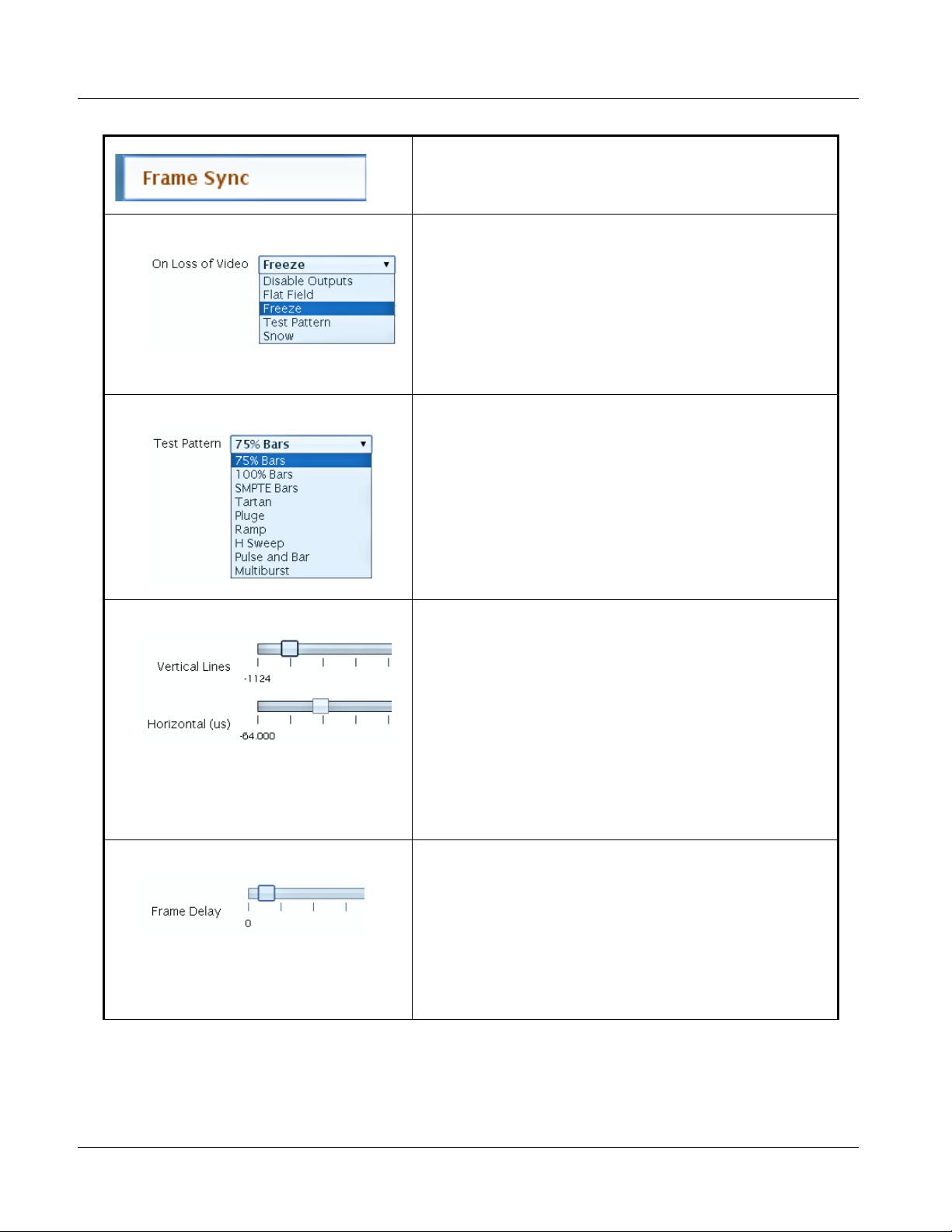

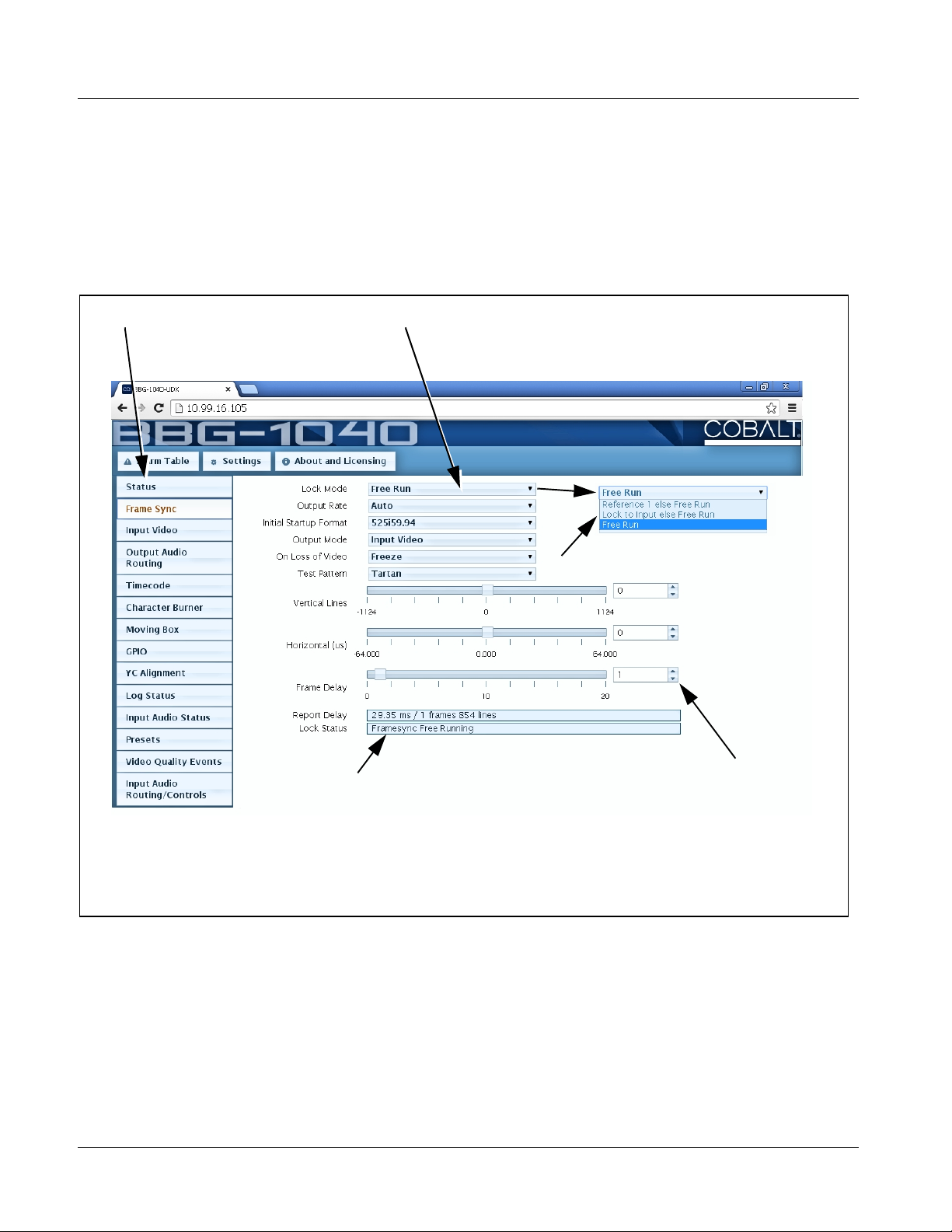

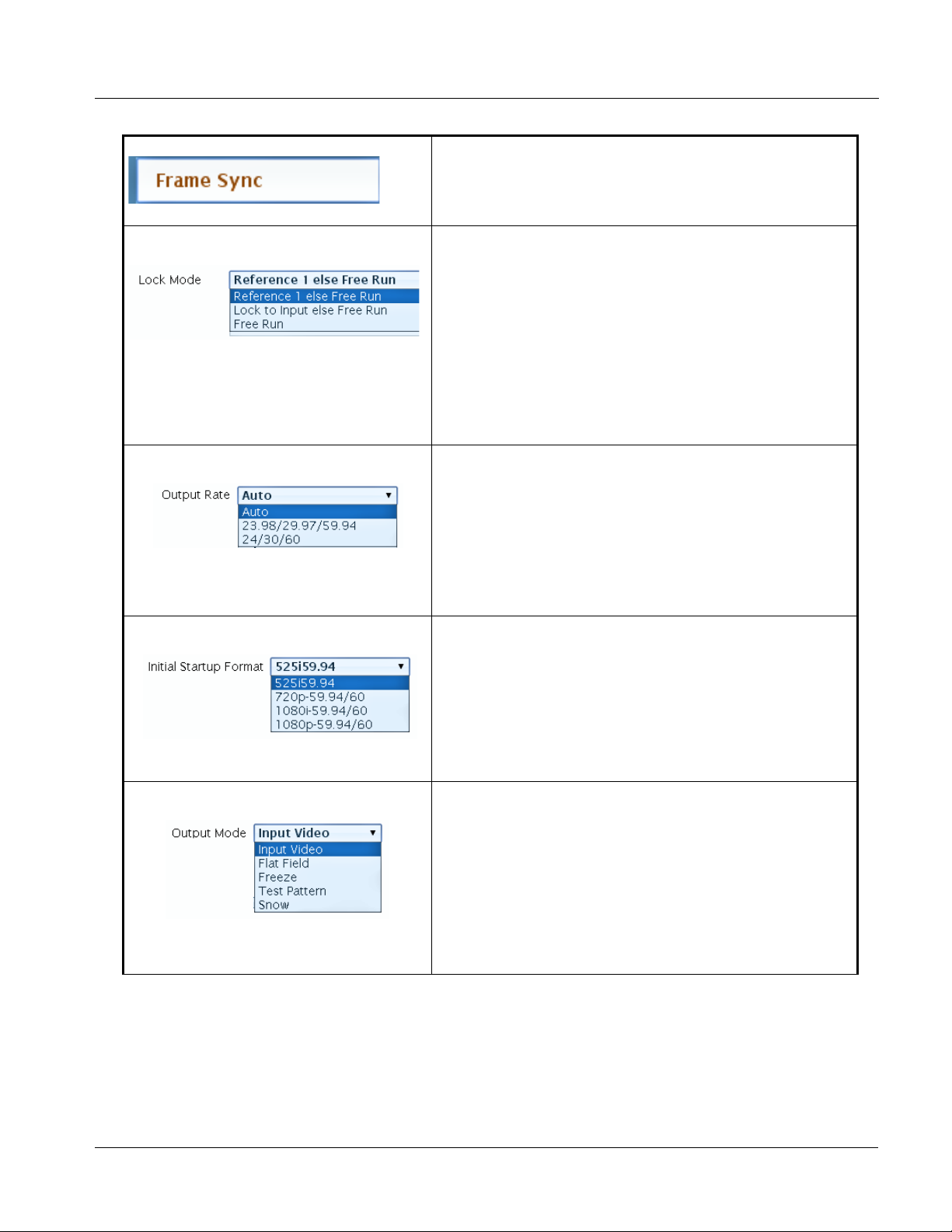

Framesync ................................................................................................ 3-13

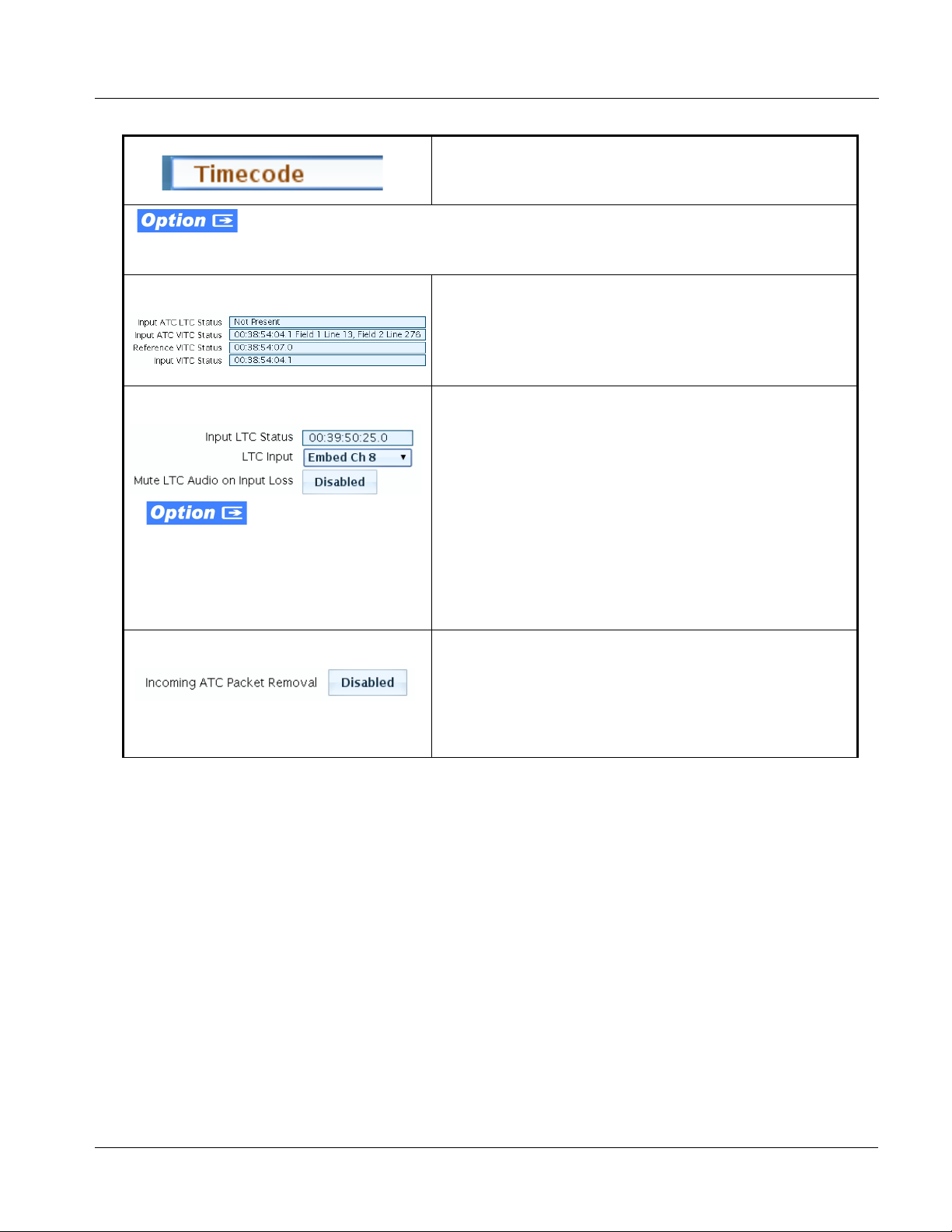

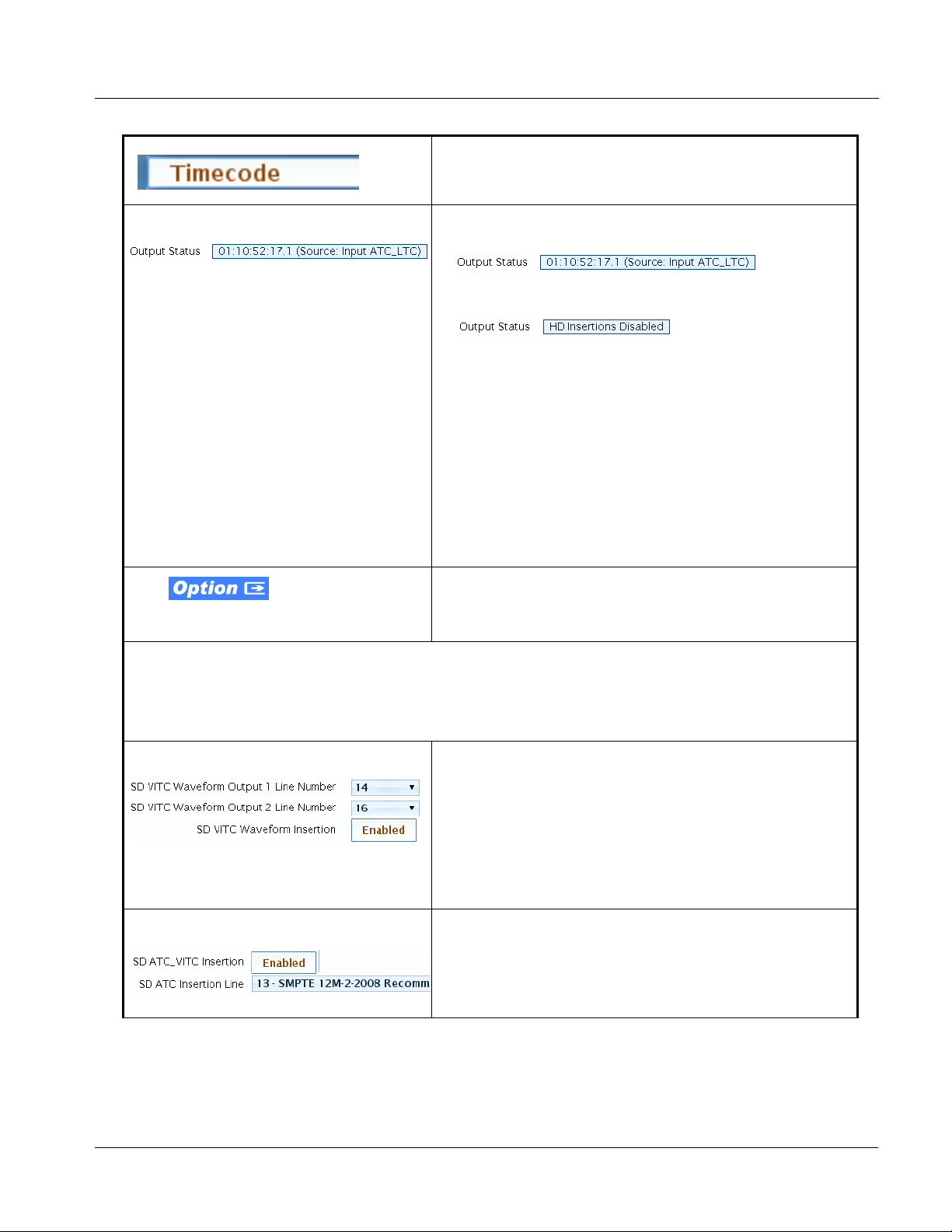

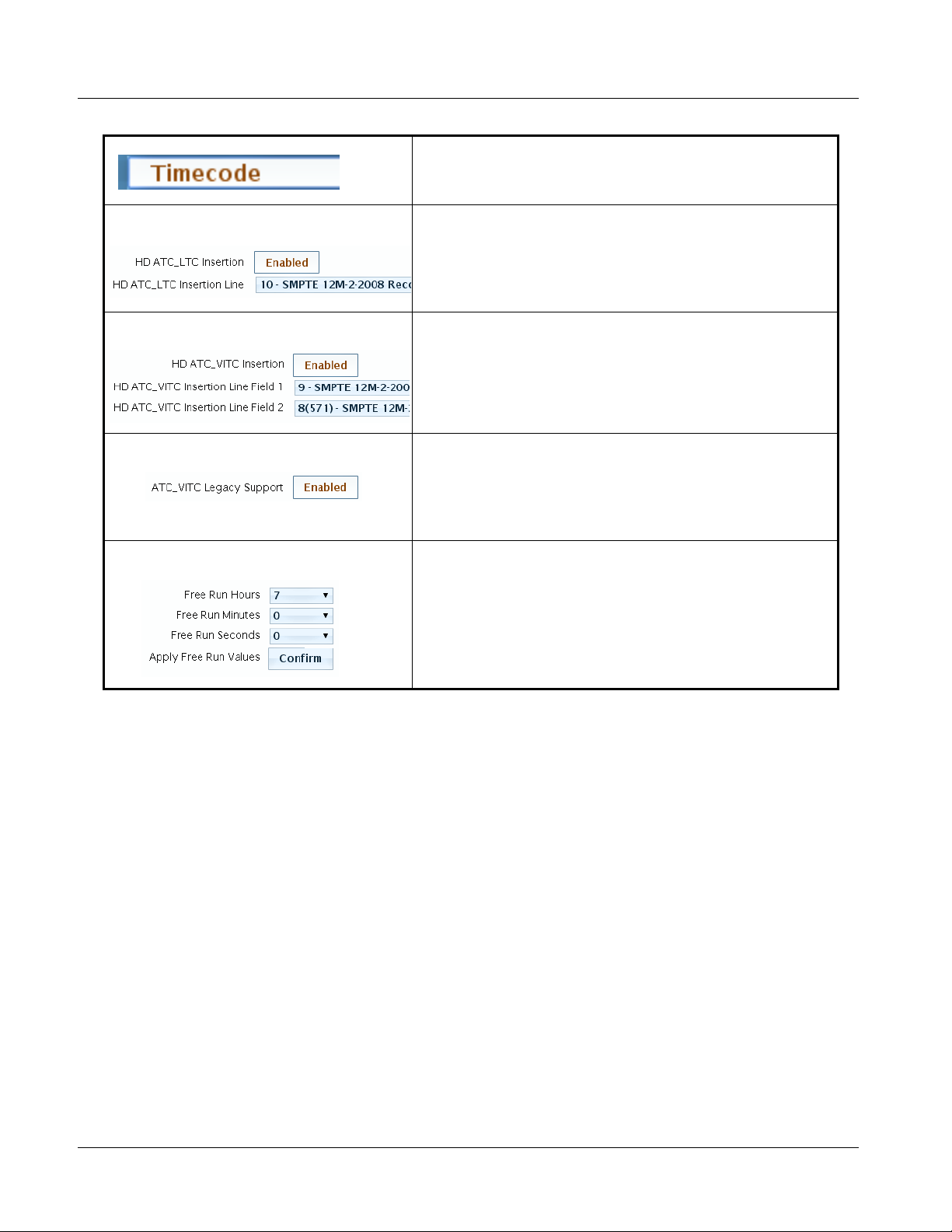

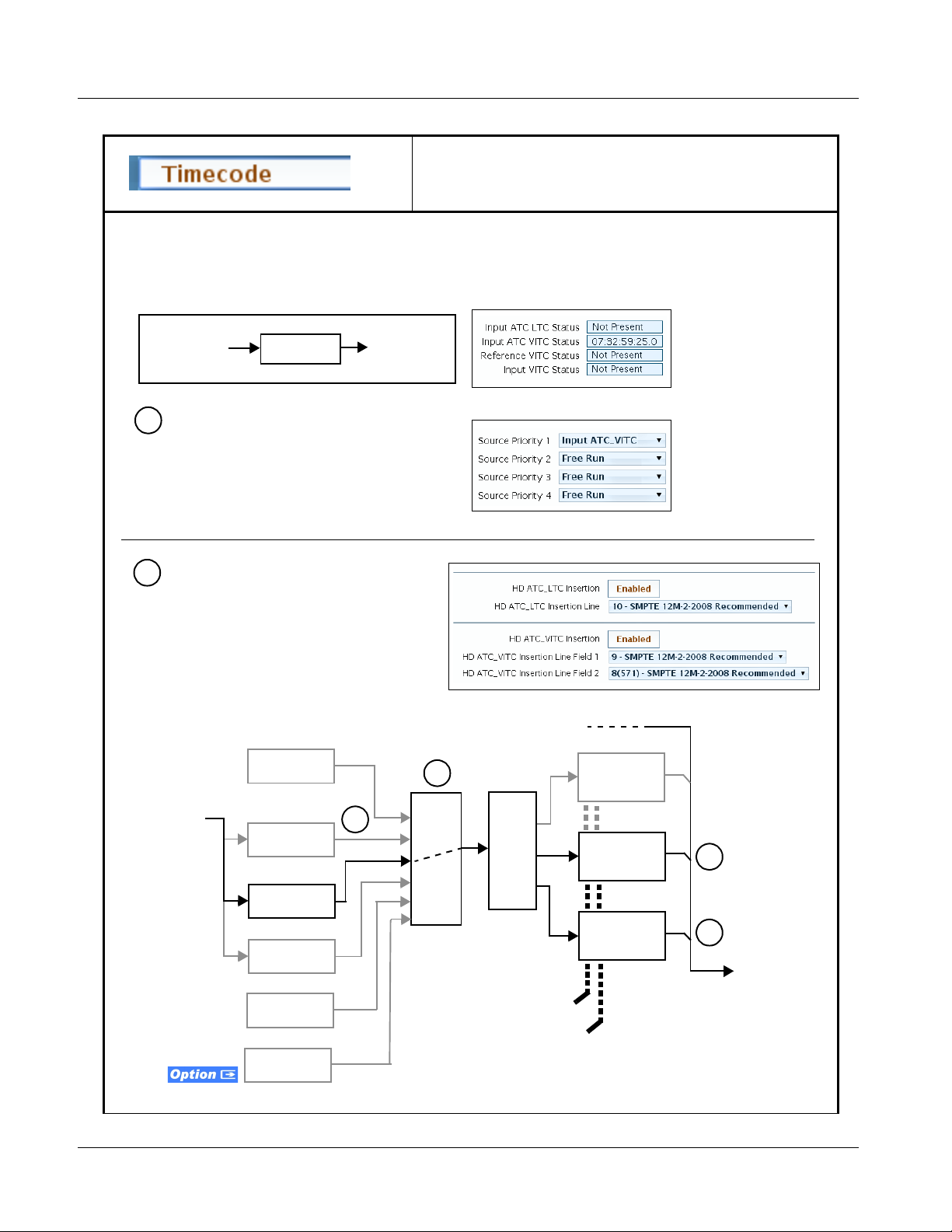

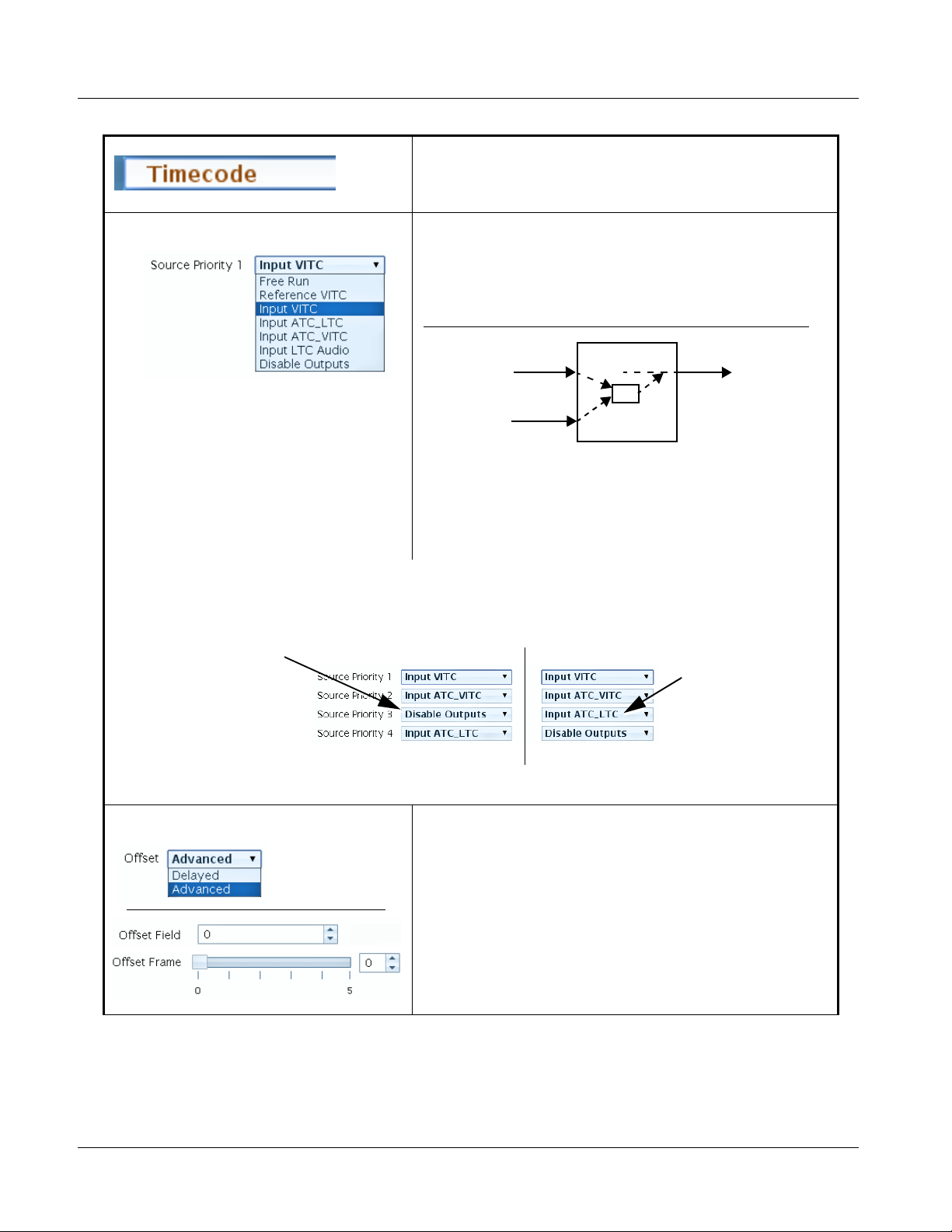

Timecode .................................................................................................. 3-16

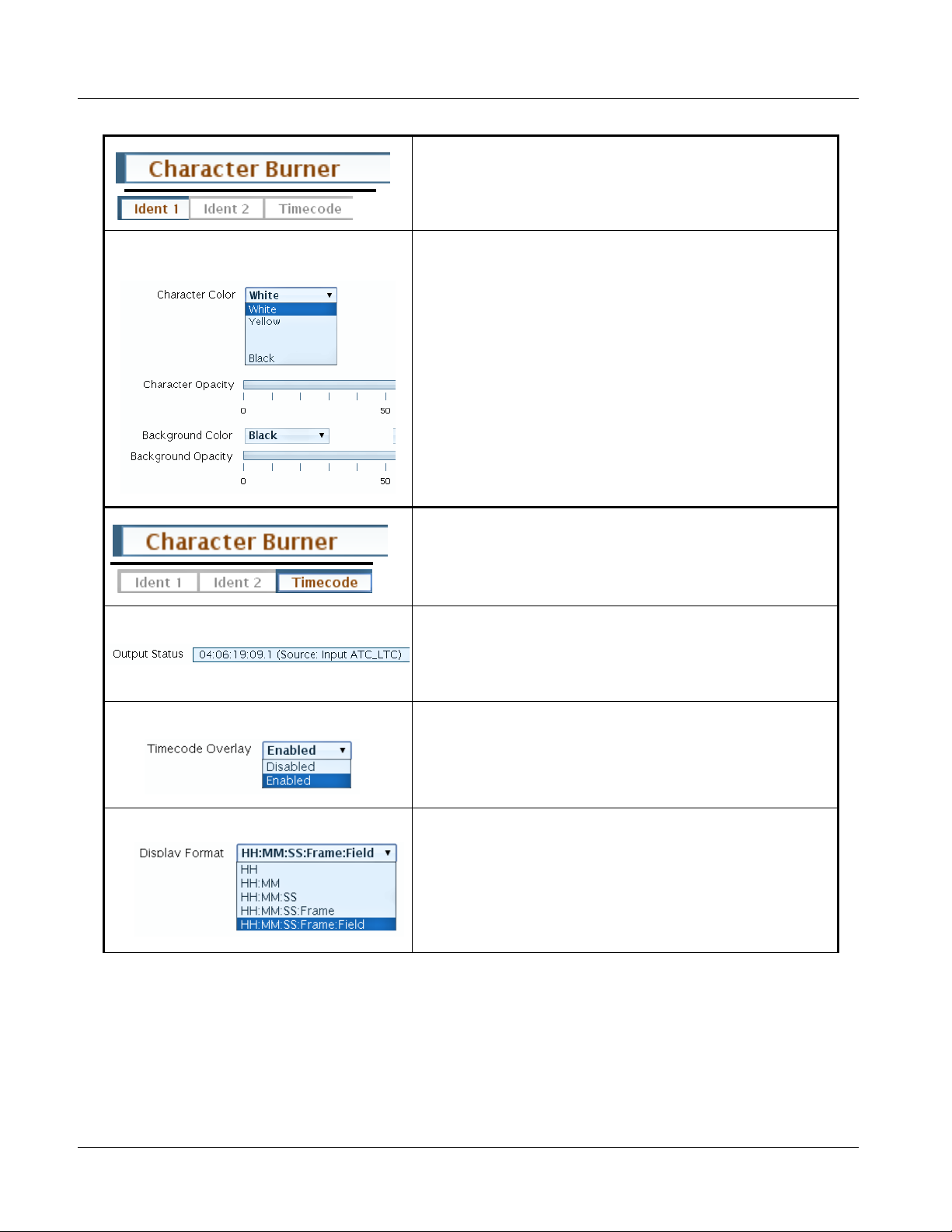

Character Burner ...................................................................................... 3-21

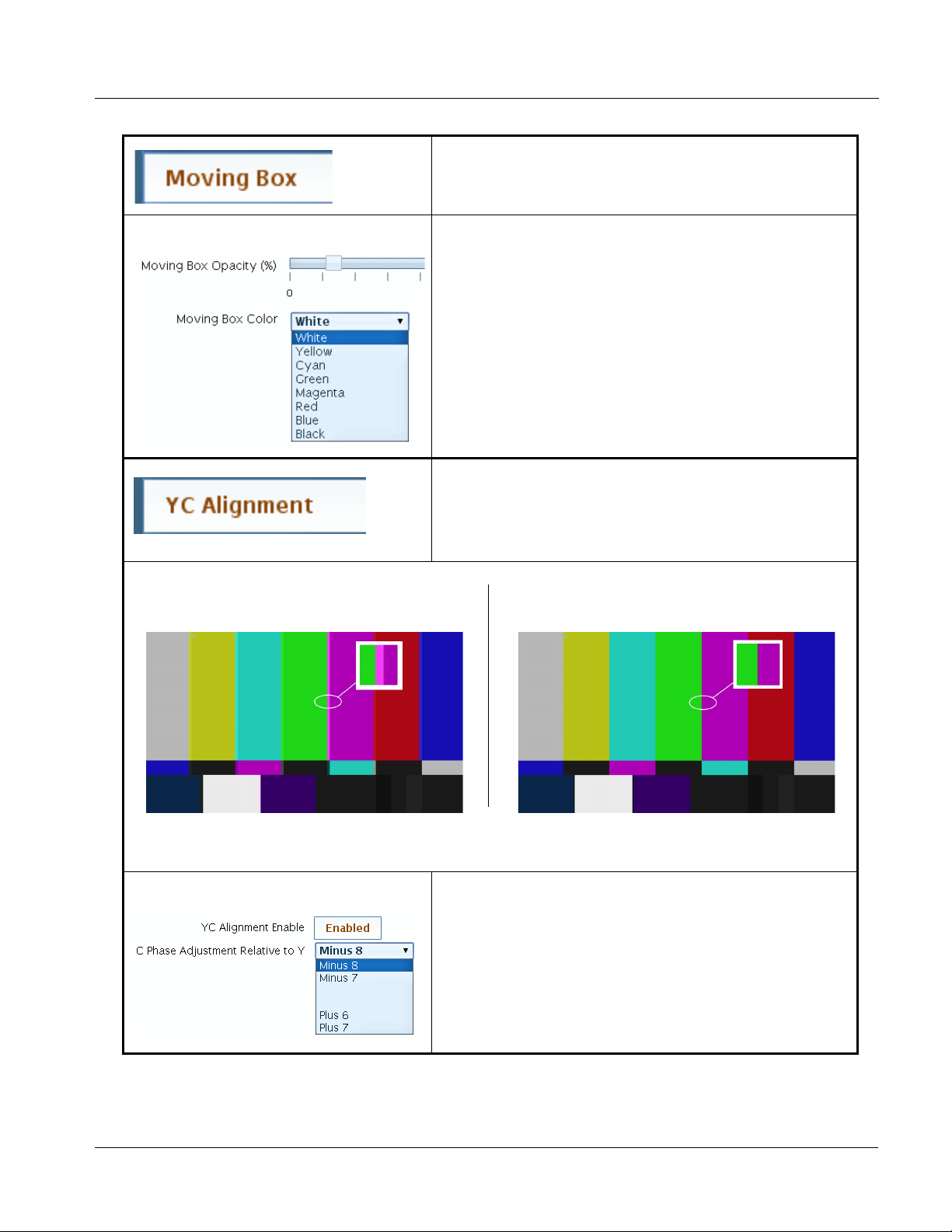

Moving Box Insertion .............................................................................. 3-24

Y/C Alignment Controls .......................................................................... 3-25

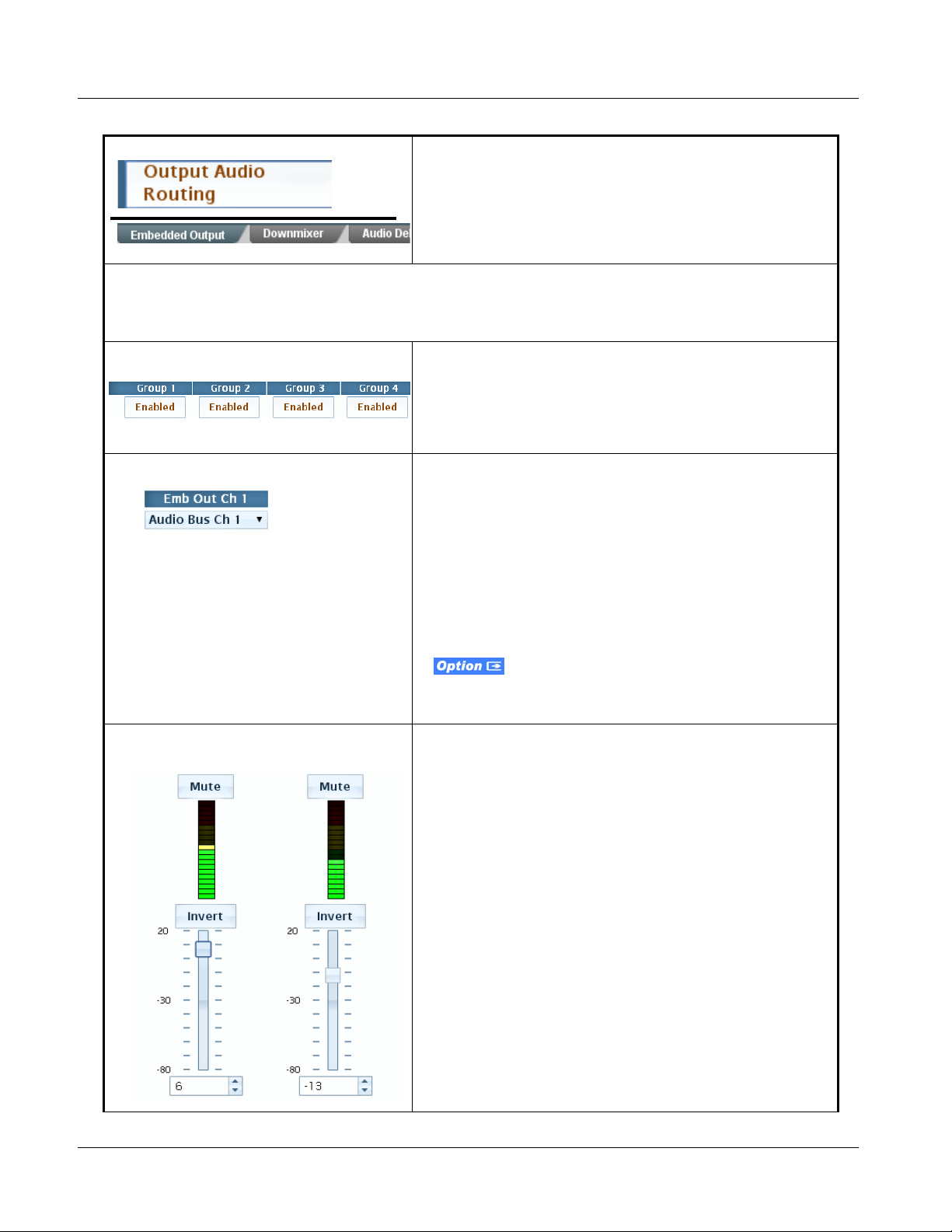

Output Audio Routing/Controls ............................................................... 3-26

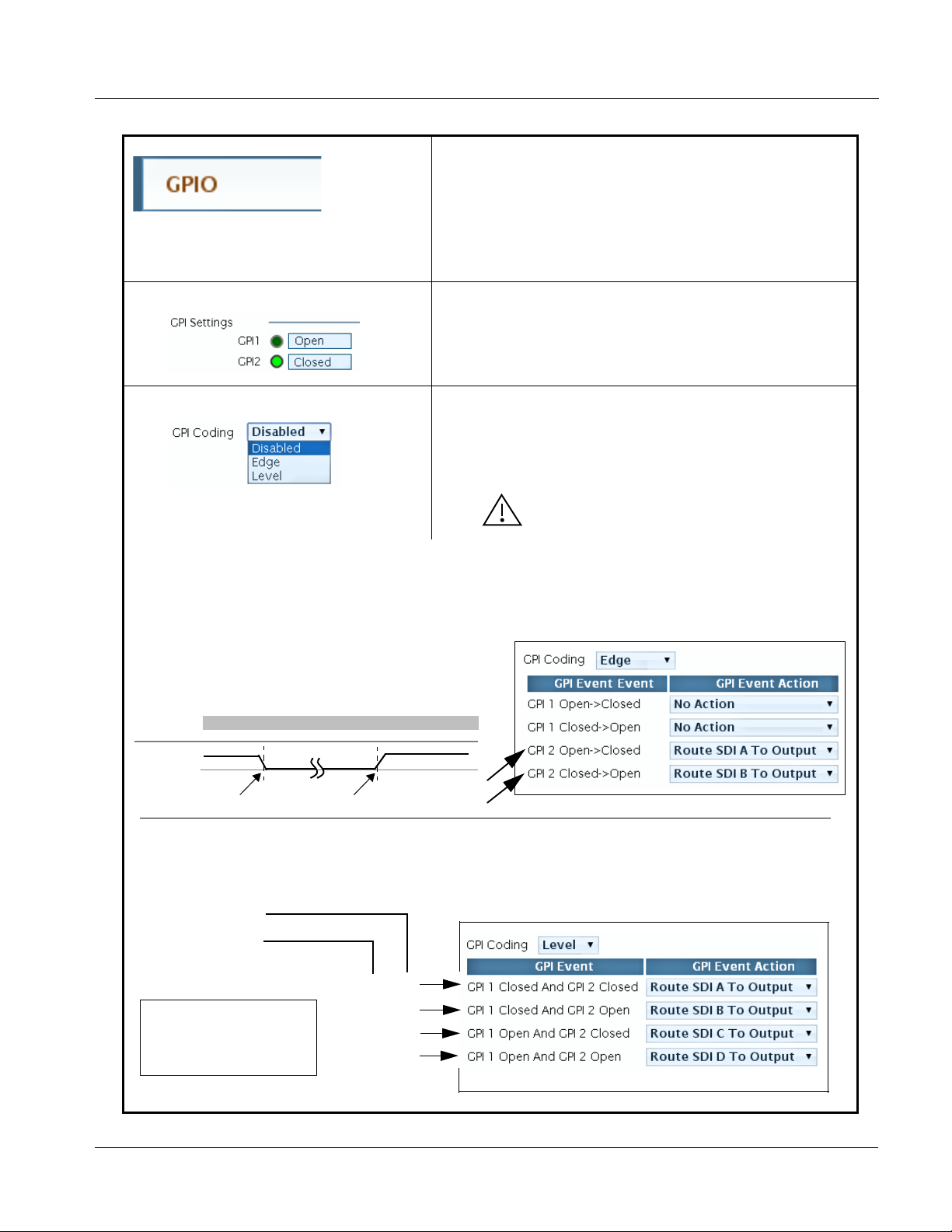

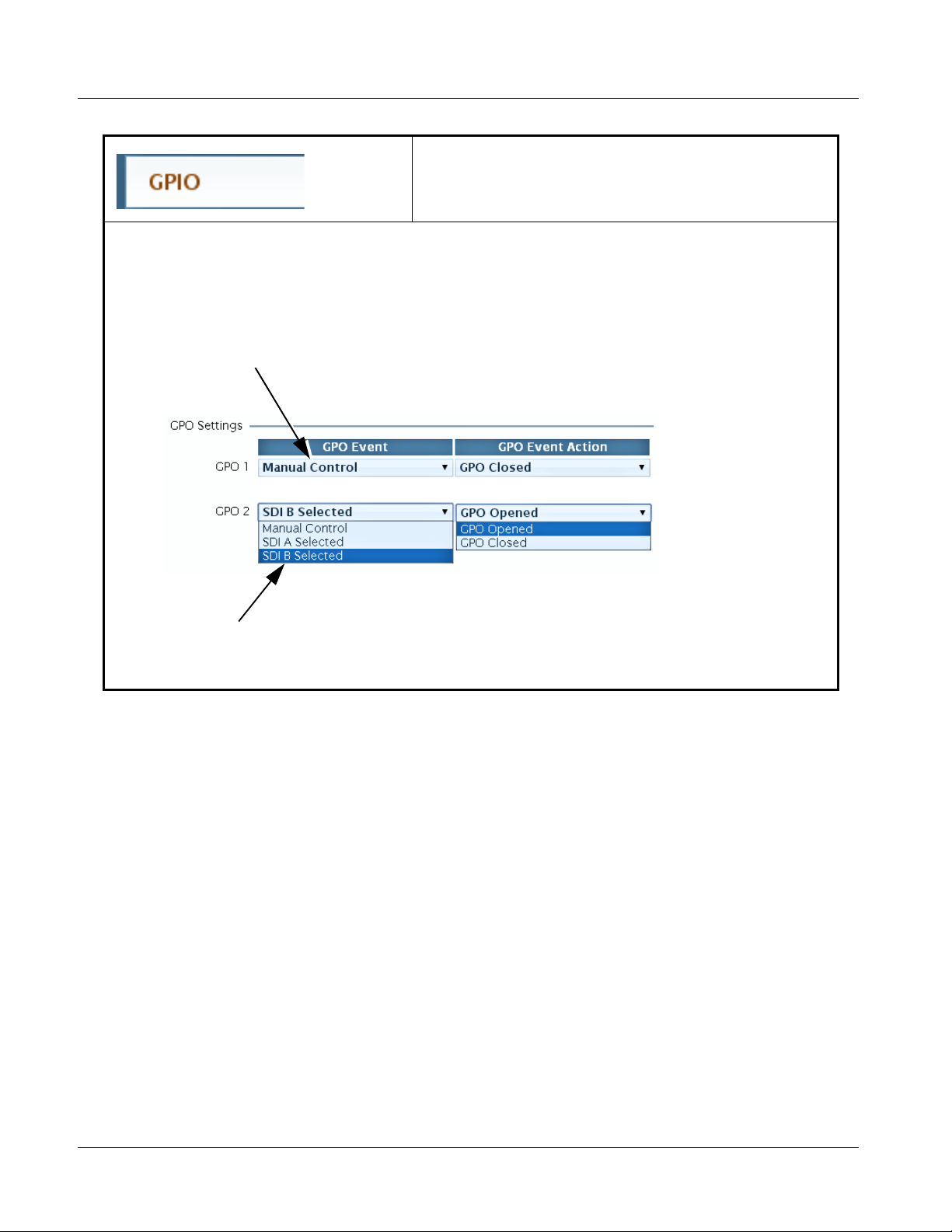

GPIO Controls .......................................................................................... 3-29

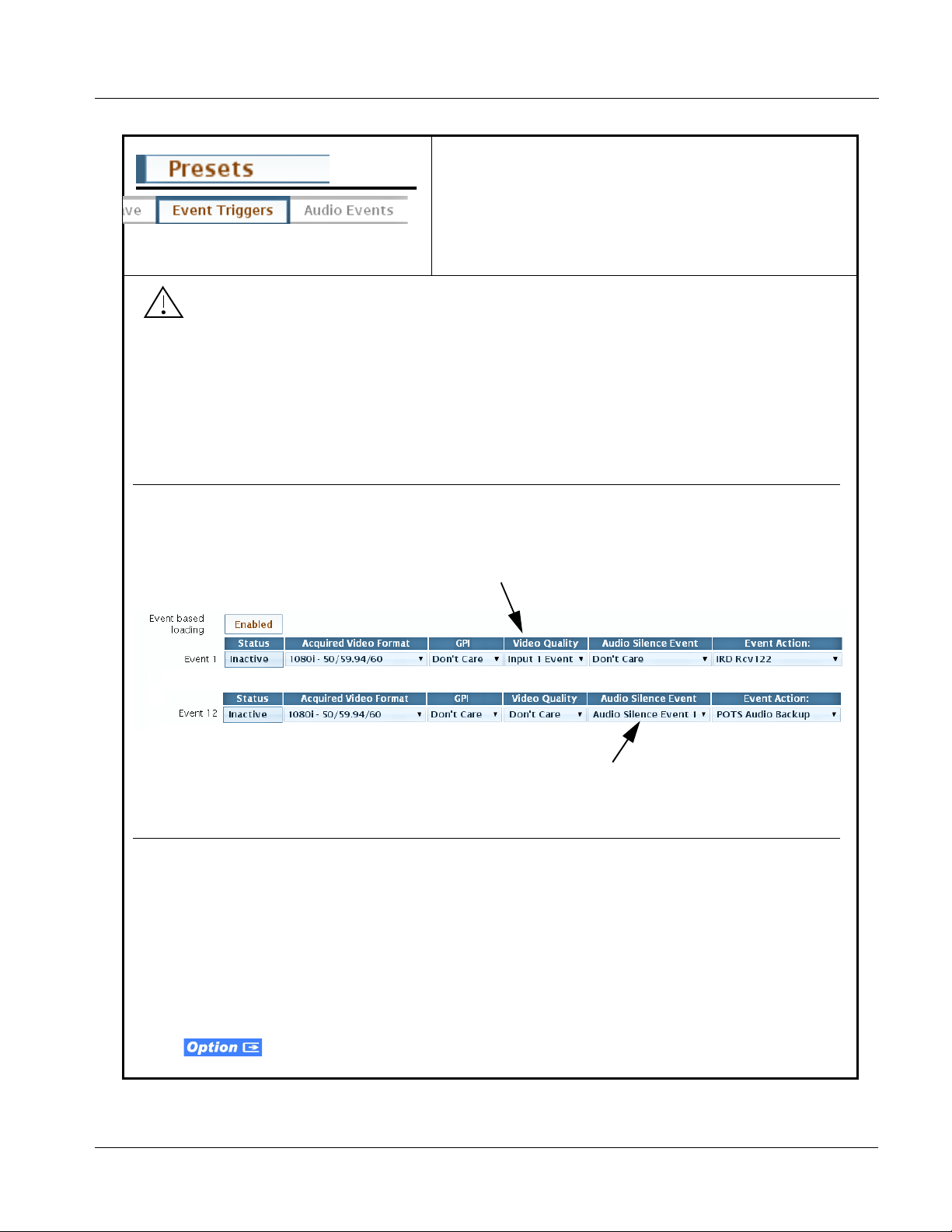

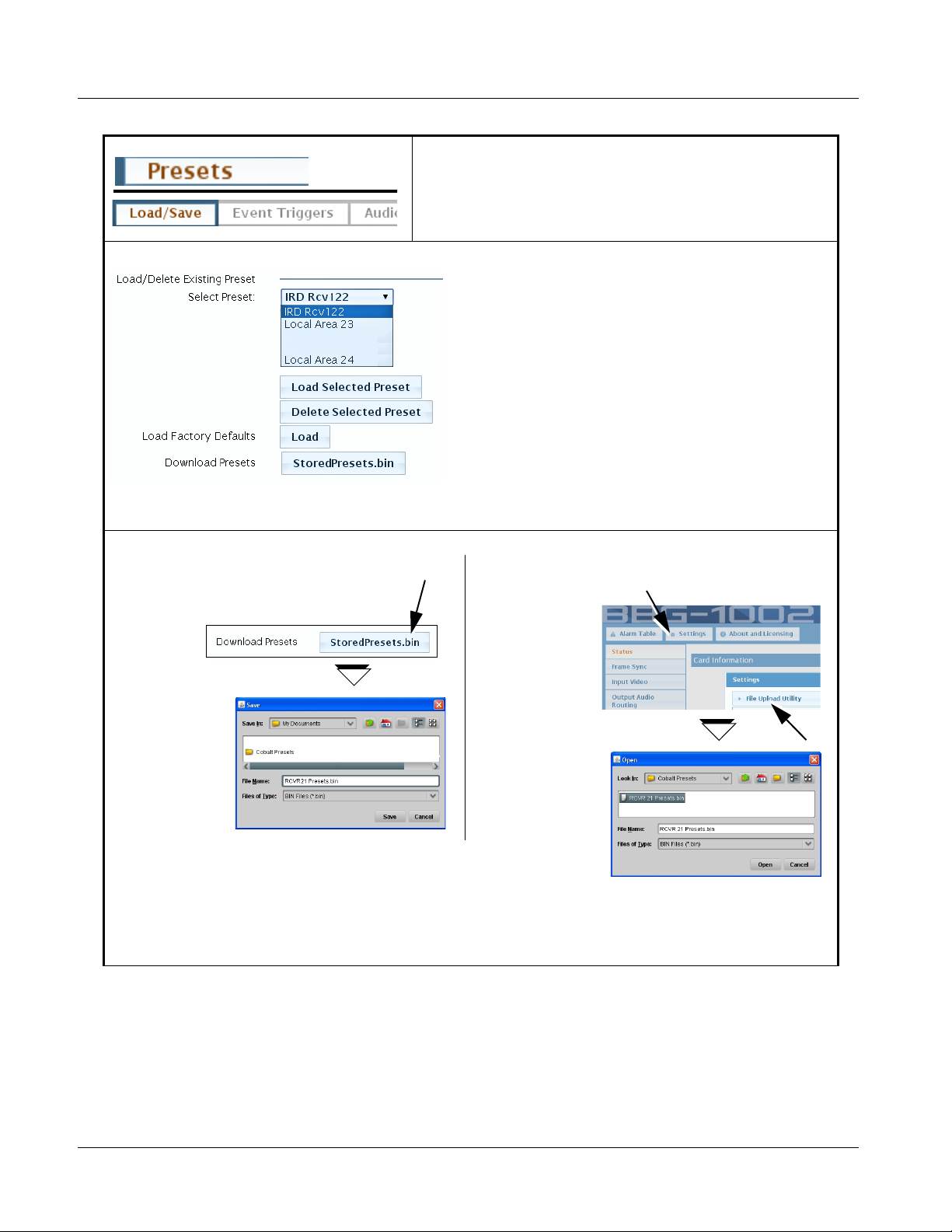

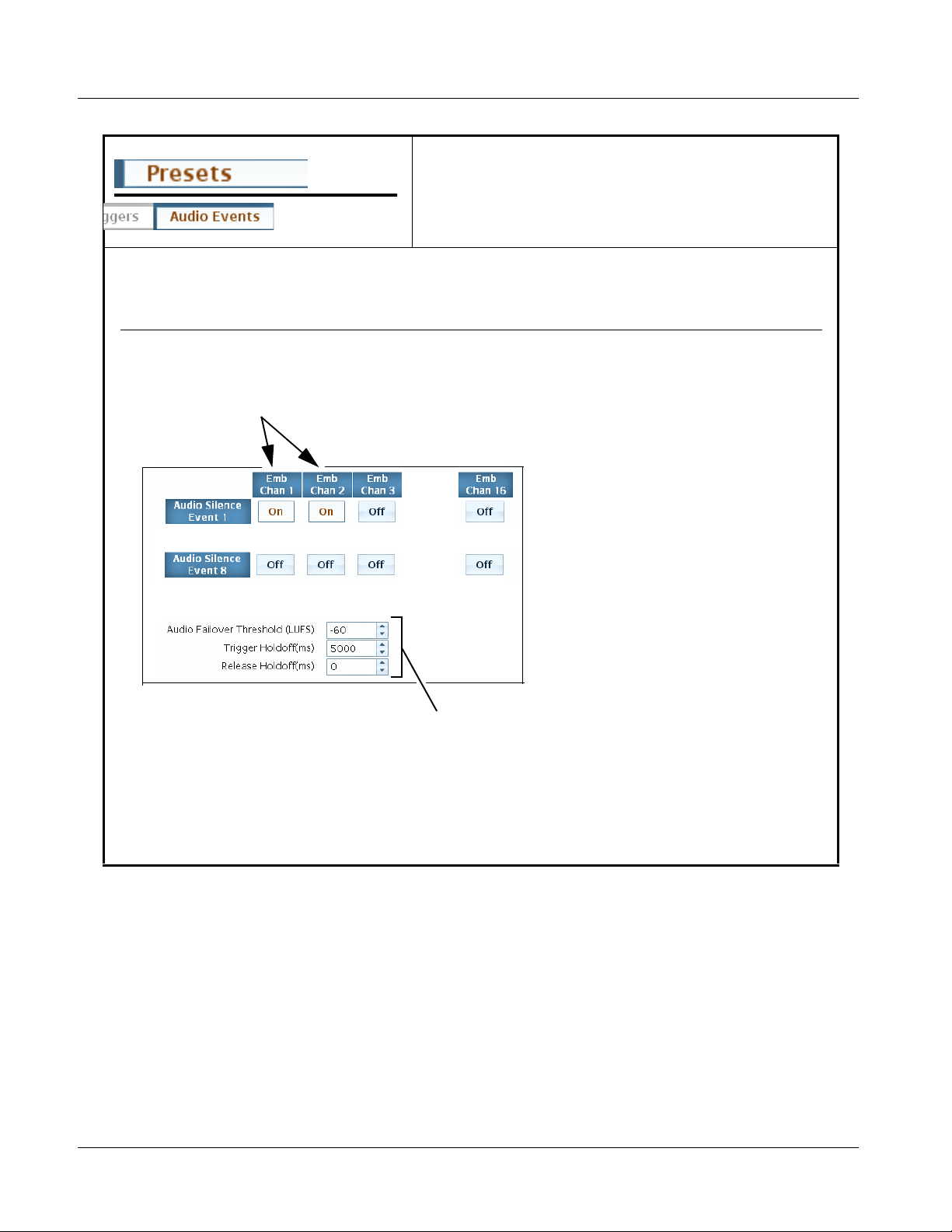

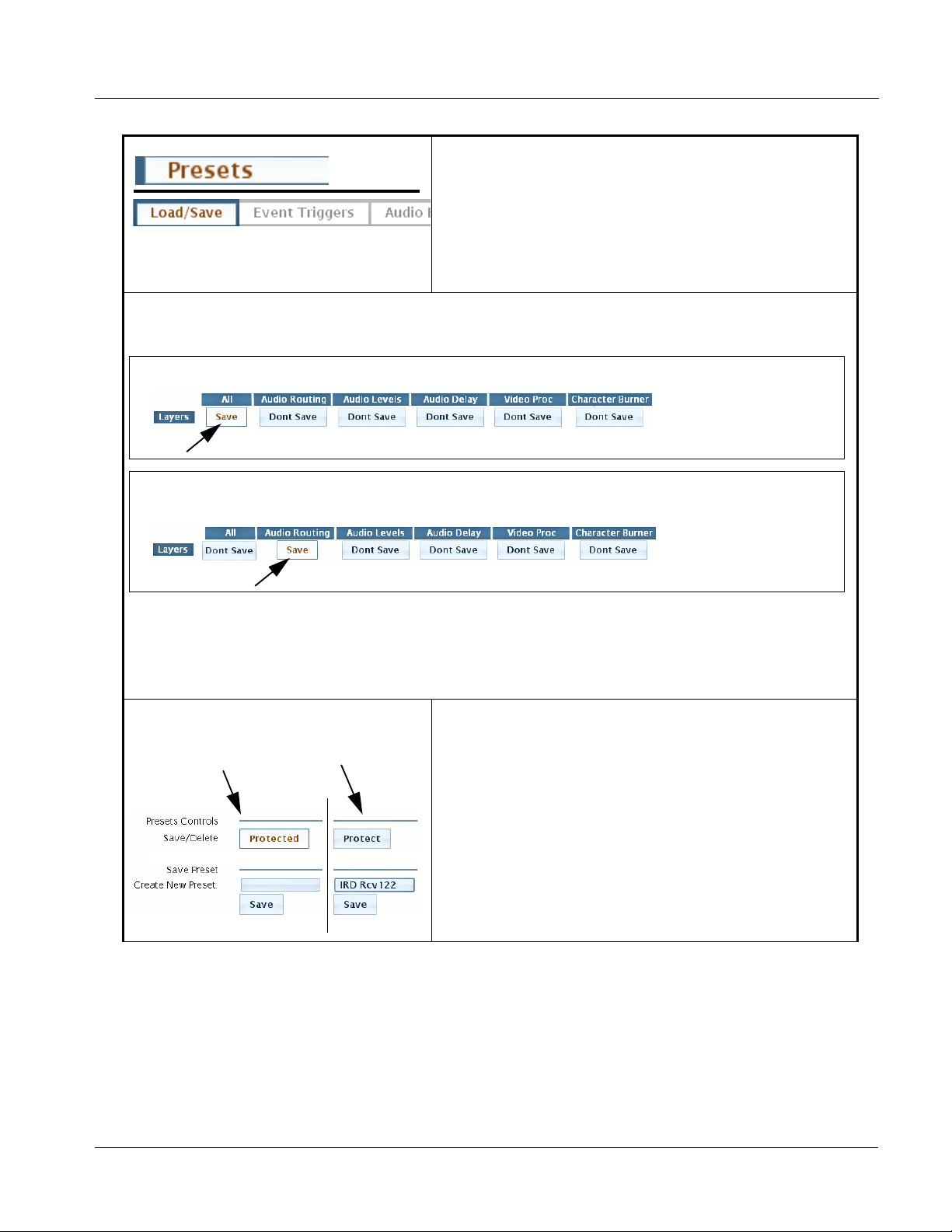

Presets ...................................................................................................... 3-31

Front Panel User Menus........................................................................................ 3-35

Troubleshooting .................................................................................................... 3-37

Error and Failure Indicator Overview....................................................... 3-37

Basic Troubleshooting Checks.................................................................. 3-39

BBG-1040-ACO Processing Error Troubleshooting ................................ 3-40

In Case of Problems .................................................................................. 3-41

ii BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Overview

Chapter 1

Chapter 1 Introduction

This manual provides installati on and o per at ing instr uct ions for the
BBG-1040-ACO Multi-Input Modular F ramesync wi th Auto-C hangeover and
Character Burn unit (also referred to herein as the BBG-1040-ACO).

This manual consists of the following chapters:

• Chapter 1, “Introduction” – Provides i nformation a bout this manua l

and what is covered. Als o pr ovi des general information re gar di ng the
BBG-1040-ACO.

• Chapter 2, “Installation” – Provides instructi ons for installing the

BBG-1040-ACO and setting up its network access.

This chapter contains the following information:

Cobalt Reference Guides

From the Cobalt® web home page, go to Support>Reference Documents for
easy to use guides co ver ing ne twork remot e cont rol, devi ce fi rmware updates ,
example processing UI setups and other topics.

• Chapter 3, “Setup/Operating Instructions” – Provides overviews

of operating controls and instructions for using the BBG-1040-ACO.

• Cobalt Reference Guides (p. 1-1)

• Manual Conventions (p. 1-2)

• Safety Summary (p. 1-3)

• BBG-1040-ACO Functional Description (p. 1-4)

• Technical Specifications (p. 1-10)

• Warranty and Service Information (p. 1-12)

• Contac t Cobalt Digital Inc. (p. 1-13)

BBG104 0ACO- OM (V1.1P) BBG-1040-ACO PRODUCT MANUAL 1-1

1 Manual Conventions

Manual Conventions

In this manual, display messages and connectors are shown using the exact
name shown on the BBG-1040-ACO itself. Examples are provided below.

• Device display messages are shown like this:

BBG-1040-ACO

• Connector names are shown like this: SDI IN A

In this manual, the terms below are applicable as follows:

• BBG-1040-ACO refers to the BBG-1040-ACO Multi-Inpu t Modular

Framesync with Auto-Changeover and Character Burn unit.

Warnings, Cautions, and Notes

Certain items in this manual are highlighted by special messages. The
definitions are provided below.

Warnings

Warning messages indicate a possible hazard which, if not avoided, could
result in personal injury or death.

• Frame refers to the HPF-9000, OG3-FR, 8321, or similar 20-slot

frame that houses Cobalt

• Device and/or Card refers to a Cobalt

• System and/or Video System refers to the mix of interconnected

®

or other cards/devices.

®

or other card.

production and terminal equipment in which the BBG-1040-ACO
and other cards/devices operate.

• Functions and/or features that are available only as an option are

denoted in this manual like this:

Cautions

Caution messages indicate a problem or incorrect practice which, if not
avoided, could result in improper operation or damage to the product.

Notes

Notes pro vide suppl emental information to the accompanying text. Notes
typically precede the text to which they apply.

1-2 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Introduction Safety Summary

Labeling Symbol Definitions

Important note regarding product usage. Failure to observe may result in
unexpected or incorrect operation.

Electronic device or assembly is susceptible to damage from an ESD
event. Handle only using appropriate ESD prevention practices.

If ESD wrist strap is not available, handle only by edges and avoid
contact with any connectors or components.

Symbol (WEEE 2002/96/EC)
For product disposal, ensure the following:

• Do not dispose of this product as unsorted municipal waste.

• Collect this product separately.

• Use collection and return systems available to you.

Safety Summary

Warnings

! WARNING !

Cautions

CAUTION

CAUTION

CAUTION

CAUTION

T o re duce risk of electr ic shock do not remove line voltage service barrier cover on frame
equipment containing an AC power supply. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This device is intended for environmentally controlled use only in appropriate video
terminal equipment operating environments.

This device contains no user-serviceable components. Refer servicing to authorized
personnel.

This device is intended for use ONLY with specified power supplies. Power connection to
unauthorized sources may cause product damage, unreliable operation, and invalidate
warranty.

The BBG-1040-ACO FPGA is designed for a normal-range operating temperature around
85° C core temperature. Operation in severe conditions exceeding this limit for
non-sustained usage are within device operating safe parameters, and can be allowed by
setting this control to Disable. However, the disable (override) setting should be avoided
under normal conditions to ensure maximum device protection.

BBG1040ACO-OM (V1.1P) BBG-1040-ACO PRO DUCT MA NUAL 1-3

1 BBG-1040-ACO Functional Description

BBG-1040-ACO Functional Description

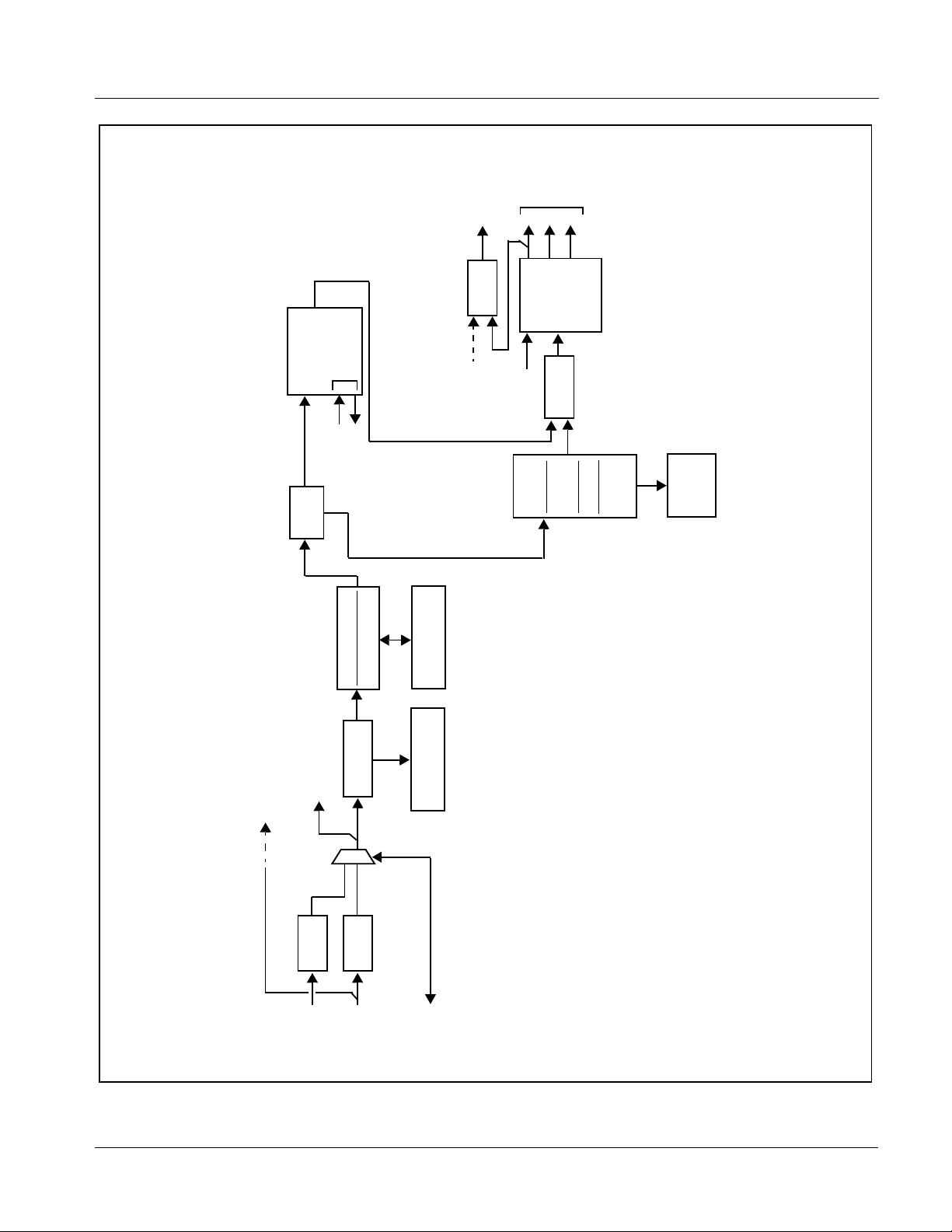

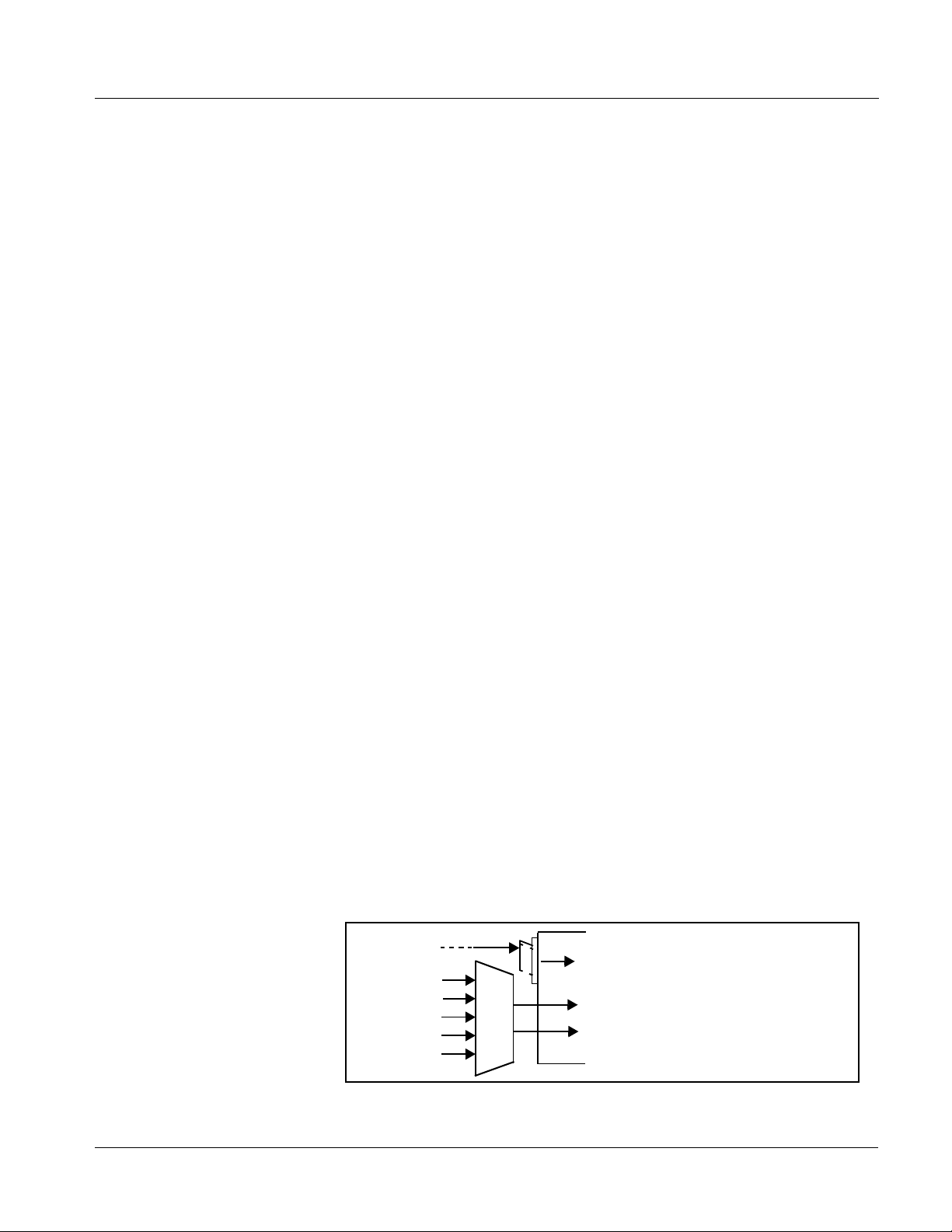

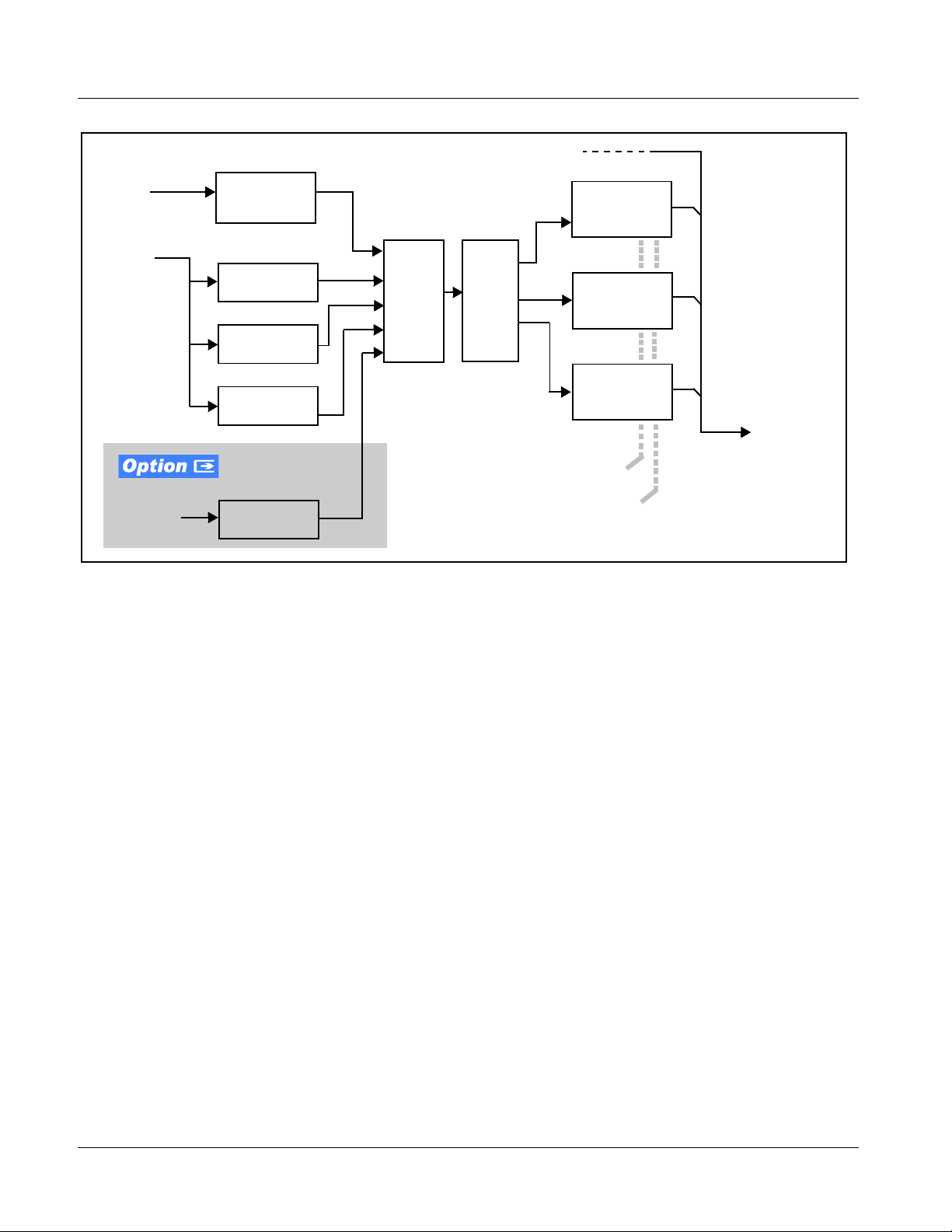

Figure 1-1 shows a functional block diagram of the 9940-ACO. A Quality
Check option allows failover to alternate inputs based on user-configurable
subjective criteria such as black/frozen frame or audio silence. Two discrete

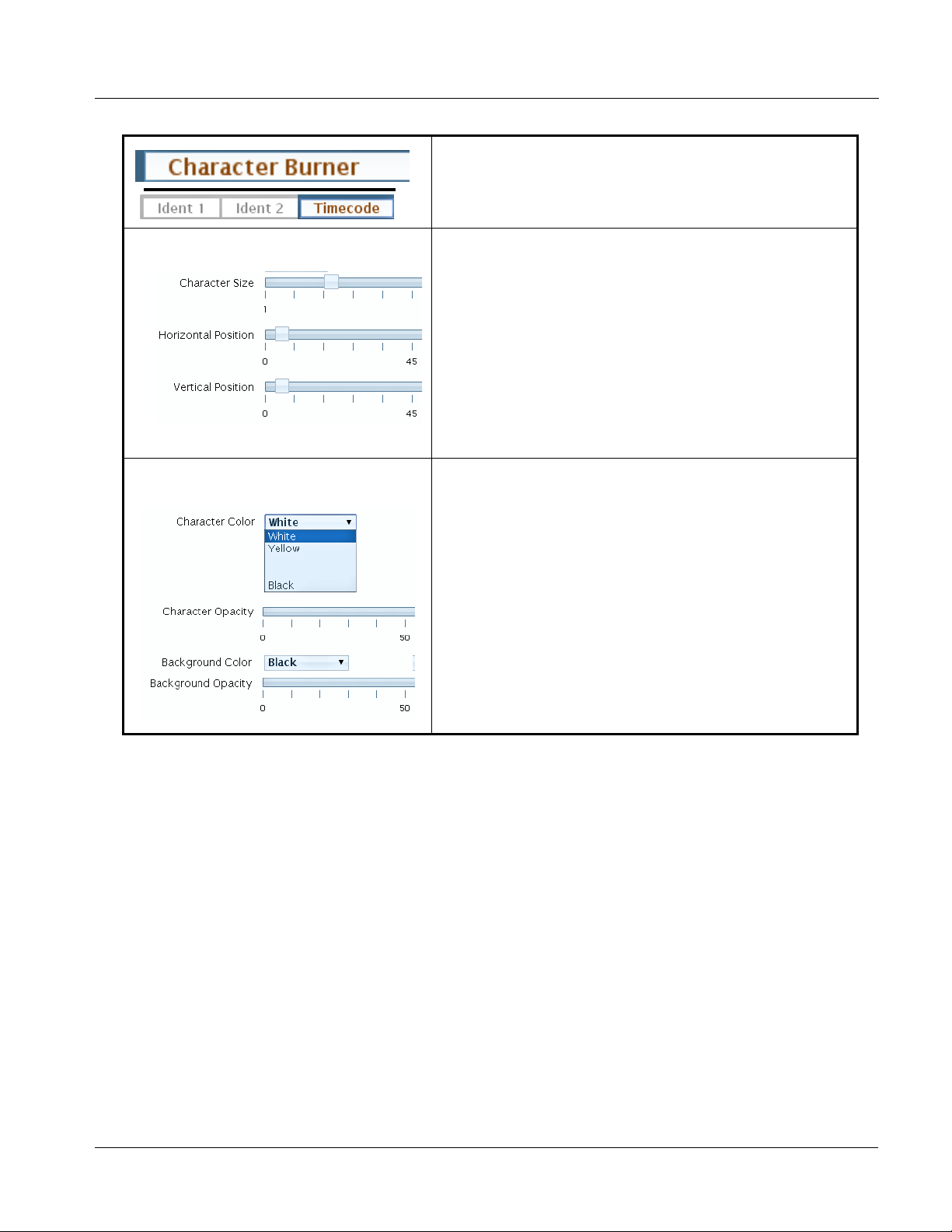

character burn strings can be inserted on output video, with each string

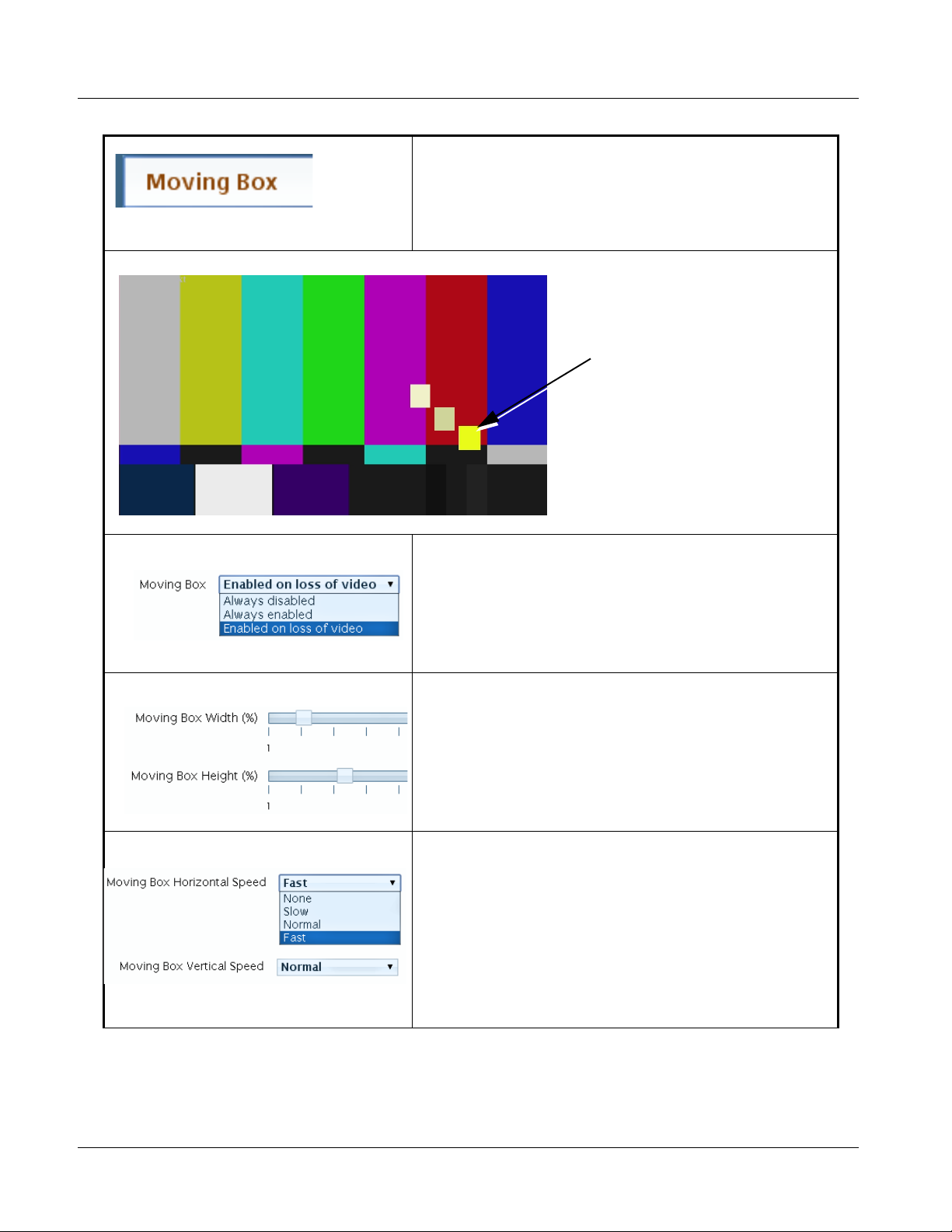

inserted as static text and/or insert only upon LOS. A moving-box insertion
can be enabled to serve as a dynamic raster confidence check even in cases
where the input video image is static.

The BBG-1040-ACO uses a built-in web server that allows control/monitor
over computers or smart devices.

BBG-1040-ACO Input/Output Formats

The BBG-1040-ACO provides the following inputs and outputs:

• Inputs:

• 3G/HD/SD SDI IN A / SDI IN B – two 3G/HD/SD-SDI inputs

(GUI-selectable or Auto- Changeover selection)

• Outputs:

• A/B PROC OUT –3G/HD/SD-SDI processed output with relay

protect failover of currently active input to this output if device
power is lost.

• RCK/PROC OUT (1-3) – three 3G/HD/SD-SDI buffered video

outputs. Each output can be independently set as processed output
video or selected input video reclocked. (These outputs are via
active circuitry/DA and do not offer loss of power failover
protection.)

1-4 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Introduction BBG-1040-ACO Functional Description

RCK/PROC

VIDEO OUT

1

2

Input RCK

Mux

3

Output

Crosspoint

Serialize

Delay

Offset

Output

Routing

Downmix

A/B PROC

OUT

RLY

Protect

Framesync/

Pattern Gen

REF LOOP

Audio

Demux

RLY BYP

Copy 1A

Selected

Audio

1040BD V1.0LB95

Audio

Check

Silence

Timecode

Character Burn

Timecode Burn

Selected Input RCK (to

Output Crosspoint)

RLY bypass (to Output A/B PROC OUT)

(NOTE)

Deserialize

(NOTE)

Select/Proc

Video Quality

Events Check

Failover

Input Select/

EQ/

EQ/

Reclock

Reclock

SDI IN A or SDI IN B. This output uses relay latching to retain

selected routing in the even of power loss regardless of whether a

selection wan manually invoked or by a unit-detected failover (for

example, if an auto-changeover from A to B was invoked while

active, routing of input B is retained in the event of power loss).

RCK/PROC 1 thru RCK/PROC 3 are DA outputs which can be

individually set as reclocked or processed outputs of the currently

selected input. These outputs are not relay-equipped and will lose

signal in the event of power loss.

GPIO

SDI IN A

3G/HD/SD

SDI IN B

3G/HD/SD

Monitor

(NOTE 2)

Control/

Note: A/B PROC OUT is the processed output which uses either input

Figure 1-1 BBG-1040-ACO Functional Block Diagram

BBG1040ACO-OM (V1.1P) BBG-1040-ACO PRO DUCT MA NUAL 1-5

1 BBG-1040-ACO Functional Description

Video Processor Description

The BBG-1040-ACO features frame sync, character burner, and moving-box
insertion. The BBG-1040-ACO video subsystem also provides the functions
described below.

Input Video Select/Quality Check Functions

The input can be selected using the user interface manual control, set to
failover to an alternate input upon loss of the target input, and can be
externally select ed via a GPIO interface. Reclo cked copi es of e ither SDI i nput
can be outputted by the device when selected as a choice on the output
crosspoint.

(Option +QC). A validity/quality check function checks each

input for valid video format and type, and displays this information via the
device DashBoard status display. A us er -configur able Quali ty Check fu nction
allows subjective criteria such as black/frozen frame or audio silence events
to propagate an event alert. This alert can be used by the device Presets
function to invoke video routing and other changes.

Auto-Changeover Function

(See Figure 1-2.) This function allows the logic assert of input select and
routing to the
while providing latching relays at both the input and output nodes to provide
input failover to select an alternate input, and also provides output failover
which can passively relay-route the currently selected input directly to the
output if the device loses power.

A/B PROC OUT SDI output retains selected routing regardless of whether

The
a selection was manually invoked or by a unit-detected failover (such as loss
of power). For example, prior to a power loss event if a changeover from

SDI IN A to SDI IN B was active at the time, this selection is retained by the

latching relays. In a power-loss event,
output

A/B PROC OUT, and the device automatically removed from the signal

path until normal operat ion again commenc es. In normal operat ion, the output
relay always maintains routing from the device processed output to output

A/B PROC OUT.

Note: The device also provides active (DA-driven) outputs RCK/PROC 1 thru

RCK/PROC 3. These outputs are independent of the relay failover function and

will lose signal in the event of a power loss.

A/B PROC OUT processed output under normal conditions,

SDI IN B would be directly routed to

1-6 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Introduction BBG-1040-ACO Functional Description

SDI IN A selected; card and SDI IN A OK

Select A active

asserted by

control logic

A

B

PROCINPROC

OUT

SDI IN A loss; failover to SDI IN B

A

B

Select B active asserted

by control logic

PROCINPROC

SDI IN B selected; card loses power

Mechanical HOLD B

asserted by relay

latching

A

B

PROCINPROC

OUT

Select Processed

active asserted by

control logic

OUT

Select Processed

active asserted by

control logic

Mechanical GO TO
bypass asserted by

relay latching

SDI A selected; card loses power

Mechanical HOLD A

asserted by relay

latching

A

B

PROCINPROC

OUT

SDI IN B selected; card and SDI IN B OK

Select B active

asserted by

control logic

PROCINPROC

OUT

Mechanical GO TO

bypass asserted
by relay latching

Select Processed

active asserted by

control logic

9940ACOFO LB90

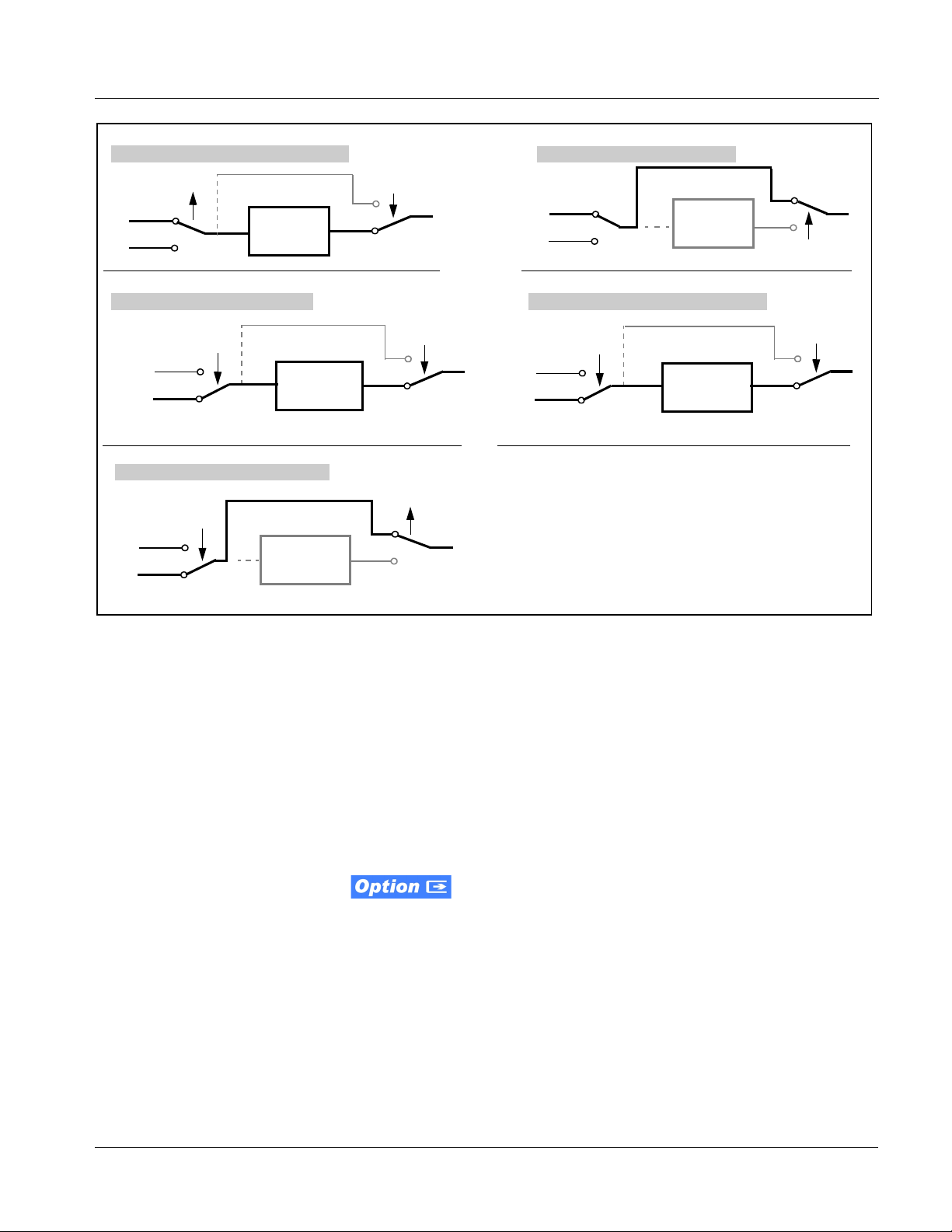

Figure 1-2 Auto-Changeover Function and Signal Flow

Timecode Processor

(See Figure 1-3.) This fun ct ion provi de s for ext rac ti on of time code data fro m
input video source, and in turn allow individual timecode strings to be
embedded and/or burned into the output video. The function can moni tor any
of the video inputs of the device for supported timecode formats such as
ATC_LTC or ATC_VITC for HD, and ATC_VITC or VITC waveform (with
selectable odd/even field line number control) for SD SDI inputs. Waveform
VITC timecode can also be extracted from a reference input and used as the
output timecode value.

When licensed with option
receive and translate audio LTC timecode (from Emb Ch 1-16) for insertion
as SMPTE 12M ATC timecode formats onto the output video as described
above.

+LTC, this function also can

BBG1040ACO-OM (V1.1P) BBG-1040-ACO PRO DUCT MA NUAL 1-7

1 BBG-1040-ACO Functional Description

3G/HD/SD–SDI

Frame

Reference

SDI

Video

Input

Audio LTC
(from Emb

Ch 1-16)

Ref VITC

Waveform

Detect/Extract

SDI VITC

Detect/Extract

SDI ATC_VITC

Detect/Extract

SDI ATC_LTC

Detect/Extract

Audio LTC

Select/Extract

Priority/

Select

Buffer/

Format

Figure 1-3 Timecode Processor

SDI VITC

Timecode

Proc/Embed

ATC_VITC
Timecode

Proc/Embed

ATC_LTC

Timecode

Proc/Embed

Insert

Control

Line

Number

Control

SDI Video
Output

Frame Sync Function

This function provid es f or f rame sync control usin g a lo opi ng reference input
that can use black burst or tri-level sync signals distributed with the plant, or
use the input video as a frame sync reference.

This function also allows horizontal and/or vertical offset to be added
between the output video and the frame sync reference.

Frame sync can select from either of two device frame reference sources, or
free-run input video sync. Selectable failover allows alternate reference
selection should th e init ial r efere nce sour ce become u nava ilabl e or inv alid. I n
the event of input video loss of signal, the output can be set to disable video,
go to black, go to an int er nal te st signal generator pa tt er n, or freeze to the last
intact frame (last frame having valid SAV and EAV codes).

An internal test signal gene rator prov ides a selec tion of nine st andard patt erns
such as color bars, sweep patterns, and other technical patterns. The test
patterns can be applied to the output video upon loss of input or manually
inserted at any time.

1-8 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Introduction BBG-1040-ACO Functional Description

Y/C Phase Alignment Processor

This function can correct upstream misalignment of Y and C phase (which is
typically introduced by upstream analog-to-digital converters, especially
where the Y and chroma p aths may experience diffe ring charac teristics). The
function provides a phase offset of C phase from Y phase.

Character/Image Burn-in Functions

Text strings and timecode (as selected using the timecode function) can be
burned into the output video. Burn-in attributes such as size, position,
background, color, and opacity are user-configurable. Two discrete character
burn strings can b e insert ed on output video, wit h each str ing inse rted as s tatic
text and/or insert only upon LOS. A moving-box insertion can be enabled to
serve as a dynamic raster confidence check even in cases where the input
video image is static or lost.

Video Output Crosspoint

A three-output video matrix crosspoint allows independently applying the
processed video output or reclocked input to any of the three non-relay
outputs

RCK/PROC 1 thru RCK/PROC 3).

Audio Processor Description

The audio processor operates as an internal audio router. An Input Audio
Status display shows the presence and peak level of each input audio channel
received by the device. Fo r digita l audio inputs, pa yload is identif ied (PCM or
data such as Dolby

®

Digital or E). An audio silence check can detect, on any
channel, audio that persists below a specified loudness exceeding a
configurable time span. This check can propagate an alert to the device
Presets function to invoke audio routing and other changes. As such, the
audio subsection provi des a full cr osspoint betwe en all support ed audio inputs
and output formats.

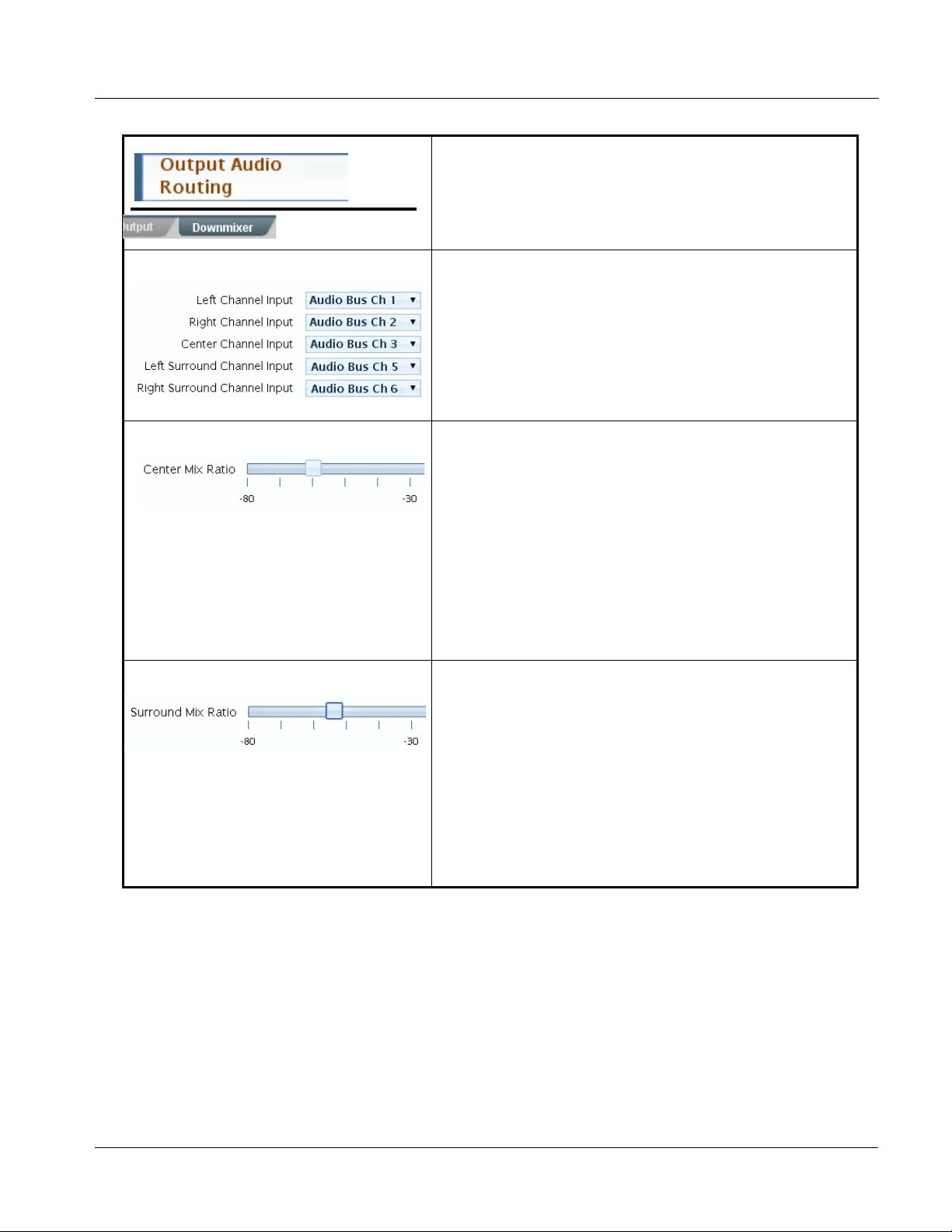

Audio Down Mix Function

(See Figure 1-4.) The Audio Down Mixer function provides for the selection
of any five embedded c hannel s serv ing as Left (
Surround (
into stereo pair Down Mix Left (
resulting stereo pair

Ls), and Right Surround (Rs) individual signals to be multiplexed

DM-L) and Down Mix Right (DM-R). The

DM-L and DM-R can in turn be routed to any embedded

audio pair as desired.

Embed Ch 1 - Ch 16

Emb Ch 3
Emb Ch 5
Emb Ch 6
Emb Ch 9

Emb Ch 11

L
R
C
Ls
Rs

DM-L

DM-R

L), Right (R), Center (C), Left

Figure 1-4 Audio Down Mix Functional Block Diagram with Example Sources

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 1-9

1 Technical Specifications

User Control Interface

BBG-1040-ACO uses an HTML5 internal web server for control/monitoring
communication, which allows control via a web interface with no special or
unique application on the client device. Connection to the device to the
network media connection is via a standard 10/100/1000 RJ-45 Ethernet
connection.

Technical Specifications

Table 1-1 lists the technical specifications for the BBG-1040-ACO
Multi-Input Modular Framesync with Auto-Changeover and Character Burn
unit.

Table 1-1 Technical Specifications

Item Characteristic

Part number, nomenclature BBG-1040-ACO Multi-Input Modular Framesync with

Auto-Changeover and Character Burn

Power consumption < 18 Watts maximum. Power provided by included AC adapter;

100-240 VAC, 50/60 Hz. Second DC power connection allows

power redundancy using second (optional) AC adapter.
Installation Density Up to 3 units per 1RU space
Environmental:

Operating temperature:
Relative humidity (operating or storage):

Dimensions (WxHxD):

Weight:

Ethernet communication 10/100/1000 Mbps Ethernet with Auto-MDIX via HTML5 web

Front-Panel Controls and Indicators Backlit LCD display and menu navigation keys. Display and

Serial Digital Video Input Number of inputs:

32° – 104° F (0° – 40° C)

< 95%, non-condensing

5.7 x 1.4 x 14.7 in (14.5 x 3.5 x 37.3 cm) Dimensions include

connector projections.

6 lb (2.8 kg)

interface.

controls provide unit status display and full control as an alternate

to web GUI control.

(2), with manual select or failover to alternate input.

Data Rates Supported:

SMPTE 424M, 292M, SMPTE 259M-C

Impedance:

75 Ω terminating

Return Loss:

> 15 dB up to 1.485 GHz
> 10 dB up to 2.970 GHz

1-10 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Introduction Technical Specifications

Table 1-1 Technical Specifications — continued

Item Characteristic

Input Select/Auto-Changeover Failover
(option +QC)

Post-Processor Serial Digital Video
Outputs

Failover to alternate input on loss of target input. Failover invoked
upon LOS and/or (with option +QC) user configurable parametric
criteria such as black/frozen frame or audio silence.

- Black frame trigger configurable for black intensity threshold and
persistence time.

- Frozen frame trigger configurable for frozen percentage
difference and persistence time.

Number of Outputs:

One 3G/HD/SD-SDI BNC, relay-prot ect ed
Three 3G/HD/SD-SDI BNC, selectable as processed or input

reclocked output

Impedance:

75 Ω

Return Loss:

> 15 dB at 5 MHz – 270 MHz

Signal Level:

800 mV ± 10%

DC Offset:

0 V ± 50 mV

Jitter (3G/HD/SD):

< 0.3/0.2/0.2 UI

Embedded Audio Output 16-ch embedded. User crosspoint allows routing of any embedded

channel to any embedded channel output. Multi-frequency tone
generator for each audio output. Master delay control; range of -33
msec to +3000 msec.

Frame Reference Input Looping 2-BNC connection. SMPTE 170M/318M “Black Burst”,

SMPTE 274M/296M “Tri-Level”
Return Loss: >35 dB up to 5.75 MHz

GPIO/COMM (2) GPI configurable to select input routing. (2) GPO configurable

to invoke upon input selected. RS-2 32/ 485 co mm por t. All
connections via rear module RJ-45 GPIO/COMM jack.

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 1-11

1 Warranty and Service Information

Warranty and Service Information

Cobalt Digital Inc. Limited Warranty

This product is warranted to be free from defects in material and workmanship for a period of five (5)
years from the date of shipment to the original purchaser, except that 4000, 5000, 6000, 8000 series
power supplies, and Dolby
material and workmanship for a period of one (1) year.

Cobalt Digital Inc. 's (“Cobalt”) sole obligation under this warranty shall be limited to, at its option, (i)
the repair or (ii) replacement of the product, and the determinati on of whether a defect is covered under
this limited warranty shall be made at the sole discretion of Cobalt.

This limited warranty applies onl y to the original end- purchaser of the produc t, and is not assignable or
transferrable therefrom. This warranty is limited to defects i n material a nd workman shi p, and shal l not
apply to acts of God, accidents, or negligence on behalf of the purchaser, and shall be voided upon the
misuse, abuse, alteration, or modification of the product. Only Cobalt authorized factory
representatives are authorized to make repairs to the product, and any unauthorized attempt to repair
this product shall immediately void the warranty. Please contact Cobalt Technical Support for more
information.

®

modules (where applicable) are warranted to be free from defects in

To facilitate the resolution of warranty related issues , Cobalt recommends registering the product by
completing and returning a product registration form. In the event of a warrantable defect, the
purchaser shall notify Cobalt with a description of the problem, and Cobalt shall provide the purchaser
with a Return Material Authorization (“RMA”). For return, defective prod ucts should be double boxed,
and sufficiently protected, in the original packaging, or equivalent, and shipped to the Cobalt Factory
Service Center, postage prepaid and insured for the purchase price. The purchaser should include the
RMA number, description of the problem encountered, date purchased, name of dealer purchased
from, and serial number with the shipment.

Cobalt Digital Inc. Factory Service Center

2406 E. University Avenue Office: [phone]
Urbana, IL 61802 USA Fax: [phone]
www.cobaltdigital.com Email: [e-mail]

THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES
EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE AND OF ALL OTHER OBLIGATIONS OR
LIABILITIES ON COBALT'S PART. ANY SOFTWARE PROVIDED WITH, OR FOR USE WITH,
THE PRODUCT IS PROVIDED “AS IS.” THE BUYER OF THE PRODUCT ACK NOWLEDGES
THAT NO OTHER REPRESENTATIONS WERE MADE OR RELIED UPON WITH RESPECT TO
THE QUALITY AND FUNCTION OF THE GOODS HEREIN SOLD. COBALT PRODUCTS ARE
NOT AUTHORIZED FOR USE IN LIFE SUP PORT APPLICATIONS.

COBALT'S LIABILITY, WHETHER IN CONT RACT, TORT, WARRANTY, OR OTHERWISE, IS
LIMITED TO THE REPAIR OR REPLACEMENT, AT ITS OPTION, OF ANY DEFECTIVE
PRODUCT, AND SHALL IN NO EVENT INCLUDE SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES (INCL UDING LOST PROFITS), EVEN IF IT HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

1-12 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Introduction Contact Cobalt Digital Inc.

Contact Cobalt Digital Inc.

Feel free to contact ou r th oro ugh and professional support representatives for
any of the following:

• Name and address of your local dealer

• Product information and pricing

• Technical support

• Upcoming trade show information

Phone: [phone]
Fax: [phone]
Web: www.cobaltdigital.com
General Information: [e-mail]
Technical Support: [e-mail]

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 1-13

This page intentionally blank

1-14 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Overview

This chapter contains the following information:

• Installing the BBG-1040-ACO (p. 2-1)

• Rear Panel Connections (p. 2-2)

• GPIO Connections (p. 2-4)

Installing the BBG-1040-ACO

Note: • Where BBG-1040-ACO is to be installed on a mounting plate (or regular

table or desk surface) without optional frame Mounting Tray
BBG-1000-TRAY, affix four adhesive-backed rubber feet (supplied) to the
bottom of BBG-1040-ACO in locations marked with stamped “x”. If feet are
not affixed, chassis bottom cooling vents will be obscured.

• Where BBG-1040-ACO is to be installed with optional frame Mounting Tray
BBG-1000-TRAY, do not affix adhesive-backed feet.

Chapter 2

Chapter 2 Installation

Installing Using BBG-1000-TRAY Optional Mounting Tray

BBG-1000-TRAY allows up to three BBG-1040-ACO to be mounted and

securely attached to a 1 RU tray that fits into a standard EIA 19” rack
mounting location. Install BBG-1040-ACO unit into tray as described and
shown he re.

1. If installing BBG-1040-ACO using optional frame Mounting Tray

BBG-1000-TRAY, install BBG-1040-ACO in tray as shown in Figure
2-1.

2. Connect the input and output cables as shown in Figure 2-3.

BBG104 0ACO- OM (V1.1P) BBG-1040-ACO PRODUCT MANUAL 2-1

2 Rear Panel Connections

From front of tray, slide unit into tray, aligning with

1

tray edge and/or guides

Note: BBG-1040 will not align with tray captive

Note: BBG-1040 will not align with tray captive

fastener if rubber feet are affixed to

fastener if rubber feet are affixed to
bottom of BBG-1040.

bottom of BBG-1040.
Remove rubber feet if BBG-1040 is

Remove rubber feet if BBG-1040 is
being installed in tray.

being installed in tray.

Figure 2-1 Mounting BBG-1040-ACO Using Frame Mounting Tray

BBG-1040-ACO Unit Dimensions

Figure 2-2 shows the BBG-1040-ACO physical dimensions and mounting
details for cases where BBG-1040-ACO will be installed in a location not
using the optional

Rear Panel Connections

Perform rear panel cable connections as shown in Figure 2-3.

Note: • The BBG-1040-ACO BNC inputs are internally 75-ohm terminated. It is not

necessary to terminate unused BNC video inputs or outputs.

• External frame sync reference signal (if used) must be terminated if a
looping (daisy-chain) con necti on is not used. Unter mi na ted re ferenc e
connection can result in unstable reference operation.

Slide unit (rear) fully to rear of tray. Secure unit to

2

tray using captive fastener. Tighten only finger tight.

BBG-1000-TRAY mounting tray.

2-2 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Installation Rear Panel Connections

15.26

14.30

REMOVABLE FEET
4 PLACES

TOP

1.73

(FEET)

5.80

1.75

1.65

FRONT

Notes: 1. All dimensions in inches.

2. If BBG-1040-A CO is mounted on flat surface, either rubber feet must be installed, or mounting surface must be open to
mate with cooling vents on bottom of BBG-1040-ACO chassis.

REAR

Figure 2-2 BBG-1040-ACO Dimensional Details

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 2-3

2 GPIO Connections

BBG-1040-ACO Rear Panel

SDI IN A

SDI IN B

12 VDC

12 VDC

RCK/PROC 1 RCK/PROC2 GPO GPI

G2121G

ETHERNET

RCK/PROC 3 A/B PROC OUT

REF LOOP

Connector Function

–

12 VDC
10/100/1000 ETHERNET Gigabit Ethernet control/monitoring connection. Communication activity status is shown by integral status LEDs.

REF LOOP Looping 75Ω reference connection for connection to house black burst or tri-level reference connections

+

Dual DC power IN connectors (diode-isolated). Single AC adapter (supplied) can be connected to either connector. Dual
adapters can be connected to provide power redundancy.

BBG-1040-ACO Connectors

SDI IN A and SDI IN B (2) 3G/HD/SD-SDI video input BNCs
A/B PROC OUT (1) relay-protected SDI processed output BNC. Outputs a copy of SDI OUT 1 under normal conditions, or passive outputs

RCK/PROC OUT 1 thru
RCK/PROC OUT 3

GPIO (2) opto-isolated GPI inputs (terminals GPI 1-G and GPI 2-G)

the currently invoked SDI input as a relay failover if card power is lost.
(3) 3G/HD/SD-SDI video output BNC; each GUI selectable as selected-input reclocked or processed out

(2) SPST NO GPO relay closure contacts (floating) (terminals GPO 1/G and GPO 2/G)

GPIO Connections

Note: It is preferable to wire connections to plugs oriented as shown in

Figure 2-3 BBG-1040-ACO Rear Panel Connectors

Figure 2-4 shows connect ions to the c ard multi-pin t erminal block c onnectors.
These connectors are used for card GPIO connections.

Figure 2-4
that the orientation of rear module 3-wire audio connectors is not necessarily
consistent within a rear module, or between different rear modules. If wiring is
first connected to plug oriented as shown here, the electrical orientation will
be correct regardless of rear module connector orientation.

rather than assessing orientation on rear module connectors. Note

2-4 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Installation GPIO Connections

GPI Port Connections

Rear module

PCB connector

GPI 2

IN 2

21G

IN 1

GPO Port Connections

Rear module

PCB connector

Removable Phoenix plug

view oriented with top

(screw terminals) up

G

GPI 1

G

GPO 1

OUT 1

12G

OUT 2

GPO controlled circuit must not
exceed voltage/current ratings.
See Technical Specifications (p.
1-10) in Chapter 1, Introduction.

G

G

GPO 2

Figure 2-4 GPIO Connector Pinouts

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 2-5

This page intentionally blank

2-6 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Overview

Chapter 3

Chapter 3 Setup/Operating Instructions

This chapter contains the following information:

• BBG-1040 Front Panel Display and Menu-Accessed Control (p. 3-1)

• Connecting BBG-1040 To Your Network (p. 3-3)

• Control and Display Descriptions (p. 3-5)

• Checking BBG-1040-ACO Device Information (p. 3-8)

• Ancillary Data Line Number Locations and Ranges (p. 3-9)

• BBG-1040-ACO Function Menu List and Descriptions (p. 3-10)

• Front Panel User Menus (p. 3-35)

• Troubleshooting (p. 3-37)

Perform the setup procedures here in the sequence specified. All procedures
equally apply to all models unless otherwise noted.

Note: • Unless otherwise noted, all procedures here are applicable for both the

BBG-1040-ACO and BBG-1040-ACO-AV -EMDE. Either model is collectively
referred to as “BBG-1040”.

• All instructions here assume BBG-1040 is physically connected to the
control physical network as described in Chapter 2. Installation.

BBG-1040 Front Panel Display and Menu-Accessed Co ntrol

Figure 3-1 shows and describes the BBG-1040 front panel displays and
menu-accessed user interface controls. Initial network setup is performed
using these controls.

BBG104 0ACO- OM (V1.1P) BBG-1040-ACO PRODUCT MANUAL 3-1

3 BBG-1040 Front Panel Display and Menu-Accessed Control

- STATUS LED illuminated green shows unit power is OK and unit is functional.

- INPUT LOCK LED illuminated green shows at least one video input is locked to video.

- REF STATUS LED illuminated green shows valid reference is being received.

- COMM LED illuminated green shows Ethernet connection is OK.

STATUS

Menu: Options

INPUT
LOCK

REF
STATUS

COMM

Alphanumeric display shows configuration items, and shows and allows changes of settings when a menu item is
accessed.

and arrows denote scroll up or down to access the menu item.

arrows denotes a menu item is accessed to be selected (in the example above, Network Settings).

Press the button to now access and enter the menu item. When this button is pressed, the selected menu item is
displayed, along with its sub-menus.

In this example showing the Network Settings menu,
(indicating this is the actively selected menu item) and its sub-menus are now displayed:

Menu: Network Settings

IP: 10.99.11.162
Netmask: 255.255.255.0
Gateway: 10.99.11.1

Status

Network Settings

Character Burner

X

BBG1000_FPUI_SCPD2014P8

M enu: Network Settings as menu item is displayed

In this example, with pre-selecting the IP: sub-menu, pressing the button again opens the IP: sub-menu.

IP

010.099.011.162

To exit a sub-menu or a menu, press the button. This locks in any changes and proceeds to the last-selected sub-menu or
menu item. Repeatedly press the button to step up through sub-menus and then to other menus. Access other menu items using
the and buttons.

The display backlight automatically brightens with any navigation arrow activity, and then goes dim after a few moments.

The carets above and bel ow a character indicate this character is ready for editing. Use the

and buttons to decrement or i ncrement th e value.

Use the and buttons to navigate to other characters.

X

Figure 3-1 BBG-1040 Front Panel Display and Menu Controls

3-2 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions Connecting BBG-1040 To Your Network

Connecting BBG-1040 To Your Network

BBG-1040 ships with network protocol set to DHCP and populates its
address with an addressed allocated by your DHCP server. If your network
does not have a DHCP server, the BBG-1040 address field wil l be bla nk, and
a static address must then be assigned. All initial network settings are
performed using the Front Panel Displ ay menu -accesse d contro l (as d escribed
on the previous page). Refer to this page for instructions of using the
front-panel menu navigation.

Access the Network Se tt ings menu and confi gur e net w ork s ettings as follows :

Connecting BBG-1040 To Network

1. Power-up BBG-1040 and connect Ethernet cable connection to media. Wait for BBG-1040 to complete booting.

When Product: BBG-1040 ... is displayed, device is ready for configuration.

2. Press and access the
server).
Note: It is recommended to now change the settings to use a static IP address of your choice. The following steps describe using
a static IP address.

3. In Network Settings > Mode, change setting to Mode: Static.

4. Configure the following fields as desired and appropriate for your network connection (examples shown below).

Network Settings menu. Current network settings are displayed (as configured by host DHCP

Menu: Network Settings

IP: 10.99.16.105
Netmask: 255.255.255.0
Gateway: 10.99.16.1
Mode: Static

5. Press to commit changes and exit the setup menu.

6. At this point, BBG-1040 can now be accessed with a web browser pointing to the configured address. Browse to the configured

Web browser pointing to configured address displays BBG-1040

X

Note: Current IP address of BBG-1040 can now be checked from the front panel by accessing this at any point.

address and check connectivity.

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-3

3 Connecting BBG-1040 To Your Network

Finding a BBG-1040 Device in DashBoard

(See Figure 3-2) If BBG- 1040 is confi gured wi th an a ddress withi n a net work
also available via Dash Board, a BBG-1040 devi ce appears as a f rame entity i n
the DashBoard Basic Tree View.

Note: BBG-1040 DashBoard remote control is also available by opening the device

in DashBoard similar to opening an openGear

Hovering over the blue BBG icon in
DashBoard displays the address of the BBG
device

Figure 3-2 Finding BBG-1040 Using DashBoard

®

card.

3-4 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions Control and Display Descriptions

Control and Display Descriptions

This section describes the web user interfac e controls for using the
BBG-1040-ACO.

The format in which the BBG-1040-ACO functional controls appear follows
a general arrangement of Function Submenus under which related controls
can be accessed (as described in Function Submenu/Parameter Submenu
Overview below).

Function Submenu/Parameter Submenu Overview

The functions and related parameters available on the BBG-1040-ACO
device are organized into functi on menus, which consist of par amet er gr oups
as shown below.

Figure 3-3 shows how the BBG-1040-ACO device and its menus are
organized, and also provides an overview of how navigation is performed
between devices, function menus, and parameters.

BBG-1040-ACO

Menu a Menu b

Individual Parameters

Each menu consists of groups of parameters
related to the function menu. Using the
“Framesync” function menu example, the
individual parameters for this function consist of
various framesync parameters such as line offset,
delay, and so on.

• • •

Device-Level Menu (device web page or device-level front
panel interface)

The desired function menu is next selected.
Function menus consist of parameter groups
related to a particular BBG-1040-ACO
function (for example, “Framesync”).

Menu z

Figure 3-3 Function Submenu/Parameter Submenu Overview

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-5

3 Control and Display Descriptions

Web User Interface

(See Figure 3-4.) The device function menu is organized using main menu
navigation tabs which appear on the left side of any pane regardless of the
currently displayed pane. When a menu tab is selected, each parametric
control or selection li st item associated with the function is displa yed. Scalar
(numeric) parametric values can then be adjusted as desired using the GUI
slider controls. Items in a list can then be selected using GUI drop-down lists.

Main Menu Navigation Tabs

Typical Drop-Down Selector

Drop-Down Expansion

Typical Parametric Cont ro l

Typical Status Display

In this example, the Frame Sync main menu tab is selected, with the overall pane now showing all sub-menu items related to
the framesync function.

Clicking another main menu tab immediately displays the pane related to the selected main menu tab.

Figure 3-4 Typical Web UI Display and Controls

3-6 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions Control and Display Descriptions

Display Theme

(See Figure 3-5.) The BBG-1040 user interface theme selection offers light
and dark themes suited for various users and environments.

Clicking Settings opens a pane where the display Theme can be set

Light – this is the theme shown in this manual and is

useful for normal ambient light environments such as
offices.

Figure 3-5 Web UI Display Themes

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-7

Dark – the dark theme is suited for low-light environments.

3 Checking BBG-1040-ACO Device Information

Checking BBG-1040-ACO Device Information

The operating status and sof twar e v er sio n the BBG-1040-ACO device can be
checked by clicking the
describes the BBG-1040-ACO device information status display.

Note: Proper operating status is denoted by green icons for the status indicators

shown in Figure 3-6. Yellow or red icons respectively indicate an alert or
failure condition. Refer to Troubleshooting (p. 3-37) for corrective action.

Device Info Display

This display shows the the device
hardware and software version
info.

Status main menu tab. Figure 3-6 shows and

Status Display

This displays shows the status
and format of the signals being
received by the BBG-1040-ACO,
as well as device status.

Figure 3-6 BBG-1040-ACO Device Info/Status Utility

3-8 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions Ancillary Data Line Number Locations and Ranges

Ancillary Data Line Number Locations and Ranges

Table 3-1 lists typical default output video VANC line number locations for
various ancillary data items that may be passed or handled by the device.

Table 3-1 Typical Ancillary Data Line Number Locations/Ranges

Default Line No. / Range

Item

SD HD

AFD 12 (Note 2) 9 (Note 2)
ATC _ VITC 13 (Note 2) 9/8 (Note 2)
ATC_LTC — 10 (Note 2)

®

Dolby

Metadata 13 (Note 2) 13 (Note 2)
SDI VITC Waveform 14/16 (Note 2) —
Closed Captioning 21 (locked) 10 (Note 2)
Notes:

1. The device does not check for confl ict s on a gi ven l in e num ber. Make certain the se lecte d line is avail able
and carrying no other data.

2. While range indicated by drop-down li st on GU I ma y allow a particu lar ran ge of choices, the ac tual range

is automatically c lampe d (limi ted) to cer tain ranges to pre vent in adver tent confli ct with activ e pict ure a rea
depending on video format. Limiting ranges for various output formats are as follows:

Format Line No. Limiting Format Line No. Limiting Format Line No. Limiting

525i 12-19 720p 9-25 1080p 9-41
625i 9-22 1080i 9-20

Because line number allocation is not standardized for all ancillary items,
consideration should be given to all items when performing set-ups. Figure
3-7 shows an example of improper and corrected VANC allocation within an
HD-SDI stream.

ATC_VITC = 9/8
CC = 10
Dolby Meta data = 13

Card 1

ATC_VITC = 9/ 8
CC = 10
Dolby Metadata = 13

Card 1

AFD Insertion
attempted usin g
VANC line 9
(default)

AFD Insertion
corrected to us e
VANC line 18

ATC_VITC = 9/8
AFD = 9

CC = 10
Dolby Meta data = 13

Card n

ATC_VITC = 9/8

CC = 10
Dolby Metadata = 13

AFD = 18

Card n

Conflict between
ATC_VITC and AFD both
on VANC line 9

Conflict between
ATC_VITC on line 9/8 and
AFD (now on line 18)
resolved

Figure 3-7 Example VANC Line Number Allocation Example

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-9

3 BBG-1040-ACO Function Menu List and Descriptions

BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 individually lists and describes each BBG-1040-ACO function
menu item a nd its relate d list select ions, controls, and parameters. Where
helpful, examples showing usage of a function are also provided.

Note: All numeric (scalar) parameters displayed can be changed using the slider

controls, arrows, or by numeric keypad entry in the corresponding numeric
field. (When using numeric keypad entry, add a return after the entry to com­mit the entry.)

On the web GUI itself and in Table 3-2, the function menu items are
organized using main menu tabs as shown below.

Main Menu tab Sub-tabs

Some functions use sub-tabs to help maintain clarity and
organization. In these instances, Table 3-2 shows the ordinate tab
along with its sub-tabs. Highlighted sub-tabs indicate that controls
described are found by selecting this sub-tab (in this example, the
Input A sub-tab on the Video Quality Events main menu page).

The table below provides a quick-reference to the page numbers where each
function menu item can be found.

Function Main Menu Item Page Function Main Menu Item Page

Input Audio Status 3-11 Moving Box Insertion 3-24
Input Video Controls 3-11 Y/C Alignment Controls 3-25
Video Quality Events 3-12 Output Audio Routing/Controls 3-26
Framesync 3-13 GPIO Controls 3-29
Timecode 3-16 Presets 3-31
Character Burner 3-21

3-10 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List

Displays signal status and payload for embedded and
discrete audio received by BBG-1040.

Input Audio Status

Individual signal status and peak level displays for embedded audio input pairs as describe below.

• Absent: Indicates embedded channel pair does not contain recognized audio PCM data.

• Present - PCM: Indicates embedded channel pair contains recognized audio PCM data.

• Dolby E: Indicates embedded channel pair contains Dolby

• Dolby Digital: Indicates embedded channel pair contains Dolby
Note: • Dolby status displays occur only for valid Dolby

®

E encoded data.

®

®

Digital encoded data.

signals meeting SMPTE 337M standard.

Allows manual or failover selection of SDI program
video inputs and displays status and raster format of
received SDI video.

Input Video Controls

• Input Video Source Selects the input video source to be applied to the BBG-1040 program

• Input Video Status Displays input status and audio group presence, along with elapsed time

video input.

• SDI A and SDI B choices allow forced manual selection of
correspondingly SDI IN A or S D I IN B .

• Failover A to B sets main path preference of SDI IN A.

- If SDI IN A goes invalid, then SDI IN B is selected.

- If SDI IN A goes valid again, failover automatically reverts to

SDI IN A.

• Failover B to A sets main path preference of SDI IN B.

- If SDI IN B goes invalid, then SDI IN A is selected.

- If SDI IN B goes valid again, failover automatically reverts to

SDI IN B.

Note: Failover criteria via this control is simple signal presence.

of signal acquire.

SDI A and SDI B Status show raster/format for device inputs. If
signal is not present or is invalid, Unlocked is displayed. (These
status indications are also propagated to the Status pane.)

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-11

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Sets quality check screening and thresholds for video
quality event alerts. When a quality events occur, the
event(s) can be used by the Presets function to invoke
input routing or other changes.

Note: Input B has controls identical to the controls described here for Input A sub-tab. Therefore, only the Input A controls

are shown here. Set controls for other inputs using the respective sub-tab.

• Event Status Indicator Displays event status (based on criteria set below) for signal condition to
be considered OK (green), or signal condition considered to be a quality
alert event (red) due the condition exceeding the criteria threshold(s) set
below.

Video Quality Events

• Position and Width Controls Position and Width controls set the area of concern to be screened by the
Quality Event function.

X and Y Position controls set the origin point for the area of concern

Origin (0,0)

y= 100%

X and Y Width controls set the size for the area of concern

x and y @ 20%

x and y @ 80%

x= 100%

• Threshold and Event Ty pe Controls

Sets the thresholds for black frame and event type to be considered.
Also provides holdoff controls for event trigger engagement and
disengagement.

• Noise Immunity sets the relative noise levels that are rejected in
the course of black event assessment (Low, Medium, or High).

• Engagement Holdoff sets the time (in msec) where, when time is
exceeded, an event is to be considered a valid alert event.

• Disengagement Holdoff sets the time (in msec) where, when event
time is has ceased, an alert event is cleared.

• Event Type sets the type of event(s) to be considered by the event
screening (Disabled, Frozen frame, Black frame, or either Black or
Frozen frame).

3-12 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides video frame sync/delay offset control and
output control/loss of program video failover selection

Framesync

controls.

• Lock Mode Select Selects Frame Sync functions from the choices shown to the left and

• Output Rate Select Allows frame rate to be outputted same as input video, or converted to

• Initial Startup Format Select Selects a synthesized frame sync format/rate to be invoked (from the

described below.

• Free Run: Output video is locked to the BBG-1040 internal clock.
Output video is not locked to external reference.

• Lock to Reference: Output video is locked to external reference
received on the frame reference bus.

Note: If valid reference is not received, the indication appears in

Status, indicating invalid frame sync reference error.

• Lock to Input: Uses the program video input video signal as the

reference standard.

Note: If Lock to Input is used for framesync, any timing instabilit y

on the input video will result in corresponding instability on
the output video.

from the choices shown to the left and described below.

• Auto – output video frame rate tracks with input video.

• 23.98/29.97/59.94 – forces standard North American frame rates.

Can be used to convert 24/30/60 Hz camera frame rates to
corresponding 23.98/29.97/59.94 standard North American frame
rates.

• 24/30/60 – forces 24/30/60 frame rates. Can be used to convert

23.98/29.97/59.94 Hz frame rates to corresponding 24/30/60 Hz
frame rates.

choices shown to the left) in the time preceding stable lock to external
reference.

Set this control to that of the intended external reference to help ensure
smoothest frame sync locking. This control also sets the BBG-1040 test
pattern format where the device’s initial output from power-up is the
internal pattern instead of program video.

• P r og r a m Vide o Output Mode Se l e c t Provides a convenient location to select between program video output

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-13

and other technical outputs from the choices shown to the left and
described below.

• Input Video – device outputs input program video (or loss of signal
choices described below).

• Flat Field (Black) – device outputs black flat field.

• Freeze – device outputs last frame having valid SAV and EAV

codes.

• Test Pattern – device outputs standard technical test pattern
(pattern is selected using the Pattern drop-down described below).

• Snow – device outputs synthesized snow multi-color pattern.

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Loss of Input Signal Selection In the event of program input video Loss of Signal (LOS), determines

• Pattern Sel ect Provides a choice of standard technical patterns (shown to the left) when

• Output Video Reference Offset Controls

action to be taken as follows:

• D isable Outputs: Disable program video SDI outputs.

• Flat Field (Black) – go to black flat field on program video output.

• Freeze – go to last frame having valid SAV and EAV codes on

program video output.

• Test Pattern – go to standard technical test pattern on program
video output (pattern is selected using the Pattern drop-down
described below).

• Snow – output synthesized snow multi-color pattern.

T est Pattern is invoked (either by LOS failover or directly by selecting

Test Pattern on the Program Video Output Mode Select control).

With framesync enabled, provides the following controls for offsetting the
output video from the reference:

• Vertical (Lines) – sets vertical delay (in number of lines of output
video) between the output video and the frame sync reference.

(Positive values provide delay; negative values provide advance)
(Range is -1124 thru 1124 lines; null = 0 lines.)

• H orizo ntal (µs) – sets horizontal delay (in µs of output video) between
the output video and the frame sync reference. (Positive values provide
delay; negative values provide advance)

(Range is -64 thru 64 µsec; null = 0.000 µsec.)

Note: Offset advance is accomplished by hold-off of the

reference-directed release of the frame, thereby effectively
advancing the program video relative to the reference.

• Frame Delay Control

Minimum Latency Frames Control

When Framesync is enabled, specifies the smallest amount of latency
delay (frames held in buffer) allowed by the frame sync. The frame sync
will not output a frame unless the specified number of frames are captured
in the buffer. The operational latency of the frame sync is always

between the specified minimum latency and minimum latency plus
one frame (not one field).

Note: Due to device memory limits, the maximum available Minimum

Latency Frames is related to the output video format selected.
When using this control, be sure to check the Report Delay display

to kame certain desired amount of frames are delayed.

3-14 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Video Delay Display Displays the current input-to-output video delay (in msec units) as well as

• Framesync Lock Status Display Displays the current framesync status and reference source.

Note: Audio timing offset from video is performed using the delay controls on the Output Audio Routing/Controls tab. Refer to

Output Audio Routing/Controls (p. 3-26) for these controls.

in terms of Frames/fractional frame (in number of lines).

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-15

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides timecode data extraction from various
sources, and provides formatting and re-insertion

Timecode

Shown below is an example in which received 720p 5994 SDI video with ATC_VITC is to have ATC_LTC also included on the
output. To re-format and insert the timecode data, the following can be performed using the Timecode function. Each
Timecode control is fully described on the pages that follow.

controls for inserting the timecode into the output video.

720p 5994

w/ ATC_VITC

A

Noting that the incoming video contains ATC_VITC

BBG-1040

720p 5994
w/ ATC_VITC
w/ ATC_LTC

timecode data (as shown in the status display), set
the Source Priority drop-down lists to include
ATC_VITC timecode data as a choice. This extracts
ATC_VITC timecode data from the incoming video.

In this example, it is desired to provide both SDI

B

ATC_VITC and ATC_LTC timecode data in the
processed HD output video. As such, set both

HD ATC VITC Insertion and
HD ATC LTC Insertion to Enabled.

In the example here, the line numbers are set to
the default SMPTE 12M-2-2008 recommended
values.

Reference VITC

Detect/Extract

720p SDI

w/ ATC_VITC

SDI VITC

Detect/Extract

A

A

Priority/

Select

Buffer/
Format

SDI VITC

Timecode

Proc/Embed

ATC_VITC

Timecode

Proc/Embed

B

SDI ATC_VITC

Detect/Extract

SDI ATC_LTC

Detect/Extract

Free Run

(Internal Co unt)

Audio LTC

Detect/Extract

Insert

Control

Number

Control

Line

ATC_LTC
Timecode

Proc/Embed

ATC_VITC Insertion = Enabled
ATC_LTC Insertion = Enabled

ATC_VITC1 = Line 9 (default SMPTE 12M-2)
ATC_VITC2 = Line 8 (571) (default SMPTE 12M- 2)
ATC_LTC = Line 10 (default SMPTE 12M-2)

B

720p SDI
w/ATC_VITC
w/ATC_LTC

3-16 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

allows audio LTC from an audio channel to be used as a timecode source, with conversion to a selected SMPTE 12M format on the
output video.

• Timecode Source Status Displays Displays the current status and contents of the four supported external

• Audio LTC Source and Mute Controls

• Incom ing ATC Packet Removal Control Enables or disables removal of existing input video ATC timecode packets

Audio LTC controls described below only appear on devices with +LTC licensed optional feature. This feature

timecode formats shown to the left.

• If a format is receiving timecode data, the current content (timecode
running count and line number) is displayed.

• If a format is not receiving timecode data, Not Present is displayed.

(+LTC option only)
LTC I nput control selects an input audio channel when audio LTC is to be

used as a source.
Mute LTC Audio control allows timecode using LTC audio sources to

freeze as follows:

• When set to Enabled and input timecode is lost, timecode insertion is
disabled.

• When set to Disabled and input timecode is lost, timecode output
reverts to next priority selection.

Note: If muting upon loss of a particular input format is desired, set all
Source Priority 1 thru 4 to that particular input format. If this is not done,

the device failover timecode selection may substitute another format
choice for the format not being received.

from the output. This allows removal of undesired existing timecodes from
the output, resulting in a “clean slate” where only desired timecodes are
then re-inserted into the output. (For example, if both SDI ATC_VITC and
ATC_LTC are present on the input video, and only ATC_L TC is desired,
using the Removal control will remove both timecodes from the output.
The ATC_LTC timecode by itself can then be re-inserted on the output
using the other controls discussed here.)

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-17

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Source Pr i o rity Selects the priority assigned to each of the four supported external
formats, and internal Free Run in the event the preferred source is
unavailable.

Source Priority 1 thru Source Priority 4 select the preferred format to be
used in descending order (i.e., Source Priority 2 selects the second-most
preferred format, and so on. See example below.)

HD/SD

525i

Input VITC

(1st priority)

Reference VITC

(2nd priority)

In this example, Input VITC 1st priority selection selects SDI VITC (received on
SDI input) over reference VITC (received on frame reference) regardless of video
input material source to be processed by BBG-1040.

The selected timecode source is embedded on the SDI video output (in this
example, 720p) using the selected line number. In this example, if the SDI VITC
on the SDI input becomes unavailable, BBG-1040 then uses the reference VITC
data received on the frame reference .

SDI IN

TC

FRAME REF

SDI
OUT

720p
(w/ ATC_VITC)

Note: Disable Output setting should be used with care. If Disable Output is selected with alternate intended format(s) set as a

lower priority, all timecode output will indeed be disabled if the ordinate preferred format(s) become unavailable.
Typically, choices other than Disable should be used if a timecode output is always desired, with Disable only being used to

remove all timecode data.

In this example, even though
and ATC_LTC could be
available to substitute for
ATC_VITC not being present,
the device will revert to no
timecode output since the

The choices shown here
will allow ATC_LTC to
“out-prioritize” Disable
Output if ATC_VITC is
not available.

choice of Disable Output
“out-prioritizes” ATC_LTC
with these settings.

• Of f s e t C ontrols Allows the current timecode count to be advanced or delayed on the
output video.

• Offset Advance or Delay selects offset advance or delay.

• Offset Field delays or advances or delays timecode by one field.

• Offset Frame delays or advances or delays timecode by up to 5

frames.

Note: Default settings are null, with both controls set at zero as shown.

3-18 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Output Status Display Displays the current content and source being used for the timecode data

•

Note: • Although the output line drop-down on the controls described below will allow a particular range of choices, the actual

range is automatically clamped (limited) to certain ranges to prevent inadvertent conflict with active picture area
depending on video format. See Ancillary Data Line Number Locations and Ranges (p. 3-9) for more information.

• The device does not check for conflicts on a given line number. Make certain the selected line is available and carrying
no other data.

Audio L TC Out put Audio LTC output is routed to desired embedded audio outputs using the

as follows:

• Output status OK (in this example, ATC_LTC timecode received and
outputted).

• Output disabled (either via priority failover to Disabled, or by Insertion
button set to Disabled.

Note: • If timecode is not available from Source Priority selections

performed, timecode on output can be set to revert to Free Run
(internal count) mode.

• Because the 1’s digit of the display Frames counter goes from 0 to
29, the fractional digit (along with the 1’s digit) indicates frame
count as follows:

0.0 Frame 0

0.1 Frame 1

1.0 Frame 2

1.1 Frame 3

•

•

•

29.1 Frame 59

Output Audio Routing/Controls (p. 3-26). Whatever timecode is displayed
on the Output Status is converted to audio LTC and available as an LTC
audio output.

• SD VITC Waveform Insertion Controls For SD output, enables or disables SD VITC waveform timecode insertion

• SD ATC Insertion Control For SD output, enables or disables SD ATC_VITC timecode insertion into

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-19

into the output video, and selects the VITC1 and VITC2 line numbers (6
thru 22) where the VITC waveform is inserted.

Note: • If only one output line is to be used, set both controls for the same

line number.

• SD VI TC Waveform Insertion control only affects VITC
waveforms inserted (or copied to a new line number) by this
function. An existing VITC waveform on an unscaled SD SDI
stream is not affected by this control and is passed on an SDI
output.

the output video, and selects the line number for ATC_VITC.

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• HD ATC_LTC Insertion Control For HD output, enables or disables AT C_LTC timecode insertion into the

• HD ATC_VITC Insertion Control

• ATC_VITC Legacy Support Control When enabled, accommodates equipment requiring ATC_VITC packet in

• Free Run Timecode Controls Allows an initial (starting) count to be applied to output video timecode

output video, and selects the line number for ATC_LTC timecode data.

For HD output, enables or disables ATC_VITC timecode insertion into the
output video, and selects the line number for ATC_VITC1 and
ATC_VITC2.

both fields as a “field 1” packet (non-toggling).
Note: Non-toggling VITC1 and VITC2 packets do not conform to

SMPTE 12M-2-2008 preferences. As such, AT C_VIT C Legacy
Support should be enabled only if required by downstream
equipment.

when Free Run insertion is enabled.
Note: • Initialization can only be applied when device is outputting Free

Run timecode (as shown by Output Status displaying “Free Run”).

• If failover to Free Run occurs due to loss of external timecode(s),
the Free Run count assumes its initial count from the last valid
externally supplied count.

3-20 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides user-configurable burn-in of up to two text
strings and timecode on output video.

Character Burner

Note: Ident 1 and Ident 2 sub-tabs provide identical, independent controls for inserting two independent text (identification)

burn-in overlays on the output video. Ident 2 has controls identical to the controls described here for Ident 1. Therefore,
only the Ident 1 controls are shown here.

• Ident Insertion Controls Selects the rules for identification text burn-in overlay insertion into output

• Display (Ident) Text Entry Field Dialog entry box that allows entry of desired ident text string. Enter

• Ident Text Size/Positioning Controls Sets burn-in size/position attributes as follows:

video.

desired text as click Update when done to input the text string.
Note: • All normal keyboard alphanumeric characters are supported, in

addition to ASCII characters (Windows ALT+nnnn).

• Up to 126 characters can be entered.

• Character Size sets proportional relative sizing. (Range is 0 thru 10)

• Horizontal Position sets horizontal position (in percentage of offset

from left of image area, left justified). (Range is 0 thru 90)

• Vertical Position sets vertical position (in percentage of offset from top
of image area, top justified). (Range is 0 thru 90)

Note: Character sizing and positioning for a given raster format may not

be appropriate for another format (especially if transitioning from
HD to SD). Set size and position for a balanced appearance (e.g.,
do not place text too close to margins or set larger than necessary)
that accommodates both HD and SD raster formats if multiple
format use is required.

Positioning with H and V controls at
zero (origin)
(Size = 3)

Positioning with H and V controls
both at 50
(Size = 3)

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-21

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Ident Text Character/Background Attributes
Controls

•

•

•

Provides independent controls for setting the color and opacity of the
burn-in text and its background.

• Color drop-downs set text or background color from multiple choices.

• Opacity controls set text or background opacity from 0% (least opacity)

to 100% (full opacity).

Provides controls for burn-in of timecode on output
video.

• Output Status Display Displays the current content and source being used for the timecode data.

Note: This status display mirrors the same display in the Timecode tab.

BBG-1040 must be set to output a timecode (as shown in this
display) in order for timecode burn-in to function. See Timecode (p.
3-16) for information on using timecode controls.

• Timecode Insertion Control Enables or disables timecode burn-in overlay insertion into output video.

• Timecode Format Display Selector Selects the format of timecode string burn-in overlay insertion into output

video from choices shown.

3-22 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Timecode Character Size/Positioning
Controls

• Timecode Character/Background Attributes
Controls

•

•

•

Sets burn-in size/position attributes as follows:

• Character Size sets proportional relative sizing. (Range is 0 thru 10)

• Horizontal Position sets horizontal position (in percentage of offset

from left of image area, left justified). (Range is 0 thru 90)

• Vertical Position sets vertical position (in percentage of offset from top
of image area, top justified). (Range is 0 thru 90)

Note: Character sizing and positioning for a given raster format may not

be appropriate for another format (especially if transitioning from
HD to SD).

Set size and position for a balanced appearance that

accommodates both HD and SD raster formats if multiple format
use is required. Avoiding placing text too close to margins or set
larger than necessary helps in making certain text is not cut-off for
HD or SD modes.

Provides independent controls for setting the color and opacity of the
burn-in timecode string and its background.

• Color drop-downs set text or background color from multiple choices.

• Opacity controls set text or background opacity from 0% (least opacity)

to 100% (full opacity).

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-23

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides a “moving box ” graphic insertion (overlay) on
the output video.

Moving-box insertion can serve as a dynamic raster

Moving Box Insertion

confidence check even in cases wher e the inp ut vid eo
image is static or lost.

Moving-box insertion provides dynamic
display even on static video. Attributes
such as box size, color, vertical
movement speed, and horizontal
movement speed are all user
configurable.

Moving box can be set to insert
continuously, or only upon loss of input.

• Moving Box Insertion Control Selects the rules for moving-box overlay insertion into output video.
Note: If moving-box insertion is desired for input LOS conditions, the

Framesync On Loss of Video cont rol must be set to provide a
raster (from one of the choices shown) to support the moving-box
insertion.

If this control is set to “Disable Outputs”, no raster or moving-box
insertion will be present on the output video under input LOS
conditions. See Framesync (p. 3-13) for more information.

• Moving Box Size Controls Sets size of box image burn-in as follows:

• Moving Box Width sets the width (as a percentage of maximum

available raster width. (Range is 0% thru 40%)

• Moving Box Height sets the height (as a percentage of maximum

available raster height. (Range is 0% thru 40%)

Note: Moving box sizing for a given raster format may not be appropriate

for another format (especially if transitioning from HD to SD). Set
size and position for a balanced appearance that accommodates
both HD and SD raster formats if multiple format use is required.

• Moving Box Speed Controls Sets speed of motion for moving box image burn-in as follows:

• Mo ving Box Horizontal Speed sets the X-axis speed from choices

shown.

• Moving Box Vertical Speed sets the Y-axis speed from choices shown.

3-24 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Moving Box Attributes Controls Provides independent controls for setting the color and opacity of the
moving-box insertion.

• Color drop-down sets box color from multiple choices shown.

• Opacity controls sets box opacity from 0% (least opacity) to 100% (full

opacity).

Provides controls for correcting upstream misalignment
of Y and C phase.

Y/C Alignment Controls

SMPTE color bars showing Y/C misalignment (as

evidenced by poor transitions at the color borders)

SMPTE color bars showing proper Y/C alignment (as

evidenced by crisp transitions at the color borders)

Y/C misalignment is typically introduced by upstream analog-to-digital converter, especially where the Y and chroma
paths may experience differing characteristics.

• Y/C Alignment Controls Provides the following Y/C alignment controls:

• Enable control turns on alignment.

• C Phase Adjustment Relative to Y provides a -8

C phase from Y phase.

•

•

•

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-25

° to +7°phase offset of

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides an audio crosspoint allowing the audio source
selection for each embedded audio output channel.
Also provides Gain, Phase Invert, and Muting controls
and peak level meters for each output channel.

Output Audio Routing/Controls

Note: • Embedded Ch 2 thru Embedded Ch 16 have controls identical to the Source, Gain, Mute, and Invert controls

described here for Embedded Ch 1. Therefore, only the Embedded Ch 1 controls are shown here.

• For each channel, its source and destination should be considered and appropriately set. Unused destination

channels should be set to the Silence selection.

• Group Enable/Disable Controls Allows enable/disable of embedded audio groups 1 thru 4 on program

• Embedded Output Channel Source Using the drop-down list, selects the audio input source to be embedded

video output to accommodate some legacy downstream systems that
may not support all four embedded audio groups.

Note: Changing the setting of this control will result in a noise burst in all

groups. This control should not be manipulated when carrying
on-air content.

in the corresponding embedded output channel from the following
choices:

• Audio Bus Ch 1 thru Ch 16

• Built-in Tone generators Tone 1 thru Tone 16

(all are -20 dBFS level; freq (Hz) in ascending order are 100, 200, 300,
400, 500, 600, 700, 800, 900, 1k, 2k, 4k, 6k, 8k, 12k, and 16k)

Note: Multiple tone generators, even if set to the same frequency, may

not exhibit phase coherence. If identical tones with frequency and
phase coherence are required, use a single tone generator (e.g.,
“TG1”) across multiple channels instead of multiple generators set
to the same frequency.

• Audio LTC

• Downmixer L

• Downmixer R

• Channel Mute/Phase Invert/G ain Controls
and Peak Level Display

Provides Mute and phase Invert channel controls, as well as peak level
meter for each output channel. (Meter shows level as affected by Level
control.)

Gain controls allow relative gain (in dB) control for the corresponding
destination Embedded Audio Group channel.

(-80 to +20 dB range in 1.0 dB steps; unity = 0 dB)
Note: Although the BBG-1040 can pass non-PCM data such as Dolby

or AC-3, setting the gain control to any setting other than default 0
will corrupt Dolby data.

®

E

3-26 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides audio down-mix audio routing selections that
multiplexes any five audio channel sources into a stereo
pair.

• Downmixer Source Controls Left Channel Input thru Right Surround Channel Input select the five

• Center Mix Ratio Control Adjusts the attenuation ratio of center-channel content from 5-channel

• Surround Mix Ratio Control Adjusts the attenuation ratio of surround-channel content from 5-channel

audio bus source channels to be used for the downmix.
Downmix channels Downmixer L and Downmixer R are available as

sources for embedded audio outputs using the Channel Source controls
described above.

source that is re-applied as Lt and Rt content to the DM-L and DM-R
stereo mix.

• 0 dB setting applies no ratiometric reduction. Center channel content is
restored as in-phase center-channel content with no attenuation, making
center-channel content more predominate in the overall mix.

• Maximum attenuation setting (-80 dB) applies a -80 dB ratiometric
reduction of center-channel content. Center-channel content is restored
as in-phase center-channel content at a -80 dB ratio relative to overall
level, making center-channel content less predominate in the overall
mix.

(20 dB to -80 dB range in 0 dB steps; default = 0 dB)
Note: Default setting is recommended to maintain center-channel

predominance in downmix representative to that of the original
source 5-channel mix.

source that is re-applied as Lo and Ro content to the DM-L and DM-R
stereo mix.

• 0 dB setting applies no ratiometric reduction. Surround-channel content
is restored with no attenuation, making Lo and Ro content more
predominate in the overall mix.

• Maximum attenuation setting (-80 dB) applies a -80 dB ratiometric
reduction of surround-channel content. Surround-channel content is
restored at a -80 dB ratio relative to overall level, making
surround-channel content less predominate in the overall mix.

(20 dB to -80 dB range in 0 dB steps; default = 0 dB)
Note: Default setting is recommended to maintain surround-channel

predominance in downmix representative to that of the original
source 5-channel mix.

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-27

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

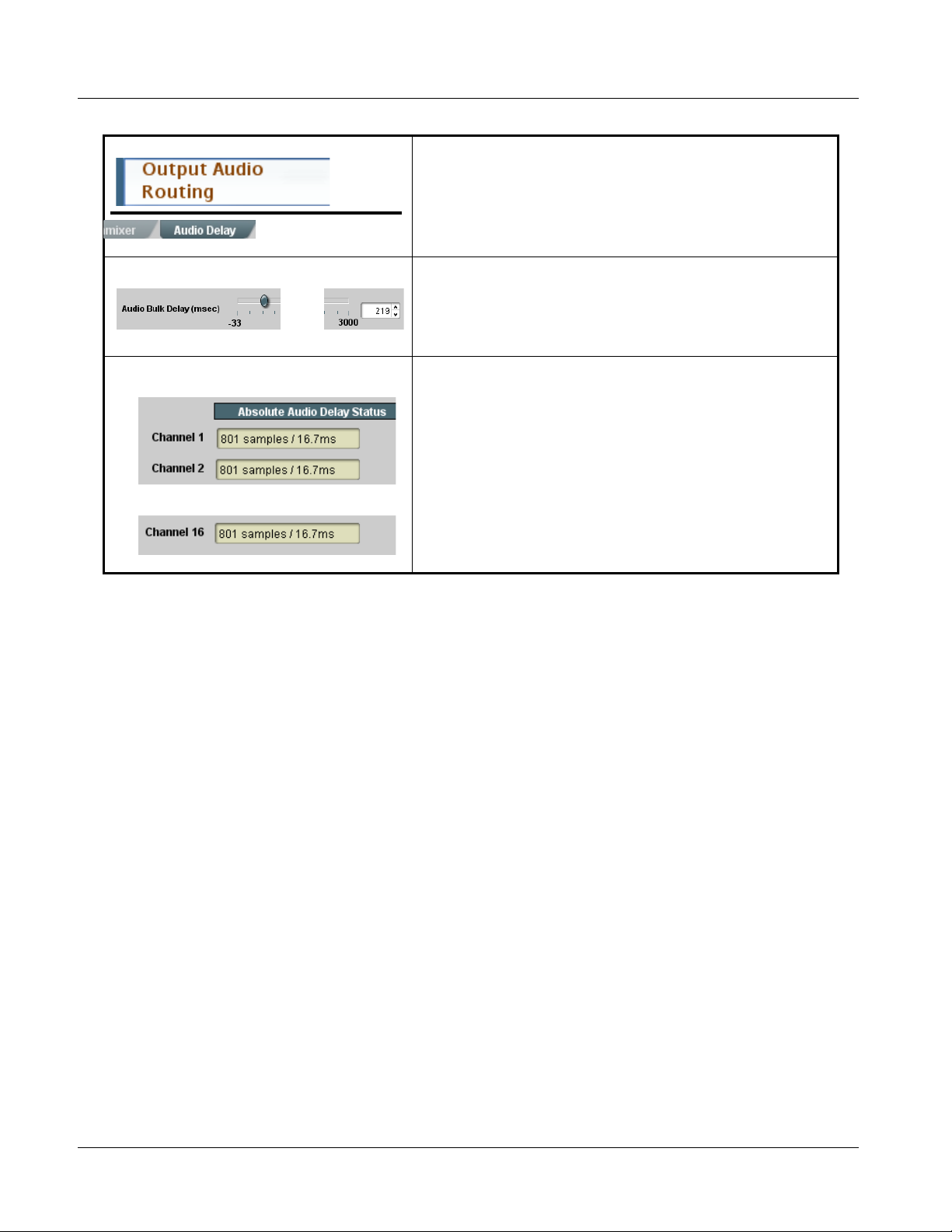

Audio Delay – Provides bulk (all four groups/master) delay offset
controls and delay parametric displays.

• Bulk (Master) Audio/Video Delay Control Bulk Delay control adds bulk (all four groups) audio delay from any video

• ••

• Per-Channel Delay Display Delay Status shows current delay from video for the audio bus.

•

•

•

delay (net audio delay offset setting adds delay in addition to any delay
included by other actions). This control is useful for correcting lip sync
problems when video and audio paths in the chain experience differing
overall delays. (-33 to +3000 msec range in 0.01-msec steps; null = 0
msec).

3-28 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides two independent GPI inputs that can invoke
input routing control. GPI inputs can be set to function
as edge-trigger individual inputs or in combination as a
binary 2-bit word.

GPIO Controls

Also provides two independent contact pairs (GPO 1
and GPO 2) that can be invoked as a function of input
routing.

• GPI Status Indicators Status displays for GPI 1 and GPI 2 indicate Open (and “unlit” indicator)

• GPI Trigger Coding Selects GPI triggering as follows:

Edge GPI coding triggers on transitional state changes occurring
on individual GPI inputs. This provides simple control using a
single wire.

In this example, when GPI 2 “closes” (edge trigger going from
HI to LO), Route SDI A is invoked as selected in the
corresponding drop-down.

When GPI 2 “opens” (edge trigger going from LO to HI), Route

SDI B is invoked as selected in the corresponding drop-down.

GPI 1

Disabled — Don’t Care

for GPI not present on GPI input. Display indicates Closed (and “lit”
indicator) when GPI is present.

Note: GPI trigger threshold/type is set using GPI Coding drop-down

described below. Refer to Specifications in Introduction, Chapter 1
for GPI electrical specifications and limitations.

• Disabled: GPI conditions on both GPI ports are ignored; no preset
is invoked as a result of GPI status. Use this setting as a master
disable of GPI functions.

• Edge and Level (Binary): See the description and examples below.

Make certain GPI Trigger Coding is set to Disabled if GPI

is not to be used. Selecting Level triggering without

controlled GPI inputs may result in inadverte ntly
invoking an unintentional routing.

GPI 2

Invoke Route SDI A Invoke Route SDI B

Level (Binary) GPI coding triggers on conditions that consider state combinations on both GPI 1 and GPI 2, comprising a 2-bit
word that offers four state combinations.

This mode accommodates the maximum number of go-to conditions, and is highly immune to duplicate erroneous conflicting
commands.

GPI 2
GPI 1

CC

00

Note: “Pull-up” convention is

used for GPI as follows:

Open = 1 (hi; pull-up)
Closed = 0 (lo; pull to GND)

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-29

CO

01

OC

10

OO

11

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• GPO Settings

Provides two GPO outputs that can be independently set as manually-invoked engaged, or set to trigger as a function of
selected input routing.

• Manual Control allows the corresponding GPO Event Action to be invoked immediately (in this example, GPO 1 set to Closed).
These manual settings can be saved as part of a preset. Whenever the preset is invoked, any Manual Control settings here will
be carried over as part of the preset and in turn applied. (See Presets (p. 3-31) for more information.)

• Channel Selection (SDI A Selected or SDI B Selected) events can invoke a GPO (as Open or Closed as desired)
corresponding to the currently-selected procesed input channel. The invoking of a GPO in this case is driven by manually
selecting an input channel, or by the failover routing of the channel.

3-30 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Allows user control settings to be saved in a Preset and
then loaded (recalled) as desir ed, and prov ide s a
one-button restore of factory default settings.

Also provides event-based loadi ng all owing a defined

Presets

• Preset Layer Select

Allows selecting a functional layer (or “area of concern”) that the preset is concerned with. Limiting presets to a layer or area of
concern allows for highly specific presets, and masks changing device settings in areas outside of the layer or area of concern.

Default All setting will “look” at all device settings, and save and invoke all settings when the preset is invoked (loaded).

Selecting a layer (in this example, “Audio Routing”) will set the preset to only “look at” and “touch” audio routing settings and
save these settings under the preset. When the preset is invoked (loaded), only the audio routing layer is “touched”.

preset to be automatically engaged upon various
received signal status. Also provides automated Email
alerts when an event has occurred.

Example: Since EAS audio routing can be considered independent of other settings, if normal audio routing was set up with a
particular video settings in effect, and at a later time EAS audio routing is desired to be saved as a preset, selecting Audio
Routing here limits preset-invoked changes to only the audio routing layer, “telling” the preset save/load to not concern itself with
other settings. In this manner, when the EAS preset is invoked any other settings in effect will remain untouched, with only the
audio routing changes invoked.

• Preset En ter/Save/D elete Locks and unlocks editing of presets to prevent accidental overwrite as

Protected state –

changes locked out

Ready (open) state –

changes can be applied

follows:

• Protect (ready): This state awaits Protected and allows preset Save/
Delete button to save or delete current device settings to the selected
preset. Use this setting when writing or editing a preset.

• Protected: Toggle to this setting to lock down all presets from being

inadvertently re-saved or deleted. Use this setting when all presets

are as intended.

• Create New Preset: Field for entering user-defined name for the preset

being saved (in this example, “IRD Rcv122”).

• Save: Saves the current device settings under the preset name defined

above.

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-31

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

(continued)

• Preset Sav e/Load Cont rols

• Select Preset: drop-down allows a preset saved above to be

selected to be loaded or deleted (in this example, custom
preset “IRD Rcv122”).

•

•

•

• Load Selected Preset button allows loading (recalling) the
selected preset. When this button is pressed, the changes
called out in the preset are immediately applied.

• Delete Selected Preset button deletes the currently selected
preset.

• Load Factory Defaults button allows loading (recalling) the
factory default preset. When this button is pressed, the
changes called out in the preset are immediately applied.

Note: Load Factory Defaults functions with no masking. The

Preset Layer Select controls have no effect on this
control and will reset all layers to factory default.

• Download Presets saving the preset files to a folder on the
connected computer.

Download (save) device presets to
a network computer by clicking
Download Presets – Save at the
bottom of the Presets page.

Browse to a desired
save location (in
this example, My

Documents\Cobalt
Presets).

The file can then be
renamed if desired
(RCVR21 Presets
in this example)
before committing
the save.

Note: • Preset transfer between device download and file upload is on a group basis (i.e., individual presets cannot be

downloaded or uploaded separately).

• After uploading a presets file, engagement of a desired preset is only assured by selecting and loading a desired preset
as described on the previous page.

Upload (open) device presets from a network
computer by clicking Settings and then selecting File
Upload Utility.

Browse to the location
where the file was
saved on the computer
or drive (in this
example, My

Documents\Cobalt
Presets).

Select the desired file
and click Open to load
the file to the device.

3-32 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides event-based loading allowing a defined preset
to be automatically engaged upon various received
signal status.

Event-based loading is part icularly useful for automa ted
device setup when transitioning from normal processing
to processing supporting an alternate format.

• Event based preset loading is not passive and can result in very significant and unexpected device control and signal
processing changes if not properly used. If event based presets are not to be used, make certain the Event Based
Loading button is set to Disabled.

• Because event based preset loading applies device control changes by invoking presets, loading conditions cannot be
nested within a called preset (event-based loading settings performed here cannot be saved to presets).

Event triggers allow a variety of event screening criteria, and in turn provide an Event Action “go to” in response to the detected
event(s). For each screened criteria, categories can be set as “don’t care” or set to specific criteria to broaden or concentrate on
various areas of concern.

The Event based loading button serves as a master enable/disable for the function.
Go-to Event Actions can be user-defined presets or hard-coded input video selection changes.

In the example here for Event 1, the Video Quality Events tab is set to screen for frozen video. When detected, this status can
be used here (Video Quality set to “Input A Event Error Detected”). Using the Event Action selector, go-to action of “IRD Rcv 122”
can be invoked (which in this example is a user preset that changes BBG-1040 routing to use an alternate IRD).

Conversely, to go back to the original source, an event could be set up with Video Quality here looking for “Input A Event Error
Cleared” and in turn invoke an event action returning routing to the original video source.

In the example here for Event 12, th e Audio Events sub-tab can be set to screen for loss of audio. When detected, this status
can be used here (Audio Silence Event set to “Audio Silence Event 1”). Using the Event Action selector, go-to action of “POTS
Audio Backup” can be invoked (which in this example is a user preset that changes BBG-1040 routing to use an alternate telco
audio feed).

Note: • Scre ened conditions are triggered upon start of event. Any event-based setup must be done in advance of the

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-33

triggering event in order for event to be detected.

• Loss of true conditions does not disengage an event-based t riggering. A new set of t rue conditions m ust be
defined and then occur to transition from one event-based trigger to another.

• Time required to engage an event-based trigger depends upon complexity of the called pres et. (For exam ple,
a preset that invokes a framesync chang e will take longer to en gage than a pres et involving only an audio
routing change.)

• Make certain all definable event conditions that BBG-1040 might be expected to “see” are defined in any of the
Event 1 thru Event 32 rows. This makes certain that the device will always have a defined “go-to” action if a
particular event occurs. For example, if the device is expected to “see” a 720p5994 stream or as an alternate,
a 525i5994 stream, make certain both of these conditions are defined (with your desired go-to pres ets) in any
two of the Event 1 thru Event 32 cond ition definition rows.

• Video Quality column appears only on BBG-1040 with +QC (Quality Check) option.

3 BBG-1040-ACO Function Menu List and Descriptions

Table 3-2 BBG-1040-ACO Function Submenu List — continued

Provides audio silence event screening which can be
used in conjunction with the Event Triggers controls
described on the previous page.

Checkbox rows allow up to eight separate and independent Audio Silence Events to be defined. Checking an audio channel sets
the channel to be screened for audio events indicating persistent silence on the channel.
Channels screened are any received channel embedded onto the audio bus channels.

In this example, channels 1 and 2 are set to be screened for audio silence. In this example, if either channel 1 or 2 experience
silence exceeding the configured threshold, Audio Silence Event 1 becomes active. This event can be used on the Event Triggers
user interface page (described on the previous page) to propagate a device settings change (such as alternate-source audio
routing) and/or a user alert.

• ••

•

•

•

Event trigger threshold controls set the level and holdoff thresholds.

• Audio Failover Threshold sets the threshold (in LUFS) at which content below the threshold is
considered as silence.

• Trigger Holdoff sets the time allowed for below-threshold content persistence before a silence event
is triggered.

• Release Holdoff sets the time allowed, when content is noted to be above threshold, that the event
trigger is de-activated.

Note: Default threshold and holdoff settings shown here are recommended for typical use.

3-34 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions Front Panel User Menus

Front Panel User Menus

All of the mode and parametric controls available using the web UI (as
described in BBG-1040-ACO Function Menu List and Descriptions) are
available using the front panel display and arrow navigating buttons. Table
3-3 lists the menu structure and identifiers for these functions, along with
page references for detailed inform ation about the functions and its controls.

The front panel menus offers a true standalone means to configure the
BBG-1040 with no connection to a network required, and is useful where
changes need to be done immedia tely (or in emer gency sit uations) with out the
benefit of network acces s. However, the web GUI provides greatly simplifi ed
user interfaces as compared to using this menu and the arrow controls. For
this reason, it is strongly recommended that the web GUI Remote Control be
used for all applications other than the most basic cases.

Note: • When a setting is changed using either the menu described here or the web

GUI remote control, settings displayed are the settings as effected by the
device itself and reported back to the remote control; the value displayed at
any time is the actual value as set on the device.

• Items other than status displays have an additional submenu where a
selection for the item can be made. Some submenu items listed in Table 3-3
have additional nested submenus (denoted by *). These multiple- le ve l
submenus are not listed here; refer to the referenced page number for more
information.

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-35

3 Front Panel User Menus

Table 3-3 Front Panel User Menus

Menu>Submenu Items Menu>Submenu Items Menu>Submenu Items

Status (pg 3-8)

Output Video
SDI Input A
SDI Input B
SDI Input C
SDI Input D
GPI 1
GPI 2
Reference
Card Voltage
Card Power
Card Temp(front)
Card Temp (rear)
Card Temp (FPGA)
Card Up Time
Preset Engaged

Product Info (pg 3-8)

Product
Product Options
Supplier
Revision
Build Date
FPGA Rev
FPGA Build Date
S/N

Network Settings (pg 3-3)

IP Addr
Netmask
Gateway
Mode (DHCP/Stat)

Framesync (pg 3-13)

Lock Mode
Output Rate
Initial Startup Format
Output Mode
On LOS-­Test Pattern
Vert Lines Offset
Horiz Offset
Frame Delay
Report Delay
Lock Status

GPIO (pg 3-29)

GPI1
GPI2
GPI Coding

Input Video (pg 3-11)

Source
SDI IN A Status
SDI IN B Status
SDI IN C Status
SDI IN D Status

Timecode (pg 3-16)

Ref VITC Status
Input VITC Status
Input ATC LTC Status
Input ATC VITC Status
Output Status

Output Audio Routing

(pg 3-26)

Output Meters 1-8
Output Meters 9-16
Audio Bulk Delay

Presets (pg 3-31)

Save/Delete Mode
Select Preset
Load Selected Preset
Delete Selected Preset
Load Factory Defaults

Character Burner (pg 3-21)

Ident 1*
Ident 2*
Timecode*

3-36 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Moving Box (pg 3-24 )

Enable Mode
Width
Height
Horiz Speed
Vert Speed
Opacity
Color

Setup/Operating Instructions Troubleshooting

Troubleshooting

This section provides general troubleshooting information and specific
symptom/corrective action for the BBG-1040-ACO and its remote control
interface. The BBG-1040-ACO requires no periodic maintenance in its
normal operation; if any er ror indication (as descr ib ed in this section) occurs,
use this section to correct the condition.

Error and Failure Indicator Overview

The BBG-1040-ACO itself and its remote control provide error and failure
indications. Depending on how the BBG-1040-ACO is being used (i.e,
standalone or network controlled through DashBoard™ or a Remote Control
Panel), check all available indications in the event of an error or failure
condition.

The various BBG-1040-ACO device and remote control error and failure
indicators are individually described below.

Note: The descriptions below provide general information for the various status and

error indicators. For specific failures, also use the appropriate subsection
listed below.

• Basic Troubleshooting Checks (p. 3-39)

• BBG-1040-ACO Processing Error Troubleshooting (p. 3-40)

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-37

3 Troubleshooting

BBG-1040-ACO Front Panel Status/Error Indicators and
Display

Figure 3-8 shows and describes the BBG-1040-ACO front panel indicators
and display. These indicators and the di splay show stat us and error condi tions
relating to the device itself and rem ote (network ) communications (where
applicable). Because these indicators are part of the device itself and require
no external interface, the indicators are particularly useful in the event of
communications problems with external devices such as network remote
control de vices.

STATUS

Menu: Options

INPUT
LOCK

REF
STATUS

COMM

Item Function

Alphanumeric
Display

STATUS LED I lluminates GRE EN indicating BBG-1040-AC O has suc cess fully powered-up and passed self-tests.
INPUT LOCK

LED
REF STATUS

LED

COMM LED Illuminates GREEN when device is communicating with network connection. Illuminates ORANGE if

Note: The LEDs listed above are always illuminated under normal conditions. An LED that is not lit indicates an error with the

device.

Shows device statuses

Illuminates GREEN indicating signal presence for currently-selected input video path. Illuminates ORANGE if
input video is lost.

Illuminates GREEN indicating BBG-1040-ACO is receiving valid reference when set up for framesync
operation. Illuminates ORANGE if reference is lost or incompatible with input video.

connection is lost.

Status

Network Settings

Character Burner

X

BBG1000_FPUI_SCPD2014P8

Figure 3-8 BBG-1040-ACO Device Edge Status Indicators and Display

3-38 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions Troubleshooting

Basic Troubleshooting Checks

Failures of a general nature (affecting many devices and/or functions
simultaneously), or gross inoperability errors are best addressed first by
performing basic checks before proceeding further. Table 3-4 provides basic
system checks that typically locate the source of most general problems. If
required and applicable, perform further troubleshooting in accordance with
the other troubleshooting tables in this section.

Table 3-4 Basic Troubleshooting Checks

Item Checks

Verify power presence and
characteristics

Check Cable connection
secureness and connecting
points

Check status indicators and
displays

Troubleshoot by
substitution

• On the BBG-1040-ACO, in all cases when power is being properly supplied
all indicators should be illuminated. Any device showing no illuminated
indicators should be cause for concern.

• Check the Power Consumed indication for the BBG-1040-ACO. This can be
observed using the Status front-panel or web UI pane.

• If display shows no power being consumed, either the frame power
supply, connections, or the BBG-1040-ACO itself is defective.

• If display shows excessive power being consumed (see Technical
Specifications (p. 1-10) in Chapter 1, “Introduction”), the
BBG-1040-ACO may be defective.

Make certain all cable connections are fully secure (including coaxial cable
attachment to cable ferrules on BNC connectors). Also, make certain all
connecting points are as intended. Make certain the selected connecting
points correlate to the intended device inputs and/or outputs. Cabling
mistakes are especially easy to make when working with large I/O modules.

On BBG-1040-ACO front panel and web interface indicators, red indications
signify an error condition. If a status indicator signifies an error, proceed to the
following tables in this section for further action.

All devices can be hot-swapped, replacing a suspect device with a
known-good item.

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-39

3 Troubleshooting

BBG-1040-ACO Processing Error Troubleshooting

T a ble 3-5 provides BBG-1040-ACO processing tr oubleshooting information.
If the BBG-1040-ACO exhibits any of the symptoms listed in Table 3-5,
follow the troubleshooting instructions provided.

In the majority of cases, most errors are caused by simple errors where the
BBG-1040-ACO is not appropri at ely set for the type of signal being r ece ive d
by the device.

Note: Where errors are displayed on both the BBG-1040-ACO and network remote

controls, the respective indicators and displays are individually described in
this section.

Table 3-5 Troubleshooting Processing Errors by Symptom

Symptom Error/Condition Corrective Action

BBG-1040 shows Unlocked
message in BBG-1040-ACO
Card Info pane.

Ancillary data (cl osed ca ptioning,
timecode) not transferred
through BBG-1040-ACO

Audio not processed or passed
through device

Selected upgrade firmware will
not upload

Device does not pass video or
audio as expected. Control
settings spontaneously changed
from expected settings.

No video input present Make certain intended video source is

connected to appropriate BBG-1040-ACO card
video input. Make certain BNC cable
connections are OK.

• Control(s) not enabled • Make cert ain re sp ectiv e con trol i s se t to On or
Enabled (as appropriate).

• VANC line number conflict

between two or more
ancillary data item s

Enable control not turned on On Output Audio Routing/Controls tab, Audio

Automatic reboot af ter upgrade
turned off

Event-based preset
inadvertently invok ed

• Make certain each ancillary data item to be
passed is ass igned a uni que li ne nu mber (s ee
Ancillary Data Line Number Locations and
Ranges on page 3-9).

Group Enable control for gro up 1 thru 4 mus t be
turned on for sources to be embedded into
respective embedded channel groups.

Device Presets > Automatically Reboot After
Upgrade box unchecked. Either reboot the
device manually, or leave this box checked to
allow automatic reboot to engage an upgrade
upon selecting the upgrade.

Event-based preset loading (Presets tab >

Event Triggers sub-tab) should be set to
Disabled if this function is not to be used. Read

and understand this control description before
using these controls to make sure engagement
for all expected conditions is considered. See
Presets (p. 3-31) for more information.

3-40 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Setup/Operating Instructions Troubleshooting

Table 3-5 Troubleshooting Processing Errors by Symptom — continued

Symptom Error/Condition Corrective Action

Device will not retain user
settings, or setting changes or
presets spontaneously invoke.

In Case of Problems

• GPI Controls tab GPI
Coding set to Level (binary)

with no controlled GPI source
connected to GPI inputs

• Event Based Loading
sub-tab inadvertently set to
trigger on event

• If GPI is not to be used, make certain GPI
Coding control on G PI Controls tab is set to
Disabled. (If control is left on Level with no

inputs, the pull-up HI logic state on the open
inputs will be interpreted as two “HI’s” on the
inputs, possibly resulting in an unintentional
invoked preset).

• If event based loading is not to be used, make
certain Event Based Presets is disabled
(either using master Enable/Disable control
or through events settings. See Presets (p.
3-31) for more information.

Should any problem arise with this product that was not solved by the
information in this section, please contact the Cobalt Digital Inc. Technical
Support Department.

If required, a Return Material Authorizatio n num ber (RMA) will be issued to
you, as well as specific shipping instructions. If required, a temporary
replacement item will be made available at a nominal charge. Any shipping
costs incur r ed are the customer’s responsibility. All products shipped to you
from Cobalt Digital Inc. will be shipp ed collect.

The Cobalt Digital Inc. Technical Support Department will continue to
provide advice on any product manufactured by Cobalt Digital Inc., beyond
the warranty period without charge, for the life of the product.

See Contact Cobalt Digi tal Inc. (p. 1-13) in Chapter 1, “Introduction“ for
contact information.

BBG1040ACO-OM (V1.1P) BBG-1040-A CO PRO DUCT M ANUAL 3-41

This page intentionally blank

3-42 BBG-1040-ACO PRODUCT MANUAL BBG1040ACO-OM (V1.1P)

Cobalt Digital Inc.

2406 E. University Ave.
Urbana, IL 61802
Voice 217.344.1243 • Fax [phone]
www.cobaltdigital.com

BBG1040ACO-OM (V1.1P) Printed in USA
