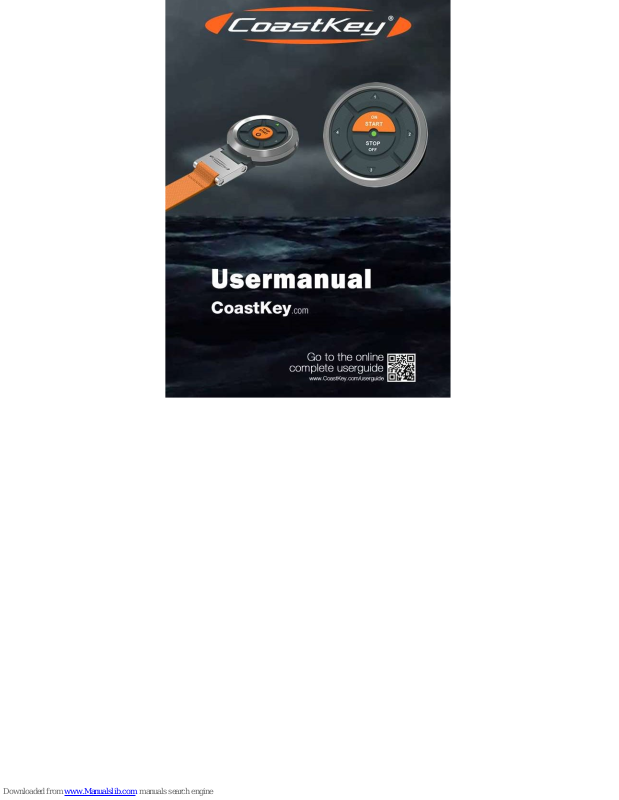

CoastKey Master FOB, Start Panel User Manual
1
2
Contents
Contents ................................................................................................ 2
Thank you for choosing Coastkey.......................................................... 3
Radio range ........................................................................................... 3
Brief description of button features...................................................... 4
Setup when installing the system ......................................................... 5
Start Panel ............................................................................................. 7
The Master FOB unit, Remote Control ................................................ 13
The Kill Switch Function - MOB ........................................................... 18
Change PIN code ................................................................................. 20
Pairing a new or extra Master Fob unit ............................................... 21

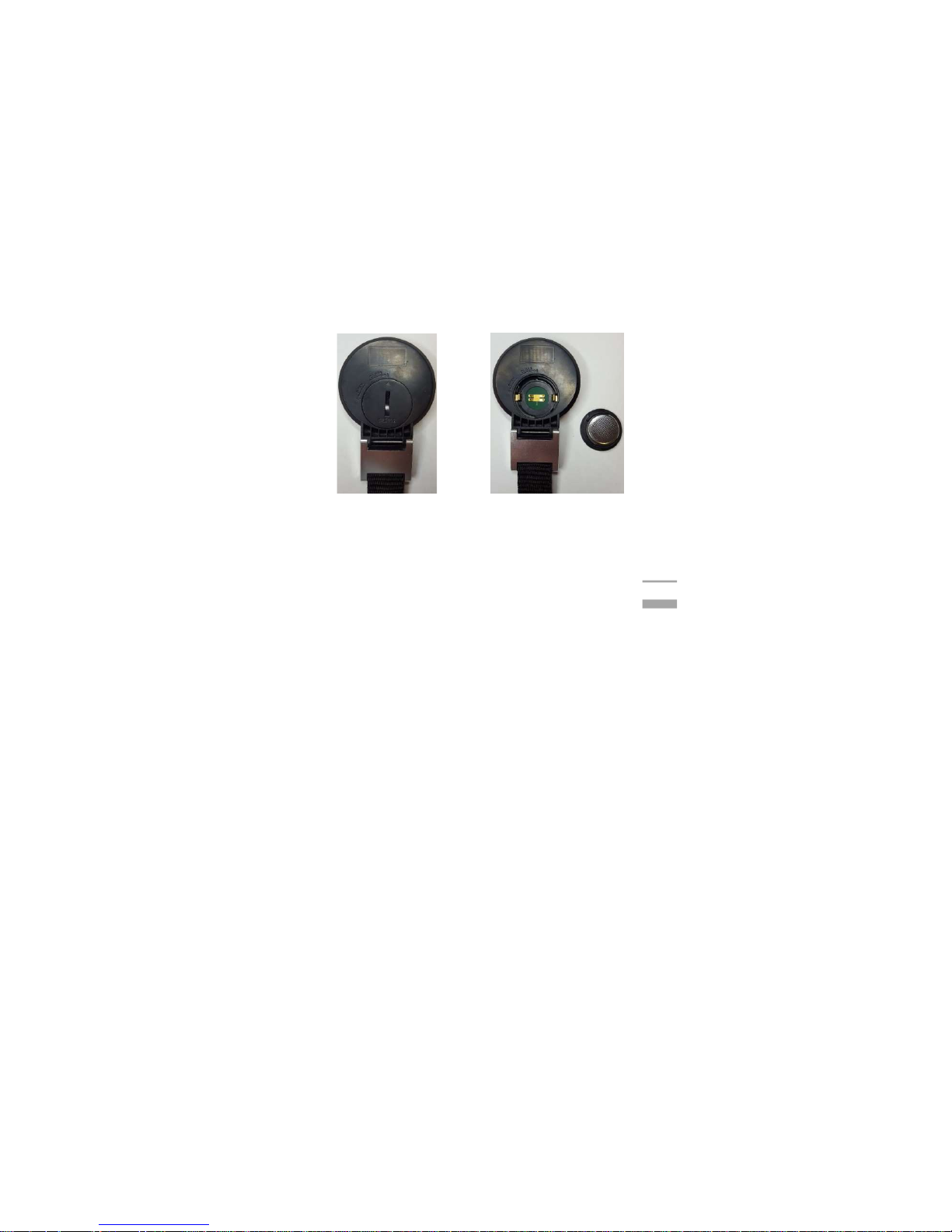

Battery replacement on the Master FOB device ................................. 22
Safety and warnings ............................................................................ 23
Update / Download of new Firmware TBD!! ....................................... 24
Use of App ........................................................................................... 24
Configuration ...................................................................................... 24
Before calling for support ................................................................... 25
Technical data ..................................................................................... 26
Disclaimer ........................................................................................... 28
Guarantee ........................................................................................... 29
Environment ....................................................................................... 29
FCC Statements ................................................................................... 30
3
Thank you for choosing Coastkey
Equipped with CoastKey, you can move safely and freely around the
boat and preserve the Kill Switch function without being attached to
the traditional kill cord. With CoastKey, you also have the option to
control up to four engines at the same time.
It is recommended that the CoastKey system is installed by a
professional, with good knowledge of electrical connections.
Please read the user manual carefully before using the CoastKey
system. Keep the user manual for future reference.
Radio range
The CoastKey system will normally provide you with a safety range of
6-10 meters from the location of the start panel. Keep in mind that
the range will depend on the surroundings around the boat and where
the start panel is placed. Therefore, the exact safety range will vary. It
is important that you get familiar with the range after the system is
installed. We recommend that you do a test of the safety range on
board your boat. This should be done in open sea while you move
around the boat.
4
1
2
3
6
4
5b
5a
Brief description of button features
Start Panel
1. AUX1 up / number 1
2. AUX2 right / number 2
3. AUX 1 down / number 3
4. AUX 2 left / number 4
5a. Ignition on / start button
5b. Ignition / stop button
6. LED light (Green / Red / Yellow / Blue)
MasterFOB - Remote
1. AUX1 up / number 1 (green LED)
2. AUX2 right / number 2
3. AUX1 Down / number 3 (Red LED)
4. AUX2 left / number 4
5. Ignition / Start / Stop - On / Off Button
Startpanel
1. AUX1 opp / tall 1
2. AUX2 høyre / tall 2
3. AUX 1 ned / tall 3
4. AUX 2 venstre / tall 4
5a. Tenning på/start-knapp
5b. Tenning av/stopp-knapp
6. LED lys (Grønn/Rød/Gul/Blå)
Figure 1 Start Panel
Figur 2 Master FOB
5
Setup when installing the system
First time power is turned on the Start Panel, the yellow LED will flash
quickly. This means that a PIN must be created. Enter your required
PIN. The code must be a combination of the numbers 1-4 (Figures 1, 1
to 4). The code may have 4-6 digits. Then press the START button to
confirm your PIN. Write down and take care of your PIN code! Your
PIN is the system's key (see separate section on PIN).
When the panel is opened, the supplied FOB device can be paired /
connected to the system. To pair FOB with Start Panel, do the
following:
Sequence
Action
1.
Hold the START button (fig.1, 5a) and the up arrow
button (fig.1, 1) at the same time.
2. After 5 seconds, yellow LED (fig.1, 6) will start
flashing.
3. Release START (fig.1, 5a) and up arrow button (fig.1,
1).
4. Press and hold
Center
button (fig.2, 5)
on FOB.
5.
After approx. 5 seconds, the green LED on the FOB
will flash fast 5 times.
6. Yellow LED on Start
Panel stops blinking (fig.1, 6).
7. Release the
Center
button (fig.2, 5) on FOB.
8. FOB and Start
Panel are now paired / connected.
6
NOTE: If the yellow LED does not flash when Start Panel is powered,
the system has received a PIN at the factory. The default PIN code
will then be: 1 2 3 4. In this case, FOB will already be paired with the
Start Panel. It is recommended that you change this password. See
how in the chapter "Change PIN."
NOTE:
• All engines must have separate starter batteries.
• Tilt the engine(s) into the water before starting the engine(s) to
avoid damage.
• If a manual Kill Switch is installed, it must be properly secured
before the engine(s) can be started.
• The main power switch must always be turned off when the
boat is not in use.
7
Start Panel
1
2
3
6
4
5b
5a
When ignition is turned off, the red LED will flash. The red LED
indicates that the panel is locked, but that the CoastKey unit is
powered.
If the panel is locked it will not be possible to use the panel. The panel
opens by entering your PIN code and turning the ignition on or
pressing Start from the Master FOB.
Figure 3 – Start Panel
8
Backlight
The backlight goes on when CoastKey is powered and each time a key
is pressed. The backlight is always on for 2 minutes after power-up
and after each last keystroke.
Unlock panel and ignition
Sequence
Action
1. Enter the PIN code by pressing and releasing the
buttons marked with numbers 1-4 (fig.3). The PIN
consists of 4 to 6 numbers combined.
2. The green LED flashes when the correct PIN is
entered, while the red LED flashes incorrectly.
3. Within 5 seconds,
press and release ON / OFF (fig.3,
5b) button to turn on ignition.
4. Ignition is activated on all installed engines.
If the ignition is not set within 5 seconds after the PIN code is verified,
the panel will be locked.
When you start the engine from the Master FOB, no PIN code is
required. The panel opens and ignition is activated.
Features available from open panel:
• Start / stop of engine(s)
• Individual start / stop of engine (multi-motor installation)
• AUX functions
• Pairing Fob
• Create new PIN code
9
Start and stop engine(s) from panel
NOTE:
• The panel must be unlocked.
• The Kill Switch function is not enabled in this case, which is
indicated by yellow flashing LED and audio signal.
• Beep will only be active during the first 2 minutes.
Start engine(s)
Sequence
Action
1. Press and hold the START button (fig.3, 5a).
2. After about 2 seconds, the start signal goes on to all
installed motors.
3. Release START button when engine(s) have started.
Stop engine(s) – Ignition off
Sequence
Action
1. Press and release the ON
/
OFF button (Fig.3, 5b).
2.
The engine(s) will stop and ignition switched
off
(stopping the engine(s) and ignition will run in the
same sequence).
3. The panel will be locked when ignition goes off (on all
installed motors).
If your boat is equipped with several engines
If your boat is equipped with multiple engines, each engine can be
individually started / stopped, and the ignition turned on / off.
When the panel is unlocked, ignition is also turned on for all installed
motors.
10
NOTE:
• The panel must be unlocked.
• The Kill Switch function is not enabled in this case, which is
indicated by yellow flashing LED and audio signal.
• Beep will only be active during the first 2 minutes.
