Page 1
ASSEMBLY INSTRUCTIONS
Height Chair
COASTER FINE FURNITURE
Fine Furniture for every stage of life
Counter
REVISION 0 : 11/05/2020
PAGE 1 OF 5
193499
COASTERFURNITURE.COM
Page 2
ITEM: 193499
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME
15 MINUTES

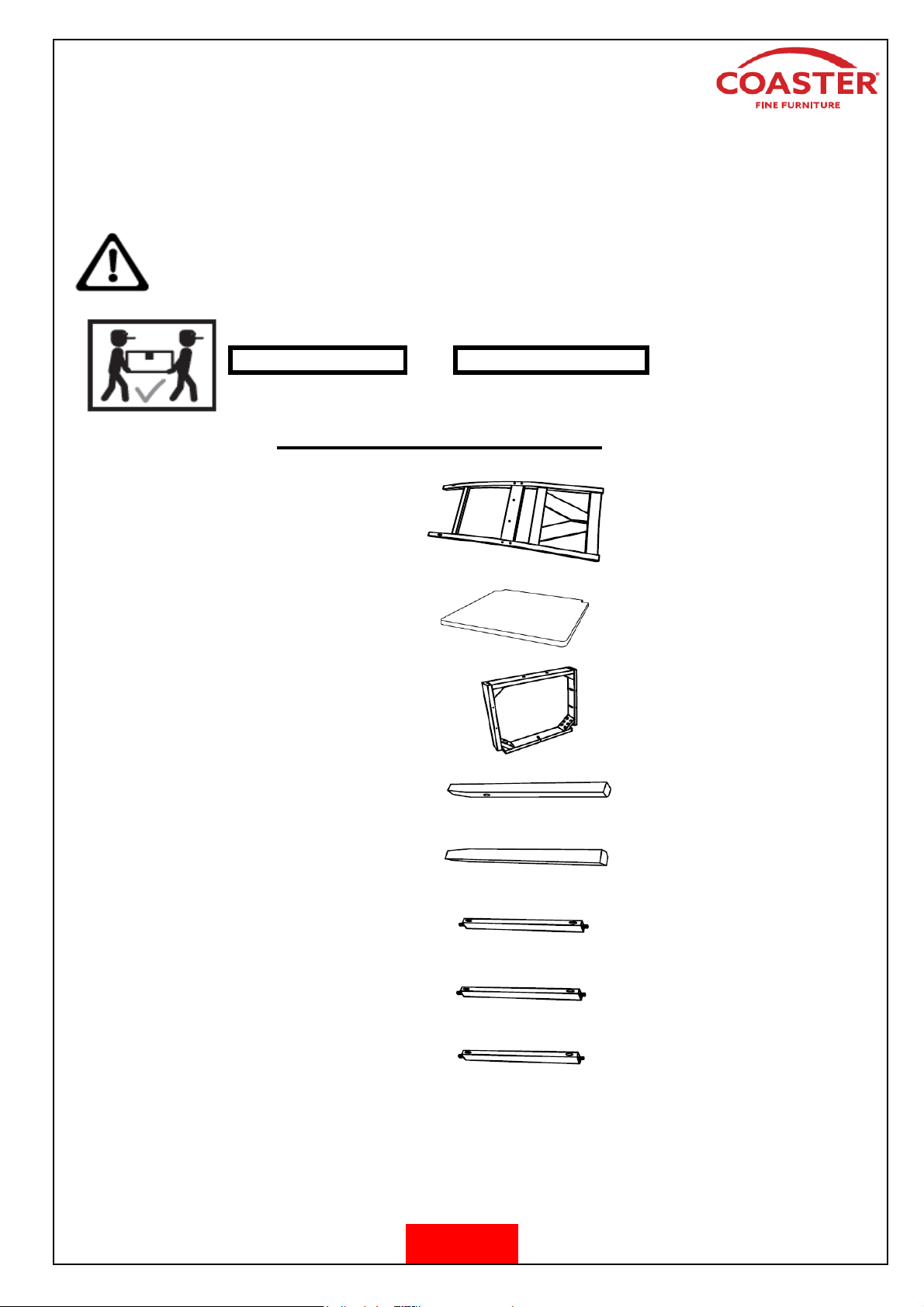

PARTS IDENTIFICATION
A BACK FRAME 1PC
B WOODEN SEAT 1PC
C SEAT FRAME 1PC
D LEFT FRONT LEG 1PC
E RIGHT FRONT LEG 1PC
F
G
H FRONT STRETCHER 1PC
LEFT SIDE
STRETCHER
RIGHT SIDE
STRETCHER
1PC
1PC
NOTE:
Quantities shown are for one chair.
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
PAGE 2 OF 5
COASTERFURNITURE.COM
Page 3
ITEM: 193499
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME
15 MINUTES

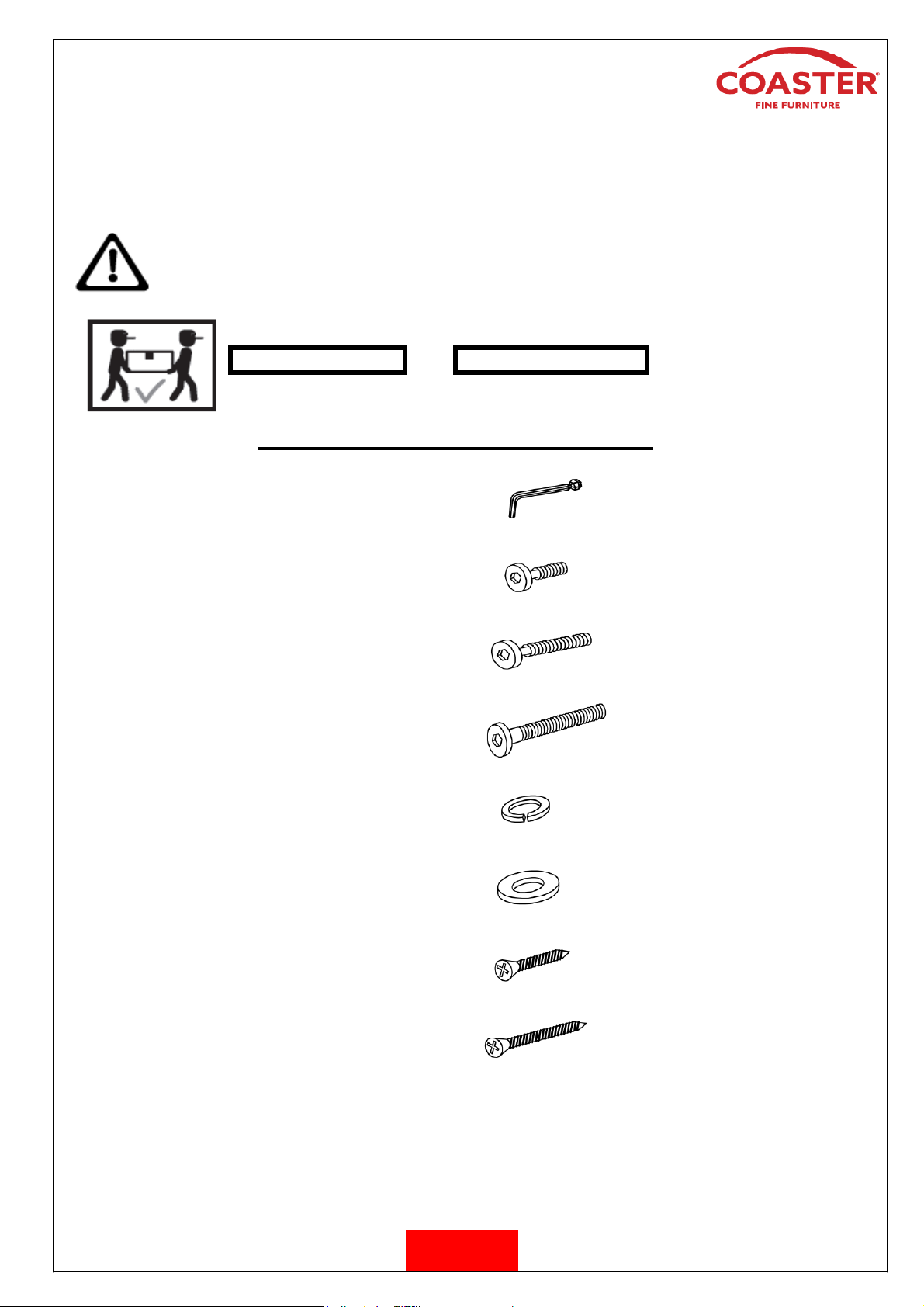

HARDWARE IDENTIFICATION
1
2
3
4
5
ALLEN WRENCH
(M4 - BLK)
SHORT BOLT
(M6 x 40mm - RBW)
MEDIUM BOLT
(M6 x 60mm - RBW)
LONG BOLT
(M6 x 70mm - RBW)
LOCK WASHER
(M6 - RBW)
1PC
2PCS
4PCS
4PCS
10PCS
6
7
8
FLAT WASHER
(M6 - RBW)
SHORT FLAT HEAD
SCREW
(M4 x 25mm- RBW)
LONG FLAT HEAD
SCREW
(M4 x 38mm- RBW)
10PCS
5PCS
6PCS
NOTE:
Quantities shown are for one chair.
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
PAGE 3 OF 5
COASTERFURNITURE.COM
Page 4
ITEM: 193499
ASSEMBLY INSTRUCTIONS

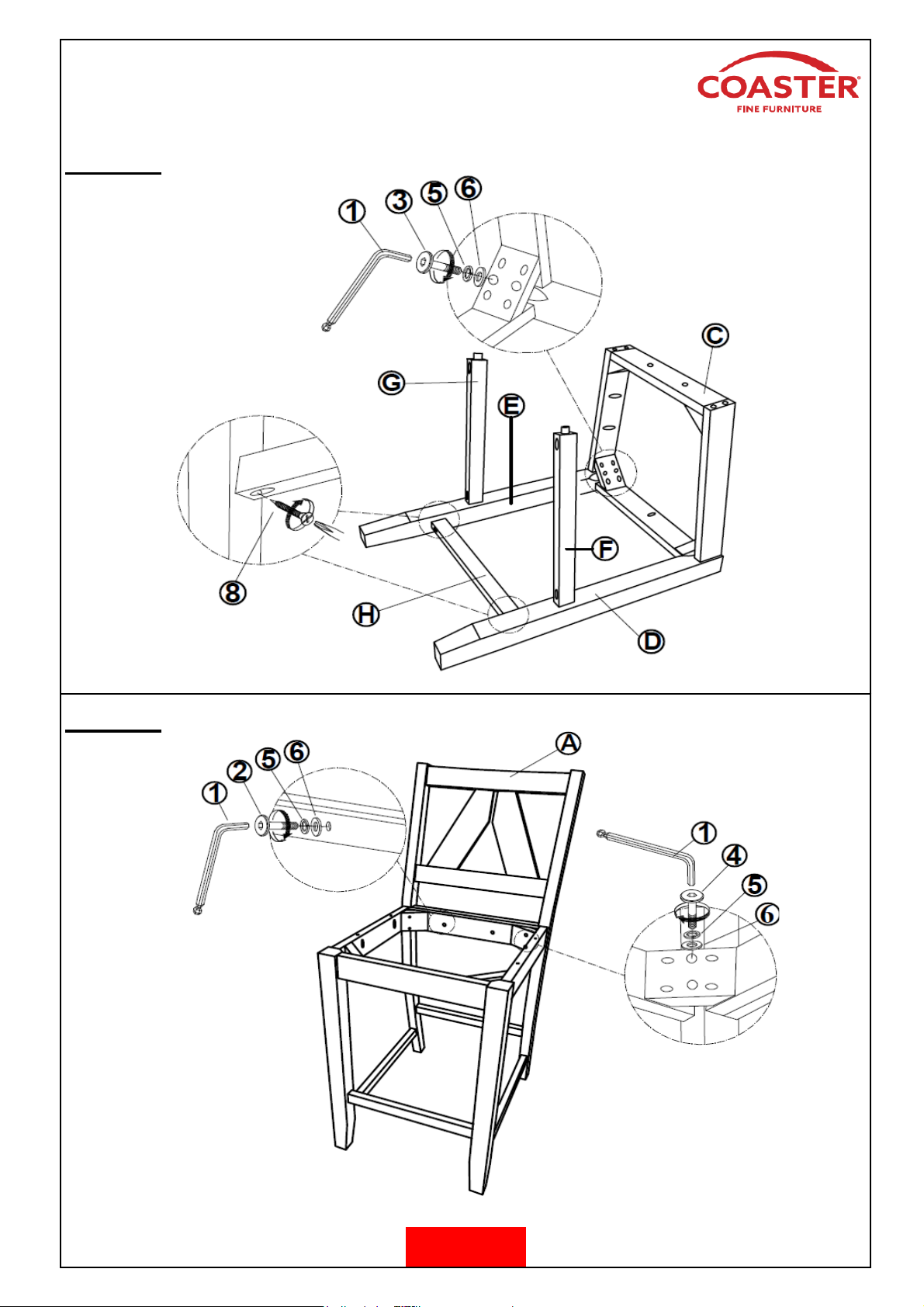

STEP 1
STEP 2
PAGE 4 OF 5
COASTERFURNITURE.COM
Page 5
ITEM: 193499
ASSEMBLY INSTRUCTIONS

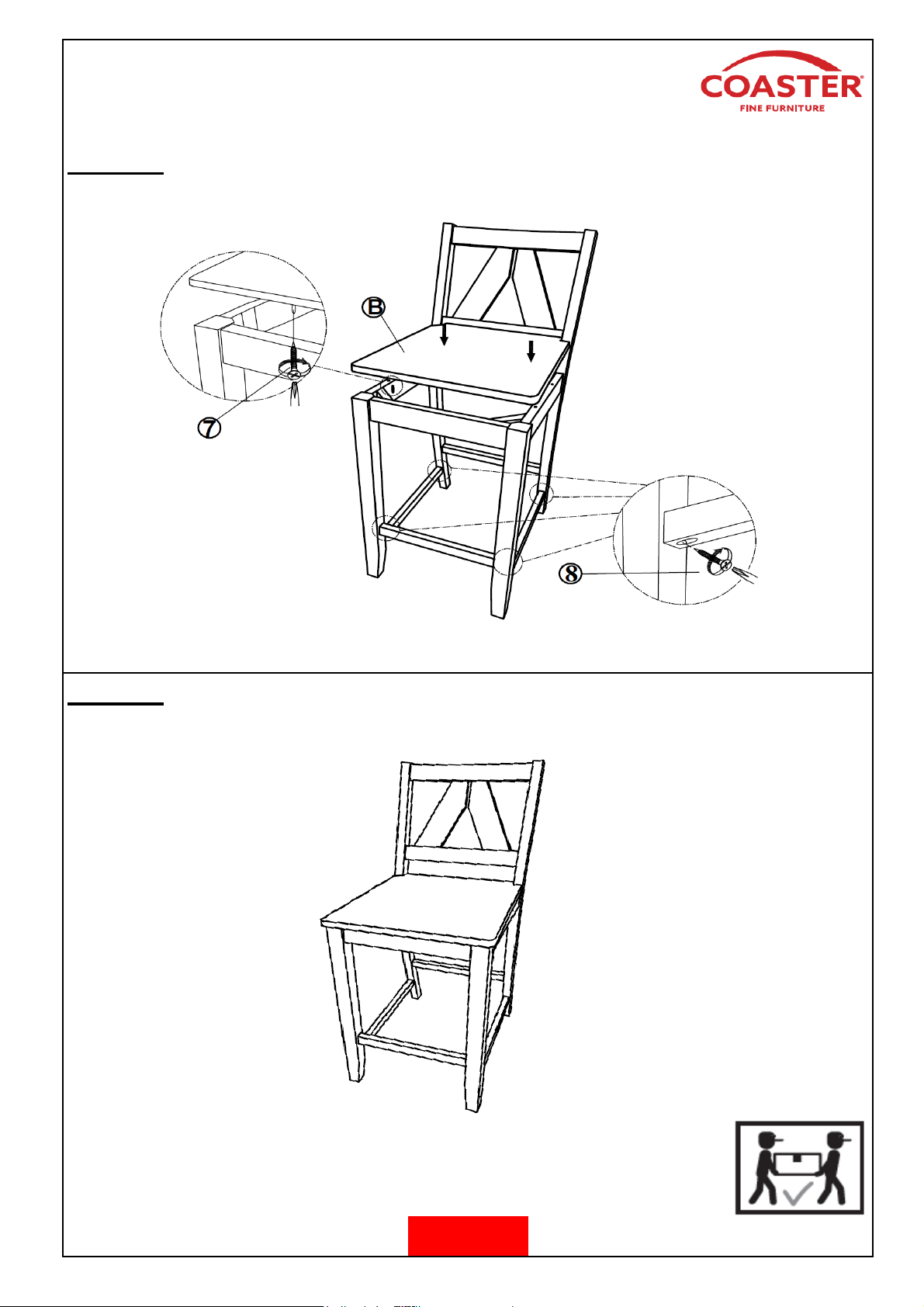

STEP 3
STEP 4
COMPLETE
PAGE 5 OF 5
COASTERFURNITURE.COM
Page 6

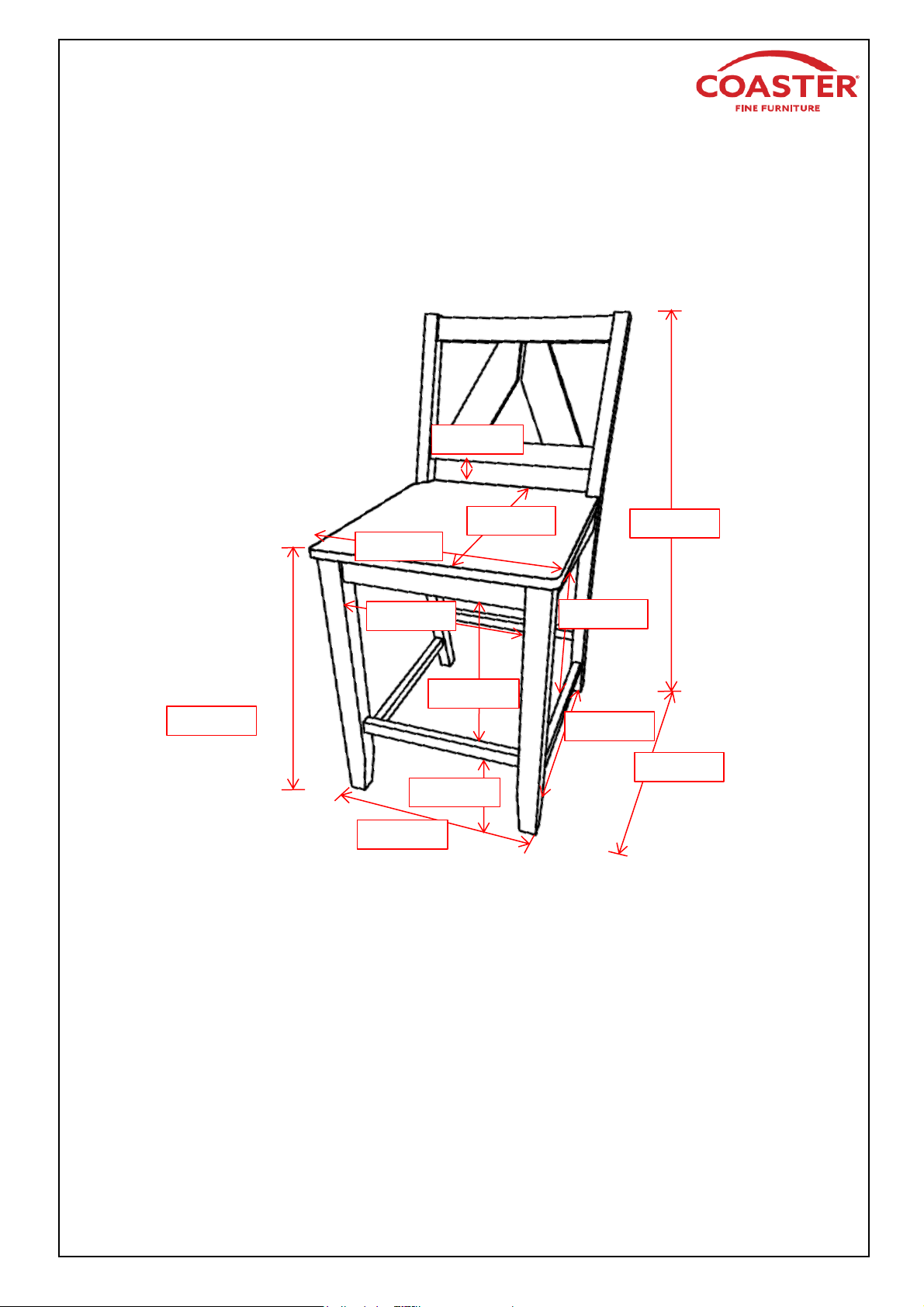

ITEM: 193499
2.36"
25.91"
16.54"
12.91"
15.35"
13.39"
6.69"
16.73"
37.60"
16.14"
18.11"
20.87"
Note : Dimension tolerance ±5%
