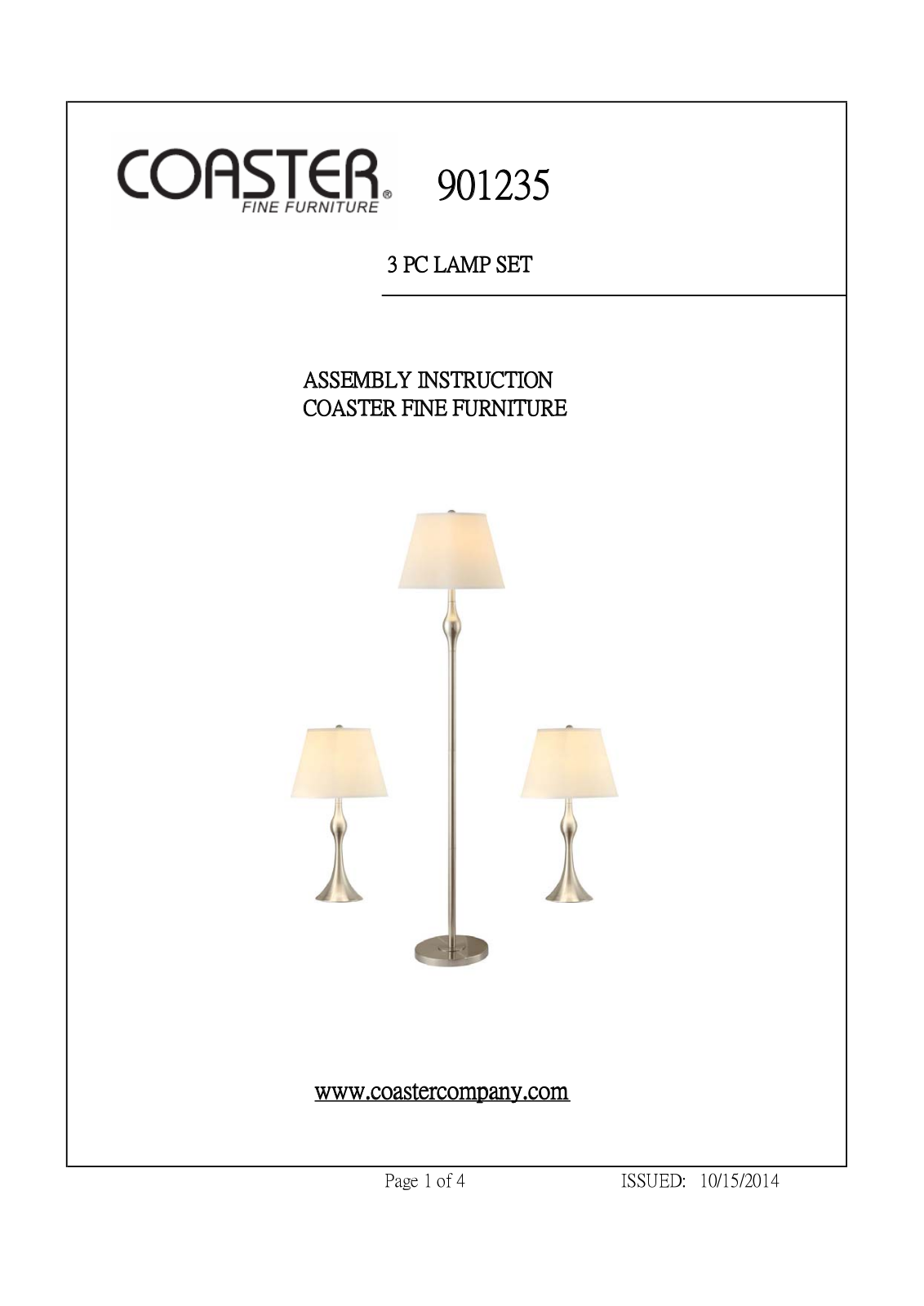

Page 1
901235
3 PC LAMP SET
ASSEMBLY INSTRUCTION
COASTER FINE FURNITURE
www.coastercompany.com
Page 1 of 4 ISSUED: 10/15/2014
Page 2
ITEM:901235 ASSEMBLY INSTRUCTIONS

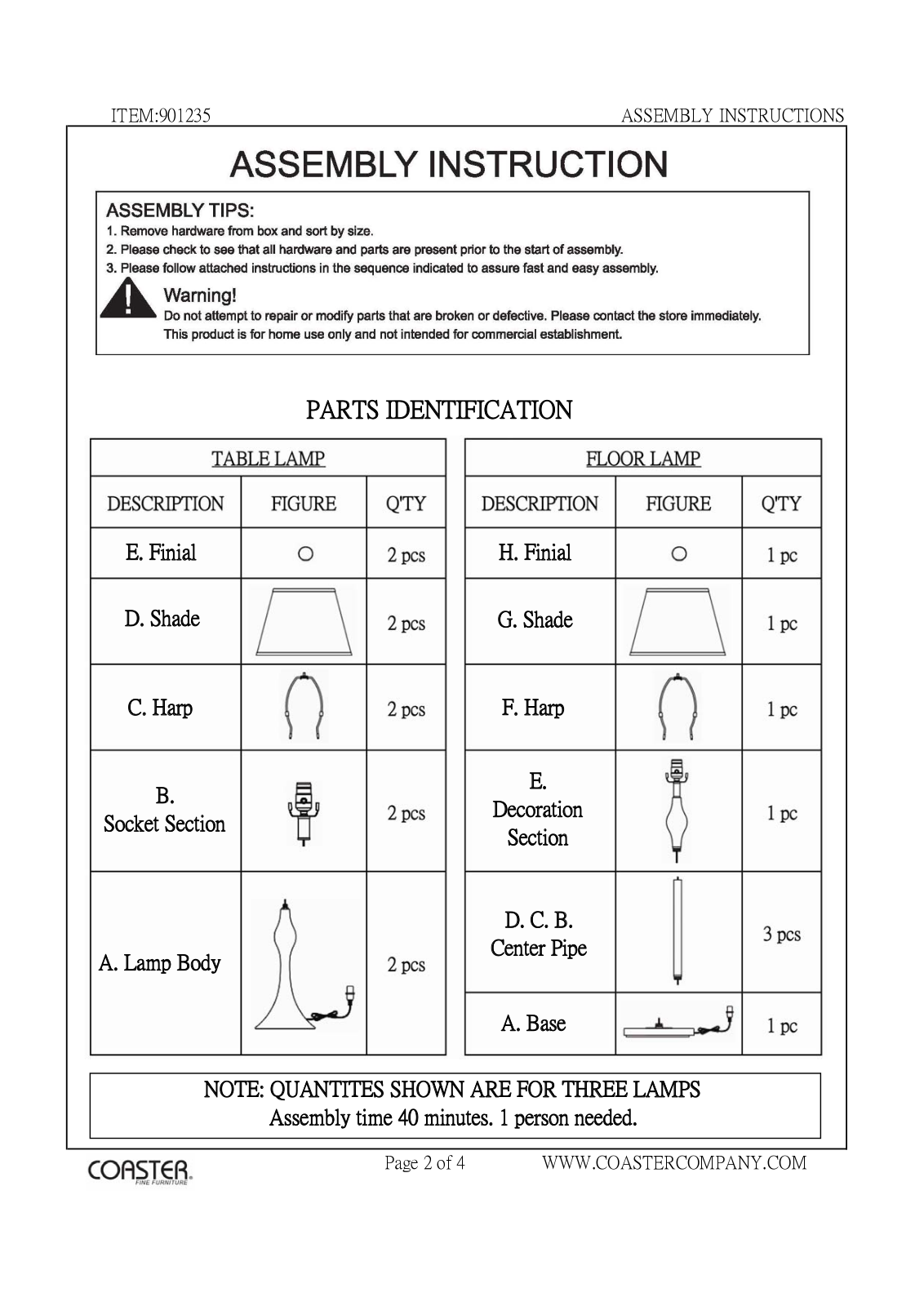

PARTS IDENTIFICATION
E. Finial
D. Shade
C. Harp
B.
Socket Section
A. Lamp Body
H. Finial
G. Shade
F. Harp
E.
Decoration
Section
D. C. B.
Center Pipe
A. Base
NOTE: QUANTITES SHOWN ARE FOR THREE LAMPS
Assembly time 40 minutes. 1 person needed.
Page 2 of 4 WWW.COASTERCOMPANY.COM
Page 3
ITEM:901235 ASSEMBLY INSTRUCTIONS

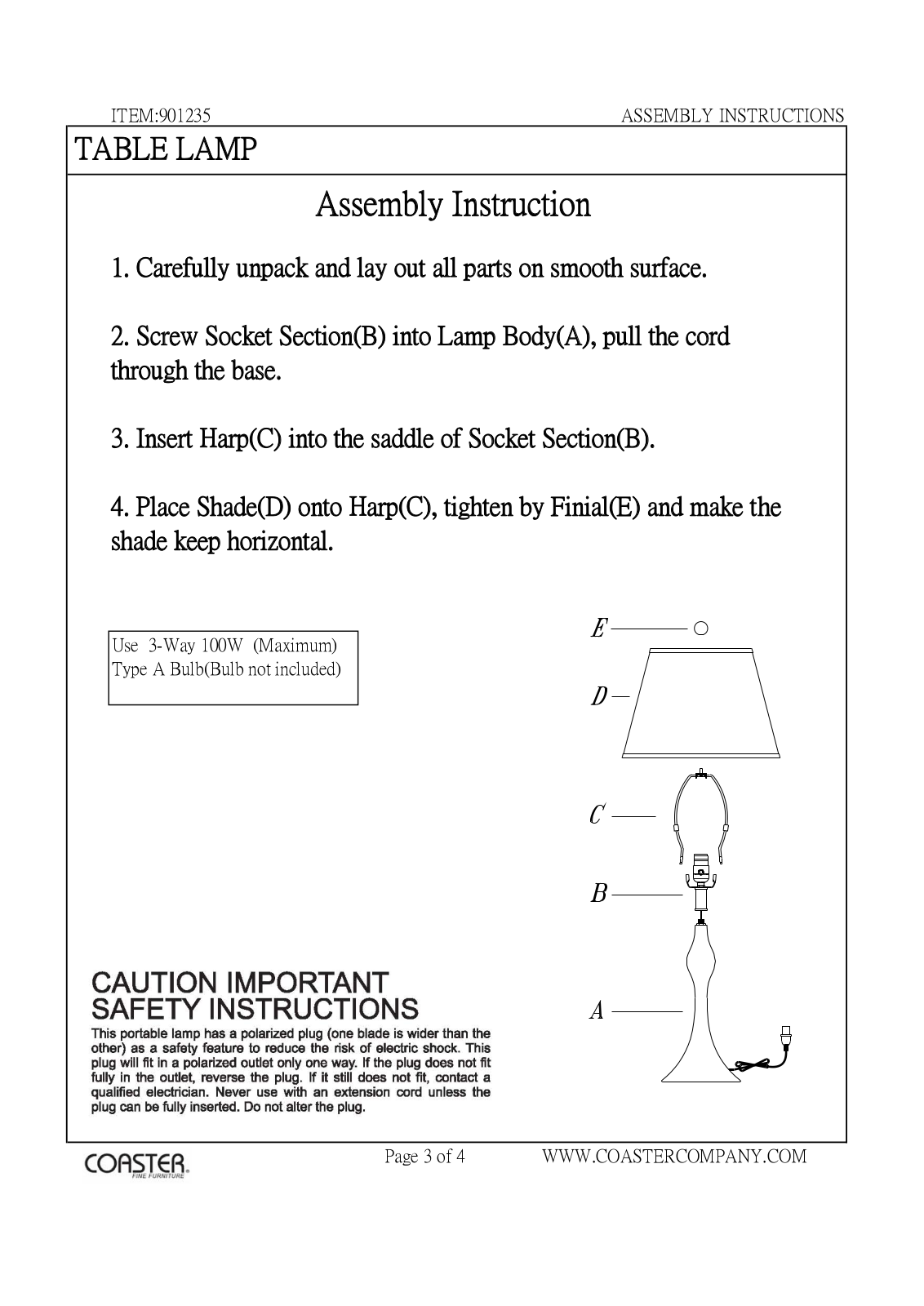

TABLE LAMP
Assembly Instruction
1. Carefully unpack and lay out all parts on smooth surface.
2. Screw Socket Section(B) into Lamp Body(A), pull the cord
through the base.
3. Insert Harp(C) into the saddle of Socket Section(B).
4. Place Shade(D) onto Harp(C), tighten by Finial(E) and make the
shade keep horizontal.
Use 3-Way 100W (Maximum)
Type A Bulb(Bulb not included)
Page 3 of 4 WWW.COASTERCOMPANY.COM
Page 4
ITEM:901235 ASSEMBLY INSTRUCTIONS

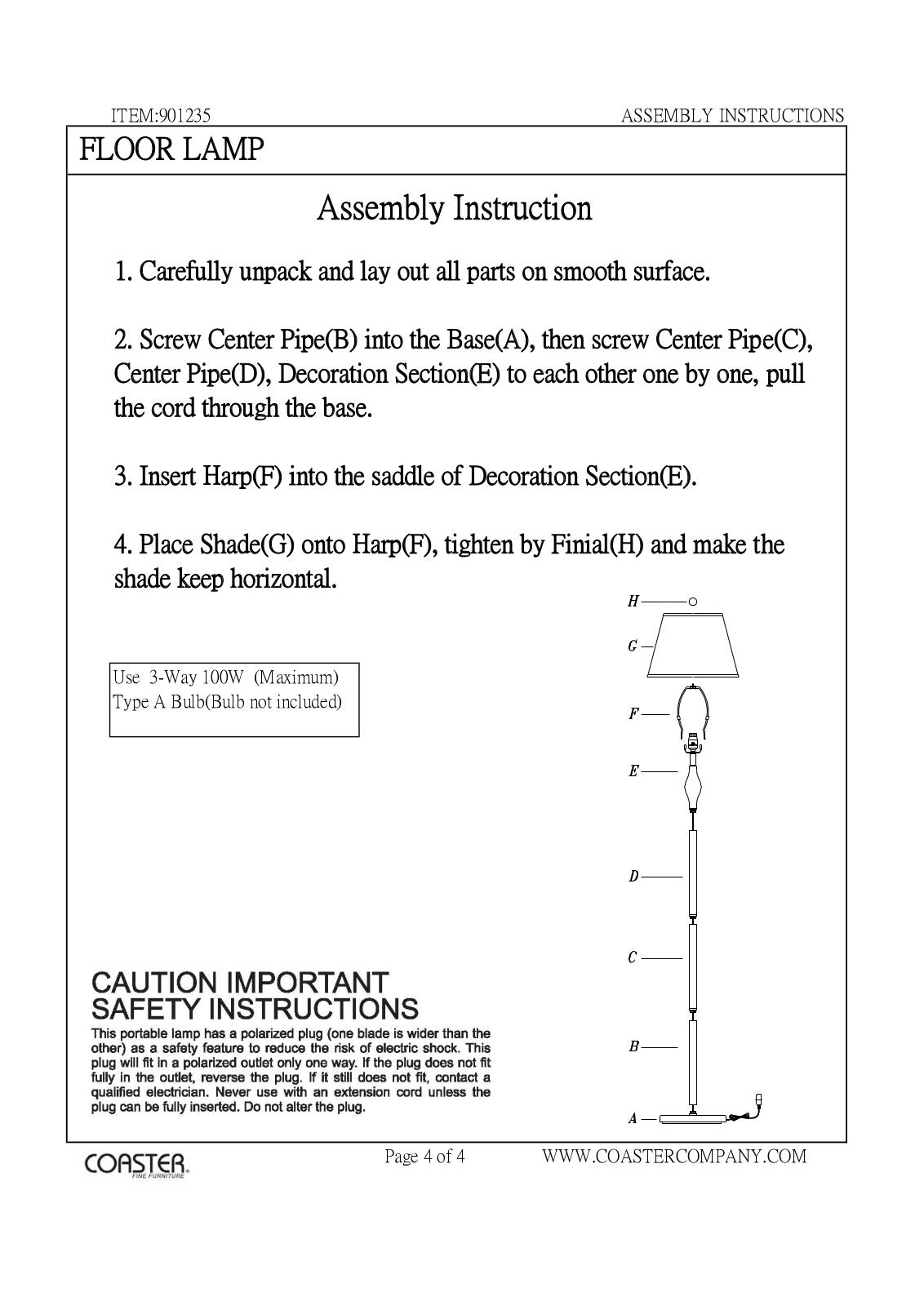

FLOOR LAMP
Assembly Instruction
1. Carefully unpack and lay out all parts on smooth surface.
2. Screw Center Pipe(B) into the Base(A), then screw Center Pipe(C),
Center Pipe(D), Decoration Section(E) to each other one by one, pull
the cord through the base.
3. Insert Harp(F) into the saddle of Decoration Section(E).
4. Place Shade(G) onto Harp(F), tighten by Finial(H) and make the
shade keep horizontal.
Use 3-Way 100W (Maximum)
Type A Bulb(Bulb not included)
Page 4 of 4 WWW.COASTERCOMPANY.COM
