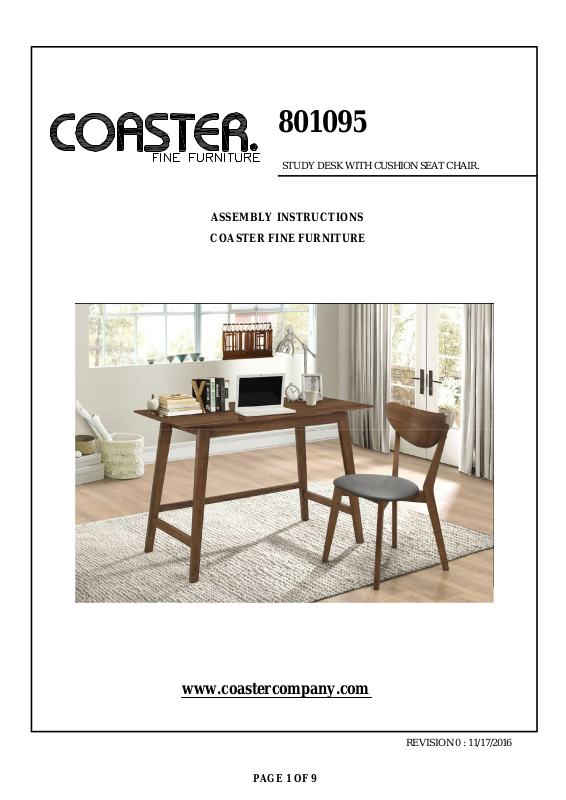

Coaster 801095 Assembly Guide
801095
STUDY DESK WITH CUSHION SEAT CHAIR.
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 9
REVISION 0 : 11/17/2016
ITEM :
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
801095
Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishment.
45 MINUTESASSEMBLY TIME
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION:
A 1PC
TABLE TOP
TABLE LEG (WITH "B" MARK)
1PC
B
TABLE LEG (WITH "C" MARK)
1PC
C
D
E
F
G
H
TABLE LEG (WITH "D" MARK)
TABLE LEG (WITH "E" MARK)
LONG TRESTLE BAR
SHORT TRESTLE BAR
BACK REST
1PC
1PC
1PC
2PCS
1PC
I
J
K
L
UPPER LEG FRAME
LOWER LEG FRAME
WOOD CLEAT
CUSHION SEAT
PAGE 2 OF 9
1PC
1PC
1PC
1PC
www.coastercompany.com
ITEM :
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
801095
Warning !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishment.
ASSEMBLY INSTRUCTIONS
HARDWARE IDENTIFICATION:

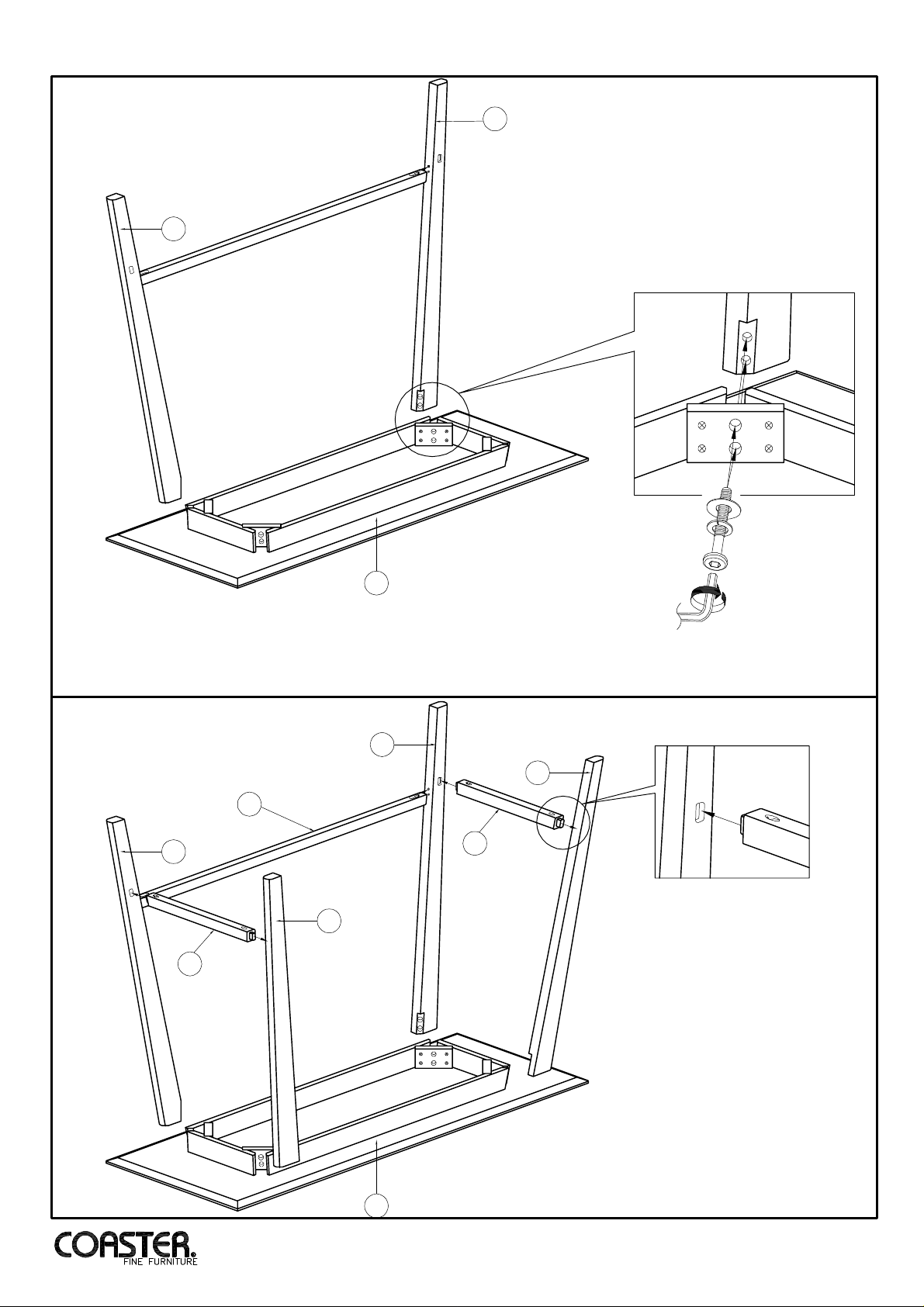

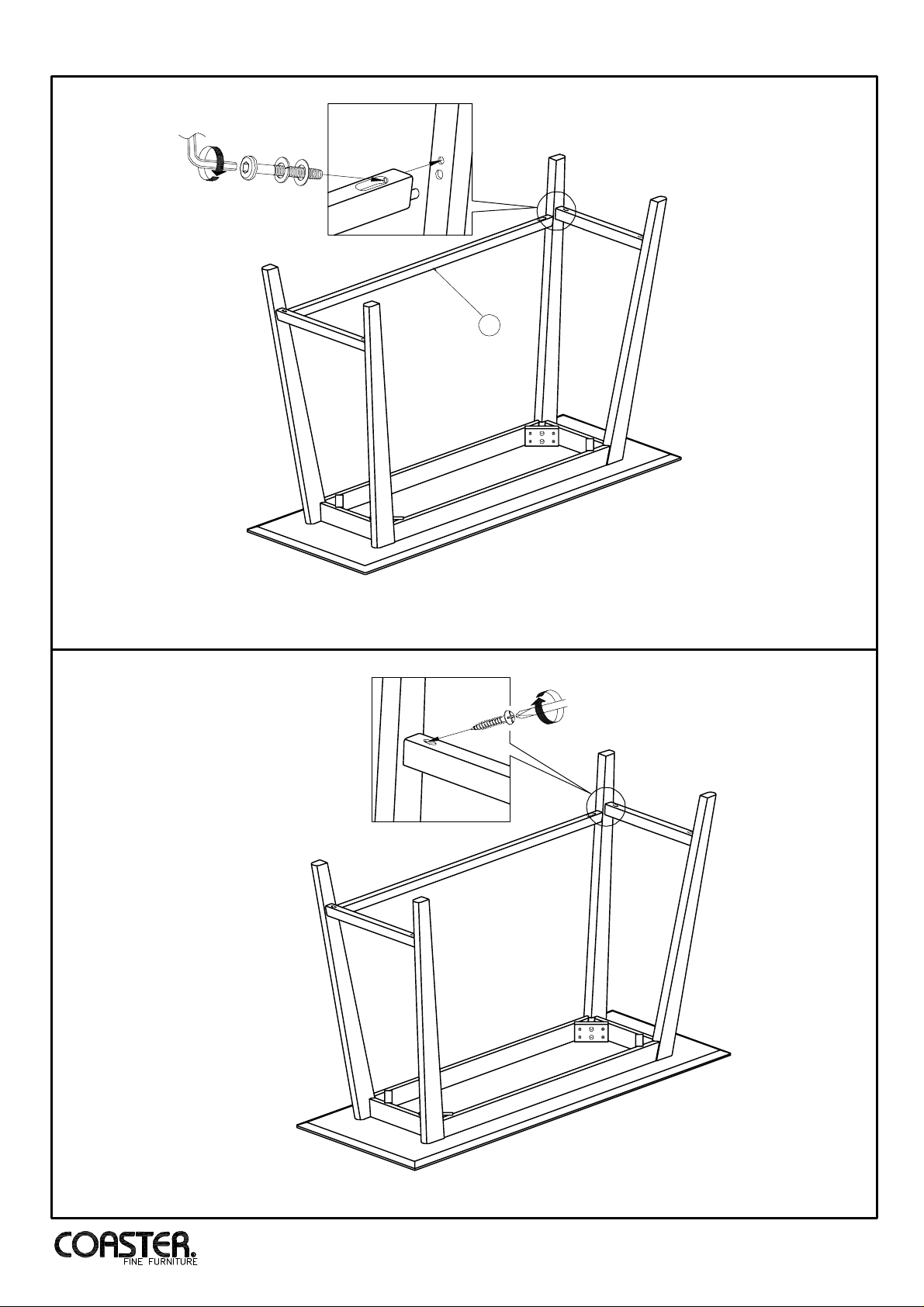

TABLE
1
2
3
4
5
6
7
8

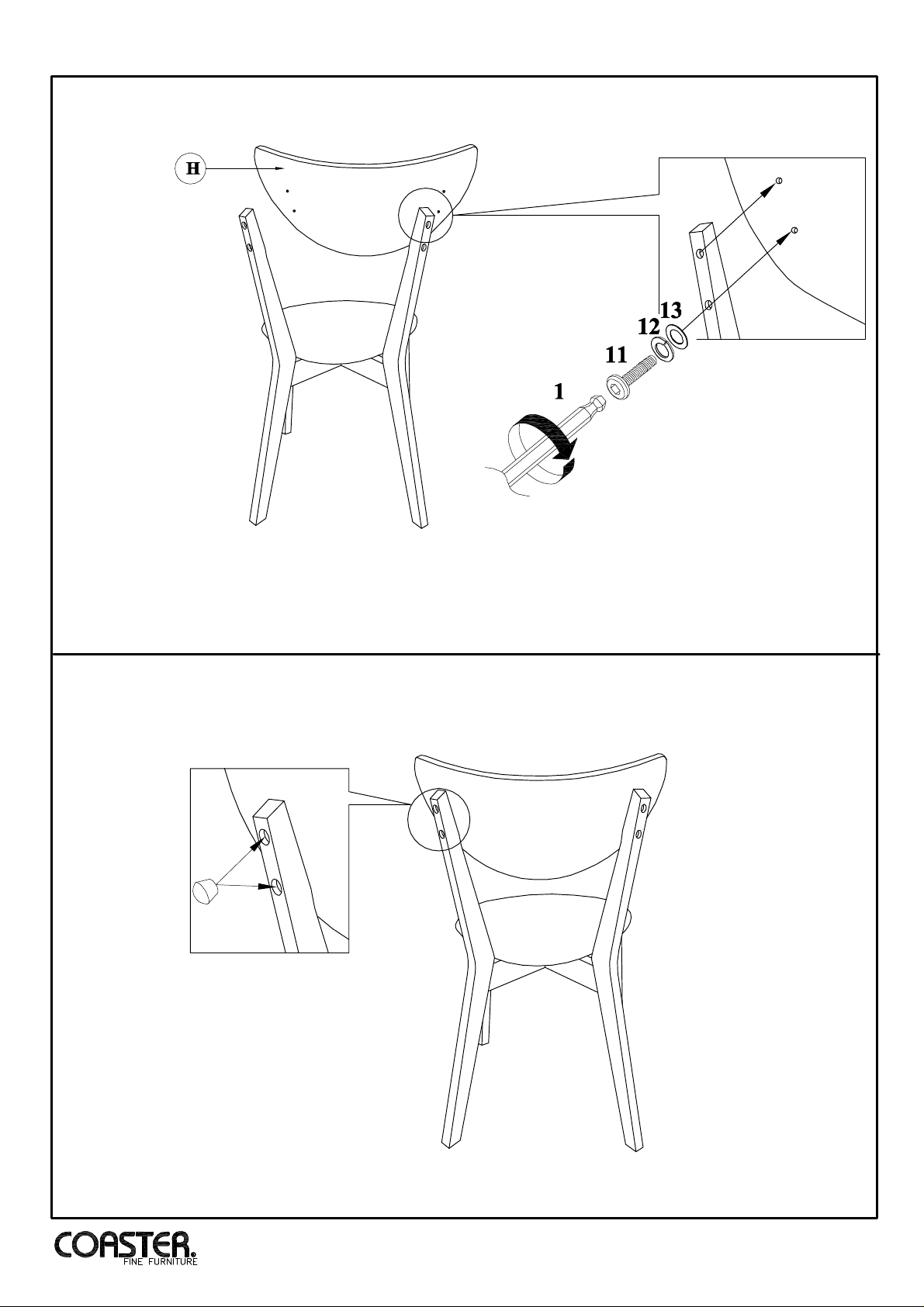

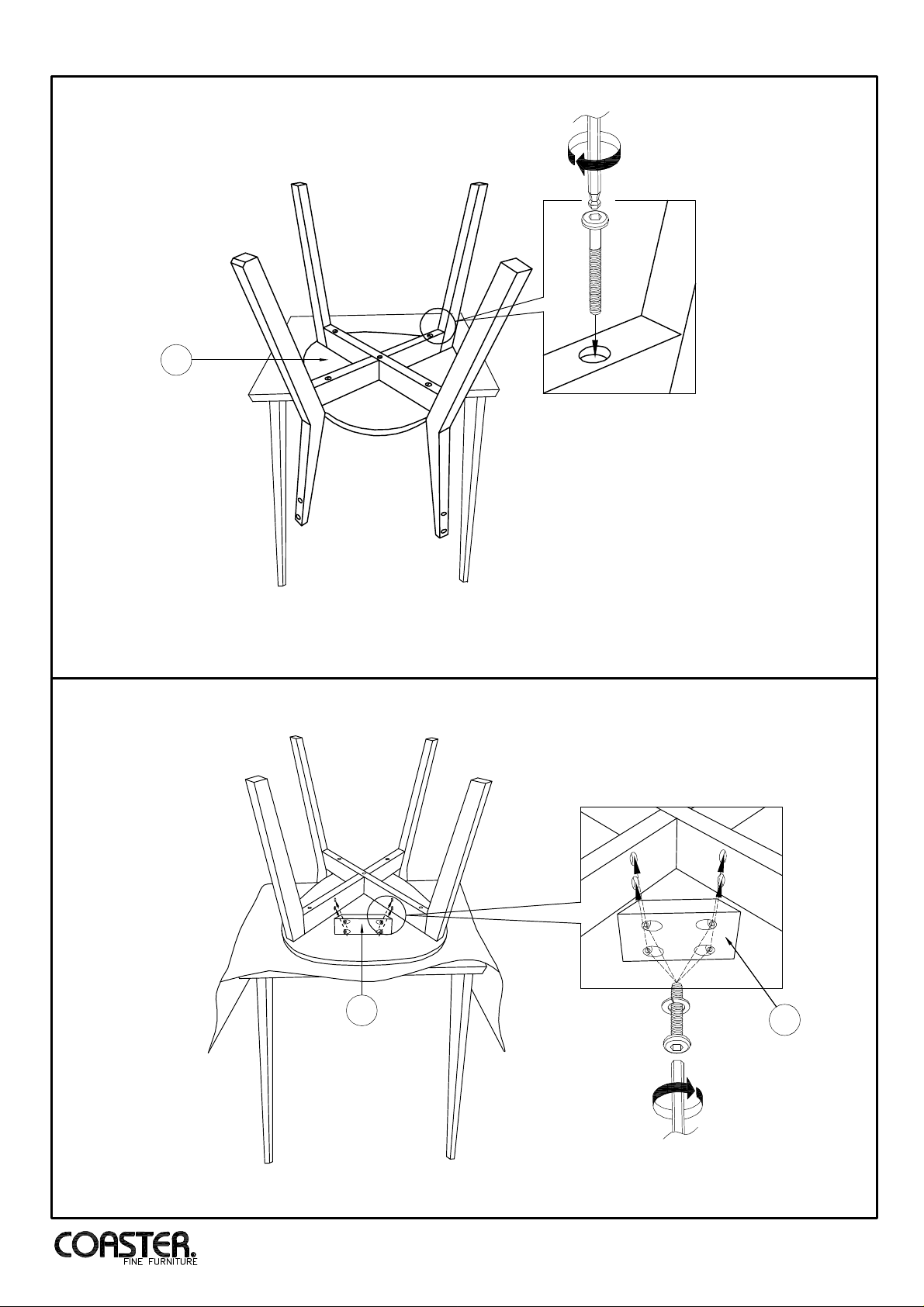

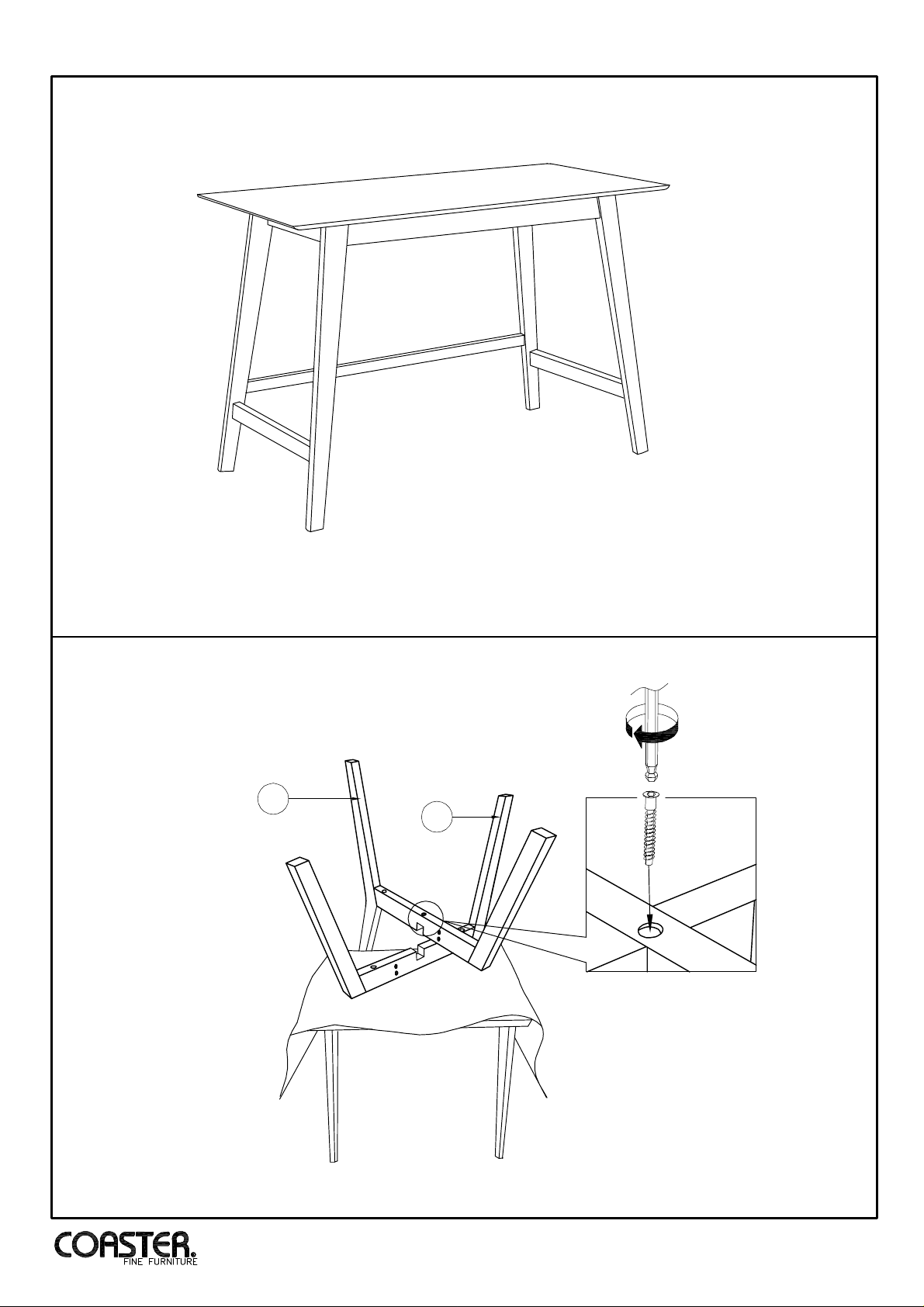

CHAIR
ALLEN WRENCH
LONG BOLT
SHORT BOLT
SMALL LOCK WASHER
BIG LOCK WASHER
SMALL FLAT WASHER
BIG FLAT WASHER
PAN HEAD SCREW
1PC
8PCS
2PCS
2PCS
8PCS
2PCS
8PCS
4PCS
9
10
11
12
13
14
15
LONG BOLT
MEDIUM BOLT
SHORT BOLT
LOCK WASHER
FLAT WASHER
WOOD BOLT
WOOD PLUG
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER MANUFACTURER DOES NOT PROVIDE THIS ITEM.
www.coastercompany.com
PAGE 3 OF 9
4PCS
4PCS
4PCS
8PCS
4PCS
1PC
4PCS
