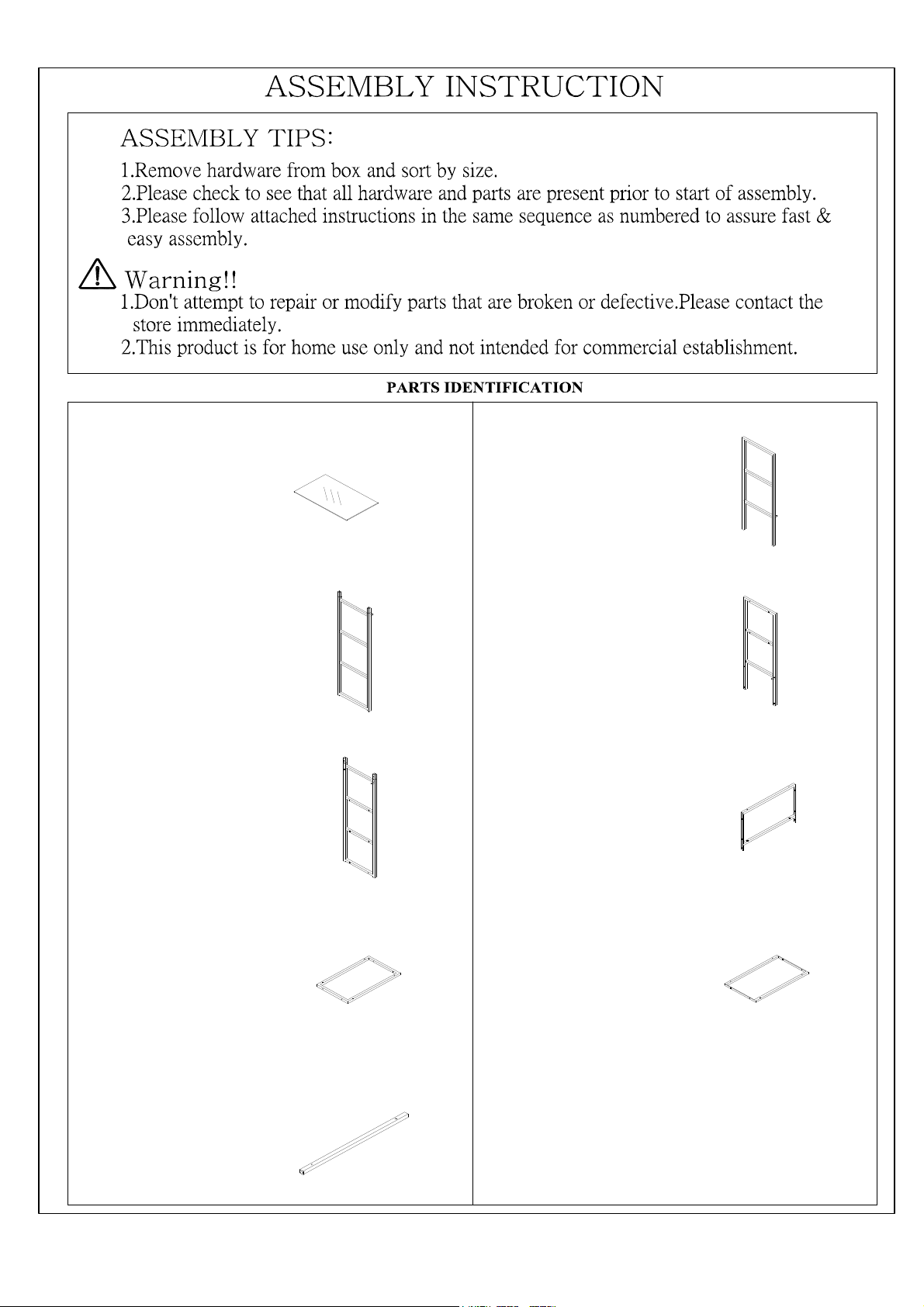

ASSEMBLY
Page 1 of 5
2016/3/11
A B
Page 2 of 5
GLASS SHELF
7PCS
TOP LEFT FRAME
C D
BOTTOM LEFT FRAME
1PC
TOP RIGHT FRAME
E F
BOTTOM RIGHT FRAME
1PC
UPPER BACK FRAME
G H
1PC
1PC
1PC
TOP AND BOTTOM
FRAME
I
CROSSBAR
2PCS
2PCS
SHELF FRAME
3PCS
SHORT BOLT
24PCS
STEP 1
LONG BOLT
SUCTION CUP
CAP
ALLEN WRENCH
8PCS
28PCS
4PCS
1PC
G
2
H
B
F
1
1
D
1
1
I
1
You will need two people for this installation. And will take about forty-five minutes.
STEP 1 :
1. Attach Top And Bottom Frame (G) to Top Left/Right Frame (B,D) by using Long Bolt (2) tighten with
allen wrench.
2.Attach Shelf Frame (H) to Top Left/Right Frame (B,D) by using Short Bolt (1) tighten with allen wrench.
3.Attach Upper Back Frame (F) & Crossbar (I) to Top Left/Right Frame (B,D) by using Short Bolt (1)
tighten with allen wrench. As shown on the drawing.

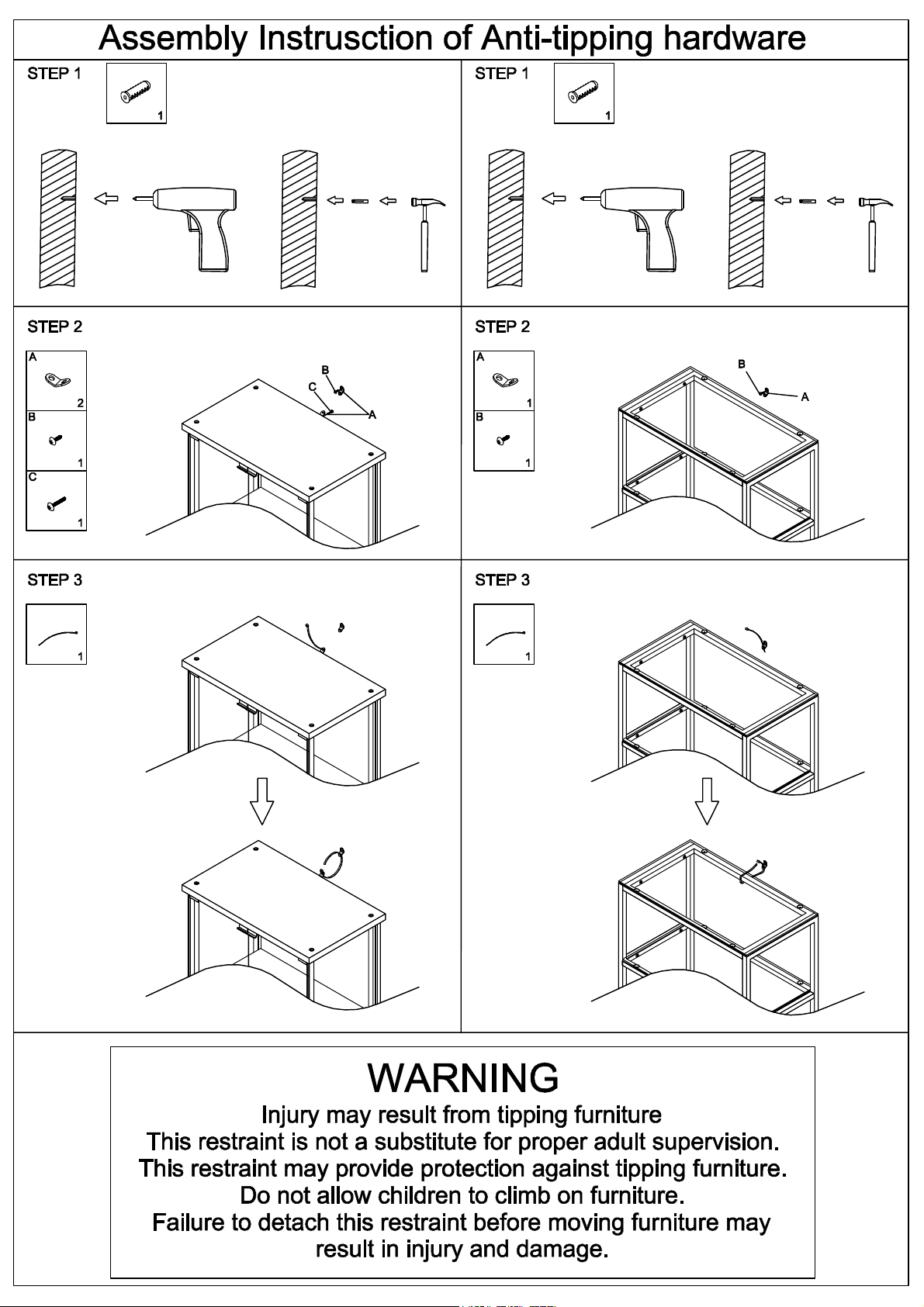

STEP 2
Page 4 of 5
I
1
H
H
C
4
STEP 2 :
1. Attach Top And Bottom Frame (G) to Bottom Left/Right Frame (C,E) by using Long Bolt (2) tighten
with allen wrench.
2.Attach Shelf Frame (H) to Bottom Left/Right Frame (C,E) by using Short Bolt (1) tighten with allen
wrench, then attach the Crossbar (I) to the Bottom Left/Right frame (C & E) by using Short Bolts (1)
tighten with allen wrech. As shown on the drawing.
3.Insert Cap (4) into the hole at the Bottom Left/Right Frame (C,E).
1
1
4
2
G
4
E
4
STEP 3
1
1
1
STEP 3 :
1. Attach the assembled piece from step 1 to the assembled piece from step 2 by using Short Bolt (1) tighten
with allen wrench.
1
1
STEP 4
Page 5 of 5
3
3
3
3
3
A
A
A
A
A
3
3
3
3
3
3
A
A
3
STEP 4 :
1. Insert Suction Cup (3) into the hole at Upper Back Frame (F).
2. Insert Suction Cup (3) into the hole at Top And Bottom Frame (G).
3. Insert Suction Cup (3) into the hole at Shelf Frame (H).
4. Insert Suction Cup (3) into the hole at Crossbar (I).
5. Place Glass Shelf (A) onto the Suction Cup (3).
3
3
