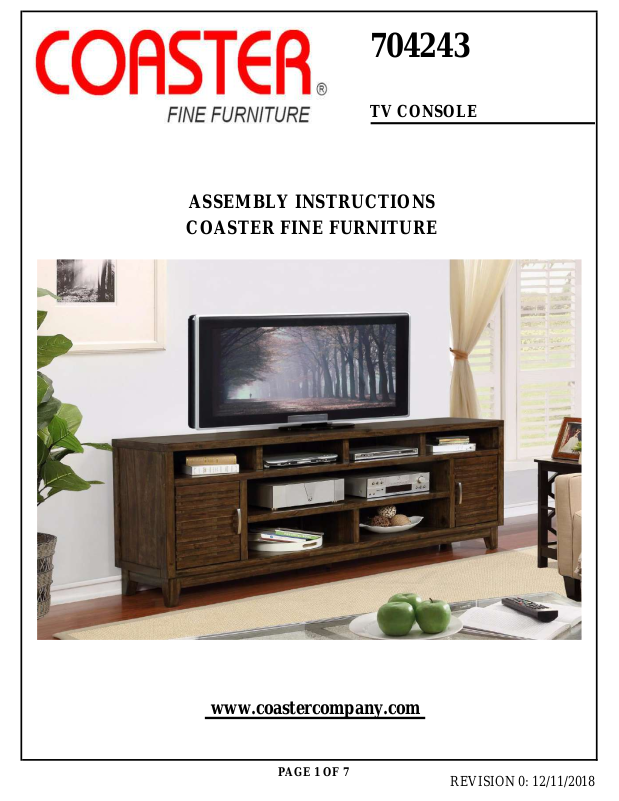

704243
TV CONSOLE
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 7
REVISION 0: 12/11/2018
ITEM :
www.coastercompany.com
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy
704243
assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME 15 MINUTES
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION
A
B
PART NAME
TV CONSOLE
CENTER SUPPORT LEG
WITH LEVELER
FIGURE
QTY
1PC
1PC
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS;
HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
PAGE 2 OF 7
ITEM :
www.coastercompany.com
STEP 1
704243
ASSEMBLY INSTRUCTIONS
A
B
PAGE 3 OF 7
ITEM :
www.coastercompany.com
STEP 2
704243
ASSEMBLY INSTRUCTIONS
PAGE 4 OF 7
ITEM :
www.coastercompany.com
STEP 3
COMPLETE
704243
ASSEMBLY INSTRUCTIONS
PAGE 5 OF 7
OPTIONAL ADJUSTABLE SHELF
STEP 2.1
STEP 2.2
STEP 2.3
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
PAGE 6 OF 7
www.coastercompany.com
ANTI-TIPPING INSTALLMENT INSTRUCTIONS
FURNITURE TIPPING RESTRAINT
WARNING
Injury may result from tipping furniture.
This restraint may protect against tipping furniture.
Do not allow children to climb on furniture.
This restraint is not a substitute for proper adult supervision.
Failure to detach this restraint before moving the furniture
may result in injury and damage.
1. Attach one of the mounting brackets securely to the back edge of the furniture. Use the short screw.
2. Determine where the furniture is to be placed and mark location on the wall for the mounting bracket screw
hole approximately 2" below the bracket mounted to the edge of the furniture.
3. Drill a 3/16" hole in the wall. Press the plastic wall plug into the hole and gently tap until the flange on the
wall plug is against the wall surface.
4. Position the bracket over the wall plug and use the long screw to securely attach the bracket to the wall.
5. Place the furniture so the bracket on the back edge is in line with the bracket on the wall.
6. Lace an end of the cable tie down through each bracket. Bring both ends together and slide the beaded end
of the cable tie through the keyhole shaped slot on the other end until snug. Pull down on the beaded end
until it snap locks into the keyhole slot.
7. To double lock return the beaded end back through the keyhole as shown.
8. Check to make sure the cable tie is securely laced and locked to the brackets.
PAGE 7 OF 7
