Page 1
703727
END TABLE
ASSEMBLY INSTRUCTION
COASTER FINE FURNITURE
www.coastercompany.com
Page 1 of 4
2014/8/07
Page 2
A B
ITEM : 703727
ASSEMBLY INSTRUCTION
www.coastercompany.com
Page 2 of 4
TOP
1PC
LEFT FRAME
C D
RIGHT FRAME
1PC
BOTTOM CROSSBAR
E F
TOP CROSSBAR
2PCS
LARGE CROSSBAR
G H
SMALL CROSSBAR
2PCS
SMALL SHELF PANEL
I
LARGE SHELF PANEL
1PC
1PC
2PCS
2PCS
1PC
LONG BOLT
SHORT BOLT
CAP
ALLEN WRENCH
16PCS
12PCS
4PCS
1PC
Page 3
STEP 1
ITEM : 703727
ASSEMBLY INSTRUCTION
www.coastercompany.com
Page 3 of 4
1
E
B
C
1
1
3
D

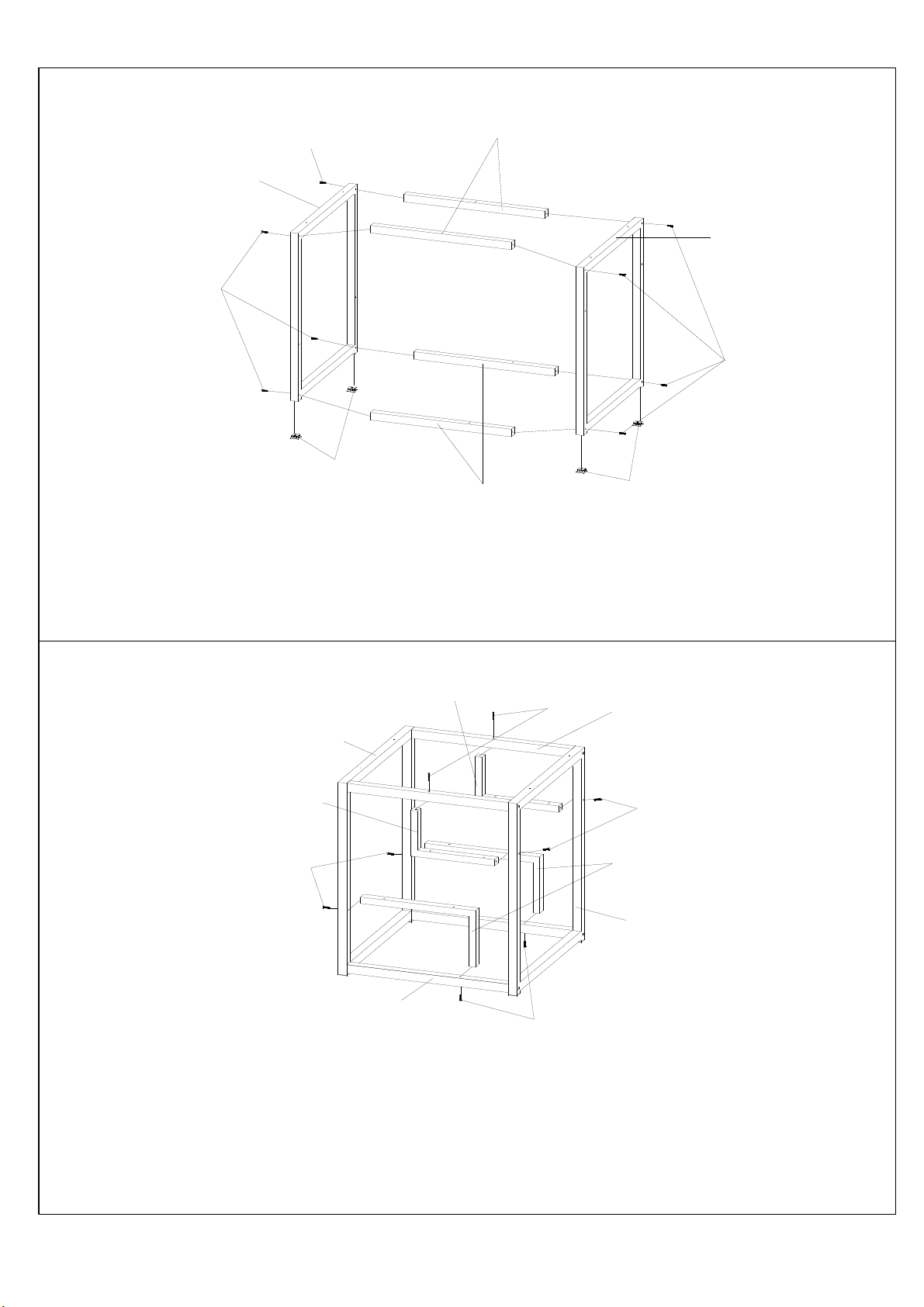

You will need one people for this installation. And will take about thirty-five minutes.
STEP 1 :
1. Insert Cap (3) into the hole at Left/Right Frame (B,C).
2. Attach Top/Bottom Crossbar (E,D) to Left/Right Frame (B,C) using Long Bolt (1) as shown.
3
STEP 2
G
1
B
D
G
1
E
1
F
C
1
STEP 2 :
1. Attach Small Crossbar (G) to Right Frame (C) and Top Crossbar (E) by using Long Bolt (1) tighten with
allen wrench.
2. Attach Large Crossbar (F) to Left Frame (B) and Bottom Crossbar (D) by using Long Bolt (1) tighten
with allen wrench.
Page 4
STEP 3
ITEM : 703727
ASSEMBLY INSTRUCTION
www.coastercompany.com
Page 4 of 4
A
G
2
H
2
I
2
B
C
2
F

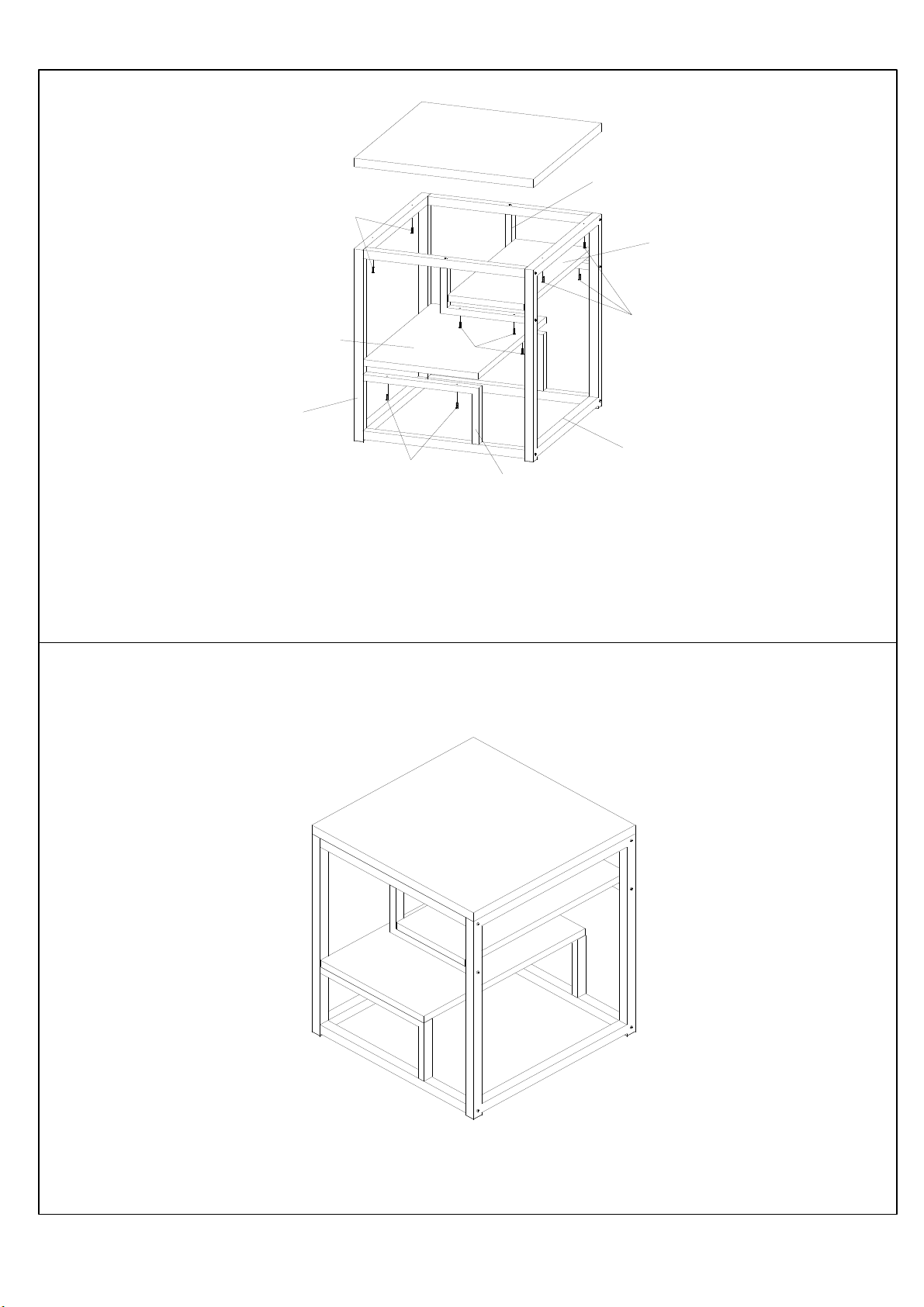

STEP 3 :
1. Place the Top (A) to Left/Right Frame (B,C) by using Short Bolt (2) tighten with allen wrench.
2. Place the Small Shelf Panel (H) to Small Crossbar (G) by using Short Bolt (2) tighten with allen wrench.
3. Place the Large Shelf Panel (I) to Large Crossbar (F) by using Short Bolt (2) tighten with allen wrench.
FINISH
