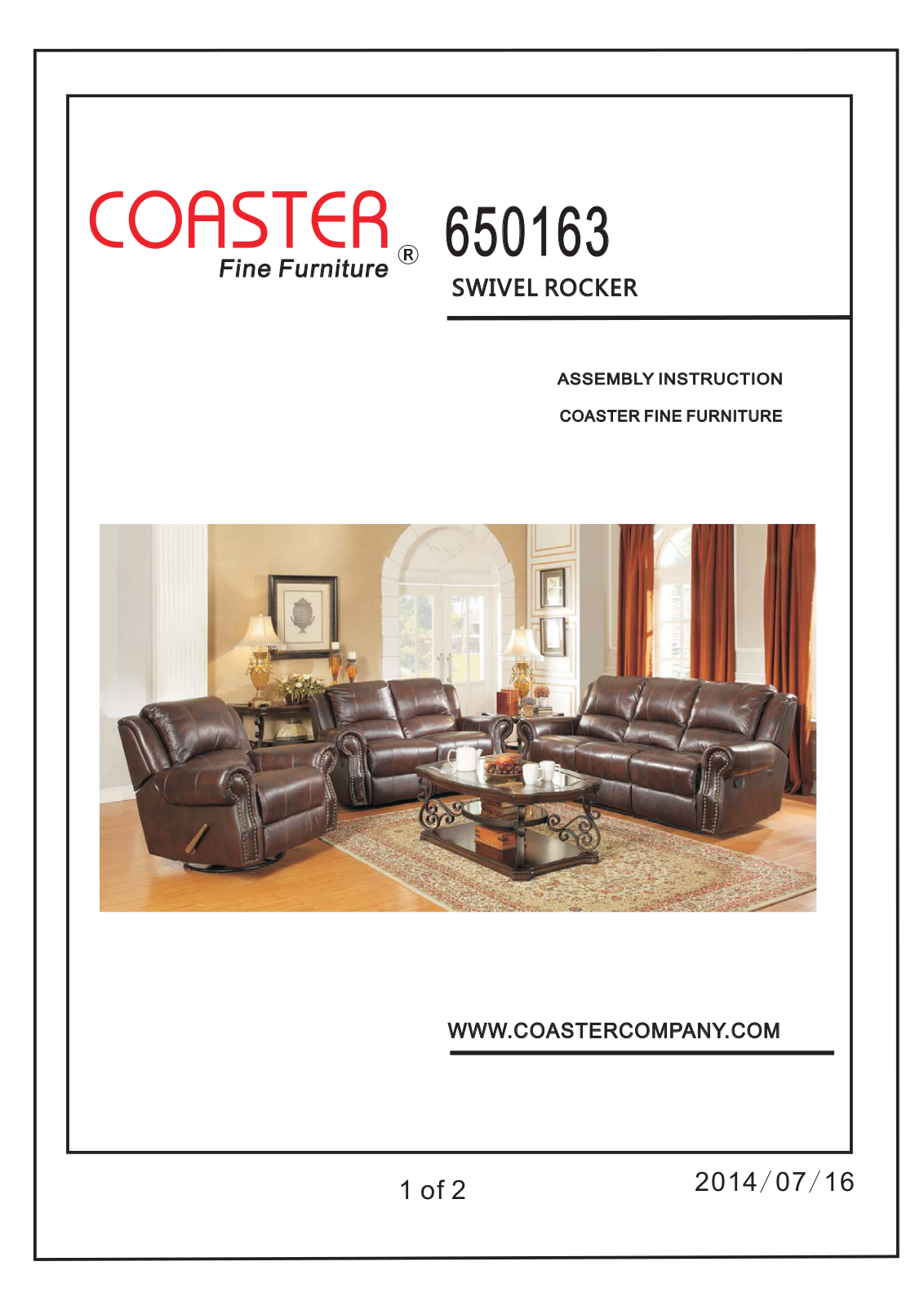

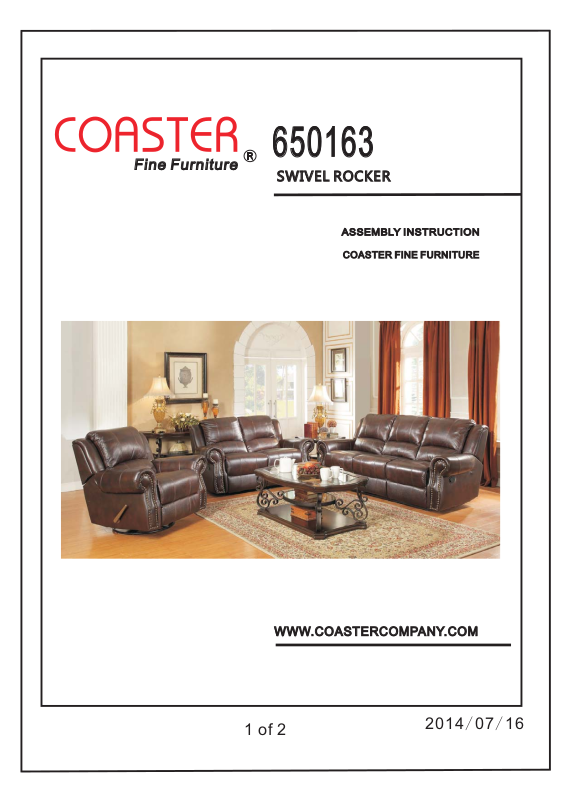

Coaster 650163 Assembly Guide

Fine Furniture

650163

SWIVEL ROCKERSWIVEL ROCKER

ASSEMBLY INSTRUCTION

COASTER FINE FURNITURE

WWW.COASTERCOMPANY.COM

1 of 2

2014 07 16//

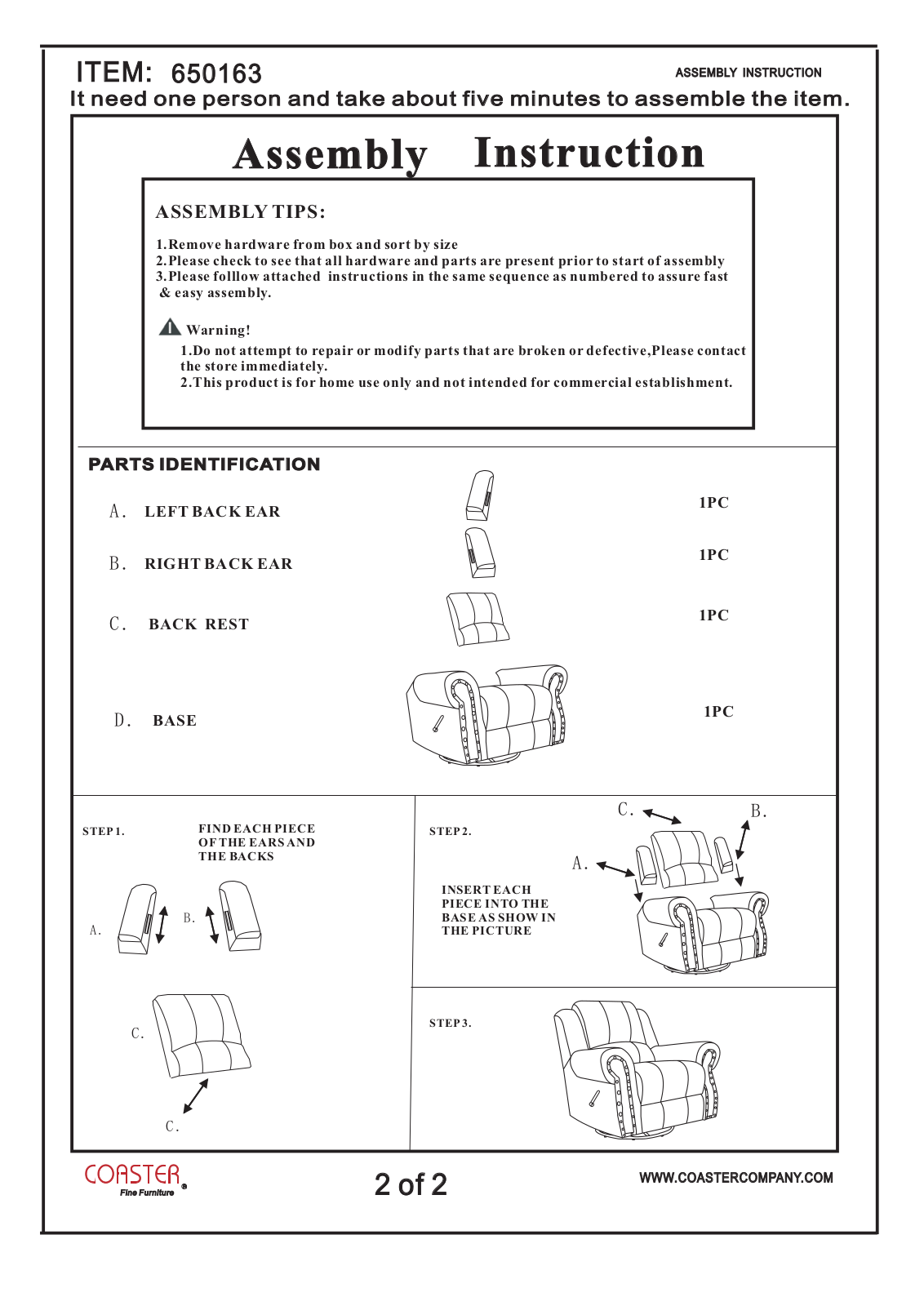

ITEM:

650163

ASSEMBLY INSTRUCTION

It need one person and take about five minutes to assemble the item.

Assembly

ASSEMBLY TIPS:

1.Remove hardware from box and sort by size

2.Please check to see that all hardware and parts are present prior to start of assembly

3.Please folllow attached instructions in the same sequence as numbered to assure fast
& easy assembly.

Warning!

1.Do not attempt to repair or modify parts that are broken or defective,Please contact
the store immediately.

2.This product is for home use only and not intended for commercial establishment.

PARTS IDENTIFICATION

LEFT BACK EAR

A.

RIGHT BACK EAR

B.

Instruction

1PC

1PC

BACK REST

C.

BASE

D.

STEP 1. STEP 2.

A.

C.

FIND EACH PIECE
OF THE EARS AND
THE BACKS

B.

INSERT EACH
PIECE INTO THE
BASE AS SHOW IN
THE PICTURE

STEP 3.

A.

C.

1PC

1PC

B.

Fine Furniture

C.

R

2 of 2

WWW.COASTERCOMPANY.COM
