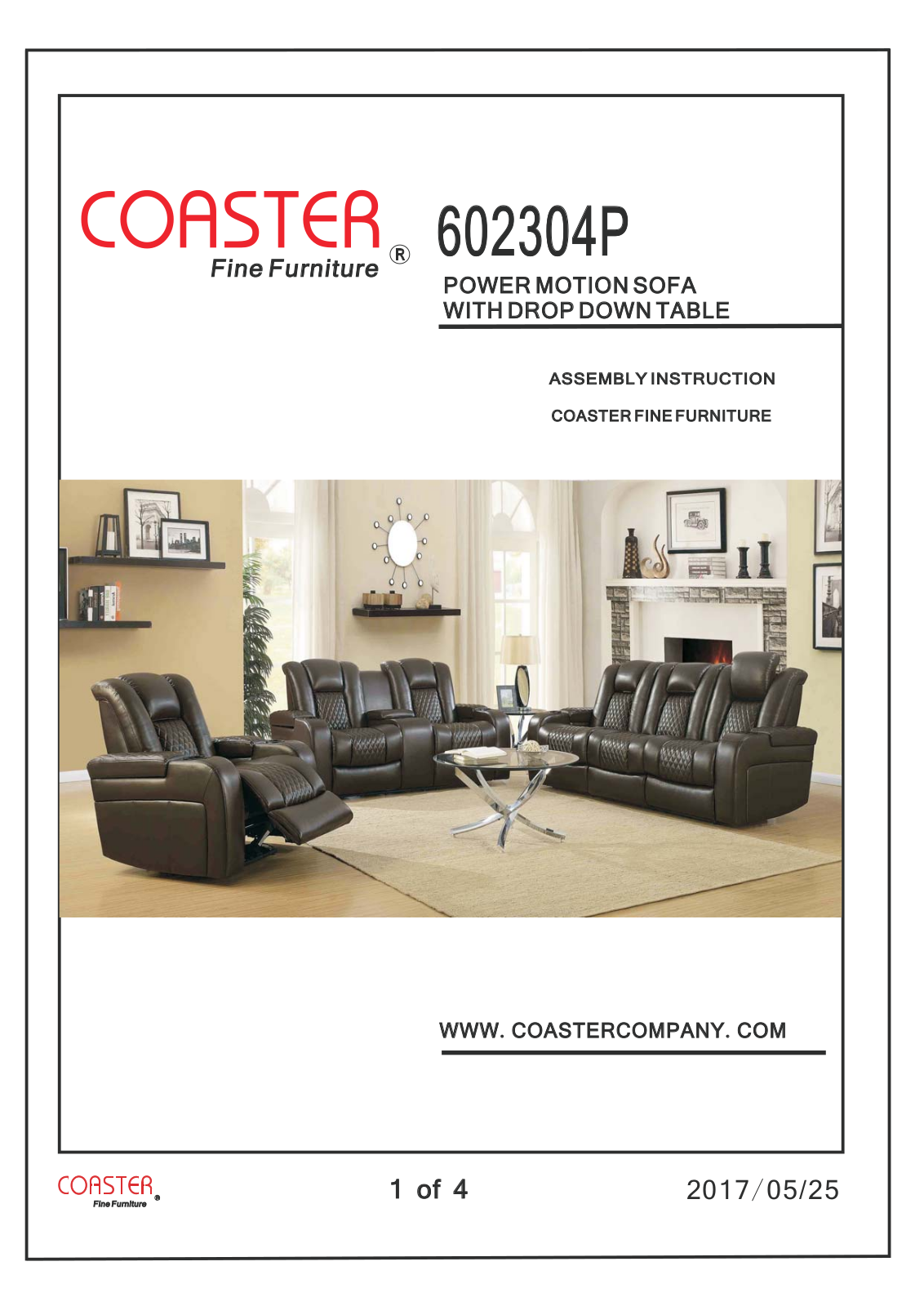

Coaster 602304P Assembly Guide

Fine Furniture

602304P

POWER MOTION SOFA

POWER MOTION SOFA

WITH DROP DOWN TABLE

WITH DROP DOWN TABLE

ASSEMBLY INSTRUCTION

COASTER FINE FURNITURE

Fine Furniture

WWW COASTERCOMPANY COM..WWW COASTERCOMPANY COM..

R

1of4

2017 05/25/

ITEM:ITEM:

602304P

ASSEMBLY INSTRUCTION

()A()A

Assembly

ASSEMBLY TIPS:

1 Removehardware from box and sort by size.
2 Pleasecheck to see that all hardware and parts are present prior to start of assembly.
3 Pleasefolllow attached instructions in the same sequence as numbered to assure fast.

& easy assembly.

Warning!

1 Do not attempt to repair or modify parts that are broken or defective,Please contact.
the store immediately.
2 This product is for home use only and not intended for commercial establishment..

Instruction

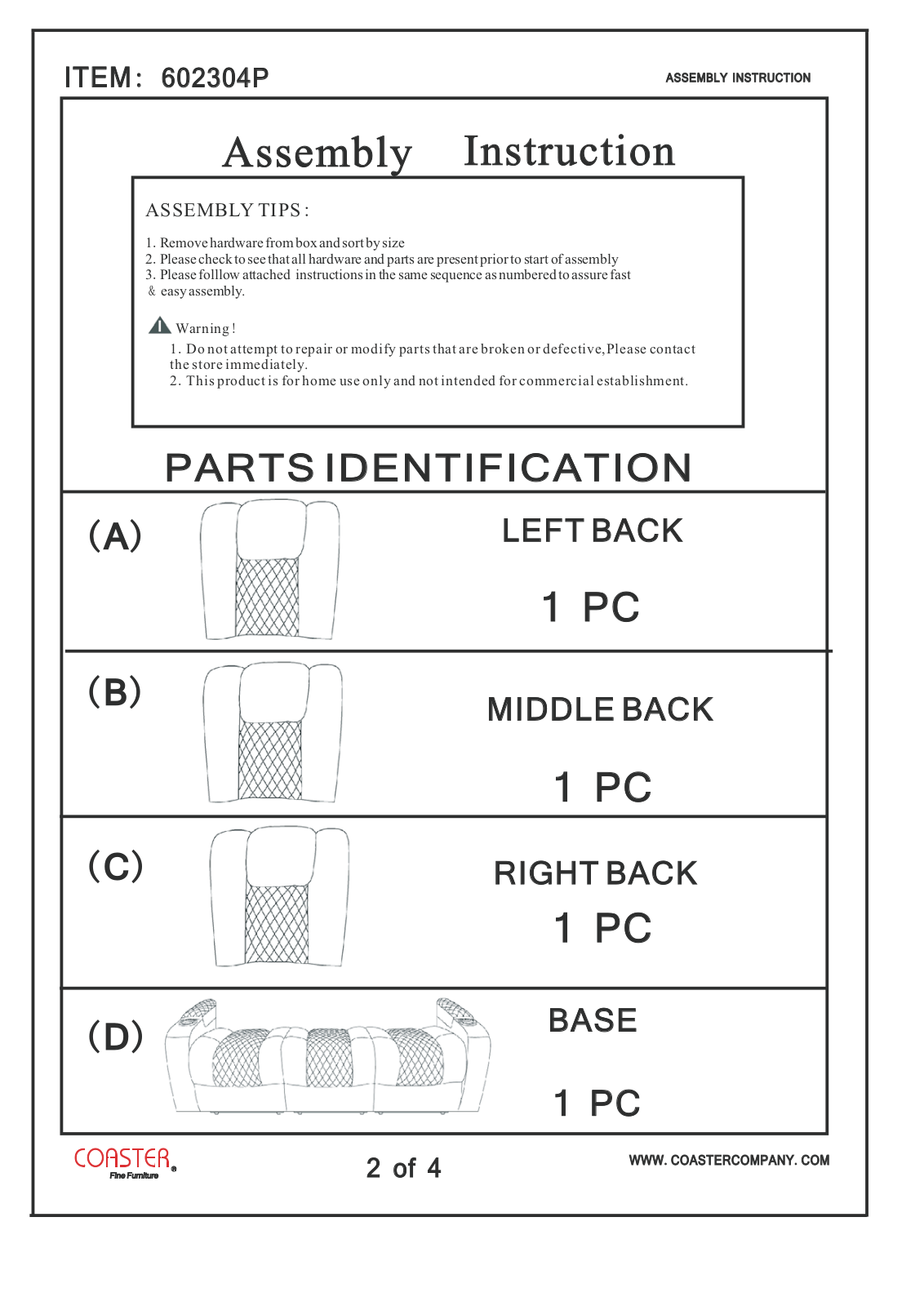

PARTS IDENTIFICATION

LEFT BACK

()B()B

-

()C()C

()D()D

-

-

1PC

MIDDLE BACK

1PC

RIGHT BACK

1PC

BASE

Fine Furniture

1PC

1PC

R

2of4
