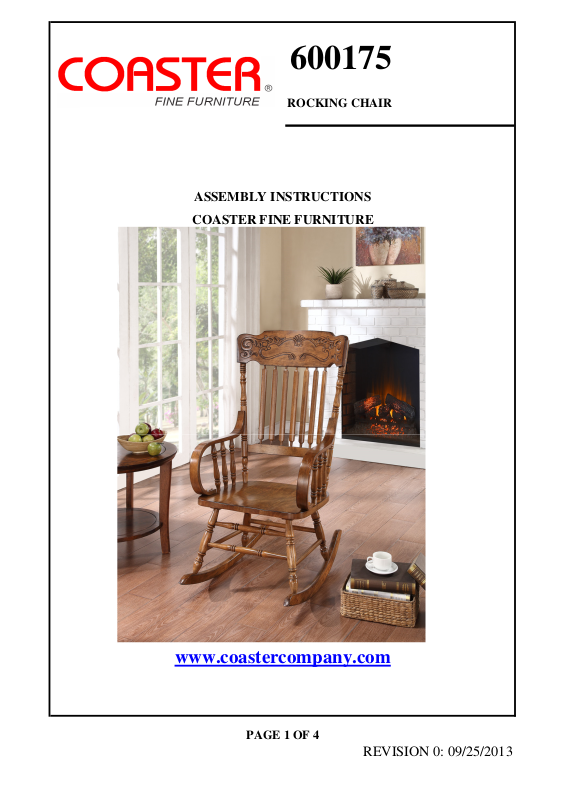

Page 1
600175
ROCKING CHAIR
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 4
REVISION 0: 09/25/2013
Page 2
ITEM :
ASSEMBLY INSTRUCTIONS
A
CHAIR BACK
F
B
1PC
G
1PC
C
1PC
H
1PC
D
LEFT LEG FRAME
1PC
I
1PC
E
1
LONG BOLT
8PCS
6
17PCS
2
MEDIUM BOLT
4PCS
7
BARREL NUT
8PCS
3
SHORT BOLT
11PCS
8
ALLEN WRENCH
1PC
4
LOCK WASHER
23PCS
9
WOOD PLUG
11PCS
5
6PCS
600175
RIGHT ARM
REST
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy
assembly.
Warning!
!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishment.

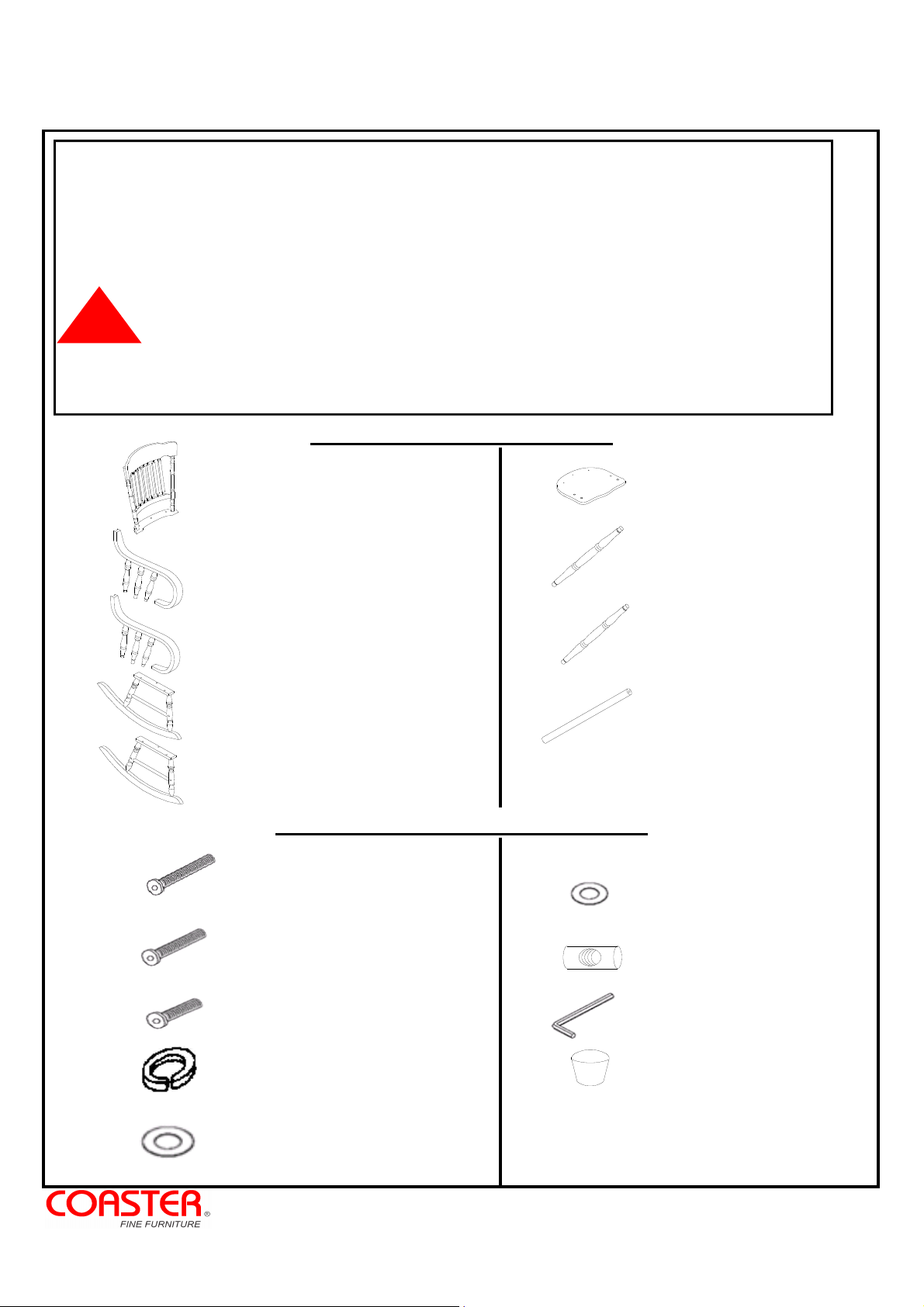

PARTS IDENTIFICATION
1PC
LEFT ARM
REST
RIGHT LEG FRAME 1PC
HARDWARE IDENTIFICATION
WOODEN SEAT 1PC
SHORT FRONT
STRETCHER
LONG FRONT
STRETCHER
BACK STRETCHER
SMALL FLAT WASHER
BIG FLAT
WASHER
www.coastercompany.com
PAGE 2 OF 4
Page 3
ITEM :

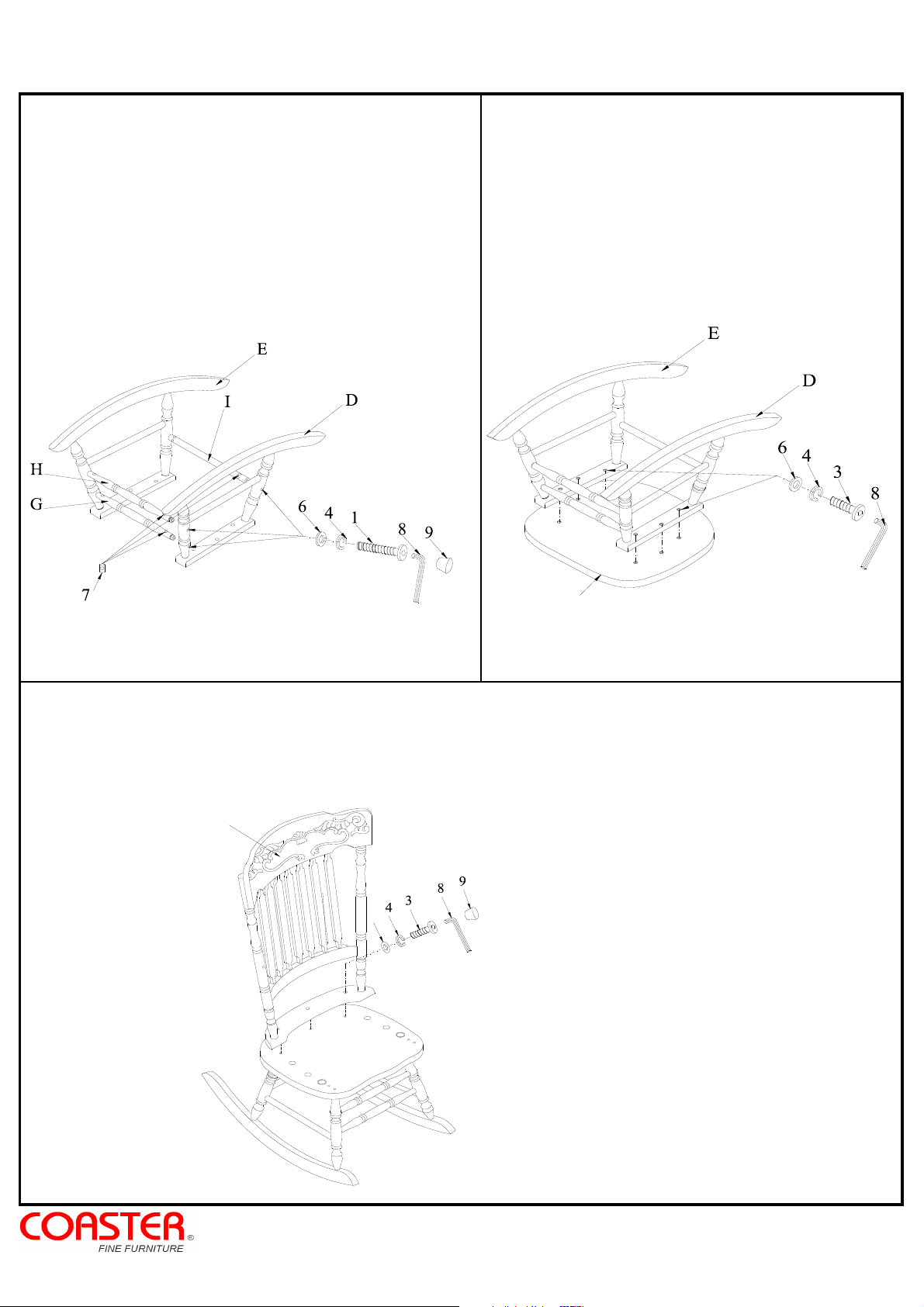

STEP 1 STEP 2
STEP 3
600175
Align and fasten left and right leg frame to wooden
F
ASSEMBLY INSTRUCTIONS
Align and fasten front and back stretchers to left and
right leg frame using barrel nut, long bolt, lock washer
and small flat washer and tighten with Allen wrench.
Insert wood plug into the open holes of leg frame.
Place wooden seat upside down on soft surface.
seat using short bolt , lock washer and small flat
washer and tighten with Allen wrench.
Align and fasten chair back to wooden seat using short bolt, lock washer and small flat washer and tighten
with Allen wrench. Insert wood plug into the open holes of chair back brace.
A
6
PAGE 3 OF 4
www.coastercompany.com
Page 4
ITEM :
ASSEMBLY INSTRUCTIONS
Complete.
600175
8

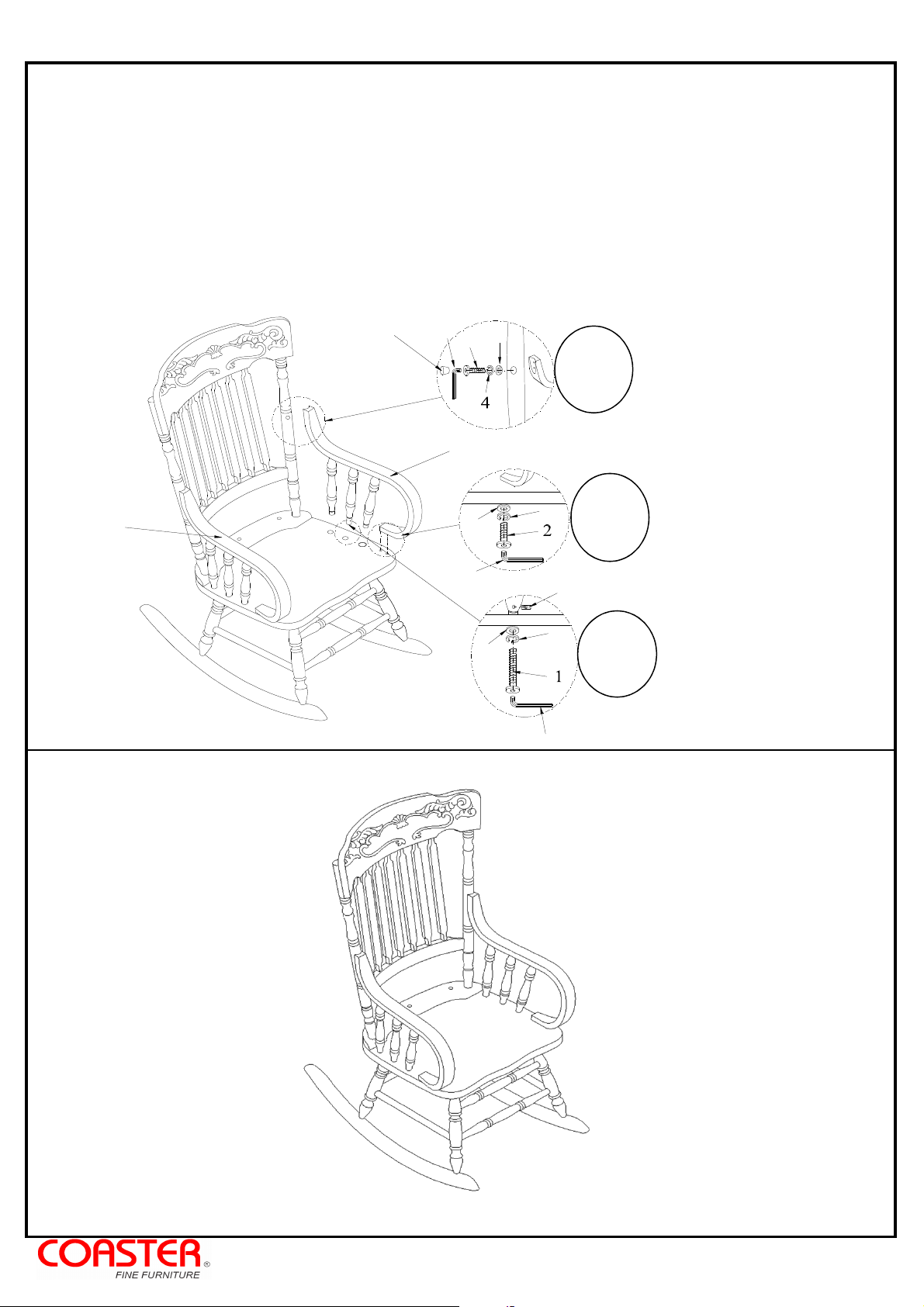

STEP 4
4.1) Align and fasten left and right arm spindle to wooden seat using medium bolt, lock washer and big
flat washer. DO NOT FULLY TIGHTEN AT THIS STEP.
4.2) Align and fasten left and right arm rest to wooden seat using long bolt, lock washer and big flat
washer. DO NOT FULLY TIGHTEN AT THIS STEP.
4.3) Align and fasten left and right arm rest to chair back using short bolt, lock washer and small flat
washer. THEN FULLY TIGHTEN ALL THE BOLTS AT STEP 4.1, 4.2, 4.3 WITH ALLEN WRENCH.
Insert wood plug into the open holes of chair back.
9
B
8
6
3
4.3
C
5
8
5
4
4.1
7
4
4.2
STEP 5
www.coastercompany.com
PAGE 4 OF 4
