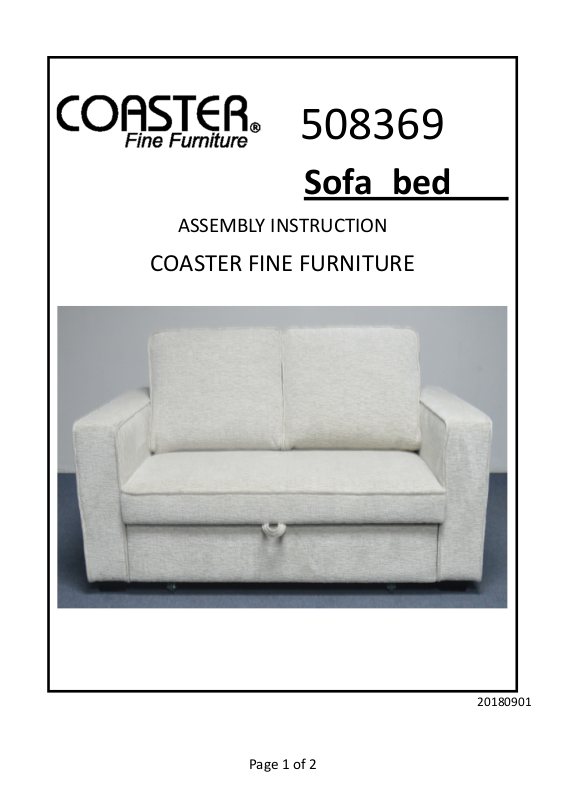

Coaster 508369 Assembly Guide

ASSEMBLY INSTRUCTION

COASTER FINE FURNITURE

508369

Sofa bed

Page 1 of 2

20180901

ITEM: 508369 ASSEMBLY INSTRUCTION

O

O

!

ASSEMBLY TIPS

1. Remove hardware from box and sort by size

2. Please check that all parts are present prior
to start of assembly

3. Please follow attached instructions in

the same sequence as numbered to assure

fast & easy assembly

ASSEMBLY INSTRUCTION

Warning!

1. Don't attempt to repair or modify parts that are broken or defective. Please contect the
store immediately.

2. This product is for home use only and not intended for commercial establishment

A SOFABED 1pc

B

C

PARTS IDENTIFICATION

ARM

O

O

LEG

1

2

4

C

2pcs

4pcs

Z

1

2

HARDWARE PACKAGE

ALLEN WRENCH

BOLT

1pcs

16pcs

D5MM

8*50MM

3

4

BIG WASHER

SMALL WASHER

8pcs

8pcs

ASSEMBLY TIME

10*25MM

8*19MM

10 MINUTES

3 2 1

B

3

12

B

WWW.COASTERCOMPANY.COM

Page 2 of 2
