461150 (B1 - B3)
R
FINE FURNITURE
TWIN/TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 6
REVISION 0 :01/23/2018
Page 2
PAGE 2 OF 6
ASSEMBLY INSTRUCTIONS
ITEM: 461150 (B1 - B3)
www.coastercompany.com
NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.
Warning !
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishments.
PARTS IDENTIFICATION
HARDWARE IDENTIFICATION
Z - B2 (BOX 2) - HARDWARE PACK
IS LOCATED IN 461150 (B2)
1PC
A
B
C
D
B1 (BOX 1)
B2 (BOX 2)
4PCS
LEFT BED FRAME
RIGHT BED FRAME
SIDE RAIL
GUARDRAIL
1
2
3
24PCS
4
5
WOOD DOWEL
BOLT
ALLEN WRENCH
24PCS
16PCS
16PCS
1PC
WOOD SCREW
HALF ROUND NUT
2PCS
B3 (BOX 3)
ROLL SLAT
(14PCS/SET)
2SETS
E
R
FINE FURNITURE
1PC
Page 3
PAGE 3 OF 6
www.coastercompany.com

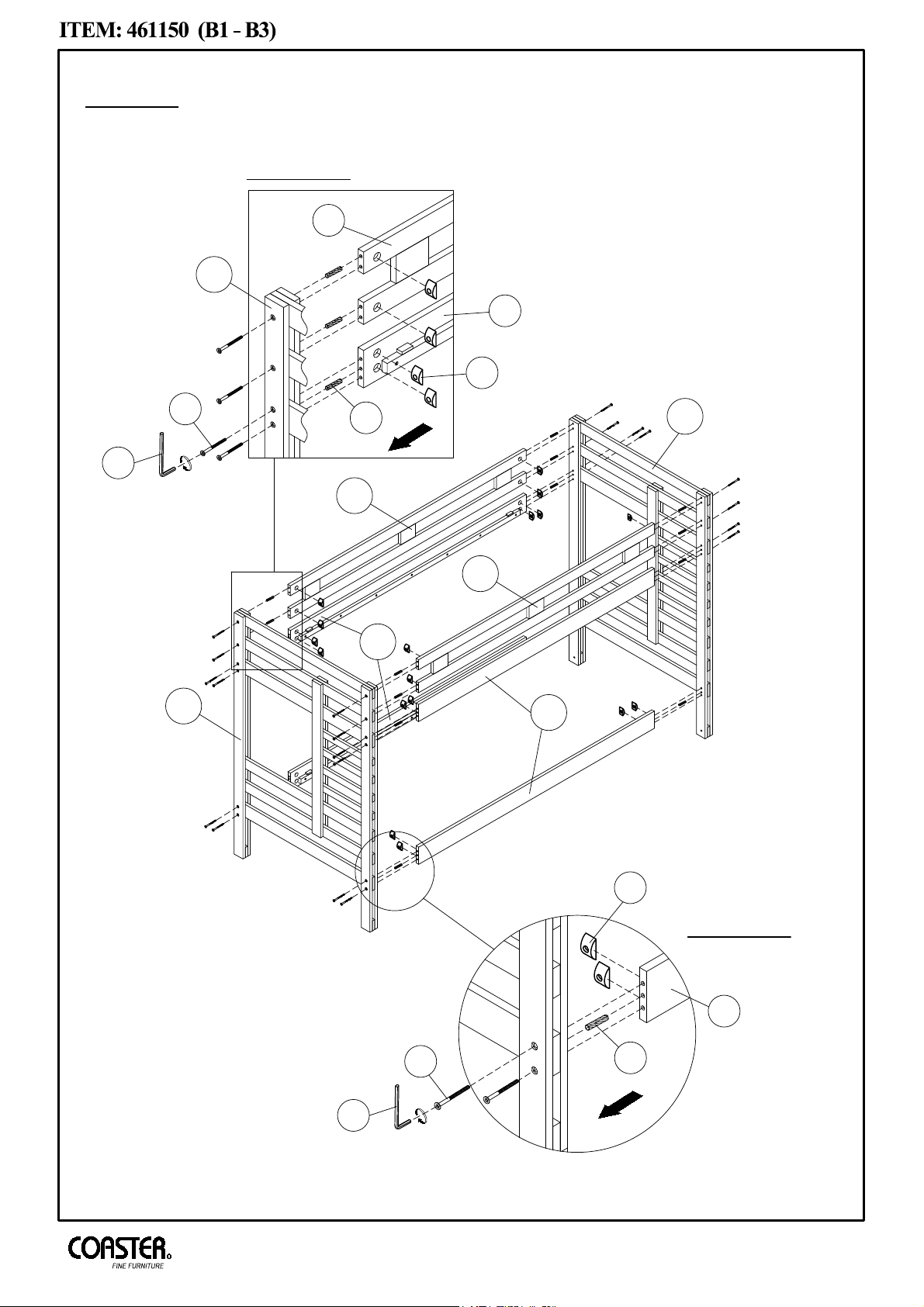

STEP 1:
ASSEMBLY INSTRUCTIONS ITEM: 461150 (B1 - B3)
A
B
C
C
D
D
5
1
C
2
4
A
4
2
D
5
1
C
R
FINE FURNITURE
STEP 1.1
STEP 1.2
Page 4
PAGE 4 OF 6
www.coastercompany.com

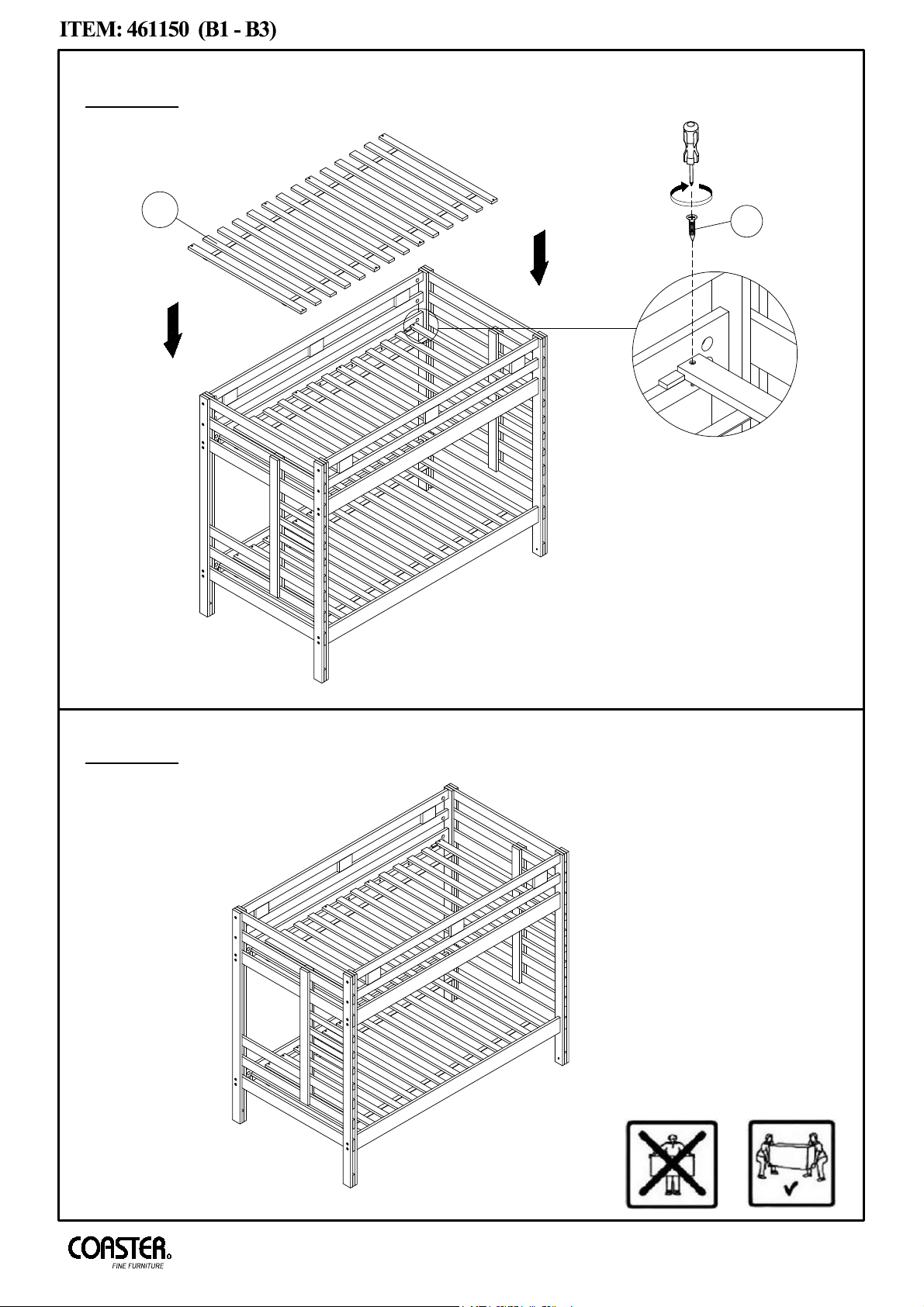

STEP 2:
ASSEMBLY INSTRUCTIONS
E
STEP 3:
Complete
ITEM: 461150 (B1 - B3)
3
R
FINE FURNITURE
Page 5
SIZE OF MATTRESS
The length and width of the bunk mattress are as follow:
Length Width Thickness
Upper bunk 74''- 75” 37 1/2”- 38 1/2” 6” Maximum
Lower bunk 74”- 75” 37 1/2”- 38 1/2” 6” Maximum
Ensure thickness of mattress does not exceed 6” and there must be at least 5” from mattress
sleeping surface to top edge of guardrail.

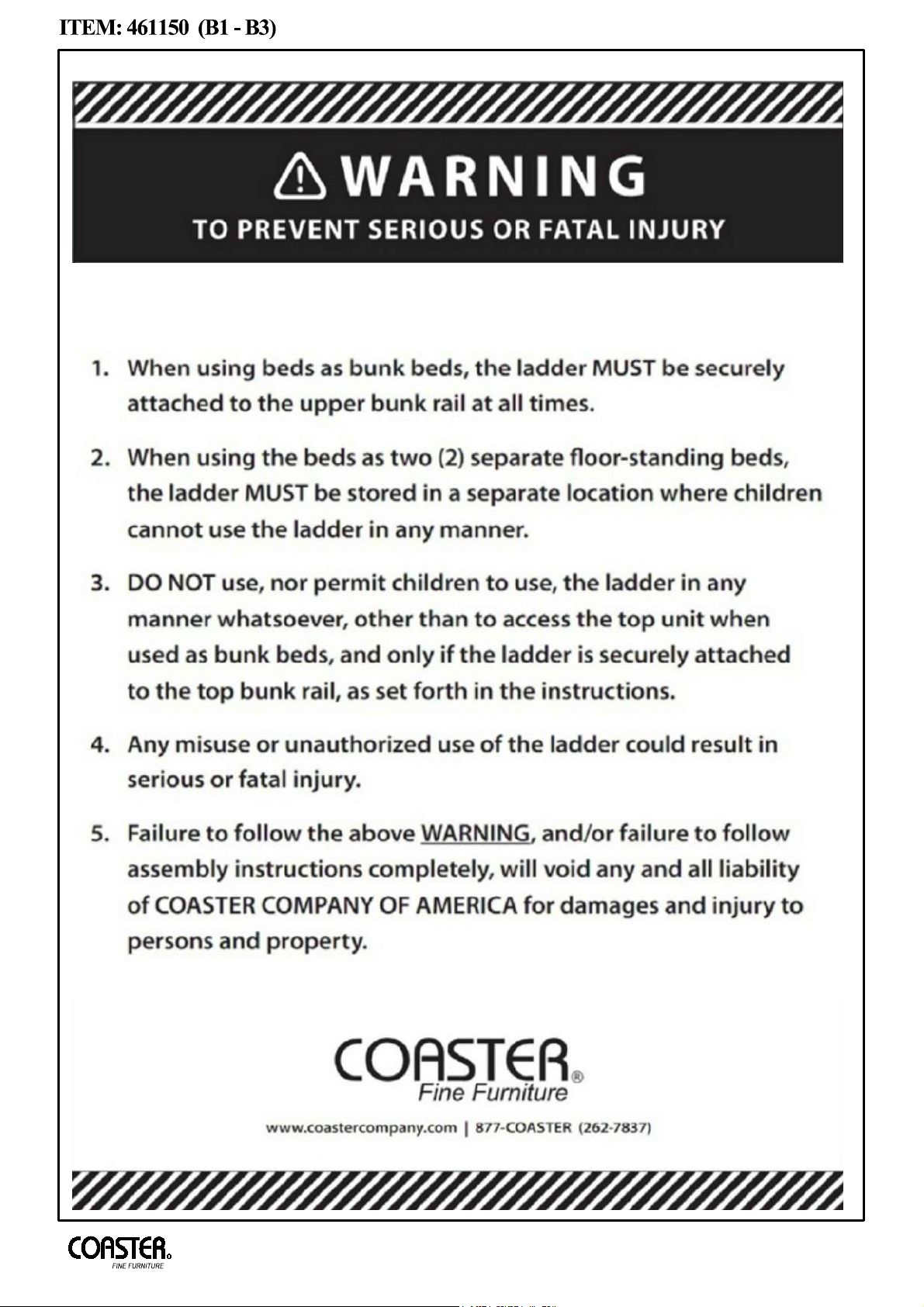

SAFETY WARNING
1. Follow the information on the warnings appearing on the upper bunk end structure and on
the carton. Do not remove the warning label from bed.
2. Always use the recommended size mattress or mattress support or both to help prevent the
likelihood of entrapment or falls.
3. Surface of mattress must be at least 5 in. (127 mm) below the upper edge of guardrails.
4. Do not allow children under 6 years of age to use the upper bunk.
5. Prohibit more than one person on upper bunk.
6. Periodically check and ensure that the guardrail, ladder, and other components are in their
proper position, free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the ladder for entering and leaving the upper bunk.
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a night light may provide added safety precaution for a child using upper bunk.
11. Always use guardrail on both long sides of the upper bunk. If the bunk bed will be placed
next to the wall, the guardrail that runs the full length of the bed should be placed against the
wall to prevent entrapment between the bed and wall.
12. The use of water or sleep flotation mattress is prohibited.
13. Keep these instruction for future reference.
STRANGULATION HAZARD:
14. Never attach or hang items to any part of the bunk bed that are not designed for use with
the bed for example, but not limited to hooks, belts, and jump ropes.
REPLACEMENT PARTS:
Replacement parts, including additional guardrails may be obtained from any COASTER
Furniture Dealer.
PAGE 5 OF 6
www.coastercompany.com
ASSEMBLY INSTRUCTIONS
R
FINE FURNITURE
! !
ITEM: 461150 (B1 - B3)
