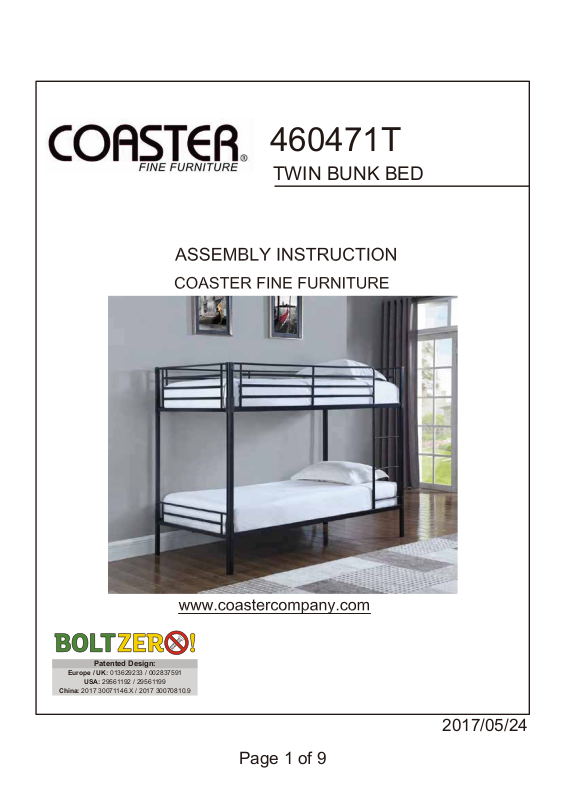

Coaster 460471T Assembly Guide

460471T

TWIN BUNK BED

Patented Design:

Europe / UK: 013629233 / 002837591

USA: 29561192 / 29561199

China: 2017 30071146.X / 2017 30070810.9

2017/05/24

Page 1 of 9

Length

Width

Thickness

Upper bunk

74" - 75"

6" Maximum

37 1/2" - 38 1/2"

SIZE OF MATTRESS

The length and width of the bunk mattress are as follow:

Ensure thickness of mattress does not exceed 6” and there must be at least 5” from mattress
sleeping surface to top edge of guardrail.

SAFETY WARNING

1. Follow the information on the warnings appearing on the upper bunk end structure and
on the carton. Do not remove the warning label from bed.

2. Always use the recommended size mattress or mattress support or both to help prevent
the likelihood of entrapment or falls.

3. Surface of mattress must be at least 5 in. (127 mm) below the upper edge of guardrails.

4. Do not allow children under 6 years of age to use the upper bunk.

5. Prohibit more than one person on upper bunk.

6. Periodically check and ensure that th
their proper position, free from damage, and that all connectors are tight.

7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.

8. Always use the ladder for entering and leaving the upper bunk.

9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.

10. Use of a night light may provide added safety precaution for a child using upper bunk.

11. Always use guardrails on both long sides of the upper bunk. If the bun
placed next to the wall, the guardrail that runs the full length of the bed should be placed
against the wall to prevent entrapment between the bed and wall.

12. The use of water or sleep flotation mattress is prohibited.

13. Keep these instructions for future reference.

14.

14.

15.

Use only mattress, which is 74" -- 75" long and 37 1/2" - 38 1/2" wide on upper bunk.
Maximum total weight is not to exceed 400 lbs.on the upper bunk.

e guardrail, ladder, and other components are in

k bed will be

STRANGULATION HAZARD:

16.

Never attach or hang items to any part of the bunk bed that are not designed for use

with the bed for example, but not limited to hooks, belts, and jump ropes.

REPLACEMENT PARTS:

Replacement parts, including additional guardrails may be obtained from any COASTER

Furniture Dealer.

Page 2 of 9

ITEM: 460471T

ASSEMBLY TIME PER UNIT: 30 MINUTES

PARTS IDENTIFICATION

BACK LEFT END

A 1pc

POST

B 2pcsFRONT LEFT/BACK

RIGHT END POST

C

FRONT RIGHT END
POST

UPPER SIDE RAIL

D

E

LOWER SIDE
RAIL

F

LOWER FRONT
RAIL

1pc

2pcs

2pcs

1pc

LOWER BACK RAIL

G 1pc

H 1pcUPPER FRONT

SAFETY RAIL

UPPER BACK

I

SAFETY RAIL

J

LADDER

K

SLAT

CENTER RAIL

L

1pc

1pc

32pcs

2pcs

Page 3 of 9
