PAGE 1 OF 10
REVISION 0 :09/26/2017
www.coastercompany.com
460362 (B1 - B4)
R
FINE FURNITURE

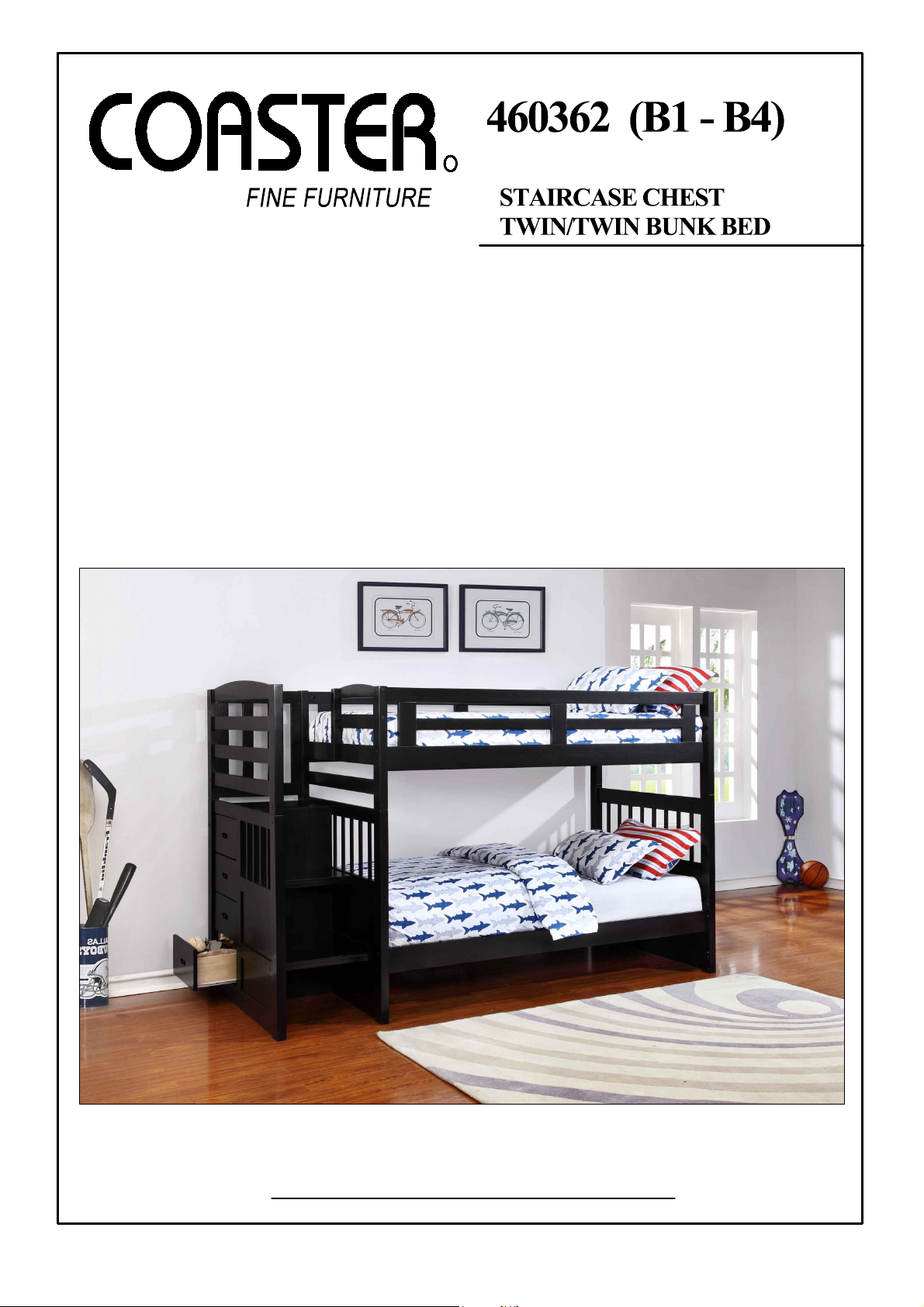

ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
STAIRCASE CHEST
TWIN/TWIN BUNK BED
Page 2
PAGE 2 OF 10
ASSEMBLY INSTRUCTIONS
ITEM: 460362 (B1 - B4)
www.coastercompany.com
NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.

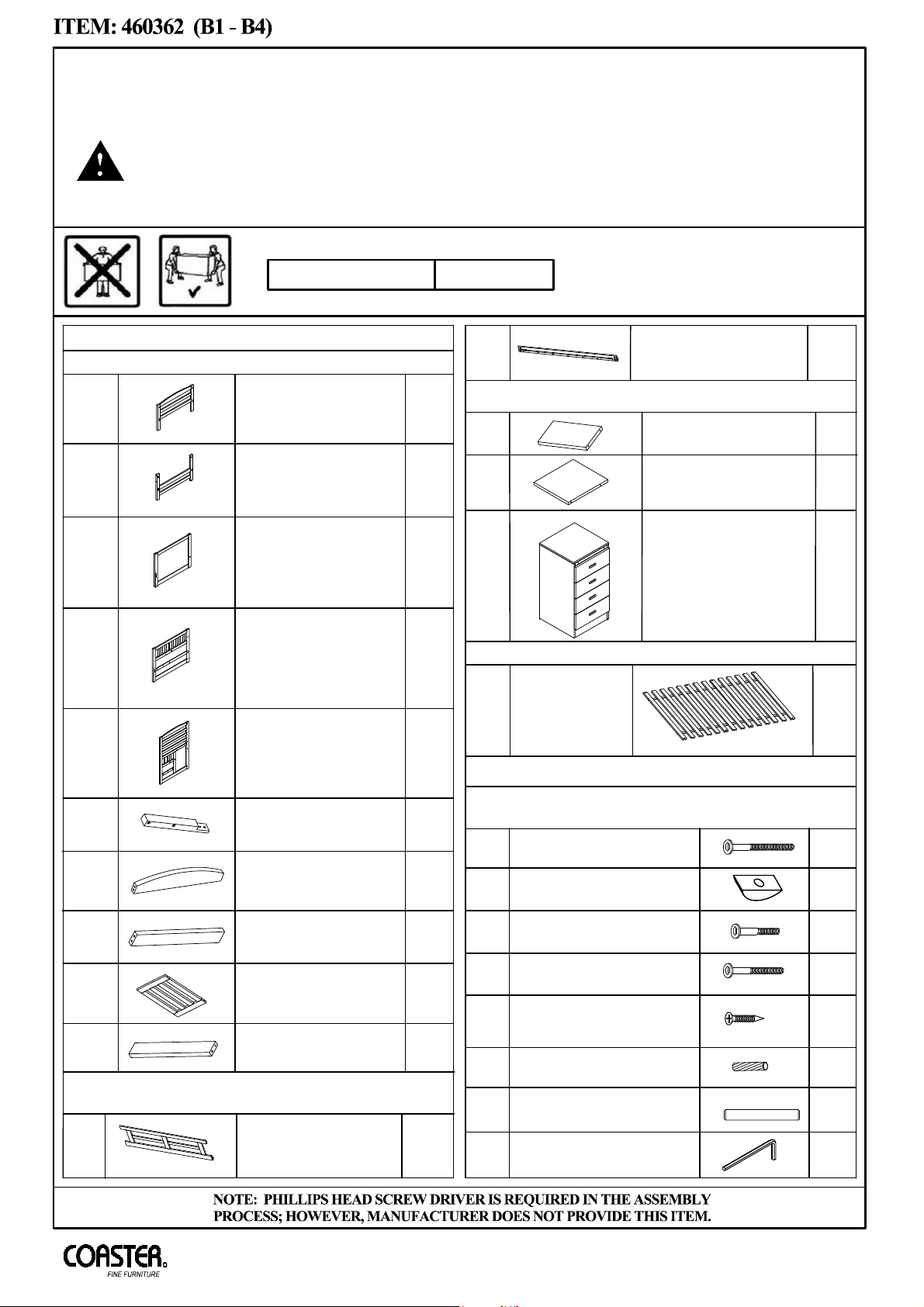

PARTS IDENTIFICATION
HARDWARE IDENTIFICATION
1
2
3
24PCS
5
6
16PCS
Z - B2 (BOX 2) - HARDWARE PACK
IS LOCATED IN 460362 (B2)
WOOD DOWEL
LONG BOLT
SHORT BOLT
ALLEN WRENCH
METAL PIN
1PC
1PC
A
B
B1 (BOX 1)
1PC
ROLL SLAT
(14PCS/SET)
2SETS
20PCS
16PCS
16PCS
4PCS
1PC
P
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.

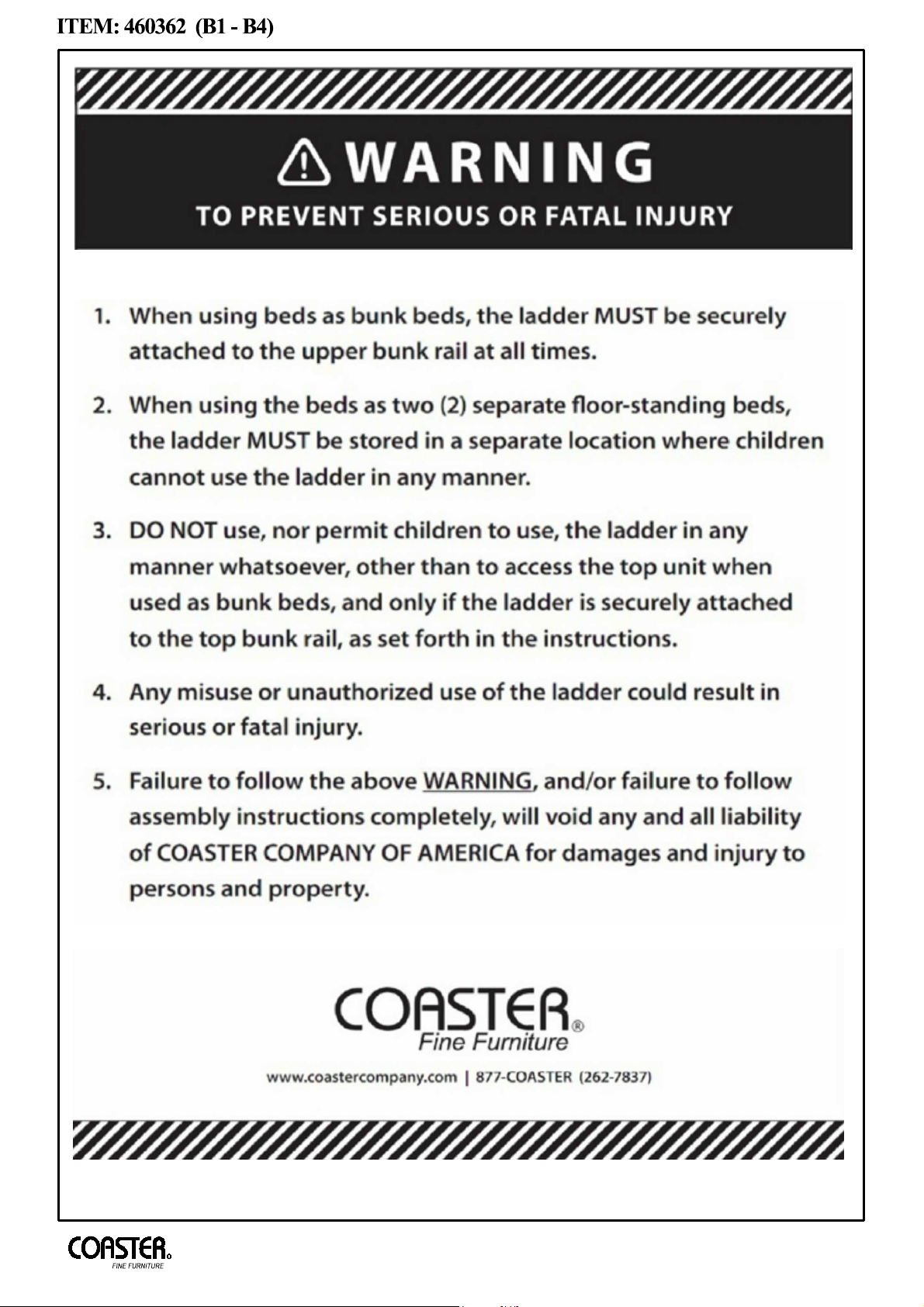

Warning !
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishments.
WOOD SCREW
LEFT UPPER BED END
RIGHT UPPER BED END
LEFT
LOWER BED END
C
D
7
4
1PC
1PC
RIGHT
LOWER BED END
HALF ROUND NUT
8
B2 (BOX 2)
E
RIGHT
BED FRAME
L
MEDIUM BOLT
8PCS
R
FINE FURNITURE
B3 (BOX 3)
1PC
STAIR CHEST
1PC
BIG LADDER STEP
1PC
SMALL LADDER STEP
B4 (BOX 4)
N
O
M
ASSEMBLY TIME 30 MINUTES
TRESTLE BAR
1PC
LARGE RIGHT
UPPER GUARDRAIL
1PC
SMALL RIGHT
UPPER GUARDRAIL
1PC
1PC
GUARDRAIL FRAME
2PCS
SUPPORT BAR
FRONT & BACK UPPER
GUARDRAIL
2PCS
FRONT & BACK LOWER
SIDE RAIL
2PCS
G
H
J
K
I
F
Page 3
PAGE 3 OF 10
www.coastercompany.com

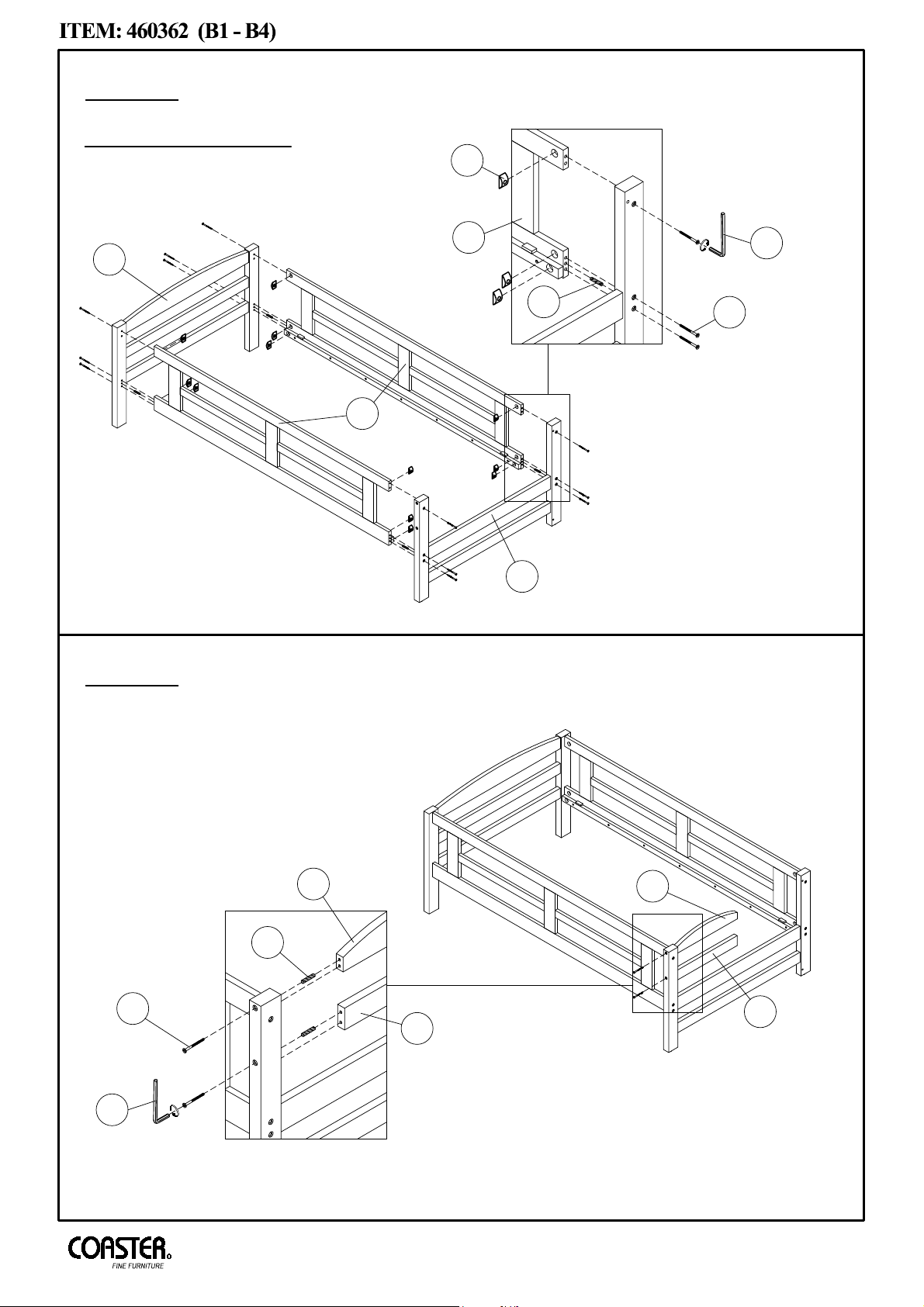

STEP 1:
STEP 2:
ASSEMBLY INSTRUCTIONS
A
B
K
1
8
G
H
1
K
G
H
6
8
2
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
UPPER BED END
6
Page 4
PAGE 4 OF 10
www.coastercompany.com

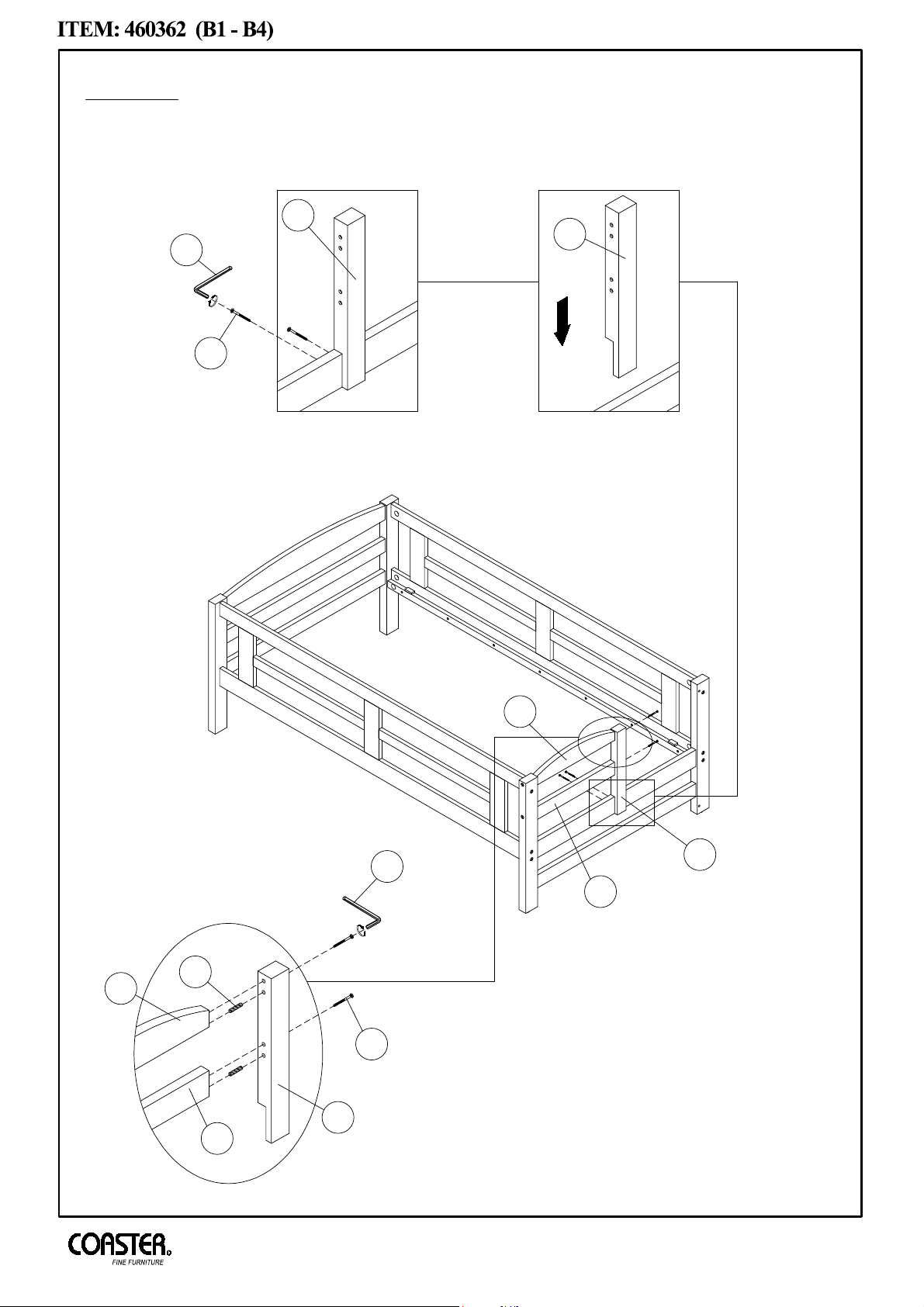

STEP 3:
ASSEMBLY INSTRUCTIONS
F
G
H
8
1
F
G
H
6
F
3
8
F
STEP 3.1
STEP 3.2STEP 3.3
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
Page 5
PAGE 5 OF 10
www.coastercompany.com

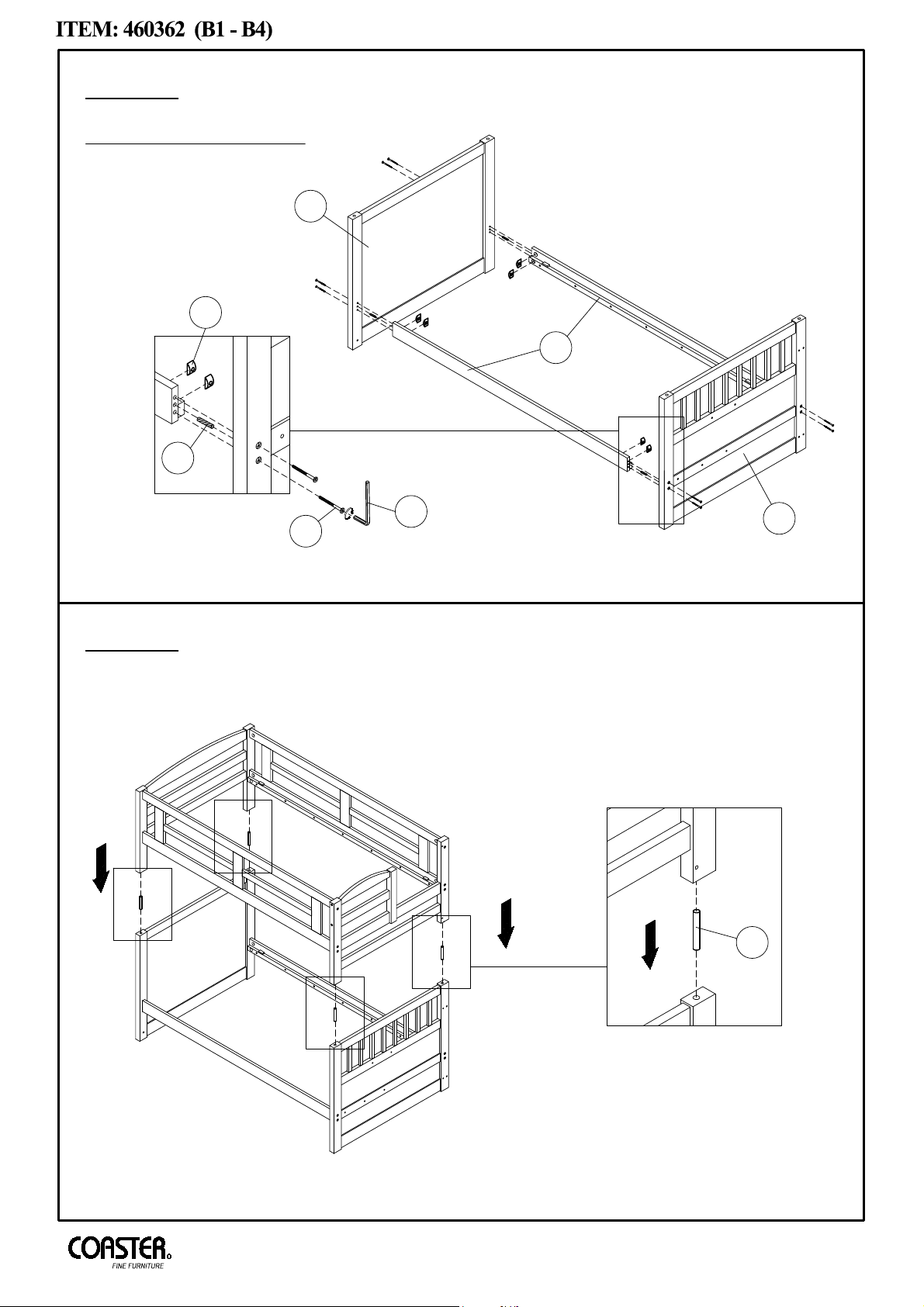

STEP 4:
STEP 5:
ASSEMBLY INSTRUCTIONS
L
C
D
8
1
6
2
7
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
LOWER BED END
Page 6
PAGE 6 OF 10
www.coastercompany.com
STEP 6:
ASSEMBLY INSTRUCTIONS
I
J
N
M
3
8
6
4
8
4
8
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
Page 7
PAGE 7 OF 10
www.coastercompany.com
ASSEMBLY INSTRUCTIONS

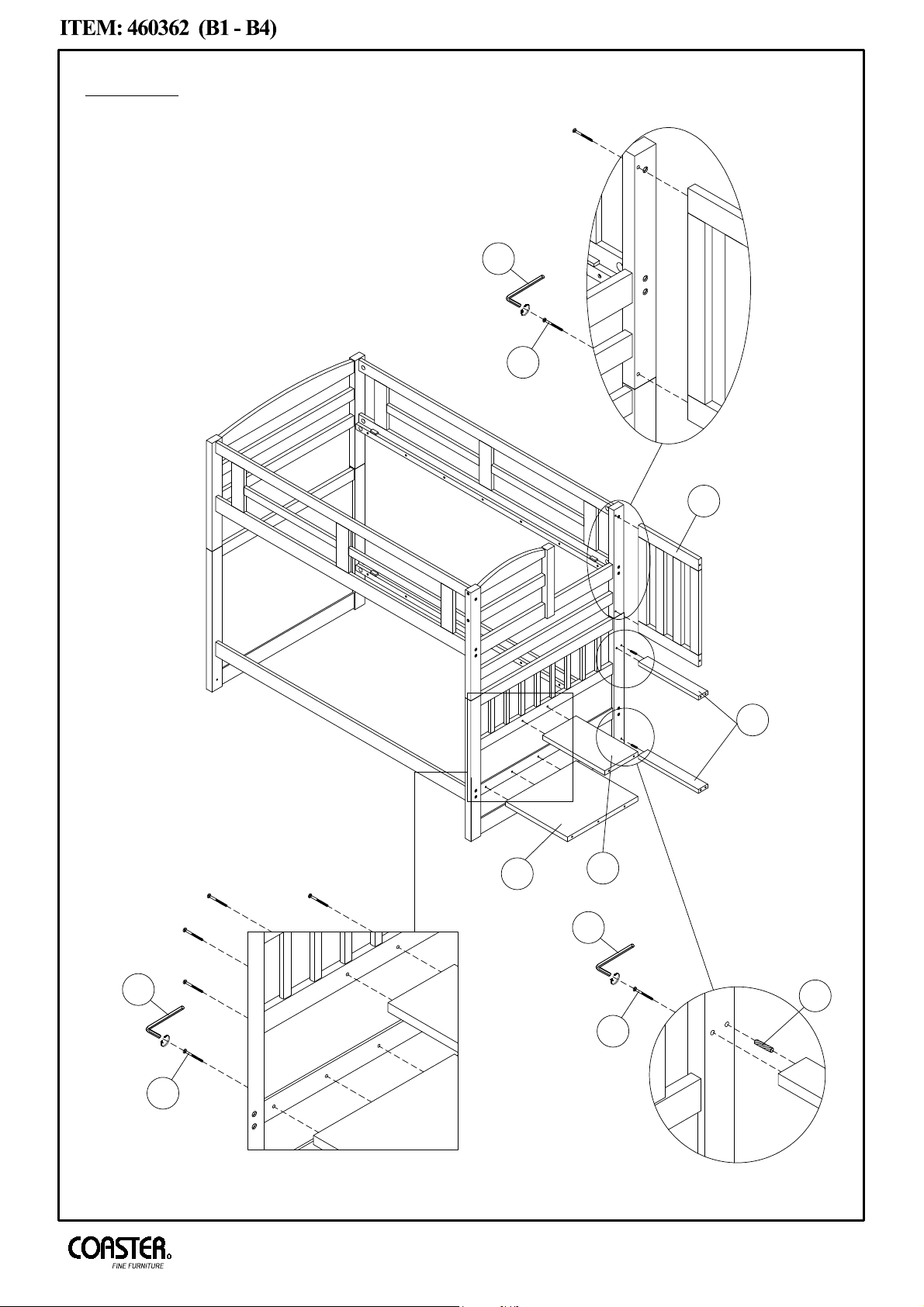

STEP 7:
E
8
4
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
O

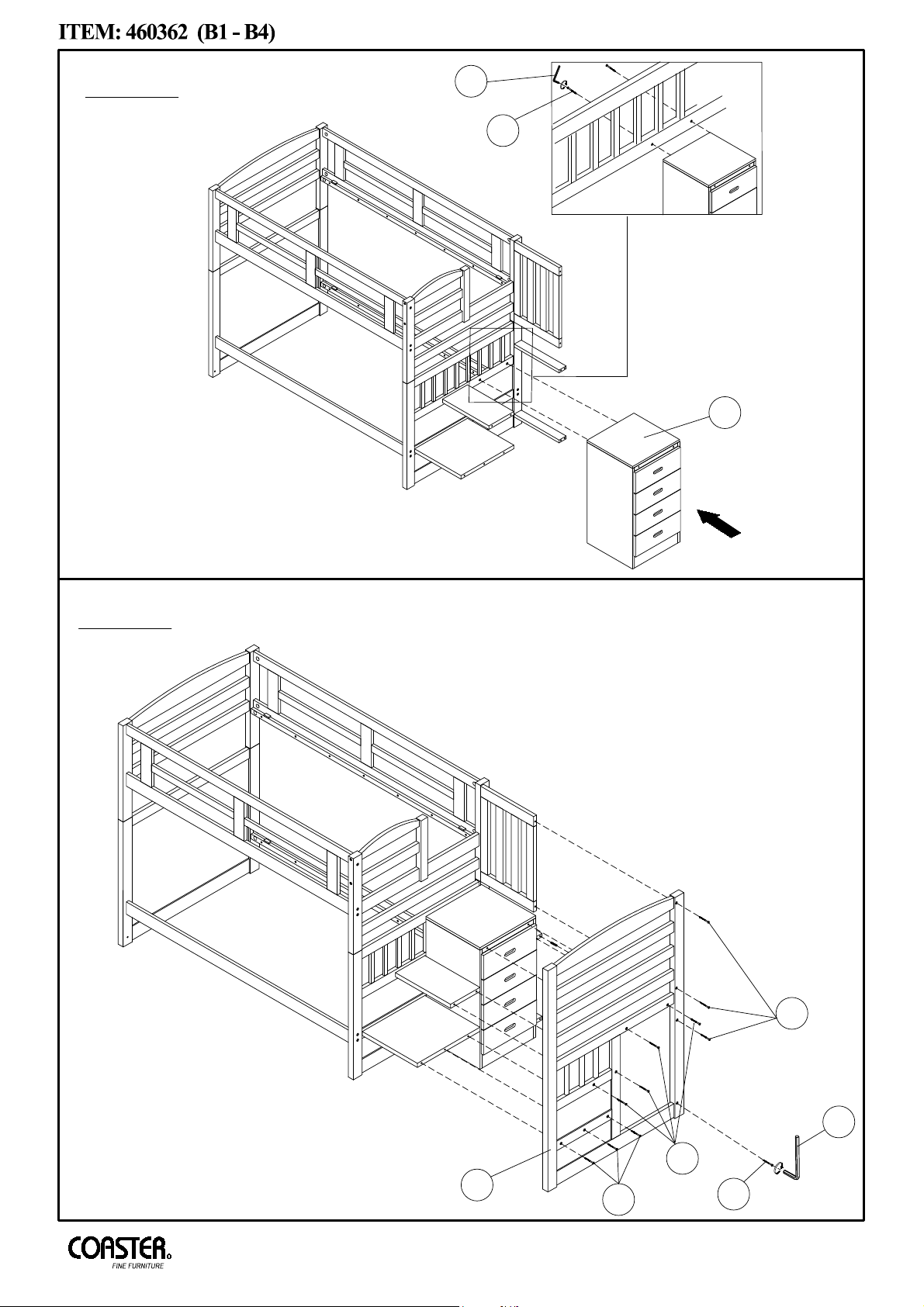

STEP 8:
3
8
3
3
4
Page 8

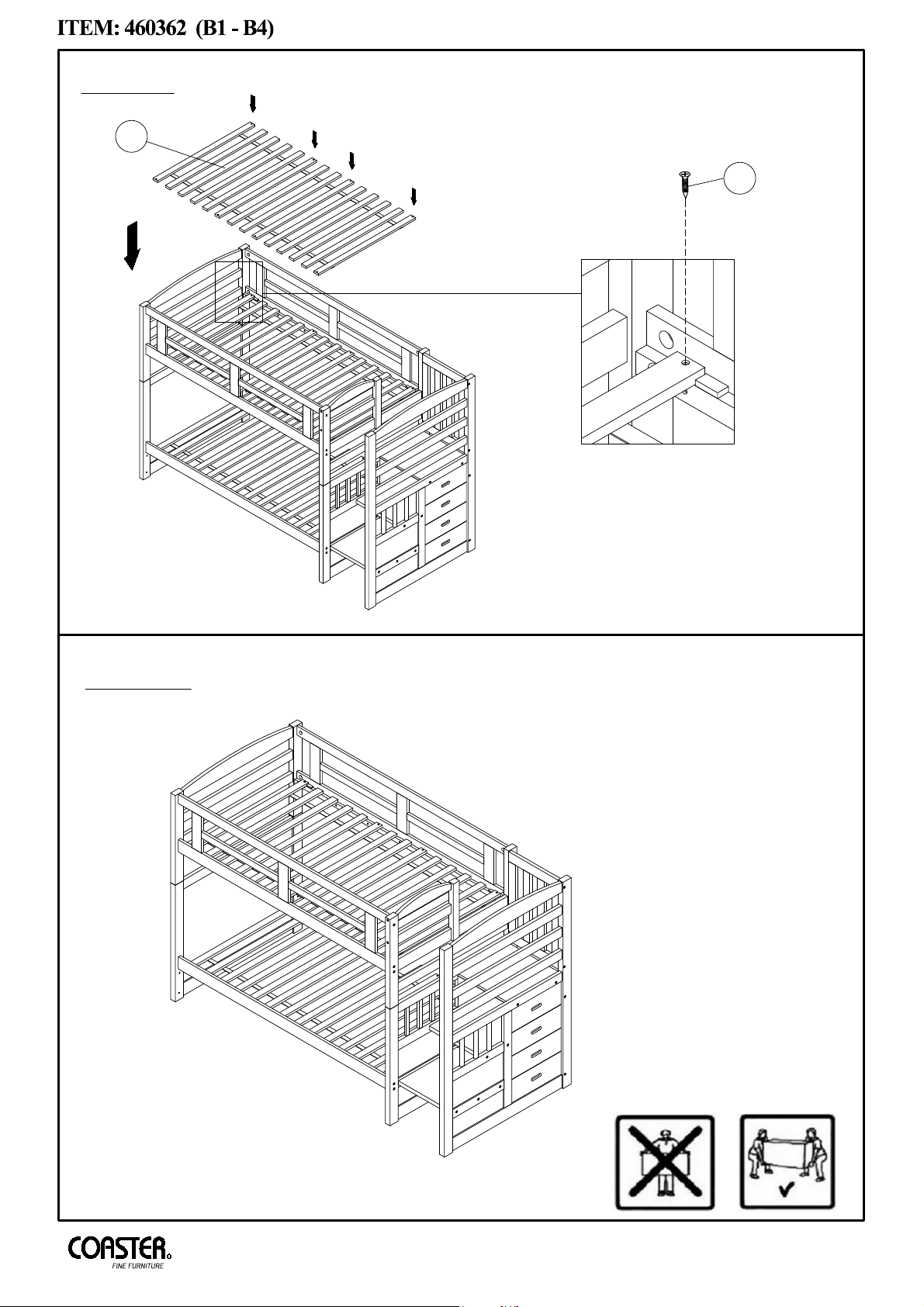

STEP 9:
PAGE 8 OF 10
www.coastercompany.com
ASSEMBLY INSTRUCTIONS
STEP 10:
Complete
5
P
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
Page 9
SIZE OF MATTRESS
The length and width of the bunk mattress are as follow:
Length Width Thickness
Upper bunk 74''- 75" 37 1/2"- 38 1/2" 6" Maximum
Lower bunk 74"- 75" 37 1/2"- 38 1/2" 6" Maximum
Ensure thickness of mattress does not exceed 6" and there must be at least 5" from mattress
sleeping surface to top edge of guardrail.
SAFETY WARNING
1. Follow the information on the warnings appearing on the upper bunk end structure and on
the carton. Do not remove the warning label from bed.
2. Always use the recommended size mattress or mattress support or both to help prevent the
likelihood of entrapment or falls.
3. Surface of mattress must be at least 5 in. (127 mm) below the upper edge of guardrails.
4. Do not allow children under 6 years of age to use the upper bunk.
5. Prohibit more than one person on upper bunk.
6. Periodically check and ensure that the guardrail, ladder, and other components are in their
proper position, free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the ladder for entering and leaving the upper bunk.
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a night light may provide added safety precaution for a child using upper bunk.
11. Always use guardrail on both long sides of the upper bunk. If the bunk bed will be placed
next to the wall, the guardrail that runs the full length of the bed should be placed against the
wall to prevent entrapment between the bed and wall.
12. The use of water or sleep flotation mattress is prohibited.
13. Keep these instruction for future reference.
STRANGULATION HAZARD:
14. Never attach or hang items to any part of the bunk bed that are not designed for use with
the bed for example, but not limited to hooks, belts, and jump ropes.
REPLACEMENT PARTS:
Replacement parts, including additional guardrails may be obtained from any COASTER
Furniture Dealer.
PAGE 9 OF 10
www.coastercompany.com
ASSEMBLY INSTRUCTIONS
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
! !
Page 10
PAGE 10 OF 10
www.coastercompany.com
ASSEMBLY INSTRUCTIONS
R
FINE FURNITURE
ITEM: 460362 (B1 - B4)
