460234(B1&B2)
TWIN/TWIN BUNKBED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 6
REVISION 0: 07/03/2012
REVISION 1: 10/08/2012
REVISION 2: 11/07/2013
REVISION 3: 01/21/2016
Page 2
SHORT GUARDRAIL
ITEM :
460234 (B1&B2)
!
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequencs as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishment
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION
A
B
C
D
E
F
G
RIGHT UPPER BED
END
LEFT UPPER BED END 1PC
LOWER BED END 2PCS
UPPER BACK BED
RAIL
UPPER FRONT BED
RAIL
LOWER FRONT BED
RAIL
LOWER BACK BED
RAIL
1PC
1PC
1PC
1PC
1PC
H
I
J
K
L
M
N
LONG GUARDRAIL 2PCS
2PCS
RIGHT LADDER STILE 1PC
LEFT LADDER STILE 1PC
LADDER STEP 3PCS
BED SLAT 12PCS
FLAT TRESTLE BAR 3PCS
Z-B2 (BOX 2) HARDWARE PACK IS LOCATED IN 460234 (B2)
1
2
3
4
NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS.
HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM
LONG BOLT 22PCS
BARREL NUT 22PCS
WOOD DOWEL 26PCS
SHORT BOLT
HARDWARE IDENTIFICATION
5
6
7
14PCS 8
9
PAGE 2 OF 6
ALLEN CAP SCREW 6PCS
METAL DOWEL 4PCS
ALLEN WRENCH 1PC
MEDIUM BOLT 4PCS
SCREW 24PCS
www.coastercompany.com
Page 3
ITEM :
460234(B1&B2)

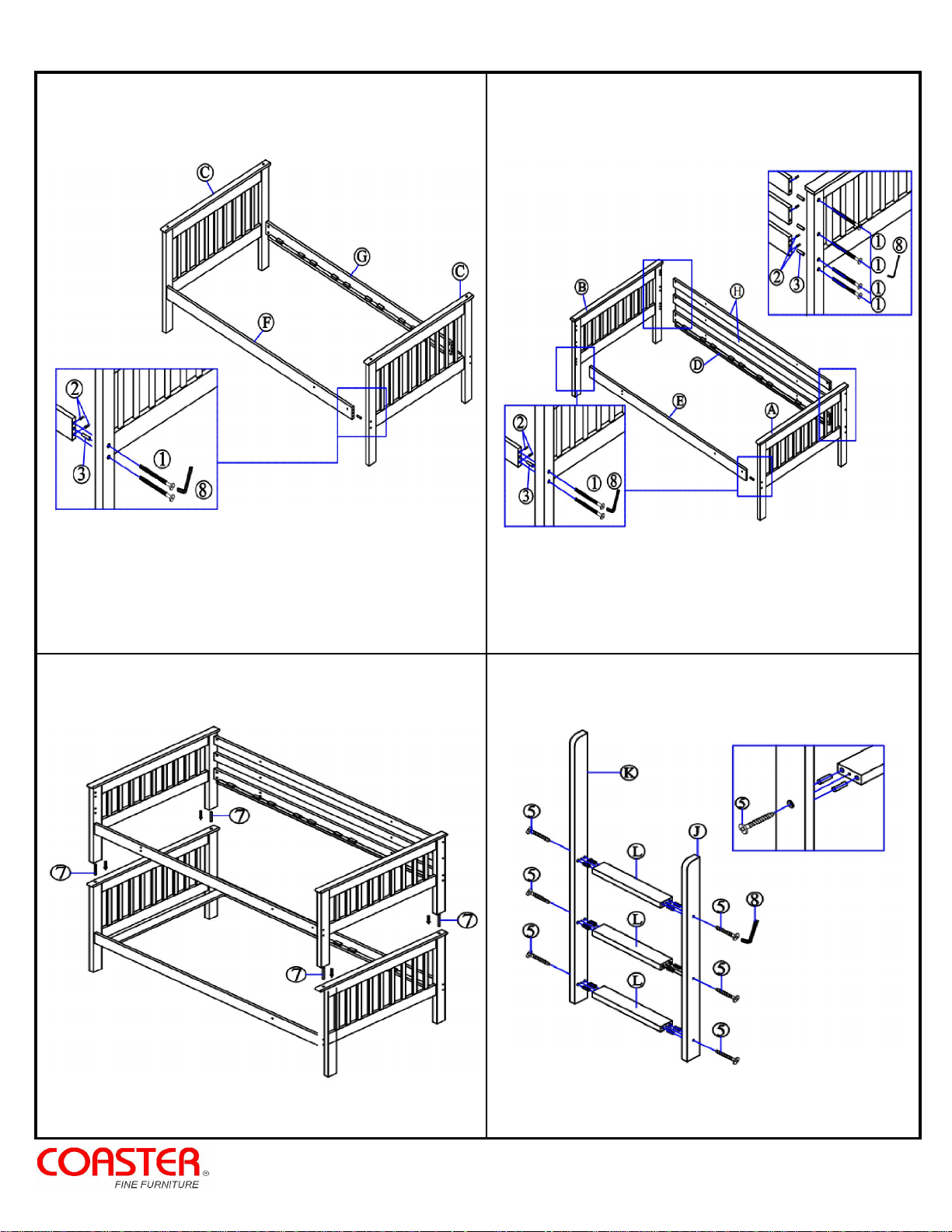

STEP 1 STEP 2
ASSEMBLY INSTRUCTIONS
STEP 3 STEP 4
www.coastercompany.com
PAGE 3 OF 6
Page 4
ITEM :
460234 (B1&B2)
ITEM :

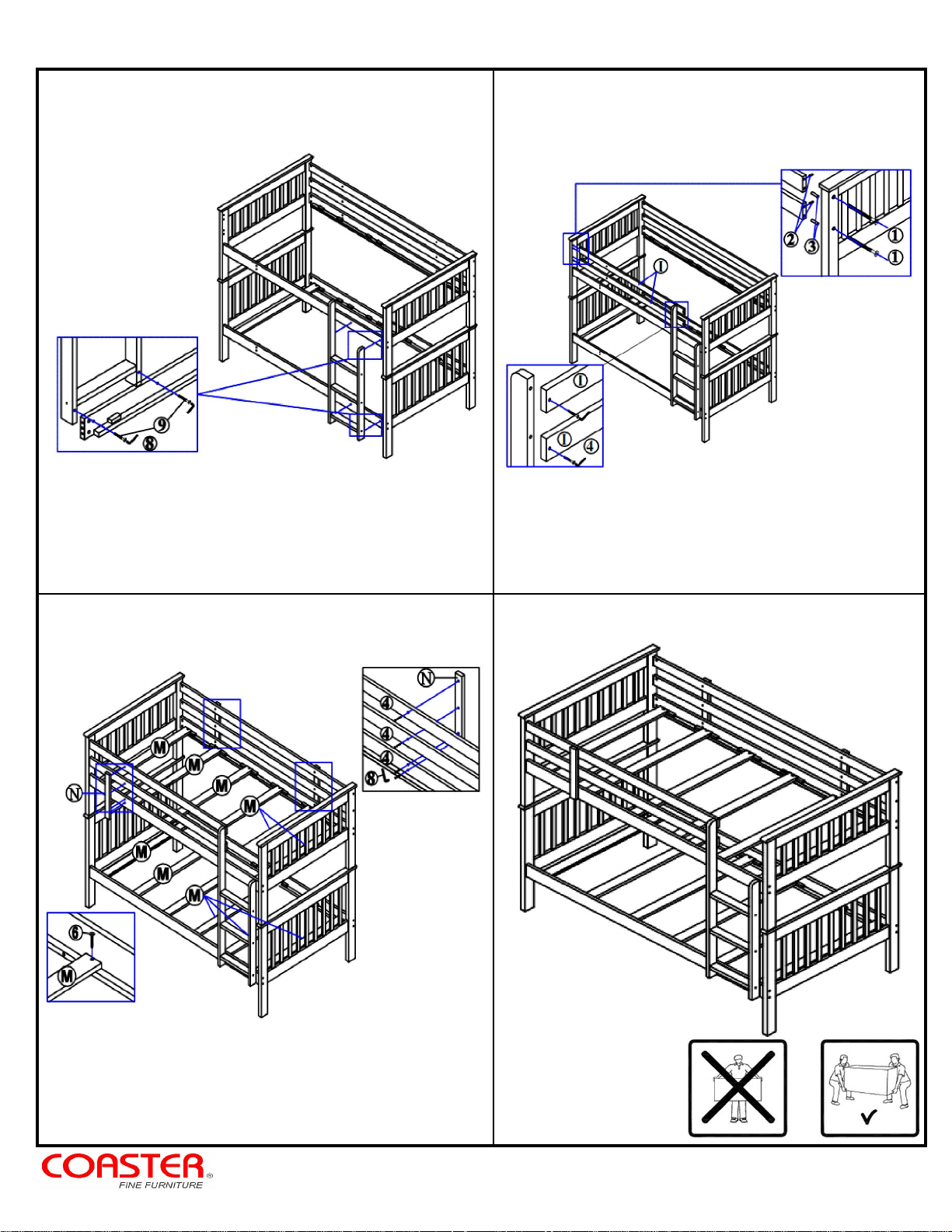

STEP 5 STEP 6
ASSEMBLY INSTRUCTIONS
STEP 7 STEP 8
www.coastercompany.com
PAGE 4 OF 6
Page 5
ITEM :
460234 (B1&B2)
ASSEMBLY INSTRUCTIONS
SIZE OF MATTRESS
38 1/2"
ollow:
there must be at least 5” from mattress sleeping
6" Maximum
The length and width of the bunk mattress are as f
Length Width Thickness
Upper bunk
Lower bunk 74" - 75" 37 1/2”-38 1/2” 6" maximum
Ensure thickness of mattress does not exceed 6” and
surface to top edge of guardrail.
74"
-
75"
37 1/2"
-
1. Follow the information on the warnings appearing
carton. Do not remove the warning label from bed.
2. Always use the recommended size mattress or matt
likelihood of entrapment or falls.
3. Surface of mattress must be at least 5 in. (127
4. Do not allow children under 6 years of age to us
5. Prohibit more than one person on upper bunk.
6. Periodically check and ensure that the guardrail
position, free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the ladder for entering and leaving t
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a night light may provide added safety precaution for a child using upper bunk.
11. Always use guardrails on both long sides of the
to the wall, the guardrail that runs the full length of the bed should be placed against the wall to
prevent entrapment between the bed and wall.
12. The use of water or sleep flotation mattress is prohibited.
13. Keep these instructions for future reference.
14. Never attach or hang items to any part of the bunk bed that are not designed for use with the bed
STRANGULATION HAZARD:
for example, but not limited to hooks, belts, and j
REPLACEMENT PARTS:
Replacement parts, including additional guardrails may be obtained from any COASTER
Furniture Dealer.
SAFETY WARNING
mm) below the upper edge of guardrails.
, ladder, and other components are in their proper
upper bunk. If the bunk bed will be placed next
on the upper bunk end structure and on the
ress support or both to help prevent the
e the upper bunk.
he upper bunk.
ump ropes.
www.coastercompany.com
PAGE 5 OF 6
Page 6
ITEM :
460234 (B1&B2)
1. When using beds as bunk beds, the ladder MUST be securely
attached to the upper bunk rail at all times.
2. When using the beds as two (2) separate floor-standing beds,
the ladder MUST be stored in a separate location where children
cannot use the ladder in any manner.
ASSEMBLY INSTRUCTIONS
3. DO NOT use, nor permit children to use, the ladder in any
manner whatsoever, other than to access the top unit when
used as bunk beds, and only if the ladder is securely attached
to the top bunk rail, as set forth in the instructions.
4. Any misuse or unauthorized use of the ladder could result in
serious or fatal injury.
5. Failure to follow the above WARNING, and/or failure to follow
assembly instructions completely, will void any and all liability
of COASTER COMPANY OF AMERICA for damages and injury to
persons and property.
www.coastercompany.com | 877- COASTER (262-7838)
