ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 9
REVISION 0 :08/07/2017
Page 2
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.
Warning !
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishments.
PARTS IDENTIFICATION
B1 (BOX 1)
L
LEFT LADDER
STILE
1PC
A
B
C
B2 (BOX 2)
D
E
F
LEFT UPPER BED END
RIGHT UPPER BED END
LOWER BED END
FRONT UPPER SIDE RAIL
BACK UPPER SIDE RAIL
FRONT LOWER SIDE RAIL
1PC
1PC
2PCS
1PC
1PC
1PC
M
N
RIGHT LADDER
LADDER STEP
B3 (BOX 3)
ROLL SLAT
O
(14PCS/SET)
HARDWARE IDENTIFICATION
Z - B2 (BOX 2) - HARDWARE PACK
IS LOCATED IN 460116 (B2)
1
2
3
LONG BOLT
HALF ROUND NUT
SHORT BOLT
1PC
STILE
4PCS
2 SETS
22PCS
22PCS
17PCS
G
H
K
BACK LOWER SIDE RAIL
BACK GUARDRAIL
I
J
FRONT GUARDRAIL
GUARDRAIL SUPPORT
WITH 3 HOLES
GUARDRAIL SUPPORT
WITH 4 HOLES
1PC
2PCS
4
5
6
2PCS
7
3PCS
8
1PC
PAGE 2 OF 9
ALLEN CAP SCREW
WOOD SCREW
WOOD DOWEL
METAL PIN
ALLEN WRENCH
16PCS
30PCS
4PCS
1PC
www.coastercompany.com
Page 3
PAGE 3 OF 9
www.coastercompany.com

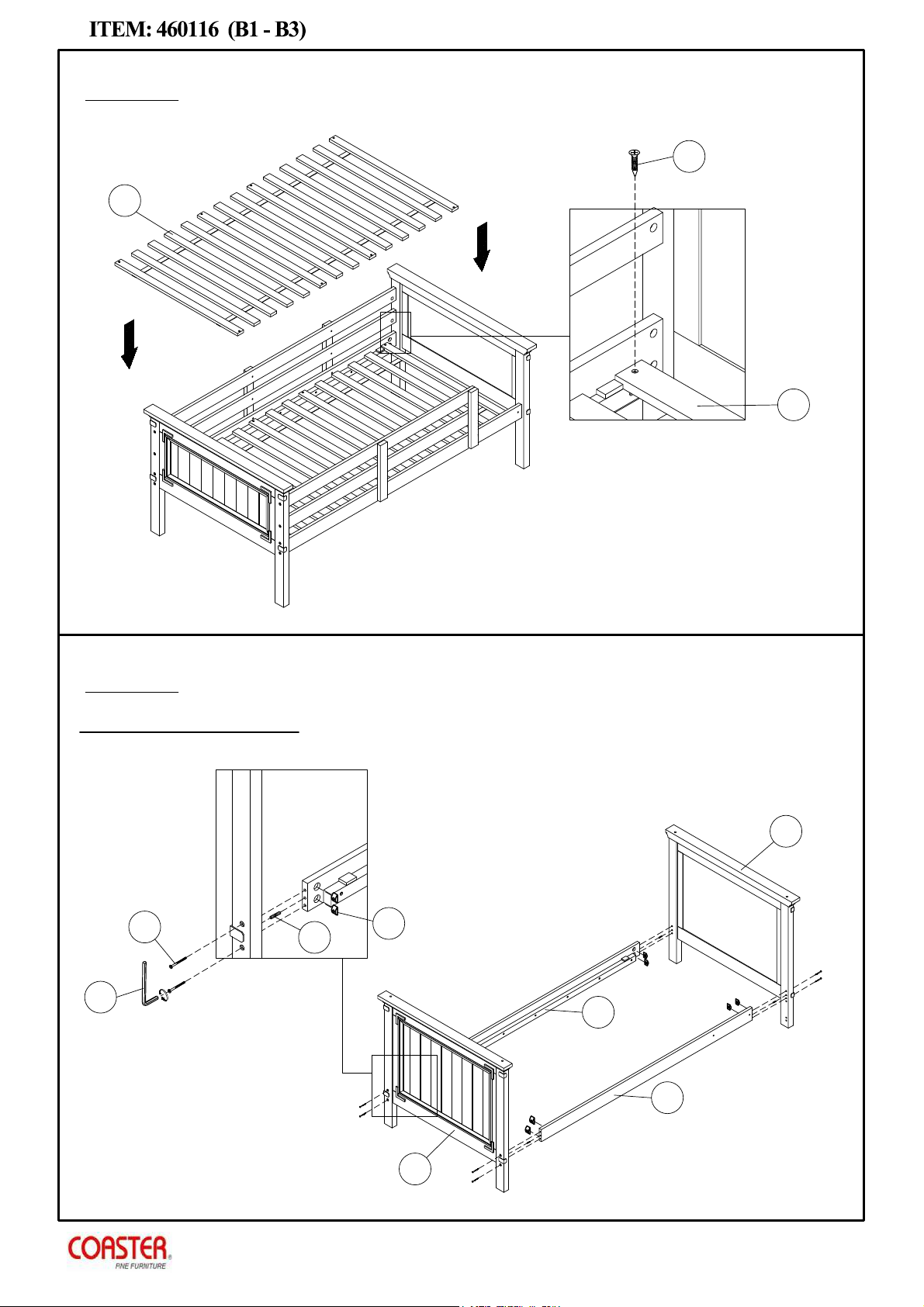

STEP 1:
UPPER BED END
ASSEMBLY INSTRUCTIONS
STEP 1.3
1
8
6
8
3
2
B
A
E
I
K
J
D
8
2
6
1
STEP 1.4
8
3
STEP 1.1
STEP 1.2
J
H
Page 4
PAGE 4 OF 9
www.coastercompany.com

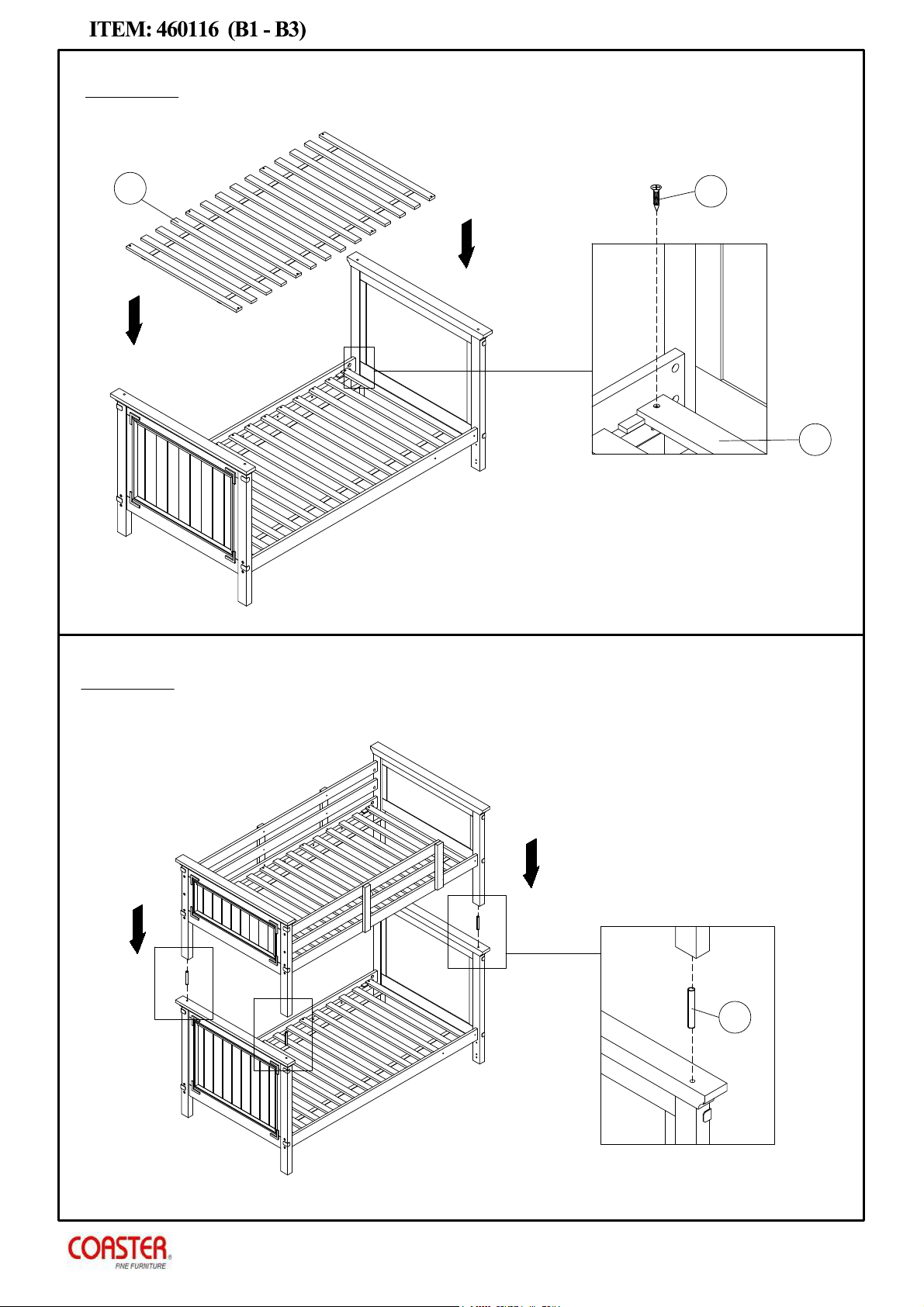

STEP 2:
STEP 3:
LOWER BED END
ASSEMBLY INSTRUCTIONS
O
5
C
C
G
F
1
6
2
8
O
Page 5
PAGE 5 OF 9
www.coastercompany.com
STEP 4:
STEP 5:
ASSEMBLY INSTRUCTIONS
O
O
5
7
Page 6

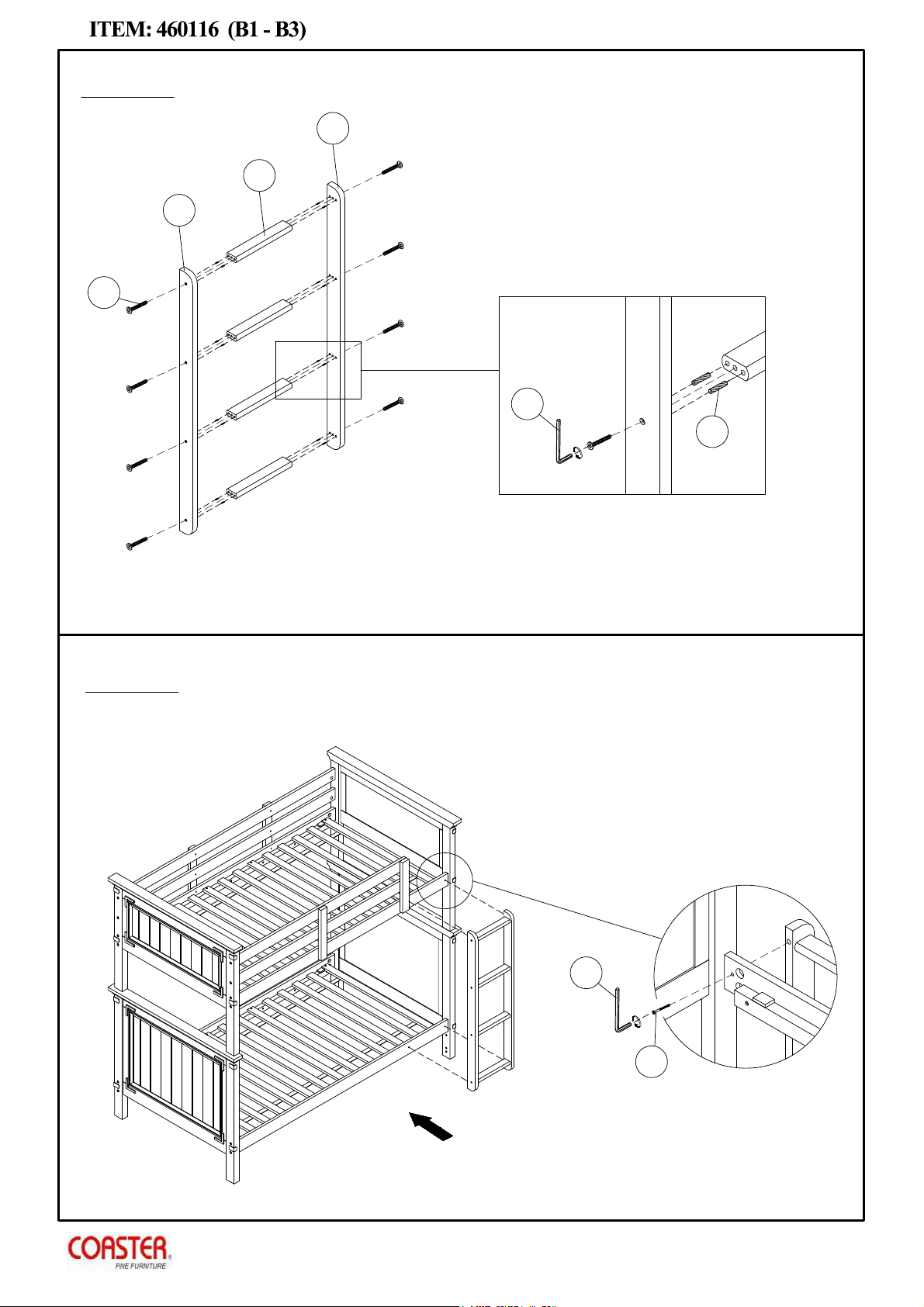

STEP 6:
PAGE 6 OF 9
www.coastercompany.com
STEP 7:
ASSEMBLY INSTRUCTIONS
4
N
8
6
8
3
L
M
Page 7
PAGE 7 OF 9
www.coastercompany.com
ASSEMBLY INSTRUCTIONS

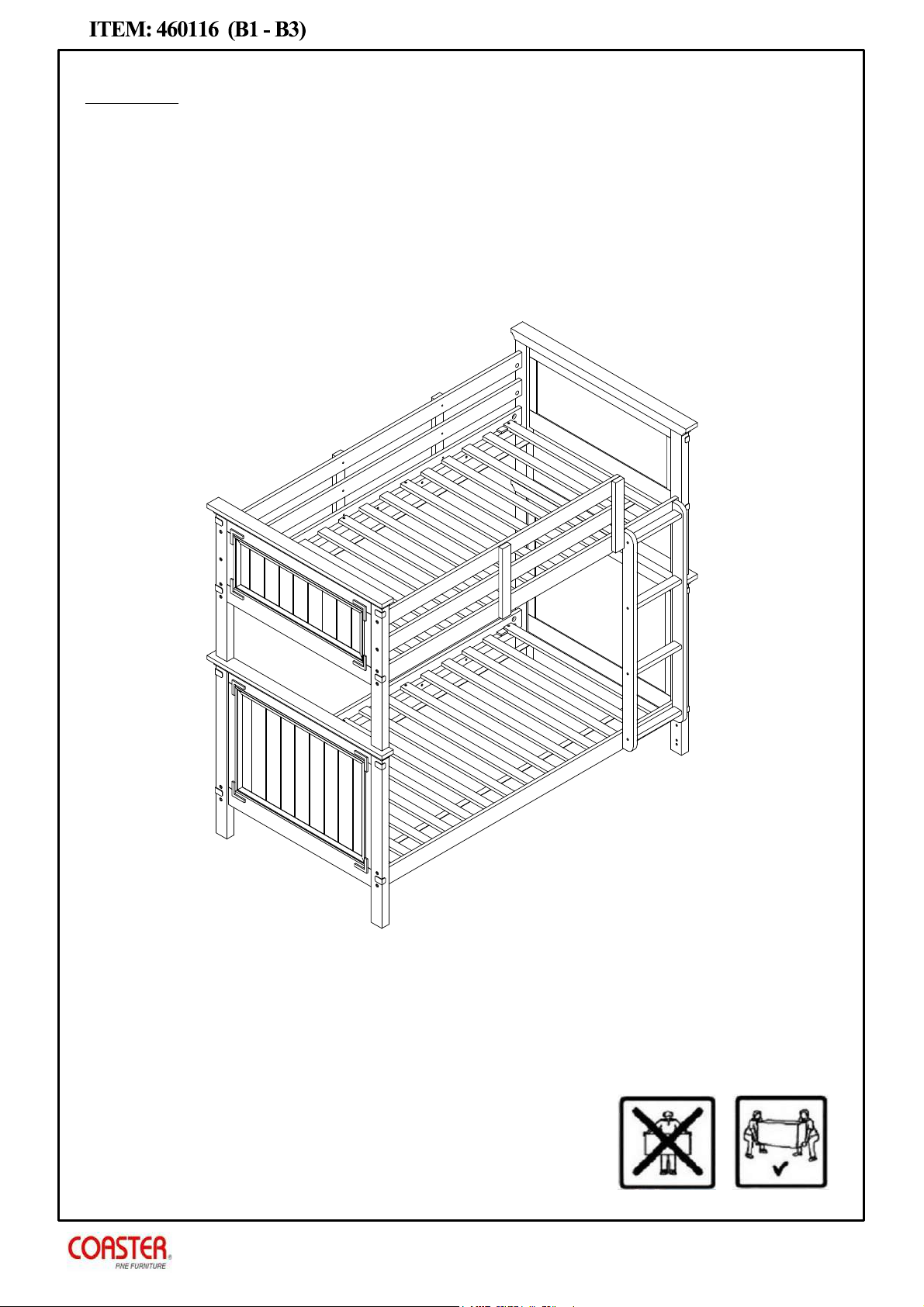

STEP 8:
Complete
Page 8
PAGE 8 OF 9
www.coastercompany.com
ASSEMBLY INSTRUCTIONS
The length and width of the bunk mattress are as follow:
Length Width Thickness
Upper bunk 74"- 75" 37 1/2"- 38 1/2" 6" Maximum
Lower bunk 74"- 75" 37 1/2"- 38 1/2" 6" Maximum
Ensure thickness of mattress does not exceed 6” and there must be at least 5” from mattress
sleeping surface to top edge of guardrail.

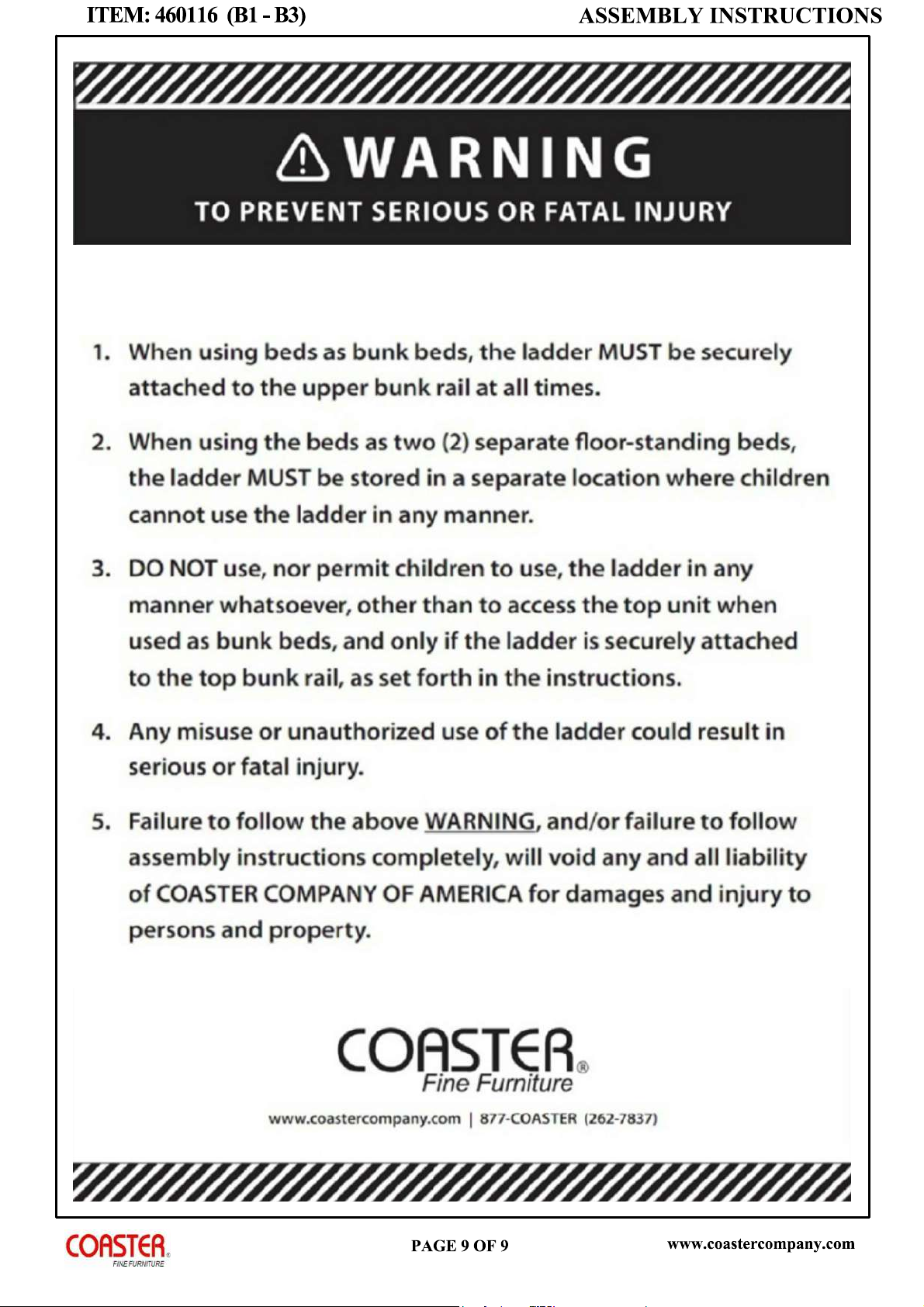

SAFETY WARNING
1. Follow the information on the warnings appearing on the upper bunk end structure and on
the carton. Do not remove the warning label from bed.
2. Always use the recommended size mattress or mattress support or both to help prevent the
likelihood of entrapment or falls.
3. Surface of mattress must be at least 5 in. (127 mm) below the upper edge of guardrails.
4. Do not allow children under 6 years of age to use the upper bunk.
5. Prohibit more than one person on upper bunk.
6. Periodically check and ensure that the guardrail, ladder, and other components are in their
proper position, free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the ladder for entering and leaving the upper bunk.
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a night light may provide added safety precaution for a child using upper bunk.
11. Always use guardrail on both long sides of the upper bunk. If the bunk bed will be placed next to
the wall, the guardrail that runs the full length of the bed should be placed against the wall to
prevent entrapment between the bed and wall.
12. The use of water or sleep flotation mattress is prohibited.
13. Keep these instruction for future reference.
STRANGULATION HAZARD:
14. Never attach or hang items to any part of the bunk bed that are not designed for use with the bed for
example, but not limited to hooks, belts, and jump ropes.
REPLACEMENT PARTS:
Replacement parts, including additional guardrails may be obtained from any COASTER
Furniture Dealer.
SIZE OF MATTRESS
