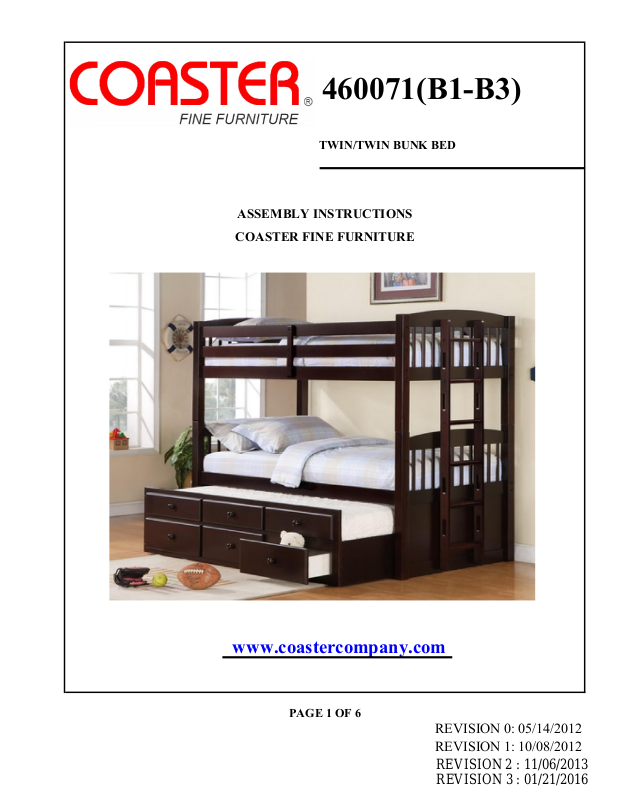

Page 1
460071(B1-B3)
TWIN/TWIN BUNK BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 6
REVISION 0: 05/14/2012
REVISION 1: 10/08/2012
REVISION 2 : 11/06/2013
REVISION 3 : 01/21/2016
Page 2
ROLL SLAT
ITEM :
460071 (B1-B3)
!
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequencs as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishment
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION
A
B
C
D
E
F
RIGHT UPPER BED
END
LEFT UPPER BED END 1PC
RIGHT LOWER BED
END
LEFT LOWER BED
END
UPPER GUARD RAIL 4PCS
UPPER SIDE RAIL 2PCS
1PC
1PC
1PC
HARDWARE INDENTIFICATION
G
H
K
L
LOWER SIDE RAIL 2PCS
GUARD SUPPORT 2PCS
I
J
RIGHT LADDER STILE 1PC
LEFT LADDER STILE 1PC
(13PCS)
LADDER STEP 6PCS
2SETS
Z-B2 (BOX 2) HARDWARE PACK IS LOCATED IN 460071 (B2)
1
2
3
4
5
NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS.
HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM
LONG BOLT 24PCS
BARREL NUT 24PCS
WOOD DOWEL 48PCS
MEDIUM BOLT 6PCS
ALLEN CAP SCREW 12PCS
6
7
8
9
PAGE 2 OF 6
SHORT BOLT 6PCS
SCREW 12PCS
METAL DOWEL 4PCS
ALLEN WRENCH 1PC
www.coastercompany.com
Page 3
ITEM :
460071 (B1-B3)

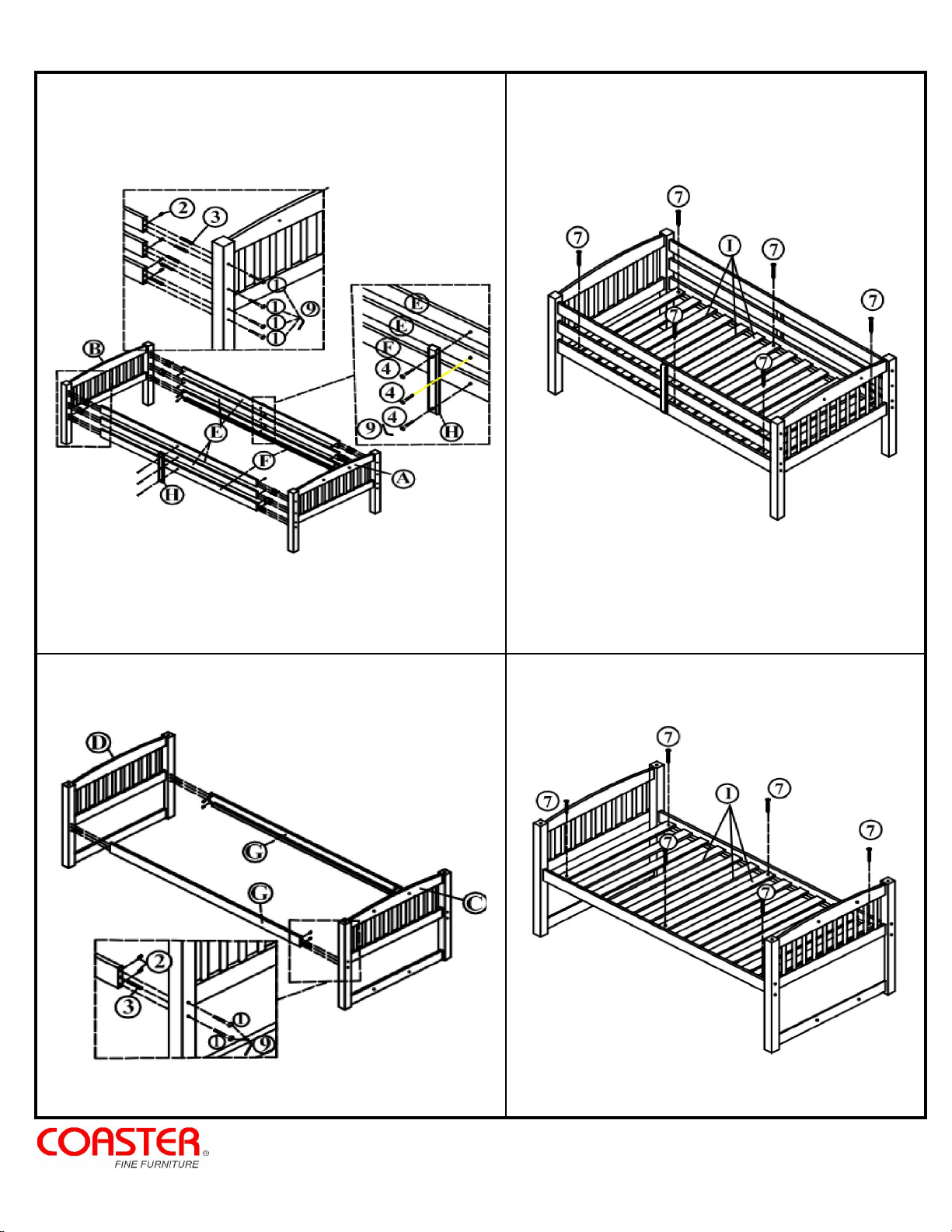

STEP 1 STEP 2
ASSEMBLY INSTRUCTIONS
STEP 3 STEP 4
www.coastercompany.com
PAGE 3 OF 6
Page 4
ITEM :
460071 (B1-B3)

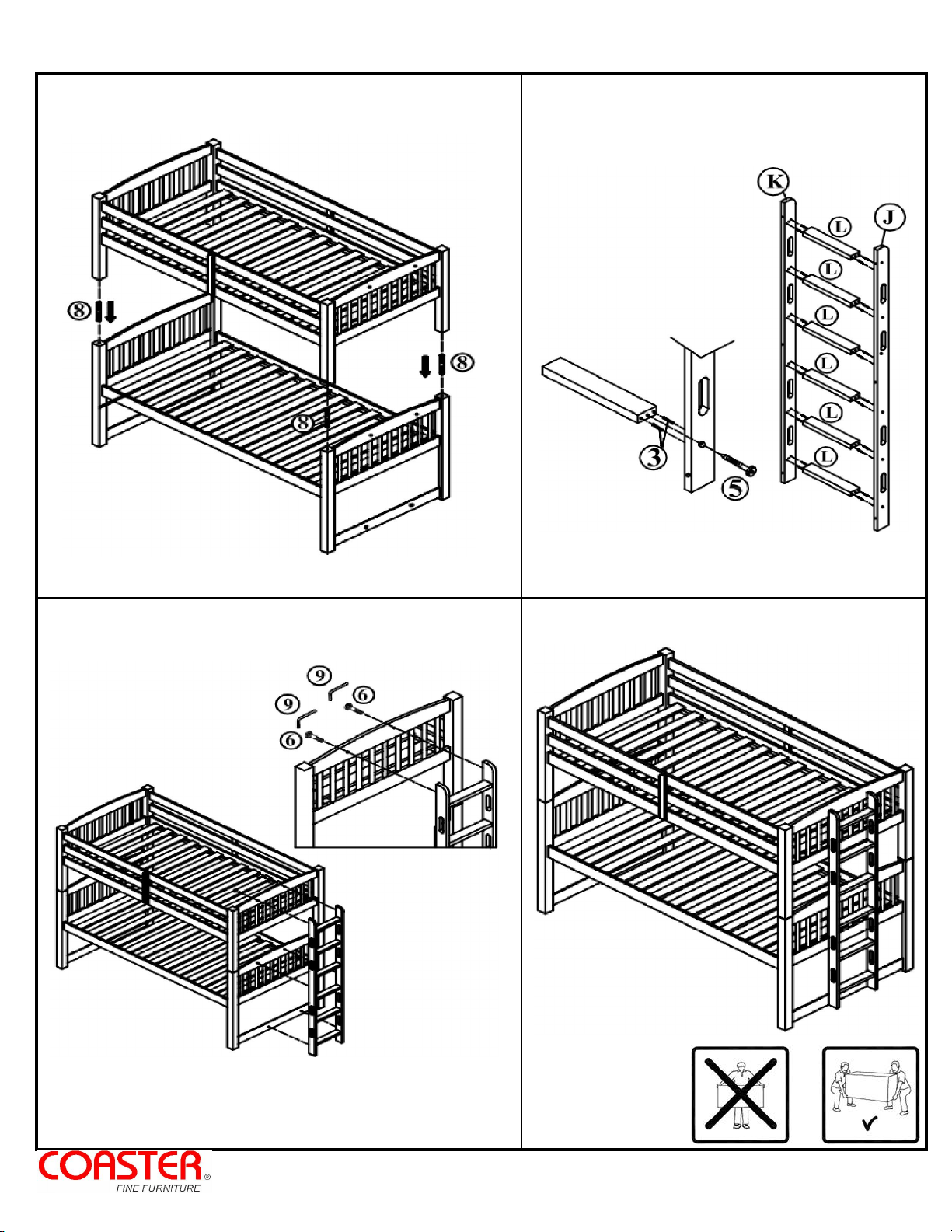

STEP 5 STEP 6
ASSEMBLY INSTRUCTIONS
STEP 7 STEP 8
www.coastercompany.com
PAGE 4 OF 6
Page 5
ITEM :
460071 (B1-B3)
The length and width of the bunk mattress are as f
Upper bunk
Lower bunk 74" - 75" 37 1/2”-38 1/2” 6" maximum
Ensure thickness of mattress does not exceed 6” and
surface to top edge of guardrail.
ASSEMBLY INSTRUCTIONS
SIZE OF MATTRESS
ollow:
Length Width Thickness
-
75"
74"
37 1/2"
-
38 1/2"
there must be at least 5” from mattress sleeping
6" Maximum
1. Follow the information on the warnings appearing
carton. Do not remove the warning label from bed.
2. Always use the recommended size mattress or matt
likelihood of entrapment or falls.
3. Surface of mattress must be at least 5 in. (127
4. Do not allow children under 6 years of age to us
5. Prohibit more than one person on upper bunk.
6. Periodically check and ensure that the guardrail
position, free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the ladder for entering and leaving t
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a night light may provide added safety precaution for a child using upper bunk.
11. Always use guardrails on both long sides of the
to the wall, the guardrail that runs the full length of the bed should be placed against the wall to
prevent entrapment between the bed and wall.
12. The use of water or sleep flotation mattress is prohibited.
13. Keep these instructions for future reference.
14. Never attach or hang items to any part of the bunk bed that are not designed for use with the bed
STRANGULATION HAZARD:
for example, but not limited to hooks, belts, and j
REPLACEMENT PARTS:
Replacement parts, including additional guardrails may be obtained from any COASTER
Furniture Dealer.
SAFETY WARNING
mm) below the upper edge of guardrails.
, ladder, and other components are in their proper
upper bunk. If the bunk bed will be placed next
on the upper bunk end structure and on the
ress support or both to help prevent the
e the upper bunk.
he upper bunk.
ump ropes.
www.coastercompany.com
PAGE 5 OF 6
Page 6
ITEM :
460071 (B1-B3)
1. When using beds as bunk beds, the ladder MUST be securely
attached to the upper bunk rail at all times.
2. When using the beds as two (2) separate floor-standing beds,
the ladder MUST be stored in a separate location where children
cannot use the ladder in any manner.
ASSEMBLY INSTRUCTIONS
3. DO NOT use, nor permit children to use, the ladder in any
manner whatsoever, other than to access the top unit when
used as bunk beds, and only if the ladder is securely attached
to the top bunk rail, as set forth in the instructions.
4. Any misuse or unauthorized use of the ladder could result in
serious or fatal injury.
5. Failure to follow the above WARNING, and/or failure to follow
assembly instructions completely, will void any and all liability
of COASTER COMPANY OF AMERICA for damages and injury to
persons and property.
www.coastercompany.com | 877- COASTER (262-7838)
www.coastercompany.com
PAGE 6 OF 6
