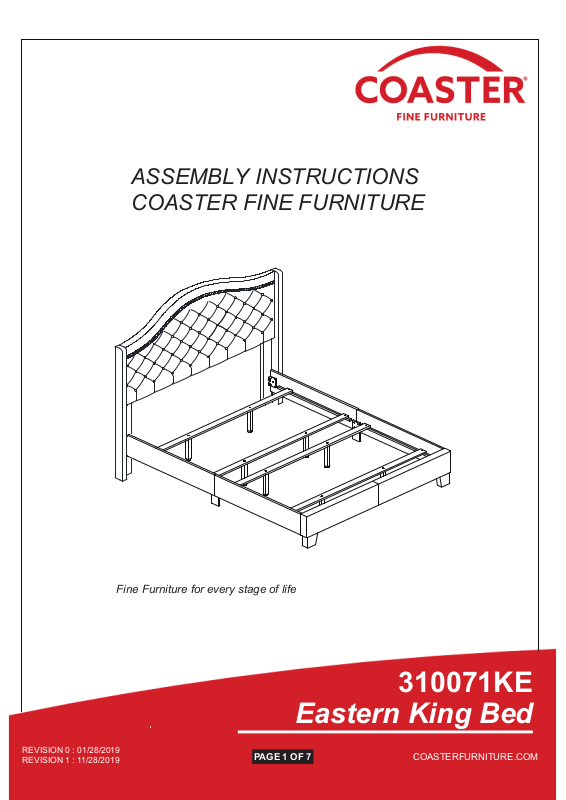

Coaster 310071Q, 310071F, 310071KE Assembly Guide
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
REVISION 0 : 01/28/2019
REVISION 1 : 11/28/2019
Fine Furniture for every stage of life
PAGE 1 OF 2
PAGE 1 OF 7
310071KE
Eastern King Bed
COASTERFURNITURE.COM
ITEM:
310071KE
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME
PARTS IDENTIFICATION
A 1PC
HEADBOARD
PANEL
B
LEFT HEADBOARD LEG
(WITH “L” LABEL)
C
RIGHT HEADBOARD LEG
(WITH “R” LABEL)
D
FOOTBOARD
PANEL
E
FOOTBOARD LEG
1PC
1PC
1PC
1PC
2PCS
20 MINUTES
G 2PCS
BED RAIL
(WITH “G” LABEL)
H
LEFT EAR
I
RIGHT EAR
J
BED RAIL
SUPPORT LEG
K
BED SLAT
1PC
1PC
2PCS
4PCS
F 2PCS
BED RAIL
(WITH “F” LABEL)
L 8PCS
BED SLAT
SUPPORT
WITH LEVELER
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provided this item.
PAGE 2 OF 7
COASTERFURNITURE.COM
ITEM:
310071KE
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.
HARDWARE IDENTIFICATION
1
BOLT 1
(M8 x 20mm - RBW)
BOLT 2
2
(M6 x 25mm - RBW)
3
BOLT 3
(M6 x 35mm - RBW)
BOLT 4
4
(M6 x 70mm - RBW)
WOOD DOWEL
5
(M8Ø x 30mm)
8PCS
8PCS
20PCS
2PCS
2PCS
FLAT WASHER
7
(1/4” X 19 Ø - RBW)
8
FLAT HEAD SCREW
(M4 x 32mm - RBW)
FLAT HEAD SCREW
9
(M4 x 38mm - RBW)
10
SMALL ALLEN WRENCH
(M4 x 100mm - BLK)
BIG ALLEN WRENCH
11
(M5 x 65mm - BLK)
20PCS
8PCS
4PCS
1PC
1PC
6
LOCK WASHER
(1/4” X 12 Ø - RBW)
20PCS
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provided this item.
PAGE 3 OF 7

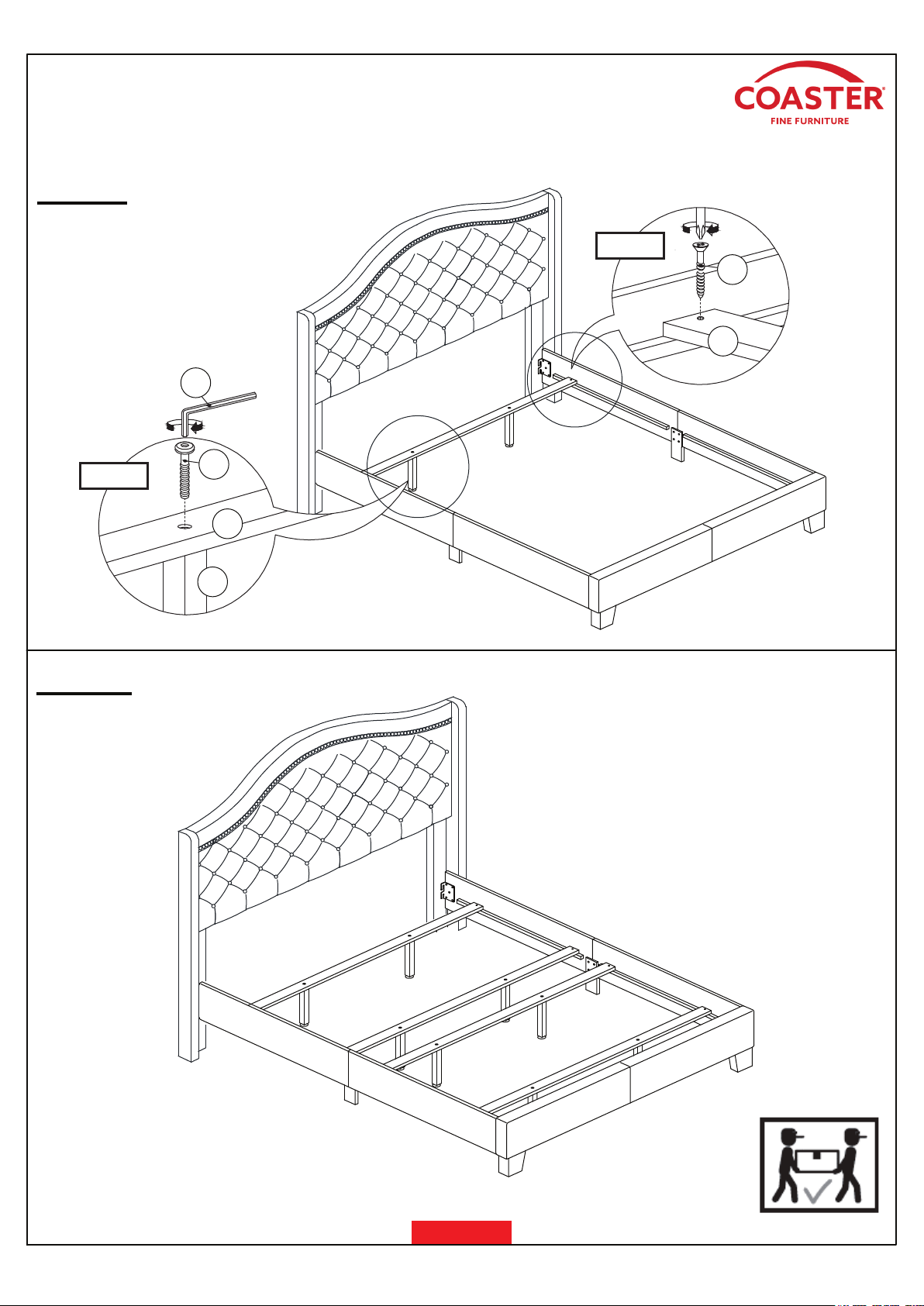

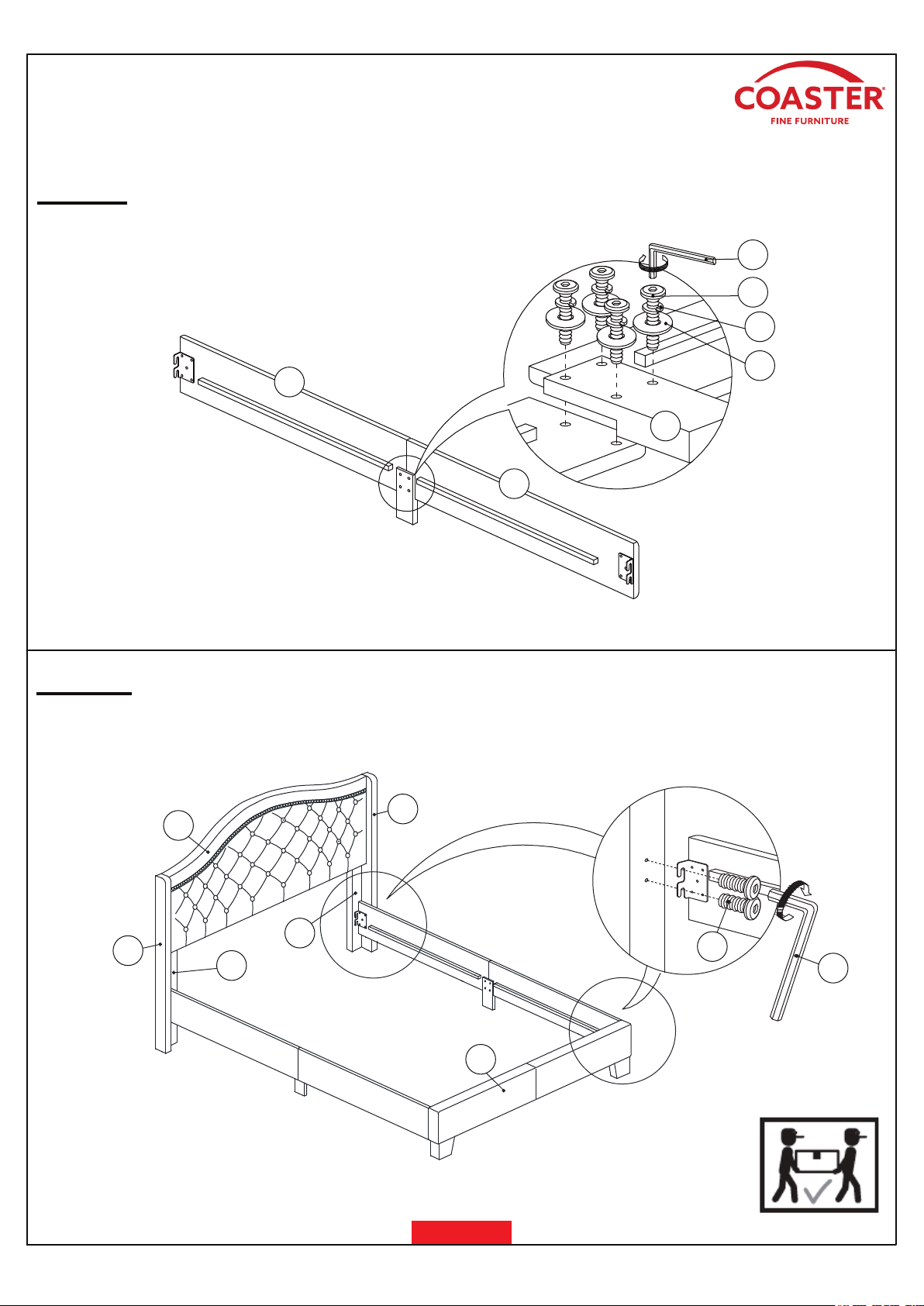

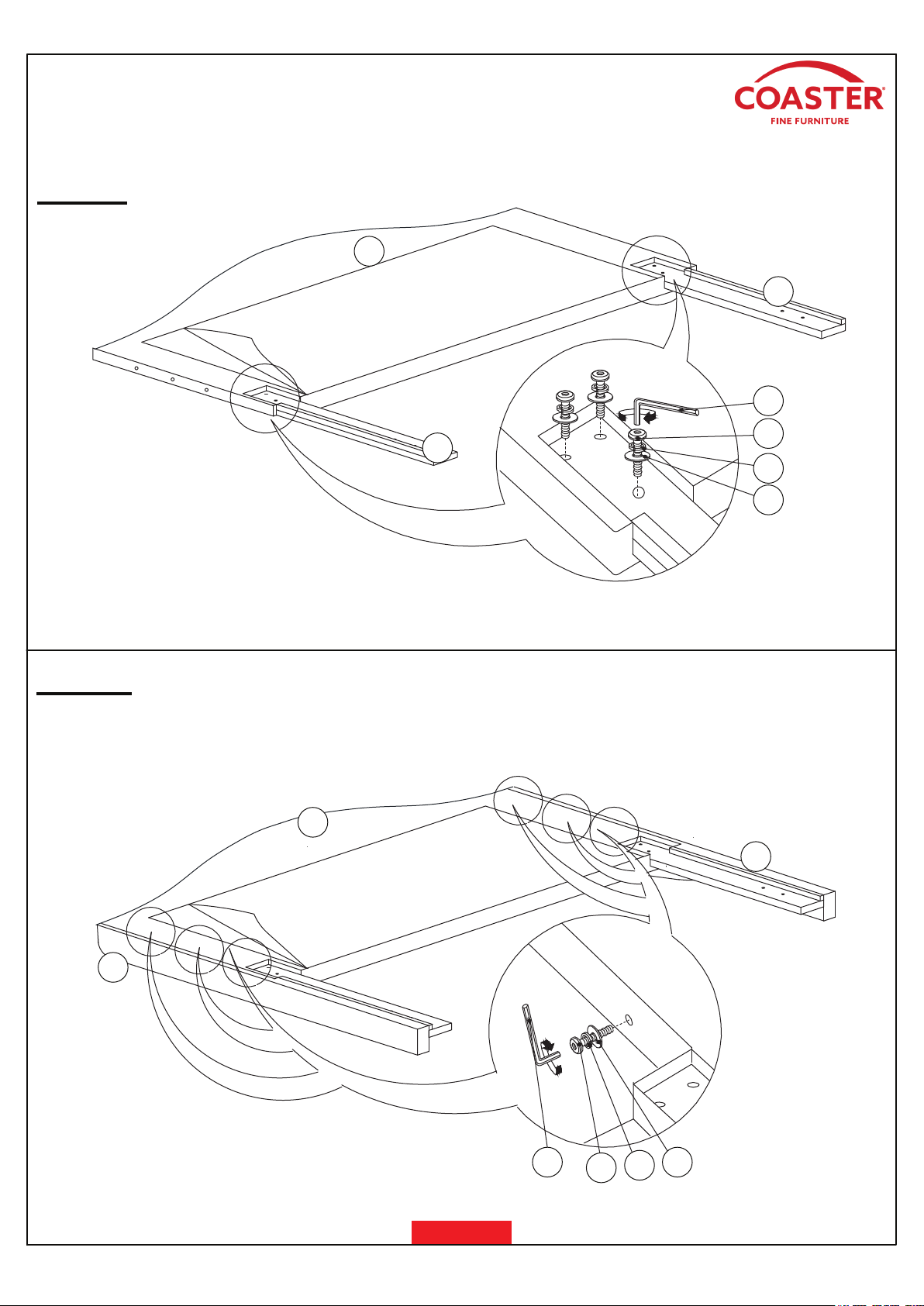

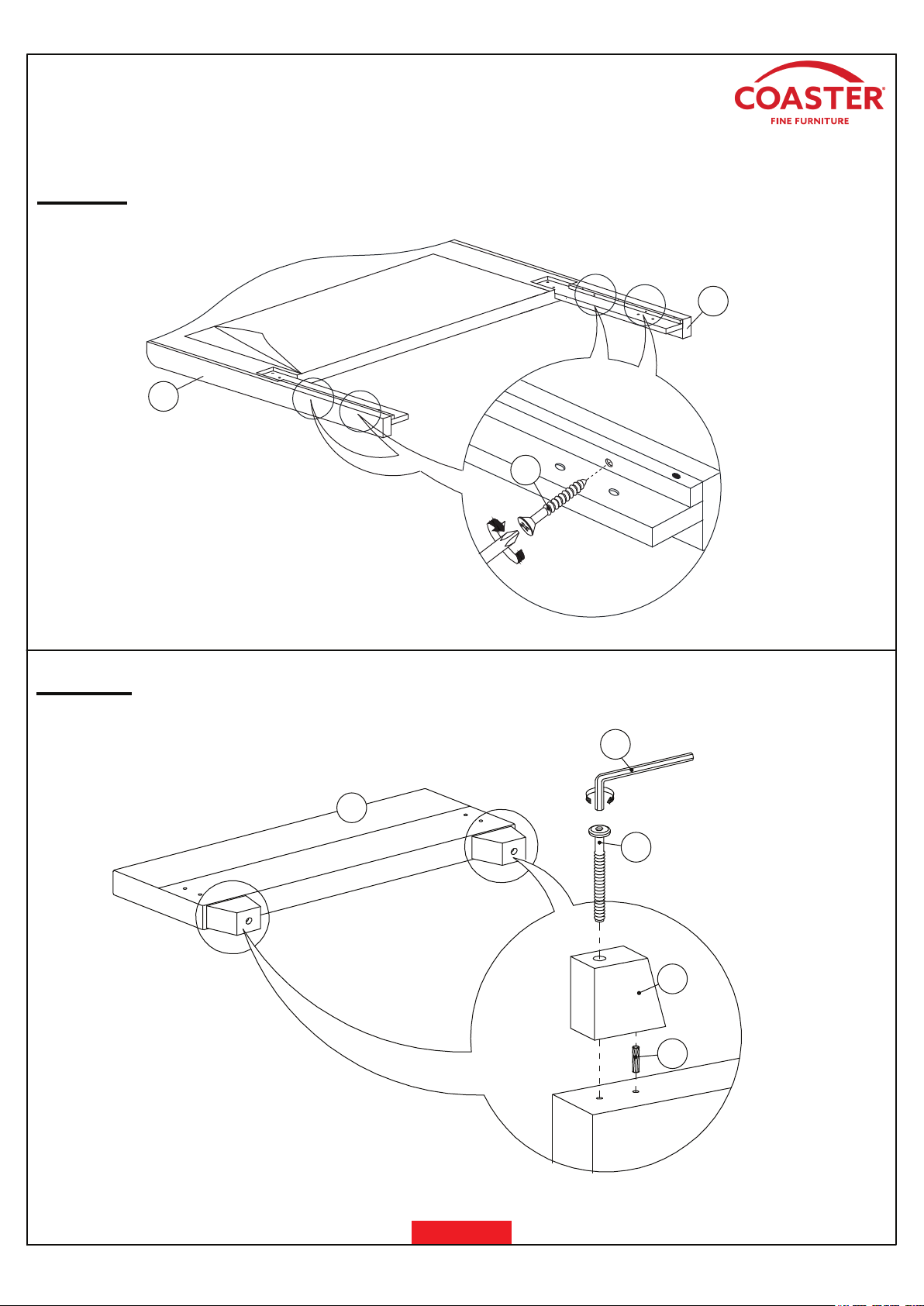

COASTERFURNITURE.COM
