Coaster 300763KW Assembly Guide
300763KW
UPHOLSTERED CALIFORNIA
KING SIZE BED
PAGE 1 OF 4
REVISION 0 : 01/10/2017
ITEM : 300763KW
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishment.
ASSEMBLY TIME 20 MINUTES

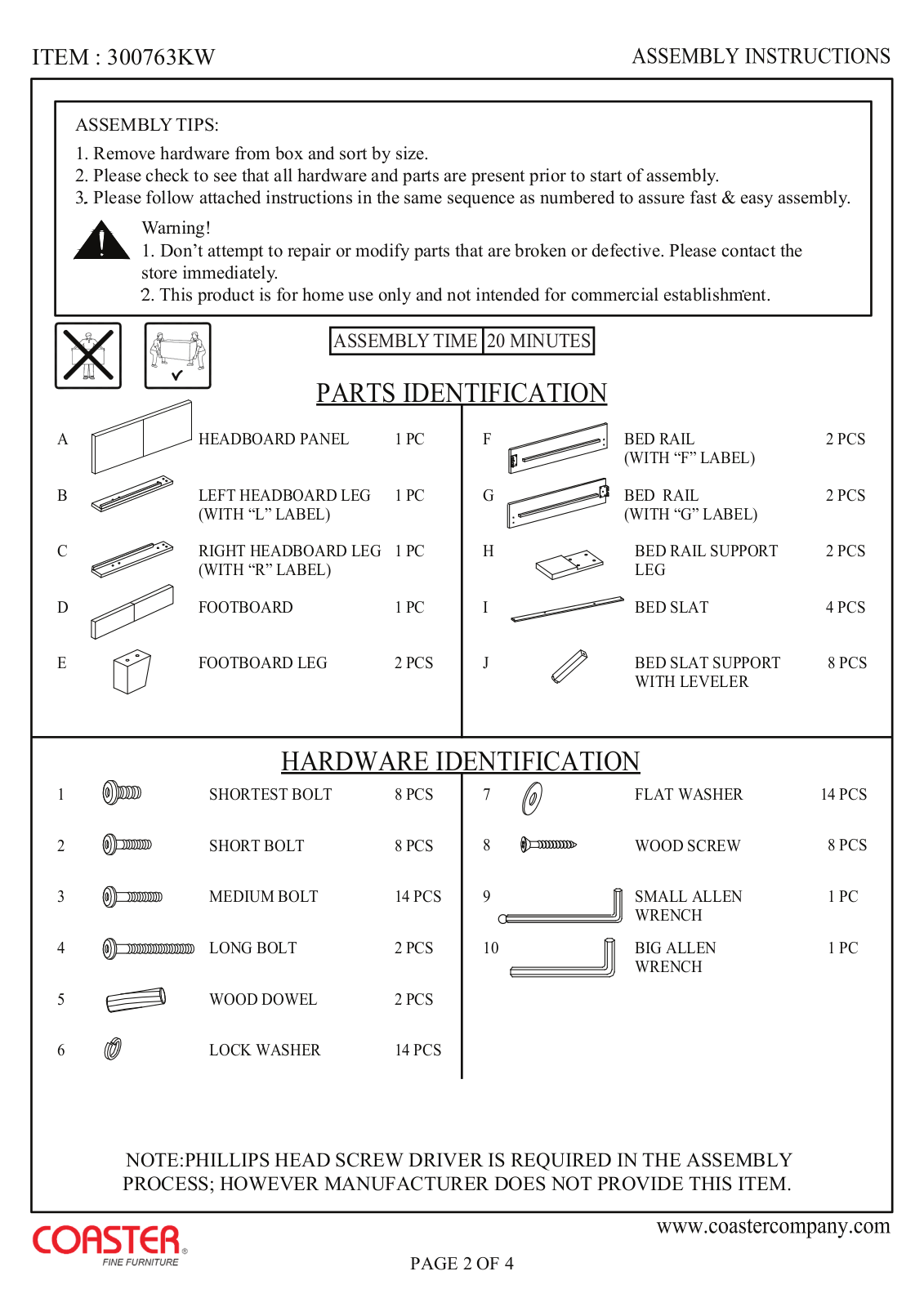

PARTS IDENTIFICATION
A
B
C
D
E
HEADBOARD PANEL
LEFT HEADBOARD LEG
(WITH “L” LABEL)
RIGHT HEADBOARD LEG
(WITH “R” LABEL)
FOOTBOARD
FOOTBOARD LEG
1 PC
1 PC
1 PC
1 PC
2 PCS
F
G
H
I
J
BED RAIL
(WITH “F” LABEL)
BED RAIL
(WITH “G” LABEL)
BED RAIL SUPPORT
LEG
BED SLAT
BED SLAT SUPPORT
WITH LEVELER
2 PCS
2 PCS
2 PCS
4 PCS
8 PCS
HARDWARE IDENTIFICATION
1
2
SHORTEST BOLT
SHORT BOLT
8 PCS
8 PCS
7
8
FLAT WASHER
WOOD SCREW
14 PCS
8 PCS
3
4
5
6
MEDIUM BOLT
LONG BOLT
WOOD DOWEL
LOCK WASHER
14 PCS
2 PCS
2 PCS
14 PCS
9
10
SMALL ALLEN
WRENCH
BIG ALLEN
WRENCH
1 PC
1 PC
NOTE:PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER MANUFACTURER DOES NOT PROVIDE THIS ITEM.
