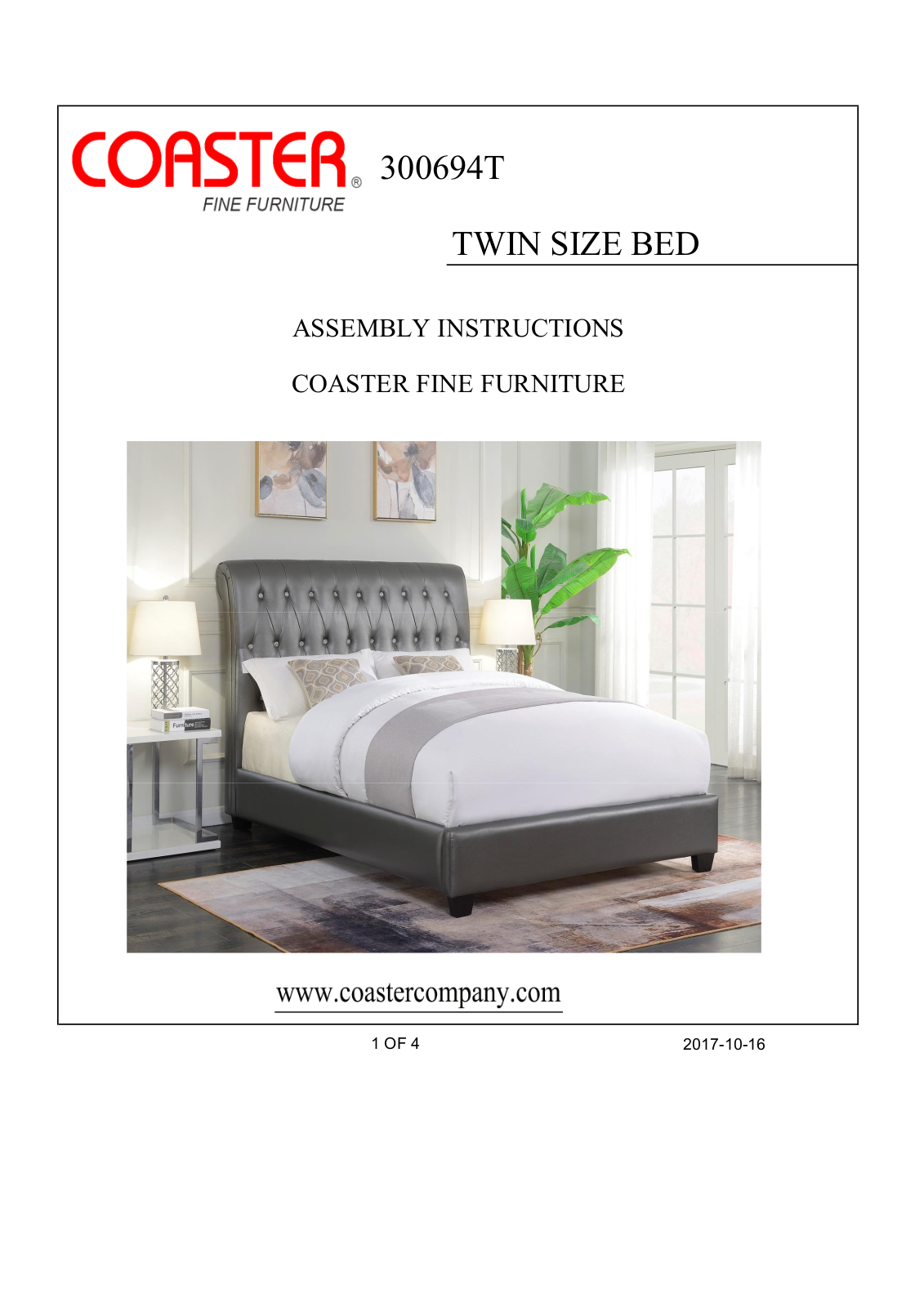

300694T
TWIN SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
1 OF 4
2017-10-16

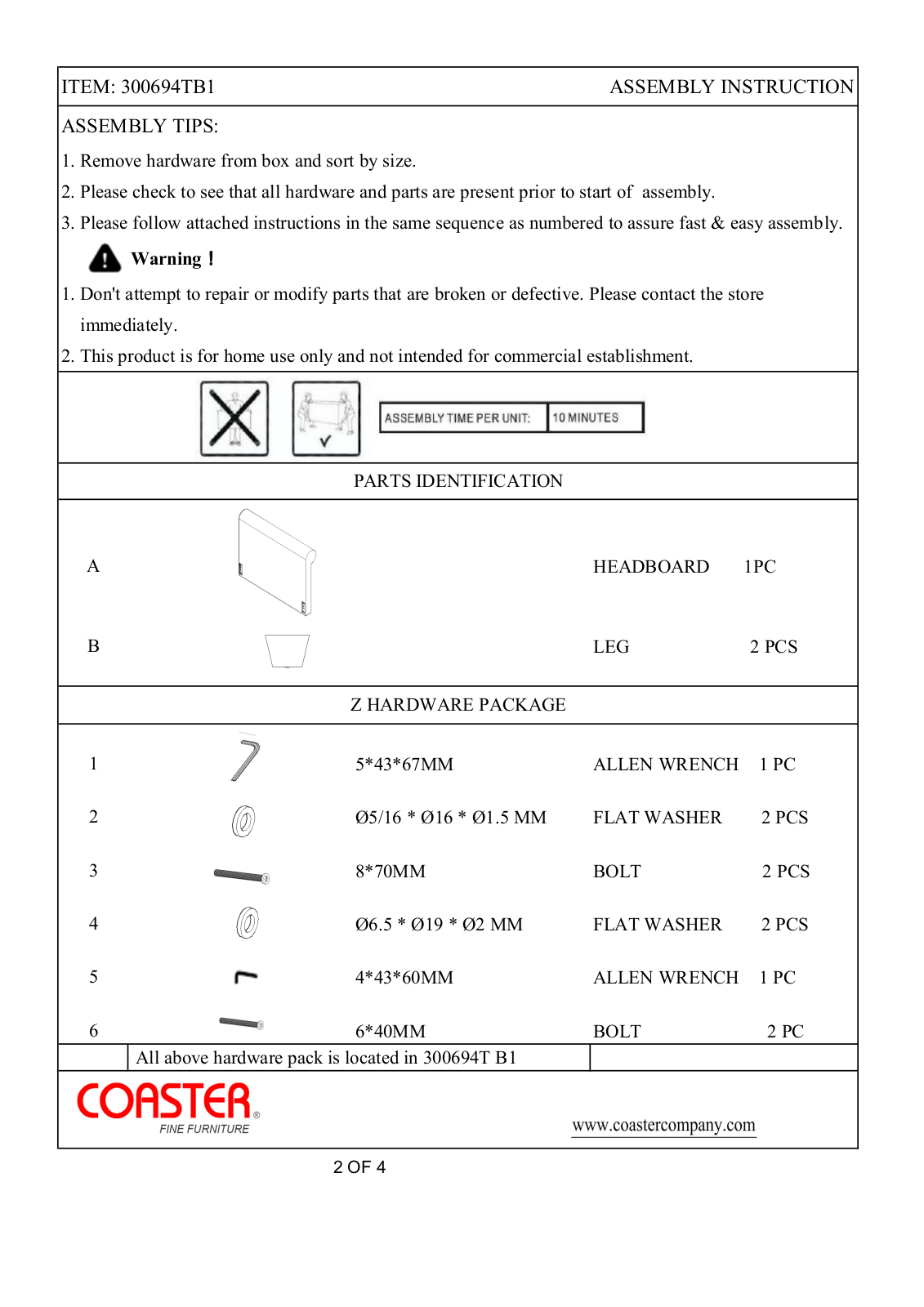

ITEM: 300694TB1 ASSEMBLY INSTRUCTION
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning！
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
A
B
HEADBOARD 1PC
LEG 2 PCS
Z HARDWARE PACKAGE
1
2
3
4
5
5*43*67MM ALLEN WRENCH 1 PC
Ø5/16 * Ø16 * Ø1.5 MM FLAT WASHER 2 PCS
8*70MM BOLT 2 PCS
Ø6.5 * Ø19 * Ø2 MM FLAT WASHER 2 PCS
4*43*60MM ALLEN WRENCH 1 PC
6
All above hardware pack is located in 300694T B1
6*40MM BOLT 2 PC
2 OF 4

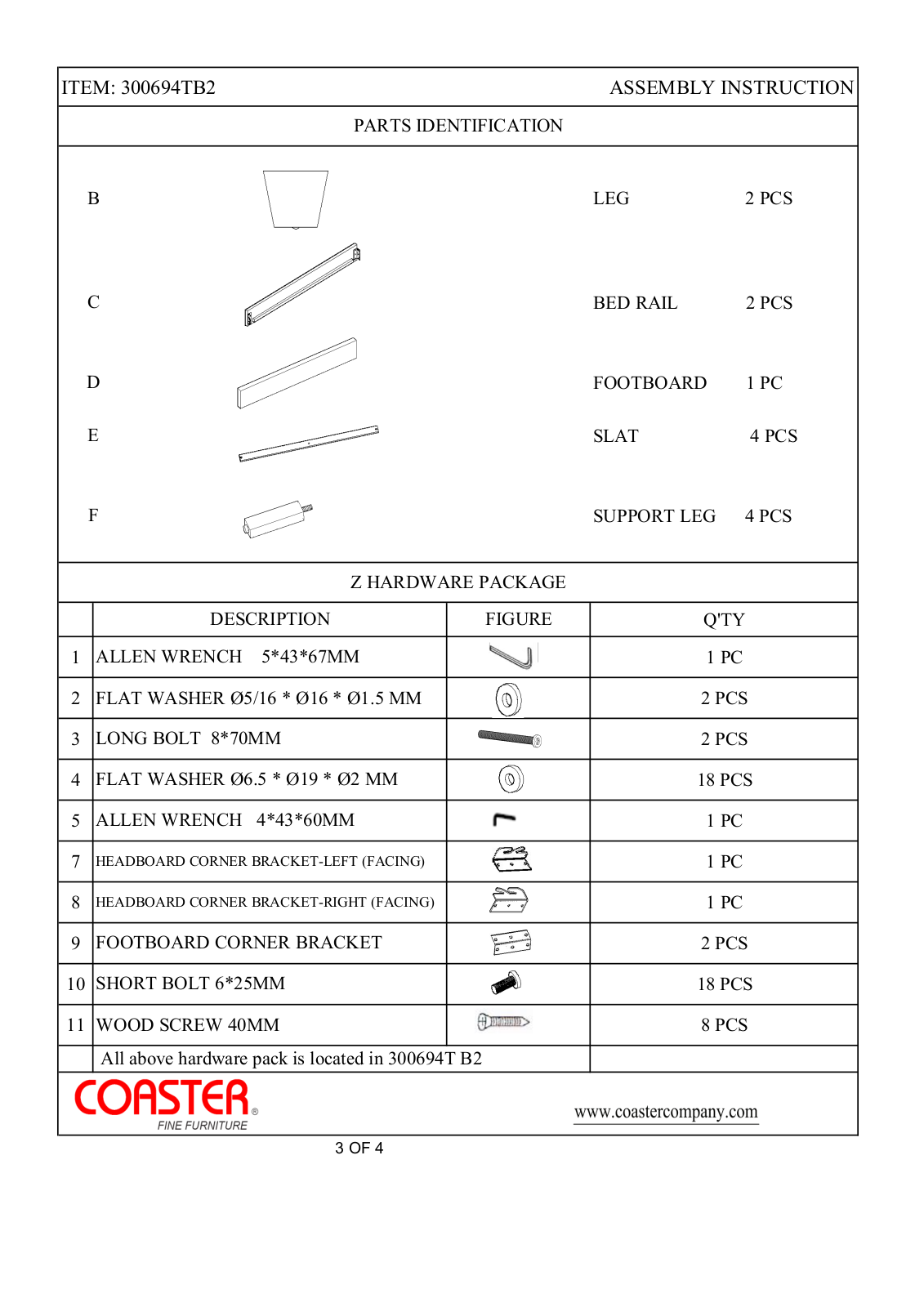

ITEM: 300694TB2 ASSEMBLY INSTRUCTION
PARTS IDENTIFICATION
B
C
D
E
LEG 2 PCS
BED RAIL 2 PCS
FOOTBOARD 1 PC
SLAT 4 PCS
F
SUPPORT LEG 4 PCS
Z HARDWARE PACKAGE
DESCRIPTION
FIGURE
Q'TY
ALLEN WRENCH 5*43*67MM
1 1 PC
2 FLAT WASHER Ø5/16 * Ø16 * Ø1.5 MM 2 PCS
LONG BOLT 8*70MM
3 2 PCS
FLAT WASHER Ø6.5 * Ø19 * Ø2 MM
4 18 PCS
ALLEN WRENCH 4*43*60MM
5 1 PC
HEADBOARD CORNER BRACKET-LEFT (FACING)
7 1 PC
HEADBOARD CORNER BRACKET-RIGHT (FACING)
8 1 PC
FOOTBOARD CORNER BRACKET
9 2 PCS
SHORT BOLT 6*25MM
10 18 PCS
WOOD SCREW 40MM
11 8 PCS
All above hardware pack is located in 300694T B2
3 OF 4

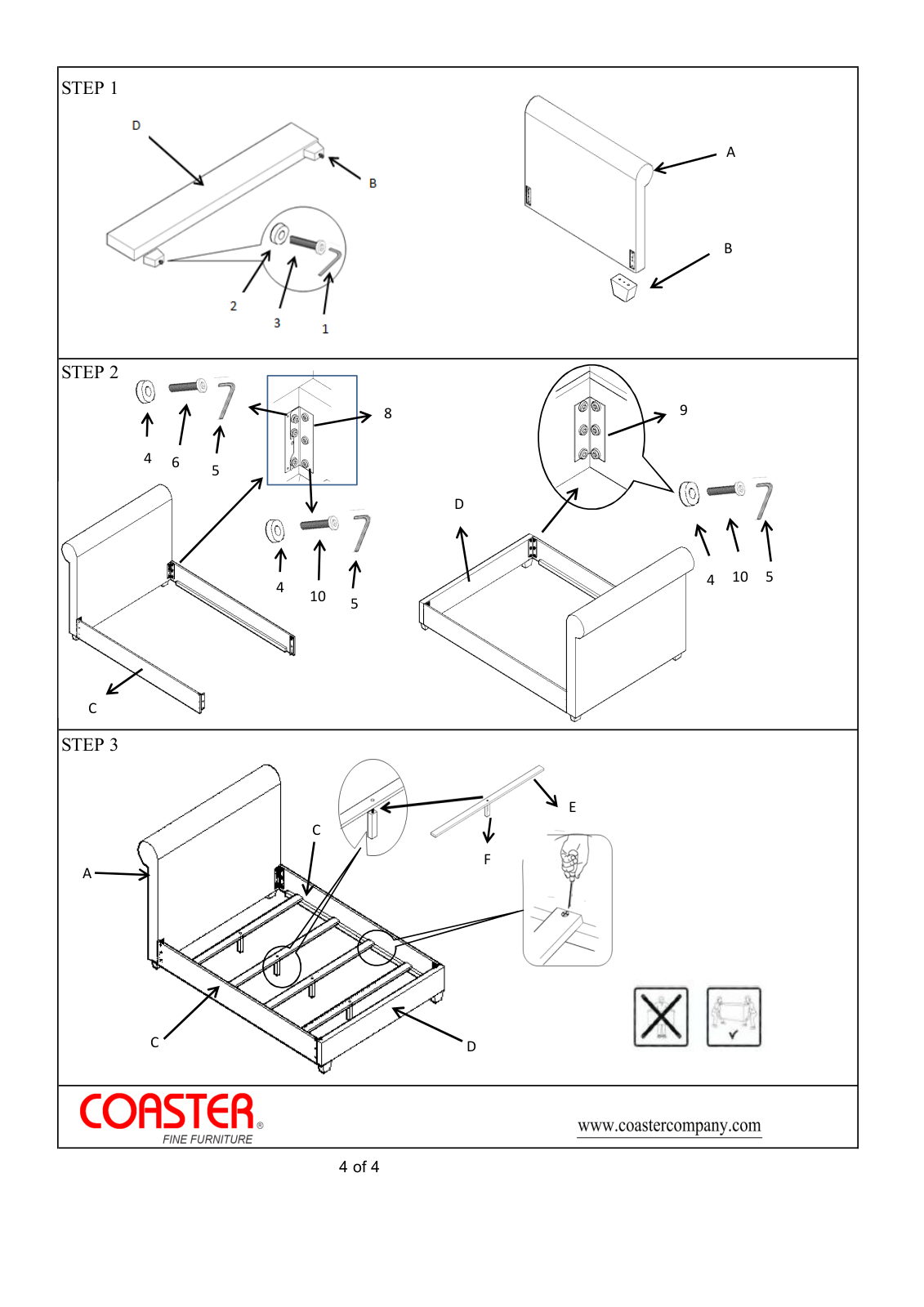

STEP 1
STEP 2
A
B
C
STEP 3
A
8
4
6
5
D
4
10
5
E
C
F
9
10 5
4
C
4 of 4
D
