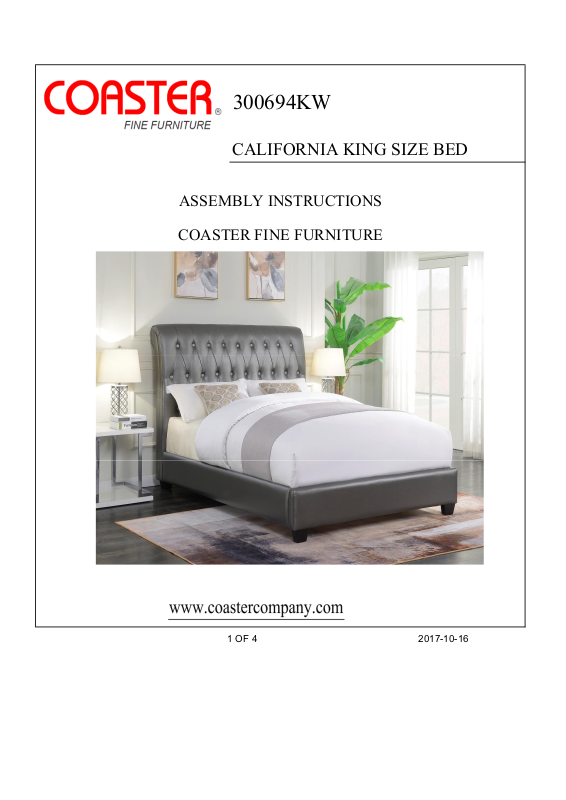

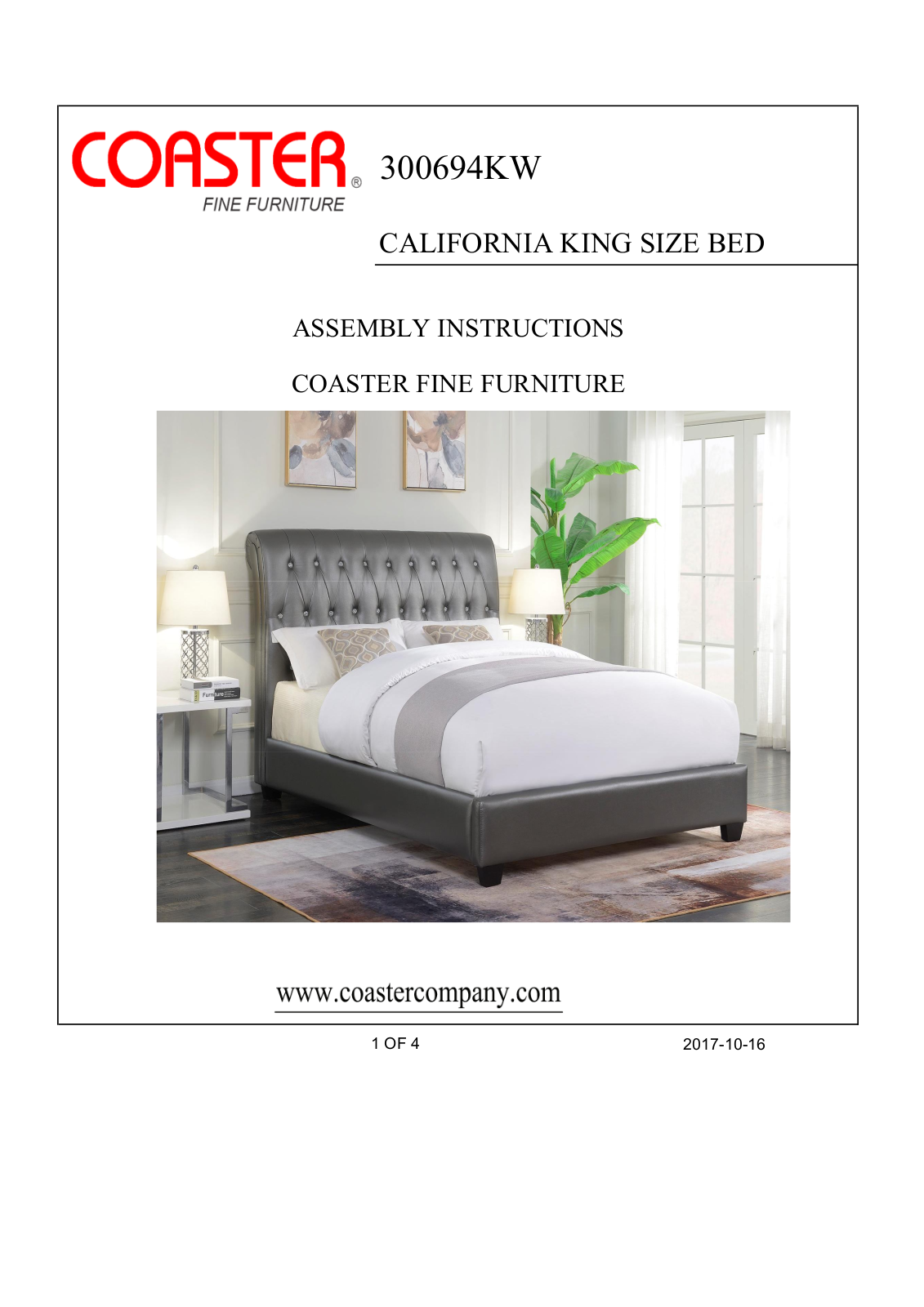

Coaster 300694KW Assembly Guide

300694KW

CALIFORNIA KING SIZE BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

1 OF 4

2017-10-16

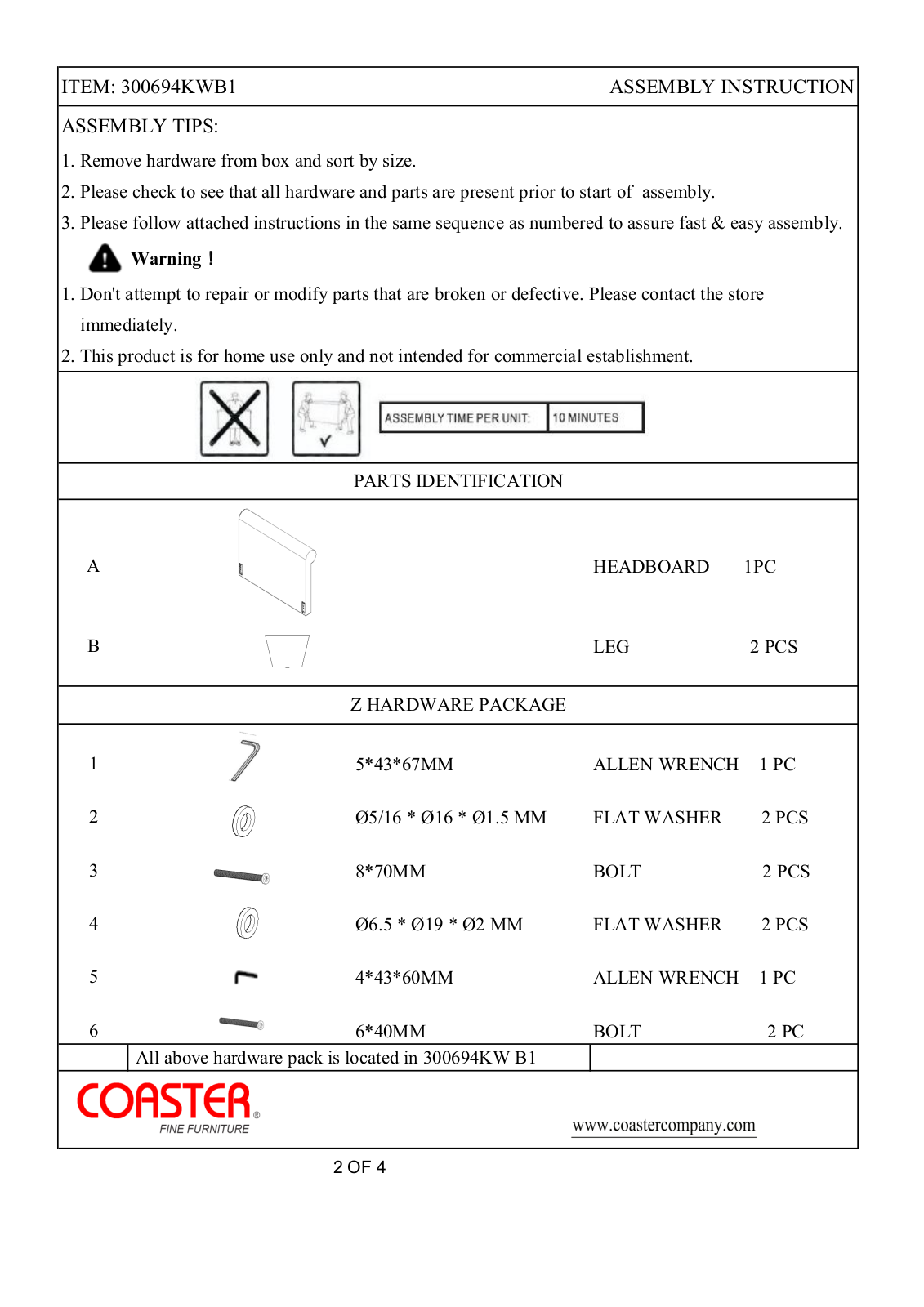

ITEM: 300694KWB1 ASSEMBLY INSTRUCTION

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

Warning！

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store

immediately.

2. This product is for home use only and not intended for commercial establishment.

PARTS IDENTIFICATION

A

B

HEADBOARD 1PC

LEG 2 PCS

Z HARDWARE PACKAGE

1

2

3

4

5

5*43*67MM ALLEN WRENCH 1 PC

Ø5/16 * Ø16 * Ø1.5 MM FLAT WASHER 2 PCS

8*70MM BOLT 2 PCS

Ø6.5 * Ø19 * Ø2 MM FLAT WASHER 2 PCS

4*43*60MM ALLEN WRENCH 1 PC

6

All above hardware pack is located in 300694KW B1

6*40MM BOLT 2 PC

2 OF 4
