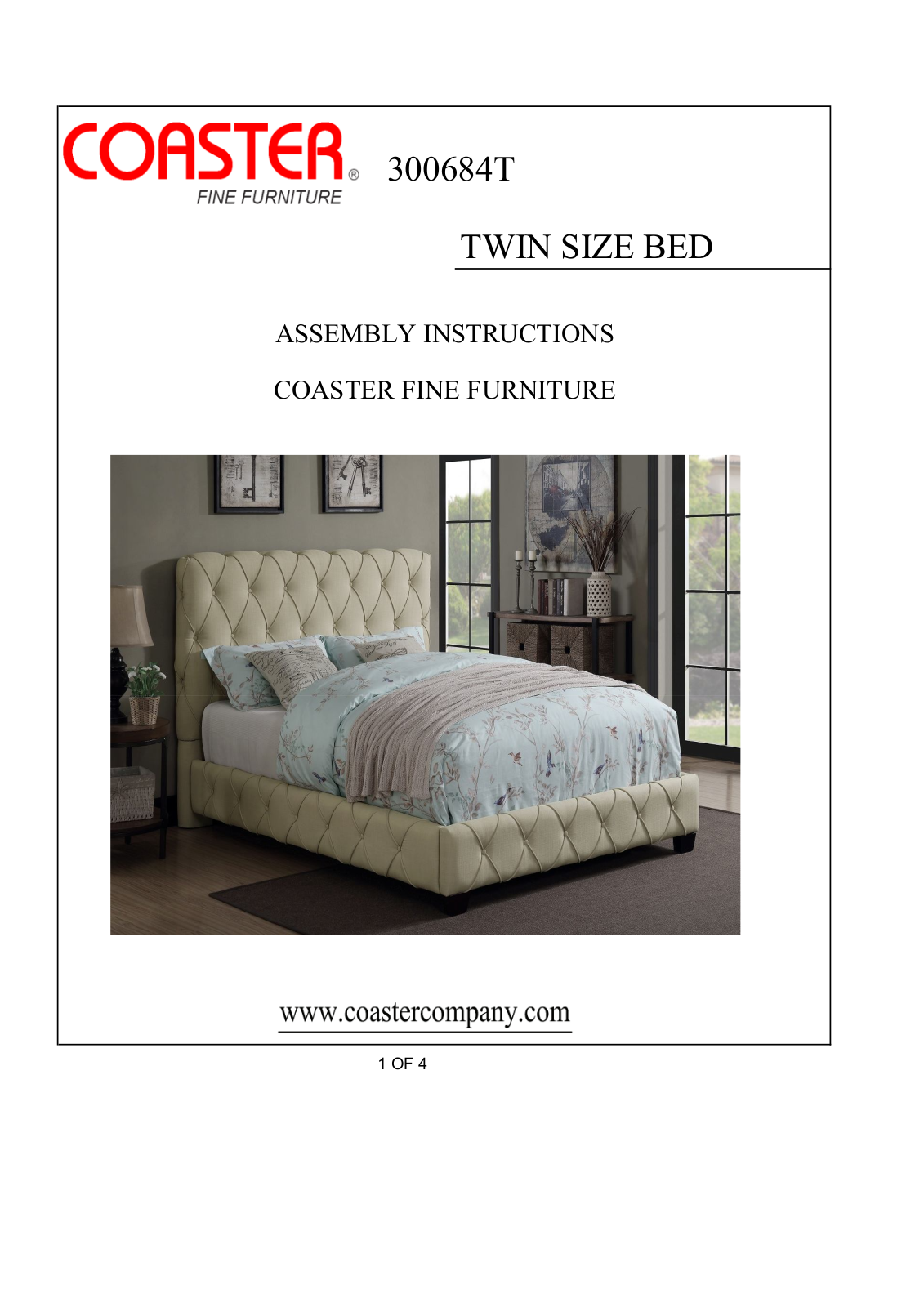

300684T
TWIN SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
1 OF 4

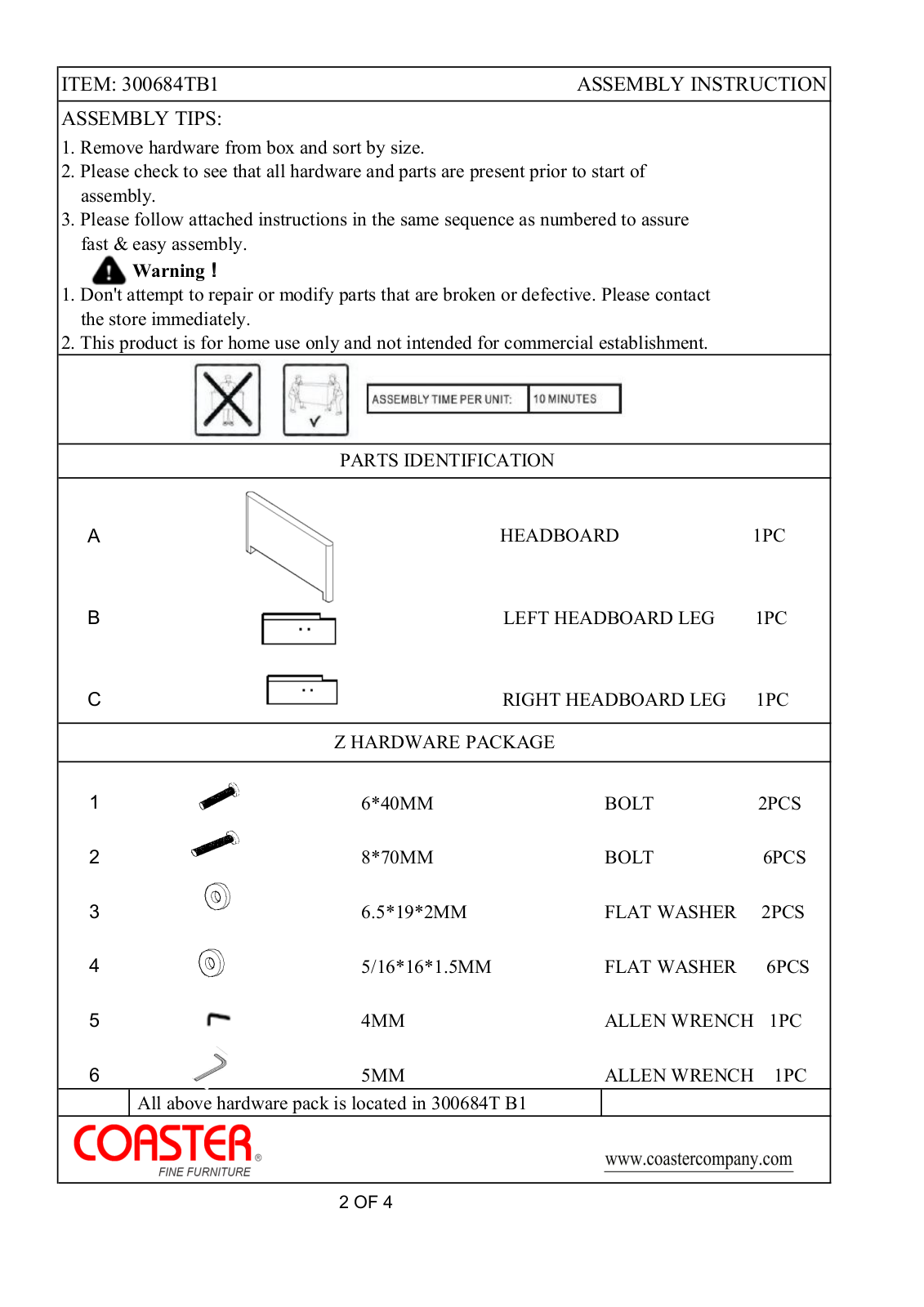

ITEM: 300684TB1 ASSEMBLY INSTRUCTION
156
3
BAC
2
4
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of
assembly.
3. Please follow attached instructions in the same sequence as numbered to assure
fast & easy assembly.
Warning！
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
HEADBOARD 1PC
LEFT HEADBOARD LEG 1PC
RIGHT HEADBOARD LEG 1PC
Z HARDWARE PACKAGE
6*40MM BOLT 2PCS
8*70MM BOLT 6PCS
6.5*19*2MM FLAT WASHER 2PCS
5/16*16*1.5MM FLAT WASHER 6PCS
4MM ALLEN WRENCH 1PC
5MM ALLEN WRENCH 1PC
All above hardware pack is located in 300684T B1
2 OF 4

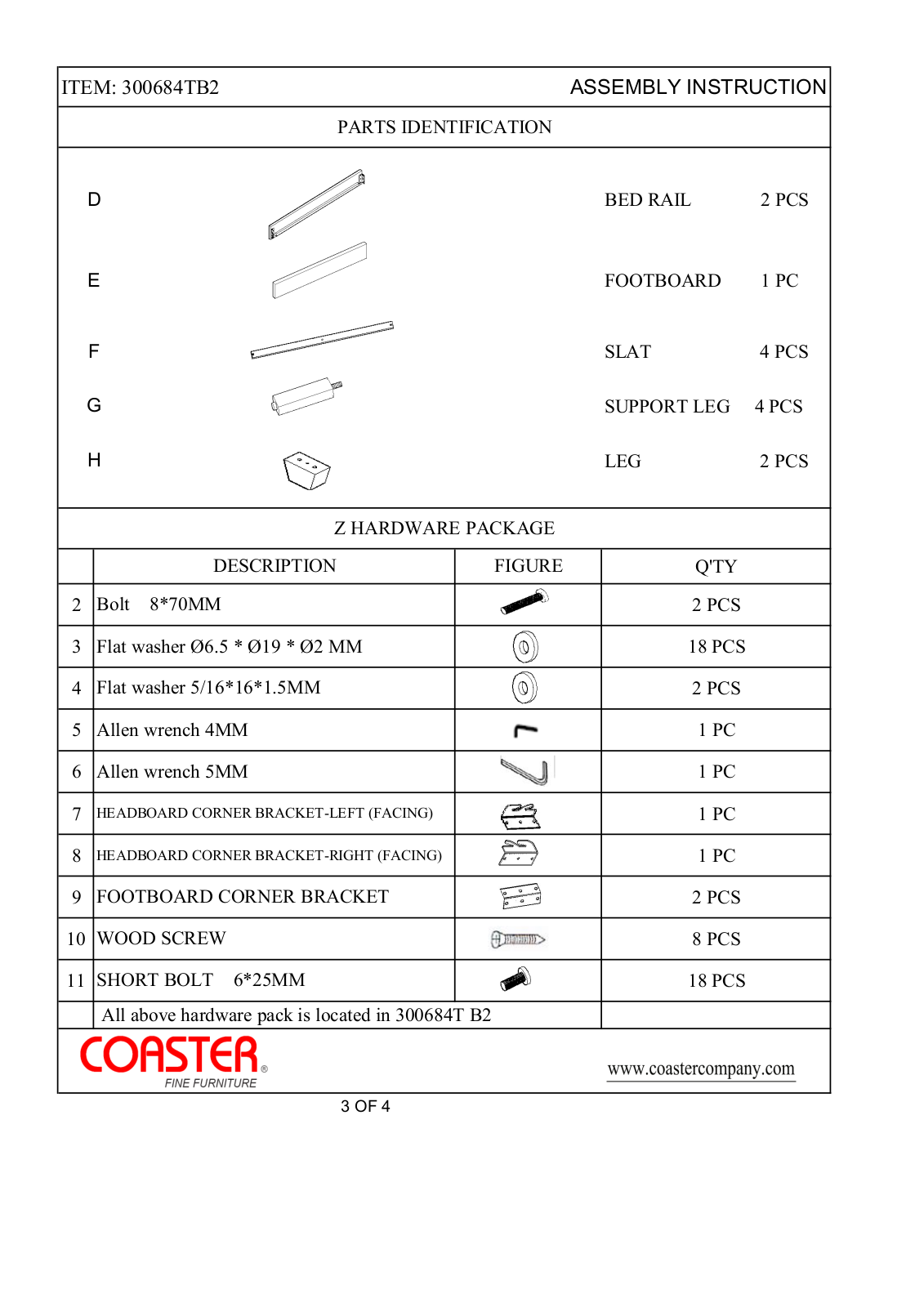

ITEM: 300684TB2
G
DEH
F
ASSEMBLY INSTRUCTION
PARTS IDENTIFICATION
BED RAIL 2 PCS
FOOTBOARD 1 PC
SLAT 4 PCS
SUPPORT LEG 4 PCS
LEG 2 PCS
Z HARDWARE PACKAGE
DESCRIPTION FIGURE
Bolt 8*70MM
2 2 PCS
Q'TY
3 Flat washer Ø6.5 * Ø19 * Ø2 MM 18 PCS
Flat washer 5/16*16*1.5MM
4 2 PCS
5 Allen wrench 4MM 1 PC
6 Allen wrench 5MM 1 PC
HEADBOARD CORNER BRACKET-LEFT (FACING)
7 1 PC
HEADBOARD CORNER BRACKET-RIGHT (FACING)
8 1 PC
FOOTBOARD CORNER BRACKET
9 2 PCS
WOOD SCREW
10 8 PCS
SHORT BOLT 6*25MM
11 18 PCS
All above hardware pack is located in 300684T B2
3 OF 4

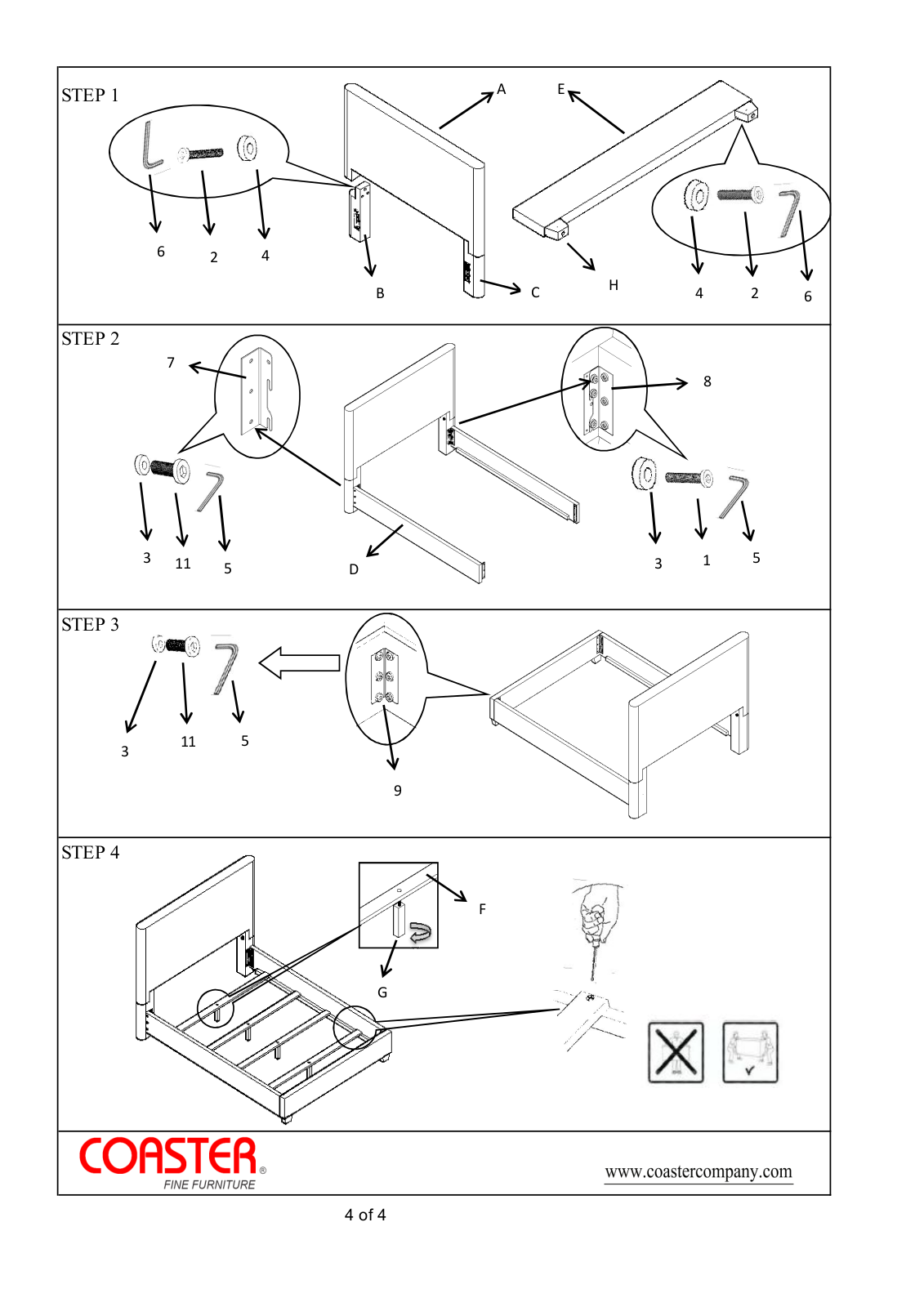

STEP 1
EA
STEP 2
STEP 3
6
3
2
7
11
4
B
5
D
C
H
3
4 2
8
1
6
5
STEP 4
3
11
5
9
F
G
4 of 4
