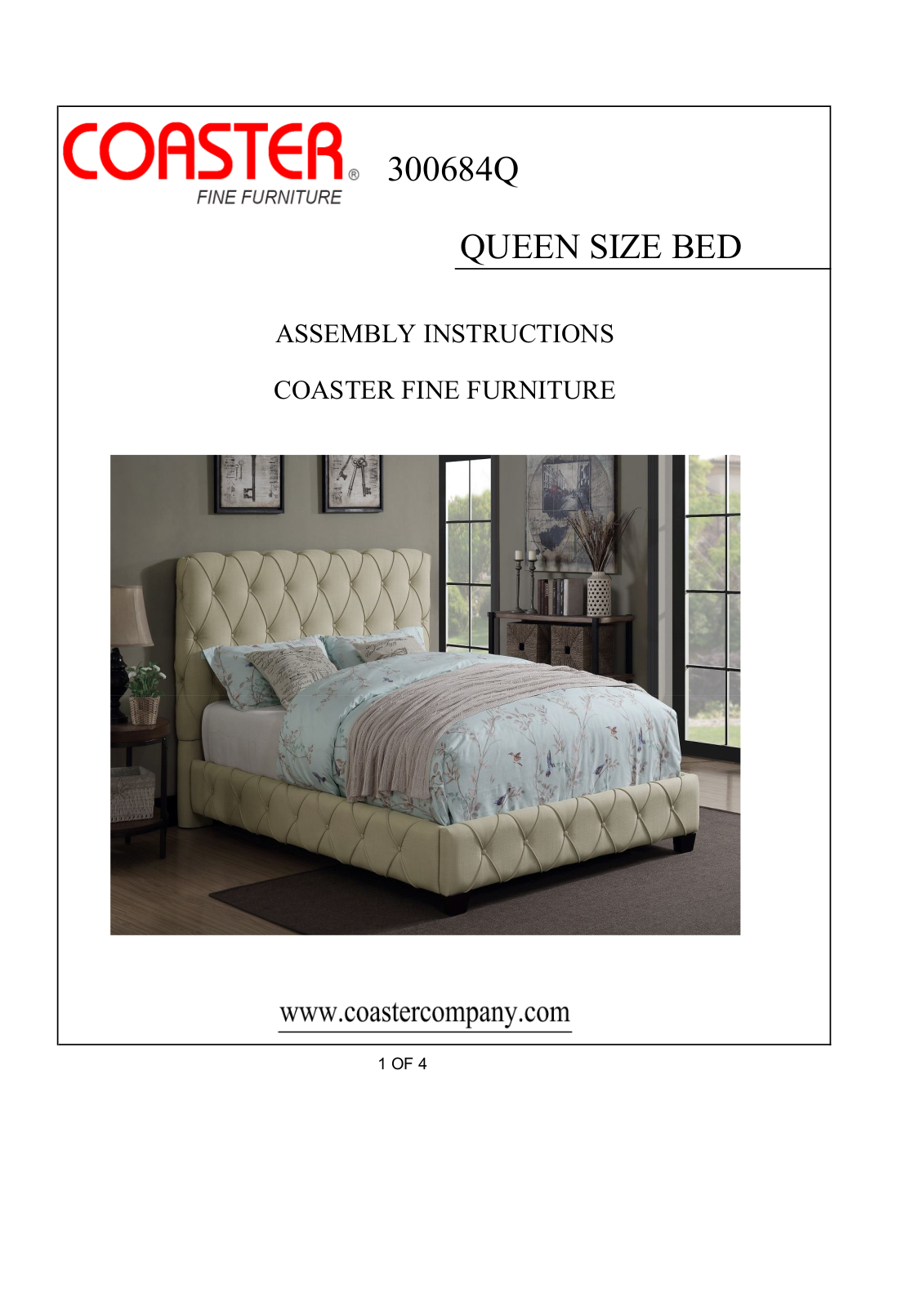

Coaster 300684Q Assembly Guide

300684Q

QUEEN SIZE BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

1 OF 4

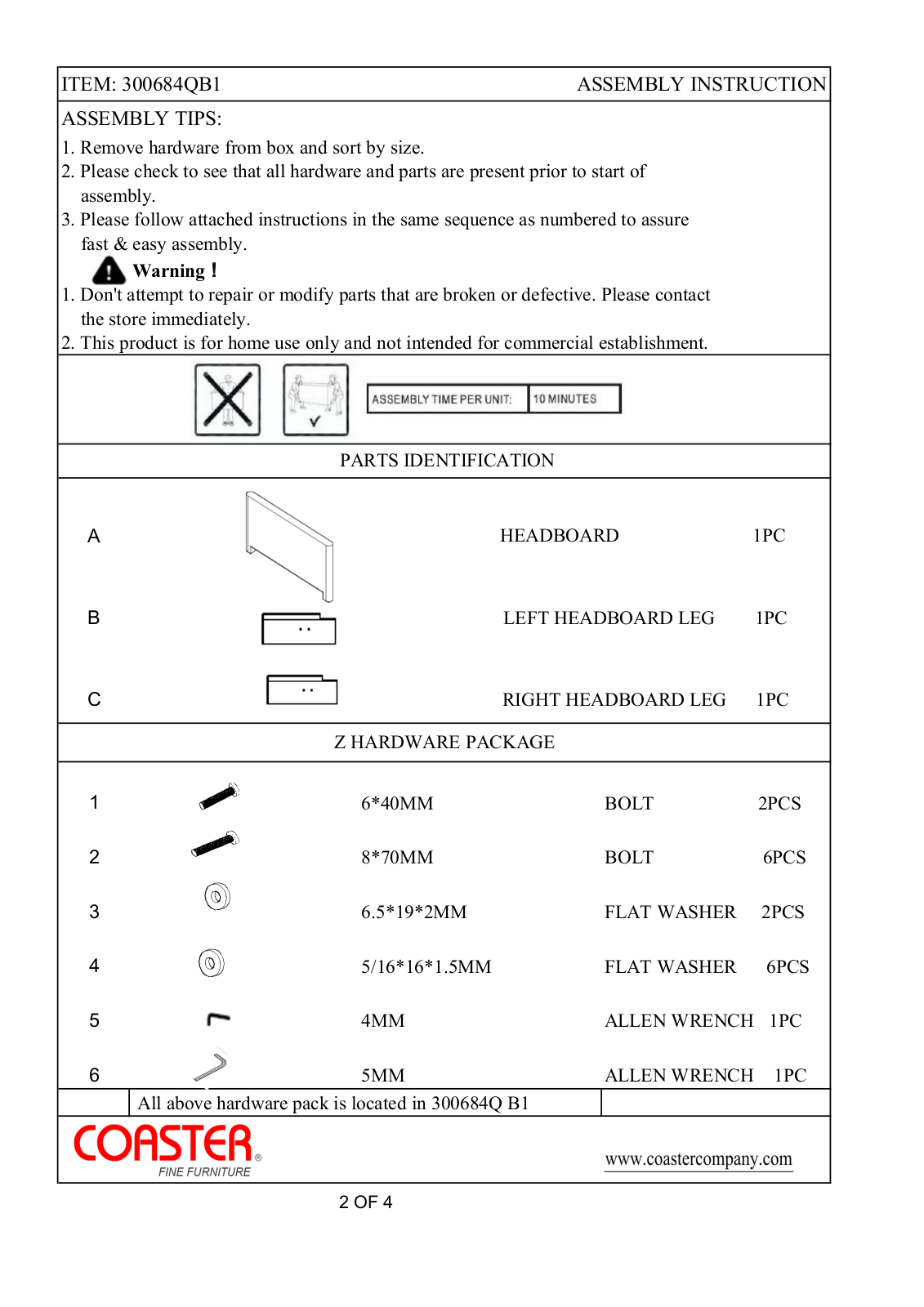

ITEM: 300684QB1 ASSEMBLY INSTRUCTION

156

3

BAC

2

4

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of
assembly.

3. Please follow attached instructions in the same sequence as numbered to assure
fast & easy assembly.

Warning！

1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.

2. This product is for home use only and not intended for commercial establishment.

PARTS IDENTIFICATION

HEADBOARD 1PC

LEFT HEADBOARD LEG 1PC

RIGHT HEADBOARD LEG 1PC

Z HARDWARE PACKAGE

6*40MM BOLT 2PCS

8*70MM BOLT 6PCS

6.5*19*2MM FLAT WASHER 2PCS

5/16*16*1.5MM FLAT WASHER 6PCS

4MM ALLEN WRENCH 1PC

5MM ALLEN WRENCH 1PC

All above hardware pack is located in 300684Q B1

2 OF 4
