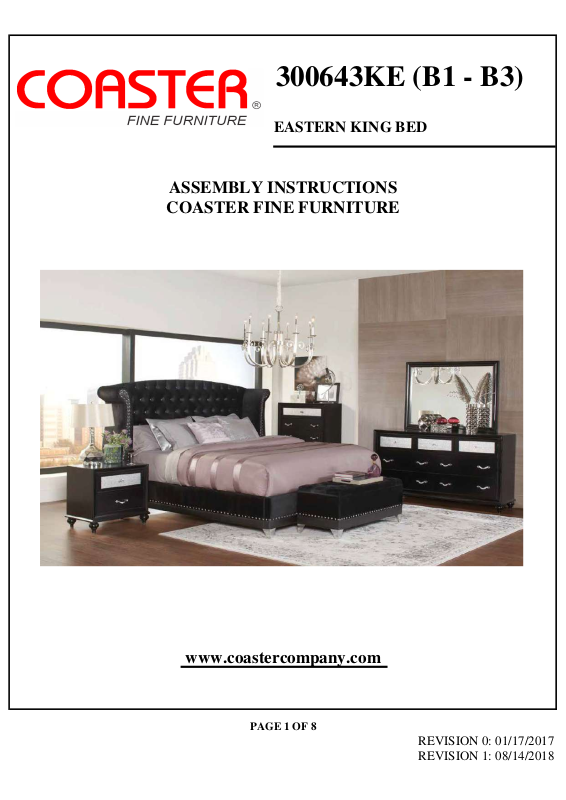

Coaster 300643KE Assembly Guide

300643KE (B1 - B3)

EASTERN KING BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

www.coastercompany.com

PAGE 1 OF 8

REVISION 0: 01/17/2017
REVISION 1: 08/14/2018

ITEM :

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

!

300643KE (B1 - B3)

Warning!

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.

2. This product is for home use only and not intended for commercial establishments.

ASSEMBLY TIME 40 MINUTES

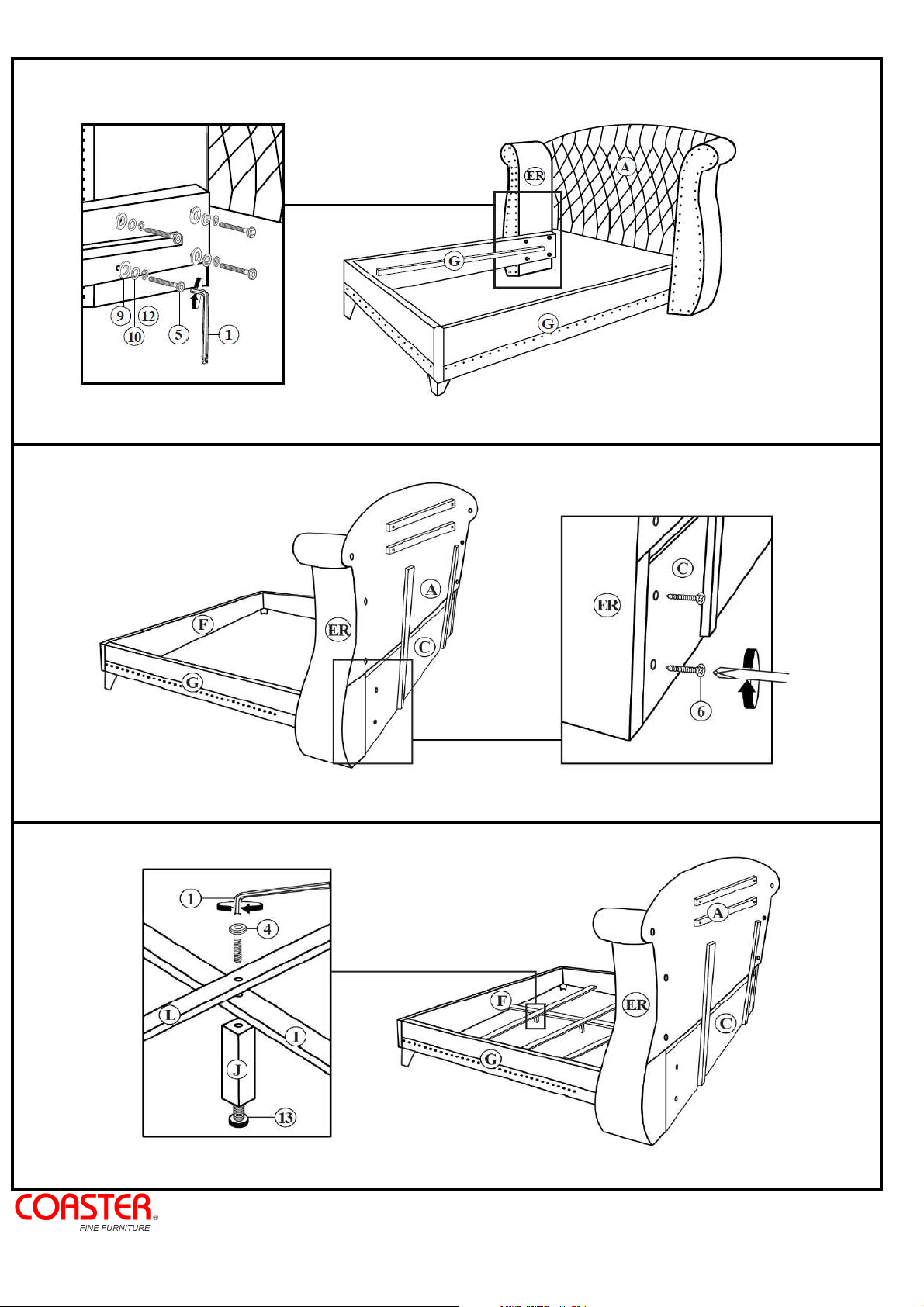

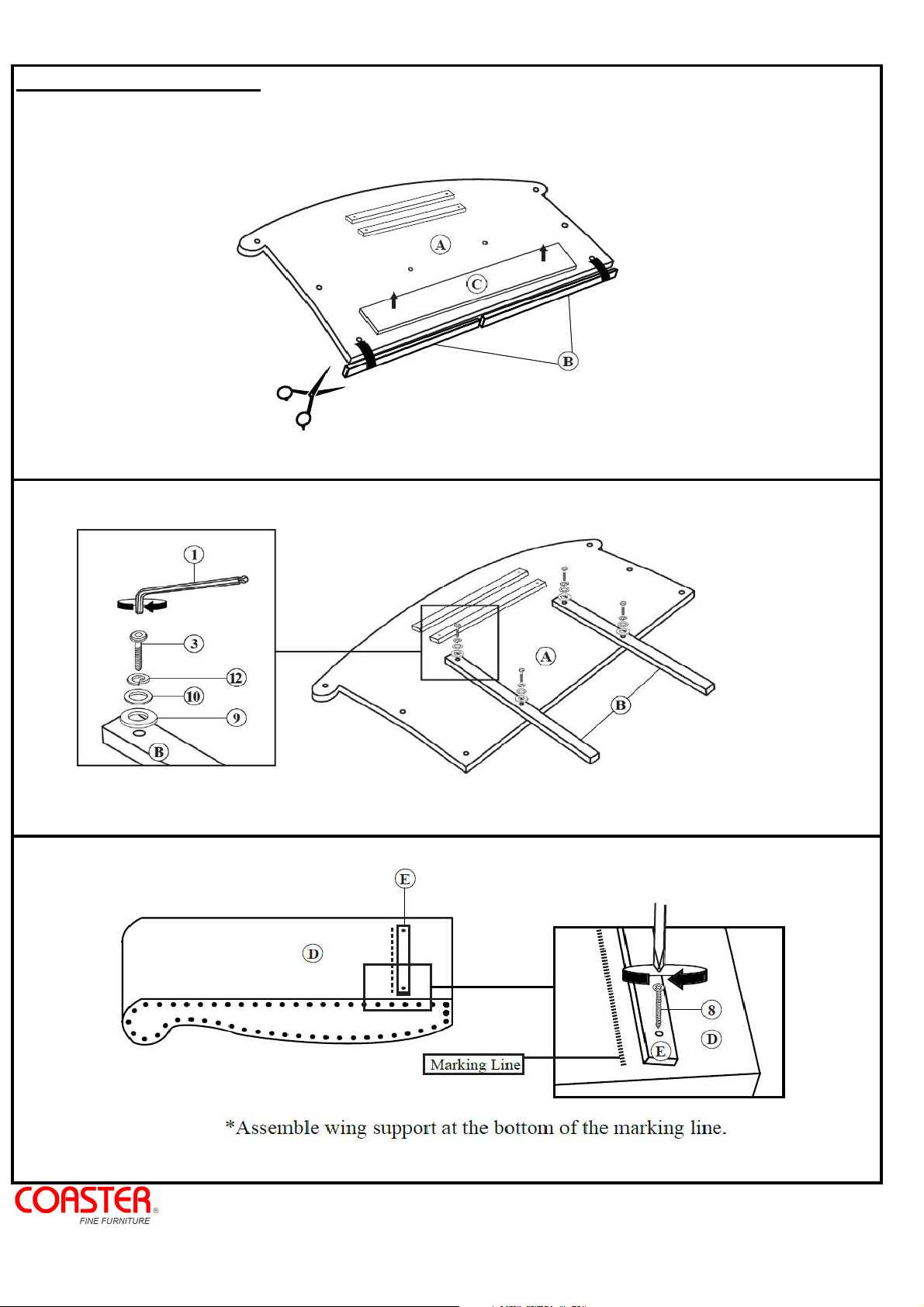

ASSEMBLY INSTRUCTIONS

PARTS IDENTIFICATION

B1 (BOX 1 )

A

B

C

B2 (BOX 2 )

D

PART NAME

HEADBOARD PANEL

HEADBOARD LEG

HEADBOARD SUPPORT

PANEL

WING

FIGURE QTY

1PC

2PCS

1PC

2PCS

E

B3 (BOX 3 )

F

G

WING SUPPORT 2PCS

FOOTBOARD 1PC

BED RAIL 2PCS

www.coastercompany.com

PAGE 2 OF 8

ITEM :

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

!

300643KE (B1 - B3)

Warning!

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.

2. This product is for home use only and not intended for commercial establishments.

ASSEMBLY INSTRUCTIONS

PARTS IDENTIFICATION

PART NAME FIGURE QTY

H

BED SLAT WITHOUT 10PCS

HOLE

I

J

K

L

M

HB

ER 300643KE (B2)

BED SLAT WITH

HOLES

BED SLAT SUPPORT

FOOTBOARD LEG 2PCS

CENTER RAIL 2PCS

CENTER RAIL SUPPORT 2PCS

300643KE (B1)

FROM BOX 1

HEADBOARD COMPLETE

FROM BOX 2

WING COMPLETE

3PCS

6PCS

1PC

2PCS

PAGE 3 OF 8

www.coastercompany.com
