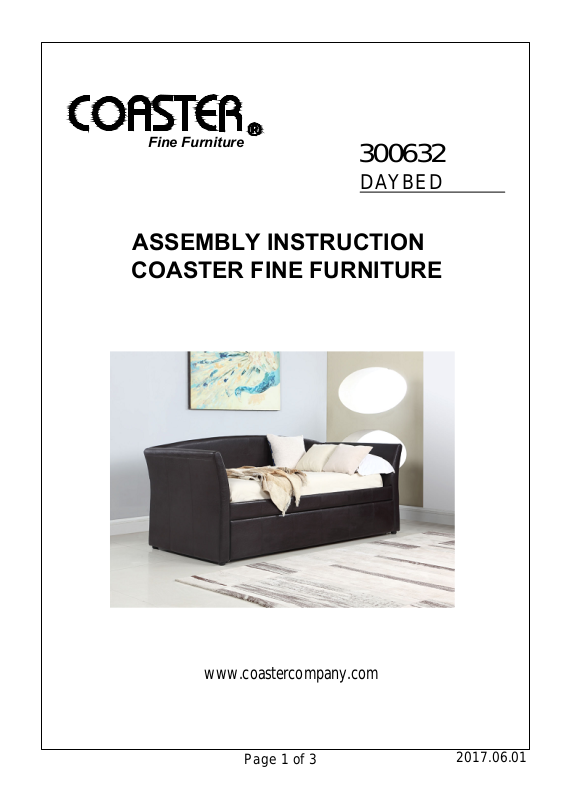

Coaster 300632 Assembly Guide

Fine Furniture

３００６３２

DAYBED

ASSEMBLY INSTRUCTION

COASTER FINE FURNITURE

www.coastercompany.com

Page 1 of 3

2017.06.01

ITEM:300632

ASSEMBLY INSTRUCTION

Assembly lnstruction

ASSEMBLY TIPS:

Remove hardware from box and sort by size.

1.
lease check to see that all hardware and parts are present prior to start of assembly.

2. P

3. Please follow attached instructions in the same sequence as numbered to assure fast &
easy assembly.

Warning!

1.
store immediately.

This product is for home use only and not intended for commercial establishment.

2.

Please contact theDon't attempt to repair or modify parts that are broken or defective.

ASSEMBLY TIME PER UNIT:

PARTS IDENTIFICATION:

B1: ARMREST

A DAYBED SIDE ARM 2PCS

B2: TRUNDLE SIDE RAIL

B TRUNDLE FRONT 1PC

C TRUNDLE BACK 1PC

D TRUNDLE SIDE 2PCS

B3: SIDE RAIL & BACK & SLAT & HARDWARE

E DAYBED FRONT 1PC

15 MINUTES

HARDWARE PACKAGE

Z Hardware pack is located in 300632B3

NO DESCRIPTION FIGURE QTY

1 SHORT BOLT M8*20 8PCS

2 LARGE BOLT M8*65 4PCS

3 WASHER M8 20PCS

4 SPRING WASHER M8 20PCS

5 ALLEN WRENCH 5/16" 1PC

F DAYBED BACK (TOP) 1PC

G DAYBED BACK 1PC

H LEG 4PCS

I SLAT (A) 24PCS

J SINGLE PLASTIC CAP 48PCS

K SLAT (B) 2PCS

Fine Furniture

Page 2 of 3

6 LARGE BOLT M8*35 8PCS

7 SCREW M8*35 4PCS
