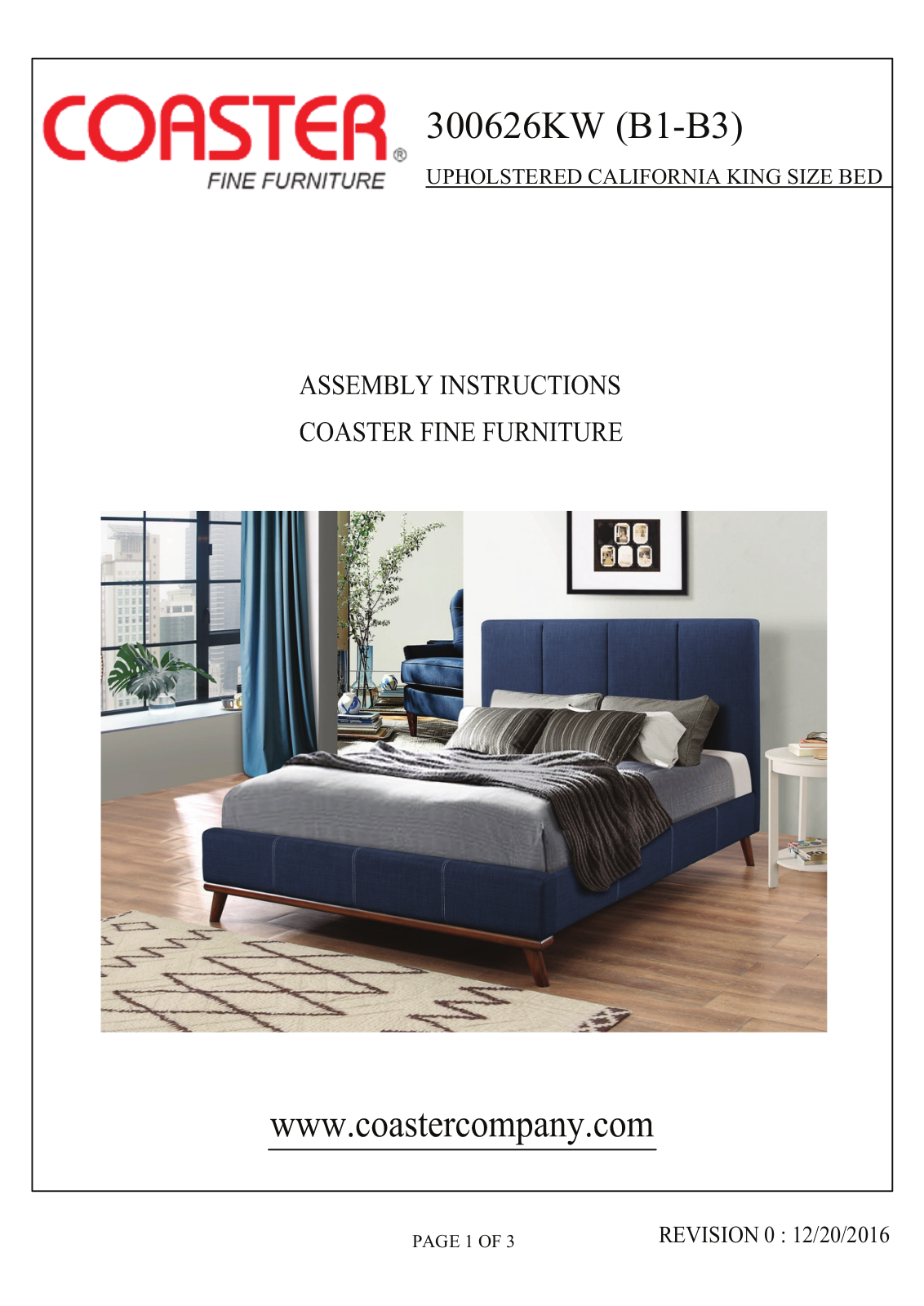

Coaster 300626KW Assembly Guide

300626KW (B1-B3)

UPHOLSTERED CALIFORNIA KING SIZE BED

PAGE 1 OF 3

REVISION 0 : 12/20/2016

ITEM : 300626KW (B1- B3)

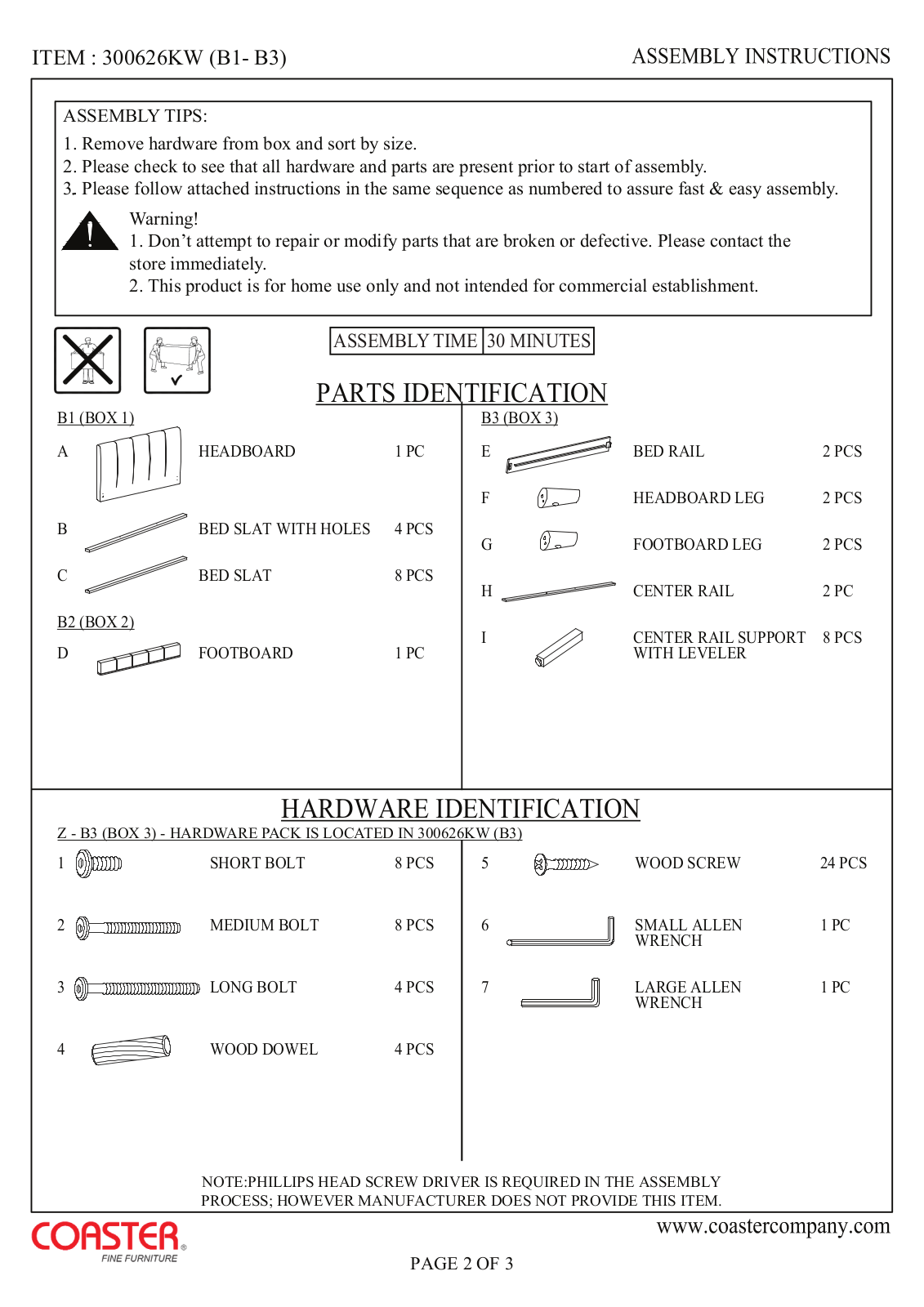

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

Warning!

1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.

2. This product is for home use only and not intended for commercial establishment.

ASSEMBLY TIME 30 MINUTES

PARTS IDENTIFICATION

B1 (BOX 1) B3 (BOX 3)

A

B

C

B2 (BOX 2)

D

HEADBOARD

BED SLAT WITH HOLES

BED SLAT

FOOTBOARD

1 PC

4 PCS

8 PCS

1 PC

E

F

G

H

I

HARDWARE IDENTIFICATION

Z - B3 (BOX 3) - HARDWARE PACK IS LOCATED IN 300626KW (B3)

1

SHORT BOLT

8 PCS

5

BED RAIL

HEADBOARD LEG

FOOTBOARD LEG

CENTER RAIL

CENTER RAIL SUPPORT
WITH LEVELER

WOOD SCREW

2 PCS

2 PCS

2 PCS

2 PC

8 PCS

24 PCS

2

3

4

MEDIUM BOLT

LONG BOLT

WOOD DOWEL

NOTE:PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER MANUFACTURER DOES NOT PROVIDE THIS ITEM.

8 PCS

4 PCS

4 PCS

6

7

SMALL ALLEN
WRENCH

LARGE ALLEN
WRENCH

1 PC

1 PC

PAGE 2 OF 3
