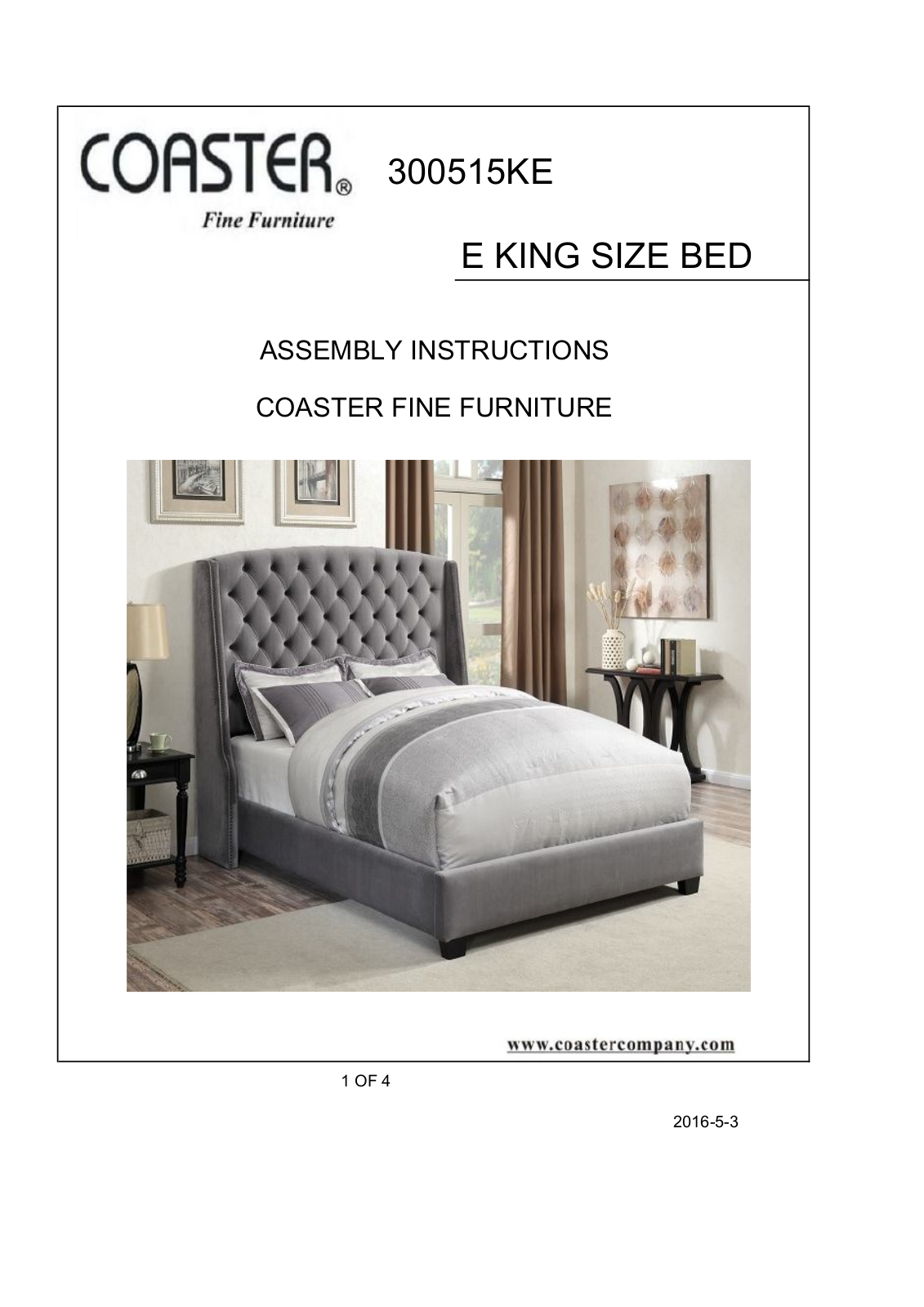

Coaster 300515KE Assembly Guide

300515KE

E KING SIZE BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

1 OF 4

2016-5-3

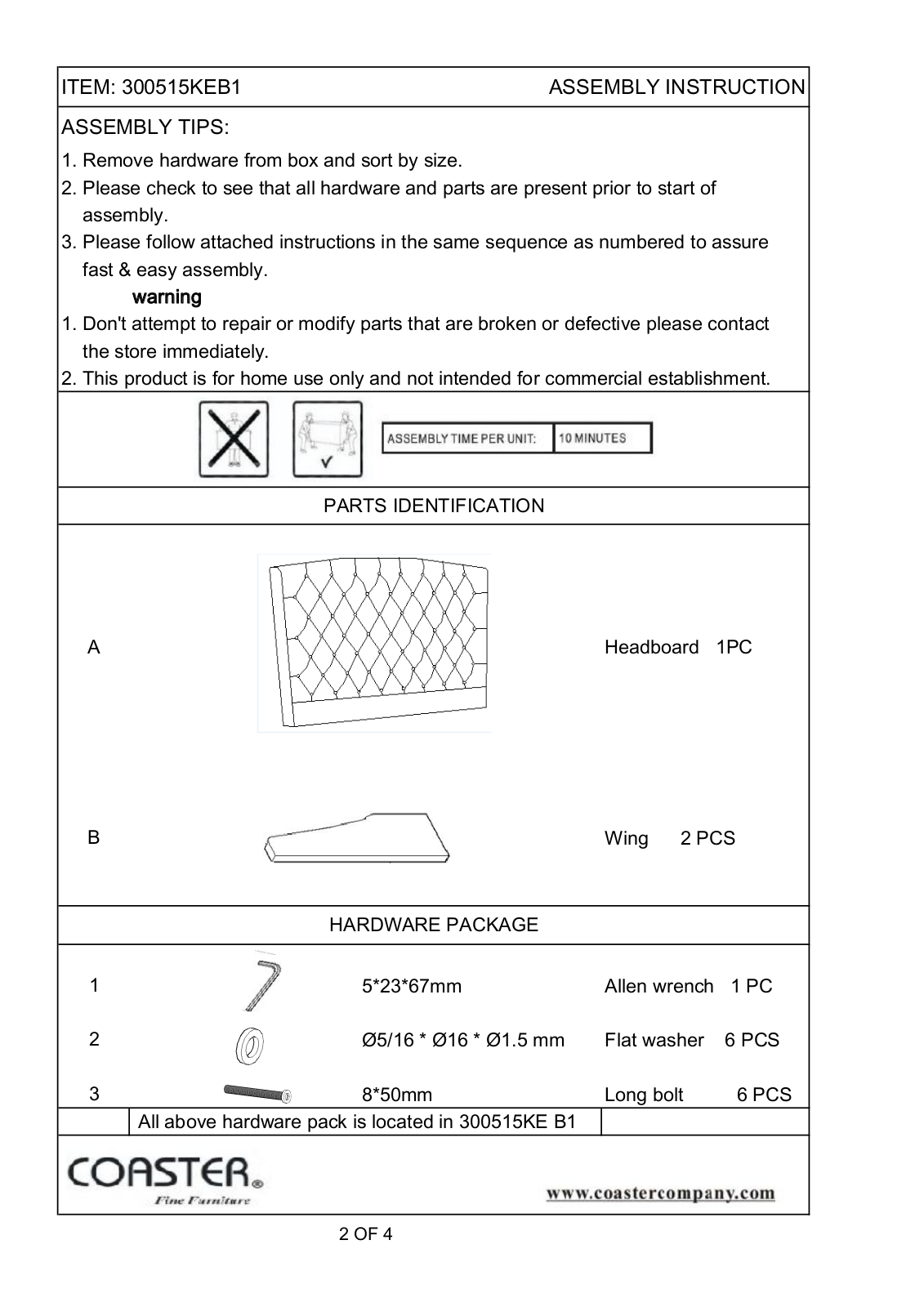

ITEM: 300515KEB1 ASSEMBLY INSTRUCTION

AB123

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of
assembly.

3. Please follow attached instructions in the same sequence as numbered to assure
fast & easy assembly.

warning

1. Don't attempt to repair or modify parts that are broken or defective please contact
the store immediately.

2. This product is for home use only and not intended for commercial establishment.

PARTS IDENTIFICATION

Headboard 1PC

Wing 2 PCS

HARDWARE PACKAGE

5*23*67mm Allen wrench 1 PC

Ø5/16 * Ø16 * Ø1.5 mm Flat washer 6 PCS

8*50mm Long bolt 6 PCS

All above hardware pack is located in 300515KE B1

2 OF 4
