Page 1
300515F
FULL SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
1 OF 4
2017-7-7

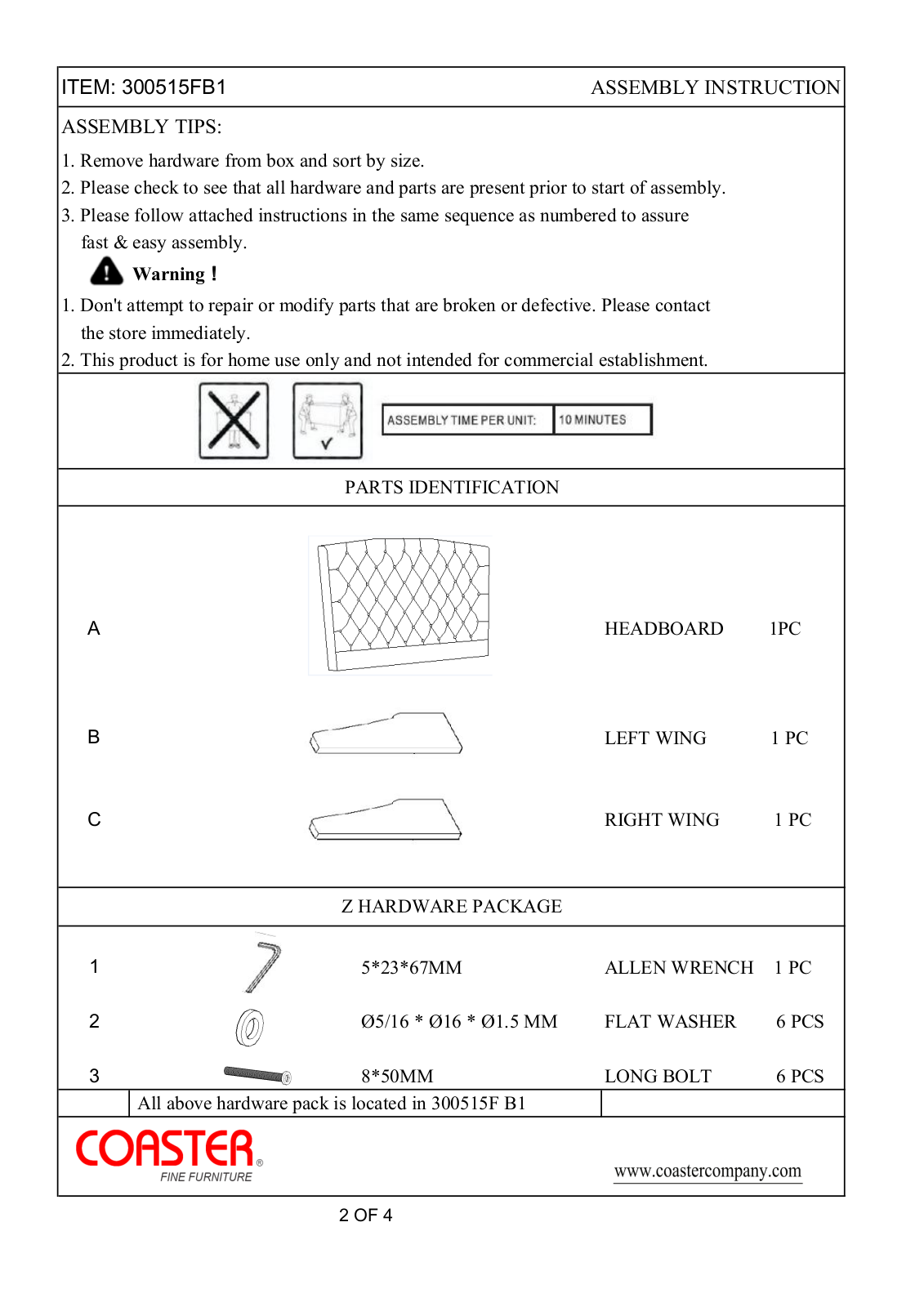

Page 2
ITEM: 300515FB1
B
AC123
ASSEMBLY INSTRUCTION
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure
fast & easy assembly.
Warning！
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
HEADBOARD 1PC
LEFT WING 1 PC
RIGHT WING 1 PC
Z HARDWARE PACKAGE
5*23*67MM ALLEN WRENCH 1 PC
Ø5/16 * Ø16 * Ø1.5 MM FLAT WASHER 6 PCS
8*50MM LONG BOLT 6 PCS
All above hardware pack is located in 300515F B1
2 OF 4

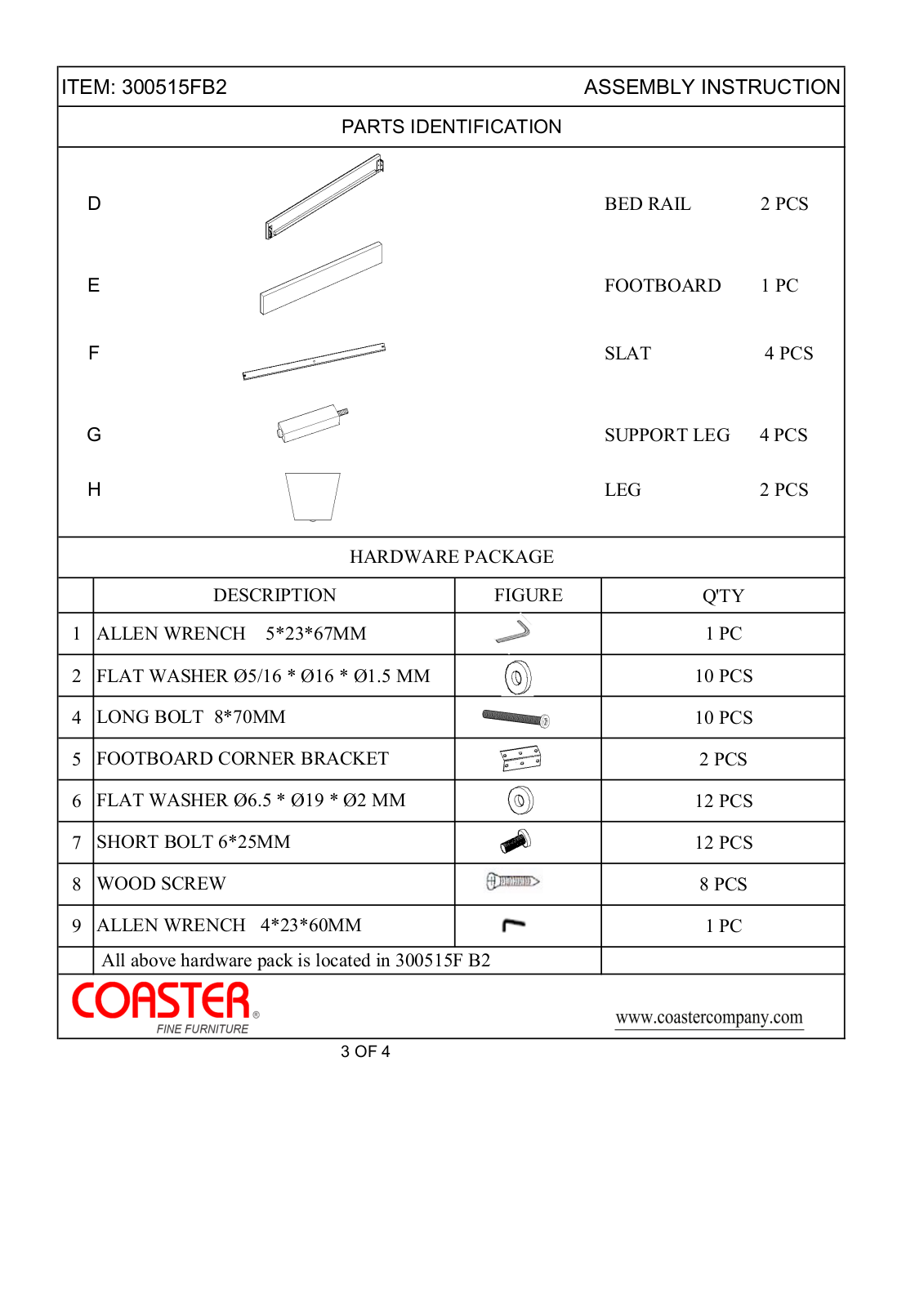

Page 3
ITEM: 300515FB2 ASSEMBLY INSTRUCTION
D
E
F
G
H
PARTS IDENTIFICATION
BED RAIL 2 PCS
FOOTBOARD 1 PC
SLAT 4 PCS
SUPPORT LEG 4 PCS
LEG 2 PCS
HARDWARE PACKAGE
DESCRIPTION FIGURE
ALLEN WRENCH 5*23*67MM
1 1 PC
Q'TY
2 FLAT WASHER Ø5/16 * Ø16 * Ø1.5 MM 10 PCS
LONG BOLT 8*70MM
4 10 PCS
FOOTBOARD CORNER BRACKET
5 2 PCS
FLAT WASHER Ø6.5 * Ø19 * Ø2 MM
6 12 PCS
SHORT BOLT 6*25MM
7 12 PCS
WOOD SCREW
8 8 PCS
ALLEN WRENCH 4*23*60MM
9 1 PC
All above hardware pack is located in 300515F B2
3 OF 4

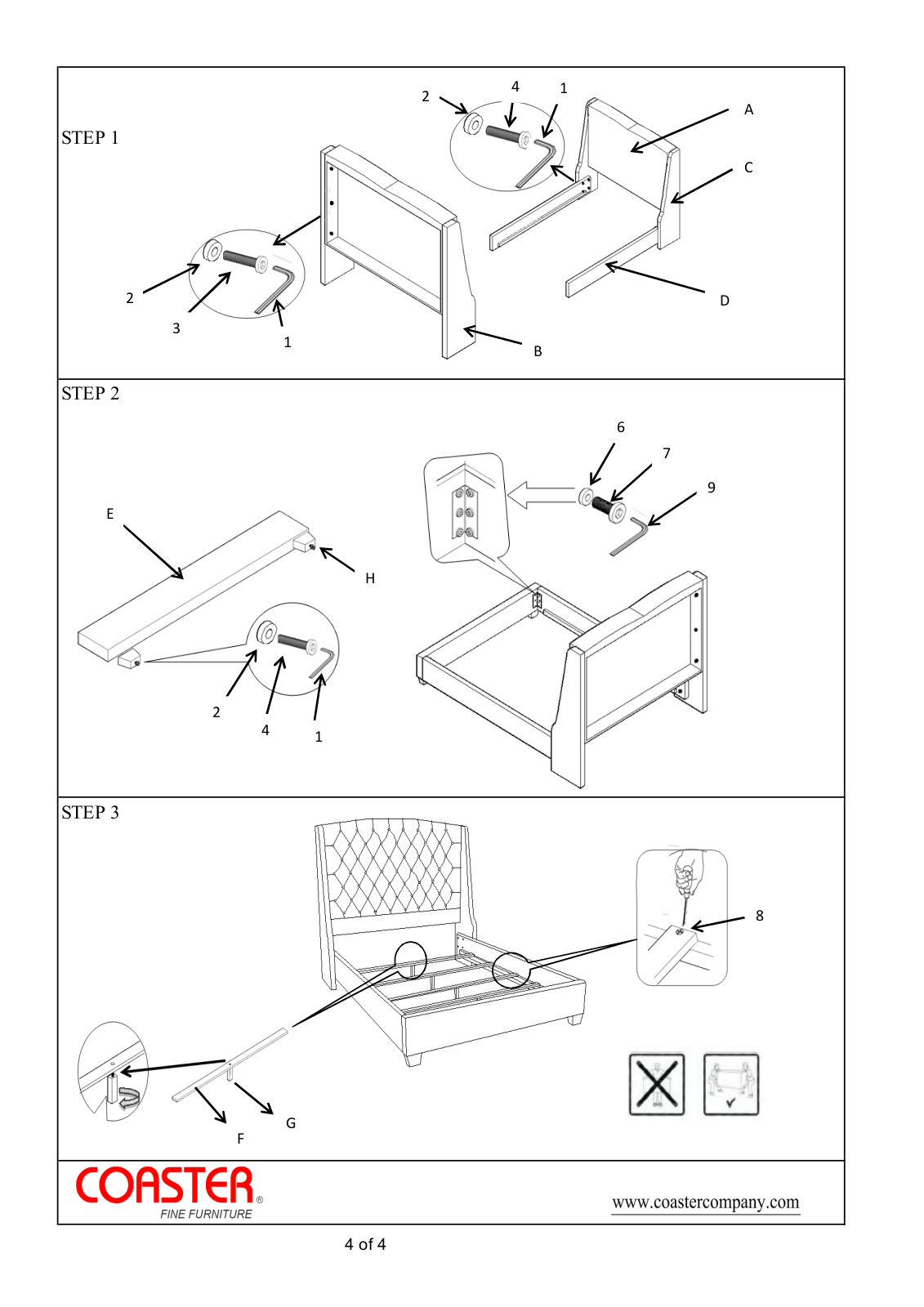

Page 4
STEP 1
2
4
1
A
C
STEP 2
E
2
3
2
1
H
4
1
B
6
7
D
9
STEP 3
8
G
F
4 of 4
