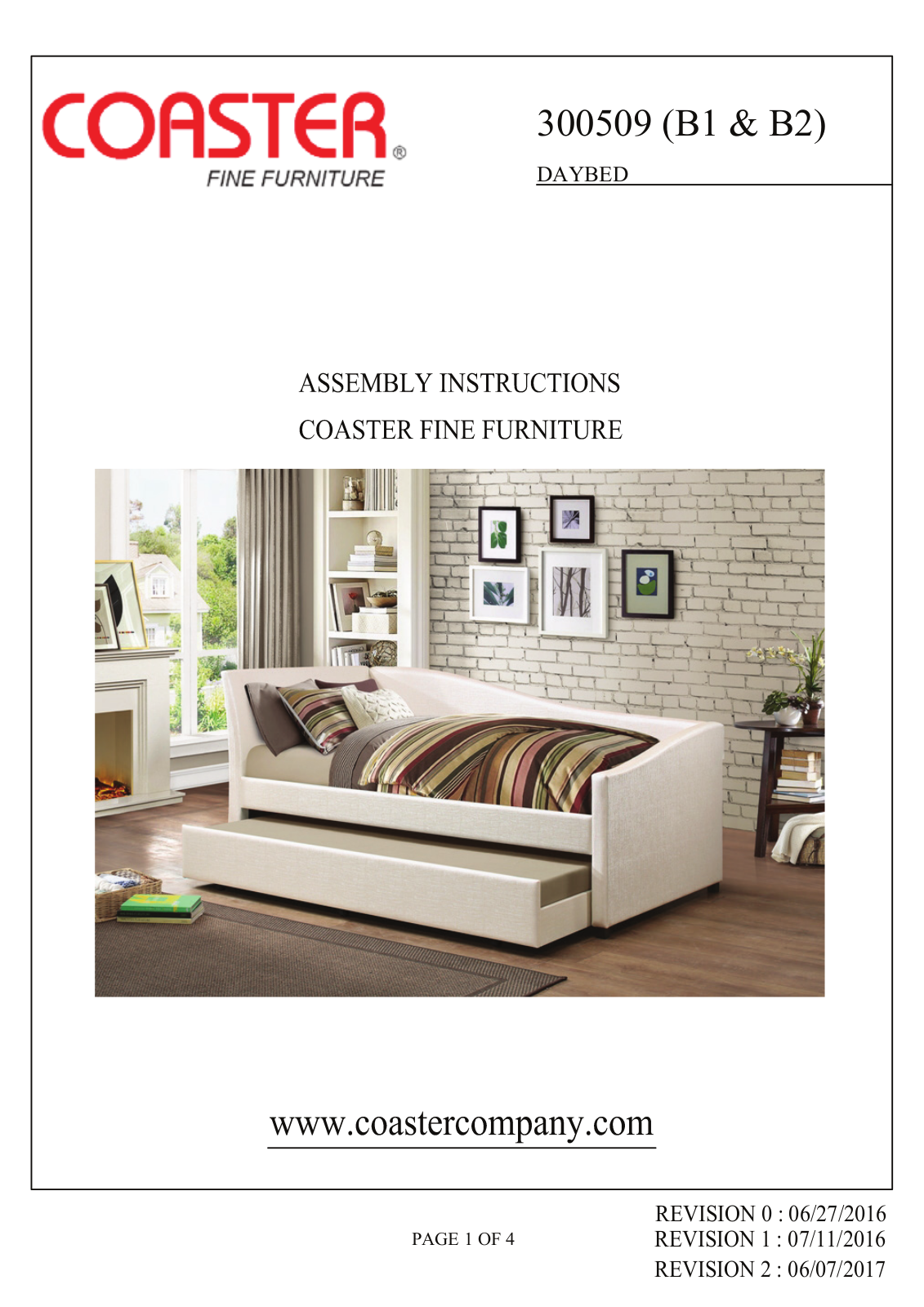

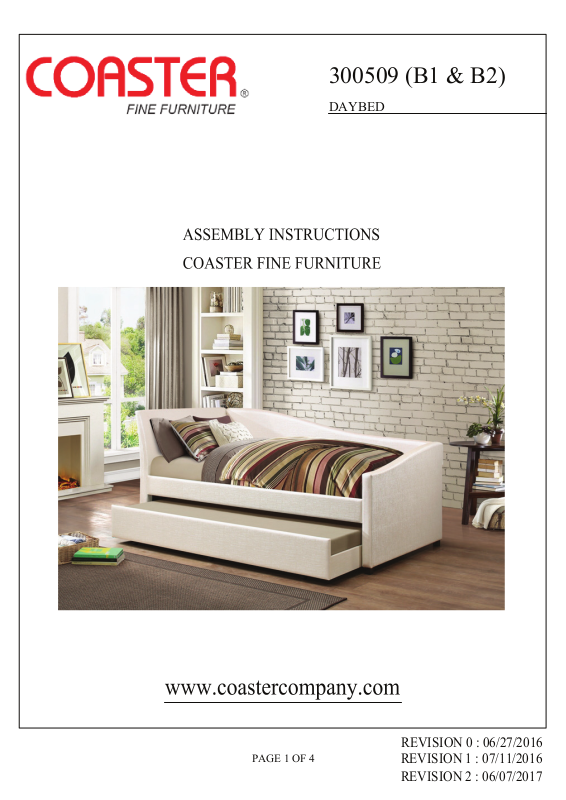

300509 (B1 & B2)
DAYBED
PAGE 1 OF 4
REVISION 0 : 06/27/2016
REVISION 1 : 07/11/2016
REVISION 2 : 06/07/2017
ITEM : 300509 (B1 & B2)
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishment.
ASSEMBLY TIME 30 MINUTES

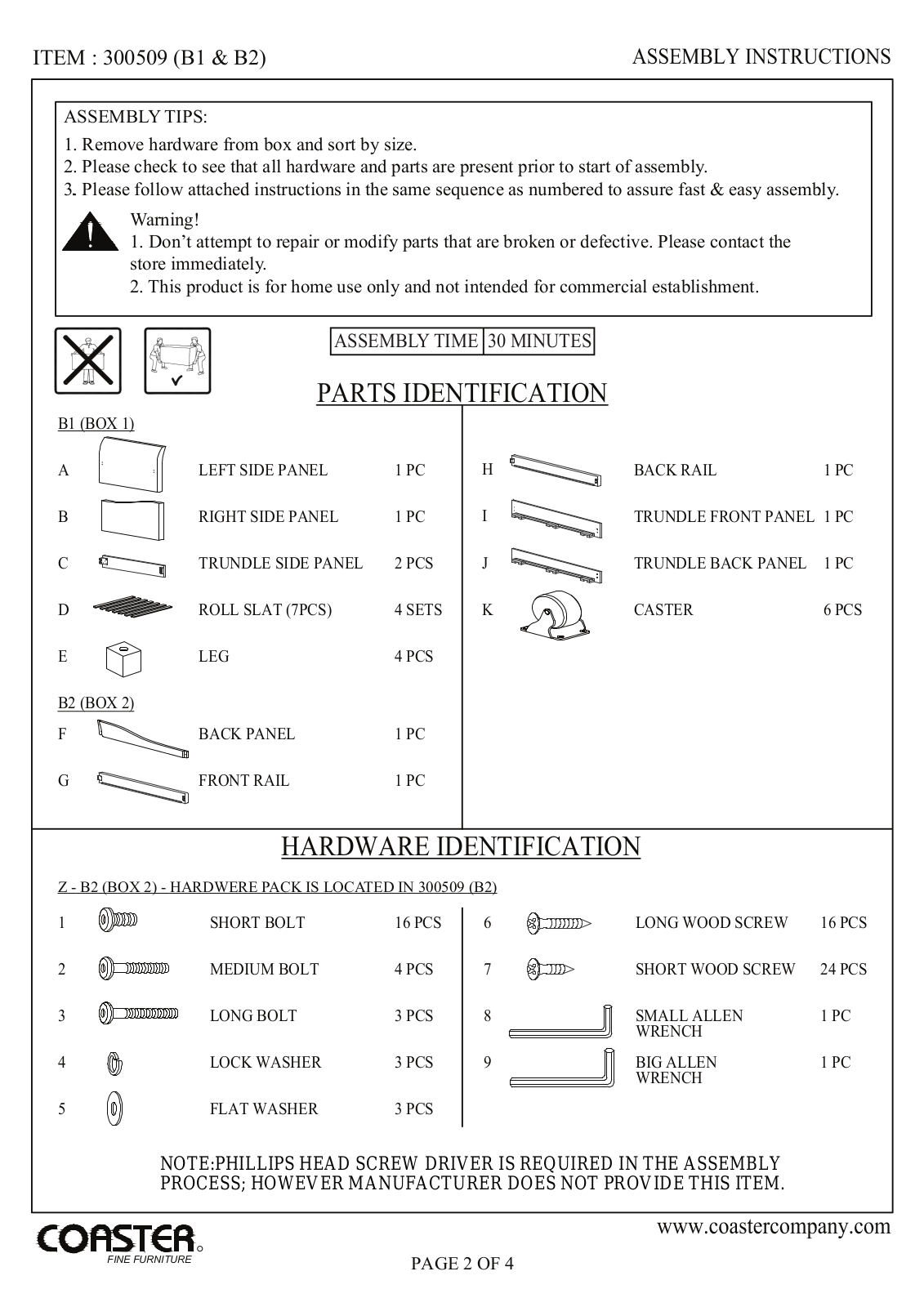

PARTS IDENTIFICATION
B1 (BOX 1)
A
B
C
D
E
B2 (BOX 2)
F
G
LEFT SIDE PANEL
RIGHT SIDE PANEL
TRUNDLE SIDE PANEL
ROLL SLAT (7PCS)
LEG
BACK PANEL
FRONT RAIL
1 PC
1 PC
2 PCS
4 SETS
4 PCS
1 PC
1 PC
H
I
J
K
HARDWARE IDENTIFICATION
Z - B2 (BOX 2) - HARDWERE PACK IS LOCATED IN 300509 (B2)
BACK RAIL
TRUNDLE FRONT PANEL
TRUNDLE BACK PANEL
CASTER
1 PC
1 PC
1 PC
6 PCS
1
2
3
4
5
SHORT BOLT
MEDIUM BOLT
LONG BOLT
LOCK WASHER
FLAT WASHER
16 PCS
4 PCS
3 PCS
3 PCS
3 PCS
6
7
8
9
LONG WOOD SCREW
SHORT WOOD SCREW
SMALL ALLEN
WRENCH
BIG ALLEN
WRENCH
16 PCS
24 PCS
1 PC
1 PC
NOTE:PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER MANUFACTURER DOES NOT PROVIDE THIS ITEM.
FINE FURNITURE
PAGE 2 OF 4
ITEM : 300509 (B1 & B2)

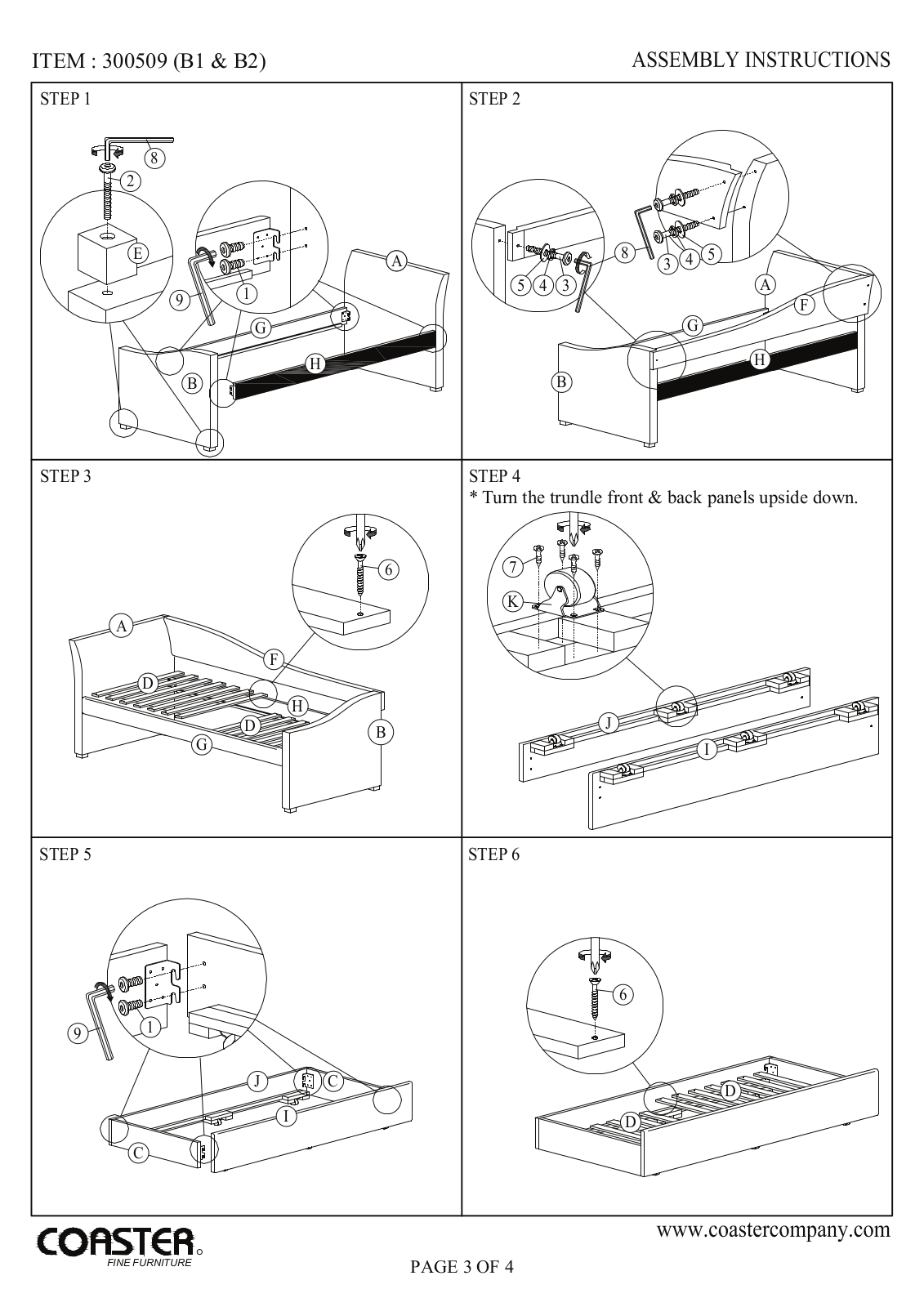

STEP 1
STEP 3
STEP 2
8
2
E
9
B
1
G
H
AA
345
B
8
5
4
3
A
F
G
H
STEP 4
* Turn the trundle front & back panels upside down.
6
A
F
D
H
D
G
B
7
K
STEP 5 STEP 6
J
I
6
9
FINE FURNITURE
1
J
C
C
I
D
D
PAGE 3 OF 4
ITEM : 300509 (B1 & B2)

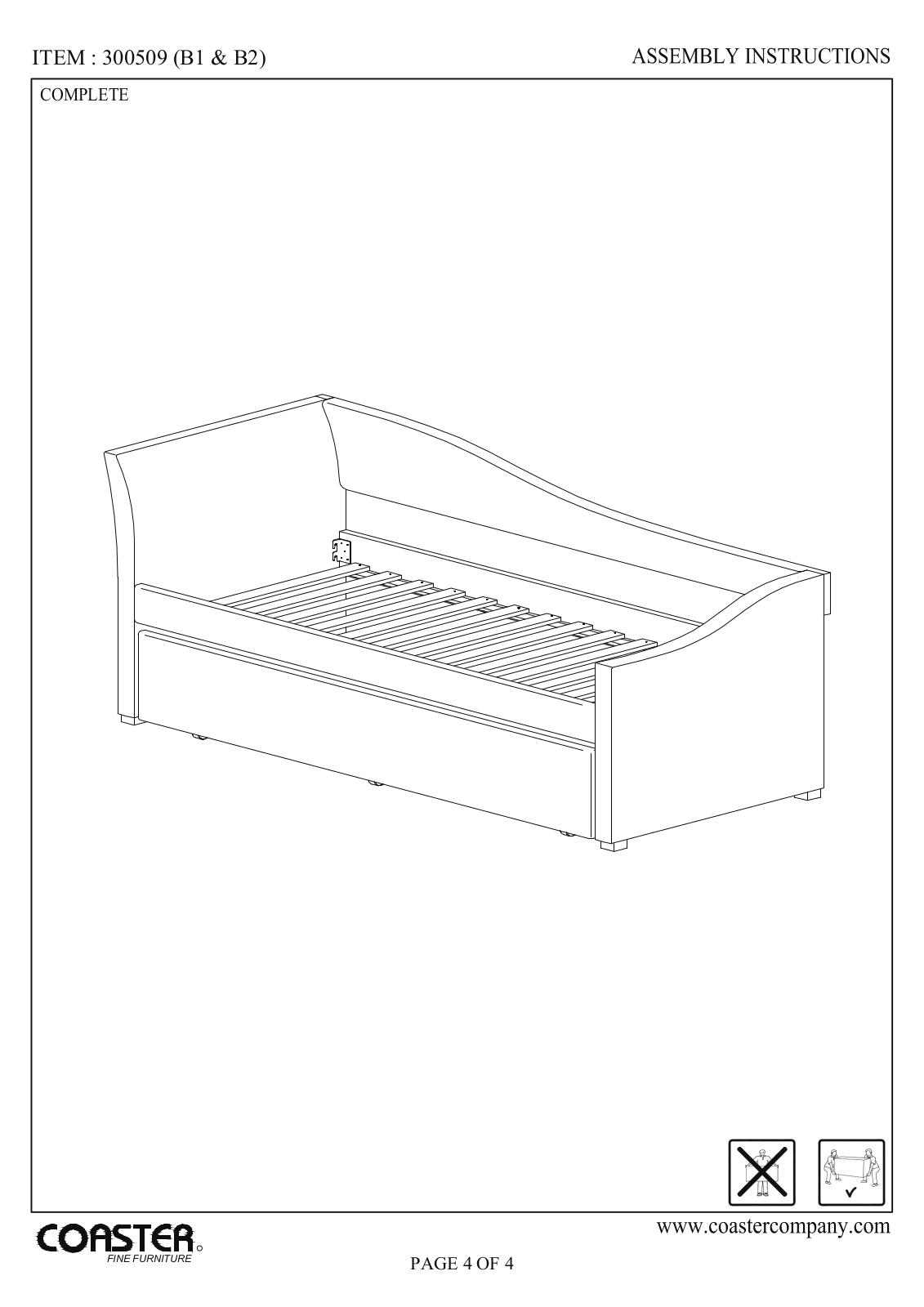

COMPLETE
FINE FURNITURE
PAGE 4 OF 4
Loading...
